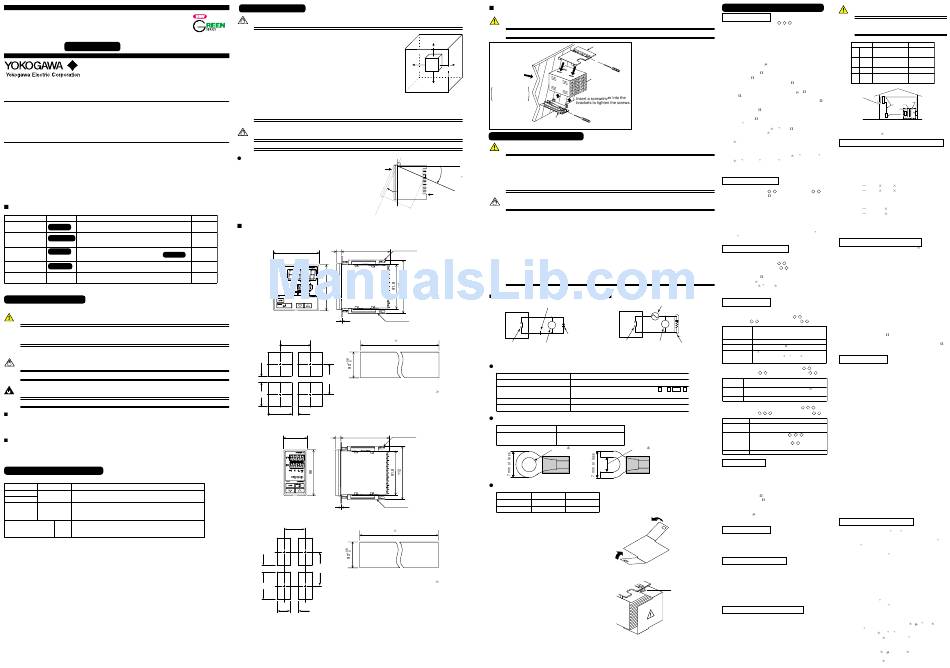

User's
Models UT350 / UT320
Manual Digital Indicating Controllers
User's Manual
Installation
IM 05D01D02-01E
3rd Edition: Sep 30, 2004
This manual describes installation, wiring, and other tasks required to make the controller ready for operation.
Contents
1. Safety Precautions
2. Model and Suffix Codes
3. How to Install
4. How to Connect Wires
5. Hardware Specifications
6. Terminal Wiring Diagrams
Introduction
Thank you for purchasing the UT350/UT320 digital indicating controller.
The controller is shipped from the factory with 3 hardcopy user's manuals (A2 size) and 1 user's manual on CD-ROM. The
3 user's manuals in hardcopy format describe the operating procedures required for basic use. It is recommended that you
refer to these user's manuals to understand [1] installation, [2] initial settings, and [3] operating procedures of the controller.
The CD-ROM contains an User's Manual (Reference) with descriptions of various functions and setting ranges that can be
set as necessary.
Moreover, the use of an optional parameter setting tool (model: LL100-E10) allows you to easily perform settings and
adjustments with a PC.
How to Use the Manuals
Purpose Manual Title Description
Setup Describes the tasks (installation, wiring, and others) required
Installation
to make the controller ready for operations.
Describes examples of setting PV input types, control output
Basic operation
Initial Settings
types, and alarm types. Making settings described herein
allows you to carry out basic control.
Operating
Describes key operation sequences. For operation control
Operations
procedures through external contact inputs, see the back of
Installation
and troubleshooting
User's Manual.
Brief operation Contains the parameter map used as a guideline for setting
Parameters
and setpoint recording parameters and lists of parameters for recording User Settings.
Detailed description User's Manual Describes functions more advanced than those explained in
of functions (Reference) the 3 hardcopy user's manuals.
1. Safety Precautions
The following symbol is indicated on the controller to ensure safe use.
CAUTION
This symbol on the controller indicates that the operator must refer to an explanation in the user's manual in order
to avoid the risk of injury or death of personnel or damage to the instrument. The manual describes how the operator
should exercise special care to avoid electric shock or other dangers that may result in injury or loss of life.
The following symbols are used in the hardcopy user's manuals and in the user's manual supplied on the CD-ROM.
NOTE
Indicates that operating the hardware or software in a particular manner may damage it or result in a system failure.
IMPORTANT
Draws attention to information that is essential for understanding the operation and/or features of the controller.
Exemption from Responsibility
Make sure that all of the precautions are strictly adhered to. Yokogawa Electric Corporation assumes no liability for any
damage resulting from use of the instrument in contradiction to the precautions.
Also, Yokogawa Electric Corporation assumes no liability to any party for any loss or damage, direct or indirect, caused
by the use or any unpredictable defect of the instrument.
Regarding Protection, Safety, and Prohibition Against Unauthorized Modification
(1) In order to protect the product and the system controlled by it against damage and ensure its safe use, make certain that
all of the instructions and precautions relating to safety contained in this document are strictly adhered to. Yokogawa
does not guarantee safety if products are not handled according to these instructions.
(2) Modification of the product is strictly prohibited.
2. Model and Suffix Codes
Before using the controller, check that the model and suffix codes match your order.
Model Suffix Code Description
UT350
Digital indicating controller (provided with retransmission output and 15 V
UT320 DC loop power supply as standard)
-0 Standard type
Type -2 Heating/cooling type
-3 Standard type (with 24 V DC loop power supply)
0 None
Optional functions 1 With communication, heater burnout alarm
2 With heater burnout alarm
Check that the following items are provided:
• Digital indicating controller (of ordered model): ........................................... 1
• Brackets (mounting hardware): ...................................................................... 1 pair
• Unit label: ....................................................................................................... 1
• User's Manuals: .............................................................................................. 3 (A2 size)
• User's Manual (Reference) (CD-ROM version): ........................................... 1
3. How to Install
NOTE
To install the controller, select a location where:
(1) no one may accidentally touch the terminals,
(2) mechanical vibrations are minimal,
(3) corrosive gas is minimal,
(4) temperature can be maintained at about 23°C and the fluctuation is minimal,
(5) no direct radiant heat is present,
(6) no magnetic disturbances are caused,
(7) no wind blows against the terminal board (reference junction compensation
element),
(8) no water is splashed,
(9) no flammable materials are around,
Never place the controller directly on flammable items or equipment.
If the controller has to be installed close to flammable items or equipment, be sure to provide shielding panels all
around the controller, at least 150mm away from every side; the panels should be made of either 1.43mm-thick
metal-plated steel plates or 1.6mm-thick uncoated steel plates.
NOTE
Never touch the opening at the bottom of the case. It is to be used in the factory at shipping.
Installation Position
Install the controller at an angle within 30° from horizontal
Front panel
with the front panel facing upward. Do not install it facing
of controller
downward. The position of right and left sides should be hori-
zontal.
Media
A2-size paper,
External Dimensions and Panel Cutout Dimensions
back and front
A2-size paper,
UT350
front
11 100
96
A2-size paper,
back
A2-size paper,
back and front
CD-ROM
1 to 10 mm (Panel thickness)
General installation Side-by-side close installation
117 min.
(53) 145 min.
"N" stands for the number of controllers to be
installed.
However, the measured value applies if N
+0.8
92
0
+0.8
92 (25)
0
UT320
48 11 100
1 to 10 mm (Panel thickness)
General installation Side-by-side close installation
70 min.
145 min.
(53)
"N" stands for the number of controllers to be
installed.
However, the measured value applies if N
+0.8
92
0
+0.6
45 (25)
0
How to Install
CAUTION
Turn off the power to the controller before installing it on the panel because there is a possibility of electric shock.
150mm Panel
150mm 150mm
150mm
Direction to insert the
controller
Insert the controller
into the opening at
the front of the panel.
Small bracket
(bottom mounting hardware)
4. How to Connect Wires
CAUTION
1) Before carrying out wiring, turn off the power to the controller and check that the cables to be connected are not
alive with a tester or the like because there is a possibility of electric shock.
2) For the protection and safe use of the controller, be sure to place a circuit breaker (conforms with IEC60947,
Must not
5A, 100V or 220V AC) near the controller where the breaker can easily be operated. In addition, be sure to
exceed 30
indicated that it is the instrument to cut the power supply of the controller.
3) Wiring must be carried out by personnel who have basic electrical knowledge and practical experience.
Rear of
30
controller
NOTE
1) Provide power from a single-phase instrument power supply. If there is a lot of noise in the power line, insert an
insulating transformer into the primary side of the line and use a line filter (recommended part: ZAC2205-00U
from TDK) on the secondary side.
As a countermeasures against noise, do not place the primary and secondary power cables close to each other.
2) For thermocouple input, use shielded compensating lead wires for wiring. For RTD input, use shielded wires
Unit: mm
that have low conductor resistance and cause no significant differences in resistance between the three wires.
The cables to be used for wiring, terminal specifications, and recommended parts are as shown below.
Large bracket
3) Control output relays may be replaced. However, because they have a life of 100,000 times that of the resis-
tance load, use auxiliary relays to turn on/off a load.
4) The use of inductance (L) loads such as auxiliary relays, motors and solenoid valves causes malfunction or
relay failure; always insert a CR filter for use with alternating current or a diode for use with direct current, as
a spark-removal surge suppression circuit, into the line in parallel with the load.
5) When there is possibility of being struck by external lightening surge, use the arrester to protect the instrument.
For DC Relay Wiring
UT350/UT320
External DC power supply
Small bracket
R
+0.8
[(N-1) 96+92]
0 UT's contact
Relay
(Use one with a relay coil rating
less than the UT's contact rating.)
Cable Specifications and Recommended Cables
Purpose
Power supply, grounding, relay contact outputs
Thermocouple
5.
RTD
Other signals
Recommended Terminal Lugs
Unit: mm
Applicable wire size
Small bracket
0.3 to 1.65 mm 2 0.8 N·m or less
3 . 7 m m
Terminal Covers (Optional parts)
Target Model Part Number
For UT350 T9115YD
Small bracket
For UT320 T9115YE
1. Before attaching the terminal cover, bend the side with
the groove inward as shown in Fig. A. Be careful not to
+0.6
[(N-1) 48+45]
0 bend it backwards. This not only marks it harder to
attach the cover but will also weaken its hold.
2. Fit the holes on the top and bottom of the terminal cover
the projections on the brackets (Fig. B) and lock in
place. The figure right shows the attachment of a
terminal cover to UT controller.
5.
5. Hardware Specifications
PV Input Signals
• Number of inputs: 1 (terminals
• Input type: Universal input system. The input type can be
selected with the software.
• Sampling period: 250 ms
• Burnout detection: Functions at TC, RTD, standard signal
After opening the mounting hole on the
Large bracket (0.4 to 2 V or 1 to 5 V)
(top mounting hardware) panel, follow the procedures below to in- Upscale, downscale, and off can be specified.
For standard signal, burnout is determined to have occurred
stall the controller:
if it is 0.1 V or less.
1. Insert the controller into the opening
• Input bias current: 0.05 A (for TC or RTD b-terminal)
from the front of the panel so that the
• Measurement current (RTD): About 0.13 mA
terminal board on the rear is at the far
• Input resistance: 1 M or more for thermocouple or mV input
Terminal board side. About 1 M for DC voltage input
• Allowable signal source resistance: 250
2. Set the brackets in place on the top and
thermocouple or mV input
bottom of the controller as shown in the
Effects of signal source resistance: 0.1 V/ or less
figure on the left, then tighten the screws
2 k or less for DC voltage input
of the brackets. Take care not to over-
Effects of signal source resistance: About 0.01%/100
tighten them. • Allowable wiring resistance: for RTD input
Maximum 150 /wire: Conductor resistance between three
Recommended wires should be equal
tightening torque However, 10 /wire for a maximum range of -150.0 to
150.0 C.
:0.4N m
Wire resistance effect:
• Allowable input voltage:
RTD input
20 V DC for DC voltage input
• Noise rejection ratio: 40 dB (50/60 Hz) or more in normal mode
120 dB (50/60 Hz) or more in common mode
• Reference junction compensation error:
1.5 C (0 to 15 C, 35 to 50 C)
• Applicable standards: JIS, IEC, DIN (ITS-90) for thermocouples
and RTD
Loop Power Supply
Supplies power to a two-wire transmitter.
(15 V DC: terminals
A resistor (10 to 250 ) connected between the controller
and transmitter converts a current signal into a voltage
signal, which is then read via the PV input terminal.
Supply voltage: 14.5 to 18.0 V DC, max. 21 mA (provided
with a protection circuit against a field short-circuit); 21.6
to 28.0 V DC, max. 30 mA (only for models with 24 V DC
loop power supply)
When using the 24 V DC loop power supply of the UT320,
keep the operating ambient temperature between 0 C and
40 C.
Retransmission Output
Either PV, target setpoint, or control output is output.
Either the retransmission output or the loop power supply
can be used with terminals
• Number of outputs: 1 (terminals
• Output signal: 4-20 mA DC
• Load resistance: 600
• Output accuracy:
conditions (23
50/60 Hz)
For AC Relay Wiring
Control Output
UT350/UT320 External AC power supply
Universal output system, The output type can be selected
with the software.
• Current output (Standard type: terminals
terminals
R
Number of outputs
Diode
(Mount it directly
UT's contact Relay Output signal
to the relay coil CR filter
(Use one with a relay coil
Load resistance
terminal (socket).) (Mount it directly
rating less than the UT's
to the relay coil Output accuracy
contact rating.)
terminal (socket).)
• Voltage pulse output (Standard type: terminals
side: terminals
Name and Manufacturer
Number of
2
600 V PVC insulated wires, JIS C 3307, 0.9 to 2.0 mm
outputs switched between a voltage pulse output and current output.
Shielded compensating lead wires, JIS C 1610, X- - -
Output signal On-voltage = 12 V or more (load resistance: 600
(See Yokogawa Electric's GS 6B1U1-E.)
Resolution
Shielded wires (three conductors), UL2482 (Hitachi Cable)
Shielded wires • Relay contact output (Standard type: terminals
side: terminals
Number of outputs
Output signal
Tightening torque
Contact rating
3 . 7 m m
Resolution
Contact Inputs
or
• Purpose: Selection between target setpoints or Auto/Man modes,
or for other purposes
• Number of inputs: 2
• Input type: Non-voltage contact or transistor open collector input
• Input contact rating: 12 V DC, 10 mA or more
• On/off determination: For non-voltage contact input, contact
Sales Unit resistance of 1 k or less is determined as "on" and contact
resistance of 20 k or more as "off."
1
For transistor open collector input, input voltage of 2 V or
1
less is determined as "on" and leakage current must not
exceed 100 A when "off."
• Minimum status detection hold time: About 1 second.
Contact Outputs
• Purpose: Alarm output, FAIL output, and others
• Number of outputs: 3
• Relay contact rating: 240 V AC/1 A or 30 V DC/1 A ; 1a (COM
terminal is common), (FAIL output ; 1b)
Display Specifications
Fold the cover in the direction
of the arrow. • PV display:
UT350: 4-digit, 7-segment red LED display, character
Figure A
height
UT320: 4-digit, 7-segment red LED display, character
height
• Setpoint display: 4-digit, 7-segment red LED display, character
Fit the cover hold
over the protrusion height of 9.3 mm (for both UT350 and UT320)
• Status indicating lamps: LEDs
on the mounting bracket.
Safety and EMC Standards
• Safety: Compliant with IEC/EN61010-1: 2001, approved by
CSA1010, approved by UL508.
Installation category : CAT. II (IEC/EN61010, CSA1010)
Pollution degree : 2 (IEC/EN61010, CSA1010)
Measurement category : I (CAT. I : IEC/EN61010)
Rated measurement input voltage : 10V DC max.(across
Figure B
terminals), 300V AC max.(across ground)
Rated transient overvoltage : 1500V (Note)
Note : It is a value on the safety standard which is assumed
by IEC/EN61010-1 in measurement category I, and is not
the value which guarantees an apparatus performance.
CAUTION
This equipment has Measurement category I, there-
11 - 12 - 13 )
fore do not use the equipment for measurements
within measurement categories II, III and IV.
Measurement category Description Remarks
CAT.1 For measurements performed
1
on circuits not directly
connected to MAINS.
CAT.2 For measurements performed Appliances, portable
2
on circuits directly connected equipments, etc.
to the low voltage installation.
3 CAT.3 For measurements performed Distribution board,
in the building installation.
circuit breaker, etc.
For measurements performed
4 CAT.4 Overhead wire, cable
at the source of the low-voltage systems, etc.
installation.
or less for
Internal Wiring
2
3 T
4
Entrance
1
Cable
Outlet
• EMC standards: Complies with EN61326.
0.1 C /10 The instrument continues to operate at a measuring
10 V DC for thermocouple, mV, or accuracy of within 20% of the range during tests.
Construction, Installation, and Wiring
• Construction: Only the front panel is dust-proof and drip-proof
(protection class IP55)
1.0 C (15 to 35 C)
For side-by-side close installation the controller loses its
dust-proof and drip-proof protection.
• Material: ABS resin and polycarbonate
• Case color: Black
• Weight: About 1 kg or less
• Dimensions:
UT350 96 (W) 96 (H) 100 (depth from panel face) mm
UT320 48 (W) 96 (H) 100 (depth from panel face) mm
14 - 15 ; 24 V DC: terminals 21 - 22 )
• Installation: Panel-mounting type. With top and bottom
mounting hardware (1 each)
• Panel cutout dimensions:
UT350 92 +0.8 (W) 92 +0.8 (H) mm
0 0
UT320 45 +0.6 (W) 92 +0.8 (H) mm
0 0
• Installation position: Up to 30° upward facing
(not designed for facing downward)
• Wiring: M3.5 screw terminals (for signal wiring and power/
ground wiring as well)
Power Supply Specifications
• Power supply: Rated voltage of 100 to 240 V AC ( 10%), 50/60 Hz
• Power consumption: Max. 20 VA (8.0 W max.)
• Internal fuse rating: 250 V AC, 1.6A time-lug fuse
• Data backup: Non-volatile memory (can be written to up to
- .
14 15
100,000 times)
14 - 15 )
• Withstanding voltage
or less - Between primary terminals* and secondary terminals**:
0.3% of span under standard operating At least 1500 V AC for 1 minute
2 C, 55 10% RH, power frequency of - Between primary terminals* and grounding terminal:
At least 1500 V AC for 1 minute
- Between grounding terminal and secondary terminals**:
At least 1500 V AC for 1 minute
- Between secondary terminals**:
At least 500 V AC for 1 minute
* Primary terminals indicate power terminals and relay
16 - 17 ; Heating side:
output terminals
16 - 17 ; Cooling side: terminals 14 - 15 )
** Secondary terminals indicate analog I/O signal, voltage
1 or 2 (two for heating/cooling type),
pulse output, and contact input terminals
switched between a voltage pulse output
• Insulation resistance: 20 M or more at 500 V DC between
and current output.
power terminals and grounding terminal
4-20 mA DC
• Grounding: Class D grounding (grounding resistance of 100
600 or less
or less)
0.3% of span under standard operating
conditions (23 2 C, 55 10% RH,
Signal Isolations
power frequency of 50/60 Hz)
• PV input terminals: Isolated from other input/output terminals.
- ; Heating
16 17
Not isolated from the internal circuit.
16 - 17 ; Cooling side: terminals 14 - 15 )
• 15 V DC loop power supply terminals: Not isolated from 4-20
mA analog output and voltage pulse control output. Isolated
1 or 2 (two for heating/cooling type),
from other input/output terminals and internal circuit.
• 24 V DC loop power supply terminals: Isolated from the 15 V
or more)
DC loop power supply terminals, 4-20 mA analog output
Off-voltage = 0.1 V DC or less
terminals and voltage pulse control output terminals, other
10 ms
I/O terminals and the internal circuitry.
• 4-20 mA analog output terminals (for control output and
1 - 2 - 3 ; Heating
retransmission): Not isolated between 4-20 mA outputs nor
- - ; Cooling side: terminals - )
1 2 3 4 7
from 15 V DC loop power supply and voltage pulse control
output. Isolated from other input/output terminals and
1 or 2 (two for heating/cooling type)
internal circuit.
Three terminals (NC, NO, and common) /
• Voltage pulse control output terminals: Not isolated from 4-20
Two terminals
mA outputs and 15 V DC loop power supply. Isolated from
Terminals 1 - 2 - 3 :
250 V AC or 30 V DC, 3 A (resistance load) other input/output terminals and internal circuit.
Terminals 4 - 7 : • Relay contact control output terminals: Isolated between contact
240 V AC or 30 V DC, 1A (resistance load)
output terminals and from other input/output terminals and
10 ms internal circuit.
• Contact input terminals: Not isolated between contact input
terminals and from communication terminals. Isolated from
other input/output terminals and internal circuit.
• Relay contact alarm output terminals: Not isolated between
relay contact alarm outputs. Isolated from other input/
output terminals and internal circuit.
• RS-485 communication terminals: Not isolated from contact
input terminals. Isolated from other input/output terminals
and internal circuit.
• Power terminals: Isolated from other input/output terminals and
internal circuit.
• Grounding terminals: Isolated from other input/output terminals
and internal circuit.
Environmental Conditions
• Normal operating conditions:
Ambient temperature: 0 to 50 C (40 C or less for side-by-side
close installation)
The operating ambient temperature range is between 0 C
and 40 C when the 24 V DC loop power supply of the
UT320 is used.
Temperature change rate: 10 C/h or less
Ambient humidity: 20 to 90% RH (no condensation allowed)
Magnetic field: 400 A/m or less
Continuous vibration at 5 to 14 Hz: Full amplitude of 1.2 mm or less
Continuous vibration at 14 to 150 Hz: 4.9 m/s 2 or less
of 20 mm
Short-period vibration: 14.7 m/s 2 , 15 seconds or less
Shock: 147 m/s 2 or less, 11 ms
of 12 mm
Installation height: Height above sea level of 2000 m or less
Warm-up time: 30 minutes or more after power on
• Transportation and storage conditions:
Temperature: -25 to 70 C
Temperature change rate: 20 C/h or less
Humidity: 5 to 95% RH (no condensation allowed)
• Effects of changes in operating conditions
- Effects from changes in ambient temperature:
- On voltage or thermocouple input, 1 V/ C or
of F.S./ C, whichever is larger
- On RTD input, 0.05 C / C (ambient temperature) or less
- On analog output, 0.05% of F.S./ C or less
- Effects from power supply fluctuation (within rated voltage
range)
- On analog input, 1 V/10 V or 0.01% of F.S./10 V,
whichever is larger
- On analog output, 0.05% of F.S./ 10 V or less
IM 05D01D02-01E (1)
0.01%
