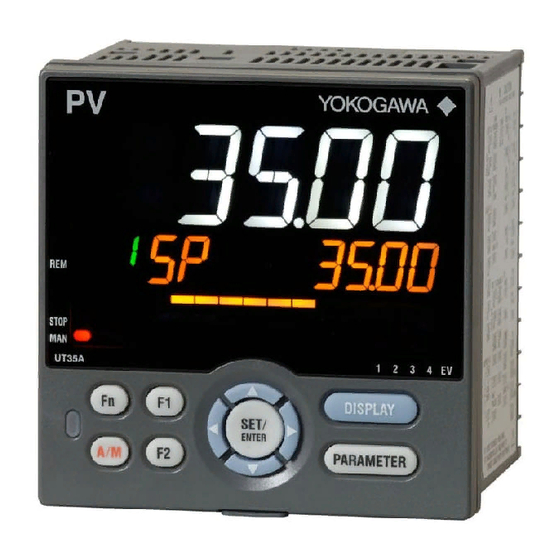

Page 1 User’s Manual UT35A/UT32A Digital Indicating Controllers User’s Manual IM 05P01D31-01EN IM 05P01D31-01EN 4th Edition...
Page 2 Product Registration Thank you for purchasing YOKOGAWA products. YOKOGAWA provides registered users with a variety of information and services. Please allow us to serve you best by completing the product registration form accessible from our homepage. http://www.yokogawa.com/ns/reg/...
Page 4: Introduction
● Every effort has been made to ensure accuracy in the preparation of this manual. Should any errors or omissions come to your attention, however, please inform Yokogawa Electric’s sales office or sales representative. ● Under no circumstances may the contents of this manual, in part or in whole, be transcribed or copied without our permission. 4th Edition : Jan. 2011 (YK) All Rights Reserved, Copyright © 2010-2011 Yokogawa Electric Corporation IM 05P01D31-01EN...
Page 5: Trademarks
Trademarks ● Our product names or brand names mentioned in this manual are the trademarks or registered trademarks of Yokogawa Electric Corporation (hereinafter referred to as YOKOGAWA). ● Microsoft, MS-DOS, Windows, Windows XP, Windows Vista, and Windows 7 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. ● Adobe, Acrobat, and Postscript are either registered trademarks or trademarks of Adobe Systems Incorporated. ● Ethernet is a registered trademark of XEROX Corporation in the United States. ● Modbus is a registered trademark of Schneider Electric.
Page 6 • Be sure to use the spare parts approved by YOKOGAWA when replacing parts or consumables. • This product is not designed or manufactured to be used in critical applications that directly affect or threaten human lives.
Page 7: Handling Precautions For The Main Unit
• YOKOGAWA makes no warranties regarding the product except those stated in the WARRANTY that is provided separately. • The product is provided on an “as is” basis. YOKOGAWA assumes no liability to any person or entity for any loss or damage, direct or indirect, arising from the use of the product or from any unpredictable defect of the product.
Page 8: Checking The Contents Of The Package
Checking the Contents of the Package Unpack the box and check the contents before using the product. If the product is different from that which you have ordered, if any parts or accessories are missing, or if the product appears to be damaged, contact your sales representative. UT35A/UT32A Main Unit The UT35A/UT32A main units have nameplates affixed to the side of the case.
Page 9: Model And Suffix Codes Of Ut35A (For Standard Model)
Model and Suffix Codes of UT35A (for Standard model) [Style:S3] Optional Model Suffix code suffix Description code Digital Indicating Controller (provided with retransmission output or 15 V DC UT35A loop power supply, 2 DIs, and 3 DOs) (Power supply: 100-240 V AC) Type 1: Standard type Position proportional type Basic control Heating/cooling type None Type 2: 2 additional DIs, 2 additional DOs Functions 5 additional DIs, 5 additional DOs None RS-485 communication (Max.38.4 kbps, 2-wire/4-wire) Type 3: Ethernet communication (with serial gateway function)
Page 10: Model And Suffix Codes Of Ut32A (For Standard Model)
Model and Suffix Codes of UT32A (for Standard model) [Style:S3] Optional Model Suffix code suffix Description code Digital Indicating Controller (provided with retransmission output or 15 V DC UT32A loop power supply, 2 DIs, and 3 DOs) (Power supply: 100-240 V AC) Type 1: Standard type Position proportional type Basic control Heating/cooling type None Type 2: RS-485 communication (Max. 38.4 kbps, 2-wire/4-wire) Functions 2 additional DIs and 2 additional DOs Type 3: None Open networks...
Page 11: Model And Suffix Codes Of Ut35A (For Detailed Model)
Model and Suffix Codes of UT35A (for Detailed model) [Style:S3] Optional Model Suffix code suffix Description code Digital Indicating Controller (provided with 2 DIs, and 3 DOs) (Power UT35A supply: 100-240 V AC) Fixed code -NNN Always "-NNN” English German Display language (*1) French Spanish White (Light gray) Case color Black (Light charcoal gray) Analog output (current/voltage pulse) Relay output (c-contact) Output 1 (*2) (*3) (*5)
Page 12: Model And Suffix Codes Of Ut32A (For Detailed Model)
Model and Suffix Codes of UT32A (for Detailed model) [Style:S3] Optional Model Suffix code suffix Description code Digital Indicating Controller (provided with 2 DIs, and 3 DOs) (Power supply: UT32A 100-240 V AC) Fixed code -NNN Always "-NNN” English German Display language (*1) French Spanish White (Light gray) Case color Black (Light charcoal gray) Analog output (current/voltage pulse) Relay output (c-contact)
Page 13 Accessories The product is provided with the following accessories according to the model and suffix codes. Check that none of them are missing or damaged. Product Name Quantity Remark Part number: L4502TP (For fixing the upper Brackets and lower parts) Unit label Part number: L4502VZ Tag label Part number: L4502VE (Only when ordered.)
Page 14: Symbols Used In This Manual
Symbols Used in This Manual This symbol is used on the instrument. It indicates the possibility of injury to the user or damage to the instrument, and signifies that the user must refer to the user’s manual for special instructions. The same symbol is used in the user’s manual on pages that the user needs to refer to, together with the term “WARNING” or “CAUTION.” WARNING Calls attention to actions or conditions that could cause serious or fatal injury to the user, and indicates precautions that should be taken to prevent such occurrences.
Page 15: How To Use This Manual
How to Use This Manual For the ladder sequence and communication functions, see the respective manuals. This user’s manual is organized into Chapters 1 to 19 as shown below. This manual mainly uses the illustrations of the UT35A for describing the operations and functions. The basic operations are the same for the UT32A, so please read them in the same way. Chapter Title and Description Introduction to Functions...
Page 16: Table Of Contents
Contents Introduction ..........................i Target Readers ........................i Notice ..........................i Trademarks .......................... ii Safety Precautions ....................... ii Handling Precautions for the Main Unit ................iv Waste Electrical and Electronic Equipment (WEEE), Directive 2002/96/EC ....... iv Checking the Contents of the Package ................v Model and Suffix Codes of UT35A (for Standard model) ............
Page 17 Contents Performing and Canceling Auto-tuning ................6-11 6.4 Adjusting PID Manually ....................6-14 Setting Alarm Setpoint ....................6-20 Selecting Target Setpoint Number (SPNO) ..............6-21 Switching Operation Modes ................... 6-22 6.7.1 Switching between AUTO and MAN ..............6-22 Direct Operation by A/M Key .....................6-22 6.7.2 Switching between STOP and RUN ..............
Page 18 Contents 9.3 Forcing SP to Track PV (PV Tracking) ................9-4 Forcing SP to Track Remote Input (SP Tracking) ............. 9-5 Setting Controller Action at Power ON (Restart Mode) ............ 9-6 Setting Time between Powering on Controller and Starting Control (Restart Timer) ..9-7 Chapter 10 Output (Control and Retransmission) Functions 10.1 Setting Control Output Type ...................
Page 19 Contents 13.1.5 Registering SELECT Parameter Display (Up to 10 Displays)......13-8 13.1.6 Setting Bar-graph Display Function ..............13-10 13.1.7 Masking Least Significant Digit of PV Display ..........13-12 13.1.8 Setting Economy Mode ................... 13-13 13.1.9 Selecting the Initial Operation Display that Appears at Power ON ....13-14 13.1.10 Setting Message Function ................
Page 20 Contents 17.4.3 Control Output (Relay, Triac, Current, and Voltage Pulse) Wiring ....17-8 17.4.4 Valve Position Output and Feedback Input Wiring ......... 17-10 17.4.5 Contact Input Wiring ..................17-11 17.4.6 Contact Output Wiring ..................17-13 17.4.7 Retransmission Output Wiring ............... 17-15 17.4.8 15 V DC Loop Power Supply Wiring ............... 17-15 17.4.9 24 V DC Loop Power Supply Wiring ............... 17-15 17.4.10 Heater Break Alarm Wiring ................17-16 17.4.11 RS-485 Communication Interface Wiring ............
Page 21 Blank Page...
Page 22: Chapter 1 Introduction To Functions
Chapter 1 Introduction to Functions 1.1 Quick Setting Function The Quick setting function is a function to easily set the basic function of the controller. Check the contents. Buy and Unpacking Installation and Wiring: Chapter 17 Installation and Wiring Install and wire a controller, and then turn on the power. Q: What should I do to perform control immediately? Setup First, I want to set the input and output.
Page 23: Input/Output Function
Input/Output Function PV Input (equipped as standard) PV input is a universal input to arbitrarily set the type and range for the thermocouple (TC), resistance-temperature detector (RTD), and DC voltage/current. ► Chapter 7 Input (PV) Functions Current Voltage pulse Relay contact / Triac 2-wire trans- Motor-operated valve mitter Control Output (equipped as standard) Control output (OUT) is a universal output to arbitrarily set the type for the current, voltage pulse, and relay/triac.
Page 24 1.2 Input/Output Function Contact Input Up to 12 contact inputs can be incorporated. The operation modes can be switched. PID control and sequence control can be performed simultaneously using the ladder sequence function. For details, see the table of Model and Suffix Codes. ► Chapter 12 Contact Input/Output Functions Contact Output Up to 13 contact outputs can be incorporated.
Page 25: Control Functions
Control Functions PID Control PID control is a general control using the PID control-related parameters. ► 8.2.1 PID Control Recorder UT35A/UT32A Alarms Retransmission output 4-20 mA DC Electric furnace Thyristor Heating/cooling Control Heating/cooling control is available only for Heating/cooling type. In Heating/cooling control, the controller outputs the result of control computation after splitting it into heating-purpose and cooling-purpose signals.
Page 26 1.3 Control Functions Position Proportional Control Position proportional control is available only for Position proportional type. It is used exclusively for the motor-operated valve. ► 10.14 Adjusting Motor-operated Valve Position (Position Proportional Output) UT35A/UT32A H (direct) or L (reverse) contact signal Control motor Position signal Motor-operated valve Furnace Burner Two-position Two-level Control...
Page 27: Display And Key Functions
Display and Key Functions Employing a 14-segment, active color LCD greatly increases the monitoring and operating capabilities. Active Color PV Display (display color change) The active color PV display function changes the PV display color (red or white) when abnormality occurs in PV etc. ► 13.1.1 Setting Active Color PV Display Function Normal Abnormal Guide Display The guide is displayed on PV display when setting parameters. This guide can be turned on/off with the Fn key. The scrolling guide is displayed when setting parameters. Multilingual Guide Display English, German, French, or Spanish can be displayed in Guide display.
Page 28: Ladder Sequence Function
Ladder Sequence Function To use the ladder sequence function, it is necessary to create a ladder program using LL50A Parameter Setting Software and download it to a controller. ► Ladder sequence function: LL50A Parameter Setting Software User’s Manual Ladder program IM 05P01D31-01EN...
Page 29: Communication Functions
► UTAdvanced Series Communication Interface (Open Network) User’s Manual RS-485 Communication (Modbus communication, PC link communication, and Ladder communication) The UT35A/UT32A can communicate with PCs, PLCs, touch panels, and other devices. RS-485/ Model: ML2 of YOKOGAWA is recommended. RS-232C converter Up to 31 connected slaves with a maximum length of 1200m Ethernet Communication (Modbus/TCP) The UT35A can be connected to IEEE802.3-compliant network (10BASE-T/100BASE-TX).
Page 30 1.6 Communication Functions PROFIBUS-DP Communication The UT35A can be used as the slave devices for PROFIBUS-DP communication. Read- out of PV, operation or alarm status, and SP setting can be done by accessing the remote I/O on the master unit of PROFIBUS-DP. PROFIBUS-DP Master PROFIBUS-DP communication PROFIBUS-DP Slave / Modbus Master Modbus/RTU communication Max. 1200 m, number of connected slaves: 31 Modbus Slave Modbus Slave Modbus Slave...
Page 31 1.6 Communication Functions CC-Link Communication The UT35A can be used as the slave devices for CC-Link communication. Read-out of PV, operation or alarm status, and SP setting can be done by accessing the remote I/O on the master unit of CC-Link. CC-Link Master CC-Link communication CC-Link Slave / Modbus Master Modbus/RTU communication Max. 1200 m, number of connected slaves: 31 Modbus Slave Modbus Slave Modbus Slave...
Page 32 1.6 Communication Functions Light-loader Communication Use the LL50A to set parameters and create ladder programs. Attach the adapter to the front of the controller to communicate. ► Light-loader function: LL50A Parameter Setting Software User’s Manual LL50A Parameter Setting Software Light-loader adapter To USB terminal Dedicated cable Maintenance Port Communication (Power supply is not required for the UT35A/UT32A) Maintenance port is used to connect with the dedicated cable when using LL50A Parameter Setting Software (sold separately).
Page 33: Definition Of Main Symbols And Terms
1.7 Definition of Main Symbols and Terms Main Symbol PV: Measured input value SP: Target setpoint OUT: Control output value A/M: AUTO/MAN AUTO: Automatic MAN: Manual REMOTE, REM: Remote LOCAL, LCL: Local E1, E3, and E4: Terminal areas ► 17.4 Wiring Engineering Units Input range (scale): the PV range low limit is set to 0%, and the high limit is set to 100% for conversion. Input range (scale) span: the PV range span is set to 100% for conversion. In this manual, the parameter setting range is described as the “input range” and “input range span.”...
Page 34: Chapter 2 Ut35A/Ut32A Operating Procedures
Chapter 2 UT35A/UT32A Operating Procedures UT35A/UT32A Operating Procedures Installation Install and wire a controller. and Wiring Installation and Wiring: Chapter 17 Power ON Control type setup Section 8.2 Control type setup Quick setting function: Input/output setup Chapter 5 Input setup Section 7.1 Position Position...
Page 35 Blank Page...
Page 36: Chapter 3 Part Names
Chapter 3 Part Names 3.1 Names and Functions of Display Parts See the next page. IM 05P01D31-01EN...
Page 37 3.1 Names and Functions of Display Parts UT35A (1) PV display (2) Group display (4) Data display (3) Symbol display (9) Status indicator (5) Bar-graph display (10) Security indicator (6) Event indicator (7) Key navigation indicator (11) Ladder operation indicator (8) Parameter display level indicator (2) + (3) + (4) : Setpoint display UT32A (1) PV display (2) Group display...
Page 38 3.1 Names and Functions of Display Parts No. in figure Name Description Displays PV. Displays an error code if an error occurs. PV display Displays the scrolling guide in the Menu Display and (white or red) Parameter Setting Display when the guide display ON/ OFF is set to ON. Displays a group number (1 to 4, or R) and terminal area (E1 to E4).
Page 39: Names And Functions Of Keys
3.2 Names and Functions of Keys UT35A (1) DISPLAY key (4) Light-loader interface (2) PARAMETER key (5) A/M key (3) SET/ENTER key (6) User function keys Up/Down/Left/Right arrow keys UT32A (6) User function keys (1) DISP key (4) Light-loader interface (2) PARA key (5) A/M key (3) SET/ENTER key Up/Down/Left/Right arrow keys IM 05P01D31-01EN...
Page 40 3.2 Names and Functions of Keys No. in figure Name Description Used to switch the Operation Displays. Press the key in the Operation Display to switch the UT35A: DISPLAY key provided Operation Displays. UT32A: DISP key Press the key in the Menu Display or Parameter Setting Display to return to the Operation Display. Hold down the key for 3 seconds to move to the Operation Parameter Setting Display.
Page 41 3.2 Names and Functions of Keys Maintenance Port (Power supply is not required for the UT35A/UT32A). The maintenance port is used to connect with the dedicated cable when using LL50A Parameter Setting Software (sold separately). The parameters can be set without supplying power to the UT35A/UT32A. Maintenance port Upper surface Upper surface UT32A UT35A CAUTION When using the maintenance port, do not supply power to the controller.
Page 42: List Of Display Symbols
3.3 List of Display Symbols The following shows the parameter symbols, menu symbols, alphanumeric of guide, and symbols which are displayed on the UT35A/UT32A. Figure (common to all display area) PV display (14 segments): Alphabet Symbol display and Data display (11 segments): Alphabet (lower-case) IM 05P01D31-01EN...
Page 43 3.3 List of Display Symbols Group display (7 segments): Alphabet None PV display (14 segments): Symbol Space ‘ IM 05P01D31-01EN...
Page 44: Brief Description Of Setting Details (Parameters)
Brief Description of Setting Details (Parameters) This manual describes the Setting Details as follows in addition to the functional Description. Setting Details (Display Example) Parameter Display Name Setting range Menu symbol symbol level Set a display value of setpoint of PV alarm, SP alarm, deviation alarm, output alarm, or velocity Alarm-1 to -4 alarm.
Page 45 Blank Page...
Page 46: Chapter 4 Basic Operation
Chapter 4 Basic Operation Overview of Display Switch and Operation Keys The following shows the transition of Operation Display, Operation Parameter Setting Display, and Setup Parameter Setting Display. The “Operation Parameter Setting Display” has the parameters for setting the functions necessary for the operation.
Page 47 4.1 Overview of Display Switch and Operation Keys The display pattern of the UT35A/UT32A is as follows; the Menu Display and Parameter Setting Display. For the Operation Display, see Chapter 6, “Monitoring and Control of Regular Operations.” Display Description The Menu Display is segmented by the function and optional terminal position. The scrolling guide for the menu is displayed on PV display. The guide display can be turned on/off with the Fn key.
Page 48 4.1 Overview of Display Switch and Operation Keys Display Shown at the End (the Lowest Level) of the Parameter Setting Display As shown in the figure below, the END Display is shown to indicate the end of the Menu Display and Parameter Setting Display. There are no setting items. The scrolling guide of END is displayed. END is displayed.
Page 49: How To Set Parameters
4.2 How to Set Parameters The following operating procedure describes an example of setting alarm setpoint (A1). Operation Hold down the PARAMETER key for 3 seconds in the Operation Display to call up the [MODE] Menu Display. Press the Right arrow key to display the [SP] Menu Display. Press the SET/ENTER key to display the [SP] Parameter Setting Display.
Page 50 4.2 How to Set Parameters Press the SET/ENTER key to blink the setpoint. Press the Up or Down arrow key to change the setpoint. (Change the setpoint using the Up/Down arrow keys to increase and decrease the value and the Left/Right arrow keys to move between digits.) Press the SET/ENTER key to register the setpoint (the setpoint stops blinking).
Page 51 4.2 How to Set Parameters How to Set Parameter Setpoint Numeric Value Setting Display the Parameter Setting Display. Press the SET/ENTER key to move to the setting mode (the setpoint blinks). Press the Left arrow key to move one digit to the left. (Press the Right arrow key to move one digit to the right.) Press the Up or Down arrow key to change the setpoint.
Page 52 4.2 How to Set Parameters Time (minute.second) Setting Example of 17 minutes 59 seconds Display the Parameter Setting Display. Press the SET/ENTER key to move to the setting mode (the setpoint blinks). Press the Left arrow key to move one digit to the left. (press the Right arrow key to move one digit to the right.) Press the Up or Down arrow key to change the setpoint.
Page 53 Blank Page...
Page 54: Chapter 5 Quick Setting Function App
Chapter 5 Quick Setting Function 5.1 Setting Using Quick Setting Function Description The Quick setting function is a function to easily set the basic function of the controller. The Quick setting function starts when the power is turned on after wiring. The following lists the items to set using the Quick setting function. (1) Control type (PID control, Heating/cooling control, etc.) (2) Input function (PV input, range, scale (at voltage/current input), etc.) (3) Output function (control output type and cycle time)
Page 55 5.1 Setting Using Quick Setting Function Flowchart of Quick Setting Function Power ON Decide whether or not to use the Quick setting function. Press the UP arrow key to select YES. Press the SET/ENTER key to start the Quick setting function. Press the Down arrow key to select NO. Press the SET/ENTER key not to start the Quick setting function.
Page 56 5.1 Setting Using Quick Setting Function Setting Example Set the following parameters to set to PID control, thermocouple Type K (range: 0.0 to 500.0ºC), and current control output. No need to change the parameters other than the following parameters. Set QSM = YES to enter the quick setting mode. (1) Set CNT = PID.
Page 57 5.1 Setting Using Quick Setting Function Input Function Parameter Display Name Setting range Menu symbol symbol level OFF: Disable K1: -270.0 to 1370.0 ºC / -450.0 to 2500.0 ºF K2: -270.0 to 1000.0 ºC / -450.0 to 2300.0 ºF K3: -200.0 to 500.0 ºC / -200.0 to 1000.0 ºF J: -200.0 to 1200.0 ºC / -300.0 to 2300.0 ºF T1: -270.0 to 400.0 ºC / -450.0 to 750.0 ºF T2: 0.0 to 400.0 ºC / -200.0 to 750.0 ºF...
Page 58 5.1 Setting Using Quick Setting Function Input Function (Continued) Parameter Display Name Setting range Menu symbol symbol level 0: No decimal place PV input scale 1: One decimal place decimal point EASY 2: Two decimal places position 3: Three decimal places 4: Four decimal places Maximum value of EASY PV input scale -19999 to 30000, (SL<SH), Minimum value of | SH - SL | ≤ 30000...
Page 59: Restarting Quick Setting Function
5.2 Restarting Quick Setting Function Once functions have been built using the Quick setting function, the Quick setting function does not start even when the power is turned on. The following methods can be used to restart the Quick setting function. ● Set the parameter QSM (Quick setting mode) to ON and turn on the power again. ● Set the parameter IN (PV input type) to OFF and turn on the power again.
Page 60: Chapter 6 Monitoring And Control Of Regular Operations
Chapter 6 Monitoring and Control of Regular Operations 6.1 Monitoring and Control of Operation Displays 6.1.1 Operation Display Transitions. ► Display/Non-display of Operation Display: 13.3.5 Setting Display/Non-display of Operation Display ► Registration of SELECT Display: 13.1.3 Registering SELECT Display (Up to 5 displays) Standard Type SP Display (SP can be changed.) OUT Display (OUT can be changed in MAN mode.) Program Pattern Number Display (Display only) Parameter RMS = PROG PID Number Display (display only)
Page 61: Position Proportional Type
6.1 Monitoring and Control of Operation Displays Position Proportional Type SP Display (SP can be changed.) Valve Position Display (display only) Position Proportional Computation Output Display (Factory default: non-display) Program Pattern Number Display (Display only) Parameter RMS = PROG PID Number Display (display only) (Factory default: non-display) Analog Input Displays (display only) (Factory default: non-display) PV: PV analog input...
Page 62: Heating/Cooling Type
6.1 Monitoring and Control of Operation Displays Heating/cooling Type SP Display (SP can be changed.) Heating/cooling OUT Display (OUT can be changed in MAN mode.) C: cooling-side output, H: heating-side output Program Pattern Number Display (Display only) Parameter RMS = PROG PID Number Display (display only) (Factory default: non-display) Heater Break Alarm-1 Current Display (display only) (Only for Heater break alarm option)
Page 63: Two-Position Two-Level Control
6.1 Monitoring and Control of Operation Displays Two-position two-level control SP Display (SP can be changed.) OUT Display (Main setting-side OUT can be changed in MAN mode.) OUT Display (Sub-setting-side OUT can be changed in MAN mode.) プログラムパターン番号表示画面（表示のみ）パラメータRMS=PROG PID Number Display (display only) (Factory default: non-display) Heater Break Alarm-1 Current Display (display only) (Only for Heater break alarm option) Heater Break Alarm-2 Current Display (display only)
Page 64 6.1 Monitoring and Control of Operation Displays Details of the Operation Display The following is the Operation Display types and each display and operation description. PV display Setpoint display Operation Display Display and operation description PV display: Displays measured input value (PV). Setpoint display: Displays and changes target setpoint (SP). Symbol Target setpoint Target setpoint (SP) number The Display is switched to the SP Display if the operation mode is switched to AUTO, LCL, or REM when other Operation Display is shown.
Page 65 6.1 Monitoring and Control of Operation Displays (Continued) Operation Display Display and operation description PV display: Displays measured input value (PV). Setpoint display: Displays control output value and changes control output value in MAN mode. Control output Symbol Target setpoint (SP) number Displays the valve's feedback input value (at 0 to 100% valve opening) in Position proportional control. The Display is switched to the OUT Display if the operation mode is switched to MAN when other Operation Display is shown.
Page 66 6.1 Monitoring and Control of Operation Displays (Continued) Operation Display Display and operation description PV display: Displays measured input value (PV). Setpoint display: Displays heating-side and cooling-side control output value and changes control output value in MAN mode. Heating-side control output Symbol of heating side Cooling-side control output Symbol of cooling side Target setpoint (SP) number When the control output value is less than 100%, one digit is displayed to the right of the decimal point.
Page 67 6.1 Monitoring and Control of Operation Displays (Continued) Operation Display Display and operation description PV display: Displays measured input value (PV). Setpoint display: Displays PV analog input value. PV analog input value Analog Input Display Symbol PV input Target setpoint (SP) number PV display: Displays measured input value (PV). Setpoint display: Displays position proportional computation output value (internal computed value). Position Proportional Internal Computation Symbol computed value Output Display Target setpoint (SP) number Can be changed in MAN mode.
Page 68: Setting Target Setpoint
6.2 Setting Target Setpoint Operation in the Operation Display Operation Bring the SP Display into view. Press the SET/ENTER key to move to the setting mode (the setpoint blinks). Press the Left arrow key to move one digit to the left. (Press the Right arrow key to move one digit to the right.) Press the Up or Down arrow key to change a setpoint.
Page 69: Operation In Parameter Setting Display
6.2 Setting Target Setpoint Operation in Parameter Setting Display Setting Display Operation Display > PARAMETER or PARA key for 3 Parameter Setting Display seconds (to [MODE] Menu Display) > Right arrow key (to [SP] Menu Display ) > SET/ENTER key (The setting parameter is displayed.) Press the Right arrow key until the [SP] Menu Display appears. In the Setting Display for the target setpoint parameter, pressing the Left or Right arrow keys changes the group.
Page 70: Performing And Canceling Auto-Tuning
6.3 Performing and Canceling Auto-tuning Setting Display Operation Display > PARAMETER or PARA key for 3 seconds Operation Mode Setting Display (to [MODE] Menu Display) > SET/ENTER key (The operation mode is displayed.) > Down arrow key (The operation mode is displayed.) The parameter AT is displayed when the operation mode is AUTO.
Page 71 6.3 Performing and Canceling Auto-tuning Description Auto-tuning is a function with which the controller automatically measures the process characteristics and sets PID constants, which are control-related parameters, to optimum values for the setpoint. Auto-tuning temporarily executes ON/OFF control, calculates appropriate PID constants from response data obtained, and sets these constants. CAUTION Do not perform auto-tuning for the following processes.
Page 72 6.3 Performing and Canceling Auto-tuning Tuning Point and Storage Location of Tuning Results The tuning point when performing auto-tuning is the target setpoint that is currently used for control computation. PID constants after the tuning are stored in the PID group that is specified when performing auto-tuning.
Page 73: Adjusting Pid Manually
6.4 Adjusting PID Manually Setting Display Operation Display > PARAMETER or PARA key for 3 Parameter Setting Display seconds (to [MODE] Menu Display) > Right arrow key (to [PID] Menu Display ) > SET/ENTER key (The setting parameter is displayed.) > Down arrow key (The setting parameter is displayed.) In the Setting Display for the PID parameters, Displays can be arbitrarily switched using the Up, Down, Left or Right arrow...
Page 74 6.4 Adjusting PID Manually There are four groups of PID parameters. The PID parameters can be selected by using the following two methods: (1) SP group number selection The PID group which is set in the PID number selection (PIDN) of each SP group is used.
Page 75 6.4 Adjusting PID Manually Description Description and Tuning of Proportional Band The proportional band is defined as the amount of change in input (or deviation), as a percent of span, required to cause the control output to change from 0% to 100%. Because a narrower proportional band gives greater output change for any given deviation, it therefore also makes the control performance more susceptible to oscillation. At the same time, a narrower proportional band reduces the offset.
Page 76 6.4 Adjusting PID Manually Description and Tuning of Integral Time The integral action (I action) is a function that will automatically diminish the offset (steady-state deviation) that is inherently unavoidable with proportional action alone. The integral action continuously increases or decreases the output in proportion to the time integral of the deviation (the product of the deviation and the time that the deviation continues.) The integral action is normally used together with proportional action as proportional- plus-integral action (PI action).
Page 77 6.4 Adjusting PID Manually Description and Tuning of Derivative Time If the control object has a large time constant or dead time, the corrective action will be too slow with proportional action or proportional-plus-integral action alone, causing overshoot. However, even just sensing whether the deviation is on an increasing or a decreasing trend and adding some early corrective action can improve the controllability. Thus the derivative action (D action) is action that changes the output in proportion to the deviation derivative value (rate-of-change).
Page 78 6.4 Adjusting PID Manually Manual PID Tuning Procedure (1) In principle, auto-tuning must be used. (2) Tune PID parameters in the order of P, I, and D. Adjust a numeric slowly by observing the result, and keep notes of what the progress is. (3) Gradually reduce P from a larger value. When the PV value begins to oscillate, stop tuning and increase the value somewhat. (4) Also gradually reduce I from a larger value. When the PV value begins to oscillate (with long period), stop tuning and increase the value somewhat. (5) Gradually increase D from a smaller value. When the PV value begins to oscillate (with short period), stop tuning and lower the value slightly.
Page 79: Setting Alarm Setpoint
6.5 Setting Alarm Setpoint Setting Display Operation Display > PARAMETER or PARA key for 3 Parameter Setting Display seconds (to [MODE] Menu Display) > Right arrow key (to [SP] Menu Display) > SET/ENTER key (The setting parameter is displayed.) > Down arrow key (The setting parameter is displayed.) In the setting Display for the alarm parameters, Displays can be arbitrarily switched using the Up, Down, Left or Right arrow...
Page 80: Selecting Target Setpoint Number (Spno)
6.6 Selecting Target Setpoint Number (SPNO) Setting Display Operation Display > PARAMETER or PARA key for 3 seconds Parameter Setting Display (to [MODE] Menu Display) > SET/ENTER key (The setting parameter is displayed.) > Down arrow key (The setting parameter is displayed.) Setting Details Parameter Display Name...
Page 81: Switching Operation Modes
6.7 Switching Operation Modes 6.7.1 Switching between AUTO and MAN Direct Operation by A/M Key Operation MAN lamp is lit in MAN mode. Each time you press the key, AUTO and MAN is switched alternately. Description AUTO/MAN switching can be performed by any of the following: (1) A/M key (2) Contact input (status or edge) (3) Communication (4) User function key AUTO...
Page 82 6.7 Switching Operation Modes Operation Display in AUTO and MAN Modes “OUT” is displayed on Symbol display and “Output value” is displayed on Data display in MAN mode. (The OUT Display is shown.) Sub-setting-side OUT Display is shown in Two-position two-level control. SP Display is shown in AUTO mode. Operation Display in AUTO and MAN Modes in Heating/cooling Control In MAN mode, the Display is as follows.
Page 83: Switching Between Stop And Run
6.7 Switching Operation Modes 6.7.2 Switching between STOP and RUN Setting Display Operation Mode Setting Display Operation Display > PARAMETER or PARA key for 3 seconds (to [MODE] Menu Display) > SET/ENTER key (The operation mode is displayed.) > Down arrow key (The operation mode is displayed.) Factory default: The parameter S.R is not displayed because STOP/RUN switch is assigned to the contact input.
Page 84 6.7 Switching Operation Modes Operation Display in STOP and RUN Modes “STOP” is displayed on Symbol display and “Output value” is displayed on Data display in STOP mode. Preset output value is displayed. In Two-position two-level control The display at operation start differs depending on AUTO or MAN mode. SP Display is shown in AUTO mode and OUT Display is shown in MAN mode.
Page 85: Switching Between Rem (Remote) And Lcl (Local)
6.7 Switching Operation Modes 6.7.3 Switching between REM (Remote) and LCL (Local) Setting Display Operation Mode Setting Display Operation Display > PARAMETER or PARA key for 3 seconds (to [MODE] Menu Display) > SET/ENTER key (The operation mode is displayed.) > Down arrow key (The operation mode is displayed.) The parameter R.L is displayed when the the communication is specified.
Page 86 6.7 Switching Operation Modes SP Action in REM/LCL Switch Switch SP action LCL→REM The local target setpoint bumps to the remote target setpoint. The remote target setpoint bumps to the local target setpoint. Or forces the local REM→LCL target setpoint to track the remote target setpoint. ► Tracking: 9.4 Forcing SP to Track Remote Input (SP Tracking) Lamp Status Status...
Page 87: Manipulating Control Output During Manual Operation
6.8 Manipulating Control Output during Manual Operation Operation MAN lamp is lit. Press the Up arrow key to increase control output. Press the Down arrow key to decrease control output. In Heating/cooling control, press the Up arrow key to decrease cooling-side control output and to increase heating-side control output; press the Down arrow key to increase cooling-side control output and to decrease heating-side control output.
Page 88: Releasing On-State (Latch) Of Alarm Output
6.9 Releasing On-State (Latch) of Alarm Output Description Alarm latch can be released by any of the following. (1) User function key (2) Communication (3) Contact input For the switching operation by using the above, the last switching operation is performed. Releasing the alarm latch function releases all of the latched alarm outputs. By factory default, the function is not assigned to the user function key and contact input.
Page 89 Blank Page...
Page 90: Chapter 7 Input (Pv) Functions
Chapter 7 Input (PV) Functions 7.1 Setting Functions of PV Input 7.1.1 Setting Input Type, Unit, Range, Scale, and Decimal Point Position Description The figure below describes the case of PV input. Example of Temperature Input The figure below is an example of setting Type K thermocouple and a measurement range of 0.0 to 800.0 ºC. -270.0°C 1370.0°C Input type Set a range to be PV input range controlled.
Page 91 7.1 Setting Functions of PV Input Setting Details Parameter Display Name Setting range Menu symbol symbol level OFF: Disable K1: -270.0 to 1370.0 ºC / -450.0 to 2500.0 ºF K2: -270.0 to 1000.0 ºC / -450.0 to 2300.0 ºF K3: -200.0 to 500.0 ºC / -200.0 to 1000.0 ºF J: -200.0 to 1200.0 ºC / -300.0 to 2300.0 ºF T1: -270.0 to 400.0 ºC / -450.0 to 750.0 ºF T2: 0.0 to 400.0 ºC / -200.0 to 750.0 ºF...
Page 92: Setting Burnout Detection For Input
7.1 Setting Functions of PV Input (Continued) Parameter Display Name Setting range Menu symbol symbol level 0: No decimal place 1: One decimal place PV input scale decimal EASY 2: Two decimal places (Scaling) point position 3: Three decimal places 4: Four decimal places Maximum value of PV -19999 to 30000, (SL<SH), EASY (Scaling) input scale...
Page 93: Setting Reference Junction Compensation (Rjc) Or External Reference
7.1 Setting Functions of PV Input 7.1.3 Setting Reference Junction Compensation (RJC) or External Reference Junction Compensation (ERJC) Description Reference Junction Compensation (RJC) When TC input is selected, presence/absence of input reference junction compensation can be set. Usually input values are compensated with the RJC function provided for the controller. However, if it is necessary to rigorously compensate the values with a device other than the function of the controller, for example with a zero-compensator, the RJC function of the controller can be turned off. External Reference Junction Compensation (ERJC) For TC input, a temperature compensation value for external device can be set.
Page 94: Correcting Input Value
7.1 Setting Functions of PV Input 7.1.4 Correcting Input Value (1) Setting Bias and Filter Description PV Input Bias The PV input bias allows bias to be summed with input to develop a measured value for display and control use inside the controller. This function can also be used for fine adjustment to compensate for small inter- instrument differences in measurement reading that can occur even if all are within the specified instrument accuracies. PV input bias is used for normal operation. PV input value PV input bias PV value inside the controller Temperature sensed Compensation Estimated material...
Page 95: Setting Ratio Bias
7.1 Setting Functions of PV Input Setting Details Parameter Display Name Setting range Menu symbol symbol level -100.0 to 100.0% of PV PV input bias EASY input range span (EUS) PVS PV input filter EASY OFF, 1 to 120 s Parameter Display Name Setting range Menu symbol symbol level -100.0 to 100.0% of each A.BS PV analog input bias input range span (EUS) A.FL PV analog input filter OFF, 1 to 120 s...
Page 96: Chapter 8 Control Functions
Chapter 8 Control Functions 8.1 Control Function Block Diagrams 8.1.1 Single-loop Control, Heating/cooling Control, Position Proportional Control, and Two-position Two-level Control Description These control functions provide the basic control function having one control computation unit. Single-loop control can be used for Standard type or Heating/cooling type controller. Heating/cooling control can be used for Heating/cooling type controller.
Page 97: Single-Loop Control Function Block Diagram
n Single-loop Control Function Block Diagram Equipped as standard Equipped as standard. PV input Contact inputs RS-485, Ethernet, PROFIBUS-DP, DeviceNet, CC-Link Com. Input type Input unit UNIT Input range/scale RH, RL SH, SL Analog input bias A.BS Analog input filter A.FL Input ladder calculation program (signal goes to the control computation as is when without ladder program). For ladder program, see the LL50A Parameters Setting Software User’s Manual. PV input bias SPNO PV input filter...
Page 98 Output limiter OH, OL Input error preset output Normal When sensor burnout occurs Manual preset output MPON Manual operation Output limiter OH, OL OLMT AUTO AUTO (ON)/MAN (OFF) switch Preset output STOP STOP (ON)/RUN (OFF) switch * After the control output terminal is specified by the parameter OT, Output terminal assignment other current output terminals can be used as retransmission output.
Page 99: Heating/Cooling Control Function Block Diagram
n Heating/cooling Control Function Block Diagram Equipped as standard Equipped as standard. PV input Contact inputs RS-485, Ethernet, PROFIBUS-DP, DeviceNet, CC-Link Com. Input type Input unit UNIT Input range/scale RH, RL SH, SL Analog input bias A.BS Analog input filter A.FL Input ladder calculation program (signal goes to the control computation as is when without ladder program). For ladder program, see the LL50A Parameters Setting Software User’s Manual. PV input bias SPNO PV input filter...
Page 100 Manual preset output MPON Manual operation AUTO AUTO (ON)/MAN (OFF) switch Heating/cooling computation Manual output is prioritized even if sensor burnout occurs in MAN. Heating-side output limiter Cooling-side output limiter Input error preset output Input error preset output OH, OL OHc, OLc Normal Normal...
Page 101: Position Proportional Control Function Block Diagram
n Position Proportional Control Function Block Diagram Equipped as standard Equipped as standard. PV input Contact inputs RS-485, Ethernet, PROFIBUS-DP, DeviceNet, CC-Link Com. Input type Input unit UNIT Input range/scale RH, RL SH, SL Analog input bias A.BS Analog input filter A.FL Input ladder calculation program (signal goes to the control computation as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User’s Manual. PV input bias SPNO PV input filter...
Page 102 Output limiter OH, OL In Estimating-type position proportional control, the limiter function does not work on output operation. Input error preset output The reverse-signal relay turns on when being limited by low limit. Normal The direct-signal relay turns on when being limited by high limit. When sensor burnout occurs In Manual operation, the relay turns on while the key is pressed.
Page 103: Two-Position Two-Level Control Function Block Diagram
n Two-position Two-level Control Function Block Diagram Equipped as standard Equipped as standard. PV input Contact inputs RS-485, Ethernet, PROFIBUS-DP, DeviceNet, CC-Link Com. Input type Input unit UNIT Input range/scale RH, RL SH, SL Analog input bias A.BS Analog input filter A.FL Input ladder calculation program (signal goes to the control computation as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User’s Manual. PV input bias PV input filter Ratio bias computation...
Page 104 Manual output is prioritized even if sensor burnout occurs in MAN. Input error preset output Input error preset output Normal Normal When sensor burnout occurs When sensor burnout occurs Manual operation Manual operation AUTO AUTO AUTO (ON)/MAN (OFF) switch Preset output Sub-preset output SU.PO STOP...
Page 105: Setting Control Type (Cnt)
8.2 Setting Control Type (CNT) The following table shows combination of Standard type, Heating/cooling type, Position proportional type and control type (CNT). Suffix code: Type 1 Control type Heating/cooling Position Standard type type proportional type PID control √ √ √ ON/OFF control √ √ (1 point of hysteresis) ON/OFF control √...
Page 106: Pid Control
8.2 Setting Control Type (CNT) 8.2.1 PID Control Description PID control is a general control using control-related parameters PID. When PID control is selected, PID should be obtained by auto-tuning after setting SP or PID should be set manually. Setting Details Parameter Display Name Setting range Menu symbol symbol...
Page 107: On/Off Control (1 Point Of Hysteresis / 2 Points Of Hysteresis)
8.2 Setting Control Type (CNT) 8.2.2 ON/OFF Control (1 point of hysteresis / 2 points of hysteresis) Description ON/OFF control compares the SP and PV and outputs an on or off signal according to the positive or negative deviation (PV – SP). Hysteresis can be set in the vicinity of the on/off output operating point. If the SP and PV become close and the polarity of the deviation reverses frequently, the on/off output will cycle repeatedly. The life of the output relay will therefore be dramatically shortened. In such a case, set a wider hysteresis so that the relay’s frequent on/off output (chattering) will not occur.
Page 108 8.2 Setting Control Type (CNT) Setting Details Parameter Display Name Setting range Menu symbol symbol level PID: PID control ONOF: ON/OFF control (1 point of hysteresis) ONOF2: ON/OFF control (2 points Control type EASY of hysteresis) 2P2L: Two-position two-level control H/C: Heating/cooling control Hysteresis (in ON/OFF control, Position proportional In ON/OFF control or Two-position...
Page 109: Heating/Cooling Control
8.2 Setting Control Type (CNT) 8.2.3 Heating/cooling Control Description Heating/cooling control can be used only for Heating/cooling type. In Heating/cooling control, the controller outputs the result of computation after splitting it into heating-purpose and cooling-purpose signals. PID control or ON/OFF control can be selected for each of the heating side and the cooling side. Set the heating-side proportional band to “0”...
Page 110 8.2 Setting Control Type (CNT) Positive Dead Band Cooling-side control output (%) Heating-side control output (%) 100% 100% Heating-side control output Cooling-side high limit control output (OH) high limit (OHc) Dead Dead band band (DB) (DB) 100% 100% Control computation output (OUT) Negative Dead Band Cooling-side control output (%) Heating-side control output (%) 100%...
Page 111 8.2 Setting Control Type (CNT) When the Heating Side is in ON/OFF Control and the Cooling Side is in PID Control: The following shows the formula and operation example. Output turns on when HOUT = OUT > ( 50% + Other than this case, maintain current state. COUT = ( 50% –...
Page 112 8.2 Setting Control Type (CNT) When the Heating Side is in PID Control and the Cooling Side is in ON/OFF Control: The following shows the formula and operation example. HOUT = ( OUT – – 50% ) × 2 Output turns on when HYSc COUT = OUT <...
Page 113 8.2 Setting Control Type (CNT) When both the Heating Side and Cooling Side are in ON/OFF Control: The following shows the operation example. Cooling-side hysteresis (HYSc) Neutral (OFF) Heating-side hysteresis (HYS) Positive dead band (DB) Dead Band (DB) In Heating/cooling control, the positive dead band denotes the zone where none of the heating-side and cooling-side outputs are presented. The negative dead band denotes the zone where both of the heating-side and cooling-side outputs are presented. Output (%) Output (%) Cooling-side Heating-side Cooling-side Heating-side output...
Page 114 8.2 Setting Control Type (CNT) Setting Details Parameter Display Name Setting range Menu symbol symbol level PID: PID control ONOF: ON/OFF control (1 point of hysteresis) ONOF2: ON/OFF control (2 points Control type EASY of hysteresis) 2P2L: Two-position two-level control H/C: Heating/cooling control Hysteresis (in ON/OFF control, Position proportional In ON/OFF control or Two-position...
Page 115: Two-Position Two-Level Control
8.2 Setting Control Type (CNT) 8.2.4 Two-position Two-level Control Description Two-position two-level control outputs the ON signal and OFF signal for the target setpoint (SP) of the main setting and the sub-target setpoint (SP + SUB) of the sub- setting. The sub-setting is set as a deviation from the main setting. Hysteresis can be set in the vicinity of the on/off output operating point ► Two-position two-level control: 8.1.1 Single-loop Control, Heating/cooling Control, Position Proportional Control, and Two-position Two-level Control...
Page 116 8.2 Setting Control Type (CNT) Setting Details Parameter Display Name Setting range Menu symbol symbol level PID: PID control ONOF: ON/OFF control (1 point of hysteresis) ONOF2: ON/OFF control (2 points Control type EASY of hysteresis) 2P2L: Two-position two-level control H/C: Heating/cooling control 0.0 to 100.0% of PV input range Target setpoint EASY (EU) (Setting range: SPL to SPH) Sub-target setpoint...
Page 117: Pd Control (Stable Control In Which A Setpoint Is Not Exceeded)
8.2 Setting Control Type (CNT) 8.2.5 PD Control (Stable Control in Which a Setpoint is not Exceeded) Description This control type performs control in which integral action (I action) is excluded from PID action. Set the integral time (I or Ic) to OFF. It is useful when stable control in which a setpoint is not exceeded is desired for integral processes in which constant flows are delivered.
Page 118: Setting Pid Control Mode (Alg)
8.3 Setting PID Control Mode (ALG) Description There are two PID control modes: standard PID control mode and fixed-point control mode. Select a PID control computation formula shown in the following table according to the control mode or operation mode. Operation mode AUTO+Local AUTO+Remote Standard PID control PV derivative type Deviation derivative type mode...
Page 119 8.3 Setting PID Control Mode (ALG) Deviation Derivative Type PID The PID control method in which derivative action works for the deviation value = PV – The following shows the deviation derivative type PID control computation formula.   = 100 ∫   • •   where OUT: control output, e: deviation (PV-SP), P: proportional band, Ti: integral time, and Td: derivative time Setting Details Parameter Display Name Setting range Menu symbol symbol level...
Page 120: Switching Pid
Switching PID 8.4.1 Switching PID According to Target Setpoint Number (SPNO) Description The SP group number selection selects a group of target setpoint (SP) and PID parameters by switching the SP number (SPNO). The PID number selection (PIDN) can be set for each SP group. SP number (SPNO) PID parameter group SP of group 1 Specify using the parameter PIDN of group 1 SP of group 2...
Page 121: Switching Pid According To Pv
8.4 Switching PID 8.4.2 Switching PID According to PV Description The PID switching according to PV is a function that switches between the groups of PID parameters according to the PV. The maximum number of PID groups to be switched is 8. (Set RP1 to RP3.) This function is useful for reactors in which the chemical reaction gain changes depending on the temperature. The figure below shows an example of dividing the PV input range from the maximum value to the minimum value into four zones by reference points 1 to 3. (Set RP1 to RP3.) If the PV is currently positioned at this point,...
Page 122 8.4 Switching PID Setting Details Parameter Display Name Setting range Menu symbol symbol level 0: SP group number selection 1 1: Zone PID selection (selection by PV) Zone PID 2: Zone PID selection (selection selection by target SP) 3: SP group number selection 2 4: Zone PID selection (selection by SP) 0.0 to 100.0% of PV input range Reference point RP1 to RP3 (EU) ZONE 1 to 3...
Page 123: Switching Pid According To Sp
8.4 Switching PID 8.4.3 Switching PID According to SP Description The zone PID selection by SP switches between the groups of PID parameters according to the SP. The maximum number of PID groups to be switched is 4. (Set RP1 to RP3) The figure below shows the example of switching the group of PID parameters according to the SP.
Page 124 8.4 Switching PID Setting Details Parameter Display Name Setting range Menu symbol symbol level 0: SP group number selection 1 1: Zone PID selection (selection by PV) Zone PID 2: Zone PID selection (selection selection by target SP) 3: SP group number selection 2 4: Zone PID selection (selection by SP) 0.0 to 100.0% of PV input range Reference point 1 RP1 to RP3 (EU) ZONE...
Page 125: Switching Pid According To Target Sp
8.4 Switching PID 8.4.4 Switching PID According to Target SP Description The zone PID selection by target SP switches between the groups of PID parameters according to the target SP. The figure below shows the example of switching the group of PID parameters according to the target SP. It shows an example of dividing the PV input range from the maximum value to the minimum value into four zones by reference points 1 to 3. (Set RP1 to RP3.) Maximum value of PV input range 800ºC (PID of group 4)
Page 126 8.4 Switching PID Setting Details Parameter Display Name Setting range Menu symbol symbol level 0: SP group number selection 1 1: Zone PID selection (selection by PV) Zone PID 2: Zone PID selection (selection selection by target SP) 3: SP group number selection 2 4: Zone PID selection (selection by SP) 0.0 to 100.0% of PV input range Reference point 1 RP1 to RP3 (EU) ZONE...
Page 127: Switching Pid According To Deviation (Reference Deviation)
8.4 Switching PID 8.4.5 Switching PID According to Deviation (Reference Deviation) Description The zone PID selection by deviation switches between the groups of PID parameters according to the amount of deviation. This function is called “reference deviation.” In the fixed point control, if the actual amount of deviation exceeds the setpoint of the reference deviation, the controller automatically changes to the PID parameter group (PID of group R) set for the zone. If the actual amount of deviation becomes smaller than the setpoint of reference deviation, the controller changes to the PID parameter group appropriate for the zone.
Page 128: Setting Hysteresis At Time Of Pid Switch
8.4 Switching PID 8.4.6 Setting Hysteresis at Time of PID Switch Description When the zone PID selection is selected, hysteresis at time of each zone switch can be set. The following shows the operation example of hysteresis at time of zone switch. Reference point 1 Hysteresis 0.5% of PV input range span PID of group 1 PID of group 2 PID of group 1 PID of group 2 Setting Details Parameter Display Name Setting range Menu symbol symbol...
Page 129: Suppressing Overshoot (Super Function)
8.5 Suppressing Overshoot (Super Function) Description The Super function monitors the deviation for evidence that there is a danger of overshoot, and on sensing such danger automatically changes the setpoint temporarily to a somewhat lower value (sub-SP). Once the danger of overshoot appears diminished, the function returns the effective SP gradually to the true SP. “Fuzzy ratiocination” techniques are employed in the algorithms used to change the SP to the lower temporary value, and to return it gradually to the true Operation Diagram...
Page 130 8.5 Suppressing Overshoot (Super Function) Example of Overshoot Suppression Control for Setpoint Changes Time Time SUPER is not used SUPER is used Example of Overshoot Suppression Control for Ramp-to-soak Transition Sub-SP Time Time SUPER is not used SUPER is used Setting Details Parameter Display Name Setting range Menu symbol symbol level OFF: Disable 1: Overshoot suppressing function (normal mode) 2: Hunting suppressing function Super function EASY...
Page 131: Suppressing Hunting (Super2 Function)
8.6 Suppressing Hunting (Super2 Function) Description The Super2 function suppresses the hunting effect of the controller without re-tuning the PID parameters. Hunting means the PV becomes unstable and oscillates around SP. SUPER2 = ON Hunting ● In hunting condition, the Super2 function selects the output from process model as PV signal. ● The process model removes a factor of dead time from the actual process. ● The real process is under the open-loop condition. ● After hunting is suppressed, the Super2 function selects real PV signal, and carry out the standard feedback control. PID control Process – Process model 8-36...
Page 132 8.6 Suppressing Hunting (Super2 Function) Effects of Super2 Load change SUPER2 = ON Hunting Temperature change PID parameters are set at this condition. SUPER2 = ON Hunting Setting Details Parameter Display Name Setting range Menu symbol symbol level OFF: Disable 1: Overshoot suppressing function (normal mode) 2: Hunting suppressing function Super function EASY...
Page 133: Suppressing Integral Action (Anti-Reset Wind-Up)
Suppressing Integral Action (Anti-reset Wind-up) Description Where there is a large deviation at the start of the control operation, for example, integral outputs are accumulated and the PV exceeds the SP, thereby causing the output to overshoot. To avoid this, the controller provides an anti-reset wind-up function for suppressing an extreme integral output by stopping PID computations. Same applies to the case of undershoot.
Page 134: Adjusting Auto-Tuning Operation
8.8 Adjusting Auto-tuning Operation Description Auto-tuning Type “Normal” of auto-tuning type requires a rapidly rising PID constant. This type is useful for processes that allow some overshooting. On the other hand, “stable” of auto-tuning type requires a slowly rising PID constant. Auto-tuning Output Limiter When executing auto-tuning, the control output high and low limits can be set.
Page 135 Blank Page...
Page 136: Chapter 9 Auxiliary Control Functions
Chapter 9 Auxiliary Control Functions 9.1 Setting SP Limiter Description The SP high and low limits can be set to restrict the SP to the range between those limits whether in REM (remote) or LCL (local) mode. They works to the SP of all SP groups. 100.0 High limit of SP Setting range of actual SP...
Page 137: Changing Sp At A Fixed Rate (Sp Ramp-Rate Setting Function)
9.2 Changing SP at a Fixed Rate (SP Ramp-Rate Setting Function) Description SP ramp-rate setting function forces SP to change at a fixed rate when SP is changed in order to prevent abrupt changes in SP. Velocity (rate-of-change) can be set for both the SP ramp-up rate (UPR) and SP ramp- down rate (DNR). Set the ramp–rate time unit (TMU) per hour or minute. The SP ramp-rate setting function works when: (1) SP is changed.
Page 138 9.2 Changing SP at a Fixed Rate (SP Ramp-Rate Setting Function) SP switch SP of group 1 SP of group 2 SP of group 2= 640ºC Temperature difference of 140ºC 70ºC/min UPR = 140/2 = 70 (ºC/min) SP of group 1 = 500ºC Temperature rise time of 2 min. Temperature difference (ºC) 140ºC UPR = = 70 (ºC/min)
Page 139: Forcing Sp To Track Pv (Pv Tracking)
9.3 Forcing SP to Track PV (PV Tracking) Description PV tracking function is used to prevent abrupt PV changes. With PV tracking, SP is first aligned with PV and then changed to its original SP at the SP ramp rate. ► SP ramp-rate setting function: 9.2 Changing SP at a Fixed Rate (SP Ramp-Rate Setting Function) PV tracking function works when: (1) Power is turned on or has recovered from a failure, (2) SP number (SPNO) is changed, (3) Operation mode is switched from STOP to RUN, (4) Operation mode is switched from MAN to AUTO PV tracking enabled PV tracking disabled Follows SP ramp rate...
Page 140: Forcing Sp To Track Remote Input (Sp Tracking)
9.4 Forcing SP to Track Remote Input (SP Tracking) Description SP tracking function is the function to force the local setpoint (SP) to track the remote setpoint (RSP) when the operation mode is switched from REM (remote) to LCL (local) mode. The function is effective to prevent abrupt PV changes. SP tracking enabled SP tracking disabled Time Time REM →...
Page 141: Setting Controller Action At Power On (Restart Mode)
9.5 Setting Controller Action at Power ON (Restart Mode) Description For details, see Chapter 15, “Power Failure Recovery Processing.” Setting Details Parameter Display Name Setting range Menu symbol symbol level Set how the controller should recover from a power failure of 5 seconds or more. R.MD Restart Mode CONT: Continue action set before power failure.
Page 142: Setting Time Between Powering On Controller And Starting Control (Restart Timer)
9.6 Setting Time between Powering on Controller and Starting Control (Restart Timer) Description The time between power on and the instant where controller starts control computation can be set. Operation start time = Operating time of controller initialization after power on. Setting Details Parameter Display Name Setting range Menu symbol symbol level R.TM Restart Timer 0 to 10 s IM 05P01D31-01EN...
Page 143 Blank Page...
Page 144: Chapter 10 Output (Control And Retransmission) Functions
Chapter 10 Output (Control and Retransmission) Functions 10.1 Setting Control Output Type Description Time Proportional Relay Output / Triac Output / Time Proportional Voltage Pulse Output In time proportional output, the control computation result is output in the form of an on/off signal pulse width proportional to the time. The pulse width is calculated as follows with the cycle time (control output cycle) at 100%.
Page 145 10.1 Setting Control Output Type Position Proportional Output Position proportional output is equipped only with Position proportional type. In position proportional output, valve opening is made proportional to the control computation results. The controller outputs direct and reverse signals (relay) to control motor movement and valve opening.
Page 146 10.1 Setting Control Output Type Two-position Two-level Control Output Two-position Two-level Control is equipped only with Heating/cooling type (Suffix code: Type 1 = -2). ► Two-position two-level control output: 8.1.1 Single-loop Control, Heating/cooling Control, Position Proportional Control, and Two-position Two-level Control ► Two-position two-level control: 8.2.4 Two-position Two-level Control Setting Details Parameter...
Page 147 10.1 Setting Control Output Type Heating/cooling Control Output of Heating/cooling Type The figure below shows an example of setting the current output of the OUT terminal to the heating-side control output terminal and type, and setting the relay output of the OUT2 terminal to the cooling-side control output terminal and type.
Page 148: Setting Control Output Cycle Time
10.2 Setting Control Output Cycle Time Description Cycle time is the basic cycle period for a signal full cycle of ON/OFF operation for a relay or voltage pulse output. Reducing cycle time results in faster cycling and finer control. In contrast, reducing the ON/OFF period also reduces relay life. For relay output, set the control output cycle time to 30 to 200 seconds according to the process speed.
Page 149: Setting Limiter To Control Output
10.3 Setting Limiter to Control Output Description Control output high and low limits can be set to restrict the control output to the operation range between those limits. The output limiter is prepared for each PID group, and works according to the selected PID group. This, however, excludes preset output in STOP mode.
Page 150: Disabling Output Limiter In Man Mode
10.4 Disabling Output Limiter in MAN mode Description Output limiter can be released when in MAN mode. However, cannot be released when in Heating/cooling control. Note that the output bump is caused if the operation mode is changed from MAN to AUTO while the control output is out of the range between the control output high limit (OH) and control output low limit (OL).
Page 151: Setting Velocity Limiter To Control Output
10.5 Setting Velocity Limiter to Control Output Description Output velocity limiter prevents the control output signal from changing suddenly in order to protect the control valves (or other actuators) and controlled process. The output velocity limiter does not work in MAN or STOP mode or when input burnout or A/D error occurs.
Page 152: Reducing 4-20 Ma Current Output To 0 Ma (Tight Shut Function)
10.6 Reducing 4-20 mA Current Output to 0 mA (Tight Shut Function) Description Tight shut function fully closes the control valve (or other actuators) (i.e., so that output is zero) beyond its positioner dead band. When the output low limit is set to “SD,” the output is as follows in MAN or AUTO mode. • In MAN mode When the output is reduced with the Down arrow key and “SD”...
Page 153: Setting On/Off Control Hysteresis
10.7 Setting ON/OFF Control Hysteresis Description In ON/OFF control, since the only two possible output states are ON and OFF, the control output cycles are as shown in the figure below. ON/OFF becomes quite narrow, so that if relay output is used, chattering occurs. In this case, the hysteresis should be set wider to prevent relay chattering and for the service life of the relay.
Page 154 10.7 Setting ON/OFF Control Hysteresis Setting Details Parameter Display Name Setting range Menu symbol symbol level Hysteresis (in ON/OFF control, Position In ON/OFF control or Two- proportional control, or position two-level control: Two-position two-level 0.0 to 100.0% of PV input control) EASY range span (EUS) Heating-side ON/OFF In Heating/cooling control control hysteresis or Position proportional...
Page 155: Canceling Offset Of Pv And Sp (Manual Reset)
10.8 Canceling Offset of PV and SP (Manual Reset) Description Manual reset can be used when the integral action is disabled. When the integral action is disabled, there will be an offset of PV and SP. Manual reset cancels this offset. The manual reset value equals the output value when PV = SP is true. Setting Details Parameter Display Name Setting range Menu symbol symbol level Manual reset EASY -5.0 to 105.0% PIDN PID number selection EASY 1 to 4 PIDG.
Page 156: Setting Hysteresis And Dead Band For Heating/Cooling Control Output
10.9 Setting Hysteresis and Dead Band for Heating/ cooling Control Output Description In Heating/cooling control, the positive dead band denotes the zone where none of the heating-side and cooling-side outputs are presented. The negative dead band denotes the zone where both of the heating-side and cooling-side outputs are presented. The following shows the case when both the heating side and cooling side are ON/OFF control. Cooling-side hysteresis (HYSc) Neutral (OFF) Heating-side hysteresis (HYS) Positive dead band The following shows the case when both the heating side and cooling side are PID...
Page 157 10.9 Setting Hysteresis and Dead Band for Heating/cooling Control Output Setting Details Parameter Display Name Setting range Menu symbol symbol level Hysteresis (in ON/OFF control, Position In ON/OFF control or Two- proportional control, or position two-level control: Two-position two-level 0.0 to 100.0% of PV input control) EASY range span (EUS) Heating-side ON/OFF In Heating/cooling control control hysteresis or Position proportional (in Heating/cooling...
Page 158: Setting Hysteresis And Dead Band For Position Proportional Control Output
10.10 Setting Hysteresis and Dead Band for Position Proportional Control Output Description To prevent excessively frequent operation of the motor and relays, a dead band is provided between two relay output operating points, and hysteresis is provided for each relay output. If position signal differs from the control computation output by less than the dead band value, neither the “direct”...
Page 159: Setting Retransmission Output Terminal, Type, And Scales
10.11 Setting Retransmission Output Terminal, Type, and Scales Description The retransmission output can be used when the control output is not assigned to the analog output terminal. Confirm the output type selection (OT) before setting the retransmission output. The range can be changed. ► Control output terminal: 10.1 Setting Control Output Type ► Current output range: 10.14 Changing Current Output Range Minimum value of Maximum value of...
Page 160 10.11 Setting Retransmission Output Terminal, Type, and Scales (Continued) Parameter Display Name Setting range Menu symbol symbol level Maximum When RTS = PV1, SP1, TSP1, PV value of RTL + 1 digit to 30000 retransmission -19999 to RTH - 1 digit output scale of Decimal point position: When RTS=PV1, SP1, or TSP1, Minimum decimal point position is same as value of that of PV input.
Page 161: Setting Preset Output Value
10.12 Setting Preset Output Value 10.12.1 Setting Output Value in STOP Mode (Preset Output) Description Preset output becomes the output when the operation mode is switched from RUN to STOP. The preset output is not limited by the output high and low limits. The preset output is prepared for each PID parameter group, and works according to the selected PID parameter group.
Page 162 10.12 Setting Preset Output Value Setting Details Parameter Display Name Setting range Menu symbol symbol level Preset output In STOP mode, fixed control Heating-side preset output can be generated. EASY output (in Heating/ In Position proportional cooling control) control, Valve opening can be set; Cooling-side preset EASY -5.0 to 105.0% output In STOP mode, fixed sub- Sub-preset output (in control output can be SU.PO Two-position two-level...
Page 163: Setting Output Value When Switched To Man Mode (Manual Preset Output)
10.12 Setting Preset Output Value 10.12.2 Setting Output Value When Switched to MAN Mode (Manual Preset Output) Description When the operation mode is switched from AUTO to MAN, each of the following can be selected. • The control output takes over the control output as is. • The control output bumps to the manual preset output. When the manual preset output is output, the manual operation is possible after the bump.
Page 164: Setting Output Value When Error Occurs (Input Error Preset Output)
10.12 Setting Preset Output Value 10.12.3 Setting Output Value When Error Occurs (Input Error Preset Output) Description The 0% control output, 100% control output, or input preset output can be selected and output as input error preset output in the following conditions. • The input burnout occurs during operation in AUTO mode and RUN mode. • The ADC error occurs during operation in AUTO mode and RUN mode. However, the manual output becomes the output when the input burnout occurs in MAN mode and RUN mode.
Page 165: Changing Current Output Range
10.13 Changing Current Output Range Description The analog output type can be selected from among 4 to 20, 0 to 20, 20 to 4, or 20 to 0 Setting Details Parameter Display Name Setting range Menu symbol symbol level OUT current output 4-20: 4 to 20 mA, OU.A range...
Page 166: Adjusting Motor-Operated Valve Position (Position Proportional Output)
10.14 Adjusting Motor-operated Valve Position (Position Proportional Output) When performing control using the motor-operated valve position, adjustment of the valve position is necessary. Start of valve position adjustment. Use the feedback input. Move to the estimating type if a feedback input burnout occurs. V.MOD = 1 V.MOD = 0 V.MOD = 2 Control by estimating type Control with Control by estimating type at feedback input error.
Page 167: Setting Valve Operation Mode
10.14 Adjusting Motor-operated Valve Position (Position Proportional Output) 10.14.1 Setting Valve Operation Mode Description Position proportional control monitors the control output signals and the feedback signals from the control valve and regulates to keep the valve opening and the control output signal in agreement. Position proportional control (output) operation mode has feedback type and estimating type.
Page 168: Adjusting Valve Position Manually
10.14 Adjusting Motor-operated Valve Position (Position Proportional Output) 10.14.3 Adjusting Valve Position Manually Description The following procedure describes how to adjust valve position manually. (1) Verify that the wirings are correct. (2) Set the operation mode to MAN. (3) Reset the valve position (Set V.RS=ON). (4) Display the fully-closed valve position setting (V.L), determine the fully-closed position while holding down the Down arrow ( ) key, and press the SET/ENTER key. (5) Display the fully-opened valve position setting (V.H), determine the fully-opened position while holding down the Up arrow ( ) key, and press the SET/ENTER key.
Page 169: Setting Valve Traveling Time (Estimating Type)
10.14 Adjusting Motor-operated Valve Position (Position Proportional Output) 10.14.4 Setting Valve Traveling Time (Estimating Type) Description In the estimating type, a traveling time required to fully open the valve from its fully- closed position is set and valve positions are estimated according to the time consumed for valve operation. The valve position estimating type is used when the feedback input of valve positions cannot be obtained.
Page 170: Using 15 V Dc Loop Power Supply
10.15 Using 15 V DC Loop Power Supply Description The 15 V DC loop power supply is a function to supply DC power (14.5 to 18.0 V DC (21 mA DC)) to a 2-wire transmitter. The loop power supply block is isolated from the controller’s internal circuitry. In addition, the block is equipped with a current limiting circuit. Therefore, accidental short-circuits that may occur in the field do not adversely affect the rest of the controller’s internal circuitry.
Page 171 10.15 Using 15 V DC Loop Power Supply Setting Details Parameter Display Name Setting range Menu symbol symbol level Retransmission OFF: Disable EASY output type of RET PV1: PV SP1: SP OUT1: OUT (Valve opening: 0 to 100 % in Position proportional control) LPS: 15 V DC loop power supply Retransmission TSP1: Target SP O1RS output type of OUT EASY HOUT1: Heating-side OUT current output COUT1: Cooling-side OUT MV1: Position proportional output (internal computed value)
Page 172: Chapter 11 Alarm Functions
Chapter 11 Alarm Functions 11.1 Setting Alarm Type Description The alarm-related parameters consist of the alarm type (type, stand-by action, energized/ de-energized, and latch function), PV velocity alarm time setpoint, alarm hysteresis, alarm (On-/Off-) delay timer, and alarm setpoint. Alarm-related parameter Number of settings Alarm type 4 (number of settings) PV velocity alarm time setpoint 4 (number of settings) Alarm hysteresis 4 (number of settings) Alarm (on-/off-) delay timer 4 (number of settings) Alarm setpoint 4 (number of settings) x 4 (number of groups) ► Alarm hysteresis: 11.3 Setting Hysteresis to Alarm Operation...
Page 173 11.1 Setting Alarm Type PV High Limit Alarm and PV Low Limit Alarm PV high limit alarm output PV high limit Alarm hysteresis alarm setpoint Alarm hysteresis PV low limit alarm setpoint PV low limit alarm output Time Contact type in the figure above: Energized when an event occurs (factory default). SP High Limit Alarm and SP Low Limit Alarm SP high limit alarm output...
Page 174 11.1 Setting Alarm Type Deviation High Limit Alarm and Deviation Low Limit Alarm Deviation high limit alarm output Alarm hysteresis Deviation high limit alarm setpoint (positive setpoint) Target setpoint (SP) Deviation low limit alarm setpoint (negative setpoint) Alarm hysteresis Deviation low limit alarm output Time Contact type in the figure above: Energized when an event occurs (factory default). When a negative setpoint is set for the deviation high limit alarm setpoint, the deviation setpoint will be lower than the SP.
Page 175 11.1 Setting Alarm Type Target SP High Limit Alarm and Target SP Low Limit Alarm Target SP high limit alarm output Alarm hysteresis Target SP high limit alarm setpoint SP in ramp rate setting Taraget SP Target SP low limit alarm setpoint Alarm hysteresis Target SP low limit alarm output Time SP changing SP changing SP changing SP changing...
Page 176 11.1 Setting Alarm Type Target SP Deviation High and Low Limits Alarm Deviation high and low limits alarm output Alarm hysteresis Deviation high and low limits alarm setpoint Target SP (SP) Alarm hysteresis Time Contact type in the figure above: Energized when an event occurs (factory default). Target SP Deviation within High and Low Limits Alarm Deviation within high and low limits alarm output Alarm hysteresis...
Page 177 11.1 Setting Alarm Type Control Output High Limit Alarm and Control Output Low Limit Alarm In Heating/cooling control, alarms are heating-side control output high limit alarm and heating-side control output low limit alarm. Control output high limit alarm output Control output high limit Alarm hysteresis alarm setpoint Control output (OUT) Alarm hysteresis Control output low limit alarm setpoint Control output low limit alarm output...
Page 178 11.1 Setting Alarm Type Analog Input PV High Limit Alarm and Analog Input PV Low Limit Alarm These alarms monitor the input value after the analog input computation process (entrance to the input ladder calculation) is completed. Analog input PV high limit alarm output Analog input PV high limit Alarm hysteresis alarm setpoint Analog input Analog input Alarm hysteresis PV low limit...
Page 179 11.1 Setting Alarm Type Feedback Input High Limit Alarm and Feedback Input Low Limit Alarm These alarms can be used only for Position proportional type.. These alarms monitor the feedback input (resistance or current) value. The setting range for these alarms is 0.0 to 100.0%. However, the setting range varies depending on whether the feedback input is a current value (4 to 20 mA) or resistance value (100 Ω to 2.5 kΩ). Current value: 4 mA corresponds to 0.0%, and 20 mA to 100.0%. Resistance value (e.g., 1 kΩ): The resistance value when the valve is fully closed after the valve position adjustment corresponds to 0.0%, and the resistance value when the valve is fully opened corresponds to 100.0%. 0 Ω does not correspond to 0.0%, and 1 kΩ does not correspond to 100.0%.
Page 180 11.1 Setting Alarm Type Fault diagnosis Alarm The function outputs an alarm signal in the following cases. The corresponding event (EV) lamp is lit and the contact output turns on (when the contact type is energized). • Burnout of PV input • ADC failure of PV input • Reference junction compensation (RJC) error of PV input The fault diagnosis alarm does not work the stand-by action functions. FAIL output When the FAIL condition is caused (faulty MCU or system data error), DO (alarm output) turned off regardless of contact type.
Page 181 11.1 Setting Alarm Type Alarm Latch Function The alarm latch function is a function for keeping the alarm output (keeping the alarm output on) after entering the alarm condition (alarm output is turned on) until an order to release the alarm latch is received. The alarm latch function has the following four types of action. Latch 1 Cancels the alarm output when an order to release the alarm latch is received.
Page 182 11.1 Setting Alarm Type Release of Alarm Latch The alarm latch function can be cancelled by the user function key, via communication/ ladder program, or by contact input. Cancelling the alarm latch function cancels all latched alarm outputs. ► Release by user function key: 13.2 Assigning Function to User Function Key and A/M key ► Release by contact input: 12.1.1 Setting Contact Input Function ► Release via communication: UTAdvanced Series Communication Interface User’s Manual PV high limit alarm setpoint Alarm hysteresis Alarm hysteresis...
Page 183 11.1 Setting Alarm Type Setting Details Parameter Display Name Setting range Menu symbol symbol level AL1 to AL4 Alarm-1 to -4 type EASY See the table below. ALRM PV velocity alarm time 00.01 to 99.59 VT1 to VT4 EASY setpoint 1 to 4 (minute.second) Note1: The initial values of the parmeters AL1 to AL4 and VT1 to VT4 are "4". The number of alarms can be changed using the parameter ALNO. The following shows the example of setting PV high limit (01), With stand-by action (1), De-energized (1), and Latch 1 action (1).
Page 184: Setting Number Of Alarm Groups To Use
11.2 Setting Number of Alarm Groups to Use Description Up to four alarm groups of alarm type, alarm hysteresis, alarm (On-/Off-) delay timer, and alarm setpoint are available. Unused alarm parameters can be hidden and their functions can be turned off. The initial value of parameter ALNO. is “4.” When ALNO. = 4, for example, only the four groups of alarm type, PV velocity alarm time setpoint, alarm hysteresis, alarm delay timer, and alarm setpoint are displayed.
Page 185: Setting Hysteresis To Alarm Operation
11.3 Setting Hysteresis to Alarm Operation Description If the On/Off switch of the alarm output is too busy, you can alleviate the busyness by increasing the alarm hysteresis. Hysteresis for PV High Limit Alarm Point of ON/OFF action Output (alarm setpoint) Hysteresis When Setting Hysteresis of 5ºC and 15ºC for PV High Limit Alarm HYS: 5ºC (example) HYS: 15ºC (example) Closed (ON) Closed (ON) Open...
Page 186: Delaying Alarm Output (Alarm Delay Timer)
11.4 Delaying Alarm Output (Alarm Delay Timer) Description The alarm on-delay timer is a function for turning on the alarm when the alarm condition occurs, and the timer starts and the set time elapses. The timer is reset if the alarm condition is removed while the timer is running. No alarm is generated.
Page 187: Setting Alarm Output To Control Relay Terminal
11.5 Setting Alarm Output to Control Relay Terminal Description The control relay terminal can be used for alarm output when it is not used for control output. Setting Details Parameter Display Name Setting range Menu symbol symbol level Same as the setpoint for the OUT relay function contact output function.
Page 188: Setting Alarm Action According To Operation Mode
11.6 Setting Alarm Action According to Operation Mode Description The alarm action usually functions regardless of operation modes. Setting the alarm mode allows the alarm action to be disabled in STOP or in STOP or MAN mode. Setting Details Parameter Display Name Setting range Menu symbol symbol level 0: Always active...
Page 189: Setting Heater Break Alarm
11.7 Setting Heater Break Alarm Description Either of heater break alarm function or heater current measurement function can be selected. Heater Break Alarm Function The heater break alarm function measures the heater current, and outputs the heater break alarm if the current is less than the heater break detecting point. The heater break alarm function can be used only for ON/OFF output (relay output) or for time proportional output (relay output, voltage pulse output).
Page 190 11.7 Setting Heater Break Alarm Heater Current Measured Value A measured heater current value can be confirmed by a displayed value on operation display. ► Heater current measured value: 6.1 Monitoring and Control of Operaiotn Displays Heater Break Alarm Delay Timer The delay timer (On-delay timer, Off-delay timer) can be set for the heater break alarm function.
Page 191 11.7 Setting Heater Break Alarm Heater Current Measurement Function The heater current value can be confirmed by a displayed value on operation display. ► Heater current measured value: 6.1 Monitoring and Control of Operaiotn Displays The heater break alarm function can be used only for ON/OFF output (relay output), for time proportional output (relay output, voltage pulse output) or for current output.
Page 192: Chapter 12 Contact Input/Output Functions
Chapter 12 Contact Input/Output Functions 12.1 Setting Contact Input Function 12.1.1 Setting Contact Input Function Description The contact input function works by setting the contact input number (I relay) to functions such as the operation mode. This explanation assumes that the contact type is energized. (The function is executed when the contact is turned on) AUTO/MAN Switch (A/M) AUTO/MAN mode can be switched using contact input.
Page 193 12.1 Setting Contact Input Function Switch to REMOTE (REM) Displayed only in cases where the communication is specified. The mode can be switched to REMOTE using contact input. (Switch by the rising edge) Contact status Operation Remark OFF→ON Switch to REMOTE – ON→OFF Maintains the current operation status –...
Page 194 12.1 Setting Contact Input Function PV Red/white Switch (PVRW) PV color can be switched using contact input. (Status switch) Contact status Operation Remark Red color – White color – Set "10" to the parameter PCMD. Bit-0 to Bit-2 of SP Number (SP.B0 to SP.B2) The SP number can be switched using contact input. There are two methods to specify SP number. •...
Page 195 12.1 Setting Contact Input Function Bit-0 to Bit-2 of PID Number (PN.B0 to PN.B2) The PID number can be switched using contact input. There are two methods to specify a PID number. • Status switch 1 (Operation by keystroke or via communication is enabled depending on the conditions.) Contact status PID number PN.B2...
Page 196 12.1 Setting Contact Input Function Bit-0 to Bit-2 of Manual Preset Output Number (MP.B0 to MP.B2) The manual preset output number can be switched using contact input. There are two methods to specify a manual preset output number. • Status switch 1 (Operation by keystroke or via communication is enabled depending on the conditions.) Contact status Manual preset...
Page 197 12.1 Setting Contact Input Function Contact Action Type Operation Description Receiving a contact input signal changes the status to the specified operation, and Status a release changes the status back to the original action. Rising edge Receiving an OFF-to-ON contact input signal changes the status to the specified operation. The minimum detection time is Rising edge the control period + 50 ms.
Page 198 12.1 Setting Contact Input Function Setting Details Parameter Display Name Setting range Menu symbol symbol level AUTO/MAN switch REMOTE/LOCAL switch STOP/RUN switch AUTO Switch to AUTO Switch to MAN Switch to REMOTE Switch to LOCAL Auto-tuning START/STOP switch DI.SL Latch release LCD backlight ON/OFF switch PVRW PV red/white switch...
Page 199 12.1 Setting Contact Input Function UT35A DI and Setpoint (I relay number) DI equipped as standard DI symbol Setpoint 5025 5026 Additional DI (For Standard model) (For Standard model) When Type 2 code is “1” When Type 2 code is “2” DI symbol Setpoint DI symbol Setpoint DI11 5041 DI11 5041 DI12 5042 DI12 5042 –...
Page 200: Changing Contact Type Of Contact Input
12.1 Setting Contact Input Function 12.1.2 Changing Contact Type of Contact Input Description The contact type can set the action direction of contact input assigned to the function. Setting Details Contact Input Equipped as Standard Parameter Display Name Setting range Menu symbol symbol level...
Page 201: Setting Contact Output Function
12.2 Setting Contact Output Function 12.2.1 Setting Function of Contact Output Description The contact output function works by setting a status such as an alarm to the contact output. This explanation assumes that the contact type is energized. (The contact is turned on when an event occurs.) Setting Details Contact Output Equipped as Standard Parameter Display Name...
Page 202 12.2 Setting Contact Output Function Alarm Status The alarm status can be output to the contact output. (The setpoints below are I relay numbers.) ► I relay: UTAdvanced Series Communication Interface (RS-485, Ethernet) User's Manual Setpoint Function Alarm output Alarm status status 4321 4353 Alarm 1 4322 4354 Alarm 2 4323 4355 Alarm 3 4325 4357...
Page 203 12.2 Setting Contact Output Function Key and Display Status The key and display status can be output to the contact output. (The setpoints below are I relay numbers.) Contact status Setpoint Function 4705 PARAMETER key 4706 DISPLAY key 4707 Right arrow key 4708 Down arrow key 4709...
Page 204 12.2 Setting Contact Output Function Error Status Contact status Setpoint Function 4065 PV input ADC error 4073 PV input burnout error 4070 PV input RJC error Feedback resistance/current 4081 burnout Automatic valve position Error occurs Normal 4082 adjustment error 4097 PV input burnout error 4101 PV input over-scale 4102 PV input under-scale 4111 Auto-tuning time out System Error Status Contact status Setpoint...
Page 205: Changing Contact Type Of Contact Output
12.2 Setting Contact Output Function 12.2.2 Changing Contact Type of Contact Output Description The contact type can set the action direction of contact output assigned to the function. Setting Details Contact Output Equipped as Standard Parameter Display Name Setting range Menu symbol symbol level...
Page 206: Chapter 13 Display, Key, And Security Functions
Chapter 13 Display, Key, and Security Functions 13.1 Setting Display Functions 13.1.1 Setting Active Color PV Display Function The active color PV display function changes the PV display color when an event occurs. Description Link to Alarm The PV display color changes by linking to the alarm 1 or alarm 2. The following is an example of operation linking to alarm 1. Set the alarm-1 type to “PV high limit alarm” and alarm-1 setpoint to “80°C.” When the active color PV display switch is set to”2,” PV display color changes from white to red if PV exceeds the alarm-1 setpoint. The red-to-white switching action can be set. °C Alarm-1 hysteresis Alarm-1 setpoint A1 = 80°C...
Page 207 13.1 Setting Display Functions Link to PV The PV display color changes by linking to PV. Set the PV color change high limit to “70°C” and the PV color change low limit to “20°C.” PV display color changes from white to red if PV is out of the range. The red-to-white switching action can be set. There is no hysteresis. °C Parameter “PCH” (PV color change high limit) = 70°C 70°C Parameter “PCL” (PV color change low limit) = 20°C 20°C Time PV color: red PV color: red...
Page 208 13.1 Setting Display Functions Setting Details Parameter Display Name Setting range Menu symbol symbol level 0: Fixed in white 1: Fixed in red 2: Link to alarm 1 (Alarm OFF: white, Alarm ON: red) 3: Link to alarm 1 (Alarm OFF: red, Alarm ON: white) 4: Link to alarm 1 or 2 (Alarm OFF: white, Alarm ON: red)
Page 209: Masking Arbitrary Display Value In Operation Display
13.1 Setting Display Functions 13.1.2 Masking Arbitrary Display Value in Operation Display Description Display/non-display of the PV display, Setpoint display, and Status display in the Operation Display can be set. Items that you do not want to display can be set to non-display. For example, when the Setpoint display is set to non-display, SP of the SP Display and OUT of the OUT Display are not displayed.
Page 210: Registering Select Display (Up To 5 Displays)
13.1 Setting Display Functions 13.1.3 Registering SELECT Display (Up to 5 Displays) Description Registering frequently changed-operation parameters (except for the operation mode) in the SELECT Display of the Operation Displays will allow you to change parameter settings easily. A maximum of five Displays can be registered. Set the D register number of the parameter you wish to register for the registration to the SELECT Display.
Page 211: Changing Event Display
13.1 Setting Display Functions 13.1.4 Changing Event Display Description The UT35A/UT32A has four event (EV) lamps. The alarms 1 to 4 are assigned to EV1 to EV4. Setting Details Parameter Display Menu Name Setting range symbol level symbol Setting range: 4001 to 6304 OFF: Disable 4321: Link to alarm 1 (Lit when the alarm occurs) 4322: Link to alarm 2 (Lit when the alarm occurs) 4323: Link to alarm 3 (Lit when the alarm occurs) 4325: Link to alarm 4 (Lit when the alarm occurs) 4529: Heater break alarm 1 (Lit when the alarm occurs)
Page 212 13.1 Setting Display Functions Reference in Relay Description Communication Interface Number User's Manual 4001 to 4064 System error 4065 to 4128 Input error 4129 to 4192 Free area 4193 to 4256 Operation mode 4257 to 4320 Free area 4321 to 4384 Alarm 4385 to 4528 Alarm latch...
Page 213: Registering Select Parameter Display (Up To 10 Displays)
13.1 Setting Display Functions 13.1.5 Registering SELECT Parameter Display (Up to 10 Displays) Description Registering frequently changed operation parameters (change frequency is lower than SELECT Display) in the SELECT Parameter Display will allow you to change parameter settings easily. A maximum of ten Displays can be registered. Set the D register number of the parameter you wish to register for the registration to the SELECT Parameter Display.
Page 214 13.1 Setting Display Functions Setting Details Parameter Display Name Setting range Menu symbol symbol level OFF: No registration CS10 to SELECT parameter-10 D register number (2301 to CSEL CS19 to -19 registration 5000) For D register numbers, see sections 8.4.2 and 8.4.5 of UTAdvanced Series Communication Interface User’s Manual.
Page 215: Setting Bar-Graph Display Function
13.1 Setting Display Functions 13.1.6 Setting Bar-graph Display Function Description The bar-graph display is provided on the front of the controller. PV or OUT can be displayed. Data which can be displayed on Bar-graph display are as follows. OUT, Output Displayed by 10% increment of output 100% Less than 0% More than 100% For relay, OFF is equivalent to 0% and ON is equivalent to 100%. PV, SP Displayed by 10% increment of analog input/PV input range 100% Less than 0%...
Page 216 13.1 Setting Display Functions Setting Details Parameter Display Name Setting range Menu symbol symbol level 0: Disable 1:OUT, Heating-side OUT, Internal value in Position proportional control 2: Cooling-side OUT Bar-graph display BAR1 3: PV registration 4: SP DISP 5: Deviation 6 to 16: Disable 17: Feedback input (valve opening) 18: PV terminals analog input Bar-graph...
Page 217: Masking Least Significant Digit Of Pv Display
13.1 Setting Display Functions 13.1.7 Masking Least Significant Digit of PV Display Description With and without least significant digit of the PV in the Operation Display can be set. When without least significant digit is set, the value of the least significant digit is truncated and not displayed. The internal value is not changed depending on whether with or without least significant digit (the value is for display only). This parameter does not function for the PV without decimal point.
Page 218: Setting Economy Mode
13.1 Setting Display Functions 13.1.8 Setting Economy Mode Description The LCD backlight ON/OFF can be set in the following methods. Setting the LCD backlight to OFF saves energy. User Function Keys The LCD backlight ON/OFF switch can be assigned to the user function key. ► User function key: 13.2 Assigning Function to User Function Key and A/M Key Backlight OFF timer The backlight OFF timer sets the economy mode parameter to ON.
Page 219: Selecting The Initial Operation Display That Appears At Power On
13.1 Setting Display Functions 13.1.9 Selecting the Initial Operation Display that Appears at Power ON Description The initial Operation Display that appears when the power is turned on can be set. Setting Details Parameter Display Name Setting range Menu symbol symbol level SP1: SP Display OUT1: OUT Display HCO: Heating/cooling OUT Display VP: Valve Position Display MV: Position Proportional Computation Output Display...
Page 220: Setting Message Function
13.1 Setting Display Functions 13.1.10 Setting Message Function Description Using the message function and turning the contact input on/off, the message registered beforehand can be displayed on PV display by interrupt. The message is registered using LL50A Parameter Setting Software. The messages are limited to 20 alphanumeric characters. A maximum of four messages can be registered.
Page 221: Changing Guide Scroll Speed
13.1 Setting Display Functions 13.1.12 Changing Guide Scroll Speed Description The scroll speed can be changed when the guide for the parameter or menu is displayed. Setting Details Parameter Display Name Setting range Menu symbol symbol level Scroll speed (Slow) 1 to 8 (Quick) DISP 13.1.13 Turning Guide Display ON/OFF...
Page 222: Setting Brightness And Contrast Adjustment Of Lcd And Display Update Cycle
13.1 Setting Display Functions 13.1.15 Setting Brightness and Contrast Adjustment of LCD and Display Update Cycle Description The brightness and contrast for PV, Setpoint, Bar-graph, and Status indicator can be adjusted. Brightness ranges for each display can be set. The LCD has a characteristic that the display action becomes late at the low temperature. This can be solved by adjusting the display update cycle (D.CYC). Setting Details Parameter Display Name Setting range Menu symbol symbol...
Page 223: Assigning Function To User Function Key And A/M Key
13.2 Assigning Function to User Function Key and A/M Key Description The UT35A has three user function keys on the front panel. The UT32A has one user function key. Various functions (operation mode switch etc.) can be assigned to the user function key. Press the user function key to perform the assigned function. The User function key is available only on the Operation Display.
Page 224 13.2 Assigning Function to User Function Key and A/M Key Setting Details Parameter Display Name Setting range Menu symbol symbol level F1 to Fn User function key action setting EASY See the table below A/M key action setting Availability (Note 1) Setpoint Function Action Unassigned –...
Page 225 13.2 Assigning Function to User Function Key and A/M Key Status of user function key The status of the user function key can be identified by communication. “1” can be read while the user function key is held down, and “0” can be read when the user function key is released.
Page 226: Setting Security Functions
13.3 Setting Security Functions 13.3.1 Setting a Password Description The password function can prevent inadvertent changes to the parameter settings. If a password is set, the checking is required when moving to the Setup Parameter Setting Display. When the password is verified, can be changed to the Setup Parameter Setting Display.
Page 227: Locking (Hiding) Parameter Menu Display
13.3 Setting Security Functions 13.3.3 Locking (Hiding) Parameter Menu Display Description The parameter menu display lock function hides the following Parameter Menu Displays. Setting Details Parameter Display Name Setting range Menu symbol symbol level [CTL] menu lock [PV] menu lock [MPV] menu lock [OUT] menu lock [HBA] menu lock R485 [R485] menu lock ETHR...
Page 228: Key Lock
13.3 Setting Security Functions 13.3.4 Key Lock Description The key lock function locks the key on the front panel to prohibit key operation. It can prohibit the operation mode switch or parameter setting change. Setting Details Parameter Display Name Setting range Menu symbol symbol level...
Page 229: Prohibiting Writing Via Communication
13.3 Setting Security Functions 13.3.6 Prohibiting Writing via Communication Description Writing data to each register via all communication methods can be permitted or prohibited. However, writing data via light-loader (front) or maintenance port (upper) is possible using LL50A Parameter Setting Software. Setting Details Parameter Display Name...
Page 230: Confirmation Of Key And I/O Condition And Version
13.4 Confirmation of Key and I/O Condition and Version 13.4.1 Confirmation of Key and I/O Condition Description Can be confirm the Key and I/O condition. Setting Details Parameter Display Name Setting range Menu symbol symbol level Key status X000 DI1-DI2 status (equipped as standard) X100 DI11-DI15 status (E1-terminal area) X400 DI41-DI45 status (E4-terminal area) Read only.
Page 231 13.4 Confirmation of Key and I/O Condition and Version Parameter KEY Displayed digit Description PARAMETER (or PARA) key (0: OFF, 1: ON) DISPLAY (or DISP) key (0: OFF, 1: ON) 1st digit RIGHT arrow key (0: OFF, 1: ON) DOWN arrow key (0: OFF 1: ON) SET/ENTER key (0: OFF, 1: ON) UP arrow key (0: OFF, 1: ON) 2nd digit LEFT arrow key (0: OFF, 1: ON)
Page 232 13.4 Confirmation of Key and I/O Condition and Version Parameter X400 Displayed digit Description DI41 status (0: OFF, 1: ON) DI42 status (0: OFF, 1: ON) 1st digit DI43 status (0: OFF, 1: ON) DI44 status (0: OFF, 1: ON) DI45 status (0: OFF, 1: ON) – 2nd digit –...
Page 233: Confirmation Of Version
13.4 Confirmation of Key and I/O Condition and Version Parameter Y400 Displayed digit Description DO41 status (0: OFF, 1: ON) DO42 status (0: OFF, 1: ON) 1st digit DO43 status (0: OFF, 1: ON) DO44 status (0: OFF, 1: ON) DO45 status (0: OFF, 1: ON) – 2nd digit –...
Page 234: Chapter 14 Parameter Initialization
Chapter 14 Parameter Initialization 14.1 Initializing Parameter Settings to Factory Default Values Description Parameter settings can be initialized to the factory default values. The ladder program is also initialized to the factory default. Use the key or LL50A Parameter Setting Software to execute it. Note The user setting values (defaults) are not initialized even if the parameter setting values are initialized to the factory default values. Setting Details Parameter Display Name Setting range Menu symbol symbol level -12345: Initialization, Initialization to factory F.DEF automatically returned to "0" INIT default value after initialization.
Page 235: Registering And Initializing User Default Values
14.2 Registering and Initializing User Default Values 14.2.1 Registering as User Setting (Default) Values Description The user default values can be registered as parameter default values. The ladder program can not be registered as user default values. Use the LL50A Parameter Setting Software to register user setting (default) values. CAUTION Before registering the user default value, make sure that the user setting value is set to the parameter.
Page 236: Remedies If Power Failure Occurs During Operations
Chapter 15 Power Failure Recovery Processing / Power Frequency Setting / Other Settings 15.1 Remedies if Power Failure Occurs during Operations Description The operation status and remedies after a power failure differ with the length of power failure time: Regardless of the length of power failure time, all functions of the controller cannot be operated for about 10 seconds after recovery.
Page 237: Power Frequency Setting
15.2 Power Frequency Setting Description The power frequency can be set by automatic detection or manually. However, when the /DC option is specified, only manual setting is available. Set the range to the commercial frequency of the installation location. Setting Details Parameter Display Name...
Page 238: Chapter 16 Troubleshooting, Maintenance, And Inspections
Chapter 16 Troubleshooting, Maintenance, and Inspections 16.1 Troubleshooting 16.1.1 Troubleshooting Flowchart If the Operation Display does not appear after turning on the controller’s power, follow the measures in the procedure below. If a problem appears complicated, contact our sales representative. Is the controller defective? Completely Display I/O signal Communication operation...
Page 240: Errors At Power On
Errors at Power On (Input/output Action) Analog out- Relay output Feedback Control Retrans- put (control Voltage pulse (control out- input (for Contact Error Ladder Control Alarm Contact Communi- PV input computa- mission output, re- output (con- put, position Position (alarm) description calculation output action input cation tion output transmission...
Page 247: Errors During Operation
Errors during Operation (4) The errors shown below may occur during operation. Parameter Data display Status indicator PV display (Op- that (Operation (Operation Error description Cause and diagnosis Remedy eration Display) displays er- Display) Display) ror details Faulty Undefined Undefined – – Faulty MCU MCU is corrupted. Contact us for repair.
Page 248 16.1 Troubleshooting Hexadecimal Display on Setpoint Display (Operation Display) Some error codes are displayed in hexadecimal. When the error occurs, "1" is set on the bit of corresponding error, and the bit data is displayed in hexadecimal. If the setup parameter error or the operation parameter errors occur, it is displayed as follows: Data display Symbol display...
Page 249 16.1 Troubleshooting Hexadecimal Display of the Parameter which Shows the Error Details Error confirmation parameters are displayed in hexadecimal. When the error occurs, "1" is set on the bit of corresponding error. Data display 1st digit (hexadecimal) Symbol display 2nd digit (hexadecimal) 3rd digit (hexadecimal) 4th digit (hexadecimal) Parameter PA.ER Displayed digit Description 1st digit System data error...
Page 250 16.1 Troubleshooting Parameter OP.ER Displayed digit Description 1st digit Non responding hardware in E1-terminal area – Non responding hardware in E3-terminal area – 2nd digit Non responding hardware in E4-terminal area – – – 3rd digit Communication error in E1-terminal area – Communication error in E3-terminal area –...
Page 251 16.1 Troubleshooting Parameter PV1.E Displayed digit Description 1st digit PV input burnout error – – – 2nd digit PV input over-scale PV input under-scale – – 3rd digit – – – – 4th digit – – Auto-tuning time-out – 16-14 IM 05P01D31-01EN...
Page 252: Maintenance
16.2 Maintenance 16.2.1 Cleaning The front panel and operation keys should be gently wiped with a cloth soaked with water and squeezed firmly. CAUTION In order to prevent LCD from static electricity damage, do not wipe with dry cloth. (When LCD is electrified, it returns to normal in several minutes.) Do not use alcohol, benzene, or any other solvents.
Page 253: Periodic Maintenance
16.3 Periodic Maintenance Check the operating condition periodically to use this instrument with good condition. 16-16 IM 05P01D31-01EN...
Page 254: Disposal
16.4 Disposal When disposing of this instrument, arrange for appropriate disposal as industrial waste according to the rules of a country, the area, or a local government. 16-17 IM 05P01D31-01EN...
Page 255 Blank Page...
Page 256: Chapter 17 Installation And Wiring
Chapter 17 Installation and Wiring 17.1 Installation Location The instrument should be installed in indoor locations meeting the following conditions: • Instrumented panel This instrument is designed to be mounted in an instrumented panel. Mount the instrument in a location where its terminals will not inadvertently be touched. •...
Page 257 17.1 Installation Location Do not mount the instrument in the following locations: • Outdoors • Locations subject to direct sunlight, ultrared rays, ultraviolet rays, or close to a heater Install the instrument in a location with stable temperatures that remain close to an average temperature of 23°C. Do not mount it in locations subject to direct sunlight or close to a heater. Doing so adversely affects the instrument and LCD. •...
Page 258: Mounting Method
17.2 Mounting Method WARNING Be sure to turn OFF the power supply to the controller before installing it on the panel to avoid an electric shock. Mounting the Instrument Main Unit Provide an instrumented panel steel sheet of 1 to 10 mm thickness. After opening the mounting hole on the panel, follow the procedures below to install the controller: Insert the controller into the opening from the front of the panel so that the terminal board on the rear is at the far side.
Page 259: External Dimensions And Panel Cutout Dimensions
17.3 External Dimensions and Panel Cutout Dimensions Unit: mm UT35A (approx. inch) (0.43) 65 (2.56) 96 (3.78) Bracket Terminal cover 20 (0.79) Bracket 1 to 10 mm (0.04 to 0.39 inch) (panel thickness) General mounting Side-by-ide close mounting +0.8 – × 117 (4.61) min. +0.03 ([(N-1) 3.78+3.62] ×...
Page 260: Wiring
17.4 Wiring 17.4.1 Important Information on Wiring WARNING 1) Be sure to turn OFF the power supply to the controller before wiring to avoid an electric shock. Use a tester or similar device to ensure that no power is being supplied to a cable to be connected. 2) Wiring work must be carried out by a person with basic electrical knowledge and practical experience.
Page 261 17.4 Wiring CAUTION Do not use an unassigned terminal as the relay terminal. Recommended Crimp-on Terminal Lugs (ød ) Recommended tightening torque: 0.6 N·m Applicable wire size: Power supply wiring 1.25 mm or more Applicable terminal lug Applicable wire size mm (AWG#) (ød) (A) 0.25 to 1.65 (22 to 16) 5.5 3.3 Cable Specifications Purpose Name and Manufacturer Power supply, relay contact 600 V Grade heat-resistant PVC insulated wires, JIS C 3317(HIV), 0.9 output...
Page 262: Pv Input Wiring
17.4 Wiring 17.4.2 PV Input Wiring CAUTION 1) Be careful of polarity when wiring inputs. Reversed polarity can damage the UT. 2) Keep the PV input signal line as far away as possible from the power supply circuit and ground circuit. 3) For TC input, use shielded compensating lead wires for wiring. For RTD input, use shielded wires that have low conductor resistance and cause no significant differences in resistance between the three wires.
Page 263: Control Output (Relay, Triac, Current, And Voltage Pulse) Wiring
17.4 Wiring 17.4.3 Control Output (Relay, Triac, Current, and Voltage Pulse) Wiring CAUTION 1) The use of inductance (L) loads such as auxiliary relays, motors and solenoid valves causes malfunction or relay failure; always insert a CR filter for use with alternating current or a diode for use with direct current, as a spark-removal surge suppression circuit, into the line in parallel with the load.
Page 264 17.4 Wiring Relay Output (For Standard model) Heating/cooling type (For Standard model) Standard type output heating/cooling output (For Detailed model) Suffix code of Output 1 = (For Detailed model) Suffix code of Output 1 = “-R” “R” or “U” or “-U” and Suffix code of Output 2 = “R” or “-U” Cooling-side OUT/OUT2 Heating-side Contact rating: 250 V AC, 3 A Contact rating: 250 V AC, 3 A 30 V DC, 3 A (resistance load) 30 V DC, 3 A (resistance load) Suffix code: Output 1 and Output 2 = “-UU”, “-UR”, “-RU”...
Page 265: Valve Position Output And Feedback Input Wiring
17.4 Wiring 17.4.4 Valve Position Output and Feedback Input Wiring CAUTION 1) Use an auxiliary relay for load-switching if the contact rating is exceeded. 2) Keep the relay output wires and the feedback input wires at least 30 cm apart. 3) The output relay has a limited service life. Be sure to connect a CR filter (for AC) or diode (for DC) to the load.
Page 266 17.4 Wiring 17.4.5 Contact Input Wiring CAUTION 1) Use a no-voltage contact (relay contact etc.) for external contacts. 2) Use a no-voltage contact which has ample switching capacity for the terminal's OFF voltage (approx. 5V) and ON current (approx 1mA). 3) When using a transistor contact, the voltage at both terminals must be 2 V or less when the contact is ON and the leakage current must be 100 µA or less when it is OFF.
Page 267 17.4 Wiring (For Detailed model) UT35A optional suffix code: /X4 No-voltage contact Transistor contact – +5 V DI41 DI41 +5 V DI42 DI42 +5 V DI43 DI43 +5 V DI44 DI44 +5 V DI45 DI45 Contact rating: 12 V DC, 10 mA or more Contact rating: 12 V DC, 10 mA or more (For Standard model) UT35A suffix code: Type 2 = “1”...
Page 268: Contact Output Wiring
17.4 Wiring 17.4.6 Contact Output Wiring CAUTION 1) Use an auxiliary relay for load-switching if the contact rating is exceeded. 2) Connect a bleeder resistor when a small current is used, so that a current exceeding 10 mA can be supplied. 3) The output relay has a limited service life. Be sure to connect a CR filter (for AC) or diode (for DC) to the load.
Page 269 17.4 Wiring Additional Contact Output According to the UT35A/UT32A Suffix Codes (For Standard model) UT35A Suffix code: Type 2 = “1” (For Standard model) UT32A suffix code: (For Detailed model) UT35A Optional suffix Type 2 = “2” code: /W4 (For Detailed model) UT35A/UT32A Optional suffix code: /W1 DO12 DO42 DO11 DO41 Transistor contact rating: 24 V DC, 50 mA Transistor contact rating: 24 V DC, 50 mA (For Standard model) UT35A Suffix codes: (For Detailed model) UT35A/UT32A Optional Type 2 = “2”...
Page 270: Retransmission Output Wiring
17.4 Wiring 17.4.7 Retransmission Output Wiring When retransmission output is not used for retransmission output, it can be used for control output or 15 V DC loop power supply. The current output range can be changed. Shield terminals terminals – Receiver (Recorder etc.) Receiving resistor: Class D grounding Ω or less (grounding resistance of 100 Ω...
Page 271: Heater Break Alarm Wiring
17.4 Wiring 17.4.10 Heater Break Alarm Wiring Heater break alarm can be used for the UT35A with the optional suffix code /HA. Heater break alarm Heater break detection Shield HAL1 Class D grounding HAL2 Shield Class D grounding Contact raging: 24 V DC, 50 mA (grounding resistance of 100 Ω...
Page 272: Communication Interface Wiring
17.4 Wiring 17.4.11 RS-485 Communication Interface Wiring Wire as follows for Modbus communication, PC link communication, or ladder communication. Always connect a terminating resistor to the station at the end of the communication line. ► Details of communication parameter settings and communication functions: UTAdvanced Series Communication Interface (RS-485, Ethernet) User's Manual 4-wire Wiring □ ML2- (External) SDB (+)
Page 273 100 Ω or less) UT32A UT32A Terminal (For Standard model) Suffix code: Type 2=1, symbol and with optional suffix code /LP above. (For Detailed model) Optional suffix code: /LCH1 RSB (+) RSA (–) Note ML2-x indicates a converter of YOKOGAWA. Other than this, RS232C/RS485 converters can also be used. If another converter is to be used, check the electrical specifications of the converter before using it. 17-18 IM 05P01D31-01EN...
Page 274: Coordinated Operation Wiring
17.4 Wiring 17.4.12 Coordinated Operation Wiring 4-wire Wiring UT (Master) UT (Slave) UT (Slave) SDB (+) RDB (+) RDB (+) (External) (External) Terminating resistor Terminating resistor SDA (–) RDA (–) RDA (–) 220 Ω 1/4 W 220 Ω 1/4 W RDB (+) SDB (+) SDB (+)
Page 275 17.4 Wiring UT35A/UT32A UT35A UT32A Terminal (For Standard model) Suffix code: Type (For Standard model) Suffix code: Type symbol 3 = “1” 2 = “1” above (For Detailed model) Optional suffix (For Detailed model) Optional suffix code: /CH3 code: /CH1 RDB (+) RDA (–) SDB (+)
Page 276: Peer-To Peer Communication Wiring
17.4 Wiring 17.4.13 Peer-to peer Communication Wiring Peer-to-peer communication can be used on ladder program of UT35A/UT32A. 2-wire Wiring of 4-wire Terminal SDB (+) RDB (+) RDB (+) (External) (External) Terminating resistor Terminating resistor RDA (–) RDA (–) SDA (–) 220 Ω 1/4 W 220 Ω 1/4 W RDB (+) SDB (+) SDB (+) RDA (–)
Page 277 17.4 Wiring 2-wire Wiring RSB (+) RSB (+) RSB (+) (External) (External) Terminating resistor Terminating resistor RSA (–) RSA (–) RSA (–) 220 Ω 1/4 W 220 Ω 1/4 W Communication Communication cable cable Class D grounding Class D grounding (grounding resistance (grounding resistance of 100...
Page 278: Ethernet Communication Interface Wiring
17.4 Wiring 17.4.14 Ethernet Communication Interface Wiring *Devices that can be *Devices that can be connected via Ethernet connected via Ethernet Ethernet Straight cable Crossing cable UT35A UT35A UT35A Upper side LED (baud rate) Lower side LED (link activity) Color Amber Color Green...
Page 279 17.4 Wiring RS-485 communication wiring for the serial gateway function is as follows. 2-wire Wiring of 4-wire Terminal Serial gateway RDB (+) RDB (+) RSB (+) (External) (External) Terminating resistor Terminating resistor RDA (–) RDA (–) RSA (–) 220 Ω 1/4 W 220 Ω 1/4 W SDB (+) SDB (+) SDA (–) SDA (–) Communication...
Page 280: Profibus-Dp Communication Interface Wiring
17.4 Wiring 17.4.15 PROFIBUS-DP Communication Interface Wiring (1) Remove the terminal block Hold both ends of the terminal block and pull straight. (2) Connect the wires Recommended length of stripped wire: 7mm Flat-blade screwdriver (3) Connect the terminal block Hold both ends of the terminal block, align with the connector on the UT side, and push the terminal block into the connector.
Page 281 17.4 Wiring Number of Pin Singnal name Description +5V bus power RxD/TxD-P Data signal (positive data receive/transmit) RxD/TxD-N Data signal (negative data recive/transmit) DGND Signal ground SHIELD Shield ground Terminating Resister of Bus 390Ω Data line RxD/TxD-P 220Ω Data line RxD/TxD-N 390Ω DGND PROFIBUS-DP communication connector and LED Unlit CHK (red) User profile error Normal Normal.
Page 282: Devicenet Communication Interface Wiring
17.4 Wiring 17.4.16 DeviceNet Communication Interface Wiring (1) Remove the terminal block Hold both ends of the terminal block and pull straight. (2) Connect the wires Recommended length of stripped wire: 7mm Flat-blade screwdriver (3) Connect the terminal block Hold both ends of the terminal block, align with the connector on the UT side, and push the terminal block into the connector.
Page 283 17.4 Wiring Number of Pin Singnal name Description CAN_H RX/TX + signal CAN_L RX/TX - signal Power supply 24V for DeviceNet Power supply COM for DeviceNet DRAIN Shield/drain Terminating Resister of Bus (both ends of the trunk line) CAN_H 121Ω CAN_L DeviceNet communication connector and LED (red) (white) (blue) (black) Lit / flashing Unlit CHK (red) User profile error Normal Normal. Communicating successfully (green, lit). Not connected (green, flashing). Critical link failure (red, lit). MNS (green/red) No electricity, Connection timeout (red, flashing)
Page 284: Cc-Link Communication Interface Wiring
17.4 Wiring 17.4.17 CC-Link Communication Interface Wiring (1) Remove the terminal block Hold both ends of the terminal block and pull straight. (2) Connect the wires Recommended length of stripped wire: 7mm Flat-blade screwdriver (3) Connect the terminal block Hold both ends of the terminal block, align with the connector on the UT side, and push the terminal block into the connector.
Page 285 17.4 Wiring Number of Pin Singnal name Description Frame ground Shield TX/RX signal ground RX/TX - signal RX/TX + signal Terminating Resister of Bus (both ends of the trunk line) 110Ω CC-Link communication connector and LED L ERR L RUN Unlit CHK (red) User profile error / address error Normal L ERR (red) Communication failure (CRC error) Normal L RUN (green) Normal. Communicating successfully. No carrier detected. / Connection timeout. Modbus master wiring Modbus master wiring is same as RS-485 communication wiring for Ethernet-serial gateway function.
Page 286: Power Supply Wiring
17.4 Wiring 17.4.18 Power Supply Wiring WARNING 1) Wiring work must be carried out by a person with basic electrical knowledge and practical experience. 2) Be sure to turn OFF the power supply to the controller before wiring to avoid an electric shock.
Page 287: Attaching And Detaching Terminal Cover
17.5 Attaching and Detaching Terminal Cover After completing the wiring, the terminal cover is recommended to use for the instrument. Attaching Method (1) Attach the terminal cover to the rear panel (2) The following figure is a mounting image. of the main unit horizontally. When Ethernet, PROFIBUS-DP, DeviceNet or CC-Link communication is specified, cut and use a terminal cover as follows.
Page 288: Chapter 18 Parameters
Chapter 18 Parameters 18.1 Parameter Map Brief Description of Parameter Map Group Display "E1 to E4" and "1 to 4, R" appearing in the parameter map are displayed on Group display (7 segments, 2 digits) while the menu or parameter is displayed. E1: indicates the parameter in E1-terminal area E3: indicates the parameter in E3-terminal area E4: indicates the parameter in E4-terminal area 1 to 4, R: indicate the group numbers...
Page 289 18.1 Parameter Map Function of Each Menu Menu symbol Function Operation mode (STOP/RUN switch, REMOTE/LOCAL switch, Auto-tuning MODE switch, SP number selection, etc.) The parameters in the menu of the following table indicate the parameters to set the functions necessary for operation. The symbol in parentheses are shown on Group display.
Page 290 18.1 Parameter Map The parameters in the menu of the following table indicate the parameters to set the basic functions of the controller. The symbol in parentheses are shown on Group display. Menu symbol Functions PASS Password setting (Displayed only when the password has been sent.) Menu symbol Functions Control type, number of SP groups, number of PID groups, etc...
Page 291 18.1 Parameter Map Operation Setting parameters for the functions necessary for operations. display Press the key CS menu is displayed when the SELECT parameter has been registered. for 3 seconds. MODE ALRM CS10 CS11 CS12 PIDN PIDN SPNO. CS13 CS14 … CS15 CS16 CS17 CS18...
Page 292 18.1 Parameter Map PPAR TUNE ZONE MODE AT.TY AT.OH AT.OL AT.BS OLMT SU.HY SU.HY SU.HY MPON HY.UP HY.UP HY.UP MPO1 HY.LO HY.LO HY.LO … MPO2 MPO3 SU.DR SU.DR SU.DR MPO4 MPO5 HYSc HYSc HYSc SU.PO SU.PO SU.PO 18-5 IM 05P01D31-01EN...
Page 293 18.1 Parameter Map Operation Setting parameters for the basic functions of the controller display ＋ Press the keys for 3 seconds. PASS R485 R485 Displayed when a password has been set. P.UNI HB1.S UNIT P.DP HB2.S SPGR. P.RH V.AT ALNO. P.RL V.RS CT1.T PIDG.
Page 294 18.1 Parameter Map ETHR PROF DNET CC-L FILE FILE FILE SCAN SCAN SCAN 1.IP3 1.IP4 2.IP1 2.IP2 2.IP3 IPAR 2.IP4 1.IP1 1.IP2 INIT PASS AL1.S DO1.S DO1.S R.MD U.DEF PA.ER LEVL AL2.S DO2.S DO2.S X000 R.TM F.DEF OP.ER AL3.S DO3.S DO3.S X100 AD1.E (E1) OR.S...
Page 295: List Of Parameters
18.2 List of Parameters 18.2.1 Operation Parameters Operation Mode Menu (Menu: MODE) Parameter Display Name Setting range Initial value symbol level STOP: Stop mode RUN: Run mode Preset output (PO) is generated in STOP/RUN switch EASY STOP mode. Default: Not displayed. STOP/RUN switch is assigned to contact input. LCL: Local mode REMOTE/LOCAL REM: Remote mode...
Page 296 18.2 List of Parameters SELECT Parameter Menu (Menu: CS) Parameter Display Name Setting range Initial value symbol level CS10 to SELECT parameter Setting range of a registered EASY CS19 10 to 19 parameter. SP and Alarm Setpoint Setting Menu (Menu: SP) Parameter Display Name Setting range Initial value symbol level 0.0 to 100.0% of PV input range Target setpoint EASY (EU) (Setting range: SPL to SPH) Sub-target setpoint Set the offset from SP.
Page 297 18.2 List of Parameters Alarm Function Setting Menu (Menu: ALRM) Parameter Display Name Setting range Initial value symbol level Set a 5-digit value in the following order. [Alarm type: 2 digits (see below)] + [Without (0) or With (1) Stand-by action] + [Energized (0) or De-energized (1)] + [Latch action (0/1/2/3/4)] For latch action, see chapter 11. Alarm type: 2 digits 00: Disable 01: PV high limit...
Page 298 18.2 List of Parameters PID Setting Menu (Menu: PID) Parameter Display Name Setting range Initial value symbol level 0.0 to 999.9% Proportional band When 0.0% is set, it operates as Heating-side 0.1%. proportional band EASY 5.0% Heating-side ON/OFF control (in Heating/cooling applies when 0.0% in Heating/ control) cooling control Integral time Heating-side OFF: Disable integral time (in EASY 240 s 1 to 6000 s Heating/cooling control)
Page 299 18.2 List of Parameters PID Setting Menu (Menu: PID) (Continued from previous page) Parameter Display Name Setting range Initial value symbol level 0.0 to 999.9% Cooling-side (Cooling-side ON/OFF control EASY 5.0% proportional band applies when 0.0% in Heating/ cooling control) Cooling-side OFF: Disable EASY 240 s integral time 1 to 6000 s Cooling-side OFF: Disable EASY 60 s derivative time 1 to 6000 s Cooling-side control...
Page 300 18.2 List of Parameters Tuning Menu (Menu: TUNE) Parameter Display Name Setting range Initial value symbol level OFF: Disable 1: Overshoot suppressing function (normal mode) 2: Hunting suppressing function (stable mode) Enables to answer the wider characteristic changes Super function EASY compared with response mode. 3: Hunting suppressing function (response mode) Enables quick follow-up and short converging time of PV for...
Page 301 18.2 List of Parameters Zone Control Menu (Menu: ZONE) Parameter Display Name Setting range Initial value symbol level 0.0 to 100.0% of PV input range Reference point 1 100.0 % of PV RP1 to RP3 (EU) to 3 input range (RP1 ≤ RP2 ≤ RP3) 0.5 % of PV Zone PID switching 0.0 to 10.0% of PV input range input range hysteresis span (EUS) span OFF: Disable Reference deviation 0.0 + 1 digit to 100.0% of PV input range span (EUS) P Parameter Menu (Menu: PPAR) Parameter Display...
Page 302: Setup Parameters
18.2 List of Parameters 18.2.2 Setup Parameters Control Function Setting Menu (Menu: CTL) Parameter Display Name Setting range Initial value symbol level PID: PID control ONOF: ON/OFF control (1 point of Standard type: hysteresis) ONOF2: ON/OFF control (2 points Control type EASY Heating/ of hysteresis) cooling type: 2P2L: Two-position two-level control H/C: Heating/cooling control 0: Standard PID control mode...
Page 303 18.2 List of Parameters PV Input Setting Menu (Menu: PV) Parameter Display Initial Name Setting range symbol level value OFF: Disable K1: -270.0 to 1370.0 (°C) / -450.0 to 2500.0 (°F) K2: -270.0 to 1000.0 (°C) / -450.0 to 2300.0 (°F) K3: -200.0 to 500.0 (°C) / -200.0 to 1000.0 (°F) J: -200.0 to 1200.0 (°C) / -300.0 to 2300.0 (°F) T1: -270.0 to 400.0 (°C) / -450.0 to 750.0 (°F) T2: 0.0 to 400.0 (°C) / -200.0 to 750.0 (°F)
Page 304 18.2 List of Parameters PV Input Setting Menu (Menu: PV) (Continued from previous page) Parameter Display Initial Name Setting range symbol level value 0: No decimal place PV input scale 1: One decimal place Depends decimal point EASY 2: Two decimal places on the position 3: Three decimal places input type 4: Four decimal places Maximum Depends value of PV...
Page 305 18.2 List of Parameters Output Setting Menu (Menu: OUT) Parameter Display Name Setting range Initial value symbol level Control output or Heating-side control output (Lower two digits) 00: OFF 01: OUT terminals (voltage pulse) 02: OUT terminals (current) 03: OUT terminals (relay/triac) 06: OUT2 terminals (relay) 07: RET/OUT2 terminals (voltage Standard type: pulse) 00.03...
Page 306 18.2 List of Parameters Output Setting Menu (Menu: OUT) (Continued from previous page) Parameter Display Name Setting range Initial value symbol level OFF: Disable PV1: PV SP1: SP OUT1: OUT (Valve opening: 0 to 100 % in Position proportional control) Retransmission EASY LPS: 15 V DC loop power supply output type of RET TSP1: Target SP HOUT1: Heating-side OUT COUT1: Cooling-side OUT MV1: Position proportional output internal computed value) PV: PV terminals analog input Maximum value When RTS = PV1, SP1, TSP1, PV 100 % of PV...
Page 307 18.2 List of Parameters Heater Break Alarm Setting Menu (Menu: HBA) Parameter Display Name Setting range Initial value symbol level 0: Heater current measurement Heater break HB1.S, 1: Heater break alarm (Heating- alarm-1, -2 function EASY HB2.S side) selection 2: Cooling-side heater break alarm Heater break HB1, HB2 alarm-1, -2 current EASY OFF, 0.1 to 300.0 Arms setpoint...
Page 308 18.2 List of Parameters RS-485 Communication Setting Menu (Menu: R485) (E1 and E3 terminal area) Parameter Display Name Setting range Initial value symbol level PCL: PC link communication PCLSM: PC link communication (with checksum) LADR: Ladder communication CO-M: Coordinated master station CO-S: Coordinated slave station Protocol selection EASY MBASC: Modbus (ASCII) MBRTU MBRTU: Modbus (RTU) CO-S1: Coordinated slave station (Loop-1 mode) CO-S2: Coordinated slave station...
Page 309 18.2 List of Parameters Ethernet Communication Setting Menu (Menu: ETHR) (E3 terminal area) Parameter Display Name Setting range Initial value symbol level High-speed EASY OFF, 1 to 8 response mode 9600: 9600 bps Baud rate EASY 19200: 19.2k bps 38400 38400: 38.4k bps NONE: None Parity EASY EVEN: Even EVEN ODD: Odd 0 to 255 IP1 to IP4 IP address 1 to 4...
Page 310 18.2 List of Parameters DeviceNet Communication Setting Menu (Menu: DNET) (E3 terminal area) Parameter Display Name Setting range Initial value symbol level 125K: 125k bps Baud rate EASY 250K: 250k bps 125K 500K: 500k bps Address EASY 0 to 63 9600: 9600 bps Baud rate EASY 19200: 19.2k bps 38400 38400: 38.4k bps FILE Profile number EASY...
Page 311 18.2 List of Parameters Key Action Setting Menu (Menu: KEY) Parameter Display Name Setting range Initial value symbol level User function key-1, OFF: Disable F1 to F2 EASY -2 action setting A/M: AUTO/MAN switch R/L1: REM/LCL switch S/R: STOP/RUN switch AUTO: Switch to AUTO MAN: Switch to MAN REM1: Switch to REM LCL1: Switch to LCL STOP: Switch to STOP...
Page 312 18.2 List of Parameters Display Function Setting Menu (Menu: DISP) Parameter Display Name Setting range Initial value symbol level 0: Fixed in white 1: Fixed in red 2: Link to alarm 1 (Alarm OFF: white, Alarm ON: red) 3: Link to alarm 1 (Alarm OFF: red, Alarm ON: white) 4: Link to alarm 1 or 2 (Alarm OFF: white, Alarm ON: red) 5: Link to alarm 1 or 2 (Alarm OFF:...
Page 313 18.2 List of Parameters Display Function Setting Menu (Menu: DISP) (Continued from previous page) Parameter Display Name Setting range Initial value symbol level Setting range: 4001 to 6304 OFF: Disable 4321: Link to alarm 1 (Lit when the alarm occurs) 4322: Link to alarm 2 (Lit when the alarm occurs) 4323: Link to alarm 3 (Lit when the alarm occurs) 4325: Link to alarm 4 (Lit when the alarm occurs) 4529: Heater break alarm 1 (Lit when the alarm occurs)
Page 314 18.2 List of Parameters Display Function Setting Menu (Menu: DISP) (Continued from previous page) Parameter Display Name Setting range Initial value symbol level White brightness Adjusts the white brightness of PV B.PVW adjustment of PV display. display (Dark) -4 to 4 (Bright) Red brightness Adjusts the red brightness of PV B.PVR adjustment of PV display. display (Dark) -4 to 4 (Bright) Brightness Adjusts the brightness of SP B.SP adjustment of display. Setpoint display (Dark) -4 to 4 (Bright) Brightness...
Page 315 18.2 List of Parameters Key Lock Setting Menu (Menu: KLOC) Parameter Display Name Setting range Initial value symbol level U.SP SP Display lock U.OUT OUT Display lock Heating/cooling U.HCO OUT Display lock Valve Position U.VP Display lock Position Proportional OFF: Display U.MV Computation Output ON: Nondisplay Display lock PID Number U.PID Display lock Heater Break Alarm...
Page 316 18.2 List of Parameters Menu Lock Setting Menu (Menu: MLOC) Parameter Display Name Setting range Initial value symbol level [CTL] menu lock [PV] menu lock [MPV] menu lock [OUT] menu lock [HBA] menu lock R485 [R485] menu lock ETHR [ETHR] menu lock PROF [PROF] menu lock DNET [DNET] menu lock CC-L [CC-L] menu lock [KEY] menu lock DISP [DISP] menu lock...
Page 317 18.2 List of Parameters DI Function Registration Menu (Menu: DI.SL) Parameter Display Name Setting range Initial value symbol level AUTO/MAN switch 5025 REMOTE/LOCAL switch STOP/RUN switch 5026 AUTO Switch to AUTO Switch to MAN Set an I relay number of contact Switch to REMOTE input. Switch to LOCAL Set “OFF”...
Page 318 18.2 List of Parameters DI Function Numbering Menu (Menu: DI.NU) Parameter Display Name Setting range Initial value symbol level SP.B0 Bit-0 of SP number EASY SP.B1 Bit-1 of SP number EASY SP.B2 Bit-2 of SP number EASY Set an I relay number of contact PN.B0 Bit-0 of PID number input.
Page 319 18.2 List of Parameters AL1-AL3 Function Registration Menu (Menu: ALM) Parameter Display Name Setting range Initial value symbol level AL1 function Set an I relay number. AL1.S 4353 selection Setting range: 4001 to 6000 AL2 function AL2.S 4354 No function: OFF selection Alarm 1: 4353 AL3 function AL3.S 4355 Alarm 2: 4354 selection...
Page 320 18.2 List of Parameters I/O Display Menu (Menu: I/O) Parameter Display Name Read only symbol level Key status X000 DI1-DI2 status (equipped as standard) X100 DI11-DI15 status (E1-terminal area) See Chapter 13. Y000 AL1-AL3 status (equipped as standard) Y100 DO11-DO12 status (E1-terminal area) Y400 DO41-DO45 status (E4-terminal area) System Setting Menu (Menu: SYS) Parameter Display...
Page 321 18.2 List of Parameters Initialization Menu (Menu: INIT) Parameter Display Name Setting range Initial value symbol level Initialization to user 12345: Initialization, automatically U.DEF default value returned to "0" after initialization. Initialization to -12345: Initialization, automatically F.DEF factory default value returned to "0" after initialization. Error and Version Confirmation Menu (Menu: VER) Parameter Display Name Read only symbol level PA.ER Parameter error status EASY OP.ER Option error status EASY AD1.E A/D converter error status 1...
Page 322: Chapter 19 Specifications
Chapter 19 Specifications 19.1 Hardware Specifications WARNING This instrument is for Measurement Category I (CAT.I). Do not use it for measurements in locations falling under Measurement Categories II, III, and IV. Internal Wiring Entrance IV Cable Outlet Measurement Category Description Remarks category For measurements performed on circuits not CAT.I directly connected to MAINS. For measurements performed on circuits Appliances, portable CAT.II...
Page 323: Input Specifications
19.1 Hardware Specifications 19.1.1 Input Specifications Universal Input • Number of inputs: 1 • Input type, instrument range, and measurement accuracy: See the table below. Input Type Instrument Range (°C) Instrument Range (°F) Accuracy -270.0 1370.0°C -450.0 2500.0°F ±0.1% of instrument range ±1 digit for 0°C or more -270.0 1000.0°C -450.0 2300.0°F ±0.2% of instrument range ±1 digit for less than 0°C -270.0 500.0°C -200.0 1000.0°F ±2% of instrument range ±1 digit for less than -200.0°C of thermocouple K...
Page 324: Analog Output Specifications
19.1 Hardware Specifications • Input sampling (control) period: Select from among 50, 100, and 200 ms • Burnout detection: Functions at TC, RTD, and standard signal Upscale, downscale, and off can be specified. For standard signal, burnout is determined to have occurred if it is 0.1 V or 0.4 mA or less. • Input bias current: 0.05 µA (for TC or RTD) •...
Page 325: Step Response Time Specifications
19.1 Hardware Specifications 19.1.3 Step Response Time Specifications Within 1 s (63% of analog output response time when a step change of 10 to 90% of input span is applied) 19.1.4 Relay Contact Output Specifications • Contact type and number of outputs: Control output: contact point 1c; 1 point Heating/cooling type: contact point 1a; 2 points for both heating and cooling sides Alarm output: contact point 1a; 3 points (common is independent) •...
Page 326: Dc Loop Power Supply Specifications
19.1 Hardware Specifications 19.1.8 15 V DC Loop Power Supply Specifications (Shared with retransmission output or Cooling-side control output) • Power supply: 14.5 to 18.0 V DC • Maximum power supply: About 21 mA (with short-circuit current limiting circuit) 19.1.9 Contact Input Specifications • Number of inputs: See the table of Model and Suffix Codes. • Input type: No-voltage contact input or transistor contact input • Input contact rating: 12 V DC, 10 mA or more Use a contact of a minimum on-current of 1 mA or more •...
Page 327: Dc Loop Power Supply Specifications
19.1 Hardware Specifications 19.1.12 24 V DC Loop Power Supply Specifications • Use: Power is supplied to a 2-wire transmitter. • Power supply: 21.6 to 28.0 V DC • Rated current: 4 to 20 mA DC • Maximum power supply: About 30 mA (with short circuit current limiting circuit) 19.1.13 Safety and EMC Standards • Safety: Compliant with IEC/EN61010-1 (CE), approved by CAN/CSA C22.2 No.61010-1 (CSA), approved by UL61010-1.
Page 328: Power Supply Specifications And Isolation
19.1 Hardware Specifications 19.1.15 Power Supply Specifications and Isolation • Power supply: Rated voltage: 100 – 240 V AC (+10%/-15%), 50/60 Hz 24 V AC/DC (+10%/-15%) (for /DC option) • Power consumption: UT35A: 18 VA (DC:9 VA, AC: 14 VA if /DC option is specified) UT32A: 15 VA (DC:7 VA, AC: 11 VA if /DC option is specified) • Data backup: Nonvolatile memory • Power holdup time: 20 ms (for 100 V AC drive) • Withstanding voltage - Between primary terminals and secondary terminals: 2300 V AC for 1 minute - Between primary terminals: 1500 V AC for 1 minute - Between secondary terminals: 500 V AC for 1 minute (Primary terminals: Power (*) and relay output terminals; Secondary terminals: Analog I/O signal terminals, contact input terminals, communication terminals, and functional grounding terminals.) (*): Power terminals for 24V AC/DC models are the secondary terminals.
Page 329: Environmental Conditions
19.1 Hardware Specifications 19.1.16 Environmental Conditions Normal Operating Conditions • Ambient temperature: -10 to 50ºC (-10 to 40ºC for side-by-side close mounting) For the CC-Link option, 0 to 50 ºC (0 to 40 ºC for side-by-side close mounting) • Ambient humidity: 20 to 90% RH (no condensation allowed) • Magnetic field: 400 A/m or less • Continuous vibration at 5 to 9 Hz: Half amplitude of 1.5 mm or less, 1oct/min for 90 minutes each in the three axis directions Continuous vibration at 9 to 150 Hz: 4.9 m/s...
Page 330: Appendix Input And Output Table
Appendix Input and Output Table Appendix 1 Input and Output Table (for Standard model) See the next page. App-1 IM 05P01D31-01EN...
Page 331 Appendix 1 Input and Output Table (for Standard model) UT35A Model and Suffix Codes Optional INPUT OUTPUT Model Suffix code OUT2 VALV suffix code ● ● UT35A ● Type 1: Basic ● control ● ♦ Type 2: Functions Type 3: Open networks Display language/Case color Fixed code Optional suffix codes ●: Equipped ♦: Relay output only UT32A Model and Suffix Codes...
Page 332 Appendix 1 Input and Output Table (for Standard model) UT35A (Continued) DI11 DI12 DI13 DI14 DI15 DO11 DO12 DO41 DO42 DO43 DO44 DO45 HAL1 HAL2 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●: Equipped UT32A (Continued) DI11...
Page 333 Appendix 1 Input and Output Table (for Standard model) Intentionally blank App-4 IM 05P01D31-01EN...
Page 334: Appendix 2 Input And Output Table (For Detailed Model)
Appendix 2 Input and Output Table (for Detailed model) See the next page. App-5 IM 05P01D31-01EN...
Page 335 Appendix 2 Input and Output Table (for Detailed model) UT35A Model and Suffix Codes INPUT OUTPUT Optional Model Suffix code OUT2 RET/ (mA/ VALV suffix code (relay) (triac) (relay) OUT2 pulse) ● UT35A -xxx Fixed code -NNN Display language/ Case color ● ● ● ● Output 1 ● ●...
Page 336 Appendix 2 Input and Output Table (for Detailed model) UT35A (Continued) DI11 DI12 DI13 DI14 DI15 DI41 DI42 DI43 DI44 DI45 AL1 AL3 DO11 DO12 DO13 DO14 DO15 DO41 DO42 DO43 DO44 DO45 HAL1 HAL2 ● ● ● ● ● ● ● ● ● ● ● ● ● ●...
Page 337 Blank Page...
Page 338: Revision Information
Style change for the case color option, and addition of CC-Link communication. Sep. 2010/3rd Edition Addition of the DeviceNet communication and the Detailed code model. Jan. 2011/4th Edition Functional improvement, and error correction. n Written by Yokogawa Electric Corporation n Published by Yokogawa Electric Corporation 2-9-32 Nakacho, Musashino-shi, Tokyo 180-8750, JAPAN...
Page 339 Blank Page...
Page 340 Velizy-Villacoublay (France), Budapest (Hungary), Stockholm (Sweden), Sola (Norway), Warszawa (Poland), Vila Nova de Gaia (Portugal), Bucharest (Romania), Dublin (Ireland) YOKOGAWA AMERICA DO SUL LTDA. Praca Acapulco, 31 - Santo Amaro. Sao Paulo/SP - BRAZIL Phone : 55-11-5681-2400 Fax : 55-11-5681-4434 YOKOGAWA ENGINEERING ASIA PTE.
