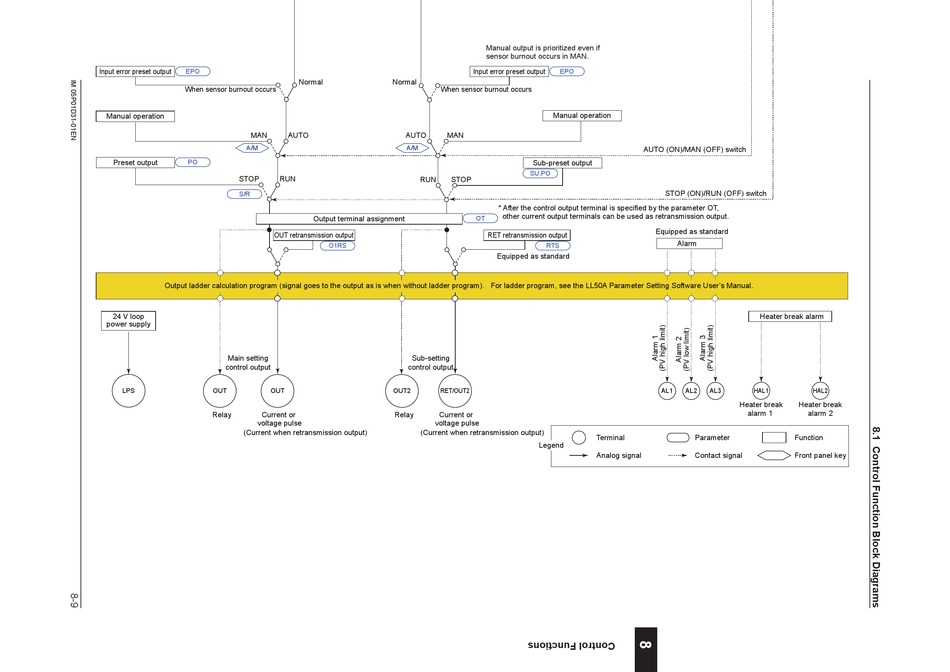

Input error preset output
EPO
When sensor burnout occurs
Manual operation
MAN
A/M
Preset output
PO
STOP
S/R
OUT retransmission output
Output ladder calculation program (signal goes to the output as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User's Manual.
24 V loop
power supply
Main setting
control output
LPS
OUT
OUT
Relay
Current or
voltage pulse
(Current when retransmission output)
Normal
Normal
When sensor burnout occurs
AUTO
AUTO
MAN
A/M
RUN
RUN
STOP
Output terminal assignment
O1RS
Sub-setting
control output
OUT2
RET/OUT2
Relay
Current or
voltage pulse
(Current when retransmission output)
Manual output is prioritized even if
sensor burnout occurs in MAN.
Input error preset output
EPO
Manual operation
AUTO (ON)/MAN (OFF) switch
Sub-preset output
SU.PO
* After the control output terminal is specified by the parameter OT,
other current output terminals can be used as retransmission output.
OT
RET retransmission output
RTS
Equipped as standard
Terminal
Legend
Analog signal
STOP (ON)/RUN (OFF) switch
Equipped as standard
Alarm
Heater break alarm
AL1
AL2
AL3
HAL1
HAL2
Heater break
Heater break
alarm 1
alarm 2
Parameter
