17.4.7 Retransmission Output Wiring
17.4.8 15 V DC Loop Power Supply Wiring
17.4.9 24 V DC Loop Power Supply Wiring
IM 05P01D31-01EN

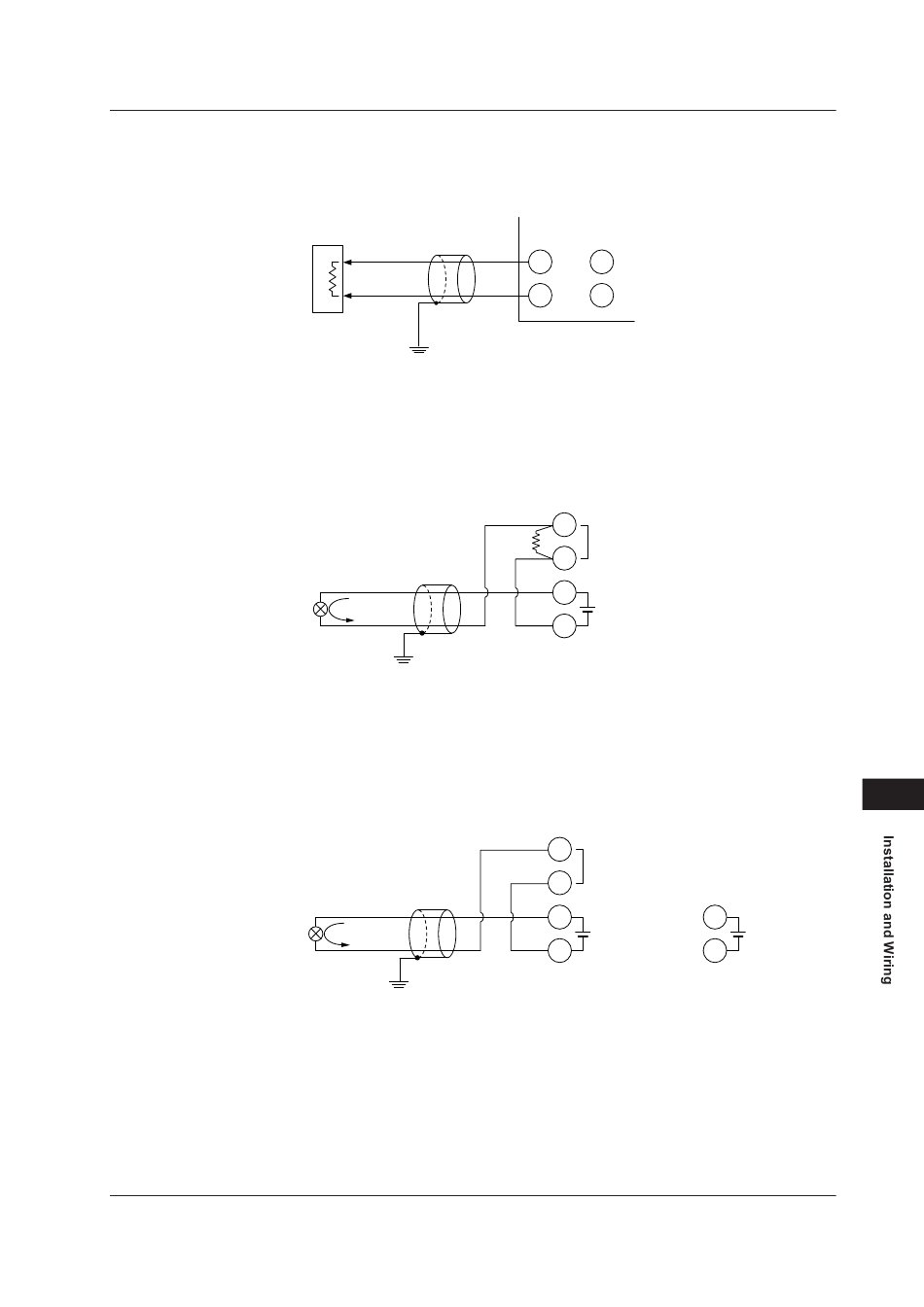

When retransmission output is not used for retransmission output, it can be used for
control output or 15 V DC loop power supply.
The current output range can be changed.
Shield
Receiver
(Recorder etc.)
Receiving resistor:
Class D grounding
600 Ω or less
(grounding resistance
of 100 Ω or less)
This can be used when it is not used for retransmission output.
The controller is equipped with a non-isolated loop power supply (14.5 to 18.0 V DC) for
connecting a 2-wire transmitter.
Shield
2-wire transmitter
4-20 mA DC
Class D grounding
(grounding resistance of 100
OUT terminal and OUT2 terminal also can be used.
This can be used when the optional suffix code /LP, L1, LCH1, L4, or LC4 is specified.
The controller with the optional suffix code /LP is equipped with an isolated loop power
supply (21.6 to 28.0 V DC) for connecting a 2-wire transmitter.
Shield
2-wire transmitter
4-20 mA DC
Class D grounding
(grounding resistance of 100 Ω
RET OUT
terminals terminals
+
205 207
206 208
–
+
202
PV input
100 Ω
0.4-2 V DC
203
–
205
RET terminals
14.5-18.0 V DC
206
Ω or less)
+
204
PV input
4-20 mA DC
203
–
505
LPS terminals
21.6-28.0 V DC
506
or less)
17.4 Wiring
For UT32A
305
LPS terminals
21.6-28.0 V DC
306
