Operation

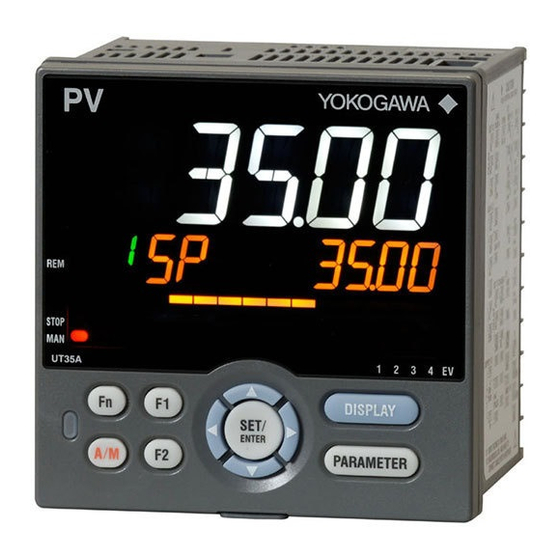

UT35A-L
Guide
Digital Indicating Controller (Limit Control Type)
Operation Guide
Installation and Wiring
IM 05P04D41-11EN
2nd Edition : Mar. 2016
This operation guide describes installation, wiring, and other tasks required to make the
controller ready for operation.
Contents
1. Safety Precautions
2. Model and Suffix Codes
3. How to Install
4. Hardware Specifications
5. How to Connect Wires
6. Terminal Wiring Diagrams
Introduction
Thank you for purchasing the UT35A-L Digital Indicating Controller.
This operation guide describes the basic operations of the UT35A-L. The guide
should be provided to the end user of this product.
Be sure to read this operation guide before using the product in order to ensure
correct operation.
For details of each function, refer to the electronic manual. Before using the product,
refer to the table of Model and Suffix Codes to make sure that the delivered product
is consistent with the model and suffix codes you ordered. Also make sure that the
following items are included in the package.
• Digital Indicating Controller (the model you ordered) ..............................x1
• Set of Brackets ........................................................................................x1
• Unit Label (L4502VZ) ..............................................................................x1
• Tag Label (L4502VE) ..............................................................................x1
(Only when ordered.)
• Operation Guide (this document) ............................................................x5 (A3 size)
(Installation and Wiring, Initial Settings, Operations, and Parameters)
l Target Readers
This guide is intended for the following personnel;
• Engineers responsible for installation, wiring, and maintenance of the equipment.
• Personnel responsible for normal daily operation of the equipment.
1.
Safety Precautions
The following symbol is used on the instrument. It indicates the possibility of injury
to the user or damage to the instrument, and signifies that the user must refer to the
operation guide or user's manual for special instructions. The same symbol is used
in the operation guide and user's manual on pages that the user needs to refer to,
together with the term "WARNING" or "CAUTION."
Calls attention to actions or conditions that could cause serious
or fatal injury to the user, and indicates precautions that should be
taken to prevent such occurrences.
WARNING
Calls attention to actions or conditions that could cause injury to
the user or damage to the instrument or property and indicates pre-
cautions that should be taken to prevent such occurrences.
CAUTION
AC
AC/DC
The equipment wholly protected by double insulation or reinforced insulation.
Functional grounding terminals
(Do not use this terminal as a protective grounding terminal).
Note
Identifies important information required to operate the instrument.
n Warning and Disclaimer
(1) YOKOGAWA makes no warranties regarding the product except those stated in
the WARRANTY that is provided separately.
(2) The product is provided on an "as is" basis. YOKOGAWA assumes no liability to
any person or entity for any loss or damage, direct or indirect, arising from the
use of the product or from any unpredictable defect of the product.
n Safety, Protection, and Modification of the Product
(1) In order to protect the system controlled by this product and the product itself,
and to ensure safe operation, observe the safety precautions described in the
operation guide. Use of the instrument in a manner not prescribed herein may
compromise the product's functions and the protection features inherent in the
device. We assume no liability for safety, or responsibility for the product's quality,
performance or functionality should users fail to observe these instructions when
operating the product.
(2) Installation of protection and/or safety circuits with respect to a lightning
protector; protective equipment for the system controlled by the product and the
product itself; foolproof or fail-safe design of a process or line using the system
controlled by the product or the product itself; and/or the design and installation
of other protective and safety circuits are to be appropriately implemented as the
customer deems necessary.
(3) Be sure to use the spare parts approved by YOKOGAWA when replacing parts
or consumables.
(4) This product is not designed or manufactured to be used in critical applications
that directly affect or threaten human lives. Such applications include nuclear
power equipment, devices using radioactivity, railway facilities, aviation
equipment, air navigation facilities, aviation facilities, and medical equipment.
If so used, it is the user's responsibility to include in the system additional
equipment and devices that ensure personnel safety.
(5) Modification of the product is strictly prohibited.
(6) This product is intended to be handled by skilled/trained personnel for electric
devices.
(7) This product is UL Recognized Component. In order to comply with UL standards,
end-products are necessary to be designed by those who have knowledge of the
requirements.
l Power Supply
Ensure that the instrument's supply voltage matches the voltage
of the power supply before turning ON the power.
WARNING
l Do Not Use in an Explosive Atmosphere
Do not operate the instrument in locations with combustible
or explosive gases or steam. Operation in such environments
constitutes an extreme safety hazard. Use of the instrument in
environments with high concentrations of corrosive gas (H
SO
, etc.) for extended periods of time may cause a failure.
X
l Do Not Remove Internal Unit
The internal unit should not be removed by anyone other than
YOKOGAWA's service personnel. There are dangerous high
voltage parts inside. Additionally, do not replace the fuse by
yourself.
l Damage to the Protective Construction
Operation of the instrument in a manner not specified in the
operation guide may damage its protective construction.
This instrument is an EMC class A product. In a domestic environ-
ment this product may cause radio interference in which case the
user needs to take adequate measures.
CAUTION
2. Model and Suffix Codes
n UT35A-L
Option
Model
Suffix code
Description
code
Digital Indicating Controller
UT35A
(provided with retransmission output, 2 DIs, and 3
DOs) (Power supply: 100-240 V AC)
Type 1:
Basic
-L
Limit control type
control
Type 2:
0
Always "0"
Functions
0
None
Type 3: Open
1
RS-485 communication (Max.38.4 kbps, 2-wire/4-wire)
networks
2
Ethernet communication (with serial gateway function)
Display language
-1
English
0
White (Light gray)
Case color
1
Black (Light charcoal gray)
Fixed code
-00
Always "-00"
Option codes
/DC
Power supply 24 V AC/DC
n Accessories (sold separately)
The following is an accessory sold separately.
• LL50A Parameter Setting Software
Model
Suffix code
Description
LL50A
-00
Parameter Setting Software
• Terminal Cover
Model: UTAP001
• User's Manual (A4 size)
Note: User's Manual can be downloaded from a website. URL: http://www.yokogawa.com/ns/ut/im/
• Brackets
Part number: L4502TP (2 pcs for upper and lower sides)
S,
2
3.
How to Install
n Installation Location
The instrument should be installed in indoor locations meeting the following
conditions:
• Instrumented panel
This instrument is designed to be mounted in an instrumented panel. Mount the
instrument in a location where its terminals will not inadvertently be touched.
• Well ventilated locations
Mount the instrument in well ventilated locations to prevent the instrument's inter-
nal temperature from rising.
However, make sure that the terminal portions are not exposed to wind. Exposure
to wind may cause the temperature sensor accuracy to deteriorate. To mount mul-
tiple indicating controllers, see the external dimensions/panel cutout dimensions
which follow. If mounting other instruments adjacent to the instrument, comply with
these panel cutout dimensions to provide sufficient clearance between the instruments.
• Locations with little mechanical vibration
Install the instrument in a location subject to little mechanical vibration.
• Horizontal location
Mount the instrument horizontally and ensure that it is level, with no inclination to
the right or left.
Front panel
Keep this angle
of controller
within 30°
Rear of
30°
controller
Note
If the instrument is moved from a location with low temperature and low humidity
to a place with high temperature and high humidity, or if the temperature changes
rapidly, condensation will result. Moreover, in the case of thermocouple inputs,
measurement errors will result. To avoid such a situation, leave the instrument in the
new environment under ambient conditions for more than 1 hour prior to using it.
Do not mount the instrument in the following locations:
• Outdoors
• Locations subject to direct sunlight or close to a heater
Install the instrument in a location with stable temperatures that remain close to an
average temperature of 23°C. Do not mount it in locations subject to direct sunlight
or close to a heater. Doing so adversely affects the instrument.
• Locations with substantial amounts of oily fumes, steam, moisture, dust, or
corrosive gases
The presence of oily fumes, steam, moisture, dust, or corrosive gases adversely
affects the instrument. Do not mount the instrument in locations subject to any of
these substances.
• Areas near electromagnetic field generating sources
Do not place magnets or tools that generate magnetism near the instrument. If the
instrument is used in locations close to a strong electromagnetic field generating
source, the magnetic field may cause measurement errors.
• Locations where the display is difficult to see
The instrument uses an LCD for the display unit, and this can be difficult to see
from extremely oblique angles. Mount the instrument in a location where it can be
seen as much as possible from the front.
• Areas close to flammable articles
Absolutely do not place the instrument directly on flam-
mable surfaces. If such a circumstance is unavoidable
150 mm
and the instrument must be placed close to a flammable
item, provide a shield for it made of 1.43 mm thick plated
150 mm
steel or 1.6 mm thick unplated steel with a space of at
least 150 mm between it and the instrument on the top,
bottom, and sides.
• Areas subject to being splashed with water
Be sure to turn OFF the power supply to the controller before in-
stalling it on the panel to avoid an electric shock.
WARNING
YOKOGAWA ELECTRIC CORPORATION
Network Solutions Business Division
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 JAPAN
YOKOGAWA CORPORATION OF AMERICA
Head office and for product sales
2 Dart Road, Newnan, Georgia 30265, USA
YOKOGAWA EUROPE B.V.
Headquarters
Euroweg 2, 3825 HD Amersfoort, THE NETHERLANDS
www.yokogawa.com/ns
All Rights Reserved, Copyright © 2011 Yokogawa Electric Corporation
IM 05P04D41-11EN page 1/10
150 mm
150 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UT35A-L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for YOKOGAWA UT35A-L

  • Page 1 (5) Modification of the product is strictly prohibited. Thank you for purchasing the UT35A-L Digital Indicating Controller. (6) This product is intended to be handled by skilled/trained personnel for electric Front panel Keep this angle This operation guide describes the basic operations of the UT35A-L. The guide of controller devices. within 30° should be provided to the end user of this product. (7) This product is UL Recognized Component. In order to comply with UL standards, Be sure to read this operation guide before using the product in order to ensure...
  • Page 2: Hardware Specifications

    External Dimensions and Panel Cutout Dimensions (Note 1) JPt100 ■ Environmental Conditions Contact resistance of 1 kΩ or less is determined as “ON” and contact -150.00 to 150.00ºC -200.0 to 300.0ºF ±0.1% of instrument range ±1 digit -200.0 to 850.0ºC -300.0 to 1560.0ºF ±0.1% of instrument range ±1 digit resistance of 50 kΩ or more as “OFF.” Unit: mm (approx. inch) UT35A-L (Note 1) Normal Operating Conditions: Pt100 -200.0 to 500.0ºC -300.0 to 1000.0ºF Transistor contact input: (0.43) 96 (3.78) 65 (2.56) Bracket Terminal cover -150.00 to 150.00ºC...
  • Page 3: Terminal Wiring Diagrams

    CAUTION wiring to avoid an electric shock. Use a tester or similar device to ensure that no power is being supplied to a cable to be ■ UT35A-L connected. Recommended tightening torque: 0.6 N·m • For the wiring cable, the temperature rating is 75 °C or more.
  • Page 4: Intentionally Blank

    Intentionally blank IM 05P04D41-11EN page 4/10...
  • Page 5: Names And Functions Of Display Parts

    Quick setting starts The Quick setting function continues in the NO state. Setup Procedure This operation guide describes basic settings and operations of the UT35A-L. For details of each function, see the electronic manual. [NO] The scrolling guide is displayed on PV display in the Parameter Setting Display.
  • Page 6: Setting Alarm Setpoint

    Setting Limit Control Type Setting Alarm Type Setting Alarm Setpoint Alarm Type (Alarm Setpoint) Alarm Action (Energized) Alarm Action (De-energized) No alarm (00) The following operating procedure describes an example of changing limit control The following operating procedure shows an example of changing the alarm-1 type The following operating procedure shows an example of setting the alarm-1 setpoint type (factory-set default: high limit type) to low limit type. (factory default: PV high limit alarm) to PV low limit alarm (setpoint: 02). Hysteresis Hysteresis of group 1 to 180.0. Before setting the alarm setpoint, check the alarm type. Open Closed Open Closed...
  • Page 7 Press the RST key if reset is designated. Show the Operation Display. Ex.) SP= 120.0, PV= 115.0, Hysteresis= 4.0 This operation guide describes key entries for operating the UT35A-L. <For “low limit control” type> For operations using external contact inputs, see “DI” of “6. Terminal Wiring Diagrams”...
  • Page 8: Function Block Diagram

    n Errors at Power On ■ Power on Status ■ Maximum / Minimum Value The errors shown below may occur in the fault diagnosis when the power is turned on. (For details of Setpoint display and input/output action when each error occurs, see User’s Manual. The state of output relay at power-on can be set by a setup parameter restart mode The maximum value or minimum value of PV is stored in the memory and display in PV display R.MD. the “HIGH” or “LOW” display in the confirmation display. Setpoint display Status indicator Parameter that displays error (Operation Error description Cause and diagnosis Remedy Restart mode R.MD: When the control type is specified as high limit control, the maximum value is dis- (Operation Display) (Operation Display) details Display) 0 : Limit output relay is de-energized at power on.
  • Page 9: Operation Parameters

    C / -200.0 to 1000.0 Hold down PARAMETER key and [Alarm type: 2 digits (see below)] + limit (01) J: -200.0 to 1200.0 C / -300.0 to 2300.0 [Without (0) or With (1) Stand-by ac- DISPLAY key Without Left arrow key simultaneously for 3 sec. T1: -270.0 to 400.0 C / -450.0 to 750.0 Yokogawa Electric Corporation (AL1) tion] + [Energized (0) or De-energized Stand- T2: 0.0 to 400.0 C / -200.0 to 750.0 (1)] + [Latch action (0/1/2/3/4)] B: 0.0 to 1800.0 C / 32 to 3300 Menu Menu Menu This operation guide describes the functions of parameters briefly. The parameter For latch action, see User's Manual.
  • Page 10 Product version Out of deviation: white) ● Our product names or brand names mentioned in this manual are (H.VER) 10: Link to DI2 (ON: red, OFF: white) the trademarks or registered trademarks of Yokogawa Electric Corporation. Serial number 1 ● Adobe, Acrobat, and Postscript are either registered trademarks or trademarks 11: Link to EXCEEDED lamp (Unlit: (SER1) white, lit: red) of Adobe Systems Incorporated.

Table of Contents
