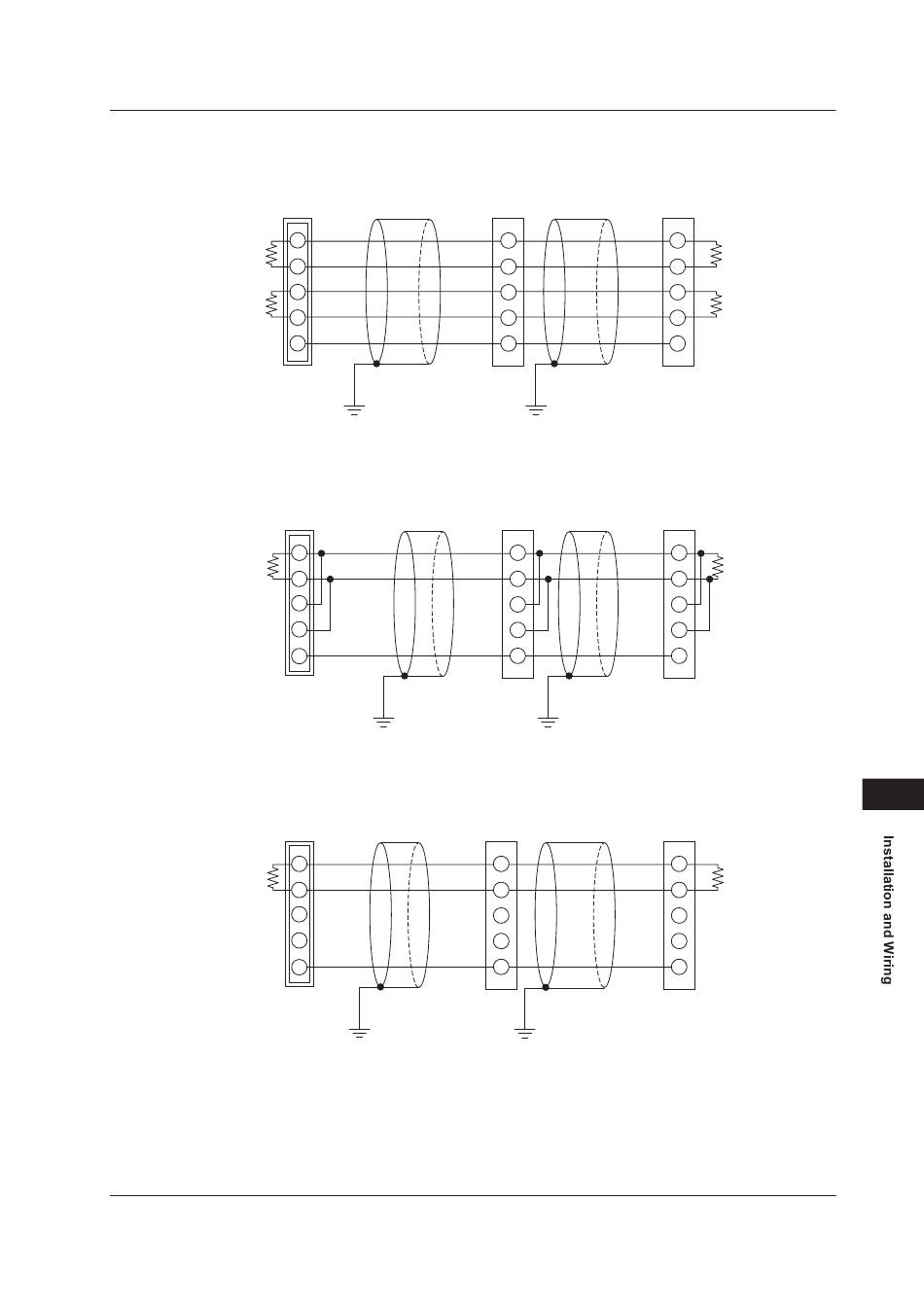

Coordinated Operation Wiring

UT (Master)
(External)
Terminating resistor
220 Ω 1/4 W
(External)
Terminating resistor
220 Ω 1/4 W
UT (Master)
(External)
Terminating resistor
220 Ω 1/4 W
UT (Master)
(External)
Terminating resistor
220 Ω 1/4 W
IM 05P01D31-01EN
4-wire Wiring
SDB (+) RDB (+)
SDA (–) RDA (–)
RDB (+) SDB (+)
RDA (–) SDA (–)
SG
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
2-wire Wiring of 4-wire Terminal (1)
SDB (+)
SDA (–)
RDB (+)
RDA (–)
SG
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
2-wire Wiring of 4-wire Terminal (2)
SDB (+) RDB (+)
RDA (–)
SDA (–)
RDB (+)
SDB (+)
RDA (–)
SDA (–)
SG
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
UT (Slave)
RDB (+)
RDA (–)
SDB (+)
SDA (–)
SG
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
UT (Slave)
RDB (+) RDB (+)
RDA (–) RDA (–)
SDB (+) SDB (+)
SDA (–) SDA (–)
SG
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
UT (Slave)
RDB (+)
RDA (–)
SDB (+)
SDA (–)
SG
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
17.4 Wiring
UT (Slave)
(External)
Terminating resistor
220 Ω 1/4 W
(External)
Terminating resistor
220 Ω 1/4 W
SG
UT (Slave)
(External)
Terminating resistor
220 Ω 1/4 W
SG
UT (Slave)
(External)
Terminating resistor
220 Ω 1/4 W
SG
