1.7 Definition of Main Symbols and Terms
Main Symbol
Engineering Units
1-12
PV: Measured input value
SP: Target setpoint
OUT: Control output value
A/M: AUTO/MAN
AUTO: Automatic
MAN: Manual
REMOTE, REM: Remote
LOCAL, LCL: Local
E1, E3, and E4: Terminal areas
► 17.4 Wiring
Input range (scale): the PV range low limit is set to 0%, and the high limit is set to 100%
for conversion.
Input range (scale) span: the PV range span is set to 100% for conversion.
In this manual, the parameter setting range is described as the "input range" and "input
range span." This means that engineering units are required to be set. Set a temperature
for temperature input.

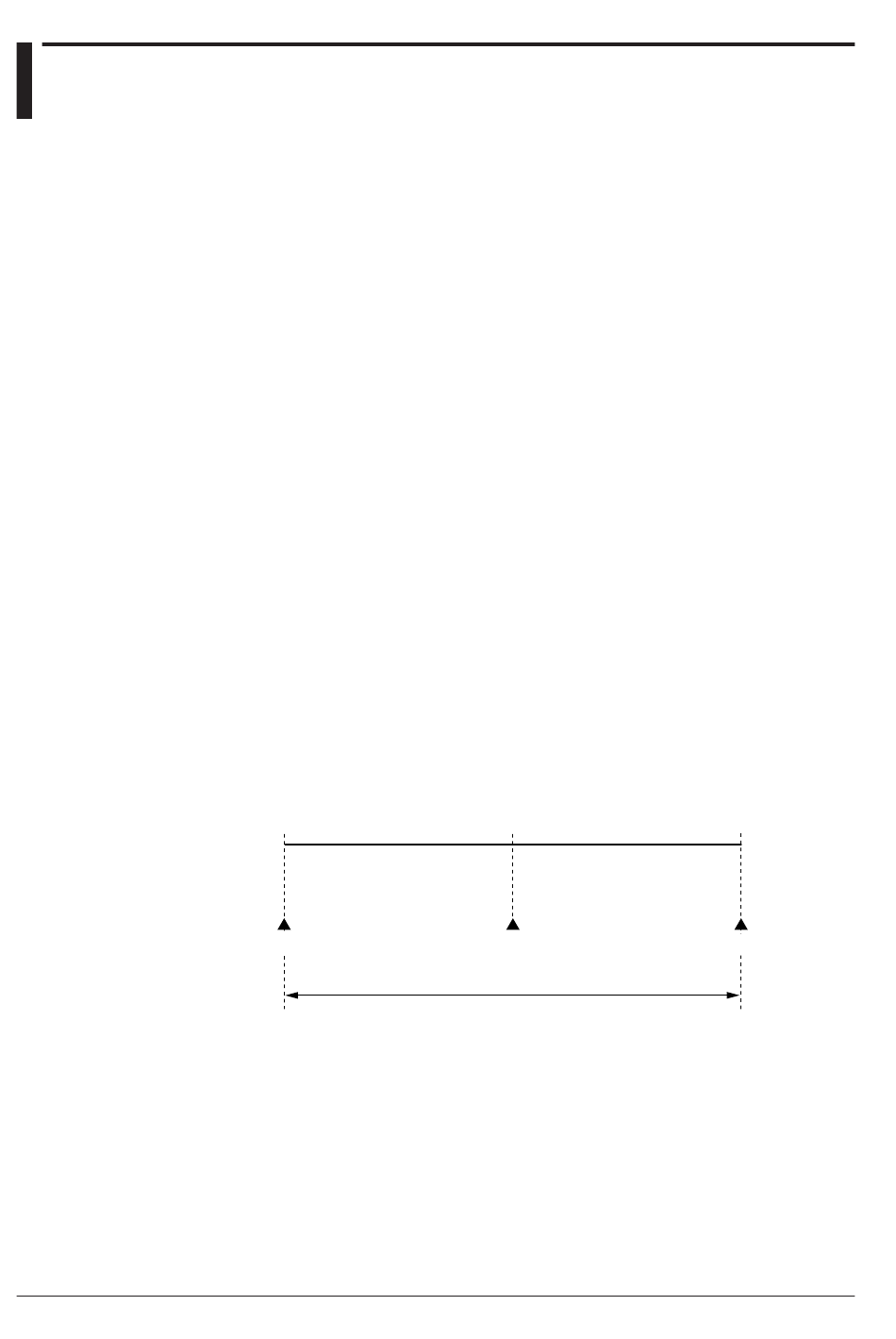

The following describes a conversion example.
When the PV input range is 100 to 600°C, 0% of the PV range is equivalent to 100°C,
50% of the PV range is equivalent to 350°C, and 100% of the PV range is equivalent to
600°C.
100% of the PV range span is equivalent to 500°C.
20% of the PV range span is equivalent to 100°C.
Minimum value of PV input range
100°C
0% of PV input range
The above applies to the scale for voltage and current input.
350°C
50% of PV input range
100% of PV input range span = 500°C
Maximum value of PV input range
600°C
100% of PV input range
