10.2 Setting Control Output Cycle Time
Description
Setting Details
IM 05P01D31-01EN

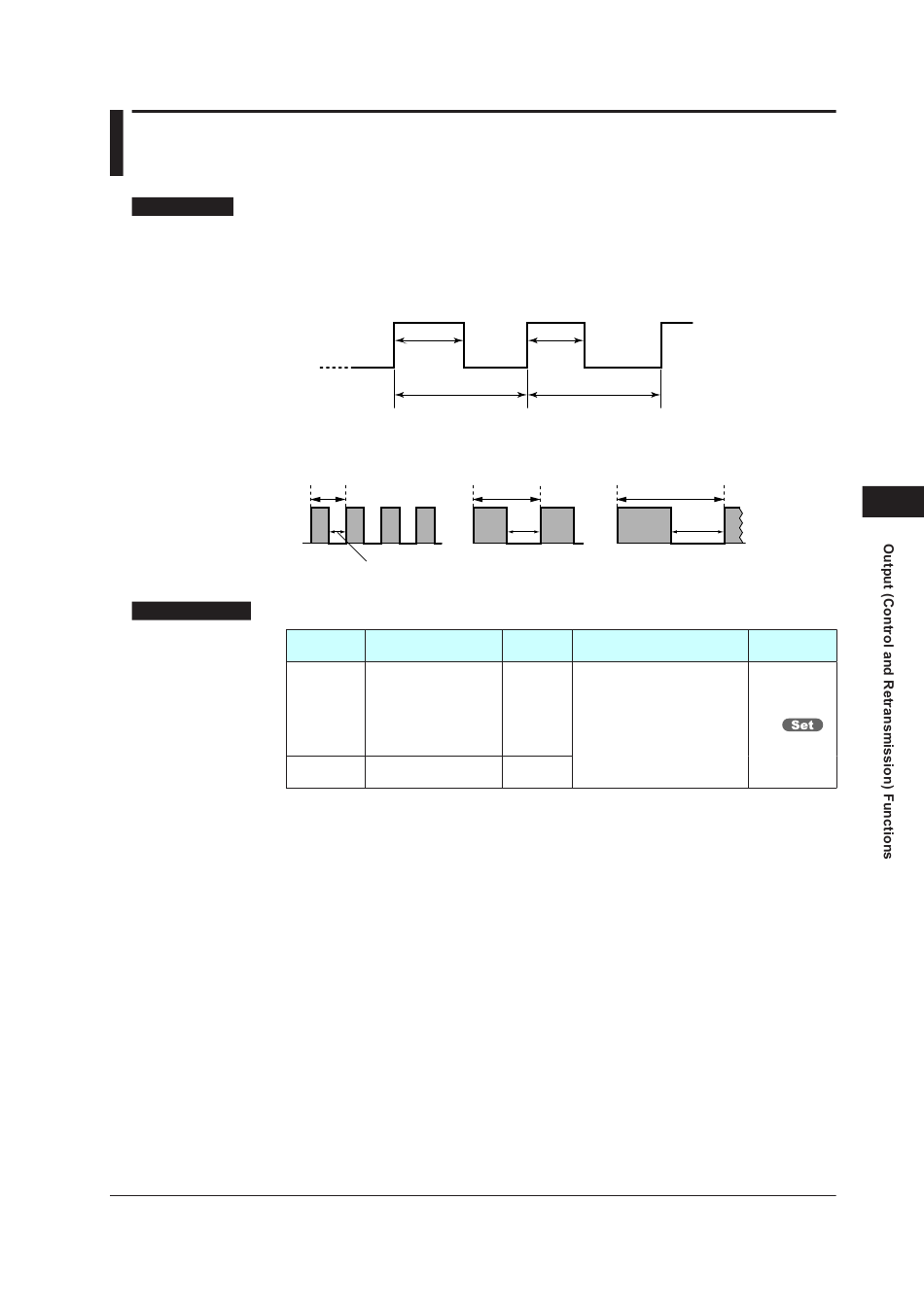

Cycle time is the basic cycle period for a signal full cycle of ON/OFF operation for a relay
or voltage pulse output. Reducing cycle time results in faster cycling and finer control. In
contrast, reducing the ON/OFF period also reduces relay life. For relay output, set the
control output cycle time to 30 to 200 seconds according to the process speed.
ON
On time
Cycle time
Comparison of operations for the same control output (50%)
Cycle time = 10 sec
ON ON
OFF
5 sec
Parameter
Name
symbol
Control output cycle
time
Heating-side control
CT
output cycle time
(in Heating/cooling
control)
Cooling-side control
CTc
output cycle time
ON
On time
OFF OFF
Cycle time
Cycle time = 20 sec Cycle time = 40 sec
ON
10 sec
OFF
Display
Setting range
level
EASY
0.5 to 1000.0 s
EASY
20 sec
OFF
Menu symbol
OUT
10-5
