13.1 Setting Display Functions
13.1.2 Masking Arbitrary Display Value in Operation Display
Description
Setting Details
13-4

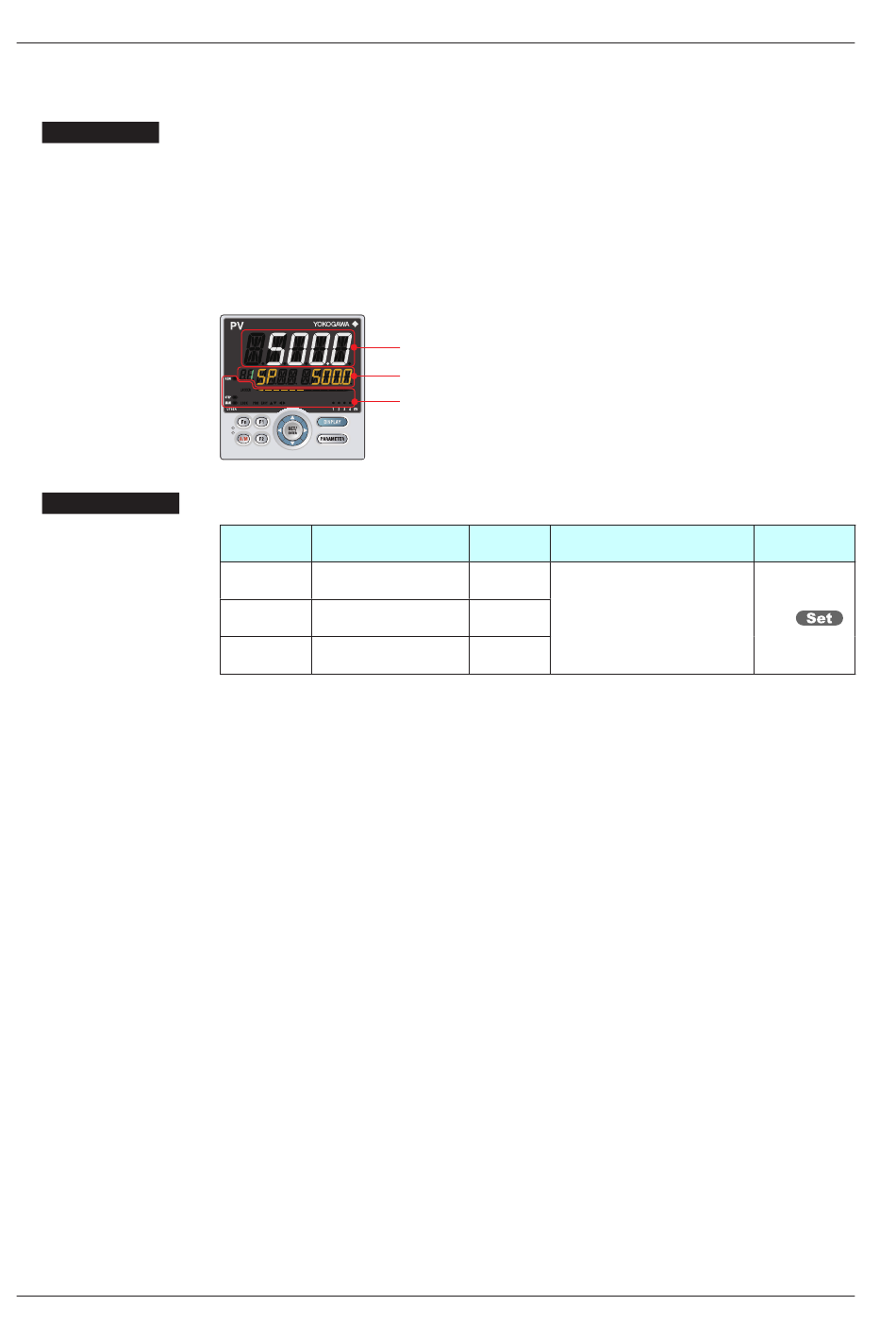

Display/non-display of the PV display, Setpoint display, and Status display in the
Operation Display can be set.
Items that you do not want to display can be set to non-display. For example, when the
Setpoint display is set to non-display, SP of the SP Display and OUT of the OUT Display
are not displayed.
When an error at power-on or hardware malfunction error occurs, Operation display
cannot be set to non-display.
Parameter
Name
symbol
PV display area ON/
PV.D
OFF
Setpoint display area
SP.D
ON/OFF
Status display area
STS.D
ON/OFF
PV display
Setpoint display
Status display
Display
level
PRO
OFF: Nondisplay
PRO
ON: Display
PRO
Setting range Menu symbol
DISP
IM 05P01D31-01EN
