6.7 Switching Operation Modes

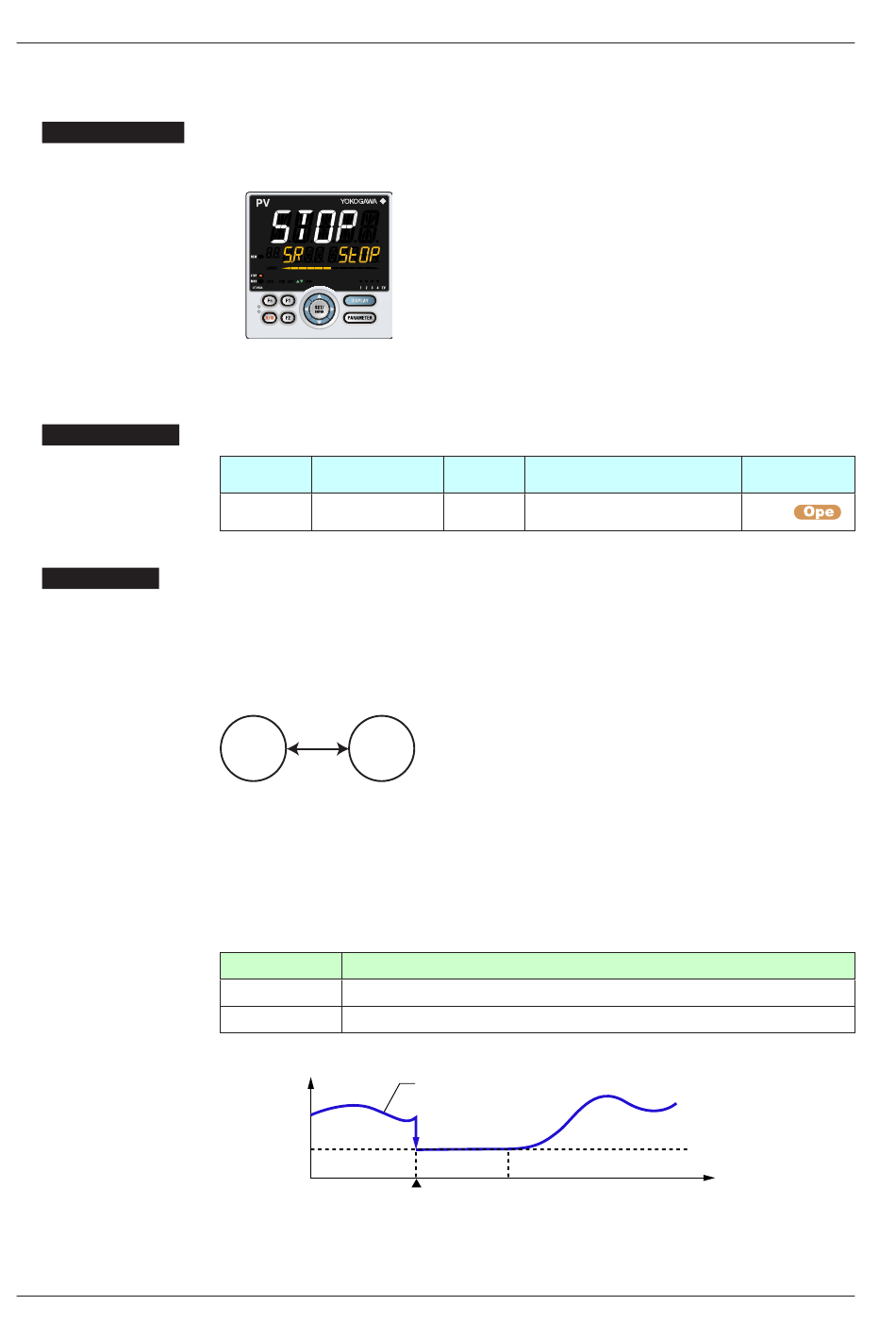

6.7.2 Switching between STOP and RUN
Setting Display
Setting Details
Description
6-24
Operation Mode Setting Display
Parameter
Name
symbol
S.R STOP/RUN switch
STOP/RUN switching can be performed by any of the following:
(1) Contact input (status or edge)
(2) Parameter
(3) Communication
(4) User function key
STOP RUN
When the STOP/RUN switch is set to the contact input (S/R≠0), switch by keystroke or
via communication is disabled. Disable the setting if the STOP/RUN switch parameter
(S/R) is assigned to the contact input.
When the contact input is OFF, and the setting is switched by parameter, communication,
or keystroke, the last switching operation is performed.
► Switch by contact input: 12.1 Setting Contact Input Function
► Switch by user function key: 13.2 Assigning Function to User Function Key and A/M key
Switch
RUN→STOP The control output bumps.
STOP→RUN The control output does not bump (bumpless).
Output
Preset output
RUN → STOP
► Preset output value: 10.12.1 Setting Output Value in STOP Mode (Preset Output)
Operation Display > PARAMETER or PARA key for
3 seconds (to [MODE] Menu Display) > SET/ENTER key
(The operation mode is displayed.) > Down arrow key (The
operation mode is displayed.)
Factory default: The parameter S.R is not displayed because
STOP/RUN switch is assigned to the contact input.
To display the parameter, disable the STOP/RUN switch
assigned to the contact input.
► Switch by contact input: 12.1 Setting Contact Input Function
Display
Setting range
level
STOP: Stop mode
EASY
RUN: Run mode
Output action
Control output
STOP → RUN
Menu symbol
MODE
IM 05P01D31-01EN
