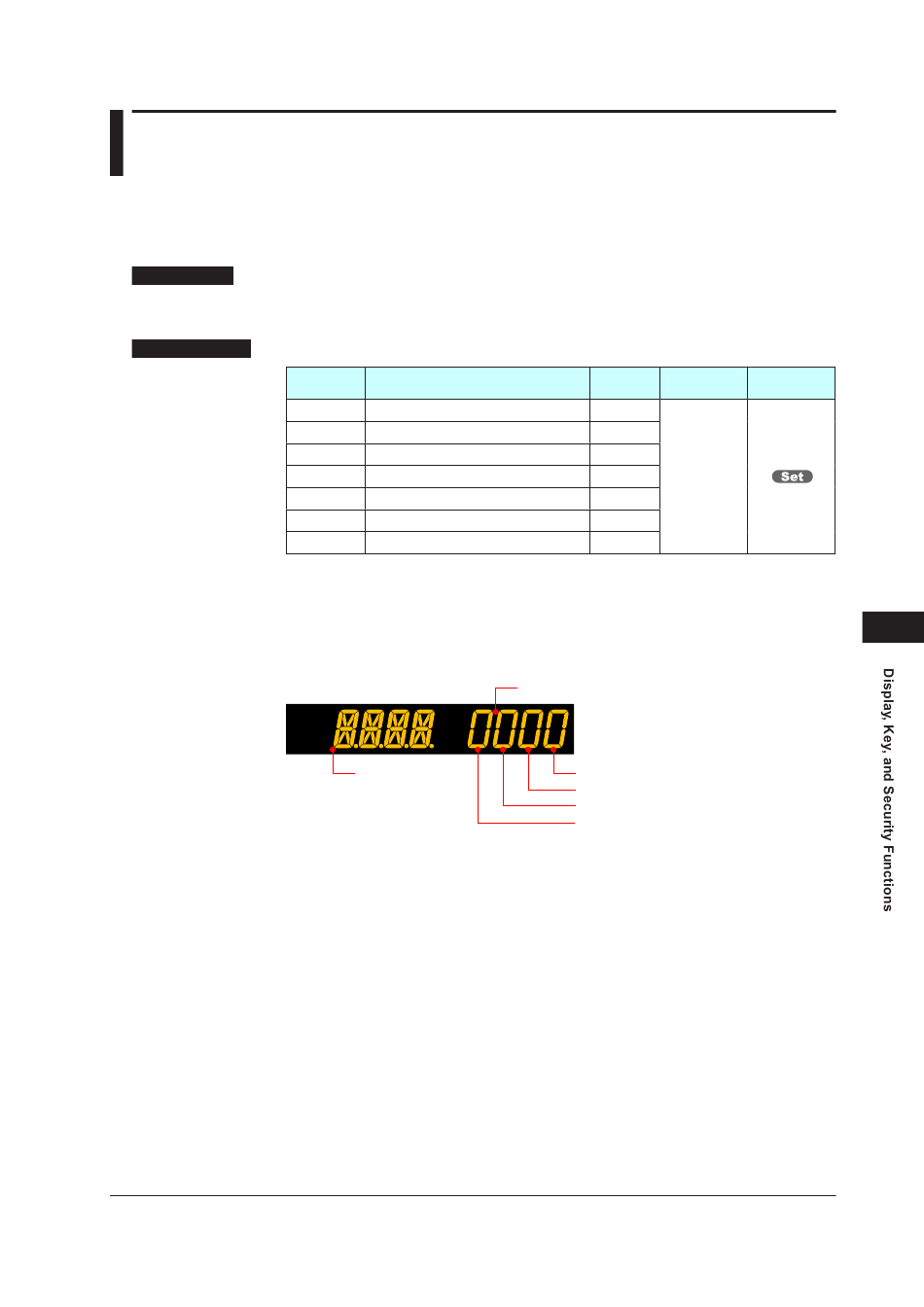

13.4 Confirmation of Key and I/O Condition and
Version
13.4.1 Confirmation of Key and I/O Condition
Description
Setting Details
IM 05P01D31-01EN
Can be confirm the Key and I/O condition.
Parameter
Name
symbol
KEY Key status
X000 DI1-DI2 status (equipped as standard)
X100
DI11-DI15 status (E1-terminal area)
X400 DI41-DI45 status (E4-terminal area)
Y000 AL1-AL3 status (equipped as standard)
Y100 DO11-DO12 status (E1-terminal area)
Y400 DO41-DO45 status (E4-terminal area)
Note: When each parameter is displayed, the terminal area (E1 to E4) is displayed on Group display
according to the suffix code and optional suffix code.
Key confirmation parameters are displayed in hexadecimal.
When the error occurs, "1" is set on the bit of corresponding error , and the bit data is
displayed in hexadecimal.
Symbol display
Display
Setting range Menu symbol
level
PRO
PRO
PRO
PRO Read only.
PRO
PRO
PRO
Data display
1st digit (hexadecimal)
2nd digit (hexadecimal)
3rd digit (hexadecimal)
4th digit (hexadecimal)
I/O
