6.4 Adjusting PID Manually
Description

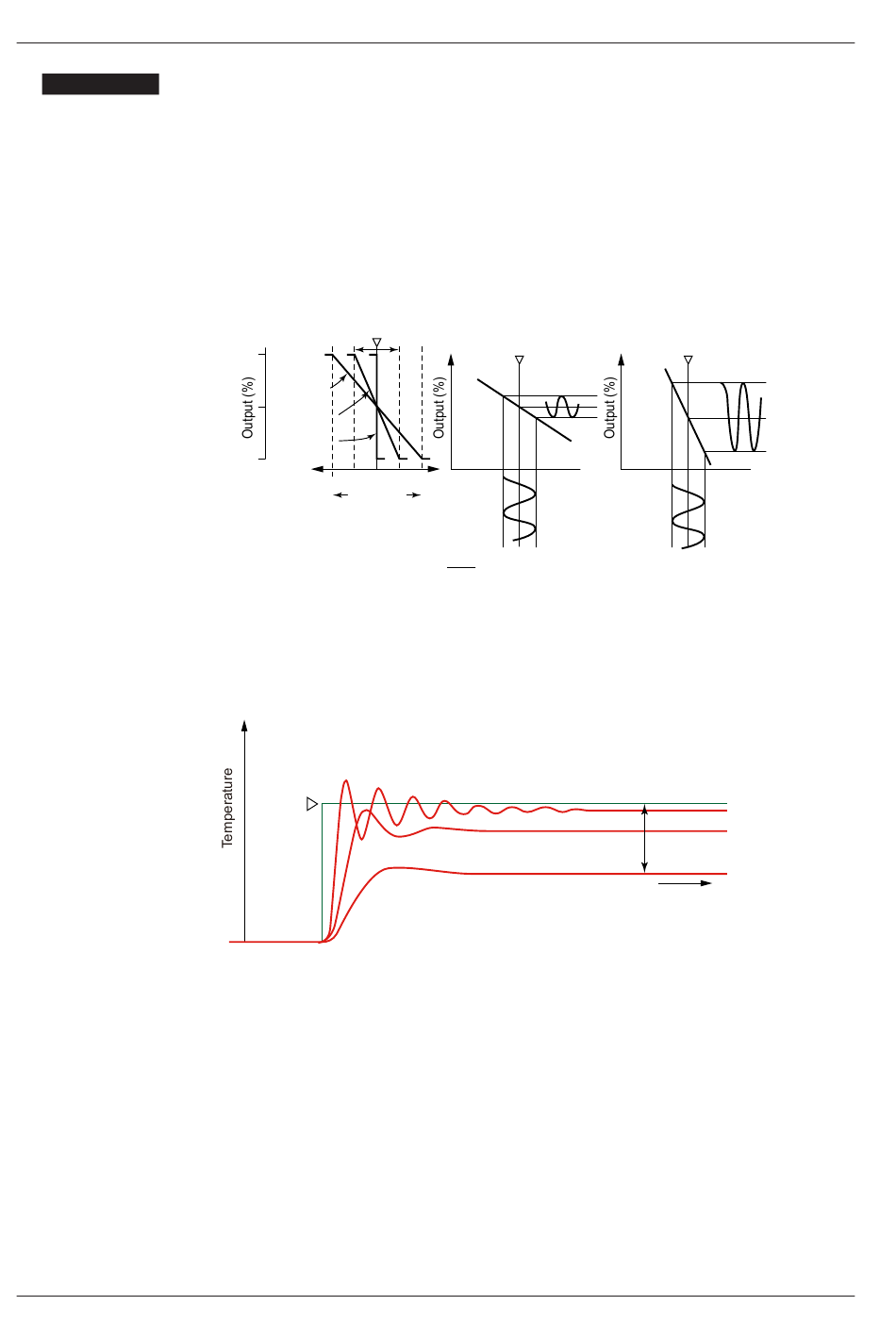

Description and Tuning of Proportional Band
6-16
The proportional band is defined as the amount of change in input (or deviation), as a
percent of span, required to cause the control output to change from 0% to 100%.
Because a narrower proportional band gives greater output change for any given
deviation, it therefore also makes the control performance more susceptible to oscillation.
At the same time, a narrower proportional band reduces the offset.
Reducing the proportional band to its smallest limit (proportional band = 0%) results in
ON/OFF control.
(Example of
reverse action) SP
Deviation
100%
P = 100%
P = 50%
P = 0%
(ON/OFF)
0%
Proportional band
Total span
Output =
To fine-tune a proportional band obtained using auto-tuning, or to manually tune the
proportional band:
• Work from larger to smaller numbers (wider to narrower).
• If cycling appears, that means that the proportional band is too narrow.
• Proportional band tuning cannot cancel an offset.
P is too small.
SP
• If P is too small, oscillation will appear in the measured temperature.
► Offset: 10.8 Canceling Offset of PV and SP (Manual Reset)
Wide proportional band
SP
Deviation
100
P: Proportional band
e
P
e: Deviation
P is moderate.
P is too big.
Narrow proportional band
SP
Deviation
Offset
Time
