7Appendix

(2) Specifications

Item
Compatible robot
Compatible robot language
Number of Ex-T coordinates that can
be specified
(3) Equipment and software version requirements
The Ex-T control can be used when the robot controller software version is the one shown in the table below
or later.
Table 7-21:Software version compatible with Ex-T control
Device
Compatible software version
7.4.2 Ex-T coordinates setting
When using the Ex-T control, setting is required for the externally fixed reference coordinates (Ex-T coordi-
nates).

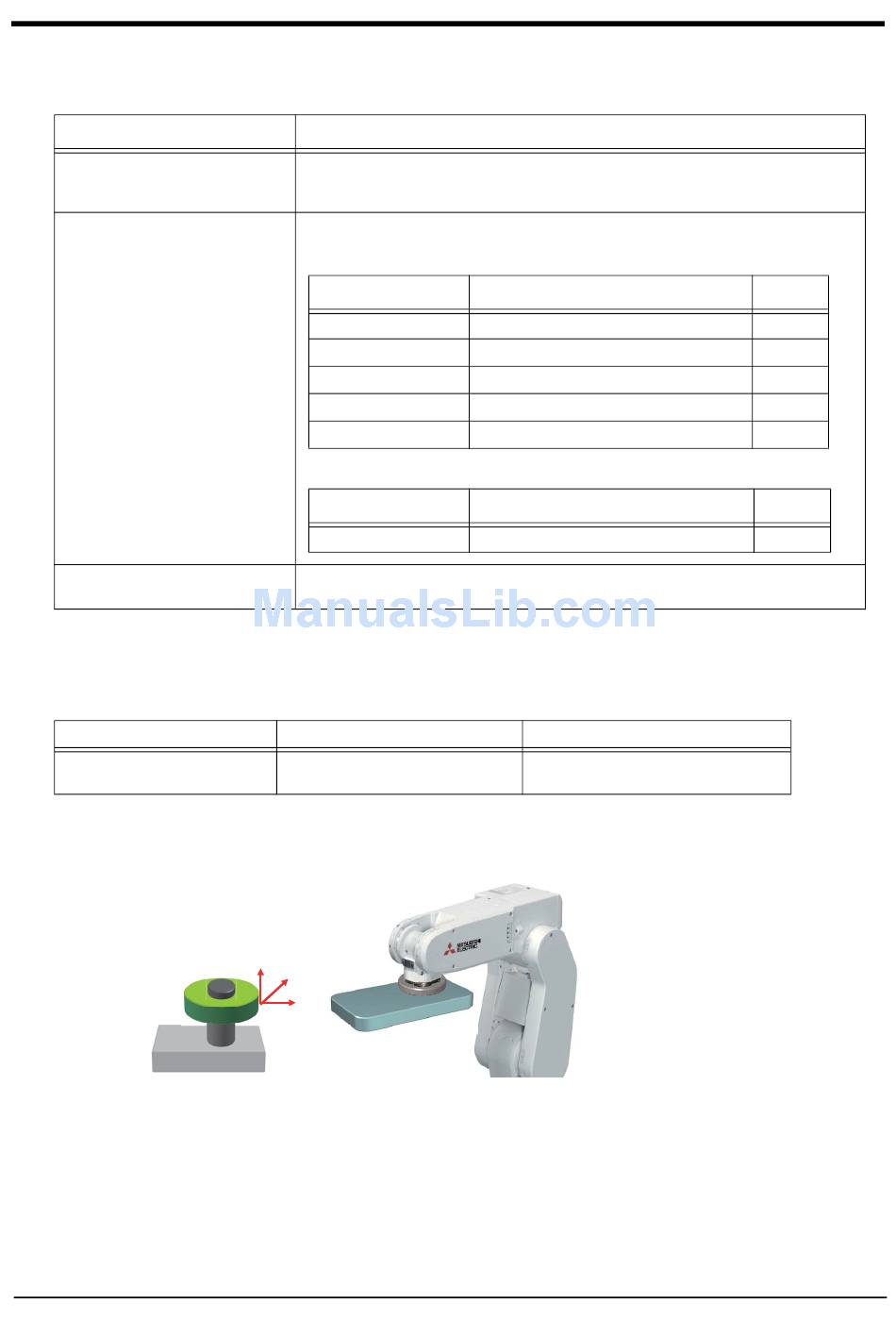

Externally fixed coordinates system
Grinder
• For polishing using the fixed grinder, the position where polishing is performed is the origin of the Ex-T
coordinates.
• For coating using the fixed dispenser, the nozzle tip position is the origin of the Ex-T coordinates.
(1) Setting
The Ex-T coordinates is specified using the same parameters/status variables as those of the work coordi-
nates. As is the case with the work coordinates, perform the following:
• Parameter setting using TB or RT ToolBox2
• System status variable setting in the robot program (MELFA-BASIC V)
Appendix-678 Ex-T control
Vertical multiple-joint 6-axis robots, horizontal multiple-joint 4-axis robots
* The function is not available for the vertical multiple-joint 5-axis robots and the user mech-
anisms.
MELFA-BASIC V
• The following commands have been added to MELFA-BASIC V.
Commands
EMvs (E Move S)
EMvc (E Move C)
EMvr (E Move R)
EMvr2 (E Move R 2)
EMvr3 (E Move R 3)
• The functions of the following status variables of MELFA-BASIC V have been changed.
Variable name
P_WkCord
Up to 8 (The coordinates system is specified with the parameters/status variables.)
F-Q series: Ver. R5 or later
F-D series: Ver. S5 or later
(Ex-T coordinates system)
Specifications
Ex-T control linear interpolation
Ex-T control circular interpolation
Ex-T control circular arc interpolation
Ex-T control circular arc interpolation 2
Ex-T control circular arc interpolation 3
Work coordinates number (1 to 8)
Controller
Explanation
Array designation
T/B
R32TB/R33TB: Ver. 1.3 or later
R56TB/R57TB: Ver. 2.3 or later
Page
225
217
219
221
223
Page
395
