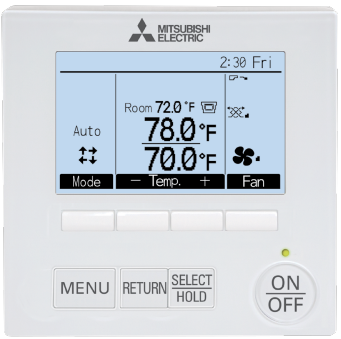

FULL VIEW

Basic View
BASIC VIEW

OPERATION/DISPLAY

  • ON/OFF
    • Switches between ON and OFF.
  • Operation mode switching
    • Switches between Cool/Dry/Fan/Auto/Setback/Heat.
  • Hold
    • Switches between enable and disable the Hold function.
    • If the Hold function is enable, the following functions will be prohibited.
    • ON/OFF timer/Schedule (Weekly timer) /Auto return/Auto-OFF timer
  • Temperature setting
    • Changes the set temperature.
    • Set temperature range varies depending on the indoor unit model.
  • Fan speed setting
    • Changes fan speed.
    • Available fan speeds vary depending on the model.
  • Air flow direction setting
    • Changes airflow direction.
    • Available airflow directions vary depending on the model.
  • Louver setting
    • Switches between louver ON/OFF.
  • Ventilation equipment control
    • Interlocked setting and interlocked operation setting with City Multi Lossnay units can be performed.
    • The Stop/Low/High settings of the ventilation equipment can be controlled.
  • Main display mode setting
    • The Main display can be displayed in two different modes: "Full" and "Basic."
  • B&W inversion
    • The colors of the display can be inverted, turning white background to black and black characters to white.
  • Clock *2
    • Date (year/month/day) and time (hour/minute) can be set.
    • The set time as well as the day of the week will be displayed on the Main display.
    • It is also possible for the time to not display on the main display.
    • The clock can be displayed in 12-hour format (AM/PM before or after the time) and 24-hour format.
  • Daylight saving time
    • The start/end time for daylight saving time can be set.
    • The daylight saving time function will be activated based on the setting contents.
  • Room temp. display
    • The room temperature display can be enabled or disabled.
  • Error information
    • When an error occurs, an error code and the unit address appear.
    • The air-conditioning unit model, serial number, and contact number can be set to appear when an error occurs. (The above information needs to be entered in advance.)
  • Filter information
    • A filter sign will appear when it is time to clean the filter.
  • Remote controller information
    • The version of the remote controller can be checked.

*1 This function is active only for the units that support the function.

*2 The clock is accurate within 45 seconds per month (at the temperature of 77°F [25ºC]).
The clock is backed up for 3 days.

SCHEDULE AND TIMER SETTING

  • Timer
    • ON/OFF timer
      • Turns ON and OFF daily at a set time.
      • Time can be set in 5-minute increments.
      • It is also possible to set the ON time only or the OFF time only.
    • Auto-OFF timer
      • Turns off the unit after a certain period of operation.
      • Operation time can be set to a value from 30 to 240 minutes in 10-minute increments.
  • Weekly timer
    • Weekly ON/OFF times and set temperatures can be set.
    • Time can be set in 5-minute increments. Up to 8 schedule patterns can be set per day of the week.
    • Not valid when the ON/OFF timer is set.

RESTRICTION SETTINGS

  • Allows/disallows local operation
    • The following operation can be prohibited by applying certain settings on the centralized controller: ON/OFF, operation mode, set temperature, filter sign reset, air direction, fan speed and timer.
    • While an operation is prohibited, the operation icon lights up (only on the Main display in the "Full" mode).
  • Operation lock
    • The following operations can be prohibited: Sensing Location, ON/OFF, Mode, Set temp., Menu, Fan, Louver, Vane, or Hold
  • Temperature range restriction
    • The room temperature range for each operation mode can be restricted.
  • Auto return
    • The units operate at the preset temperature after a designated period.
      • Time can be set to a value from 30 to 120 minutes in 10-minute increments.
    • Not valid when the temperature setting range is restricted.
  • Password
    • Administrator password (required for schedule setting etc.) and Maintenance password (required for test run and function setting etc.) can be set.

SYSTEM EXAMPLE

*When a PAR-40MAAU is connected to a group, no other MA remote controllers can be connected to the same group.

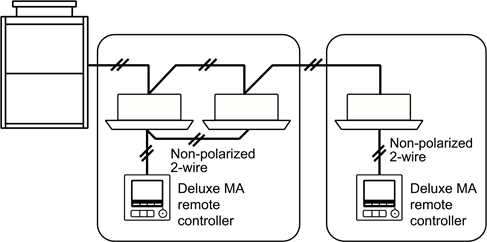

System Example

MISCELLANEOUS ITEMS

  • Language Selection
    • Select the display language from the following 3 languages.
      • English, French, Spanish
  • Brightness Contrast
    • The brightness of the LCD can be adjusted. The contrast of the LCD can be adjusted.
  • Manual Vane Angle *1
    • Fixes the vane position for each air outlet.
  • Service *1
    • Contains Test run, Function setting, Request code, and Error history.
  • 3D i-see Sensor
    • Settings for 3D i-see Sensor can be made.

ENERGY SAVING OPTION

  • No occupancy energy save
    • Requires 3D i-see sensor on applicable indoor units
  • Room Occupancy energy save
    • Requires 3D i-see sensor on applicable indoor units
  • No occupancy Auto-OFF
    • Requires 3D i-see sensor on applicable indoor units
  • Setback Mode

*1 This function is active only for the units that support the function.
*2 The clock is accurate within 45 seconds per month (at the temperature of 77°F [25ºC]).

The clock is backed up for 3 days.

DIMENSIONS

Front View
Front View

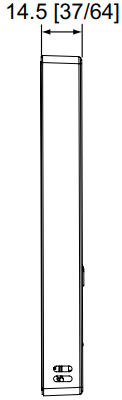

Side View
Side View

Rear View
Rear View

Unit: mm [in.]

COMPATIBILITY CHART

CITY MULTI® M-Series P-Series
PMFY-NBMU Yes MFZ-KA MAC-334 PCA Yes
PEFY-NMU Yes MFZ-KJ MAC-334 PEA Yes
PEFY-NMAU Yes MSZ/Y-A No PEAD Yes
PEFY-NMHSU Yes MSZ/Y-D NA: No NA-8: MAC-334 PKA Yes
PEFY-NMLU Yes MS-WA No PLA Yes
PEFY-NMSU Yes MSZ-FD No PVA Yes
PLFY-NAMU Yes MSZ-FE 09(12)NA: No
09(12)NA-8: MAC-334
18 NA: Yes1
PLFY-NBMU Yes MSZ/Y-GE 06(-18)NA: No
NA-8: MAC-334
NA-9: MAC-334
GE24NA: MAC-334
PLFY-NCMU Yes MSZ/Y-GL MAC-334
PLFY-NEMU Yes MSZ-FH MAC-334
PLFY-NFMU Yes MSZ-HE No
PLFY-NLMU Yes MSZ-HM MAC-334
PCFY-VKM Yes MVZ-AA4 Yes
PCFY-NGMU Yes MVZ-AA7 Yes
PCFY-NKMU Yes SVZ-KP Yes
PFFY-NEMU Yes SEZ-KD No
PFFY-NRMU Yes SEZ-KD4 Yes
PVFY-E00 Yes SLZ-KA Yes
PVFY-NAMU Yes SLZ-KF Yes
PKFY-NAMU Yes MLZ-KP MAC-334
PKFY-NFMU Yes Note: MAC-334 indicates that the unit requires a MAC-334IF-E Adapter in order
to use the PAR-40MAAU
PKFY-NGMU Yes
PKFY-NBMU Yes
PKFY-NHMU Yes
PKFY-NKMU Yes

SPECIFICATIONS

Product size
(W x H x D)
In.
(mm)
4 3/4 x 4 3/4 x 0.57
(120 x 120 x 14.5)
Net Weight Lbs. (kg) 9/16
(0.25)
Rated Power Supply Voltage 12 VDC
(supplied from indoor units)
Power Consumption W 0.3
Usage Environment Temperature: 0 to 40º C (32 to 104º F)
Humidity: 30 to 90%RH (with no condensation)
Material Panel PMMA
Main body PC + ABS
Sound Pressure Level dB(A) <70 [A-weighted sound pressure level]

*1 Per Machinery Directive 2006/42/EC

© 2020 Mitsubishi Electric Trane HVAC US LLC. All rights reserved.
Specifications are subject to change without notice.
M_ Submittal_PAR-40MAAU 03-2020

1340 Satellite Boulevard. Suwanee, GA 30024
Toll Free: 800-433-4822 www.mehvac.com
