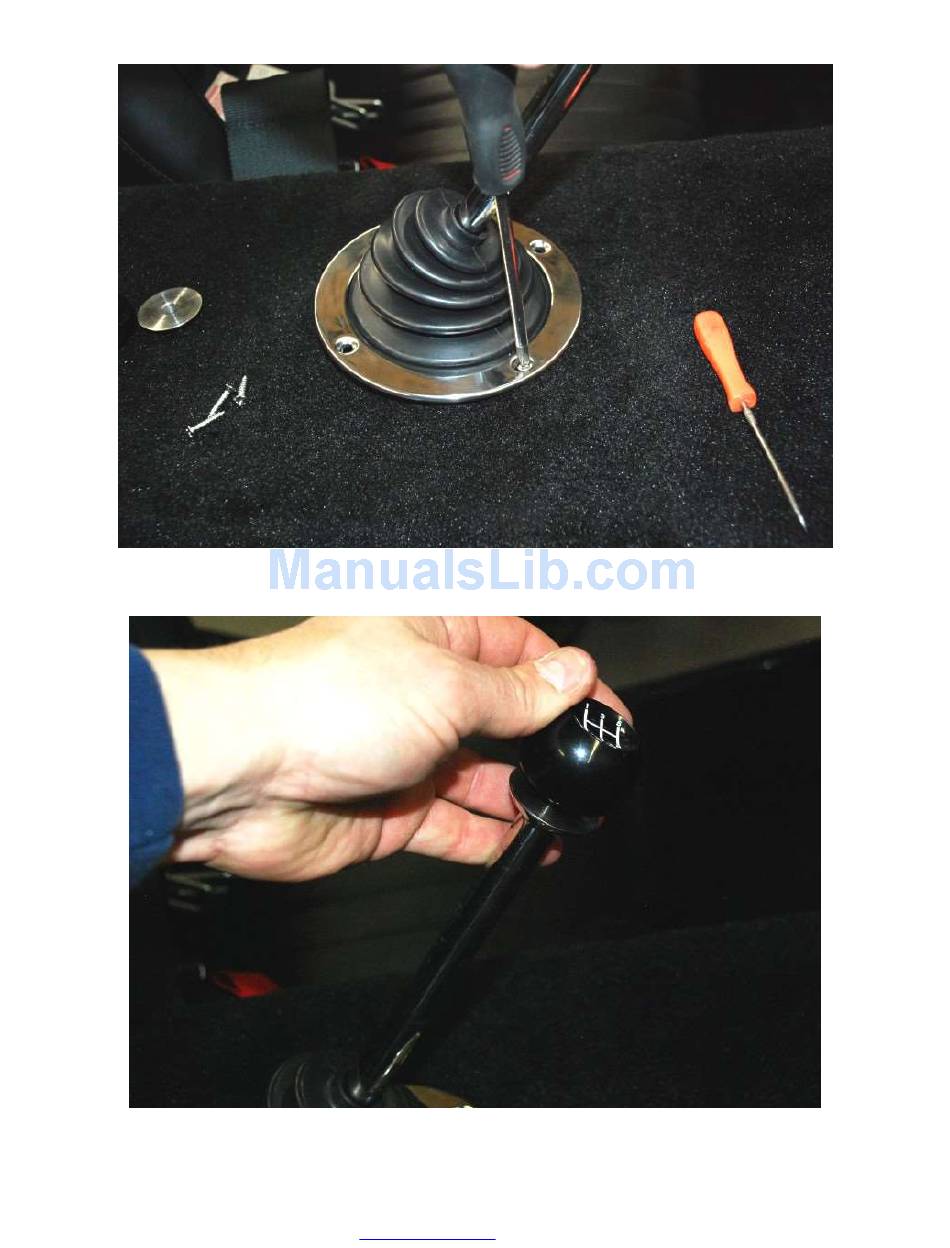

Re-install the boot and screw down to the tunnel with the countersunk screws. A small screwdriver can
help to locate the holes.
Screw the two piece knob onto the shift handle and tighten so the shift pattern is in the correct
orientation.
443
