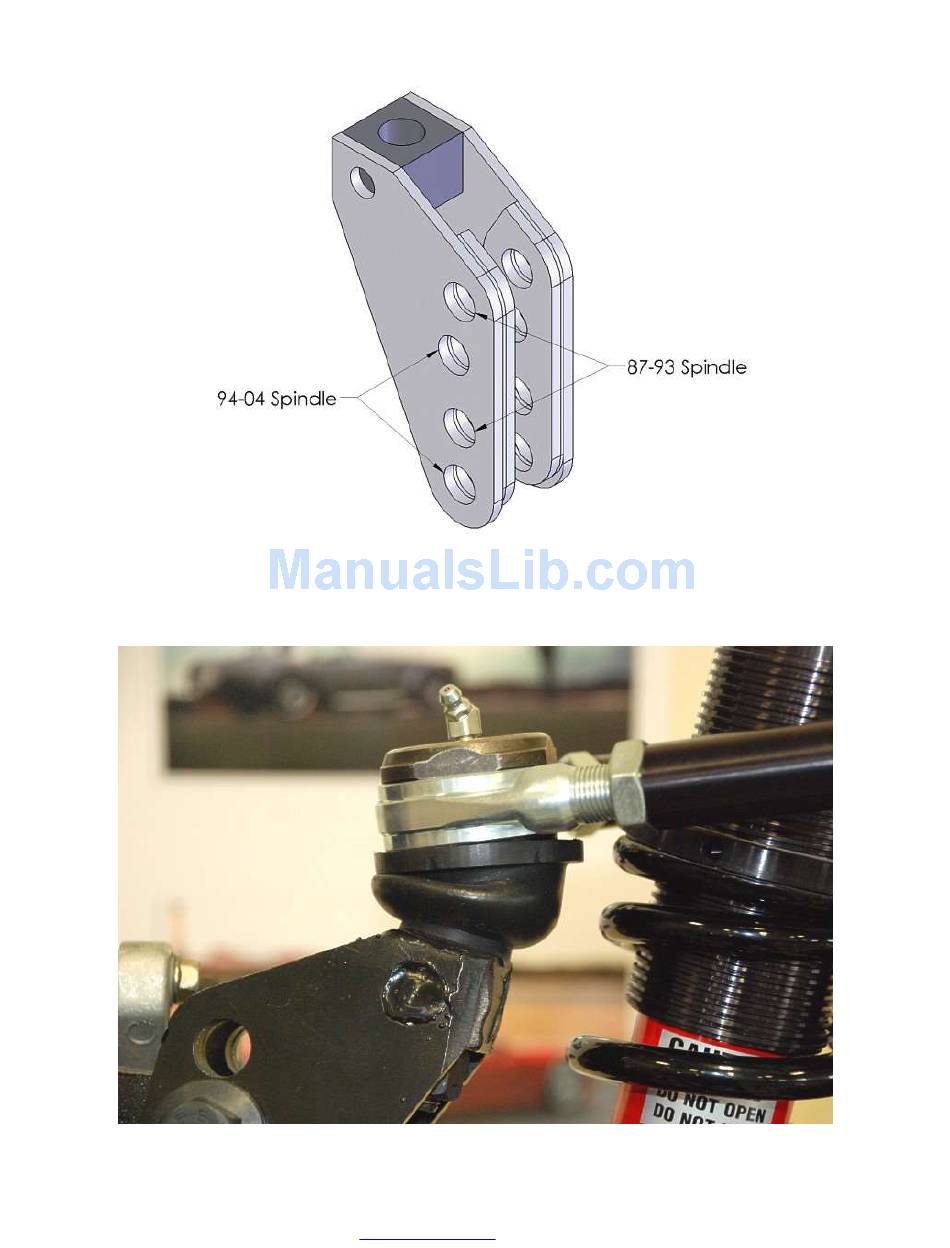

Using the 87-93 spindles, use the hole closest to the ball joint and the third hole down. Using a 94-04

Spindles, attach the bracket using the bottom and third hole up so that the ball joint is further away from

the spindle.

Attach the upper ball joint to the spindle and torque to 75 ft-lbs and install the cotter pin.
