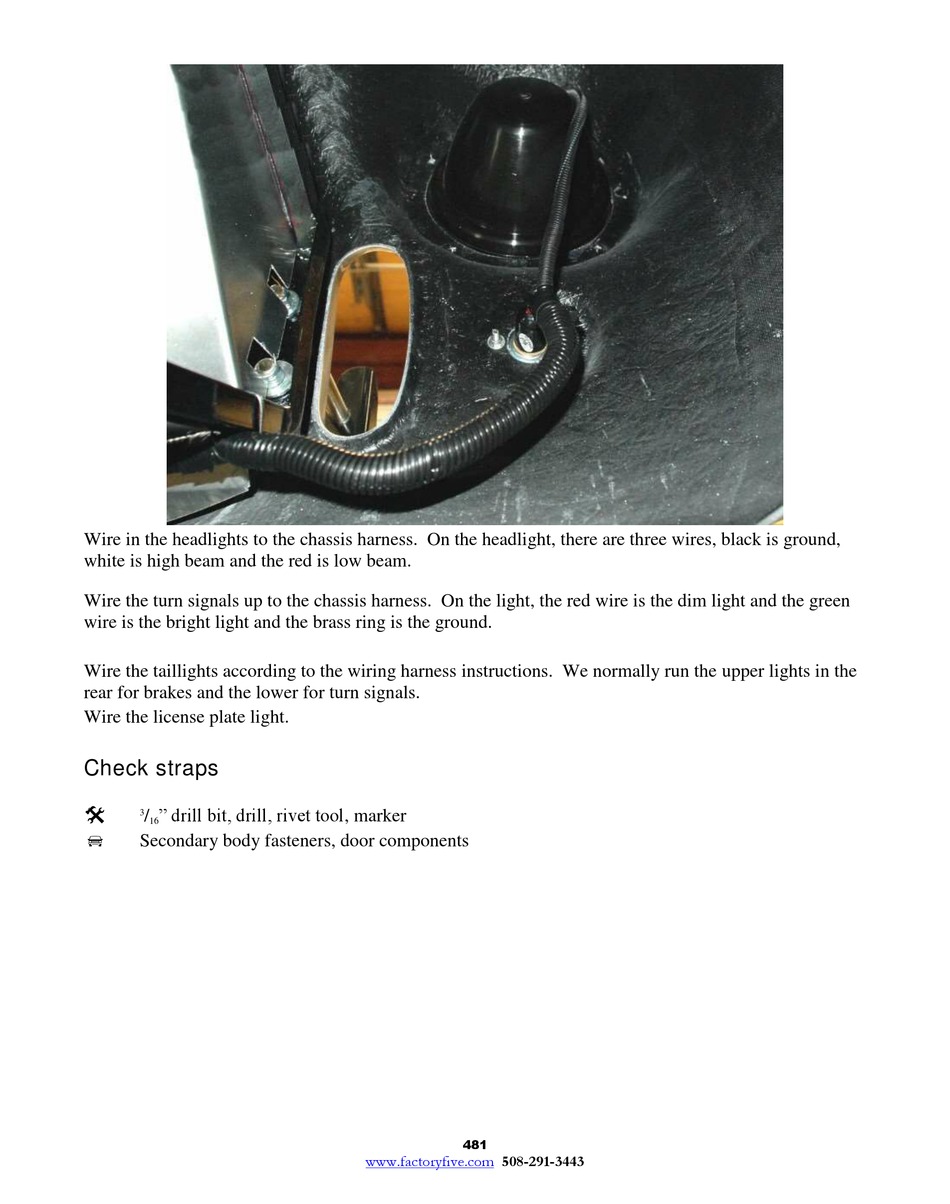

Wire in the headlights to the chassis harness. On the headlight, there are three wires, black is ground,
white is high beam and the red is low beam.
Wire the turn signals up to the chassis harness. On the light, the red wire is the dim light and the green
wire is the bright light and the brass ring is the ground.
Wire the taillights according to the wiring harness instructions. We normally run the upper lights in the
rear for brakes and the lower for turn signals.
Wire the license plate light.

Check straps


" drill bit, drill, rivet tool, marker
3 /
16

Secondary body fasteners, door components
481
