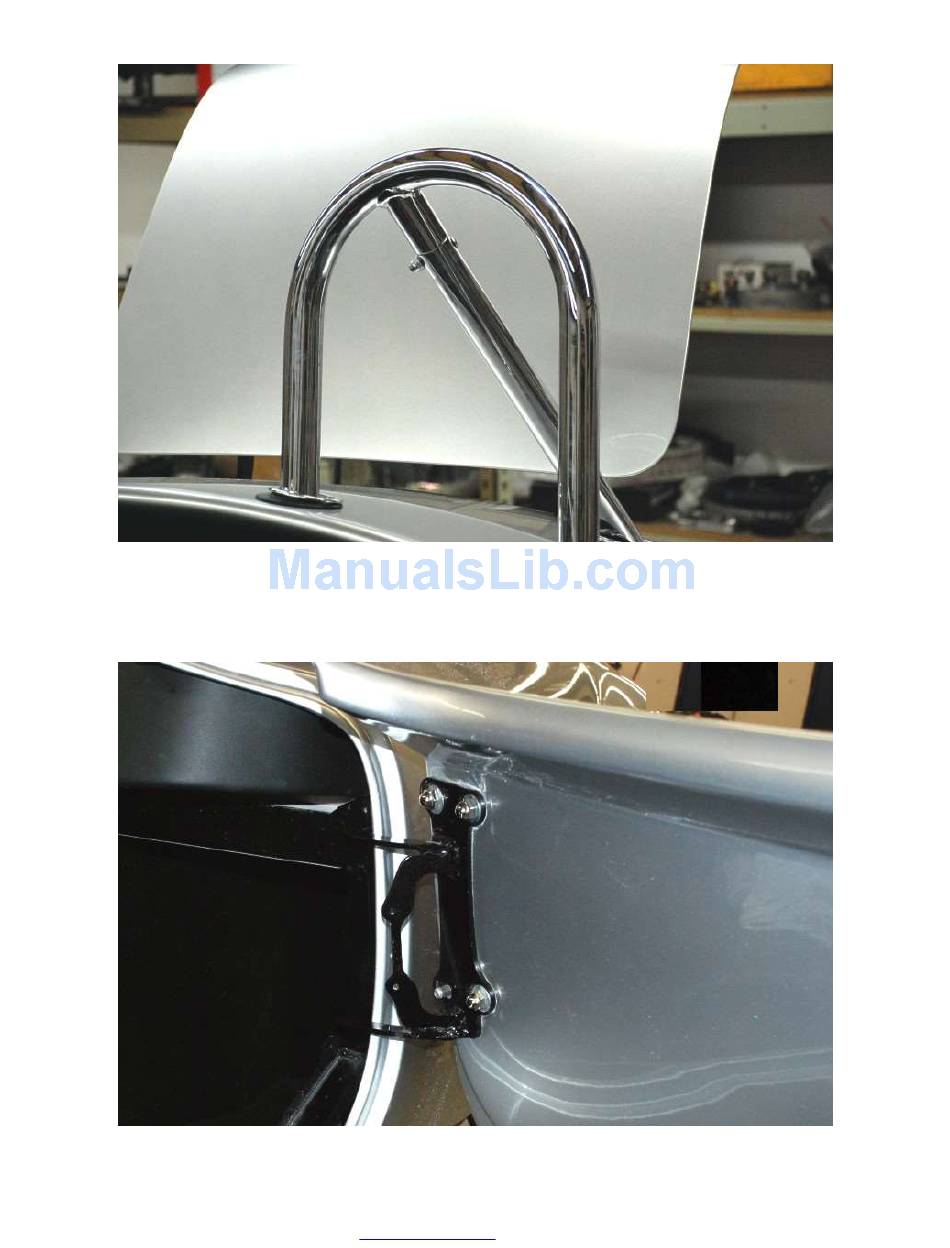

Re-mount the roll bar through the body. Make sure that the rear leg is in the correct orientation so that
your holes will line up.

Door and Latch mount

Reattach the doors and latches.
462
www.factoryfive.com
508-291-3443
