Headlight Harness

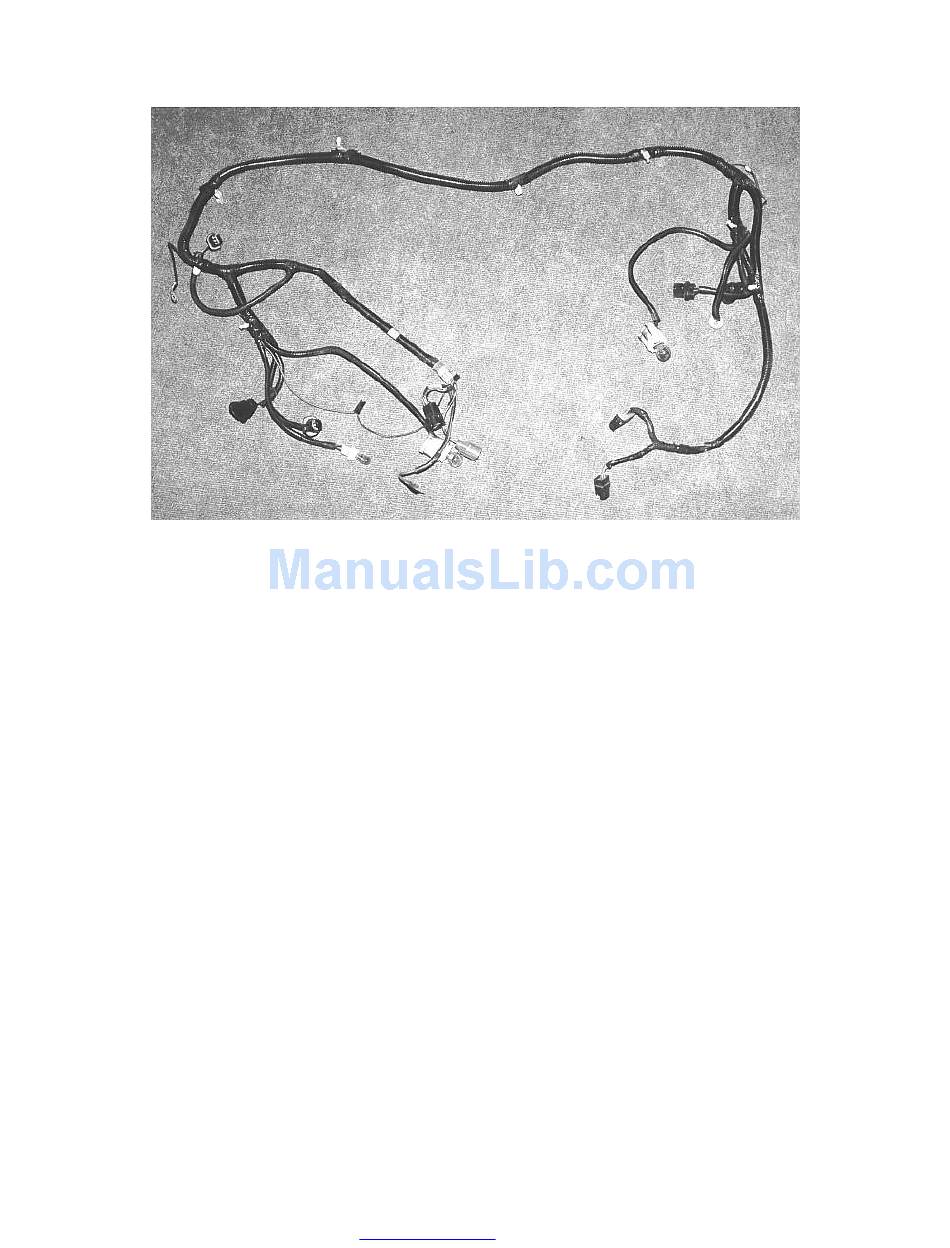

87-93 Headlight harness.
87-95 - The headlight harness is started at the alternator and runs forward to the passenger headlight
area, then goes under the fan shroud to the driver's side headlight area and then rearward to the coil and
starter relay area.
96-04 - Starts at the drivers footbox then runs forward to the "X" then over to the passenger side of the
car where it attaches to the engine harness.
221
