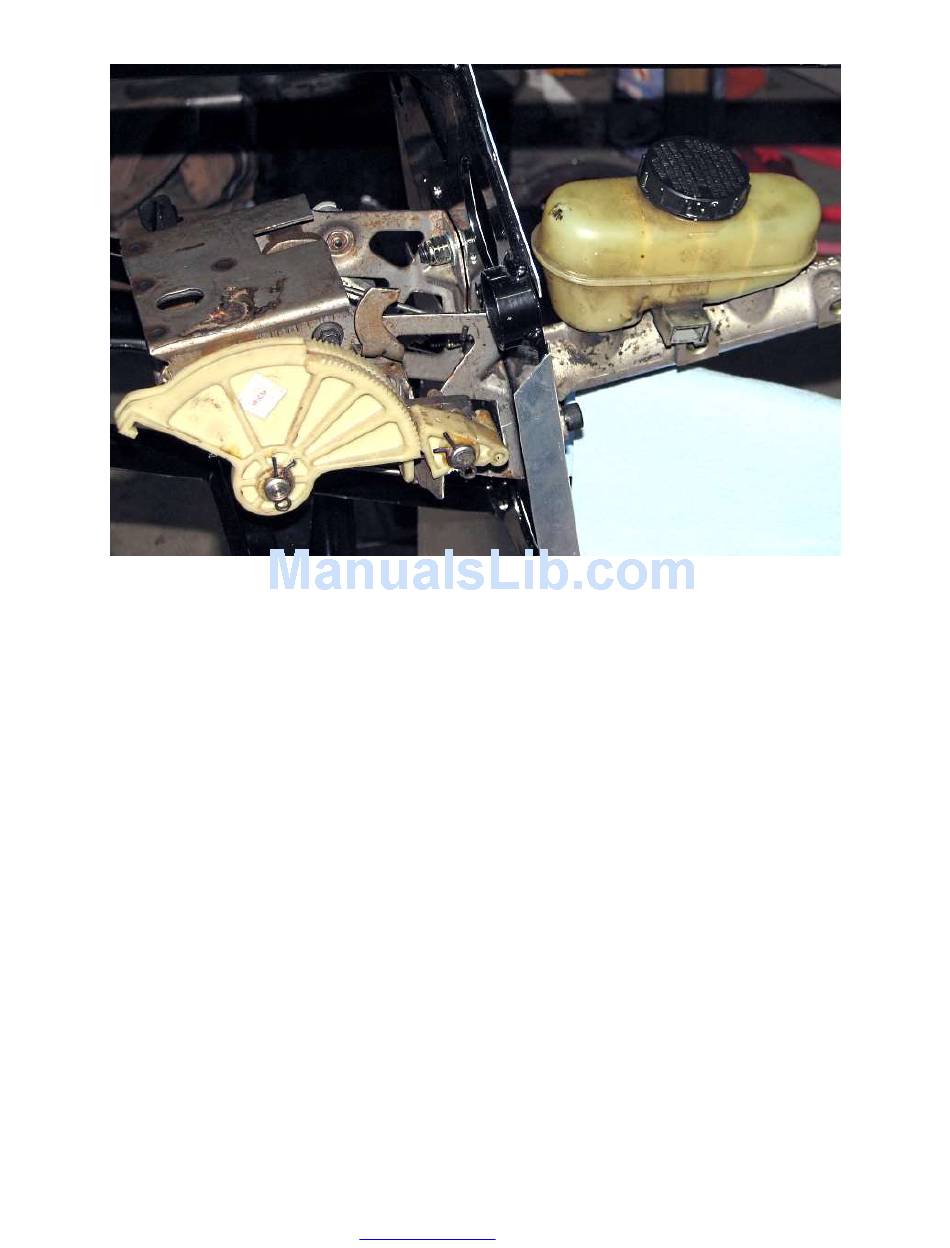

Tighten all of the mounting bolts for the pedal box and master cylinder.
Install the push rod from the power booster into the master cylinder and insert the white plastic bushing
in the ring end.
Hold the rod between the two ears of the brake light switch and slide it over the brake pedal post.
208
www.factoryfive.com
508-291-3443
