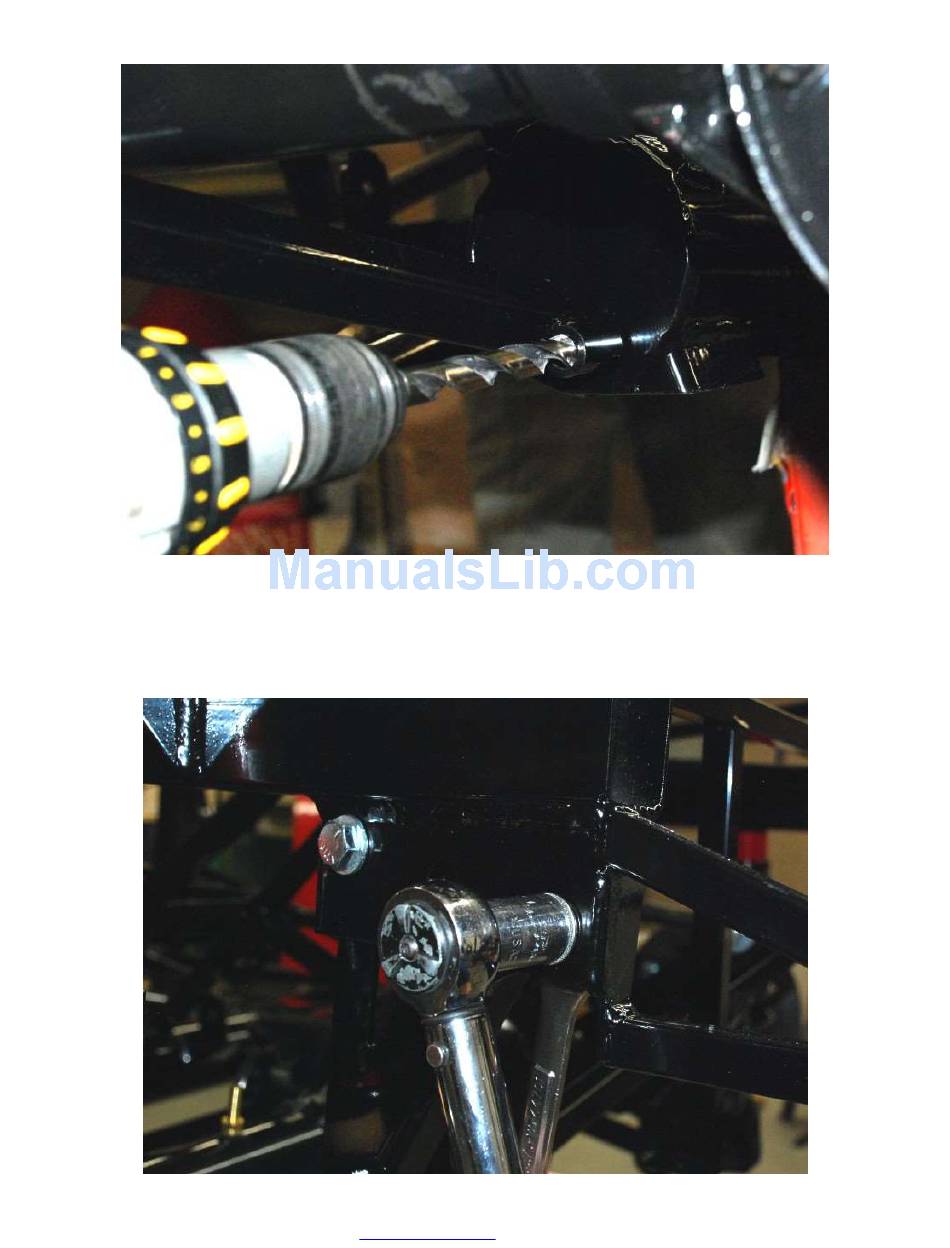

For the front mount, use a ½" drill bit and drill through the sleeve on the mount. Make sure before
drilling that the hole is away from the side of the 2"x 3" tube so that a nut can be attached on the back of
the bolt from the bottom of the tube.
Install the ½"-13 x 2.5" bolt and tighten.
Tighten the bolts on the quad shock brackets.
118
www.factoryfive.com
508-291-3443
