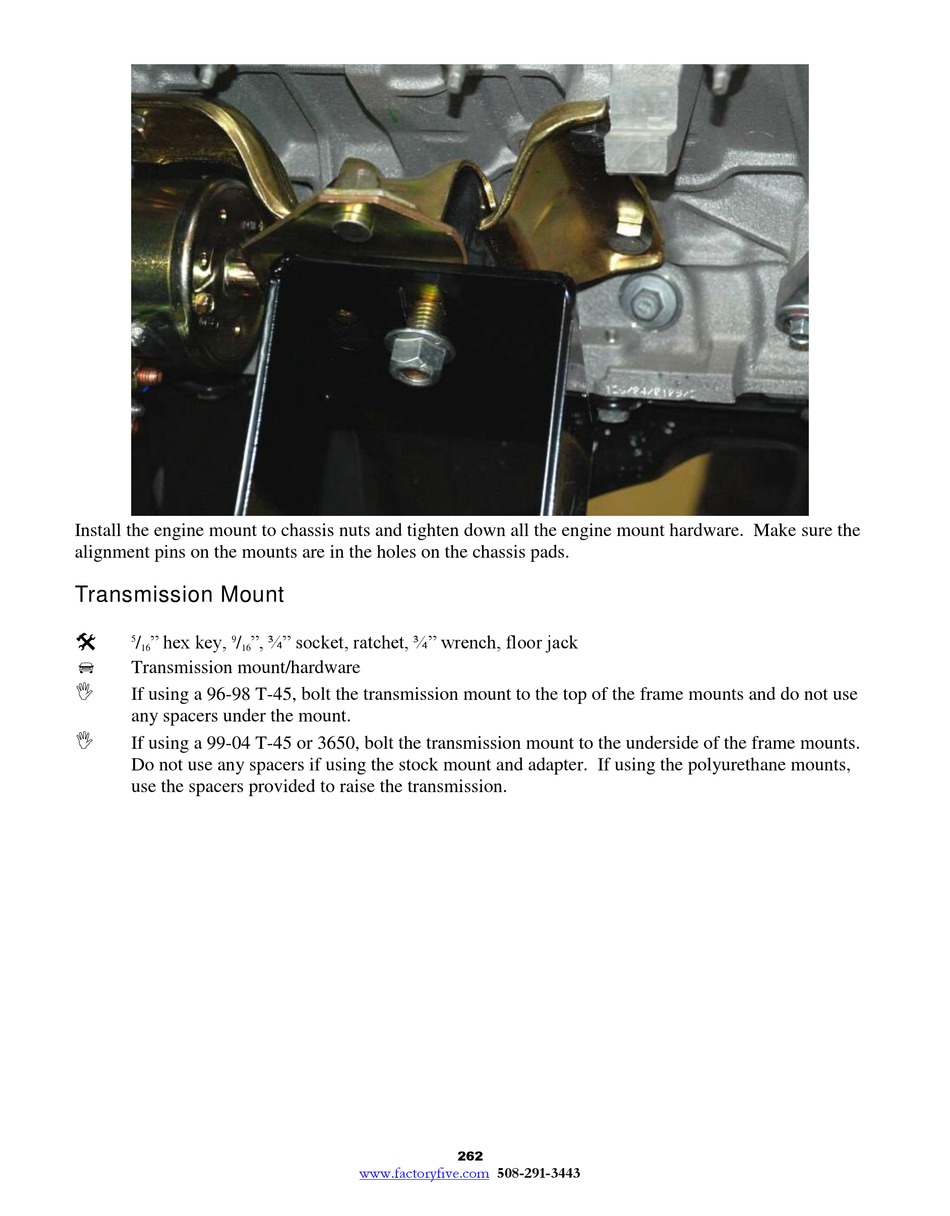

Install the engine mount to chassis nuts and tighten down all the engine mount hardware. Make sure the
alignment pins on the mounts are in the holes on the chassis pads.

Transmission Mount


" hex key,
/ /
5 9
16 16

Transmission mount/hardware

If using a 96-98 T-45, bolt the transmission mount to the top of the frame mounts and do not use
any spacers under the mount.

If using a 99-04 T-45 or 3650, bolt the transmission mount to the underside of the frame mounts.
Do not use any spacers if using the stock mount and adapter. If using the polyurethane mounts,
use the spacers provided to raise the transmission.
", ¾" socket, ratchet, ¾" wrench, floor jack
