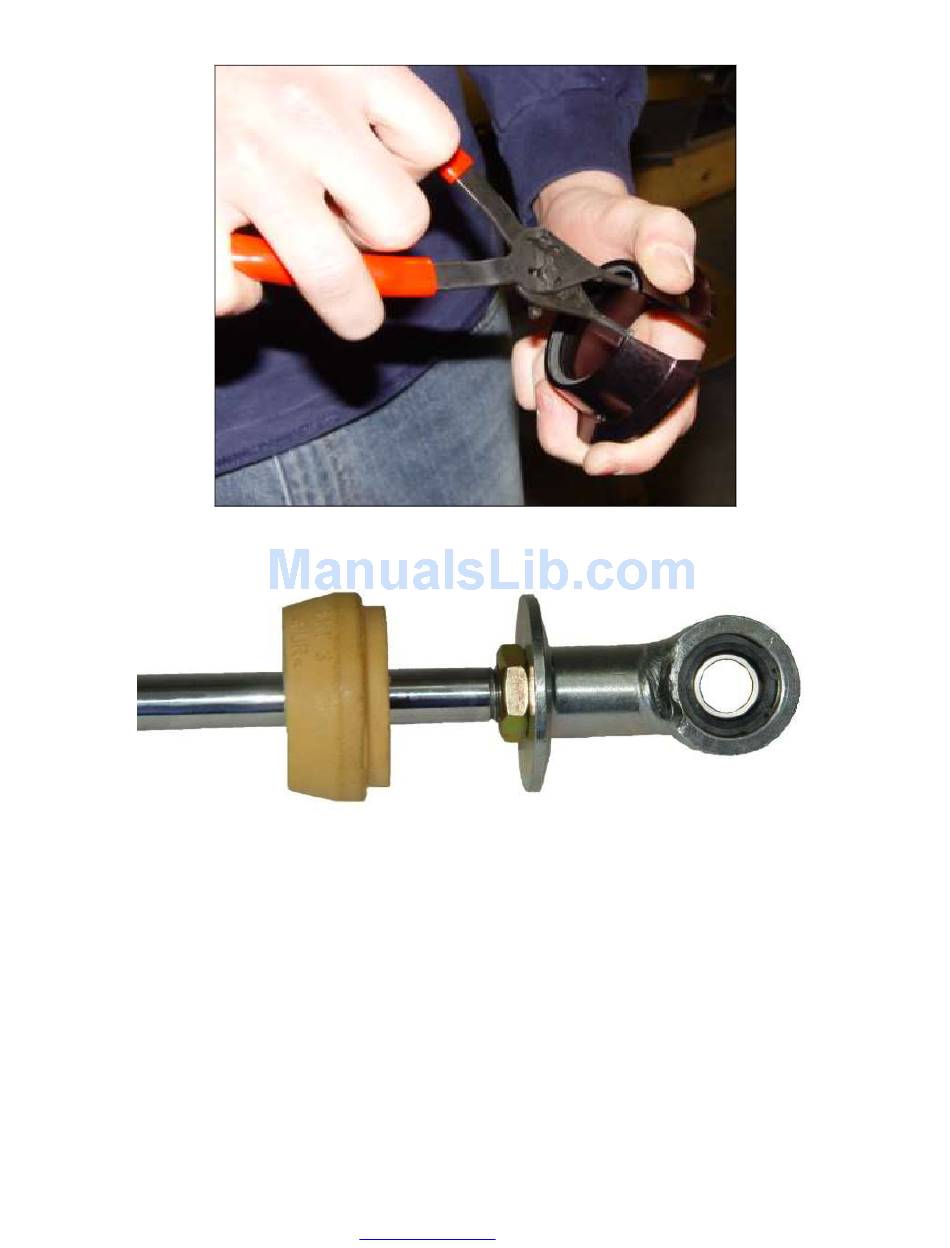

The coil-over hats have a snap ring which holds it in place. Remove this snap ring to assemble the coil
over shock.
Slide the rubber bumper about two inches down on the shaft.
Put the spring on the shock, then install the spring hat on the shaft end of the shock and push the rubber
bumper up against it.
Rotate the spring seat back up the sleeve so that the spring pushes the hat tight against the end of the
shock.
122
www.factoryfive.com
508-291-3443
