Table of Contents

Advertisement

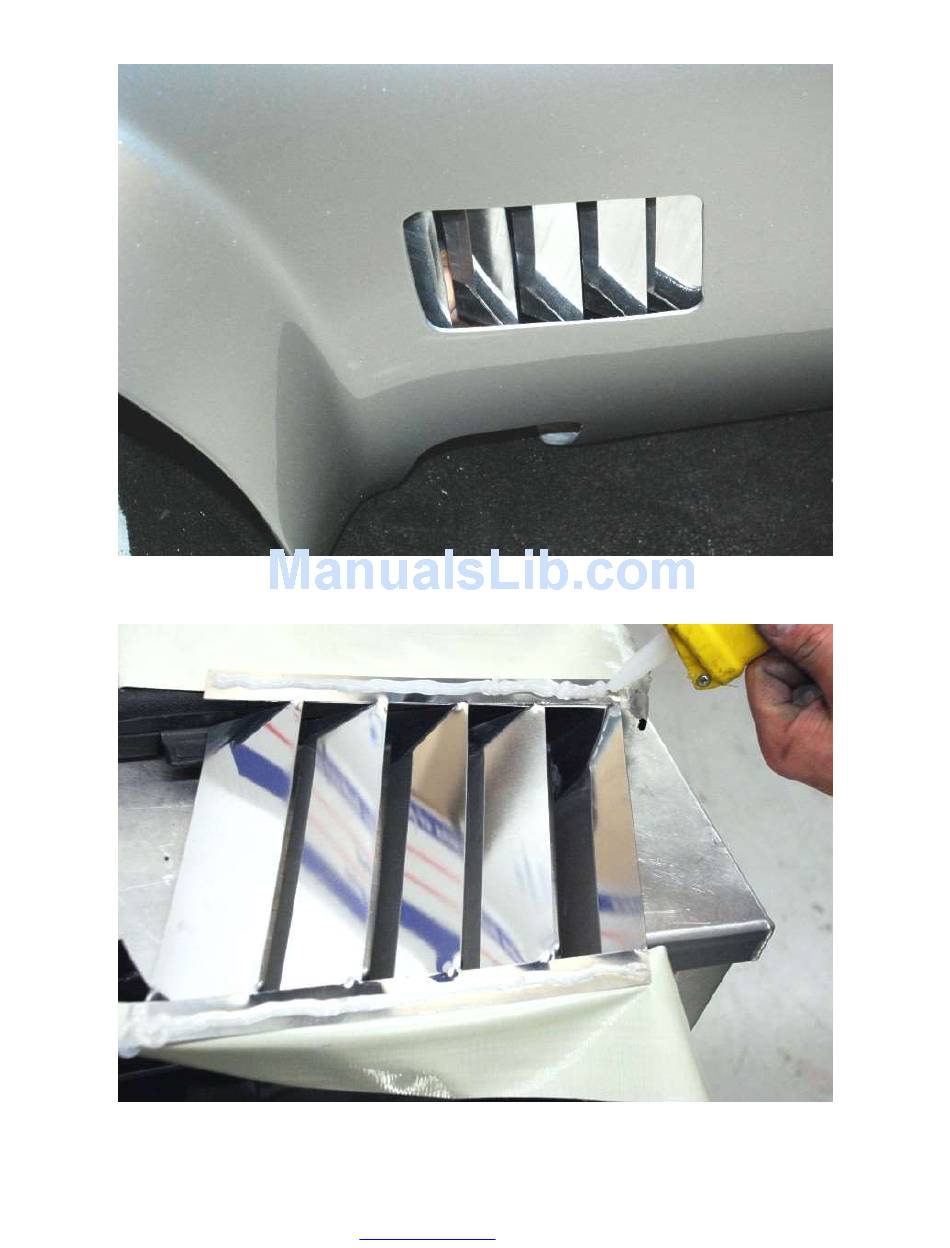

Hold them up to the body to see how they fit. They are designed to allow air to exit the engine bay so
the flanges point from the rear edge in.
Apply silicone down the top and bottom flange on the side facing the body.
455
www.factoryfive.com
508-291-3443
