Factory Five Racing MK4 ROADSTER Assembly Manual page 235

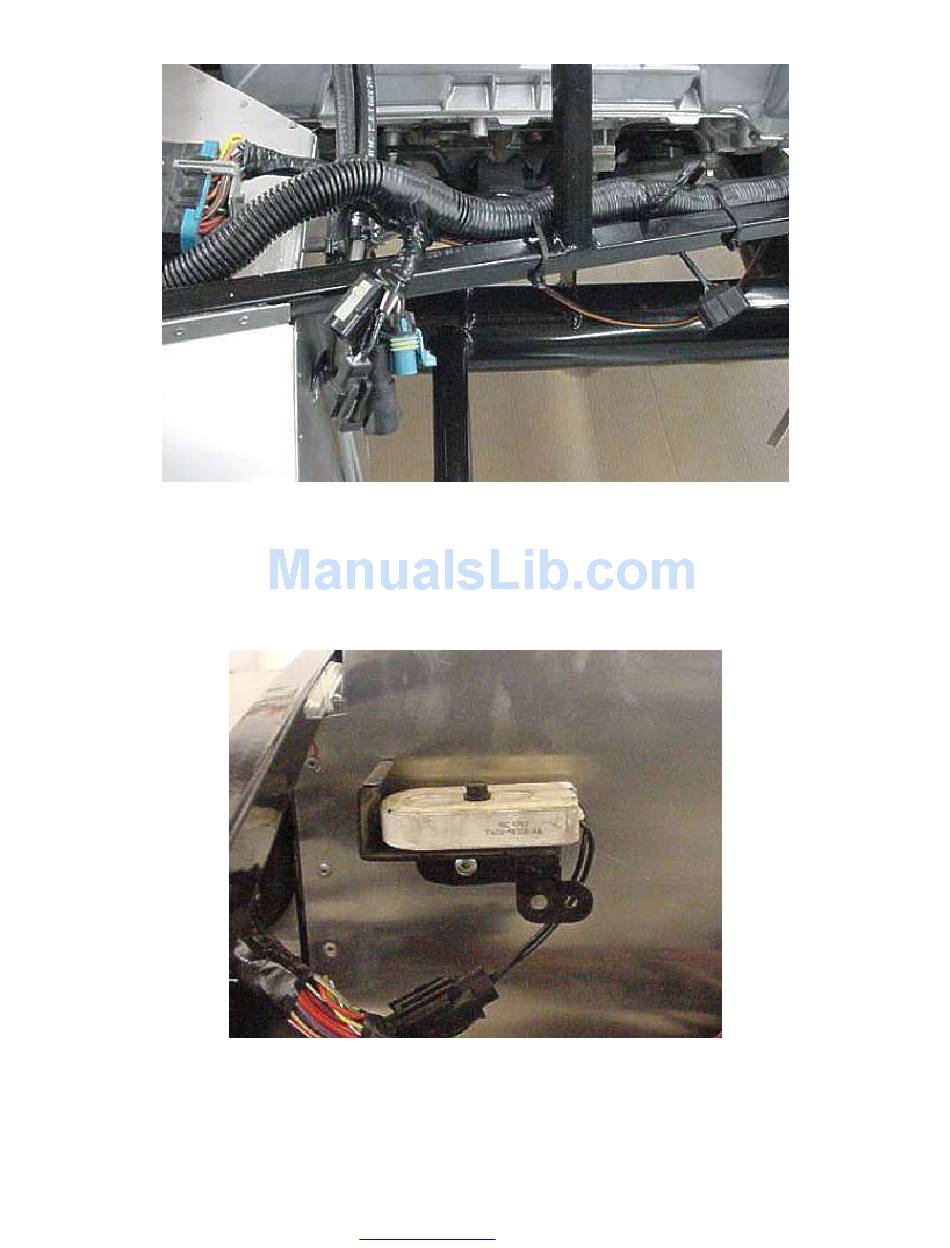

Run the other larger bundle forward to the front of the frame. Connectors shown at the front of the
footbox are not needed
Using the fuel pump resistor as a template, hold it against the firewall and mark the firewall where the
mount hole and tab hole.
" mounting holes for the resistor.
Drill 3 /
16
" rivets provided with kit to mount the fuel pump resistor and to the firewall.
Use 3 /
16
96-98 Fuel pump resistor mounted to passenger side firewall.
234
