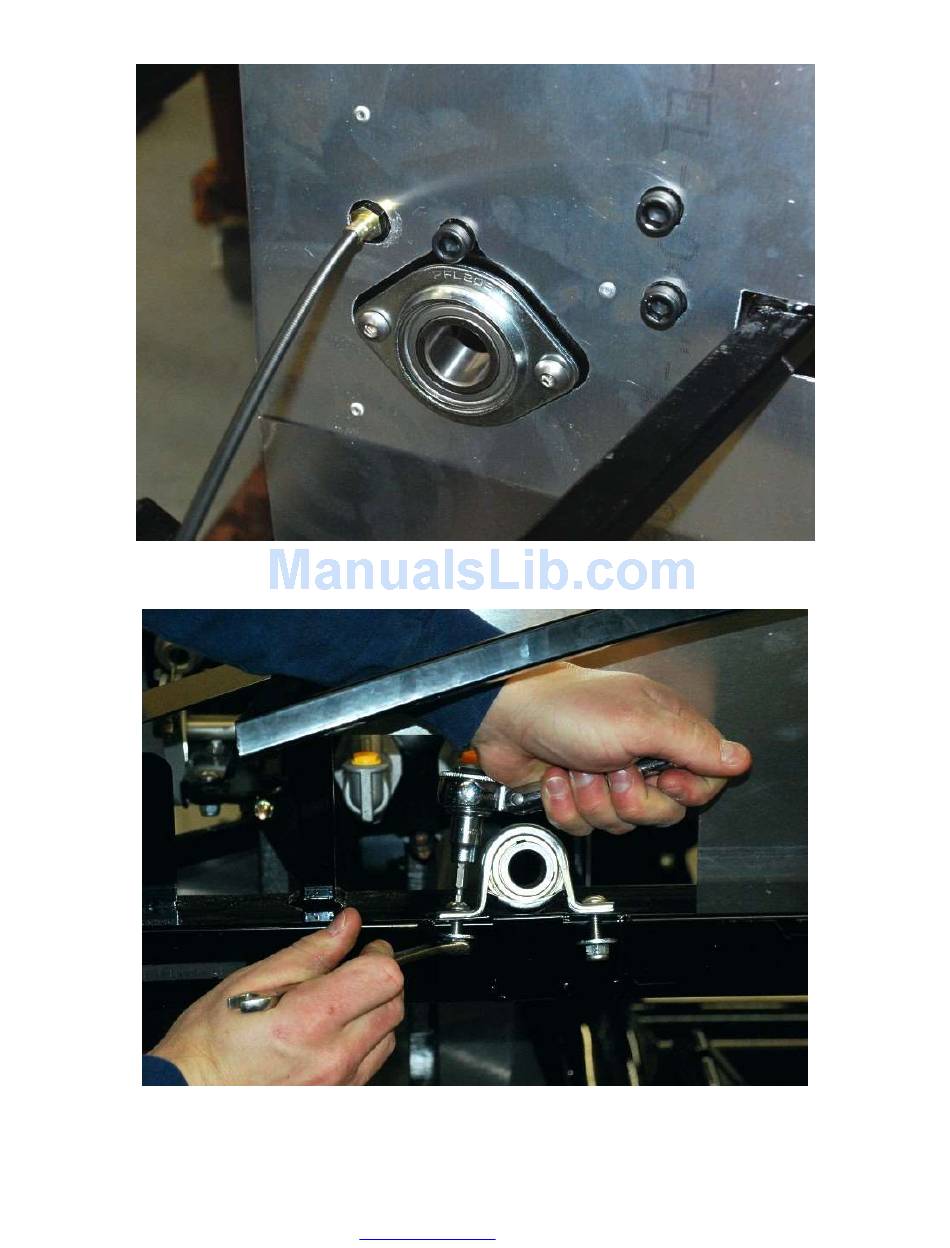

Loosely mount the flange bearing to the footbox front with the set screw toward the inside of the
footbox. Both sides of the flange mount to the front side of the footbox plate.
Loosely mount the top pillow block to the chassis with the set screw toward the rear of the car.
177
www.factoryfive.com
508-291-3443
