Factory Five Racing MK4 ROADSTER Assembly Manual page 368

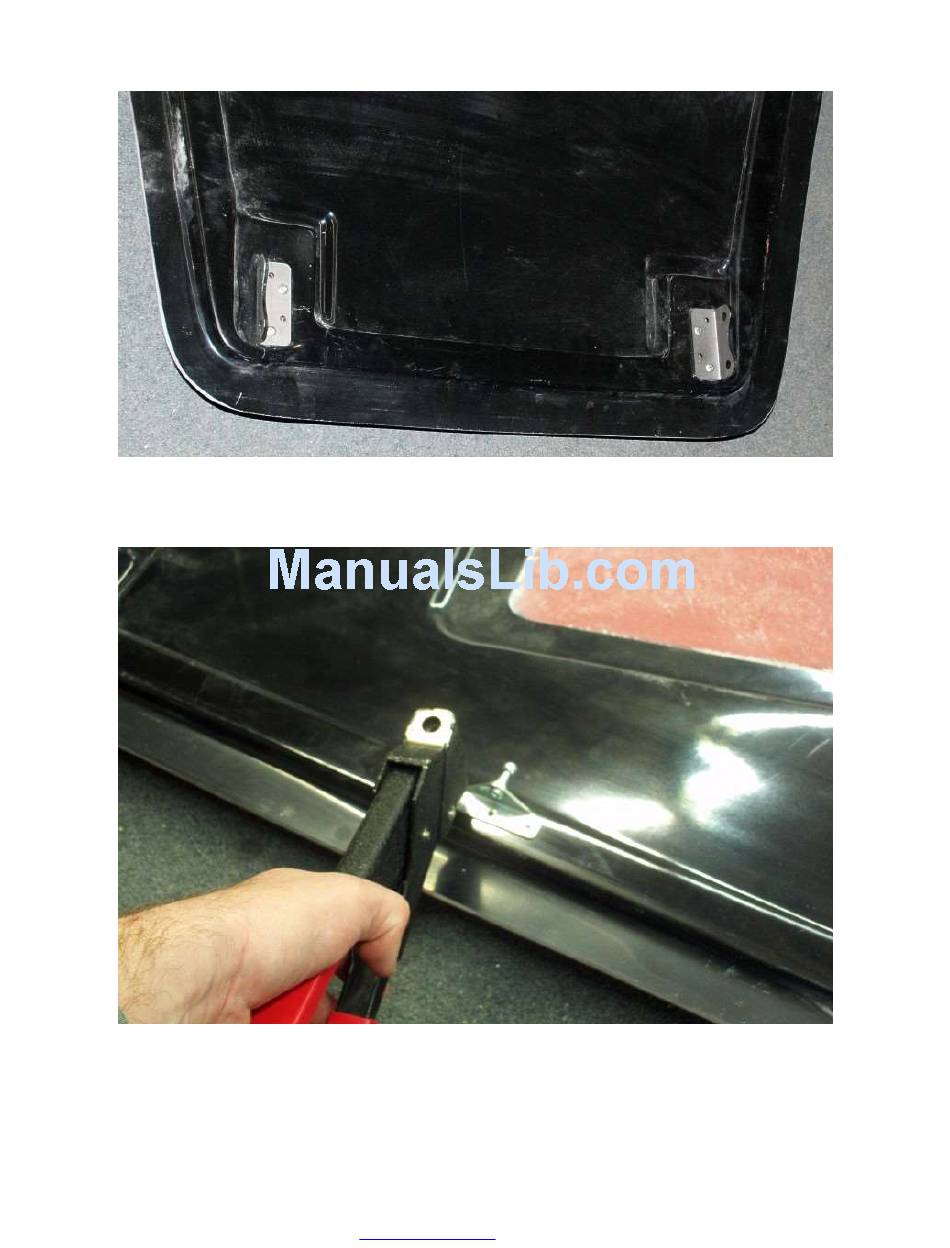

The hood hinge pivot mounts attach to the hood using rivets, the holes are predrilled in the hood liner
" drill bit. This is the initial install so you only need a few
but you may need to clean them out with a 3 /
16
rivets if you are going to remove the hinge brackets prior to body painting (recommended).
" rivets. The ball points toward the inside
Install the ball pivots for the hood struts on the hood using 3 /
16
of the car.
367
www.factoryfive.com 508-291-3443
