Table of Contents

Advertisement

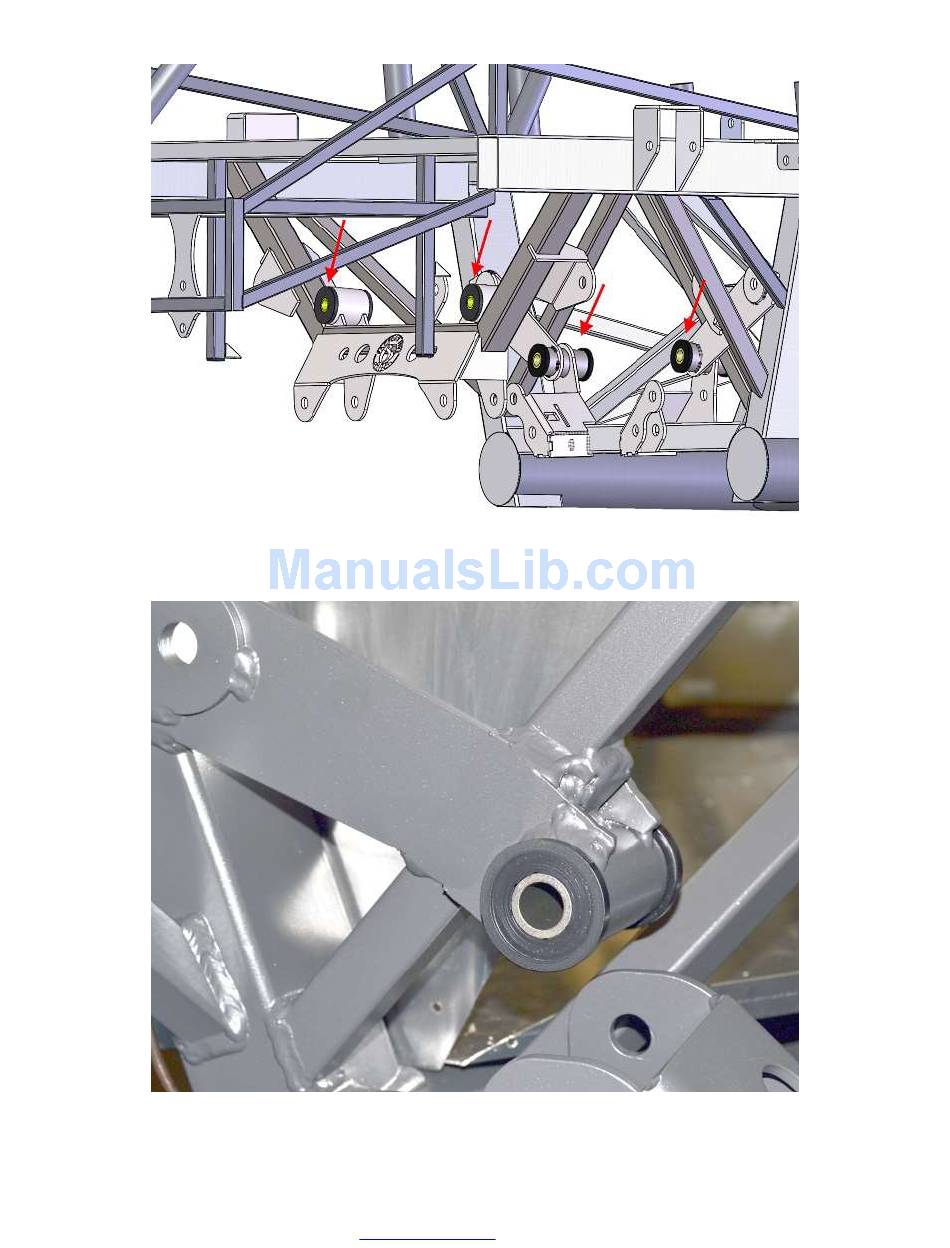

Bushing locations.
") sleeves
1
Use a plastic mallet to install the polyurethane bushings marked 2048 and the longer (3
/
16
where the front of the center section will mount.
137
www.factoryfive.com
508-291-3443
