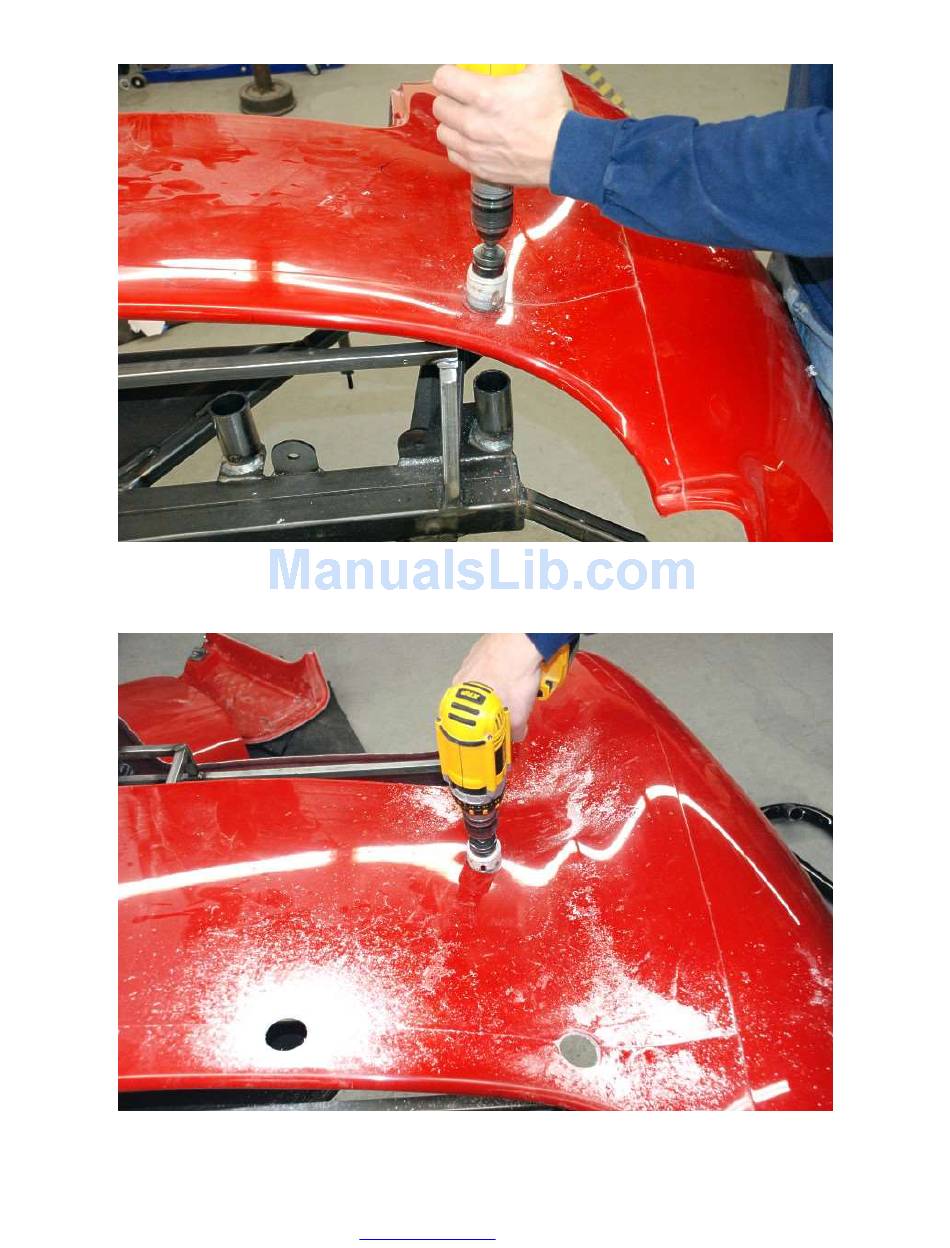

The roll bar holes are marked on the body and need to be cut out using a 1¾" holes saw. The front two
holes are cut centering the saw in the marked circle and drilling vertically to match the angle the bar
comes through the body.
To cut the rear roll bar leg, make 2 holes overlapping so that they form the right length. Use the same
1¾" hole saw centered in the front of the traced opening and with the drill leaning at a 45° angle toward
the inner front leg. Stop the drill when it has cut through half of the hole.
