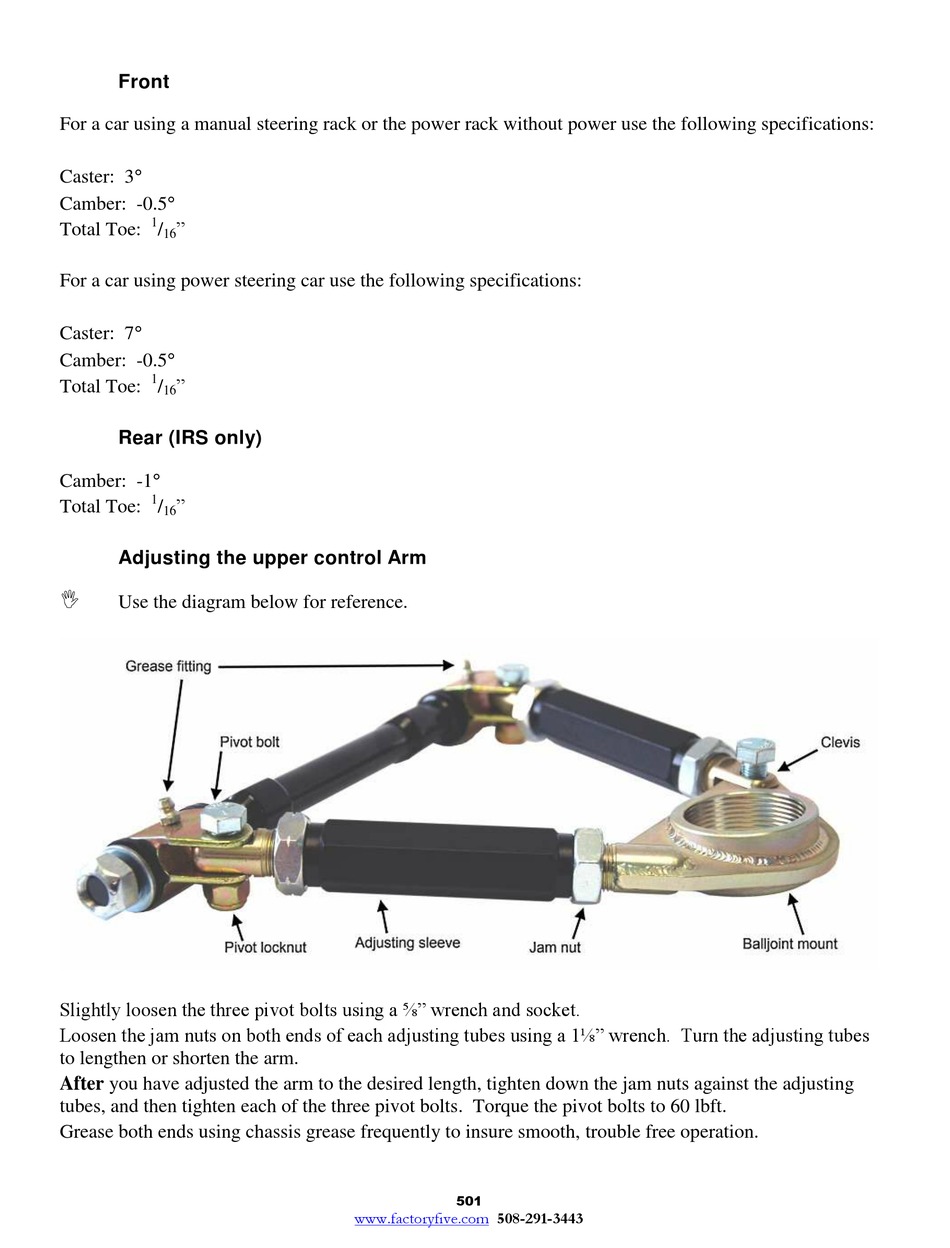

Front
For a car using a manual steering rack or the power rack without power use the following specifications:
Caster: 3
Camber: -0.5
1
"
Total Toe: /
16
For a car using power steering car use the following specifications:
Caster: 7
Camber: -0.5
1 "
Total Toe: /
16
Rear (IRS only)
Camber: -1
1
"
Total Toe: /
16
Adjusting the upper control Arm

Use the diagram below for reference.
Slightly loosen the three pivot bolts using a ⅝" wrench and socket.
Loosen the jam nuts on both ends of each adjusting tubes using a 1⅛" wrench. Turn the adjusting tubes
to lengthen or shorten the arm.
After you have adjusted the arm to the desired length, tighten down the jam nuts against the adjusting
tubes, and then tighten each of the three pivot bolts. Torque the pivot bolts to 60 lbft.
Grease both ends using chassis grease frequently to insure smooth, trouble free operation.
