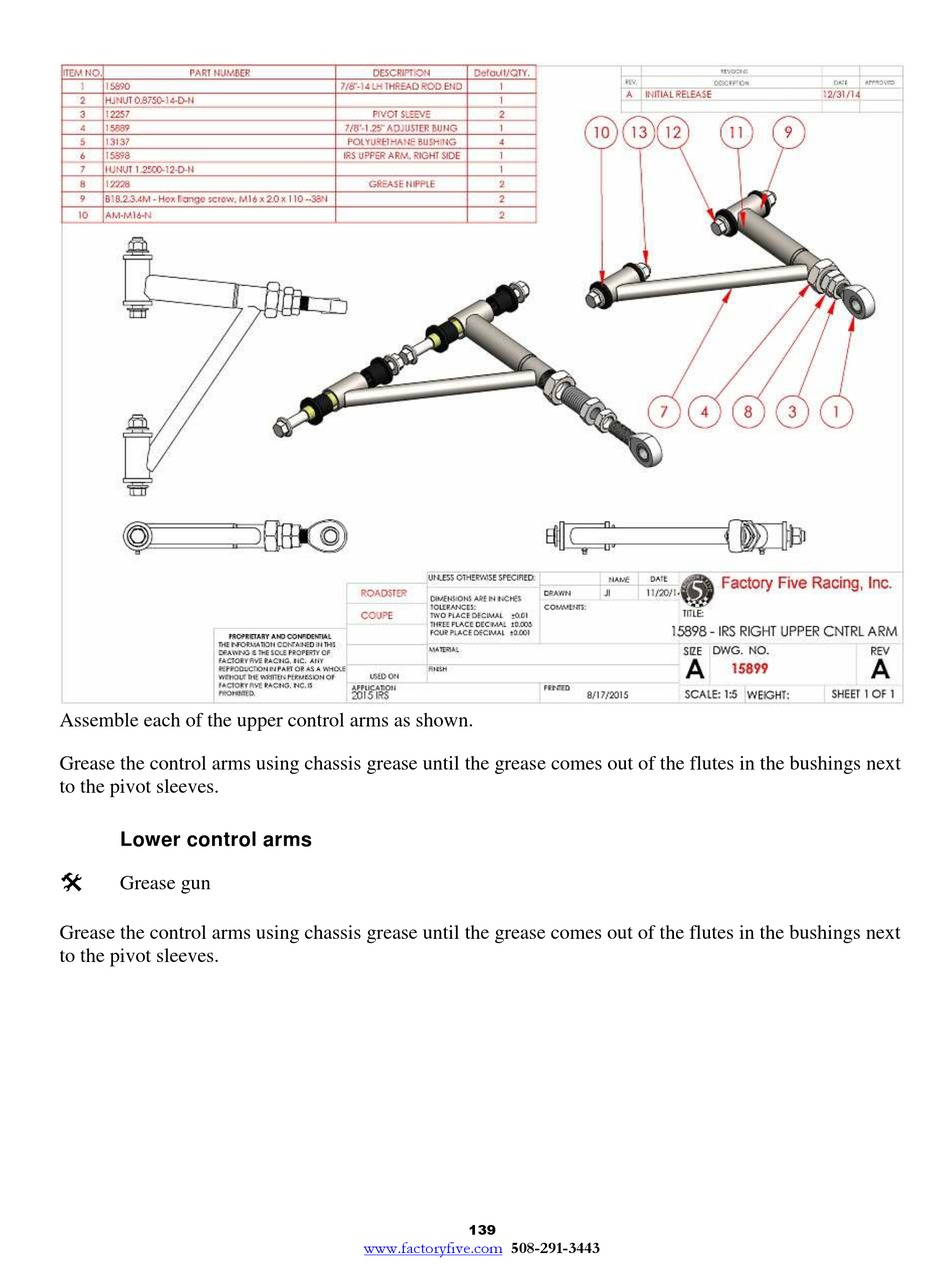

Assemble each of the upper control arms as shown.
Grease the control arms using chassis grease until the grease comes out of the flutes in the bushings next
to the pivot sleeves.
Lower control arms
Grease gun
Grease the control arms using chassis grease until the grease comes out of the flutes in the bushings next
to the pivot sleeves.
139
