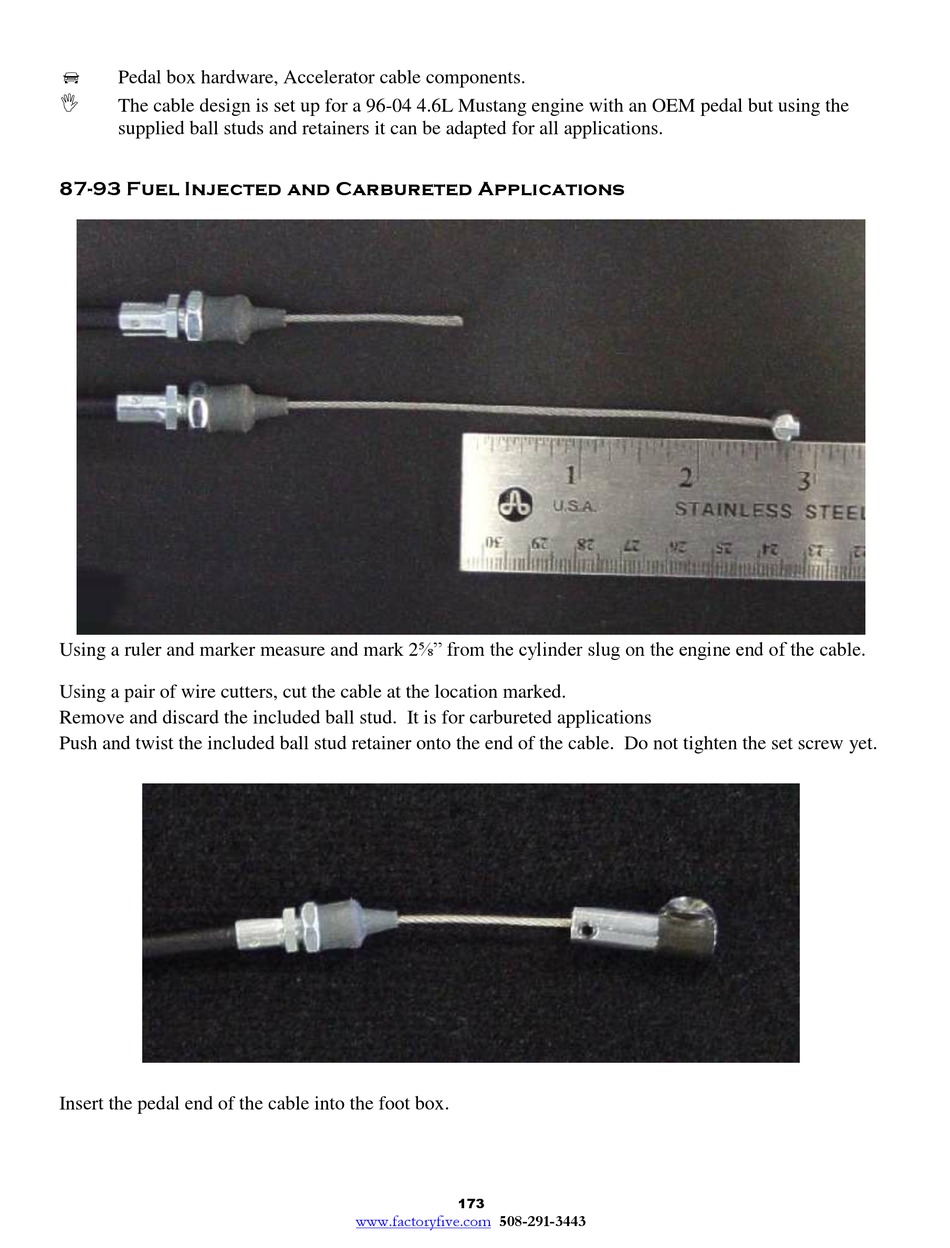

87-93 Fuel Injected And Carbureted Applications - Factory Five Racing MK4 ROADSTER Assembly Manual


Pedal box hardware, Accelerator cable components.

The cable design is set up for a 96-04 4.6L Mustang engine with an OEM pedal but using the
supplied ball studs and retainers it can be adapted for all applications.

87-93 Fuel Injected and Carbureted Applications

Using a ruler and marker measure and mark 2⅝" from the cylinder slug on the engine end of the cable.
Using a pair of wire cutters, cut the cable at the location marked.
Remove and discard the included ball stud. It is for carbureted applications
Push and twist the included ball stud retainer onto the end of the cable. Do not tighten the set screw yet.
Insert the pedal end of the cable into the foot box.
173
