Factory Five Racing MK4 ROADSTER Assembly Manual page 171

Drill ¼" holes completely through the ¾" tubing for the pedal box.
" drill bit to drill the bolt hole in the pedal box for the master cylinder bolt.
Use a 7 /
16
Trim the corner off the pedal box using a Hacksaw.
The front foot box aluminum panel can now be siliconed and riveted in place with the ⅛" long rivets.
Install the pedal box with the two ⅜" bolts and washers at the top as before. They go through existing
holes in the front of the foot box. The four ¼" socket head bolts hold the foot box to the ¾" tubes. Use
the large fender washers (FFR# 12337) on the underside of the tubing.
Attach the trimmed accelerator pedal using the kit fasteners [(2) ¼" x ¾" long bolts (FFR# 12335),
washers and nuts (FFR# 10802)] to the bracket on the vertical ¾" tubing at the front of the foot box.

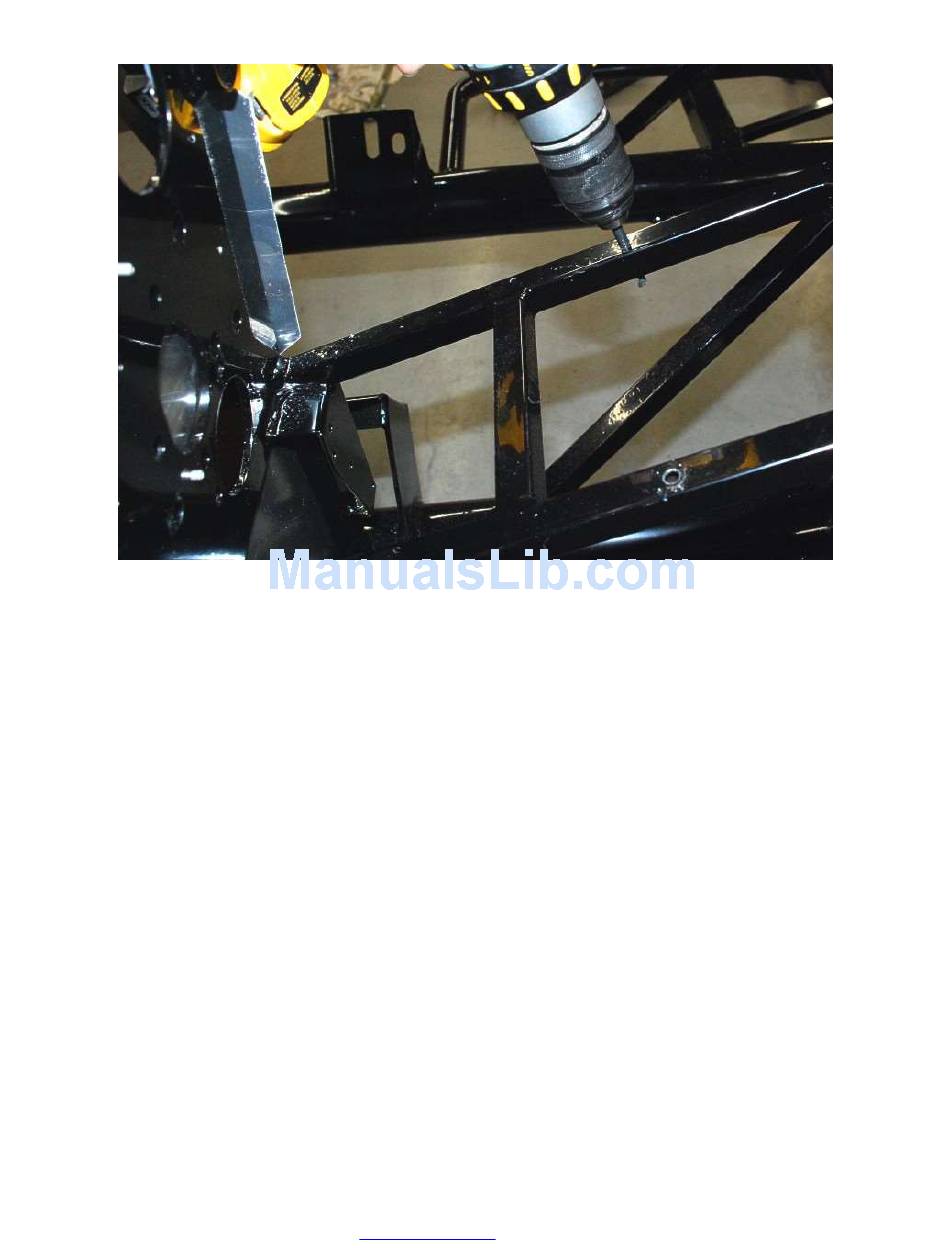

Loosen the bolts and remove the pedal box assembly from the footbox then use a ¼" drill bit and drill to
drill through the ¾" tubes at the locations marked for the rear mount.
170
www.factoryfive.com 508-291-3443
