Factory Five Racing MK4 ROADSTER Assembly Manual page 300

Push some grommeting onto the passenger side aluminum "F" panel slot to prevent any chaffing of the
tube.

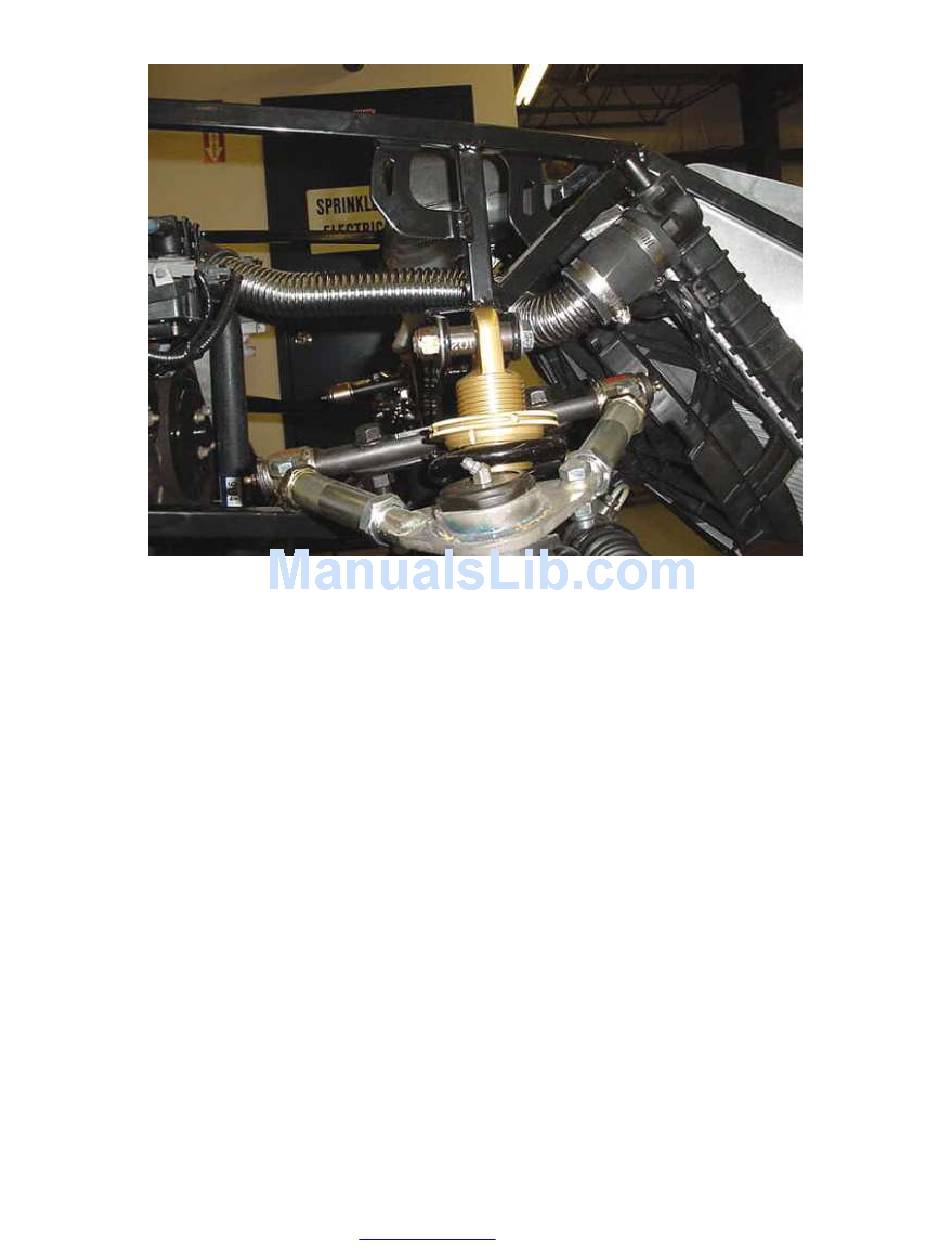

Pass the upper radiator tube through the passenger side "F" panel and route the tube to the radiator.
Mark the tube where it needs to be cut so that the tube will just touch the attaching location.
Remove the tube from the vehicle.
Cut the tube using a hack saw or if available a cut-off wheel. If necessary clean the end up with tin
snips or a grinder.
Shake and blow the tube out so that no metal pieces are in the tube.
Reattach the tube assembly to the engine and tighten the hose to the radiator.
Lower radiator hose
Connect the lower radiator tube to the engine.
