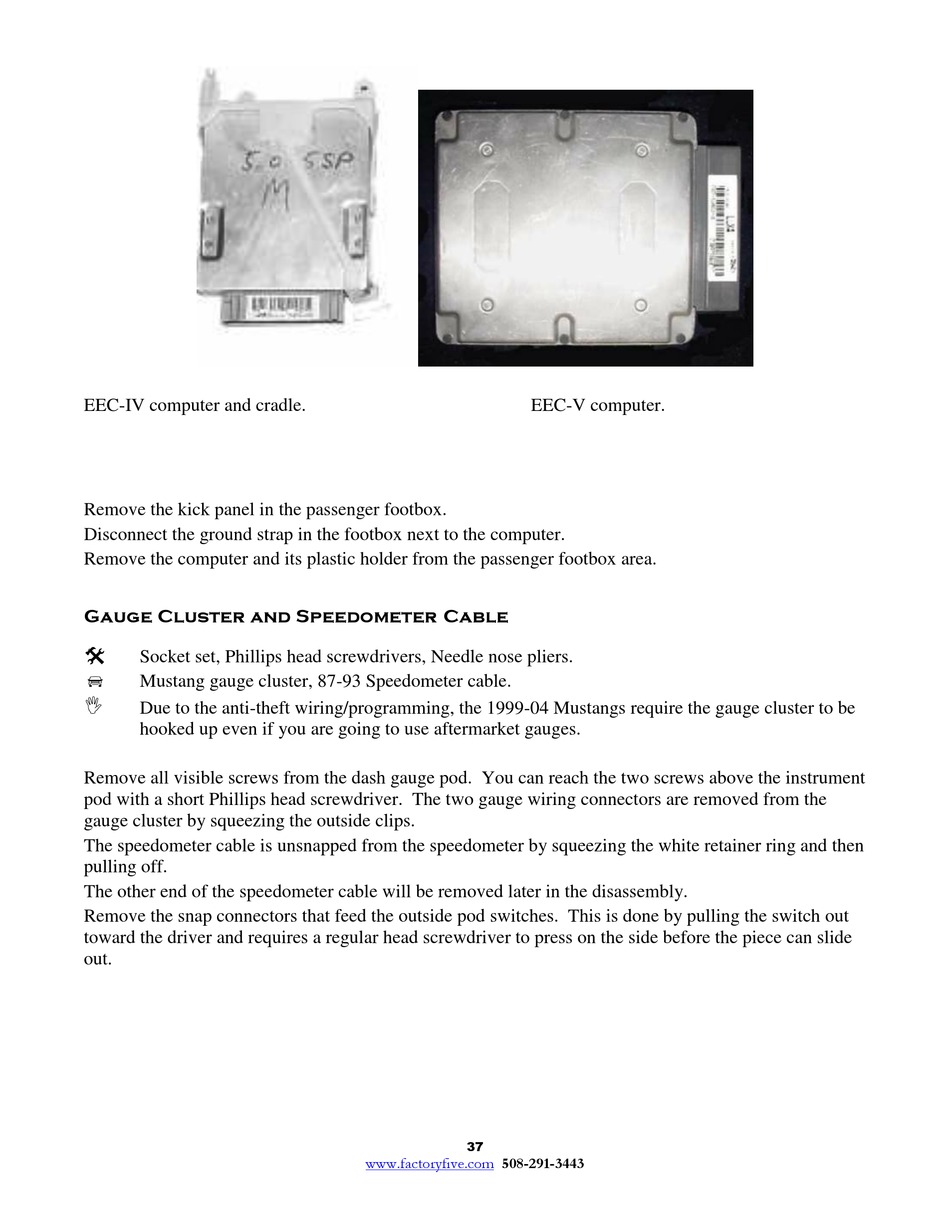

EEC-IV computer and cradle.
Remove the kick panel in the passenger footbox.
Disconnect the ground strap in the footbox next to the computer.
Remove the computer and its plastic holder from the passenger footbox area.

Gauge Cluster and Speedometer Cable


Socket set, Phillips head screwdrivers, Needle nose pliers.

Mustang gauge cluster, 87-93 Speedometer cable.

Due to the anti-theft wiring/programming, the 1999-04 Mustangs require the gauge cluster to be
hooked up even if you are going to use aftermarket gauges.
Remove all visible screws from the dash gauge pod. You can reach the two screws above the instrument
pod with a short Phillips head screwdriver. The two gauge wiring connectors are removed from the
gauge cluster by squeezing the outside clips.
The speedometer cable is unsnapped from the speedometer by squeezing the white retainer ring and then
pulling off.
The other end of the speedometer cable will be removed later in the disassembly.
Remove the snap connectors that feed the outside pod switches. This is done by pulling the switch out
toward the driver and requires a regular head screwdriver to press on the side before the piece can slide
out.
EEC-V computer.
