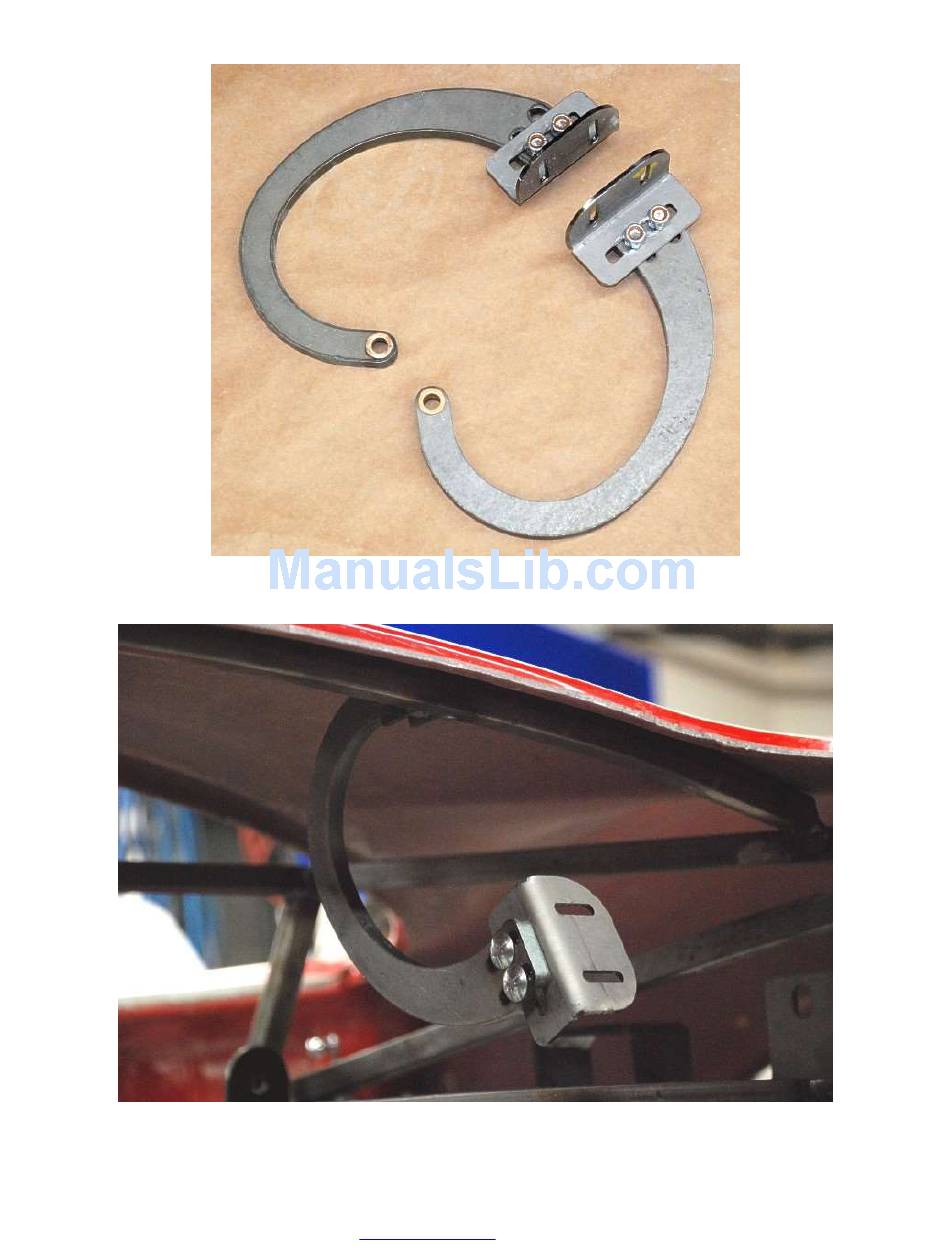

" locknuts to bolt the mounting pads to the arms leaving them just snug so
Use the carriage bolts and
5
/
16
they can be moved without loosening the bolts.
Hang the hinge arms on the chassis using the shoulder bolts. You do not need the nuts for just doing
fitment.
391
www.factoryfive.com
508-291-3443
