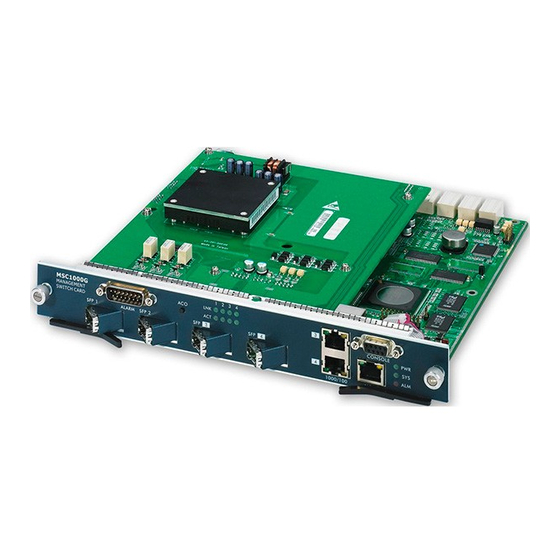

MSC1000G
Management Switch Card
User's Guide
Version 3.60
10/2006
Edition 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSC1000G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications MSC1000G

Summary of Contents for ZyXEL Communications MSC1000G

  • Page 1 MSC1000G Management Switch Card User’s Guide Version 3.60 10/2006 Edition 1...

  • Page 2: Copyright

    Trademarks ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

  • Page 3: Certifications

    MSC1000G User’s Guide Certifications Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operations.
  • Page 4 MSC1000G User’s Guide 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page. Certifications...

  • Page 5: Safety Warnings

    MSC1000G User’s Guide Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids.

  • Page 6: Zyxel Limited Warranty

    MSC1000G User’s Guide ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and...

  • Page 7: Customer Support

    MSC1000G User’s Guide Customer Support Please have the following information ready when you contact customer support. • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it.
  • Page 8 MSC1000G User’s Guide METHOD SUPPORT E-MAIL TELEPHONE WEB SITE REGULAR MAIL SALES E-MAIL FTP SITE LOCATION support@zyxel.no +47-22-80-61-80 www.zyxel.no ZyXEL Communications A/S Nils Hansens vei 13 NORWAY sales@zyxel.no +47-22-80-61-81 0667 Oslo Norway info@pl.zyxel.com +48 (22) 333 8250 www.pl.zyxel.com ZyXEL Communications ul.

  • Page 9: Table Of Contents

    Table of Contents ..................... 9 List of Figures ......................29 List of Tables ......................33 Preface ........................39 Chapter 1 Getting to Know Your MSC1000G................. 41 1.1 Introduction ......................41 1.2 Features ......................41 1.3 Applications ......................47 1.3.1 MTU Application ..................47 1.3.2 Central Office Application .................48 Chapter 2 Hardware Connections ..................
  • Page 10 MSC1000G User’s Guide 3.2 System Login ....................57 3.3 Navigation Panel ....................58 3.4 Saving Your Configuration .................64 3.5 Logging Out of the Web Configurator ...............64 3.6 System Info .......................65 3.6.1 Line Card Status Information ..............66 Chapter 4 Initial Setup Example ..................... 67 4.1 Initial Configuration ....................67...
  • Page 11 MSC1000G User’s Guide Chapter 7 Diagnostic Screens ....................105 7.1 LDM Test Screen ....................105 7.1.1 Line Diagnostics Test Parameters ............106 7.2 F5 Loopback Screen ..................106 7.3 IP Ping Screen ....................107 7.4 Trace Route Screen ..................108 Chapter 8 Maintenance Screens ...................111 8.1 Configuration Backup Screen...
  • Page 12 MSC1000G User’s Guide 10.7.2 ADSL Port Setup Advanced ..............130 10.7.3 Option Mask Screen ................133 10.8 VDSL Port Setup ....................134 10.8.1 VDSL Port Setup Line Card Screen .............136 10.8.2 VDSL Port Setup Advanced ..............138 10.8.3 Transparent LAN Service (TLS) ............140 10.8.4 TLS Network Example ................140 10.8.4.1 VLAN Tag Format ................141...
  • Page 13 MSC1000G User’s Guide 11.10.2 Traffic Parameters ................171 11.10.2.1 Peak Cell Rate (PCR) ..............171 11.10.2.2 Sustained Cell Rate (SCR) ............171 11.10.2.3 Maximum Burst Size (MBS) ............171 11.10.2.4 Cell Delay Variation Tolerance (CDVT) ........172 11.10.2.5 Burst Tolerance (BT) ..............172 11.10.2.6 Theoretical Arrival Time (TAT) ...........172 11.11 ATM Profile Screen ..................172...
  • Page 14 MSC1000G User’s Guide 12.12 IP Statistics ....................212 Chapter 13 Switch Screens..................... 215 13.1 Ethernet Port Trunking ...................215 13.2 Dynamic Link Aggregation ................215 13.3 Link Aggregation ID ..................216 13.4 Queuing Overview ..................216 13.4.1 Strict Priority Queuing (SPQ) ..............217 13.4.2 Weighted Round Robin Scheduling (WRR) ..........217 13.5 Switch Setup Screen ..................217...
  • Page 15 MSC1000G User’s Guide Chapter 15 VLAN Screens ...................... 249 15.1 VLAN Introduction ..................249 15.2 IEEE 802.1Q Tagged VLAN ................249 15.2.1 Forwarding Tagged and Untagged Frames .........250 15.3 Automatic VLAN Registration ................250 15.3.1 GARP ....................251 15.3.1.1 GARP Timers ................251 15.3.2 GVRP ....................251 15.4 Tagged Frames Forwarding Example ............252...
  • Page 16 MSC1000G User’s Guide 17.2.1 acl dhcprelay82 clearinfo Command ..........295 17.2.2 acl dhcprelay82 enable Command ............295 17.2.3 acl dhcprelay82 info Command ............296 17.2.4 acl dhcprelay82 relaymode Command ..........297 17.2.5 acl dhcprelay82 server active Command ..........297 17.2.6 acl dhcprelay82 server delete Command ..........298 17.2.7 acl dhcprelay82 server set Command ..........298...
  • Page 17 MSC1000G User’s Guide 17.7.2 acl ouifilter enable Command ..............309 17.7.3 acl ouifilter mode Command ..............309 17.7.4 acl ouifilter set Command ..............310 17.7.5 acl ouifilter show Command ..............310 17.8 acl pktfilter Commands ...................311 17.8.1 acl pktfilter set Command ..............311 17.8.2 acl pktfilter show Command ..............312 17.9 PPPoE Agent Information ................313...
  • Page 18 MSC1000G User’s Guide Chapter 20 config Commands ....................327 20.1 config Commands Summary ................327 20.1.1 config default Command ...............327 20.1.2 config save Command ................327 20.1.3 config show Command .................328 Chapter 21 diagnostic Commands..................329 21.1 diagnostic Commands Summary ..............329 21.2 diagnostic Commands ..................330 21.2.1 diagnostic ldm show Command ............330...
  • Page 19 MSC1000G User’s Guide Chapter 24 multicast Commands................... 345 24.1 multicast Commands Summary ..............345 24.2 multicast bandwidth Commands ..............346 24.2.1 multicast bandwidth default Command ..........347 24.2.2 multicast bandwidth delete Command ..........347 24.2.3 multicast bandwidth set Command ............347 24.3 multicast bandwidth port Commands ............348 24.3.1 multicast bandwidth port disable Command ........348...
  • Page 20 MSC1000G User’s Guide Chapter 25 port Commands....................359 25.1 port Commands Summary ................359 25.2 port Commands ....................364 25.3 port adsl Commands ..................364 25.3.1 port adsl alarmprof Command ..............364 25.3.2 port adsl annexl disable Command ............365 25.3.3 port adsl annexl enable Command ............365 25.3.4 port adsl annexm disable Command ............366...
  • Page 21 MSC1000G User’s Guide 25.10.6 port pvc usratelimit enable Command ..........383 25.10.7 port pvc usratelimit disable Command ..........383 25.10.8 port pvc usratelimit set Command ............383 25.10.9 port pvc usratelimit show Command ...........384 25.10.10 port pvc vlan Command ..............384 25.11 port shdsl Commands ..................385 25.11.1 port shdsl alarmprof Command ............385...
  • Page 22 MSC1000G User’s Guide 26.4.4 profile adsl show Command ..............408 26.5 profile alarmadsl Commands .................409 26.5.1 profile alarmadsl show Command ............409 26.5.2 profile alarmadsl set Command ............410 26.5.3 profile alarmadsl delete Command ............411 26.5.4 profile alarmadsl map Command ............412 26.6 profile alarmshdsl Commands ................412 26.6.1 profile alarmshdsl show Command ............412...
  • Page 23 MSC1000G User’s Guide Chapter 27 show Commands ....................429 27.1 show Commands Overview ................429 27.2 show Commands Summary ................429 27.3 show Commands ...................431 27.3.1 show adsl Commands .................431 27.3.1.1 show adsl linedata Command ............431 27.3.1.2 show adsl linegain Command ............433 27.3.1.3 show adsl linehlog Command ............433...
  • Page 24 MSC1000G User’s Guide 28.3 switch bandwidth Commands ................460 28.3.1 switch bandwidth disable Command ............460 28.3.2 switch bandwidth enable Command .............461 28.3.3 switch bandwidth set Command ............461 28.3.4 switch bandwidth show Command ............462 28.4 switch bcasctrl Commands ................462 28.4.1 switch bcastctrl threshold Command ...........462 28.4.2 switch bcastctrl show Command ............463...
  • Page 25 MSC1000G User’s Guide 28.9.5 switch port frametype Command ............475 28.9.6 switch port gvrp Commands ..............476 28.9.6.1 switch port gvrp disable Command ..........476 28.9.6.2 switch port gvrp enable Command ..........476 28.9.7 switch port mode Command ..............476 28.9.8 switch port mstp Commands ...............477 28.9.8.1 switch port mstp disable Command ...........477...
  • Page 26 MSC1000G User’s Guide 29.3.11 sys date set Command ...............493 29.3.12 sys timeserver show Command ............493 29.3.13 sys timeserver set Command .............494 29.3.14 sys timeserver sync Command ............495 29.3.15 sys info chassis Command ..............495 29.3.16 sys info contact Command ..............495 29.3.17 sys info frame Command ..............496 29.3.18 sys info hostname Command .............496...
  • Page 27 MSC1000G User’s Guide Chapter 30 vlan Commands ....................513 30.1 vlan Commands Overview ................513 30.2 vlan Commands Summary ................513 30.3 vlan Commands .....................513 30.3.1 vlan delete Command ................514 30.3.2 vlan disable Command .................514 30.3.3 vlan enable Command ................514 30.3.4 vlan name Command ................514 30.3.5 vlan set Command ................515...
  • Page 28 MSC1000G User’s Guide Virtual Circuit Topology..................539 Index........................541 Table of Contents...

  • Page 29: List Of Figures

    List of Figures Figure 1 MTU Application ..................48 Figure 2 Central Office Application ............... 49 Figure 3 MSC1000G Front Panel ................51 Figure 4 ALARM Connector Pin Layout ..............53 Figure 5 Transceiver Installation ................55 Figure 6 Installed Transceiver ................55 Figure 7 Opening the Transceiver Latch ...............
  • Page 30 MSC1000G User’s Guide Figure 39 Packet Filter: Slot .................. 89 Figure 40 RADIUS Server ..................91 Figure 41 802.1X PNAC: Port Setup ..............91 Figure 42 802.1X PNAC: Port Setup: Slot ............. 93 Figure 43 802.1X PNAC: RADIUS ................ 94 Figure 44 Current Alarm: All ..................
  • Page 31 MSC1000G User’s Guide Figure 82 VLAN Stacking Example ............... 141 Figure 83 VDSL VLAN Setup ................142 Figure 84 SHDSL Port Setup ................. 144 Figure 85 Copy ....................... 145 Figure 86 SHDSL Port Setup: Line Card ..............146 Figure 87 Copy ...................... 146 Figure 88 SHDSL Port Setup: Advanced ..............
  • Page 32 MSC1000G User’s Guide Figure 125 Port Statistics: Line Card: Line Detail ..........199 Figure 126 Port Statistics: Line Card: Line Performance: Current ......202 Figure 127 Port Statistics: Line Card: Line Performance: 15Min ......204 Figure 128 Port Statistics: Line Card: Line Performance: 1day ......206 Figure 129 Dot3ad ....................

  • Page 33: List Of Tables

    MSC1000G User’s Guide List of Tables Table 1 Management Switch Card LED Descriptions ..........51 Table 2 Front Panel Descriptions ................52 Table 3 Navigation Panel Sub-links Overview ............58 Table 4 Web Configurator Screen Sub-links Details ..........60 Table 5 Navigation Panel Links ................61 Table 6 System Info (Home) ..................
  • Page 34 MSC1000G User’s Guide Table 39 ADSL Standards Maximum Transfer Rates ..........125 Table 40 ADSL Port Setup ..................127 Table 41 ADSL Port Setup: Line Card ..............129 Table 42 ADSL Port Setup: Advanced ..............131 Table 43 ADSL Port Setup: Advanced: Option Mask ..........134 Table 44 VDSL Port Setup ..................
  • Page 35 MSC1000G User’s Guide Table 82 Port Statistics: Line Card: Packet Counter ..........197 Table 83 Port Statistics: Line Card: Cell Counter ........... 198 Table 84 Port Statistics: Line Card: Line Detail ............199 Table 85 Port Statistics: Line Card: Line Performance: Current ......202 Table 86 Port Statistics: Line Card: Line Performance: 15Min ......
  • Page 36 MSC1000G User’s Guide Table 125 profile Commands ................. 274 Table 126 show Commands .................. 281 Table 127 switch Commands ................. 283 Table 128 sys Commands ..................286 Table 129 vlan Commands ..................289 Table 130 acl Commands ..................291 Table 131 alarm Commands .................. 317 Table 132 General alarm Command Parameters ..........
  • Page 37 MSC1000G User’s Guide Table 168 ALARM Connector Pin Assignments ............ 536 List of Tables...
  • Page 38 MSC1000G User’s Guide List of Tables...

  • Page 39: Preface

    • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. • The MSC1000G Management Switch Card may be referred to as the “MSC1000G”, the “MSC”, the “management switch card”, the “device”, the “switch” or the “system” in this User’s Guide.

  • Page 40: User Guide Feedback

    Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to techwriters@zyxel.com.tw or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.

  • Page 41: Getting To Know Your Msc1000G

    The IES-5000 series is perfect for ISPs or large building applications seeking to provide high bandwidth broadband services to subscribers while minimizing costs. The MSC1000G (Management Switch Card Gigabit) centralizes the management of all of the Integrated Ethernet Switch’s DSL line cards. You can configure and maintain the DSL line cards through the management switch card;...

  • Page 42: Dhcp Snooping

    DSL subscribers can only send and receive traffic to and from the uplink ports or subtending ports that are set to uplink mode. The Integrated Ethernet Switch blocks access between the DSL ports. Chapter 1 Getting to Know Your MSC1000G...

  • Page 43: Multicast Vlan

    PPPoE client. IEEE 802.1p Priority The system uses IEEE 802.1p priority to assign priority levels to individual PVCs. The system can also handle multiple IEEE 802.1p priority queues on a single PVC. Chapter 1 Getting to Know Your MSC1000G...
  • Page 44 With IGMP snooping, group multicast traffic is only forwarded to ports that are members of that group. IGMP snooping generates no additional network traffic, allowing you to significantly reduce multicast traffic passing through your IES-5000. Chapter 1 Getting to Know Your MSC1000G...
  • Page 45 Multiple Management Logins The management switch card can support multiple concurrent management sessions. Remote Firmware Upgrade You can use FTP or SFTP to perform configuration backup/restore and firmware upgrade from a remote location. Chapter 1 Getting to Know Your MSC1000G...

  • Page 46: Alarm Led

    You can configure DSCP-to-IEEE802.1p mappings to allow the MSC to prioritize all incoming traffic based on the DSCP value according to the mapping table. System Monitoring • System status (link status, rates, statistics counters) • Temperatures, voltage reports and alarms. Chapter 1 Getting to Know Your MSC1000G...

  • Page 47: Applications

    The following diagram depicts a typical application of the IES-5000 with DSL modems, in a large residential building, or multiple tenant unit (MTU), that leverages existing phone line wiring to provide Internet access to all tenants. ADSL service can coexist with voice service on the same line. Chapter 1 Getting to Know Your MSC1000G...

  • Page 48: Central Office Application

    MSC1000G User’s Guide Figure 1 MTU Application 1.3.2 Central Office Application The IES-5000 provides DSL service over telephone wires to subscribers. The following figure shows the IES-5000 set up in a telephone company’s central office. Chapter 1 Getting to Know Your MSC1000G...

  • Page 49: Figure 2 Central Office Application

    MSC1000G User’s Guide Figure 2 Central Office Application Chapter 1 Getting to Know Your MSC1000G...
  • Page 50 MSC1000G User’s Guide Chapter 1 Getting to Know Your MSC1000G...

  • Page 51: Hardware Connections

    The management switch card is not receiving power from the main chassis. An alarm has been detected on the MSC1000G, the Integrated Ethernet Switch fan or the INPUT ALARM terminals. Examples of an alarm on the MSC1000G are when the MSC1000G’s voltage or temperature is outside of the normal range.

  • Page 52: Ports And Connections

    MSC1000G User’s Guide Table 1 Management Switch Card LED Descriptions COLOR STATUS DESCRIPTION 1000/ Yellow Blinking The port is transmitting/receiving to/from a 100 Mbps Ethernet network. A 100 Mbps Ethernet link is up. The Ethernet link is down. Green Blinking The port is transmitting/receiving to/from a 1000 (1 Gbps) Mbps Ethernet device.

  • Page 53: Alarm Connections

    MSC1000G User’s Guide Table 2 Front Panel Descriptions (continued) LABEL DESCRIPTION These are slots for SFP transceivers. MGMT This is an RJ-45 Ethernet port for connecting to an Ethernet network for out-of-band management (a separate channel for management that is not part of the channels that are usually used for data transfer).

  • Page 54: Uplink And Subtending

    MSC1000G User’s Guide The Ethernet ports are auto-negotiating and can detect and adjust to the optimum Ethernet speed (100/1000 Mpbs) and duplex mode (full duplex or half duplex) of the connected device. The Ethernet ports are also auto-crossover (auto-MDI/MDI-X), they automatically work with a straight-through or crossover Ethernet cable.

  • Page 55: Transceiver Installation

    MSC1000G User’s Guide 2.3.3.1 Transceiver Installation Use the following steps to install a mini GBIC transceiver (SFP module) in the MSC1000- GBA module. Note: The slot is at an angle. Do not attempt to straighten it. 1 Remove the dust cover from the transceiver.

  • Page 56: Figure 7 Opening The Transceiver Latch

    MSC1000G User’s Guide Figure 7 Opening the Transceiver Latch Figure 8 Removing the Transceiver Console Port Use the console port for local management of the MSC. Chapter 2 Hardware Connections...

  • Page 57: The Web Configurator

    MSC1000G User’s Guide H A P T E R The Web Configurator This section introduces the configuration and functions of the web configurator. 3.1 Web Configurator Introduction The web configurator is an HTML-based management interface that allows easy switch setup and management via Internet browser.

  • Page 58: Navigation Panel

    MSC1000G User’s Guide 3.3 Navigation Panel In the navigation panel (the column on the left), click a main link to reveal a list of submenu links. Table 3 Navigation Panel Sub-links Overview NAVIGATION PANEL SUB-LINKS OVERVIEW Alarm Diagnostic Maintenance Multicast...
  • Page 59 MSC1000G User’s Guide Table 3 Navigation Panel Sub-links Overview (continued) NAVIGATION PANEL SUB-LINKS OVERVIEW Switch VLAN Chapter 3 The Web Configurator...

  • Page 60: Table 4 Web Configurator Screen Sub-Links Details

    MSC1000G User’s Guide The following table lists the various web configurator screens within the sub-links. Table 4 Web Configurator Screen Sub-links Details NAVIGATION PANEL SUB-LINKS DETAILS Alarm Diagnostic Maintenance DHCP Relay Current Alarm Config Backup DHCP Snooping Critical Loopback Config Restore...

  • Page 61: Table 5 Navigation Panel Links

    MSC1000G User’s Guide Table 4 Web Configurator Screen Sub-links Details (continued) NAVIGATION PANEL SUB-LINKS DETAILS Multicast Port Profile Statistics IGMP ADSL Port Setup ADSL ARP Table IGMP Setup ADSL Port Setup VDSL DHCP Advanced Filter Setup SHDSL MAC Table ADSL Port Setup Slot...
  • Page 62 MSC1000G User’s Guide Table 5 Navigation Panel Links (continued) LINK DESCRIPTION MAC Filter This link takes you to a screen where you can allow only traffic from specified source MAC addresses on the specified subscriber ports. Packet Filter This link takes you to a screen where you can allow or drop specified packet types on the specified subscriber ports.
  • Page 63 MSC1000G User’s Guide Table 5 Navigation Panel Links (continued) LINK DESCRIPTION This link takes you to screens where you can configure PVCs (Permanent Virtual Circuits) on subscriber ports. PPVC This link takes you to screens where you can configure Priority PVCs on subscriber ports.

  • Page 64: Saving Your Configuration

    MSC1000G User’s Guide Table 5 Navigation Panel Links (continued) LINK DESCRIPTION IP Setup This link takes you to a screen where you can configure the in-band and out-of-band management IP addresses and subnet masks. Unix SysLog This link takes you to a screen where you can configure the syslog settings.

  • Page 65: System Info

    MSC1000G User’s Guide Figure 11 Web Configurator: Logout Screen 3.6 System Info The System Info screen is the first screen that displays when you access the web configurator. Figure 12 Web Configurator Home Screen (System Info) The following table describes the labels in this screen.

  • Page 66: Line Card Status Information

    MSC1000G User’s Guide Table 6 System Info (Home) (continued) LABEL DESCRIPTION Monitor Error This field indicates if no line card status information can be obtained. Linecard Down This field indicates whether the line card has failed. Linecard Out This field indicates whether the line card is removed from its slot.

  • Page 67: Initial Setup Example

    MSC1000G User’s Guide H A P T E R Initial Setup Example This chapter describes initial configuration for the switch. 4.1 Initial Configuration This chapter shows what you first need to do to provide service to DSL subscribers connected to a line card.

  • Page 68: Figure 15 Ip Setup

    MSC1000G User’s Guide Figure 15 IP Setup 4 If you will use DHCP with the subscribers, click ACL > DHCP Relay to display the screen shown next. 5 Create a new DHCP relay entry for the VLAN (3 in this example). Enable DHCP relay and specify the option 82 information that you want to include when relaying the DHCP requests.

  • Page 69: Figure 17 Vlan Setup Example

    MSC1000G User’s Guide Figure 17 VLAN Setup Example 9 Use the following steps to set the VPI and VCI and PVID (default VLAN ID) settings for all of a line card’s DSL ports. First you will delete the default PVC from all of the line card’s DSL ports. Then you will configure a new PVC for a port and copy it to the line card’s other DSL ports.

  • Page 70: Figure 19 Pvc Setup

    MSC1000G User’s Guide Figure 19 PVC Setup 12Select the Select All check box and click Delete. Click UP to go back to the previous screen. Figure 20 Deleting PVCs 13Select the line card and a DSL port. Enter the VPI and VCI that you need (or leave the defaults if your subscribers will use VPI 0 and VCI 33).

  • Page 71: Figure 22 Copying The Pvc

    MSC1000G User’s Guide Figure 22 Copying the PVC 15Select the line card. 16Click Select All to select every port on the selected line card. 17Click Apply to paste the settings. Figure 23 Select Ports You can now (with the other settings set to the defaults) provide service to DSL subscribers connected to the line card.
  • Page 72 MSC1000G User’s Guide Chapter 4 Initial Setup Example...

  • Page 73: Access Control List Screens

    MSC1000G User’s Guide H A P T E R Access Control List Screens This chapter describes the ACL (Access Control List) screens. 5.1 DHCP Relay Overview DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a DHCP server. You can configure the system to relay client TCP/IP configuration requests to a DHCP server and the server's responses back to the clients.

  • Page 74: Figure 24 Dhcp Relay

    MSC1000G User’s Guide Figure 24 DHCP Relay The following table describes the labels in this screen. Table 8 DHCP Relay LABEL DESCRIPTION Enter a VLAN ID (between 1 and 4094) to be served with DHCP relay. Enable DHCP Select disable to deactivate the DHCP relay service in this VLAN.

  • Page 75: Example: Dhcp Relay For Two Vlans

    MSC1000G User’s Guide Table 8 DHCP Relay (continued) LABEL DESCRIPTION This is the ID number of the VLAN group. Enable Mode This field displays whether the DHCP relay setting is activated or not. Option 82 Info This field displays the option 82 information to add to the DHCP request packets.

  • Page 76: Dhcp Snooping

    MSC1000G User’s Guide Figure 26 DHCP Relay: Configuration Example 5.3 DHCP Snooping With DHCP snooping, the system obtains a client’s MAC-IP address information (in the reply messages from a DHCP server) and stores it in the DHCP snooping table. Frames with known source IP addresses are allowed to go through the subscriber ports.

  • Page 77: Figure 28 Dhcp Snooping

    MSC1000G User’s Guide Click ACL > DHCP Snoop to display the screen shown next. Figure 28 DHCP Snooping The following table describes the labels in this screen. Table 9 DHCP Snooping LABEL DESCRIPTION Slot Use the drop-down list boxes to select a DSL port on a line card for which you want to configure DHCP snooping.

  • Page 78: Dhcp Snooping Slot Screen

    MSC1000G User’s Guide Table 9 DHCP Snooping (continued) LABEL DESCRIPTION Copy Do the following to copy the settings you configure above to another port or ports. 1. Click Copy. 2. Select to which line card you want to copy the settings.

  • Page 79: Example: Dhcp Snooping

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 10 DHCP Snooping: Slot LABEL DESCRIPTION Click UP to go back to the previous screen. Copy Do the following to copy settings from one port to another port or ports.

  • Page 80: Mac Count Screen

    MSC1000G User’s Guide Figure 31 DHCP Snooping: Computer B Example s 5.4 MAC Count Screen This screen allows you to limit how many MAC addresses may be dynamically learned on a DSL port. Note: You cannot enable both MAC count and MAC filtering on the same port at the same time.

  • Page 81: Mac Count Slot Screen

    MSC1000G User’s Guide Table 11 MAC Count (continued) LABEL DESCRIPTION Limited Number of Specify how many MAC addresses the system can dynamically learn on this port. Learned MAC The range is 1~128. Address For example, if you are configuring port 2 and you set this field to "5", then only five devices with dynamically learned MAC addresses may access port 2 at any one time.

  • Page 82: Mac Filter Screen

    MSC1000G User’s Guide Figure 33 MAC Count: Slot The following table describes the labels in this screen. Table 12 MAC Count: Slot LABEL DESCRIPTION Click UP to go back to the previous screen. Copy Do the following to copy settings from one port to another port or ports.

  • Page 83: Figure 34 Mac Filter

    MSC1000G User’s Guide Note: You cannot enable both MAC filtering and MAC count on the same port at the same time. Click ACL > MAC Filter to display the screen shown next. Figure 34 MAC Filter The following table describes the labels in this screen.

  • Page 84: Mac Filter Slot Screen

    MSC1000G User’s Guide Table 13 MAC Filter (continued) LABEL DESCRIPTION Card Type This field displays the type of a line card. Up Time This field displays how long the line card has been running since the last time it was started.

  • Page 85: Figure 36 Oui Filter

    MSC1000G User’s Guide Figure 36 OUI Filter The following table describes the labels in this screen. Table 15 OUI Filter LABEL DESCRIPTION Slot Use the drop-down list boxes to select an DSL port on a line card for which you wish to configure packet type filtering.

  • Page 86: Oui Filter Slot Screen

    MSC1000G User’s Guide Table 15 OUI Filter (continued) LABEL DESCRIPTION Copy Do the following to copy the settings you configure above to another port or ports. 1. Click Copy. 2. Select to which line card you want to copy the settings.

  • Page 87: Packet Filter Screen

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 16 DHCP Snooping: Slot LABEL DESCRIPTION Click UP to go back to the previous screen. Copy Do the following to copy settings from one port to another port or ports.

  • Page 88: Figure 38 Packet Filter

    MSC1000G User’s Guide Figure 38 Packet Filter The following table describes the labels in this screen. Table 17 Packet Filter LABEL DESCRIPTION Slot Use the drop-down list boxes to select an DSL port on a line card for which you wish to configure packet type filtering.

  • Page 89: Packet Filter Slot Screen

    MSC1000G User’s Guide Table 17 Packet Filter (continued) LABEL DESCRIPTION Apply Click Apply to save the changes in this screen to the system’s volatile memory. The system loses these changes if it is turned off or loses power, so use the Config Save on the navigation panel and then the Save button to save your changes to the non- volatile memory when you are done configuring.

  • Page 90: Ieee 802.1X

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 18 Packet Filter: Slot LABEL DESCRIPTION Click UP to go back to the previous screen. Copy Do the following to copy settings from one port to another port or ports.

  • Page 91: Radius

    MSC1000G User’s Guide 5.9.1 RADIUS RADIUS (Remote Authentication Dial-In User Service) authentication is a popular protocol used to authenticate users by means of an external server instead of (or in addition to) an internal device user database that is limited to the memory capacity of the device. In essence, RADIUS authentication allows you to validate an unlimited number of users from a central location.

  • Page 92: Pnac Slot Screen

    MSC1000G User’s Guide Table 19 802.1X PNAC: Port Setup (continued) LABEL DESCRIPTION Control Select AUTO to authenticate all subscribers before they can access the network through this port. Select FORCE AUTHORIZED to allow all connected users to access the network through this port without authentication.

  • Page 93: Figure 42 802.1X Pnac: Port Setup: Slot

    MSC1000G User’s Guide Figure 42 802.1X PNAC: Port Setup: Slot The following table describes the labels in this screen. Table 20 802.1X PNAC: Port Setup: Slot LABEL DESCRIPTION Click UP to go back to the previous screen. Copy Do the following to copy settings from one port to another port or ports.

  • Page 94: Radius Screen

    MSC1000G User’s Guide 5.11 RADIUS Screen Click ACL > 802.1X PNAC > RADIUS to display the screen shown next. Figure 43 802.1X PNAC: RADIUS The following table describes the labels in this screen. Table 21 802.1X PNAC: RADIUS LABEL DESCRIPTION...

  • Page 95: Chapter 6 Alarm Screens

    MSC1000G User’s Guide H A P T E R Alarm Screens This chapter describes alarm management. 6.1 Current Alarm Screen Click Alarm > Current Alarm to display the screen where you can view all current alarms. You can also click a tab to view the alarms only specific to one severity level.

  • Page 96: History Alarm Screen

    MSC1000G User’s Guide 6.2 History Alarm Screen Click Alarm > History Alarm to display the screen where you can view all historic alarms. You can also click a tab to view the alarms only specific to one severity level. Figure 45 History Alarm: All The following table describes the labels in this screen.

  • Page 97: Alarm Port Setup Screen

    MSC1000G User’s Guide 6.3 Alarm Port Setup Screen Use this screen to set the severity level of alarms to record on specified ports. Click Alarm > Alarm Port Setup to display the screen shown next. Figure 46 Alarm Port Setup The following table describes the labels in this screen.

  • Page 98: Alarm Port Setup Slot Screen

    MSC1000G User’s Guide Table 24 Alarm Port Setup (continued) LABEL DESCRIPTION Copy Do the following to copy settings from one port to another port or ports. 1. Select the Select radio button of the port from which you want to copy settings 2.

  • Page 99: Alarm Severity Assignment Screen

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 25 Alarm Port Setup: Slot LABEL DESCRIPTION Click UP to go back to the previous screen. Copy Do the following to copy settings from one port to another port or ports.

  • Page 100: Alarm Descriptions

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 26 Alarm Severity Assignment: DSL LABEL DESCRIPTION Condition This identifies an individual alarm. See Section 6.5 on page 100 for more information. Facility Select the log facility (local1~local7) to have the device log the syslog messages to a specific file in the syslog server.

  • Page 101: Table 27 Alarm Descriptions

    MSC1000G User’s Guide • Atu-r refers to subscriber or the upstream channel (for traffic coming from the subscriber to the MSC). Table 27 Alarm Descriptions ALARM SEVERITY MSC ALC SLC DESCRIPTION LINE_UP INFO The line is up. LINE_DOWN MINOR The line is down.
  • Page 102 MSC1000G User’s Guide Table 27 Alarm Descriptions (continued) ALARM SEVERITY MSC ALC SLC DESCRIPTION SHDSL_TCA_SES INFO The severely errored seconds (<value>) of the endpoint (unit address <value>-<side>- wire pair <value>) reached or exceeded the threshold (<value>). SHDSL_TCA_CRC INFO The CRC anomalies (<value>) of the endpoint (unit address <value>-<side>-wire...
  • Page 103 MSC1000G User’s Guide Table 27 Alarm Descriptions (continued) ALARM SEVERITY MSC ALC SLC DESCRIPTION WARM_START INFO System warm-start. MGMT_ETHER_UP INFO The management Ethernet interface is up. MGMT_ETHER_DOWN MINOR The management Ethernet interface is down. ALARM_IN CRITICAL External alarm on input <index>.

  • Page 104: Alarm Clear Screen

    MSC1000G User’s Guide Table 27 Alarm Descriptions (continued) ALARM SEVERITY MSC ALC SLC DESCRIPTION SVR_SYNC_PROF_OK INFO Server-initiated profile synchronization is successful. SVR_SYNC_PROF_FAIL INFO Server-initiated profile synchronization failed. CLI_SYNC_PROF_OK INFO Client-initiated profile synchronization is successful. CLI_SYNC_PROF_FAIL INFO Client-initiated profile synchronization failed.

  • Page 105: Diagnostic Screens

    MSC1000G User’s Guide H A P T E R Diagnostic Screens This chapter explains the Diagnostic screens. 7.1 LDM Test Screen Click Diagnostic > LDM in the navigation panel to display this screen. Use this screen to perform line diagnostics (LDM stands for Line Diagnostic Mode).

  • Page 106: Line Diagnostics Test Parameters

    MSC1000G User’s Guide 7.1.1 Line Diagnostics Test Parameters The following table lists the line diagnostics test parameters that display, see the ITU-T’s G.992.3 for more information. Table 30 Line Diagnostics Test Parameters LABEL DESCRIPTION number_of_ Discrete Multi-Tone (DMT) modulation divides up a line’s bandwidth into sub- subcarries carriers (sub-channels) of 4.3125 KHz each.

  • Page 107: Ip Ping Screen

    MSC1000G User’s Guide Figure 51 F5 Loopback The following table describes the labels in this screen. Table 31 F5 Loopback LABEL DESCRIPTION F5 Loopback Select slot and port numbers from the Slot and Port drop-down list boxes and enter a VPI/VCI to specify a PVC.

  • Page 108: Trace Route Screen

    MSC1000G User’s Guide Figure 52 IP Ping The following table describes the labels in this screen. Table 32 IP Ping LABEL DESCRIPTION IP Ping Type the IP address of a device that you want to ping in order to test a connection.

  • Page 109: Table 33 Trace Route

    MSC1000G User’s Guide Table 33 Trace Route LABEL DESCRIPTION Trace Route Type the IP address of a device. Click Start to perform a trace route in order to check the path that packets take to get to the IP address that you specified.
  • Page 110 MSC1000G User’s Guide Chapter 7 Diagnostic Screens...

  • Page 111: Maintenance Screens

    MSC1000G User’s Guide H A P T E R Maintenance Screens This chapter explains how to use the maintenance screens. 8.1 Configuration Backup Screen Click Maintenance > Config Backup in the navigation panel to open the following screen. Use this screen to back up your system configuration. This allows you to create various “snap shots”...

  • Page 112: Configuration Reset Screen

    MSC1000G User’s Guide Figure 55 Configuration Restore Type the path and file name of the configuration file you wish to restore in the File Path text box or click Browse to display a Choose File screen from which you can locate it. After you have specified the file, click Restore.

  • Page 113: Firmware Upgrade Screen

    MSC1000G User’s Guide Figure 58 Restart After Load Factory Defaults 8.4 Firmware Upgrade Screen Click Maintenance > Firmware Upgrade in the navigation panel to open the following screen. Use this screen to view your current firmware version number and upload firmware to cards in the system.

  • Page 114: Figure 60 Reboot

    MSC1000G User’s Guide Figure 60 Reboot Use the Config Save screen first if you want to save the system’s current configuration. Otherwise, using the Reboot button will return the system to the configuration that was last saved to nonvolatile memory.

  • Page 115: Chapter 9 Igmp Screens

    MSC1000G User’s Guide H A P T E R IGMP Screens This chapter describes the IGMP screens. 9.1 IGMP Introduction Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender to 1 recipient) or Broadcast (1 sender to everybody on the network). Multicast delivers IP packets to just a group of hosts on the network.

  • Page 116: Igmp Setup Screen

    MSC1000G User’s Guide In IGMP proxy, an upstream interface is the port that is closer to the source (or the root of the multicast tree) and is able to receive multicast traffic. There should only be one upstream interface (also known as the query port) on the system to limit bandwidth use. A downstream interface is a port that connects to a host (such as a computer).

  • Page 117: Igmp Filtering

    MSC1000G User’s Guide Figure 64 IGMP Setup The following table describes the labels in this screen. Table 34 IGMP Setup LABEL DESCRIPTION IGMP Mode Select Enable_IGMP_Snooping to have the system passively learn multicast groups. Select Enable_IGMP_Proxy to have the system proxy multicast traffic.

  • Page 118: Igmp Filter Setup Screen

    MSC1000G User’s Guide 9.4 IGMP Filter Setup Screen You can use the IGMP filter profiles to control access to a service that uses a specific multicast group (like a SIP server for example). Configure an IGMP filter profile that allows access to that multicast group.

  • Page 119: Igmp Filter Setup Slot Screen

    MSC1000G User’s Guide Table 35 IGMP Filter Setup (continued) LABEL DESCRIPTION Copy Do the following to copy settings from one DSL port to another DSL port or ports. 1. Use the Slot and Port drop-down list boxes and the Load button to select the number of the DSL port from which you want to copy IGMP filter profile settings.

  • Page 120: Static Multicast

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 36 IGMP Filter Setup: Slot LABEL DESCRIPTION Click this to return to the IGMP Filter Setup screen. Port These are the numbers of the DSL ports on the line card.

  • Page 121: Figure 69 Static Multicast

    MSC1000G User’s Guide Figure 69 Static Multicast The following table describes the related labels in this screen. Table 37 Static Multicast LABEL DESCRIPTION Type the number of the VLAN that this static multicast group is to use. Group IP This is the static multicast IP address.

  • Page 122: Static Multicast Slot Screen

    MSC1000G User’s Guide Table 37 Static Multicast (continued) LABEL DESCRIPTION Port This section lists the VLAN membership setting of the ports on the management switch card. An “F” indicates that the port is a permanent member of the static multicast group. An “X” indicates that the port is forbidden (blocked) from joining the static multicast group.

  • Page 123: Figure 70 Static Multicast Slot

    MSC1000G User’s Guide Figure 70 Static Multicast Slot The following table describes the related labels in this screen. Table 38 Static Multicast Slot LABEL DESCRIPTION The numbers represent the individual ports on the card. Use the F, -, and X radio buttons to set each port’s membership in the static multicast group.
  • Page 124 MSC1000G User’s Guide Chapter 9 IGMP Screens...

  • Page 125: Chapter 10 Dsl Port Setup Screens

    MSC1000G User’s Guide H A P T E R DSL Port Setup Screens This chapter explains how to configure settings for individual DSL ports. It also covers how to configure permanent virtual circuits. 10.1 ADSL Standards Overview These are the ADSL standards and rates that the ADSL line card supports at the time of writing.

  • Page 126: Upstream Power Back Off

    MSC1000G User’s Guide 10.2.2 Upstream Power Back Off PSD (Power Spectral Density) defines the distribution of a VDSL line’s power in the frequency domain. In a network with varying telephone wiring lengths, the PSD on each line is different. This causes crosstalk between the lines.

  • Page 127: Alarm Profiles

    MSC1000G User’s Guide 10.5 Alarm Profiles Alarm profiles define DSL port alarm thresholds. The system sends an alarm trap and generates a syslog entry when the thresholds of the alarm profile are exceeded. See the chapter on profiles for how to configure alarm profiles.

  • Page 128: Figure 72 Copy

    MSC1000G User’s Guide Table 40 ADSL Port Setup (continued) LABEL DESCRIPTION Mode Select the port’s ADSL operational mode. Select the mode that the subscriber’s device uses or auto to have the system automatically determine the mode to use. Table 39 on page 125 for information on the individual ADSL modes.

  • Page 129: Adsl Port Setup Line Card Screen

    MSC1000G User’s Guide Table 40 ADSL Port Setup (continued) LABEL DESCRIPTION Up Time This field displays how long the line card has been running since the last time it was started. Firmware This field displays the current firmware version installed on the line card.

  • Page 130: Adsl Port Setup Advanced

    MSC1000G User’s Guide Table 41 ADSL Port Setup: Line Card (continued) LABEL DESCRIPTION Copy Do the following to copy settings from one DSL port to another DSL port or ports. 1. Use the Select column to choose a DSL port from which you want to copy settings.

  • Page 131: Figure 75 Adsl Port Setup: Advanced

    MSC1000G User’s Guide Figure 75 ADSL Port Setup: Advanced The following table describes the fields in this screen. Table 42 ADSL Port Setup: Advanced LABEL DESCRIPTION Click this to return to the previous screen. Apply Click Apply to save the changes in this screen to the system’s volatile memory.
  • Page 132 MSC1000G User’s Guide Table 42 ADSL Port Setup: Advanced (continued) LABEL DESCRIPTION Alarm Profile Select an alarm profile to define the thresholds that trigger an alarm on the port when exceeded. ADSL2/2+ Feature These are features available with ADSL2/2+. The subscriber’s ADSL device must also support the individual features in order to use them.

  • Page 133: Option Mask Screen

    MSC1000G User’s Guide Table 42 ADSL Port Setup: Advanced (continued) LABEL DESCRIPTION Carrier Setup Use this part of the screen to mask carrier tones. Masking a carrier tone disables the use of that tone on the ADSL port. Do this to have the system not use an ADSL line’s tones that are known to have a high noise level.

  • Page 134: Vdsl Port Setup

    MSC1000G User’s Guide Figure 76 ADSL Port Setup: Advanced: Option Mask The following table describes the fields in this screen. Table 43 ADSL Port Setup: Advanced: Option Mask LABEL DESCRIPTION Use the check boxes to disable individual features. Use the All check box to select every feature check box.

  • Page 135: Figure 77 Vdsl Port Setup

    MSC1000G User’s Guide Figure 77 VDSL Port Setup The following table describes the fields in this screen. Table 44 VDSL Port Setup LABEL DESCRIPTION Slot Select the number of a line card’s slot. Port Select the number of a DSL port on the line card.

  • Page 136: Vdsl Port Setup Line Card Screen

    MSC1000G User’s Guide Table 44 VDSL Port Setup (continued) LABEL DESCRIPTION Apply Click Apply to save the changes in this screen to the system’s volatile memory. The system loses these changes if it is turned off or loses power, so use the Config Save on the navigation panel and then the Save button to save your changes to the non-volatile memory when you are done configuring.

  • Page 137: Figure 79 Vdsl Port Setup: Line Card

    MSC1000G User’s Guide Figure 79 VDSL Port Setup: Line Card The following table describes the fields in this screen. Table 45 VDSL Port Setup: Line Card LABEL DESCRIPTION Click this to return to the previous screen. Copy Do the following to copy settings from one DSL port to another DSL port or ports.

  • Page 138: Vdsl Port Setup Advanced

    MSC1000G User’s Guide Table 45 VDSL Port Setup: Line Card (continued) LABEL DESCRIPTION VDSL Profile Select a profile of VDSL settings (such as the transfer rate, interleave delay and signal to noise ratio settings) to assign to this port. Use the VDSL Profile screen to configure VDSL port profiles.

  • Page 139: Table 47 Supported Vdsl Profiles

    MSC1000G User’s Guide Table 46 VDSL Port Setup: Advanced (continued) LABEL DESCRIPTION Telephone No. Enter information to identify the telephone number of the subscriber connected to this VDSL port. You can use up to 15 ASCII characters (including spaces and hyphens).

  • Page 140: Transparent Lan Service (Tls)

    MSC1000G User’s Guide Table 47 Supported VDSL Profiles (continued) PROFILE Tone Spacing 4.3125 4.3125 4.3125 4.3125 4.3125 (kHz) Line Power +17.5 +20.5 +11.4 +14.5 +14.5 (dBm) Transparent LAN Service (TLS) 10.8.3 Transparent LAN Service (also known as VLAN stacking or Q-in-Q) allows a service provider to distinguish multiple customers VLANs, even those with the same (customer-assigned) VLAN ID, within its network.

  • Page 141: Vlan Tag Format

    MSC1000G User’s Guide Figure 82 VLAN Stacking Example 10.8.4.1 VLAN Tag Format A VLAN tag (service provider VLAN stacking or customer IEEE 802.1Q) consists of the following three fields. Table 48 VLAN Tag Format Type Priority Type is a standard Ethernet type code identifying the frame and indicates that whether the frame carries IEEE 802.1Q tag information.

  • Page 142: Vdsl Vlan Setup

    MSC1000G User’s Guide Configure the fields as circled in the switch VLAN Stacking screen. Table 49 Single and Double Tagged 802.11Q Frame Format Len/Etype Data FCS Untagged Ethernet frame TPID Priority VID Len/Etype Data FCS IEEE 802.1Q customer tagged frame...

  • Page 143: Table 51 Vdsl Port Setup: Vlan Setup

    MSC1000G User’s Guide The following table describes the fields in this screen. Table 51 VDSL Port Setup: VLAN Setup LABEL DESCRIPTION Click this to return to the previous screen. PVID/Priority PVID refers to the customer’s VLAN ID. In the first field, enter the customer VLAN ID (from 1 to 4094) for frames received on this port.

  • Page 144: Shdsl Port Setup

    MSC1000G User’s Guide 10.9 SHDSL Port Setup Click Port > SHDSL in the navigation panel to open the following screen. Use this screen to configure settings for individual SHDSL ports. Figure 84 SHDSL Port Setup The following table describes the fields in this screen.

  • Page 145: Shdsl Port Setup Line Card Screen

    MSC1000G User’s Guide Table 52 SHDSL Port Setup (continued) LABEL DESCRIPTION Telephone No. Enter information to identify the telephone number of the subscriber connected to this DSL port. You can use up to 15 ASCII characters (including spaces and hyphens).

  • Page 146: Figure 86 Shdsl Port Setup: Line Card

    MSC1000G User’s Guide Figure 86 SHDSL Port Setup: Line Card The following table describes the fields in this screen. Table 53 SHDSL Port Setup: Line Card LABEL DESCRIPTION Click this to return to the previous screen. Copy Do the following to copy settings from one DSL port to another DSL port or ports.

  • Page 147: Shdsl Port Setup Advanced

    MSC1000G User’s Guide Table 53 SHDSL Port Setup: Line Card (continued) LABEL DESCRIPTION SHDSL Profile Select a profile of SHDSL settings (such as the transfer rate, wire pair and signal to noise ratio settings) to assign to this port. Use the SHDSL Profile screen to configure SHDSL port profiles.
  • Page 148 MSC1000G User’s Guide Table 54 SHDSL Port Setup: Advanced (continued) LABEL DESCRIPTION Span Alarm Profile Select an alarm profile to define the thresholds that trigger an alarm on the port when exceeded. This alarm profile is for the whole span. This is the entire...

  • Page 149: Permanent Virtual Circuits

    MSC1000G User’s Guide 10.10 Permanent Virtual Circuits A Permanent Virtual Circuit (PVC) is a logical point-to-point circuit between sites. PVCs are low-delay circuits because routing decisions do not need to be made along the way. Permanent means that the circuit is pre-programmed by the carrier as a path through the network. It does not need to be set up or torn down for each session.

  • Page 150: Pvc Setup Screen

    MSC1000G User’s Guide 10.11 PVC Setup Screen Click Port > PVC in the navigation panel to open the following screen. Use this screen to view and configure permanent virtual circuit settings for individual ports. Figure 89 PVC Setup The following table describes the fields in this screen.

  • Page 151: Figure 90 Copy

    MSC1000G User’s Guide Table 55 PVC Setup (continued) LABEL DESCRIPTION Copy Do the following to copy VLAN and PVC settings from one DSL port to another DSL port or ports. 1. Use the Select column to choose a PVC which you want to copy to another port.

  • Page 152: Pvc Setup Slot Screen

    MSC1000G User’s Guide 10.11.1 PVC Setup Slot Screen Click Port > PVC in the navigation panel to open the PVC Setup screen. Click an active ADSL or SHDSL line card’s ID number to open the following screen. Use this screen to view and delete PVCs from the line card’s DSL ports.

  • Page 153: Figure 92 Pvc Setup: Vlan

    MSC1000G User’s Guide Figure 92 PVC Setup: VLAN The following table describes the fields in this screen. Table 57 PVC Setup: VLAN LABEL DESCRIPTION Click this to return to the previous screen. VPI / VC This field displays the Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI).

  • Page 154: Priority-Based Pvcs

    MSC1000G User’s Guide Table 57 PVC Setup: VLAN (continued) LABEL DESCRIPTION This field displays “V” if the line card is to tag all frames that are transmitted out on this PVC with this VLAN group ID. It displays “-” if the line card does not tag all frames that are transmitted out on this PVC with this VLAN group ID.

  • Page 155: Figure 94 Copy

    MSC1000G User’s Guide Table 58 PPVC Setup (continued) LABEL DESCRIPTION Port Select the number of a DSL port on the line card. Load Click Load to display the port’s PVC settings in the PVC Table. Index This is the number of the PVC on this port. Click a number to open a screen where you can add the channel to more VLANs (or remove it from VLANs).

  • Page 156: Ppvc Setup Slot Screen

    MSC1000G User’s Guide Table 58 PPVC Setup (continued) LABEL DESCRIPTION Priority Type the priority value (0 to 7) to add to incoming frames without a (IEEE 802.1p) priority tag. Modify Click Modify to display the selected PVC’s settings in the fields above so you can edit them.

  • Page 157: Ppvc Setup Vlan Screen

    MSC1000G User’s Guide Table 59 PPVC Setup: Slot LABEL DESCRIPTION VPI / VC This field displays the Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI). The VPI and VCI identify a channel on this port. Profile This field displays the ATM profile that this channel uses.

  • Page 158: Port Copy Screen

    MSC1000G User’s Guide Table 60 PPVC Setup: VLAN (continued) LABEL DESCRIPTION Registration Select join to have the port be a member of the specified VLAN. Select leave to remove the port from the specified VLAN. Select the check box to tag all frames that are transmitted out on this PPVC with this VLAN group ID.

  • Page 159: Figure 97 Port Copy

    MSC1000G User’s Guide Figure 97 Port Copy The following table describes the fields in this screen. Table 61 Port Copy LABEL DESCRIPTION Slot Select the number of a line card’s slot. Port Select the number of a DSL port on the line card.
  • Page 160 MSC1000G User’s Guide Chapter 10 DSL Port Setup Screens...

  • Page 161: Chapter 11 Profile Screens

    MSC1000G User’s Guide H A P T E R Profile Screens This chapter describes how to configure profiles to use in assigning settings to the DSL ports. 11.1 Profiles Overview A profile is a list of settings that you define. Then you can use them to configure one or more individual ports or PVCs.

  • Page 162: Configured Versus Actual Adsl Rates

    MSC1000G User’s Guide 11.3 Configured Versus Actual ADSL Rates You configure the maximum rate of an individual ADSL port by modifying its profile (see the set profile command) or assigning the port to a different profile (see the set port command).

  • Page 163: Figure 99 Adsl Profile

    MSC1000G User’s Guide Figure 99 ADSL Profile The following table describes the fields in this screen. Table 62 ADSL Profile LABEL DESCRIPTION The top part of the screen is for profile configuration. Name When editing a profile, this is the name of this profile. When adding a profile, type a name (up to 31 characters) for the profile.
  • Page 164 MSC1000G User’s Guide Table 62 ADSL Profile (continued) LABEL DESCRIPTION Target SNR Type the target upstream signal to noise margin (measured in tenths of a decibel). (0.1 dB) Configure the target upstream signal to noise margin to be greater than or equal to the minimum upstream signal to noise margin and less than or equal to the maximum upstream signal to noise margin.

  • Page 165: Vdsl Profile Setup

    MSC1000G User’s Guide Table 62 ADSL Profile (continued) LABEL DESCRIPTION Apply Click Apply to save the changes in this screen to the system’s volatile memory. The system loses these changes if it is turned off or loses power, so use the Config Save on the navigation panel and then the Save button to save your changes to the non-volatile memory when you are done configuring.

  • Page 166: Figure 100 Vdsl Profile

    MSC1000G User’s Guide Figure 100 VDSL Profile The following table describes the fields in this screen. Table 63 VDSL Profile LABEL DESCRIPTION The top part of the screen is for profile configuration. Name When editing a profile, this is the name of this profile. When adding a profile, type a name (up to 31 characters) for the profile.

  • Page 167: Configured Versus Actual Shdsl Rates

    MSC1000G User’s Guide Table 63 VDSL Profile (continued) LABEL DESCRIPTION Downstream The following parameters relate to downstream transmissions. Max Rate Type a maximum downstream transfer rate for this port. Configure the maximum (kbps) downstream transfer rate to be greater than the maximum upstream transfer rate.

  • Page 168: N-Wire Mode

    MSC1000G User’s Guide Even though you can specify arbitrary numbers in the set profile command, the actual rate is always a multiple of 64 Kbps. If you enter a rate that is not a multiple of 64 Kbps, the actual value will be the next lower multiple of 64Kbps.

  • Page 169: Table 64 Shdsl Profile

    MSC1000G User’s Guide The following table describes the fields in this screen. Table 64 SHDSL Profile LABEL DESCRIPTION The top part of the screen is for profile configuration. Name When editing a profile, this is the name of this profile. When adding a profile, type a name (up to 31 characters) for the profile.

  • Page 170: Atm Qos

    MSC1000G User’s Guide 11.9 ATM QoS ATM Quality of Service (QoS) mechanisms provide the best service on a per-flow guarantee. ATM network infrastructure was designed to provide QoS. It uses fixed cell sizes and built-in traffic management (see the following section on traffic shaping). This allows you to fine-tune the levels of services on the priority of the traffic flow.

  • Page 171: Unspecified Bit Rate (Ubr)

    MSC1000G User’s Guide 11.10.1.3 Unspecified Bit Rate (UBR) The Unspecified Bit Rate (UBR) ATM traffic class is similar to the ABR traffic class for bursty data transfers. However, while ABR gives subscribers a set amount of bandwidth, UBR doesn't guarantee any bandwidth and only delivers traffic when the network has spare bandwidth.

  • Page 172: Cell Delay Variation Tolerance (Cdvt)

    MSC1000G User’s Guide Figure 102 PCR, SCR and MBS in Traffic Shaping 11.10.2.4 Cell Delay Variation Tolerance (CDVT) Cell Delay Variation Tolerance (CDVT) is the accepted tolerance of the difference between a cell's transfer delay and the expected transfer delay. CDVT controls the time scale over which the PCR is enforced.

  • Page 173: Figure 104 Atm Profile

    MSC1000G User’s Guide Figure 104 ATM Profile The following table describes the fields in this screen. Table 65 ATM Profile LABEL DESCRIPTION The top part of the screen is for profile configuration. Name When editing a profile, this is the name of this profile. When adding a profile, type a name for the profile.

  • Page 174: Alarm Adsl Profile Screen

    MSC1000G User’s Guide Table 65 ATM Profile (continued) LABEL DESCRIPTION While you are modifying a profile, you can click New to start configuring a fresh profile without saving your changes. Cancel Click Cancel to start configuring the screen again. The bottom part of the screen lists the configured profiles.

  • Page 175: Figure 105 Alarm Adsl Profile

    MSC1000G User’s Guide Figure 105 Alarm ADSL Profile The following table describes the fields in this screen. Table 66 Alarm ADSL Profile LABEL DESCRIPTION The top part of the screen is for profile configuration. Name Type a name to identify the alarm profile (you cannot change the name of the DEFVAL profile).

  • Page 176: Alarm Vdsl Profile Screen

    MSC1000G User’s Guide Table 66 Alarm ADSL Profile (continued) LABEL DESCRIPTION 15 Min UASL This field sets the limit for the number of UnAvailable Seconds that are permitted to [0~900] occur within 15 minutes. 15 Min Failed This field sets the limit for the number of failed fast retrain seconds that are Fast [0~900] permitted to occur within 15 minutes.

  • Page 177: Figure 106 Alarm Vdsl Profile

    MSC1000G User’s Guide Figure 106 Alarm VDSL Profile The following table describes the fields in this screen. Table 67 Alarm VDSL Profile LABEL DESCRIPTION The top part of the screen is for profile configuration. Name Type a name to identify the alarm profile (you cannot change the name of the DEFVAL profile).

  • Page 178: Alarm Shdsl Profile Screen

    MSC1000G User’s Guide Table 67 Alarm VDSL Profile (continued) LABEL DESCRIPTION Apply Click Apply to save the changes in this screen to the system’s volatile memory. The system loses these changes if it is turned off or loses power, so use the Config Save on the navigation panel and then the Save button to save your changes to the non-volatile memory when you are done configuring.

  • Page 179: Igmp Filter Profile Screen

    MSC1000G User’s Guide Table 68 Alarm SHDSL Profile LABEL DESCRIPTION The top part of the screen is for profile configuration. Name Type a name to identify the alarm profile (you cannot change the name of the DEFVAL profile). You can use up to 31 ASCII characters; spaces are not allowed.

  • Page 180: Figure 108 Igmp Filter Profile

    MSC1000G User’s Guide Click Profile > IGMP Filter in the navigation panel to open the following screen. Use this screen to configure IGMP filter profiles. Later you can apply the IGMP filter profiles to ADSL ports in the ADSL Port Setup screens.
  • Page 181 MSC1000G User’s Guide Table 69 IGMP Filter Profile (continued) LABEL DESCRIPTION Name This is the name of the IGMP profile. Modify Select a profile’s Select radio button and click Modify to edit the profile. Delete Select a profile’s Select radio button and click Delete to remove the profile.
  • Page 182 MSC1000G User’s Guide Chapter 11 Profile Screens...

  • Page 183: Chapter 12 Statistics Screens

    MSC1000G User’s Guide H A P T E R Statistics Screens This chapter describes the run-time statistics. 12.1 ARP Table Address Resolution Protocol (ARP) is a protocol for mapping an Internet Protocol address (IP address) to a physical machine address, also known as a Media Access Control or MAC address, on the local area network.

  • Page 184: Dhcp

    MSC1000G User’s Guide Figure 109 ARP Table The following table describes the labels in this screen. Table 70 ARP Table LABEL DESCRIPTION Total X ARP This displays the number of entries in the ARP table. Entries Flush Click Flush to remove all of the entries from the ARP table.

  • Page 185: Mac Table

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 71 DHCP Statistics LABEL DESCRIPTION Slot Select the number of a line card’s slot. Port Select the number of a DSL port on the line card. Load Click Load to retrieve the port’s IGMP filter profile setting and display it in the Profile...

  • Page 186: Mac Table Screen

    MSC1000G User’s Guide Figure 111 MAC Table Filtering Flowchart 12.5 MAC Table Screen Click Statistics > MAC Table in the navigation panel to display the following screen. This screen lists device MAC addresses that the system dynamically learned. Figure 112 MAC Table The following table describes the labels in this screen.

  • Page 187: Igmp Status Screen

    MSC1000G User’s Guide Table 72 MAC Table (continued) LABEL DESCRIPTION Index This is the number of the MAC table entry. This is the VLAN group to which the device belongs. MAC Address This is the MAC address of the device that the system has learned is connected to the port.

  • Page 188: Igmp Port Statistics

    MSC1000G User’s Guide Table 73 IGMP Status (continued) LABEL DESCRIPTION Multicast This is the static multicast IP address of an IP multicast group. Group Port This column displays which ports are members of the IGMP group. Slot This column displays which slots are members of the IGMP group.

  • Page 189: Online Users Screen

    MSC1000G User’s Guide Table 74 IGMP Status: Port (continued) LABEL DESCRIPTION The VID is the number that identifies the VLAN that the IP multicast group is on. Multicast IP This is the static multicast IP address of an IP multicast group.

  • Page 190: Ethernet Port Statistics

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 76 Port Statistics LABEL DESCRIPTION This column lists the slot numbers of the line cards. Click the ID number of an active DSL line card to go to a screen where you can view and delete PVCs from the line card’s DSL ports.

  • Page 191: Detailed Ethernet Port Statistics

    MSC1000G User’s Guide Table 77 Port Statistics: ENET (continued) LABEL DESCRIPTION RxPkts/ TxPkts This field displays the number of packets received/transmitted on this port (including multicast, unicast, broadcast and bad packets). Rx Kbps/ Tx Kbps This field displays the number of octets of Ethernet frames received/transmitted per second counting the ones in bad packets, not counting framing bits but counting FCS (Frame Check Sequence) octets.

  • Page 192: Table 78 Port Statistics: Enet Details

    MSC1000G User’s Guide The following table describes labels in this example. Table 78 Port Statistics: ENET Details LABEL DESCRIPTION Bytes This is the number of octets of Ethernet frames received/transmitted that are from 0 to 1518 octets in size, counting the ones in bad packets, not counting framing bits but counting FCS (Frame Check Sequence) octets.

  • Page 193: Rmon Statistics

    MSC1000G User’s Guide Table 78 Port Statistics: ENET Details (continued) LABEL DESCRIPTION Underrun This is the number of outgoing frames that were less than 64 octets long. Collision This is the number of frames for which transmission failed due to excessive collisions.

  • Page 194: Rmon History Statistics

    MSC1000G User’s Guide Table 79 Port Statistics: ENET: RMON (continued) LABEL DESCRIPTION EtherStatsBcastPkts This field displays the total number of broadcast packets received/ transmitted on this port. EtherStatsMcastPkts This field displays the total number of multicast packets received/ transmitted on this port.

  • Page 195: Rmon History Details

    MSC1000G User’s Guide Figure 120 Port Statistics: ENET: RMON History The following table describes the labels in this screen. Table 80 Port Statistics: ENET: RMON History LABEL DESCRIPTION Interval Click Apply to use the selected data sampling time. Refresh Click Refresh to update this screen.

  • Page 196: Line Card Statistics

    MSC1000G User’s Guide 12.8.4 Line Card Statistics Click the ID for a line card in the Port Statistics screen to view port status and statistics on the line card. Statistics screens for the line cards are similar. Example screens for ACL-1248G-53 are shown.

  • Page 197: Figure 123 Port Statistics: Line Card: Packet Counter

    MSC1000G User’s Guide Figure 123 Port Statistics: Line Card: Packet Counter The following table describes the labels in this screen. Table 82 Port Statistics: Line Card: Packet Counter LABEL DESCRIPTION Flush Click Flush to clear the counters. Link This field displays the port link status.

  • Page 198: Cell Counters

    MSC1000G User’s Guide Table 82 Port Statistics: Line Card: Packet Counter (continued) LABEL DESCRIPTION Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change the refresh interval by typing a new number in the text box and then clicking Set Interval.

  • Page 199: Line Detail

    MSC1000G User’s Guide Table 83 Port Statistics: Line Card: Cell Counter (continued) LABEL DESCRIPTION Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change the refresh interval by typing a new number in the text box and then clicking Set Interval.
  • Page 200 MSC1000G User’s Guide Table 84 Port Statistics: Line Card: Line Detail (continued) LABEL DESCRIPTION Link This displays the connection status of the DSL link. Service Type This is the DSL standard that the port is using. Coding Mode Trellis coding helps to reduce the noise in ADSL transmissions. Trellis may reduce throughput but it makes the connection more stable.

  • Page 201: Current Line Performance

    MSC1000G User’s Guide Table 84 Port Statistics: Line Card: Line Detail (continued) LABEL DESCRIPTION Lofs (seconds) This is the number of Loss Of Frame (Lof) seconds. Loss (seconds) This is the number of Loss Of Signal (Los) seconds. Lprs (seconds) This is the number of times a Loss of PoweR (on the ATUR) has occurred.

  • Page 202: Figure 126 Port Statistics: Line Card: Line Performance: Current

    MSC1000G User’s Guide Figure 126 Port Statistics: Line Card: Line Performance: Current The following table describes the labels in this screen. Table 85 Port Statistics: Line Card: Line Performance: Current LABEL DESCRIPTION Flush Click Flush to clear the counters. PhysEntry CurrSnrMgn (dB) These are the DSL line’s current downstream and upstream signal to noise...
  • Page 203 MSC1000G User’s Guide Table 85 Port Statistics: Line Card: Line Performance: Current (continued) LABEL DESCRIPTION SlowBurstProtect This field displays the level of impulse noise (burst) protection for a slow (kbps) interleaved channel. ChanCurrTxRate These are the DSL line’s current downstream and upstream transmission rates (kbps) in decibels.

  • Page 204: 15Min Line Performance

    MSC1000G User’s Guide Table 85 Port Statistics: Line Card: Line Performance: Current (continued) LABEL DESCRIPTION Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change the refresh interval by typing a new number in the text box and then clicking Set Interval.

  • Page 205: 1Day Line Performance

    MSC1000G User’s Guide Table 86 Port Statistics: Line Card: Line Performance: 15Min (continued) LABEL DESCRIPTION SESs (seconds) These are the DSL line’s downstream and upstream numbers of Severely Errored Seconds that have occurred for the past 15 minute period. This is how many seconds contained 30% or more errored blocks or at least one defect.

  • Page 206: Dot3Ad

    MSC1000G User’s Guide Figure 128 Port Statistics: Line Card: Line Performance: 1day 12.9 Dot3ad Click Statistics > Dot3ad in the navigation panel to display the following screen. Use this screen to view IEEE 802.3ad link aggregation settings. Figure 129 Dot3ad The following table describes the labels in this screen.

  • Page 207: Mstp Statistics

    MSC1000G User’s Guide 12.10 MSTP Statistics Use the MSTP statistics screen to displays the status and statistics for the device’s MSTP CIST (Common and Internal Spanning Tree) and MSTI ((Multiple Spanning Tree Instance) settings. Refer to Section 13.6 on page 220 for more background information.

  • Page 208: Table 88 Mstp Statistics: Cist

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 88 MSTP Statistics: CIST LABEL DESCRIPTION Enable This field displays whether MSTP is activated on the device. BridgeID This is the unique identifier for this bridge, consisting of bridge priority plus MAC address.

  • Page 209: Mstp Msti Statistics

    MSC1000G User’s Guide Table 88 MSTP Statistics: CIST (continued) LABEL DESCRIPTION DsgPortID This is the port on the designated bridge that has the lowest path cost to reach the root bridge, consisting of bridge priority. ExtPortPathCost This field displays the path cost of this port to an external bridge (a bridge in a different MST region).

  • Page 210: Figure 131 Mstp Statistics: Msti

    MSC1000G User’s Guide Figure 131 MSTP Statistics: MSTI The following table describes the labels in this screen. Table 89 MSTP Statistics: MSTI LABEL DESCRIPTION MSTID Select an MSTI number and click Apply to display the port status for that spanning tree instance.

  • Page 211: Vlan Statistics

    MSC1000G User’s Guide 12.11 VLAN Statistics Click Statistics > VLAN in the navigation panel to display the following screen. Use this screen to view current VLAN settings. Figure 132 VLAN Statistics The following table describes the labels in this screen.

  • Page 212: Ip Statistics

    MSC1000G User’s Guide The following table describes the labels in this screen. Table 91 VLAN: Port Status LABEL DESCRIPTION VID X This field displays the VLAN ID. Index This field displays the index number. Card Name This field displays the name of the line card in this VLAN.
  • Page 213 MSC1000G User’s Guide Table 92 IP Statistics (continued) LABEL DESCRIPTION In Discard This field displays the number of discarded packets received on this port. In Error This field displays the number of errored packets received on this port. In Unknown This field displays the number of packets with an unknown source received on this port.
  • Page 214 MSC1000G User’s Guide Chapter 12 Statistics Screens...

  • Page 215: Chapter 13 Switch Screens

    MSC1000G User’s Guide H A P T E R Switch Screens This chapter describes the Switch screens you use to configure Ethernet ports, multicast VLAN and global switch parameters such as GARP, link aggregation, priority queues and queuing method. 13.1 Ethernet Port Trunking Ethernet port trunking lets you aggregate the Ethernet ports into one logical link.

  • Page 216: Link Aggregation Id

    MSC1000G User’s Guide 13.3 Link Aggregation ID LACP aggregation ID consists of the following information Table 93 Link Aggregation ID: Local Switch SYSTEM PRIORITY MAC ADDRESS PORT PRIORITY PORT NUMBER 0000 00-00-00-00-00 0000 0000 Table 94 Link Aggregation ID: Peer Switch...

  • Page 217: Strict Priority Queuing (Spq)

    MSC1000G User’s Guide 13.4.1 Strict Priority Queuing (SPQ) Strict Priority Queuing (SPQ) services queues based on priority only. As traffic comes into the switch, traffic on the highest priority queue, Q7 is transmitted first. When that queue empties, traffic on the next highest-priority queue, Q6 is transmitted until Q6 empties, and then traffic is transmitted on Q5 and so on.

  • Page 218: Figure 135 Switch Setup

    MSC1000G User’s Guide Figure 135 Switch Setup The following table describes the labels in this screen. Table 96 Switch Setup LABEL DESCRIPTION GARP Timer: Switches join VLANs by making a declaration. A declaration is made by issuing a Join message using GARP.
  • Page 219 MSC1000G User’s Guide Table 96 Switch Setup (continued) LABEL DESCRIPTION Priority Queue Assignment IEEE 802.1p defines up to 8 separate traffic types by inserting a tag into a MAC-layer frame that contains bits to define class of service. Frames without an explicit priority tag are given the default priority of the ingress port.

  • Page 220: Spanning Tree Protocols

    MSC1000G User’s Guide Table 96 Switch Setup (continued) LABEL DESCRIPTION Algo_Type Use this field to set a Gigabit Ethernet interface’s queuing algorithm. If trunking is enabled, you set this for one interface and it applies to the whole trunk group.

  • Page 221: Table 97 Stp Path Costs

    MSC1000G User’s Guide The root bridge is the base of the spanning tree; it is the bridge with the lowest identifier value (MAC address). Path cost is the cost of transmitting a frame onto a LAN through that port. It is assigned according to the speed of the link to which a port is attached.

  • Page 222: Figure 136 Stp Root Ports And Designated Ports

    MSC1000G User’s Guide Figure 136 STP Root Ports and Designated Ports RSTP-aware devices exchange Bridge Protocol Data Units (BPDUs) periodically. When the bridged LAN topology changes, a new spanning tree is constructed. In RSTP, the devices send BPDUs every Hello Time. If an RSTP-aware device does not get a Hello BPDU after three Hello Times pass (or the Max Age), the device assumes that the link to the neighboring bridge is down.

  • Page 223: Multiple Stp

    MSC1000G User’s Guide 13.6.2 Multiple STP Multiple Spanning Tree Protocol (IEEE 802.1s) is backward compatible with STP/RSTP and addresses the limitations of existing spanning tree protocols (STP and RSTP) in networks to include the following features: • One Common and Internal Spanning Tree (CIST) that represents the entire network’s connectivity.

  • Page 224: Mst Region

    MSC1000G User’s Guide Figure 138 MSTP Network Example 13.6.2.2 MST Region An MST region is a logical grouping of multiple network devices that appears as a single device to the rest of the network. Each MSTP-enabled device can only belong to one MST region.

  • Page 225: Common And Internal Spanning Tree (Cist)

    MSC1000G User’s Guide Figure 139 MSTIs in Different Regions 13.6.2.4 Common and Internal Spanning Tree (CIST) A CIST represents the connectivity of the entire network and it is equivalent to a spanning tree in an STP/RSTP. The CIST is the default MST instance (MSTID 0). Any VLANs that are not members of an MST instance are members of the CIST.

  • Page 226: Figure 141 Mstp: Bridge

    MSC1000G User’s Guide Figure 141 MSTP: Bridge The following table describes the labels in this screen. Table 100 MSTP: Bridge LABEL DESCRIPTION Config Name Enter a descriptive name (up to 31 characters) of an MST region. Revision Level Enter a number to identify a region’s configuration. Devices must have the same revision level to belong to the same region.
  • Page 227 MSC1000G User’s Guide Table 100 MSTP: Bridge (continued) LABEL DESCRIPTION MaxAge This is the maximum time (in seconds) a switch can wait without receiving a BPDU before attempting to reconfigure. All switch ports (except for designated ports) should receive BPDUs at regular intervals. Any port that ages out STP information (provided in the last BPDU) becomes the designated port for the attached LAN.

  • Page 228: Mstp Port Settings

    MSC1000G User’s Guide 13.7.2 MSTP Port Settings Click Switch > MSTP > Port to display the configuration screen as shown. Use this screen to set the MST settings on the switch ports. Figure 142 MSTP: Port The following table describes the labels in this screen.

  • Page 229: Mstp Configuration Example

    MSC1000G User’s Guide Table 101 MSTP: Port (continued) LABEL DESCRIPTION Apply Click Apply to save the changes in this screen to the system’s volatile memory. The system loses these changes if it is turned off or loses power, so use the Config Save on the navigation panel and then the Save button to save your changes to the non-volatile memory when you are done configuring.

  • Page 230: Figure 144 Mstp Configuration Example: Bridge

    MSC1000G User’s Guide Figure 144 MSTP Configuration Example: Bridge 5 To configure port MSTP settings, click the Port tab. 6 Select the instance ID number in the MSTID field and click Apply. 7 Select Enable to set the port to belong to this spanning tree and click Apply.

  • Page 231: Switch Port

    MSC1000G User’s Guide 8 For switch B, configure the same general MSTP settings and VLAN-to-MST mappings as switch A for the subtending ports. 9 Set the subtending port priorities on switch B to allow MSTP to forward traffic to the corresponding link.

  • Page 232: Port Vlan Trunking

    MSC1000G User’s Guide 13.8.3 Port VLAN Trunking VLAN Trunking allows frames belonging to unknown VLAN groups to pass through a port. This is useful if you want to set up VLAN groups on end devices without having to configure the same VLAN groups on intermediary devices.

  • Page 233: Figure 147 Switch Port Setup

    MSC1000G User’s Guide Figure 147 Switch Port Setup The following table describes the labels in this screen. Table 102 Switch Port Setup LABEL DESCRIPTION Apply Click Apply to save the changes in this screen to the system’s volatile memory. The system loses these changes if it is turned off or loses power, so use the Config Save on the navigation panel and then the Save button to save your changes to the non-volatile memory when you are done configuring.
  • Page 234 MSC1000G User’s Guide Table 102 Switch Port Setup (continued) LABEL DESCRIPTION Speed/Duplex Select the type of Ethernet connection for this port. When you don’t use auto- negotiation, you must make sure that the settings of the peer Ethernet port are the same in order to connect.
  • Page 235 MSC1000G User’s Guide Table 102 Switch Port Setup (continued) LABEL DESCRIPTION Multicast Select Enable to limit the number of multicast packets the interface will accept per second. Type how many multicast packets the interface should accept per second (0~262143). Unknown Unicast Select Enable to limit the number of unknown unicast packets the interface will accept per second.
  • Page 236 MSC1000G User’s Guide Chapter 13 Switch Screens...

  • Page 237: Chapter 14 Sys Screens

    MSC1000G User’s Guide H A P T E R Sys Screens This chapter describes the Sys screens you use to configure general system, access control, syslog, administrator login accounts and management IP settings. 14.1 SNMP Simple Network Management Protocol is a protocol used for exchanging management information between network switches.

  • Page 238: Supported Mibs

    MSC1000G User’s Guide The managed devices contain object variables/managed objects that define each piece of information to be collected about a switch. Examples of variables include such as number of packets received, node port status etc. A Management Information Base (MIB) is a collection of managed objects.

  • Page 239: Figure 149 Access Control: Snmp

    MSC1000G User’s Guide Figure 149 Access Control: SNMP The following table describes the labels in this screen. Table 104 Access Control: SNMP LABEL DESCRIPTION Get Community Enter the get community, which is the password for the incoming Get- and GetNext- requests from the management station. You can use up to 31 ASCII characters;...

  • Page 240: Service Access Control Screen

    MSC1000G User’s Guide Table 104 Access Control: SNMP (continued) LABEL DESCRIPTION Enable This field displays whether the administrative login account is activated or note. Name This field displays the administrative login account user name. Level Select NoAuth to disable SNMPv3 user authentication and encryption for SNMP communication.

  • Page 241: Secured Client Screen

    MSC1000G User’s Guide Table 105 Access Control: Service Access Control LABEL DESCRIPTION Services These are services you may use to access the system are listed here. Enable Select the Enable check boxes for the corresponding services that you want to allow to access the system.

  • Page 242: General Setup

    MSC1000G User’s Guide Table 106 Access Control: Secured Client (continued) LABEL DESCRIPTION Apply Click Apply to save the changes in this screen to the system’s volatile memory. The system loses these changes if it is turned off or loses power, so use the Config Save on the navigation panel and then the Save button to save your changes to the non-volatile memory when you are done configuring.

  • Page 243: Ip Setup

    MSC1000G User’s Guide Table 107 General Setup (continued) LABEL DESCRIPTION Product Model This field displays your device type. System Up Time This field shows how long the system has been running since the last time it was started. Database Version This field displays the time and date that the system’s configuration was last saved...

  • Page 244: Syslog Screen

    MSC1000G User’s Guide Figure 153 IP Setup The following table describes the labels in this screen. Table 108 IP Setup LABEL DESCRIPTION Inband These fields configure in-band management settings. In-band management refers to accessing the management interface through a network port (not the management port).

  • Page 245: User Account Screen

    MSC1000G User’s Guide Figure 154 Unix Syslog The following table describes the labels in this screen. Table 109 Unix Syslog LABEL DESCRIPTION Enable Unix Select this check box to activate syslog (system logging) and then configure the Syslog syslog parameters described in the following fields.

  • Page 246: Figure 155 User Account

    MSC1000G User’s Guide Figure 155 User Account The following table describes the labels in this screen. Table 110 User Account LABEL DESCRIPTION Enable Select this check box to activate the administrator account. Name Type a user name for the account Password Type a password for the account.

  • Page 247: Radius Service Types

    MSC1000G User’s Guide 14.8 RADIUS Service Types When you set the system to authenticate users using an external RADIUS server, the system assigns a privilege level to the login account based on the service type information received from the RADIUS server after the authentication is successful.
  • Page 248 MSC1000G User’s Guide Table 112 User Account Authentication (continued) LABEL DESCRIPTION Default Privilege Specify the default login account privilege level if no service type information is Level received from the RADIUS server. Select a default privilege level (low, medium or high). Refer to Section 16.5 on...

  • Page 249: Chapter 15 Vlan Screens

    MSC1000G User’s Guide H A P T E R VLAN Screens 15.1 VLAN Introduction A VLAN (Virtual Local Area Network) allows a physical network to be partitioned into multiple logical networks. Devices on a logical network belong to one group. A device can belong to more than one group.

  • Page 250: Forwarding Tagged And Untagged Frames

    MSC1000G User’s Guide The CFI (Canonical Format Indicator) is a single-bit flag, always set to zero for Ethernet switches. If a frame received at an Ethernet port has a CFI set to 1, then that frame should not be forwarded as it is to an untagged port. The remaining twelve bits define the VLAN ID, giving a possible maximum number of 4,096 VLANs.

  • Page 251: Garp

    MSC1000G User’s Guide 15.3.1 GARP GARP (Generic Attribute Registration Protocol) allows network switches to register and de- register attribute values with other GARP participants within a bridged LAN. GARP is a protocol that provides a generic mechanism for protocols that serve a more specific application, for example, GVRP.

  • Page 252: Tagged Frames Forwarding Example

    MSC1000G User’s Guide 15.4 Tagged Frames Forwarding Example 1 First the MSC checks the VLAN ID (VID) of tagged frames or assigns temporary VIDs to untagged frames. 2 The MSC then checks the VID in a frame’s tag against the SVLAN table.

  • Page 253: Figure 157 Vlan Setup

    MSC1000G User’s Guide Figure 157 VLAN Setup The following table describes the labels in this screen. Table 114 Static VLAN Setting LABEL DESCRIPTION Enable Select this check box to turn on the VLAN group. You cannot disable a VLAN if any PVIDs are set to use the VLAN or the VLAN is the CPU (management) VLAN.
  • Page 254 MSC1000G User’s Guide Table 114 Static VLAN Setting (continued) LABEL DESCRIPTION Enable This field indicates whether the VLAN settings are enabled (V) or disabled (-). Registration This column displays the VLAN membership settings of the Gigabit Ethernet interfaces. Ports set to Normal can dynamically join the VLAN group using GVRP.

  • Page 255: Chapter 16 Commands

    1 stop bit, and no flow control. The default user name is “admin” and the default password is “1234”. User name: admin Password: **** Copyright (c) 1994 - 2005 ZyXEL Communications Corp. ras> 16.2 Command Conventions The rules of the commands are listed next.

  • Page 256: Getting Help

    MSC1000G User’s Guide 16.3 Getting Help The system includes a help facility to provide you with the following information about the commands: • List of available commands under a command group. • Detailed descriptions of the commands. 16.3.1 List of Available Commands Enter “...

  • Page 257: Common Command Notation

    MSC1000G User’s Guide 16.4 Common Command Notation The following table describes commonly used command parameter notation. Table 115 Common Command Notation NOTATION DESCRIPTION […] The optional fields in a command are enclosed in square brackets [], for instance, ping <ip> [<count>] means that the count field is optional.

  • Page 258: Saving Your Configuration

    MSC1000G User’s Guide Administrators with middle privilege access can use middle or low privilege commands. Middle privilege commands include things like general feature configuration. Administrators with the low privilege level are restricted to using only low privilege commands. Low privilege commands are read only and consist of displaying feature settings or configuration.
  • Page 259 MSC1000G User’s Guide Table 116 acl Commands (continued) COMMAND DESCRIPTION Enables option82 information for enable <vid> <mode> the specified VLAN. <mode> : Enable DHCP relay and option82. : Disable DHCP relay but enable option82. Sets information for the option82 info <vid>...
  • Page 260 MSC1000G User’s Guide Table 116 acl Commands (continued) COMMAND DESCRIPTION Clears the DHCP snooping table flush <slot-port> on the specified port(s). Removes the static IP address pool delete <slot- from the DHCP snooping table. port> <ip> Adds a static IP address to the set <slot-port>...
  • Page 261 MSC1000G User’s Guide Table 116 acl Commands (continued) COMMAND DESCRIPTION Turns on MAC count limiting on enable <slot-port> the specified subscriber ports. Sets the MAC count limit number <slot-port> (1-128) on the specified <count> subscriber ports. Displays MAC count limiting show <slot>...
  • Page 262 MSC1000G User’s Guide Table 116 acl Commands (continued) COMMAND DESCRIPTION Sets the packet type filter for the <slot-port> specified subscriber ports. <type> <type> = accept-all, pppoe-only, or any combination of ip, arp, dhcp, eapol, pppoe, netbios, igmp separated by a space.

  • Page 263: Alarm Commands

    MSC1000G User’s Guide 16.7.2 alarm Commands These are the alarm management commands. Table 117 alarm Commands COMMAND DESCRIPTION Alarm command general parameters: alarm <alarm> = alarm category (eqpt, dsl, enet, sys or all) <severity> = alarm severity level (critical, major, minor, info or all) <condition>...

  • Page 264: Clear Commands

    MSC1000G User’s Guide Table 117 alarm Commands (continued) COMMAND DESCRIPTION Displays current alarms by severity, show [<severity>|all alarm category or alarm condition. You ] [<alarm>|all] can also display detailed alarms. [<condition>|al [<sdate>|all] [<edate>|all] [for|rev] [detail] Displays the supported alarm list and tablelist [<alarm>|all]...

  • Page 265: Config Commands

    MSC1000G User’s Guide Table 118 clear Commands (continued) COMMAND DESCRIPTION Resets the PAE PVC counters. paepvc counter <slot- port>|<s lot- port- vpi/vci> Resets subscriber line performance performance <slot-port> counters. curr|15min|1day 16.7.4 config Commands These are the configuration file management commands.

  • Page 266: Ip Commands

    MSC1000G User’s Guide Table 120 diagnostic Commands (continued) COMMAND DESCRIPTION This feature is applicable on ACL1248G selt test <slot-port> only. Single End Loop Test (SELT) checks the distance to the subscriber’s location. Note: The port must have an open loop. There cannot be a...

  • Page 267: Lcman Commands

    MSC1000G User’s Guide Table 121 ip Commands (continued) COMMAND DESCRIPTION Sets the management IP address, inband|outb subnet mask and in-band management and <ip>[/ VLAN ID. <netmask>] <ip> = ‘0.0.0.0’ disables a [<inband- management interface. vid>] Sends a traceroute packet to the IP tracert <ip>...
  • Page 268 MSC1000G User’s Guide Table 123 multicast Commands (continued) COMMAND DESCRIPTION Displays multicast bandwidth settings show on the specified line card or port. <slot>|<slot- port> Sets bandwidth allowed for the <index> <start- specified multicast channel(s). mcast-ip> <end- mcast-ip> <bandwidth> Displays multicast bandwidth settings show on the device.

  • Page 269: Port Commands

    MSC1000G User’s Guide Table 123 multicast Commands (continued) COMMAND DESCRIPTION Configures a static multicast group <vid> <group-ip> entry. all|sub1|sub2|u p1|up2|<slot- port> fix|forbid|norm Displays the static multicast group show configuration. 16.7.9 port Commands commands allow you to configure the subscriber DSL ports.
  • Page 270 MSC1000G User’s Guide Table 124 port Commands (continued) COMMAND DESCRIPTION Sets the following attributes. optionmask <slot-port> <option_mask> 0x0001 = disable Trellis 0x0002 = disable Reed-Solomon 0x0004 = disable upstream bitswap 0x0008 = disable downstream bitswap 0x0010 = disable 1-bit constellation...
  • Page 271 MSC1000G User’s Guide Table 124 port Commands (continued) COMMAND DESCRIPTION Sets/displays maximum upstream/ maximum [<slot- downstream nomial PSD values. This is for port> <us-psd> <ds- testing purposes. psd>] <us-psd> = Upstream PSD (-400 ~ 40 in 0.1dBm/Hz). <ds-psd> = Downstream PSD (-400 ~ 40 in 0.1dBm/Hz).
  • Page 272 MSC1000G User’s Guide Table 124 port Commands (continued) COMMAND DESCRIPTION Adds a priority-PVC into the group. set <slot-port-vpi/ vci> <vpi/vci> <atmprofile> <level> Creates a priority-based PVC. <slot-port-vpi/vci> <mux> <pvid> <mux> vcmux = encapsulation: <priority> <pvid> = default VLAN ID, 1~4094 <priority>...
  • Page 273 MSC1000G User’s Guide Table 124 port Commands (continued) COMMAND DESCRIPTION Sets SHDSL ports or end point(s) to use an alarmprof <slot-port> alarm profile. span|stuc|stur|* <alarmprofile> span = set alarm profile for the whole span stuc = set alarm profile at stuc end point...

  • Page 274: Profile Commands

    MSC1000G User’s Guide Table 124 port Commands (continued) COMMAND DESCRIPTION Uses these commands to set custom RFI rficustom settings. The settings are applied to all VDSL ports. Displays the settings of a custom RFI entry. M disable <index> Activates the specified custom RFI entry.
  • Page 275 MSC1000G User’s Guide Table 125 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of ADSL port settings. <profile> <us- “us” is UpStream, “ds” is DownStream max-rate> <ds- max-rate> us maximum rate = 64~4096 in Kbps [fast|delay <us- ds maximum rate = 64~32000 in Kbps delay>...
  • Page 276 MSC1000G User’s Guide Table 125 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of ADSL alarm <profile> atuc settings. [lofs <lofs>] [loss <loss>] <profile> = profile name, up to 31 characters [lols <lols>] [lprs <lprs>] atuc = near end [ess <ess>] [ffr...
  • Page 277 MSC1000G User’s Guide Table 125 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of SHDSL alarm <profile> [atten settings. <atten>] [snrmgn <snrmgn>] [es <profile> = profile name, up to 31 characters <es>] [ses <ses>][crc <crc>] <atten> = loop attenuation [losws <losws>] threshold, 0~127 [uas <uas>]...
  • Page 278 MSC1000G User’s Guide Table 125 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of ADSL alarm <profile> atuc settings. [lofs <lofs>] [loss <loss>] <profile> = profile name, up to 31 characters [lols <lols>] [lprs <lprs>] atuc = near end [ess <ess>] [ffr...
  • Page 279 MSC1000G User’s Guide Table 125 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of VDSL alarm <profile> [lofs settings. <lofs>] [loss <loss>] [lols <profile> = profile name, up to 31 characters <lols>] [lprs <lprs>] <lofs> = number of loss of framing [ess <ess>]...
  • Page 280 MSC1000G User’s Guide Table 125 profile Commands (continued) COMMAND DESCRIPTION Displays which ports reference this <igmpfilter> IGMP filter profile. Creates an IGMP filter profile of ATM <igmpfilter> traffic settings. <index> <startip> <endip> <igmpfilter> = profile name <index> = index of address, 1~16 <startip>...

  • Page 281: Show Commands

    MSC1000G User’s Guide Table 125 profile Commands (continued) COMMAND DESCRIPTION Lists the SHDSL port setting profiles or show [<profile>] a specific profile’s settings. VDSL profiles allow efficient vdsl configuration of VDSL port settings. Removes a VDSL port settings profile. delete <profile>...
  • Page 282 MSC1000G User’s Guide Table 126 show Commands (continued) COMMAND DESCRIPTION linetssi Displays the ARP table. Displays ATM traffic counters. <slot- port>|<slot-port- vpi/vci> [reset] Displays port DHCP statistics. dhcp counter <slot>|<slot -port> Displays port DHCP snooping snoop <slot-port> information. Displays the (IEEE 802.3ad) link dot3ad aggregation settings.

  • Page 283: Switch Commands

    MSC1000G User’s Guide Table 126 show Commands (continued) COMMAND DESCRIPTION Displays a DSL port’s performance performance <slot-port> counters. curr|15min|1day Displays the CPU utilization and memory usage status. Displays subtending/uplink link RMON rmon stats|history information. sub1|sub2|up1|up2 Displays information on logged in user users.
  • Page 284 MSC1000G User’s Guide Table 127 switch Commands (continued) COMMAND DESCRIPTION Displays the link aggregation state. show Deactivates DSCP-IEEE 802.1p mappings dscp disable <giga-port> on this port. Activates DSCP-IEEE 802.1p mappings on enable <giga-port> this port. Sets DSCP-IEEE 802.1p mappings on this <giga-port>...
  • Page 285 MSC1000G User’s Guide Table 127 switch Commands (continued) COMMAND DESCRIPTION Sets the priority of the switch for the priority <mstid> <priority> instance ranges. The lower the number, the more likely the switch will be chosen as the root bridge. Enter 0, 4096, 8192, 12288, 16384, 20480,...

  • Page 286: Sys Commands

    MSC1000G User’s Guide Table 127 switch Commands (continued) COMMAND DESCRIPTION Displays port settings. show <giga-port> <speed> Sets a port’s speed and duplex mode. speed vlantrunk disable <giga-port> Turns off VLAN trunking on a port to have it only accept frames with registered VIDs.
  • Page 287 MSC1000G User’s Guide Table 128 sys Commands (continued) COMMAND DESCRIPTION Sets the system name. hostname <hostname> Sets the geographic location of the location <location> system. Displays general system and MSC show information. Sets the hardware monitor threshold monitor <slot> settings.
  • Page 288 MSC1000G User’s Guide Table 128 sys Commands (continued) COMMAND DESCRIPTION Sets SNMPv3 user name and security user <name> settings. noauth|auth|priv md5|sha des|aes noauth = disables user authentication and data encryption. auth = enables user authentication. = enables user authentication and data encryption.

  • Page 289: Vlan Commands

    MSC1000G User’s Guide Table 128 sys Commands (continued) COMMAND DESCRIPTION Sets a RADIUS server’s IP address and server <ip> <port> port number and the password to access <secret> the server. [high|middle|low|d = assigns the login accounts a low eny] privilege level if the received service type is “login”.
  • Page 290 MSC1000G User’s Guide Chapter 16 Commands...

  • Page 291: Chapter 17 Acl Commands

    MSC1000G User’s Guide H A P T E R acl Commands This chapter describes the Access Control List management commands. 17.1 acl Commands Summary The following table lists the commands. The P column on the right indicates the administrator privilege level needed to use the command (H for high, M for middle or L for low).

  • Page 292: Table 130 Acl Commands

    MSC1000G User’s Guide Table 130 acl Commands (continued) COMMAND DESCRIPTION Sets the active DHCP server to server active <vid> which the DHCP requests are sent <1|2> first. <vid> = a VLAN ID to be served with DHCP relay. = Sets the first DHCP server as the active server.
  • Page 293 MSC1000G User’s Guide Table 130 acl Commands (continued) COMMAND DESCRIPTION Sets the IEEE 802.1X port port control <slot- authentication option for specific port> subscriber ports. auto|auth|unauth auto = authentication required auth = forced authentication unauth = forced no authentication Turns off IEEE 802.1X for specific disable <slot-...
  • Page 294 MSC1000G User’s Guide Table 130 acl Commands (continued) COMMAND DESCRIPTION Turns on the MAC filter on the enable <slot-port> specified subscriber ports. Sets the MAC filter actions. mode <slot-port> <accept|deny> <slot-port> <mac> Adds a MAC filter MAC address entry. Displays MAC filter settings.

  • Page 295: Acl Dhcp Relay82 Commands

    MSC1000G User’s Guide Table 130 acl Commands (continued) COMMAND DESCRIPTION Sets PPPoE line information. info <vid> Enter a description (up to 24 <description> characters). Creates a PPPoE agent entry for <vid> the VLAN. Displays PPPoE line information show settings. Upstream access control rules...

  • Page 296: Acl Dhcprelay82 Info Command

    MSC1000G User’s Guide where ID of the VLAN to which this setting applies. <vid> Sets the relay mode. <mode> Enter to activate DHCP relay service and include option 82 information in the client DHCP requests for this VLAN. Enter to disable DHCP relay service but include option 82 information in the client DHCP requests.

  • Page 297: Acl Dhcprelay82 Relaymode Command

    MSC1000G User’s Guide 17.2.4 acl dhcprelay82 relaymode Command Syntax: acl dhcprelay82 relaymode <mode> where The system sends the requests to the active DHCP server <mode> auto first. If the active DHCP server does not respond, the switch sends the DHCP request to the backup DHCP server.

  • Page 298: Acl Dhcprelay82 Server Delete Command

    MSC1000G User’s Guide 17.2.6 acl dhcprelay82 server delete Command Syntax: acl dhcprelay82 server delete <vid> [serverip] where A VLAN ID to be served with DHCP relay. <vid> The IP address of a DHCP server. <serverip> This command removes a DHCP server setting to which DHCP client requests are forwarded in the specific VLAN.

  • Page 299: Acl Dhcprelay82 Show Command

    MSC1000G User’s Guide The following figure creates an entry for VLAN 10. ras> acl dhcprelay82 set 10 17.2.9 acl dhcprelay82 show Command Syntax: acl dhcprelay82 show This command displays whether or not the DHCP relay feature is activated, the DHCP server’s IP address, the status of the DHCP relay agent info option 82 feature and the...

  • Page 300: Acl Dhcpsnoop Enable Command

    MSC1000G User’s Guide 17.3.2 acl dhcpsnoop enable Command Syntax: acl dhcpsnoop disable <slot-port> This command activates the DHCP snooping feature on the specified port(s) on the line card. The following example enables DHCP snooping on port 1 of the line card in slot 3.

  • Page 301: Acl Dhcpsnoop Show Command

    MSC1000G User’s Guide This command removes a static IP address from the DHCP snooping table of a port on the specified line card. The following example removes the static IP address of 192.168.1.11 from the port 10 on the line card in slot 2.

  • Page 302: Acl Dot1X Port Control Command

    MSC1000G User’s Guide 17.4.3 acl dot1x port control Command Syntax: acl dot1x port control <slot-port> auto|auth|unauth where Authenticate all subscribers before they can access the network auto through this port. Allow all connected users to access the network through this auth port without authentication.

  • Page 303: Acl Dot1X Port Reauth Command

    MSC1000G User’s Guide 17.4.7 acl dot1x port reauth Command Syntax: acl dot1x port reauth <slot-port> on|off This command enables or disables the IEEE 802.1X re-authentication option for the specified subscriber ports. 17.4.8 acl dot1x port show Command Syntax: acl dot1x port show <slot>...

  • Page 304: Acl Dot1X Radius Port Command

    MSC1000G User’s Guide 17.4.10 acl dot1x radius port Command Syntax: acl dot1x radius port <index> <port> where The index number of an external RADIUS server entry (1 or 2). <index> The RADIUS server port number. <port> This command sets the external RADIUS server port number of the specified RADIUS server.

  • Page 305: Acl Maccount Commands

    MSC1000G User’s Guide 17.5 acl maccount Commands commands to limit how many MAC addresses may be dynamically learned or maccount statically configured on a DSL port. MAC count commands are listed next. Note: You cannot enable both MAC count and MAC filtering on the same port at the same time.

  • Page 306: Acl Maccount Show Command

    MSC1000G User’s Guide where Set the limit for how many MAC addresses that a port may <count> dynamically learn. For example, if you are configuring port 2 and you set this field to "5", then only five devices with dynamically learned MAC addresses may access port 2 at any one time.

  • Page 307: Acl Macfilter Delete Command

    MSC1000G User’s Guide Note: You cannot enable both MAC filtering and MAC count on the same port at the same time. 17.6.1 acl macfilter delete Command Syntax: acl macfilter delete <slot-port> <mac> where The source MAC address in "a0:c5:12:34:56:78" format.

  • Page 308: Acl Macfilter Mode Command

    MSC1000G User’s Guide 17.6.4 acl macfilter mode Command Syntax: acl macfilter mode <slot-port> accept|deny where Allows frames from MAC addresses that you specify accept|deny accept and block frames from other MAC addresses. Blocks frames from MAC addresses that you specify and deny allow frames from other MAC addresses.

  • Page 309: Acl Ouifilter Enable Command

    MSC1000G User’s Guide The following example displays the MAC filtering status on all ports of the line card in slot 2. ras> acl macfilter show 2 port mode enable mac address ----- ------ ------ ----------------- 2- 1 accept 2- 2 accept...

  • Page 310: Acl Ouifilter Set Command

    MSC1000G User’s Guide where Allows frames from MAC addresses with the OUI(s) accept|deny accept that you specify and blocks frames with MAC addresses of other OUIs. Blocks frames from MAC addresses with the OUI(s) that deny you specify and allows frames from other MAC addresses.

  • Page 311: Acl Pktfilter Commands

    MAC address on a line card’s specified DSL port(s) or on all of the line card’s DSL ports if no port is specified. The following example displays the OUI filter setting of port 1 on the line card in slot 3. ras> acl ouifilter show 3-1 MSC1000G> acl ouifilter show 3-1 port mode enable...

  • Page 312: Acl Pktfilter Show Command

    MSC1000G User’s Guide Reject EAPol packets. EAP (Extensible Authentication eapol Protocol, RFC 2486) over LAN. EAP is used with IEEE 802.1x to allow additional authentication methods (besides RADIUS) to be deployed with no changes to the access point or the wireless clients.

  • Page 313: Pppoe Agent Information

    MSC1000G User’s Guide 17.9 PPPoE Agent Information Similar to DHCP relay option82, you can set the switch to insert line information into client PPPoE Discover Initialization (PODI) packets. This allows a PPPoE termination server to identify and authenticate a PPPoE client based on the specified information (such as the ISP name or line card number).

  • Page 314: Acl Pppoeagent Info Command

    MSC1000G User’s Guide 17.9.5 acl pppoeagent info Command Syntax: acl pppoeagent info <vid> <description> This command specifies the PPPoE line information the switch is to add to PPPoE discover packets from the specified VLAN. Enter a description (up to 24 alphanumerical characters).

  • Page 315: Acl Rule Commands

    MSC1000G User’s Guide This command displays PPPoE line information settings. The following figure shows the PPPoE agent setting for VLAN 10. ras> acl pppoeagent show info ---- ----- ------------------------ testing vlan set: 1 ras> 17.10 acl rule Commands Use the...

  • Page 316: Acl Rule Show Command

    MSC1000G User’s Guide 17.10.3 acl rule show Command Syntax: acl rule show <slot-port-vpi/vci> This command displays the current access control rule assignment settings. The following figure shows an example. ras> acl rule show 3-1-0/33 profile -------------- -------------------------------- 3-1-0/33 example ras>...

  • Page 317: Chapter 18 Alarm Commands

    MSC1000G User’s Guide H A P T E R alarm Commands This chapter describes the alarm management commands. 18.1 alarm Commands Summary The following table lists the commands. The P column on the right indicates the alarm administrator privilege level needed to use the command (H for high, M for middle or L for low).

  • Page 318: General Alarm Command Parameters

    MSC1000G User’s Guide Table 131 alarm Commands (continued) COMMAND DESCRIPTION Sets the severity of alarms to record for <all|sub1|sub2| individual ports. up1|up2|mgmt |slot-port> <severity> Displays current alarms by severity, show [<severity>|all alarm category or alarm condition. You ] [<alarm>|all] can also display detailed alarms.

  • Page 319: Alarm Commands

    MSC1000G User’s Guide Table 132 General alarm Command Parameters (continued) NOTATION DESCRIPTION Specify the displaying order. for = forward, rev = reverse for|rev Display more comprehensive alarm condition descriptions. [detail] 18.3 alarm Commands Use these commands to view and clear alarms. You can also set the device to report alarms to an SNMP or syslog server that you specify.

  • Page 320: Alarm History Clear Command

    MSC1000G User’s Guide The following example creates an alarm report entry that sends system alarms to an SNMP server at the local 3 log facility. ras> alarm edit sys local3 snmp 18.3.4 alarm history clear Command Syntax: alarm history clear [<alarm>|all <condition>|all] <severity>...

  • Page 321: Alarm Port Show Command

    MSC1000G User’s Guide where The log facility ( ) that has the device log the syslog <fac> local1 local7 messages to different files in the syslog server. See your syslog program’s documentation for details. The type of alarm messages that the <target>...

  • Page 322: Alarm Show Command

    MSC1000G User’s Guide The following example displays the port alarm thresholds for the ports on the line card in slot 4. “ifindex” identifies the interface. ras> alarm port show 4 ifindex severity ---------- ----------- 4- 1 minor 4- 2 minor...

  • Page 323: Alarm Tablelist Command

    MSC1000G User’s Guide 18.3.9 alarm tablelist Command Syntax: alarm tablelist [<alarm>|all] [<severity>|all] [<fac>|all][<target>[,<target>]] [<condition>|all] where The log facility ( ) that has the device log the syslog <fac> local1~local7 messages to different files in the syslog server. See your syslog program’s documentation for details.
  • Page 324 MSC1000G User’s Guide where <cond> <condition>|<code>|all The condition is the text description for the condition under which the alarm applies. Use the command to find alarm alarm tablelist conditions. The condition code is the number of a specific alarm message. Use the command to find alarm condition codes.

  • Page 325: Chapter 19 Clear Commands

    MSC1000G User’s Guide H A P T E R clear Commands This chapter describes the clear commands that you use to reset the various system counters. 19.1 clear Commands Summary The following table lists the clear commands you can use to reset the counters. Once you reset a counter, you can only display new counter information using the command.

  • Page 326: Clear Command Example

    MSC1000G User’s Guide 19.2 clear Command Example The following example resets the IGMP counters on the system. This clears the IGMP counters and the number of IGMP groups learned. ras> clear igmp info Chapter 19 clear Commands...

  • Page 327: Chapter 20 Config Commands

    MSC1000G User’s Guide H A P T E R config Commands This chapter describes the configuration file management commands. 20.1 config Commands Summary The following table lists the commands. The P column on the right indicates the config administrator privilege level needed to use the command (H for high, M for middle or L for low).

  • Page 328: Config Show Command

    MSC1000G User’s Guide This command saves your configuration when you are done with a configuration session. This command saves all system configuration to nonvolatile memory. You must use this command to save any configuration changes that you make, otherwise the system returns to its previously saved settings when it is restarted.

  • Page 329: Chapter 21 Diagnostic Commands

    MSC1000G User’s Guide H A P T E R diagnostic Commands This chapter describes the commands. diagnostic 21.1 Commands Summary diagnostic The following table lists the commands. The P column on the right indicates the diagnostic administrator privilege level needed to use the command (H for high, M for middle or L for low).

  • Page 330: Diagnostic Commands

    MSC1000G User’s Guide 21.2 diagnostic Commands Use these commands to execute a specified diagnostic or test function to an interface port or a subscriber port. 21.2.1 diagnostic ldm show Command Syntax: diagnostic ldm show <slot-port> result|hlin|hlog|qln|snr where Displays the basic line diagnostic mode test results.

  • Page 331: Diagnostic Ldm Test Command

    MSC1000G User’s Guide The command then displays the results of the ADSL port line diagnostics. ras> diagnostic ldm show 5-4 result port 5-4: near end far end ------------ ------------ attainable bit rate(kpbs): 1420 26060 loop attenuation(dB) signal attenuation(dB) snr margin(dB)

  • Page 332: Diagnostic Selt Show Command

    MSC1000G User’s Guide 21.2.4 diagnostic selt show Command Syntax: diagnostic selt show <slot>|<slot-port> This command displays the Single End Loop Test (SELT) result after you have performed a SELT test on the specified port on the line card. The report tells you what gauge of telephone wire is connected to the port and the approximate length of the line measured both in meters (m) and thousands of feet (Kft).

  • Page 333: Chapter 22 Ip Commands

    MSC1000G User’s Guide H A P T E R ip Commands This chapter shows you how to use the commands to configure the IP (Internet Protocol) parameters. 22.1 Commands Summary The following table lists the commands. The P column on the right indicates the administrator privilege level needed to use the command (H for high, M for middle or L for low).

  • Page 334: Ip Commands

    MSC1000G User’s Guide 22.2 ip Commands The following shows general IP commands that help with the management of the IP parameters. 22.2.1 ip arp flush Command Syntax: ras> ip arp flush This command clears the MSC’s IP Address Resolution Protocol (ARP) table.

  • Page 335: Ip Ping Command

    MSC1000G User’s Guide 22.2.4 ip ping Command Syntax: ras> ip ping <ip> [<count>] where The IP address of the target. <ip> The number of pings you want the MSC to send. [<count>] This is an IP facility to check for network functionality by sending an echo request to another IP host and waiting for the reply.

  • Page 336: Ip Route Set Command

    MSC1000G User’s Guide 22.2.6 ip route set Command Syntax: ras> ip route set <dst-ip>[/<netmask>] <gateway-ip> [<metric>] [<name>] where The destination IP address of packets that this static route is to route. <dst ip> The destination subnet mask of packets that this static route is to route.

  • Page 337: Ip Set Command

    MSC1000G User’s Guide Use the command to display the current management IP settings. An example is shown next. ras> ip show interface interface ip netmask --------- --------------- --------------- ---- inband 192.168.1.2 255.255.255.0 outband 172.23.15.86 255.255.255.0 gateway: 172.23.15.254 22.2.9 ip set Command Syntax: ras>...

  • Page 338: Ip Tracert Command

    MSC1000G User’s Guide 1 Use the command to configure a VLAN ID (VID 3 in this example) for vlan set managing the MSC (the “management” or “CPU” VLAN). ras> vlan set 3 up1 fix tag ras> vlan enable 3 2 Use the command to set VID 3 as the management VLAN.

  • Page 339: Chapter 23 Lcman Commands

    MSC1000G User’s Guide H A P T E R lcman Commands This chapter shows you how to use the commands to manage the line cards. lcman 23.1 Commands Summary lcman The following table lists the commands. The P column on the right indicates the...

  • Page 340: Lcman Disable Command

    MSC1000G User’s Guide 23.2.2 lcman disable Command Syntax: ras> lcman disable <slot> This command turns off the management of the specified line card. This command is for troubleshooting. The MSC can automatically restart a line card that it is managing. If a line card is unresponsive...

  • Page 341: Table 137 Lcman Commands

    MSC1000G User’s Guide The following example shows an overview of all of the cards that are installed in the system’s slots. ras> lcman show id state card type uptime f/w version heat vol mon down out -- -------- ----------- ------------- ------------------- ---------------------...

  • Page 342: Table 139 Lcman Show Command: Detailed Information

    MSC1000G User’s Guide The following example shows information about the line card installed in slot 7. ras> lcman show 5 slot5 SLC1248G-22: uptime: 01:05:20 status: hardware sensor: ok temperature : ok voltage : ok module exist : ok module status...
  • Page 343 MSC1000G User’s Guide Table 139 lcman show Command: Detailed Information (continued) LABEL DESCRIPTION This is the release of firmware that the card is using. firmware version This is the driver version that a DSL line card’s DSL chip is using.
  • Page 344 MSC1000G User’s Guide Chapter 23 lcman Commands...

  • Page 345: Multicast Commands

    MSC1000G User’s Guide H A P T E R multicast Commands This chapter shows you how to use the commands. multicast 24.1 Commands Summary multicast The following table lists the commands. The P column on the right indicates the multicast administrator privilege level needed to use the command (H for high, M for middle or L for low).

  • Page 346: Multicast Bandwidth Commands

    MSC1000G User’s Guide Table 140 multicast Commands (continued) COMMAND DESCRIPTION Turns off the IGMP count limit for a igmpcount disable <slot-port> DSL port(s). Turns on the IGMP count limit for a enable <slot-port> DSL port(s). Sets the IGMP count limit for a DSL <slot-port>...

  • Page 347: Multicast Bandwidth Default Command

    MSC1000G User’s Guide 24.2.1 multicast bandwidth default Command Syntax: multicast bandwidth default <bandwidth> where Allowed bandwidth between 1 and 1000 000 kbps (kilo bits per <bandwidth> second). This command sets the default bandwidth for multicast channels for which you have not configured bandwidth requirements yet.

  • Page 348: Multicast Bandwidth Port Commands

    MSC1000G User’s Guide This command configures bandwidth allocation for the multicast channel(s). For multicast channel(s) for which you have not configured bandwidth settings, the default multicast bandwidth setting applies (refer to Section 24.2.1 on page 347). The following example sets the bandwidth allowed for the specified multicast channels to 1000 Kbps.

  • Page 349: Multicast Bandwidth Port Show Command

    MSC1000G User’s Guide 24.3.4 multicast bandwidth port show Command Syntax: multicast bandwidth port show <slot-port> This command displays the multicast bandwidth setting on the specified port. The following example shows the multicast bandwidth setting for port 1 on the line card in slot 3.

  • Page 350: Multicast Igmp Qryvid Set Command

    MSC1000G User’s Guide This command removes an IGMP query VLAN ID. The following example removes IGMP query VLAN ID 6. ras> multicast igmp qryvid delete 6 24.4.4 multicast igmp qryvid set Command Syntax: ras> multicast igmp qryvid set <vid> This command adds an IGMP query VLAN ID. When using IGMP proxy, the device sends IGMP queries to the members of the query VLANs.

  • Page 351: Igmp Count Limit

    MSC1000G User’s Guide 24.5 IGMP Count Limit With the IGMP count feature, you can limit the number of IGMP groups a subscriber on a port can join. This allows you to control the distribution of multicast services (such as content information distribution) based on service plans and types of subscription.

  • Page 352: Multicast Igmpcount Set Command

    MSC1000G User’s Guide 24.6.3 multicast igmpcount set Command Syntax: multicast igmpcount set <slot-port> <count> This command sets the IGMP count limit for the specified DSL port(s). The following command sets a IGMP count limit of 2 for DSL port 4 on the line card in slot 3.

  • Page 353: Multicast Igmpfilter Set Command

    MSC1000G User’s Guide 24.7.1 multicast igmpfilter set Command Syntax: switch igmpfilter set <slot-port> <igmpfilter> where The name of an IGMP filter profile. <igmpfilter> This command sets an ADSL port(s) to use an IGMP filter profile. The following example sets ADSL port 9 in slot 7 to use the IGMP filter profile.

  • Page 354: Multicast Mvlan Delete Command

    MSC1000G User’s Guide Multicast VLAN allows one single multicast VLAN to be shared among different subscriber VLANs on the network. This improves bandwidth utilization by reducing multicast traffic in the subscriber VLANs and simplifies multicast group management. 24.8.1 multicast mvlan delete Command Syntax: mutlcast mvlan delete <vid>...

  • Page 355: Multicast Mvlan Group Delete Command

    MSC1000G User’s Guide where Multicast group number (1 -16). <index> Start of the multicast IP address range. <start-mcast-ip> End of the multicast IP address range. <end-mcast-ip> This command creates a multicast VLAN group. The following example creates a multicast VLAN with VID 10 and group index 1. The multicast address range is 224.224.224.1 ~ 224.224.224.10.

  • Page 356: Multicast Mvlan Show Command

    MSC1000G User’s Guide The following example creates a multicast VLAN (VID =10) and sets port 1 on the line card in slot 3 to be a member of this multicast VLAN. ras> multicast mvlan set 10 3-1 fix 24.8.9 multicast mvlan show Command...

  • Page 357: Multicast Smcast Set Command

    MSC1000G User’s Guide 24.9.2 multicast smcast set Command Syntax: multicast smcast set <vid> <group-ip> all|sub1|sub2|up1|up2|<slot-port> fix|forbid|normal where A multicast IP address. <group-ip> The port or ports to which this static multicast group is to apply. all|sub1|sub2 |up1|up2|<slo t-port> This controls the static multicast group membership status of the port...
  • Page 358 MSC1000G User’s Guide An example is shown next. ras> multicast smcast show group slot port(F:fix, X:forbid, -:normal) ---- --------------- ---- ------------------------------------------------ 1 224.0.0.0 123456789012345678901234567890123456789012345678 1 XXXX 2 XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX 3 XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX 4 XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX 5 ------------------------------------------------ Press any key to continue, 'e' to exit ras>...

  • Page 359: Chapter 25 Port Commands

    MSC1000G User’s Guide H A P T E R port Commands This chapter shows you how to use the commands. port 25.1 Commands Summary port The following table lists the commands.The P column on the right indicates the port administrator privilege level needed to use the command (H for high, M for middle or L for low).

  • Page 360: Table 141 Port Commands

    MSC1000G User’s Guide Table 141 port Commands (continued) COMMAND DESCRIPTION Sets the following attributes. optionmask <slot-port> <option_mask> 0x0001 = disable Trellis 0x0002 = disable Reed-Solomon 0x0004 = disable upstream bitswap 0x0008 = disable downstream bitswap 0x0010 = disable 1-bit constellation...
  • Page 361 MSC1000G User’s Guide Table 141 port Commands (continued) COMMAND DESCRIPTION Sets/displays maximum upstream/ maximum [<slot- downstream nomial PSD values. This is for port> <us-psd> <ds- testing purposes. psd>] <us-psd> = Upstream PSD (-400 ~ 40 in 0.1dBm/Hz). <ds-psd> = Downstream PSD (-400 ~ 40 in 0.1dBm/Hz).
  • Page 362 MSC1000G User’s Guide Table 141 port Commands (continued) COMMAND DESCRIPTION Adds a priority-PVC into the group. set <slot-port-vpi/ vci> <vpi/vci> <atmprofile> <level> Creates a priority-based PVC. <slot-port-vpi/vci> <mux> <pvid> <mux> vcmux = encapsulation: <priority> <pvid> = default VLAN ID, 1~4094 <priority>...
  • Page 363 MSC1000G User’s Guide Table 141 port Commands (continued) COMMAND DESCRIPTION Sets SHDSL ports or end point(s) to use an alarmprof <slot-port> alarm profile. span|stuc|stur|* <alarmprofile> span = set alarm profile for the whole span stuc = set alarm profile at stuc end point...

  • Page 364: Port Commands

    MSC1000G User’s Guide Table 141 port Commands (continued) COMMAND DESCRIPTION Uses these commands to set custom RFI rficustom settings. The settings are applied to all VDSL ports. Displays the settings of a custom RFI entry. M disable <index> Activates the specified custom RFI entry.

  • Page 365: Port Adsl Annexl Disable Command

    MSC1000G User’s Guide where The name of an ADSL alarm profile. <alarmprofile> This command applies (maps) an ADSL alarm profile to the subscriber port(s). The following example sets ADSL port 5 on the line card in slot 7 to use the SESalarm alarm profile.

  • Page 366: Port Adsl Annexm Disable Command

    MSC1000G User’s Guide 25.3.4 port adsl annexm disable Command Syntax: port adsl annexm disable <slot-port> This command turns off the Annex M double upstream feature on the specified ADSL2/2+ port(s). The following example turns off the Annex M feature for port 5 on the line card in slot 7.

  • Page 367: Port Adsl Dscarrier0 Command

    MSC1000G User’s Guide This command turns on the Annex I all digital mode feature on the specified ADSL2/2+ port(s). With Annex I, the ADSL connection uses the full spectrum of the physical line and the user can not use POTS or ISDN service.

  • Page 368: Port Adsl Dscarrier1 Command

    MSC1000G User’s Guide 25.3.9 port adsl dscarrier1 Command Syntax: port adsl dscarrier1 <slot-port> <m0> <m1> <m2> <m3> <m4> <m5> <m6> <m7> where The downstream carrier tones to be disabled. Each <mx> can <m0> <m7> use up to 8 hexadecimal digits (0~ffffffff). Each <mx>...

  • Page 369: Port Adsl Optionmask Command

    MSC1000G User’s Guide where Sets the minimum upstream (us) impulse noise protection setting. <us_inp> Use 0~6 to define a number of DMT symbols. 0 = 0, 1 = 0.5, 2 = 1, 3 = 2, 4 = 4, 5 = 8, 6 = 16 DMT symbols Sets the minimum downstream (ds) impulse noise protection setting <ds_inp>...

  • Page 370: Port Adsl Pmm Disable Command

    MSC1000G User’s Guide Bit swapping allows the system to respond to noise on a tone by sending it’s data on another tone. The subscriber (ATU-R) equipment must also support this in order for it to work. = disable 1-bit constellation...

  • Page 371: Port Adsl Power Command

    MSC1000G User’s Guide where Power management mode L2. This is a power saving mode that scales back the power usage to where there is just enough to support the transmission rate that the subscriber is using. Power management mode L2 and L3. Power management mode L3 is a power saving mode that puts the ADSL connection to sleep when there is no traffic.

  • Page 372: Port Adsl Psd Maximum Command

    MSC1000G User’s Guide Maximum downstream transmit power, -50~200 in 0.1 dBm. <max_ds_txpwr> Maximum aggregate receive power at atu-c, -255~255 in 0.1 <max_rxpwr> dBm.This only applies to the ADSL2/2+ ADSL operational modes. This command specifies the maximum allowed transmit power and maximum aggregate received power.

  • Page 373: Port Adsl Uscarrier Command

    MSC1000G User’s Guide The ADSL operational mode. <mode> for Annex A: gdmt t1413 glite auto adsl2 adsl2+ for Annex B: gdmt etsi auto adsl2 adsl2+ When set to auto, the port follows whatever mode is set on the other end of the line.

  • Page 374: Port Copy Command

    MSC1000G User’s Guide The following example disables upstream carrier tone 8 for ADSL port 5 on the line card in slot 7. ras> port adsl uscarrier 7-5 00000080 0 This example disables upstream carrier tones 8 and 9 for ADSL port 5 on the line card in slot ras>...

  • Page 375: Port Enable Command

    MSC1000G User’s Guide 25.6 port enable Command Syntax: port enable <slot-port> This command turns on the specified subscriber port(s). The following example turns on DSL port 5 on the line card in slot 7. ras> port enable 7-5 25.7 port name Command Syntax: port show <slot-port>...

  • Page 376: Port Paepvc Delete Command

    MSC1000G User’s Guide In order to allow communication between the end points (the CPE devices and the BRAS), you need to configure the DSLAM (the MSC) to translate PPPoA frames to PPPoE packets and vise versa. When PPPoA packets are received from the CPE, the ATM headers are removed and the MSC adds PPPoE and Ethernet headers before sending the packets to the BRAS.

  • Page 377: Port Paepvc Show Command

    MSC1000G User’s Guide The following example creates a PPPoA-to-PPPoE PVC ( ) for port on the line card in 1/33 slot . The PVC uses encapsulation and the ATM profile with a priority of DEFVAL This configuration is for the service on the access concentrator.

  • Page 378: Port Ppvc Member Set Command

    MSC1000G User’s Guide where The slot and port(s) and VPI/VCI of the PPVC. <slot-port-vpi/ vci> The VPI and VCI of the individual PVC that you are removing <vpi/vci> from the PPVC. This command removes a PVC from a PPVC. The following example removes a PVC that uses VPI 8 and VCI 36 from a PPVC with VPI 8 and VCI 35 for port 5 on the line card in slot 7.

  • Page 379: Port Ppvc Show Command

    MSC1000G User’s Guide where The slot, port(s) and VPI/VCI of the PPVC. <slot-port-vpi/ vci> The type of encapsulation: vcmux <mux> Set a default VID (1 to 4094) for the channel. The channel can <pvid> only forward frames with this VLAN ID. The system would drop any frames received from the subscriber that are tagged with another VLAN ID.

  • Page 380: Port Ppvc Vlan Command

    MSC1000G User’s Guide The following example displays the PPVCs configured on the DSL port 5 on the line card in slot 7. It also displays VLAN information. ras> port ppvc show 7-5-8/35 detail type pvid profile -------------- ------ ----- ------ ---- --------------------------------...

  • Page 381: Port Pvc Commands

    MSC1000G User’s Guide This command adds a PPVC to a VLAN or removes a PPVC from a VLAN. It also sets whether the PPVC accepts incoming Ethernet frames with or without a VLAN tag. The following example adds the PPVC on ADSL port 5 in line card 7 with VPI 8 and VCI 35 to VLAN 28.

  • Page 382: Port Pvc Set Command

    MSC1000G User’s Guide 25.10.4 port pvc set Command Syntax: port pvc set <slot-port-vpi/vci> <profile> <mux> <pvid> <priority> where The slot and port(s) and VPI/VCI of the PVC. <slot-port-vpi/ vci> The name of an ATM profile. <profile> The type of encapsulation: vcmux <mux>...

  • Page 383: Port Pvc Usratelimit Enable Command

    MSC1000G User’s Guide The following example displays the virtual channels of DSL port 5 on the line card in slot 7. ras> port pvc show 7-5 type pvid profile -------------- ------ ----- ------ ---- -------------------------------- 7-5-0/33 bridge 0 DEFVAL 25.10.6 port pvc usratelimit enable Command Syntax: port pvc usratelimit enable <pvc>...

  • Page 384: Port Pvc Usratelimit Show Command

    MSC1000G User’s Guide 25.10.9 port pvc usratelimit show Command Syntax: port pvc usratelimit show <pvc> This command displays upstream rate limiting settings on a PVC. The following example shows the PVC rate settings on port 1 of the line card in slot 5.

  • Page 385: Port Shdsl Commands

    MSC1000G User’s Guide The following example adds the PVC on DSL port 5 on the line card in slot 7 with VPI 8 and VCI 35 to VLAN 23. ras> port pvc vlan 7-5-8/35 23 join untag 25.11 port shdsl Commands Use the commands to configure the subscriber SHDSL ports.

  • Page 386: Port Shdsl Pmms Command

    MSC1000G User’s Guide where = Power backoff with EPL (Estimated Power normal_epl|forced normal_epl _epl|forced_no_ep Loss). Each end calculates an EPL and uses it in determining a power backoff value for the other end to use. = Forced power backoff with EPL. The STU-C...

  • Page 387: Port Shdsl Set Command

    MSC1000G User’s Guide where The PMMS (Power Measurement Modulation Session) mode <mode> specifies how the target noise margin value is acquired. = Negotiated target noise margin mode. Each end of normal the connection determines the target noise margin to be used by the other end for the evaluation of the PMMS results.

  • Page 388: Port Tel Command

    MSC1000G User’s Guide This command displays the settings of the specified port(s). An example is shown next. ras> port show 7-5 port 7-5 name tel. no profile : DEFVAL alrm prof : DEFVAL state : enable mode : auto power mgmt...

  • Page 389: Port Tlspvc Delete Command

    MSC1000G User’s Guide 25.14.1 port tlspvc delete Command Syntax: port tlspvc delete <slot-port-vpi/vci> This command clears TLS settings for the PVC. 25.14.2 port tlspvc set Command Syntax: port tlspvc set <slot-port-vpi/vci> <profile> llc|vcmux <vid> <priority> where Name of an ATM profile.

  • Page 390: Port Vdsl Commands

    MSC1000G User’s Guide 25.15 port vdsl Commands Use the commands to configure the subscriber VDSL ports. port vdsl 25.15.1 port vdsl alarmprof Command Syntax: port vdsl alarmprof <slot-port> <profile> This command sets the VDSL port(s) to use the specified alarm profile.

  • Page 391: Port Vdsl Pvid Command

    MSC1000G User’s Guide 25.15.5 port vdsl pvid Command Syntax: port vdsl pvid <slot-port> <vid> This command sets the port VID on the VDSL port(s). 25.15.6 port vdsl rfiband Command Syntax: port vdsl rfiband <slot-port> <disable|ansi|etsi|custom> where Enter to use the pre-defined RFI band.

  • Page 392: Port Vdsl Set Command

    MSC1000G User’s Guide • Activate the settings. • Show the settings. ras> port vdsl rficustom set 1 3500 3800 ras> port vdsl rficustom enable 1 ras> port vdsl rficustom show index state start_freq stop_freq ------- ------- ------------ ----------- 3500 3800 ras>...

  • Page 393: Port Vdsl Upbo Commands

    MSC1000G User’s Guide Sets the priority level (from 0 to 7) for the service provider’s <spriority> VLAN ID. Use these commands to configure Transparent LAN Service (TLS) settings on the VDSL port(s). The following shows an example. • Enables TLS on port 5 on the VDSL line card in slot 4.
  • Page 394 MSC1000G User’s Guide Enter to have the port be a member of the specified join <registration> VLAN. Enter to remove the port from the specified VLAN. leave Enter to add a tag to all frames transmitted on this port. <tag>...

  • Page 395: Profiles Overview

    MSC1000G User’s Guide H A P T E R profile Commands This chapter shows you how to use the commands. profile 26.1 Profiles Overview Profiles are groups of settings that you can assign to a DSL port(s). This helps simplify and speed up DSL port configuration.

  • Page 396: Table 142 Profile Commands

    MSC1000G User’s Guide Table 142 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of ADSL port settings. <profile> <us- “us” is UpStream, “ds” is DownStream max-rate> <ds- max-rate> us maximum rate = 64~4096 in Kbps [fast|delay <us- ds maximum rate = 64~32000 in Kbps delay>...
  • Page 397 MSC1000G User’s Guide Table 142 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of ADSL alarm <profile> atuc settings. [lofs <lofs>] [loss <loss>] <profile> = profile name, up to 31 characters [lols <lols>] [lprs <lprs>] atuc = near end [ess <ess>] [ffr...
  • Page 398 MSC1000G User’s Guide Table 142 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of SHDSL alarm <profile> [atten settings. <atten>] [snrmgn <snrmgn>] [es <profile> = profile name, up to 31 characters <es>] [ses <ses>][crc <crc>] <atten> = loop attenuation [losws <losws>] threshold, 0~127 [uas <uas>]...
  • Page 399 MSC1000G User’s Guide Table 142 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of ADSL alarm <profile> atuc settings. [lofs <lofs>] [loss <loss>] <profile> = profile name, up to 31 characters [lols <lols>] [lprs <lprs>] atuc = near end [ess <ess>] [ffr...
  • Page 400 MSC1000G User’s Guide Table 142 profile Commands (continued) COMMAND DESCRIPTION Creates a profile of VDSL alarm <profile> [lofs settings. <lofs>] [loss <loss>] [lols <profile> = profile name, up to 31 characters <lols>] [lprs <lprs>] <lofs> = number of loss of framing [ess <ess>]...
  • Page 401 MSC1000G User’s Guide Table 142 profile Commands (continued) COMMAND DESCRIPTION Displays which ports reference this <igmpfilter> IGMP filter profile. Creates an IGMP filter profile of ATM <igmpfilter> traffic settings. <index> <startip> <endip> <igmpfilter> = profile name <index> = index of address, 1~16 <startip>...

  • Page 402: Profile Acl Commands

    MSC1000G User’s Guide Table 142 profile Commands (continued) COMMAND DESCRIPTION Lists the SHDSL port setting profiles or show [<profile>] a specific profile’s settings. VDSL profiles allow efficient vdsl configuration of VDSL port settings. Removes a VDSL port settings profile. delete <profile>...

  • Page 403: Profile Acl Set Command

    MSC1000G User’s Guide This command displays the DSL port(s) to which the specified ACL profile is applied. The following example displays the port mapping table for the ACL profile. example ras> profile acl map example port pvc ----- ------------------------------------------------------ 3- 1 0-33 26.3.3 profile acl set Command...
  • Page 404 MSC1000G User’s Guide where The rule that classifies traffic flows. Ordering of the criteria is <rule> important. The system first compares the layer 2 fields first, the layer 3 fields and then the protocol type. The following lists the set of criteria you can configure.

  • Page 405: Configuration Guidelines

    MSC1000G User’s Guide This command configures an ACL rule to classify the upstream traffic and perform action(s) on the classified traffic. The following creates an ACL rule example named for traffic from VLAN 10 with a test priority level of 2. This rule limits the rate on the classified traffic to 1000 kbps and changes the priority level to 7.

  • Page 406: Profile Adsl Set Command

    MSC1000G User’s Guide 26.4.1 profile adsl set Command Syntax: profile adsl set <profile> <us-max-rate> <ds-max-rate> [fast|delay <us-delay> <ds-delay>] [minrate <us-min-rate> <ds-min-rate>] [usmgn <us-max-mgn> <us-min-mgn> <us-tgt-mgn>] [dsmgn <ds-max-mgn> <ds-min-mgn> <ds-tgt-mgn>] [usra fixed|startup|runtime <us-us-mgn> <us-ds-mgn>] [dsra fixed|startup|runtime <ds-us-mgn> <ds-ds-mgn>] where The descriptive name for the profile.

  • Page 407: Profile Adsl Map Command

    MSC1000G User’s Guide The profile is a list of ADSL line configuration settings. After you create an ADSL profile, you can assign it to any of the ADSL ports on any of the ADSL line cards. Note that the default value will be used for any of the above fields that are omitted.

  • Page 408: Profile Adsl Delete Command

    MSC1000G User’s Guide where The name of the profile. <profile> This command displays which ADSL ports reference a specific profile. The following example displays which ADSL ports use the gold profile. ras> profile adsl map gold 26.4.3 profile adsl delete Command Syntax: profile adsl delete <profile>...

  • Page 409: Profile Alarmadsl Commands

    MSC1000G User’s Guide The following example displays the ADSL profile named gold. ras> profile adsl show gold adsl profile: gold upstream downstream -------- ---------- max rate (Kbps): 2048 16000 min rate (Kbps): 1024 3072 latency delay (ms): fast fast max margin (dB): 12.0...

  • Page 410: Profile Alarmadsl Set Command

    MSC1000G User’s Guide The following example displays the default alarm ADSL profile (DEFVAL). ras> profile alarmadsl show DEFVAL adsl alarm profile : DEFVAL atuc atur ---------- ---------- 15MinLofs(lofs) (sec): 15MinLoss(loss) (sec): 15MinLols(lols) (sec): 15MinLprs(lprs) (sec): 15MinESs(ess) (sec): 15MinFailedFastR(ffr) (sec): 15MinSesL(sesl)

  • Page 411: Profile Alarmadsl Delete Command

    MSC1000G User’s Guide The number of Failed Fast Retrain seco (0~900) that are <ffr> permitted to occur within 15 minutes. The number of Severely Errored Seconds (0~900) that are <sesl> permitted to occur within 15 minutes. The number of UnAvailable Seconds (0~900) that are permitted <uasl>...

  • Page 412: Profile Alarmadsl Map Command

    MSC1000G User’s Guide This command allows you to delete an individual ADSL alarm profile by its name. You cannot delete the DEFVAL alarm profile. The following example deletes the SESalarm alarm profile. ras> profile alarmadsl delete SESalarm 26.5.4 profile alarmadsl map Command Syntax: profile alarmadsl map <profile>...

  • Page 413: Profile Alarmshdsl Set Command

    MSC1000G User’s Guide The following example displays the default alarm SHDSL profile (DEFVAL). ras> profile alarmshdsl show DEFVAL shdsl alarm profile : DEFVAL loop attenuation(atten) (dB): snr margin(snrmgn) (dB): (sec): (sec): crc anomalies(crc) losws (sec): (sec): ras> 26.6.2 profile alarmshdsl set Command Syntax: <profile>...

  • Page 414: Profile Alarmshdsl Delete Command

    MSC1000G User’s Guide The following example sets an alarm profile named SESalarm that has the MSC send an alarm trap and generate a syslog whenever the connection’s number of severely errored seconds exceeds three within a 15 minute period. ras> profile alarmshdsl set SESalarm ses 3 26.6.3 profile alarmshdsl delete Command...

  • Page 415: Profile Alarmvdsl Show Command

    MSC1000G User’s Guide 26.7.1 profile alarmvdsl show Command Syntax: profile alarmvdsl show [<profile>] where The name of an alarm profile. <profile> This command displays the details of the specified alarm VDSL profile or lists all of the alarm VDSL profiles if you do not specify one.

  • Page 416: Profile Alarmvdsl Delete Command

    MSC1000G User’s Guide The number of Severely Errored Seconds (0~900) that are <sesl> permitted to occur within 15 minutes. The number of UnAvailable Seconds (0~900) that are permitted <uasl> to occur within 15 minutes. A rate in kilobits per second (Kbps). If an interleave mode <iru>...

  • Page 417: Profile Alarmvdsl Map Command

    MSC1000G User’s Guide 26.7.4 profile alarmvdsl map Command Syntax: profile alarmvdsl map <profile> where The name of an alarm profile. <profile> This command displays which VDSL ports are set to use the specified alarmadsl profile. The following example displays which VDSL ports use the SESalarm alarmadsl profile.

  • Page 418: Profile Atm Set Command

    MSC1000G User’s Guide The following example displays the DEFVAL ATM profile. ras> profile atm show DEFVAL atm profile: DEFVAL traffic class: ubr : 300000 cdvt ras> 26.8.2 profile atm set Command Syntax: profile atm set <atmprofile> cbr|ubr <pcr> <cdvt> profile atm set <atmprofile> rt-vbr|nrt-vbr <pcr> <cdvt> <scr> <bt>...

  • Page 419: Profile Atm Delete Command

    MSC1000G User’s Guide The following example creates an ATM profile named gold. It uses constant bit rate and has the maximum rate (peak cell rate) set to 300,000 cells per second. The acceptable tolerance of the difference between a cell’s transfer delay and the expected transfer delay (CDVT) is set to 5 cells.

  • Page 420: Profile Atm Map Command

    MSC1000G User’s Guide 26.8.4 profile atm map Command Syntax: profile atm map <profile> where The name of a profile. <profile> This command displays which PVCs or PPVCs are set to use the specified ATM profile. The following example displays which PVCs or PPVCs use the silver profile.

  • Page 421: Profile Profsvr Mode Command

    MSC1000G User’s Guide 26.10.2 profile profsvr mode Command Syntax: profile profsvr mode client|server This command sets the profile server operation mode. ras> profile profsvr mode server 26.10.3 profile profsvr clientlist set Command Syntax: profile profsvr clientlist set <ip> <type> where A profile client IES-5000 may have unused profiles on it <type>...

  • Page 422: Profile Profsvr Clientlist Show Command

    MSC1000G User’s Guide The following example removes a profile server client entry for an IES-5000 at IP address 1.2.3.4. ras> profile profsvr clientlist delete 1.2.3.4 26.10.5 profile profsvr clientlist show Command Syntax: profile profsvr clientlist show <ip> This command displays the profile server client list.

  • Page 423: Profile Shdsl Commands

    MSC1000G User’s Guide 26.11 profile shdsl Commands Use the commands to configure SHDSL profiles. profile shdsl 26.11.1 profile shdsl set Command Syntax: profile shdsl set <profile> <min-rate> <max-rate> [annexa|annexb 2wire|4wire|mpair4 [lp_off | lp_on_cur [curr_margin] | lp_on_wc [worst_margin]]] where The descriptive name for the profile.

  • Page 424: Profile Shdsl Map Command

    MSC1000G User’s Guide The current condition target Signal to Noise Ratio margin, -10 ~ <curr-margin> 21 in dB. The worst case Signal to Noise Ratio margin, -10 ~ 21 in dB. <worst-margin> The profile is a table that contains information on SHDSL line configuration. Each entry in this table reflects a parameter defined by a manager, which can be used to configure the shdsl line.

  • Page 425: Profile Shdsl Delete Command

    MSC1000G User’s Guide 26.11.3 profile shdsl delete Command Syntax: profile shdsl delete <profile> where A profile name. <profile> This command allows you to delete an individual shdsl profile by its name. You cannot delete a profile that is assigned to any of the DSL ports in the MSC. Assign a different profile to any DSL ports that are using the profile that you want to delete, and then you can delete the profile.

  • Page 426: Profile Vdsl Delete Command

    MSC1000G User’s Guide 26.12.1 profile vdsl delete command Syntax: profile vdsl delete <profile> where A profile name. <profile> This command allows you to delete an individual shdsl profile by its name. You cannot delete a profile that is assigned to any of the DSL ports in the MSC. Assign a different profile to any DSL ports that are using the profile that you want to delete, and then you can delete the profile.
  • Page 427 MSC1000G User’s Guide The maximum VDSL downstream transmission rate, <ds-max-rate> 64~100032 in Kbps. The latency mode. With interleave, you must also define the [fast|delay <us- delay> <ds- upstream and downstream delay (1-255 ms). It is recommended delay>] that you configure the same delay for both upstream and downstream.

  • Page 428: Profile Vdsl Show Command

    MSC1000G User’s Guide 26.12.4 profile vdsl show Command Syntax: profile vdsl show [<profile>] where The descriptive name for the profile. <profile> This command displays the the VDSL profile list of the settings of a VDSL profile configured on the system.

  • Page 429: Table 143 Show Commands

    MSC1000G User’s Guide H A P T E R show Commands This chapter shows you how to use the commands. show 27.1 show Commands Overview commands display runtime status information. show 27.2 Commands Summary show The following table lists the commands.
  • Page 430 MSC1000G User’s Guide Table 143 show Commands (continued) COMMAND DESCRIPTION Displays the (IEEE 802.3ad) link dot3ad aggregation settings. Displays Ethernet packet counters. enet sub1|sub2|up1|up2 |<slot> Displays IGMP related statistics. igmp info Displays the learned IGMP group group [<vid> settings and status.

  • Page 431: Show Commands

    MSC1000G User’s Guide 27.3 show Commands Use these commands to display runtime status information. 27.3.1 show adsl Commands Use the commands to display the line information for an active ADSL line. show adsl 27.3.1.1 show adsl linedata Command Syntax: show adsl linedata <slot-port>...
  • Page 432 MSC1000G User’s Guide ras> show adsl linedata 7-5 slot-port=7-5, DSL line data link = link_up savedData=true usBit Table 1:00 00 00 00 00 00 00 07 08 09 0a 0b 0b 0c 0c 0d 17:0d 0d 0d 0e 0d 0d 0d 0d 0d 0d 0d 0c 0b 0a 09 08...

  • Page 433: Show Adsl Linegain Command

    MSC1000G User’s Guide 27.3.1.2 show adsl linegain Command Syntax: show adsl linegain <slot-port> This command displays the gain parameter of the active ADSL line. 27.3.1.3 show adsl linehlog Command Syntax: show adsl linehlog <slot-port> This command displays the HLOG parameter of the active ADSL line.

  • Page 434: Table 144 Show Atm Command Display

    MSC1000G User’s Guide ras> show arp ip address time ether address interface --------------- ----- ----------------- ---------- 172.23.14.26 290 00:0d:60:cc:14:e9 outband 172.23.14.76 290 00:00:e8:97:70:64 outband 172.23.14.91 290 00:0a:e4:0a:76:21 outband 172.23.14.98 290 00:50:70:ff:f3:89 outband 172.23.15.97 300 08:00:46:74:0e:a5 outband 172.23.15.172 300 02:0e:a6:89:41:60 outband 172.23.15.254...

  • Page 435: Show Dot3Ad Command

    MSC1000G User’s Guide 27.3.4 show dot3ad Command Syntax: show dot3ad This command displays the (IEEE 802.3ad) link aggregation settings. The following is an example. ras> show dot3ad [aggregator info] sub: state : disable members: sub1 sub2 links syncs state : disable...

  • Page 436: Show Enet Command

    MSC1000G User’s Guide This command displays the DHCP snooping table on port 2 of the line card in slot 2 (refer to Table 71 on page 185 for field descriptions). ras> show dhcp snoop 2-2 port 2-2: overflow 0 --- --------------- ----------------- 172.23.19.4 00:50:ba:2c:70:e1...

  • Page 437: Table 145 Show Enet Command Display

    MSC1000G User’s Guide The following table describes labels in this example. Table 145 show enet Command Display LABEL DESCRIPTION This is the number of octets of Ethernet frames received that are from 0 to 1518 RxByte octets in size, counting the ones in bad packets, not counting framing bits but counting FCS (Frame Check Sequence) octets.

  • Page 438: Show Igmp Commands

    MSC1000G User’s Guide Table 145 show enet Command Display (continued) LABEL DESCRIPTION This is the number of valid IEEE 802.3x Pause frames received on this port. RxPause This is the number of received frames that were received by the MSC, but later RxDropped dropped because of a lack of system resources.

  • Page 439: Show Igmp Group Command

    MSC1000G User’s Guide 27.3.8.2 show igmp group Command Syntax: show igmp group [<vid> <mcast_ip>] where The multicast IP address. <mcast_ip> This command displays the IGMP group information that is learned on the system or from the specified VLAN. ras> show igmp group...

  • Page 440: Show Ip Command

    MSC1000G User’s Guide 27.3.9 show ip Command Syntax: show ip This command displays the management IP settings and statistics. An example is shown next. ras> show ip outband[enif0] inband[swif0] -------------- --------------- --------------- inet 192.168.0.1 172.23.19.206 netmask 255.255.255.0 255.255.255.0 broadcast 192.168.0.255 172.23.19.255...

  • Page 441: Table 146 Show Lineinfo Command Display

    MSC1000G User’s Guide The following table describes labels in this example. Table 146 show lineinfo Command Display LABEL DESCRIPTION This displays the connection status of the DSL link. link This is the ADSL standard that the port is using. service type Trellis coding helps to reduce the noise in ADSL transmissions.

  • Page 442: Table 147 Line Performance Counters

    MSC1000G User’s Guide The following example displays the line performance counters for ADSL port 5 on the line card in slot 7. ras> show lineperf 7-5 slot-port=7-5, DSL line perf fast interleave ---------- ---------- FeCrc = NeCrc = FeFec =...

  • Page 443: Table 148 Line Rate Information

    MSC1000G User’s Guide 27.3.12 show linerate Command Syntax: show linerate <slot-port> This command displays an ADSL port's line rate information. The following example displays the line operating values for ADSL port 5 on the line card in slot 7. ras> show linerate 7-5...

  • Page 444: Show Mac Command

    [sub1|sub2|up1|up2|enet|<mac>|<slot>|<slot-port>|{vid <vid1>[- <vid2>] This command displays the IEEE 802.1d MAC address forwarding table. The following example displays the IEEE 802.1d MAC address forwarding table on uplink port 1. MSC1000G> show mac up1 port ---- ----------------- ----- 1 00:00:01:aa:bb:cc...

  • Page 445: Table 149 Show Monitor Command Information

    MSC1000G User’s Guide The following example displays the hardware monitor statistics for the line card in slot 7. ras> show monitor 7 '*' indicates a current alarm voltage: volt current nominal high_lmt low_lmt ---------------- -------- -------- -------- -------- 1.2V 1.187 1.200...

  • Page 446: Show Packet Command

    MSC1000G User’s Guide This command displays information (such as bridge ID, topology change counter, etc.) of the specified MST region(s). The following example displays MST region information for MST IDs 1 and 2. ras> show mstp 1 2 [mstid 1]...

  • Page 447: Show Paepvc Counter Command

    MSC1000G User’s Guide The following example displays the hardware monitor statistics for ADSL port 5 on the line card in slot 7. ras> show packet 7-5 ifInOctets = 66240 ifInUcastPkts = 1029 ifInMcastPkts = 149 ifInBcastPkts = 202 ifInNUcastPkts = 351...

  • Page 448: Table 150 Show Paepvc Counter Command Fields

    MSC1000G User’s Guide The following table describes the counters. Table 150 show paepvc counter Command Fields FIELD DESCRIPTION This field displays the number of PPP config-request packets ppp lcp config-request received. This field displays the number of PPP echo-request packets received.

  • Page 449: Table 151 Show Performance Curr

    MSC1000G User’s Guide This command displays a DSL port’s performance counters. The following example displays the current performance counters for ADSL port 5 on the line card in slot 7. ras> show perform 7-5 curr PhysEntry --------- atuc/atur CurrSnrMgn = 12.5/5.5 dB atuc/atur CurrAtn = 1.9/0.0 dB...
  • Page 450 MSC1000G User’s Guide Table 151 show performance curr (continued) LABEL DESCRIPTION These are the numbers of milliseconds of interleave delay for downstream and ChanInterlea upstream transmissions. veDelay These are the ADSL line’s current downstream and upstream transmission rates in ChanCurrTxRa decibels.

  • Page 451: Table 152 Show Performance 1Day

    MSC1000G User’s Guide The following example displays the one day performance counters for ADSL port 5 on the line card in slot 7. ras> show performance 7-5 1day PerfCurr1Day ------------- atuc/atur TimeElapsed = 57163/57163 seconds atuc/atur Lofs = 0/0 seconds...

  • Page 452: Show Rmon Command

    MSC1000G User’s Guide 27.3.21 show rmon Command Syntax: show rmon stats|history sub1|sub2|up1|up2 This command displays subtending or uplink RMON MIB information. See RFC 1757 for information on the RMON MIBs. The following example displays RMON history information for subtending port 1.

  • Page 453: Show Sys Command

    MSC1000G User’s Guide The following example displays RMON statistics for subtending port 1. ras> show rmon stats sub1 etherStatsDropEvents etherStatsOctets etherStatsPkts etherStatsBroadcastPkts etherStatsMulticastPkts etherStatsCRCAlignErrors etherStatsUndersizePkts etherStatsOversizePkts etherStatsFragments etherStatsJabbers etherStatsCollisions etherStatsPkts64Octets etherStatsPkts65to127Octets etherStatsPkts128to255Octets etherStatsPkts256to511Octets etherStatsPkts512to1023Octets etherStatsPkts1024to1518Octets = 0 ras> 27.3.22 show sys Command...

  • Page 454: Show User Command

    MSC1000G User’s Guide ras> show sys CPU usage status: baseline 1456790 ticks ticks util ticks util ticks util ticks util 0 1368112 6.08 1 1194429 18.01 2 1327543 8.87 3 1368072 6.09 4 1366933 6.16 5 1387487 4.75 6 1388150 4.71...

  • Page 455: Show Vlan Command

    MSC1000G User’s Guide 27.3.24 show vlan Command Syntax: show vlan [<vid>] show vlan <start-vid> <end-vid> This command displays the current VLANs. The following example shows VLAN 1. It is set to send untagged Ethernet frames to the Gigabit Ethernet subtending and uplink ports.
  • Page 456 MSC1000G User’s Guide Chapter 27 show Commands...

  • Page 457: Chapter 28 Switch Commands

    MSC1000G User’s Guide H A P T E R switch Commands This chapter shows you how to use the commands. switch 28.1 switch Commands Overview commands configure switching functions and manage the Ethernet interfaces. switch 28.2 Commands Summary switch The following table lists the commands.
  • Page 458 MSC1000G User’s Guide Table 153 switch Commands (continued) COMMAND DESCRIPTION Displays LACP settings. show Sets the time interval between exchanging timeout short|long LACP packets. Displays the link aggregation state. show Deactivates DSCP-IEEE 802.1p mappings dscp disable <giga-port> on this port.
  • Page 459 MSC1000G User’s Guide Table 153 switch Commands (continued) COMMAND DESCRIPTION Sets the maximum time (between 6 and 40 maxage <maxage-sec> seconds) a switch can wait without receiving a BPDU before attempting to reconfigure. Sets the number of hops (between 1 and maxhops <max-hops>...

  • Page 460: Switch Bandwidth Commands

    MSC1000G User’s Guide Table 153 switch Commands (continued) COMMAND DESCRIPTION Displays MSTP settings. show <mstid> [<end_mstid>] Sets the name of a port. name <giga-port> <name> Sets a port’s default ingress user priority priority <giga-port> (0~7). <priority> Sets the PVID (Port VLAN ID) (1~4094) pvid <giga-port>...

  • Page 461: Switch Bandwidth Enable Command

    MSC1000G User’s Guide This example turns off bandwidth control for the uplink 1 port. ras> switch bandwidth disable up1 28.3.2 switch bandwidth enable Command Syntax: switch bandwidth enable <giga-port> where = This represents Gigabit Ethernet uplink ports, subtending ports or <giga-port>...

  • Page 462: Switch Bandwidth Show Command

    MSC1000G User’s Guide This example sets the subtending 2 port to only allow 128 Mbps for incoming traffic and 512 Mbps for outgoing traffic. ras> switch bandwidth set sub2 128 512 28.3.4 switch bandwidth show Command Syntax: switch bandwidth show This command displays the bandwidth control settings on the Gigabit Ethernet ports.

  • Page 463: Switch Bcastctrl Show Command

    MSC1000G User’s Guide = Sets how many multicast packets the interface is allowed to receive <mc-limit> per second. 0~262143, use -1 to disable. = Sets how many unknown unicast packets the interface is allowed to <uu-limit> receive per second. 0~262143, use -1 to disable.

  • Page 464: Switch Dot3Ad Lacp Timeout Command

    MSC1000G User’s Guide where = LACP system priority is a number between 1 and 65,535. The <priority> switch with the lowest system priority (and lowest port number if system priority is the same) becomes the LACP “server”. The LACP “server” controls the operation of LACP setup. Enter a number to set the priority of an active port using Link Aggregate Control Protocol (LACP).

  • Page 465: Switch Dot3Ad Enable Command

    MSC1000G User’s Guide ras> switch dot3ad lacp show priority : 1000 time out : short (1 sec) ras> 28.5.4 switch dot3ad enable Command Syntax: switch dot3ad enable sub|up [lacp] where = The subtending ports = The uplink ports. = Turns on LACP protocol.

  • Page 466: Switch Dot3Ad Show Command

    MSC1000G User’s Guide 28.5.6 switch dot3ad show Command Syntax: switch dot3ad show sub|up where = The subtending ports = The uplink ports. This command displays the link aggregation state of the specified ports. It displays the settings for both the subtending and uplink ports if you do not specify one or the other.

  • Page 467: Switch Garptimer Join Command

    MSC1000G User’s Guide 28.6.2 switch garptimer join Command Syntax: switch garptimer join <join msec> where This sets the duration of the Join Period timer for GVRP in <join msec> milliseconds. Each port has a Join Period timer. The allowed Join Time range is between 100 and 32767 milliseconds; the default is 200 milliseconds.

  • Page 468: Switch Garptimer Leaveall Command

    MSC1000G User’s Guide 28.6.4 switch garptimer leaveall Command Syntax: switch garptimer leaveall <leaveall msec> where This sets the duration of the Leave All Period timer for GVRP <leaveall msec> in milliseconds. Each port has a single Leave All Period timer.

  • Page 469: Switch Isolation Commands

    MSC1000G User’s Guide This command sets the MSC’s Join, Leave and Leave All timers. The following example sets the Join Timer to 300 milliseconds, the Leave Timer to 900 milliseconds and the Leave All Timer to 12000 milliseconds. ras> switch garptimer join 300 900 12000 28.7 switch isolation Commands...

  • Page 470: Switch Mstp Commands

    MSC1000G User’s Guide ras> switch isolation disable port isolation :enabled ras> 28.8 switch mstp Commands Use the commands to configure multiple spanning tree settings on the system. switch mstp 28.8.1 switch mstp cfgname Command Syntax: switch mstp cfgname <config name>...

  • Page 471: Switch Mstp Fwdelay Command

    MSC1000G User’s Guide 28.8.4 switch mstp fwdelay Command Syntax: switch mstp fwdelay <fwdelay-sec> This command sets the forward delay period (between 4 and 30 seconds) the switch waits before changing states. The following example sets the forward delay time to 15 seconds.

  • Page 472: Switch Mstp Priority Command

    MSC1000G User’s Guide The following example sets the maximum hop count to 20. After 20 hops (or passing through 20 devices), a BPDU is dropped. ras> switch mstp maxhops 20 28.8.8 switch mstp priority Command Syntax: switch mstp priority <mstid> <priority>...

  • Page 473: Switch Mstp Version Command

    MSC1000G User’s Guide This command displays the general MSTP settings on the switch. The following figure shows an example. ras> switch mstp show config name : test revision level status : disabled priority : 32768 hello time (s): 5 max age...

  • Page 474: Switch Port Commands

    MSC1000G User’s Guide where <mstid> Index number (between 0-16) to identify a spanning tree instance. For CIST, enter 0. To identify an MSTI, enter a number between 1 and 16. <start_vid> Start of the VLAN range. <end_vid> End of the VLAN range.

  • Page 475: Figure 159 Switch Port Flowctrl Enable Command Example

    MSC1000G User’s Guide The following example turns on the subtending 1 Gigabit Ethernet interface. ras> switch port enable sub1 28.9.3 switch port flowctrl disable Command Syntax: switch port flowctrl disable <giga-port> This command turns off flow control on a Gigabit Ethernet interface.

  • Page 476: Switch Port Gvrp Commands

    MSC1000G User’s Guide The following example sets ports the subtending 1 Gigabit Ethernet interface to accept only tagged frames. ras switch port frametype sub1 tag 28.9.6 switch port gvrp Commands Use the commands to configure GVRP settings for the Gigabit Ethernet switch port gvrp interfaces.

  • Page 477: Switch Port Mstp Commands

    MSC1000G User’s Guide This command sets a Gigabit Ethernet interface to function as uplink or subtending. The following example sets the subtending 1 Gigabit Ethernet interface (Gigabit port 1) to uplink mode. ras> switch port mode sub1 uplink 28.9.8 switch port mstp Commands...

  • Page 478: Switch Port Mstp Enable Command

    MSC1000G User’s Guide 28.9.8.3 switch port mstp enable Command Syntax: switch port mstp enable disable <giga-port> <mstid> This command sets the specified switch port to participate in the spanning tree instance. The following example activates MSTP on all uplinking and subtending ports in the spanning tree instance 3.

  • Page 479: Switch Port Mstp Priority Command

    MSC1000G User’s Guide ras> switch port mstp pathcost up1 10 200 28.9.8.6 switch port mstp priority Command Syntax: switch port mstp priority <giga-port> <mstid> <priority> This command sets the priority (between 0 and 255 in multiples of 16) of the port in the specified spanning tree.

  • Page 480: Switch Port Priority Command

    MSC1000G User’s Guide where A name to identify the port. <name> This command sets the name of a Gigabit Ethernet interface. The following example sets the name of the subtending 1 Gigabit Ethernet interface to ras> switch port name sub1 xyz 28.9.10 switch port priority Command...

  • Page 481: Switch Port Show Command

    MSC1000G User’s Guide This command sets the Port VLAN ID assigned to untagged frames or priority frames (0 VID) received on this port(s). The following example sets the PVID of the subtending 1 Gigabit Ethernet interface to 76. ras> switch port pvid sub1 76 28.9.12 switch port show Command...

  • Page 482: Switch Port Vlantrunk Commands

    MSC1000G User’s Guide The following example sets the speed of the uplink 1 Gigabit Ethernet interface to 1000 Mbps and the duplex to full. ras> switch port speed up1 1000F 28.10 switch port vlantrunk Commands Use these commands to turn VLAN trunking on or off for the Gigabit Ethernet interfaces.

  • Page 483: Switch Qschedule Commands

    MSC1000G User’s Guide ras> switch port vlantrunk disable sub1 28.11 switch qschedule Commands Use these commands to set a port’s queuing method and/or priority weight. 28.11.1 switch qschedule set Command Syntax: switch qschedule set <giga-port> spq <giga-port> wrr <wt0> <wt1> <wt2> <wt3> <wt4> <wt5> <wt6> <wt7>...

  • Page 484: Switch Queuemap Commands

    MSC1000G User’s Guide This command shows the queuing methods and/or priority weights of the Gigabit Ethernet interfaces. This is an example. ras> switch qschedule show port algo_type wt0 wt1 wt2 wt3 wt4 wt5 wt6 wt7 ---- --------- --- --- --- --- --- --- --- ---...
  • Page 485 MSC1000G User’s Guide ras> switch queuemap show priority queue -------- ----- ras> Chapter 28 switch Commands...
  • Page 486 MSC1000G User’s Guide Chapter 28 switch Commands...

  • Page 487: Table 154 Sys Commands

    MSC1000G User’s Guide H A P T E R sys Commands This chapter shows you how to use the commands. 29.1 sys Commands Overview commands are for system management and maintenance. 29.2 Commands Summary The following table lists the commands. The P column on the right indicates the administrator privilege level needed to use the command (H for high, M for middle or L for low).
  • Page 488 MSC1000G User’s Guide Table 154 sys Commands (continued) COMMAND DESCRIPTION Sets the geographic location of the location <location> system. Displays general system and MSC show information. Sets the hardware monitor threshold monitor <slot> settings. <volt|temp|fan|cup > <index> <high- limit> <low-limit>...
  • Page 489 MSC1000G User’s Guide Table 154 sys Commands (continued) COMMAND DESCRIPTION Sets the system to use the specified version v2c|v3|v3v2c SNMP version and access. = SNMPv2 read/write = SNMPv3 read/write v3v2c = SNMPv3 read/write and SNMPv2 read-only. Turns off syslog logging.

  • Page 490: Sys Commands

    MSC1000G User’s Guide Table 154 sys Commands (continued) COMMAND DESCRIPTION Sets a RADIUS server’s IP address and server <ip> <port> port number and the password to access <secret> the server. [high|middle|low|d = assigns the login accounts a low eny] privilege level if the received service type is “login”.

  • Page 491: Sys Baud Set Command

    MSC1000G User’s Guide 29.3.2 sys baud set Command Syntax: sys baud set 9600|19200|38400|57600|115200 This command sets the bps. console port speed in The following example sets the console port speed to 115200 bps. ras> sys baud set 115200 29.3.3 sys baud show Command...

  • Page 492: Sys Client Disable Command

    MSC1000G User’s Guide This command turns on a secured client set. The following example turns on secured client set 1. ras> sys client enable 1 29.3.6 sys client disable Command Syntax: sys client disable <index> This command turns off a secured client set.

  • Page 493: Sys Time Set Command

    MSC1000G User’s Guide This command displays the system’s current time. An example is shown next. ras> sys time show current time is 17:57:01 ras> 29.3.9 sys time set Command Syntax: sys time set <hh> [<mm> [<ss>]] This command sets the system’s time. An example is shown next.

  • Page 494: Sys Timeserver Set Command

    MSC1000G User’s Guide This command displays the system’s time server settings. An example is shown next. ras> sys timeserver show protocol: none server : 0.0.0.0 timezone: utc ras> 29.3.13 sys timeserver set Command Syntax: sys timeserver none sys timeserver daytime <ip> [sync] sys timeserver time|ntp <ip>...

  • Page 495: Sys Timeserver Sync Command

    MSC1000G User’s Guide 29.3.14 sys timeserver sync Command Syntax: sys timeserver sync This command has the MSC get the time and date from the time server. An example is shown next. ras> sys timeserver sync sync with time server...success ras>...

  • Page 496: Sys Info Frame Command

    MSC1000G User’s Guide The following example sets Bob_ext1234 as the system’s contact person information. ras> sys info contact Bob_ext1234 29.3.17 sys info frame Command Syntax: sys info frame <frame> where Number (an integer from 1 to 65535) of the frame (rack) where <frame>...

  • Page 497: Sys Info Show Command

    MSC1000G User’s Guide where The geographic location (up to 31 characters) of your device. <location> This command sets the geographic location of the system. The following example sets Taiwan as the system’s geographic location. ras> sys info location Taiwan 29.3.20 sys info show Command...
  • Page 498 MSC1000G User’s Guide where The main chassis slot where the card is located. Use the slot <slot> number of the MSC when you configure the fan limits. = Set the voltage tolerance range. volt|temp|fan|cpu voltage = Set the temperature tolerance range.

  • Page 499: Sys Monitor Show Command

    MSC1000G User’s Guide A sensor’s maximum voltage, temperature or fan RPM limit. <high-limit> The maximum voltage for each voltage sensor must be within the following ranges. Measured in millivolts (mV). MSC: 1 = 2575~2750, 2 = 1287~1375, 3 = 3399~3630, 4 =...

  • Page 500: Sys Multilogin Enable Command

    MSC1000G User’s Guide where The main chassis slot where the card is located. The fan <slot> statistics are included with the MSC statistics. This command displays the hardware monitor’s statistics. The following example shows the MSC statistics. ras> sys monitor show 2...

  • Page 501: Table 155 Multiple Login Overview

    MSC1000G User’s Guide This command turns on multiple login. Multiple login allows multiple administrators to be logged into the system at the same time. The following table describes how many sessions can be used at the same time. Table 155 Multiple Login Overview...

  • Page 502: Sys Server Port Command

    MSC1000G User’s Guide where Displays the reboot schedule. [show] The number of seconds (1~2147483647) before the system <sec> reboots. If there is no time specified, the system reboots immediately. Aborts the scheduled system rebooting. [cancel] This command restarts the system.

  • Page 503: Sys Server Enable Command

    MSC1000G User’s Guide The following example sets the MSC to block Telnet sessions. ras> sys server disable telnet 29.3.29 sys server enable Command Syntax: sys server enable telnet|ftp|web|snmp|ssh This command turns on access for a service on the MSC. The following example sets the MSC to allow Telnet sessions.

  • Page 504: Sys Snmp Setcommunity Command

    MSC1000G User’s Guide where The password for the incoming Get- and GetNext- requests from the <community> management station. Enter this command with the community to set the password. The following example sets the password for incoming Get- and GetNext requests to “Get123”.

  • Page 505: Sys Snmp Trapdst Command

    MSC1000G User’s Guide 29.4.4 sys snmp trapdst Command Syntax: sys snmp trapdst <index> <ip> [<port>] [v1|v2|v3] [<name>] where The number of the trap server (1~4). <index> The IP address of the trap server. <ip> The port number upon which the trap server listens for SNMP traps.

  • Page 506: Sys Snmp User Command

    MSC1000G User’s Guide This command displays the current SNMP get community, set community, trap community and trap destination settings. The following is an example. ras> sys snmp show [community] get community : Get123 set community : Set123 trap community: public [trap destination] 1: 192.168.1.36:162...

  • Page 507: Sys Snmp Version Command

    MSC1000G User’s Guide 29.4.7 sys snmp version Command Syntax: sys snmp version v2c|v3|v3v2c where Sets the SNMP version and access mode. v2c|v3|v3v2c = SNMPv2 read/write = SNMPv3 read/write with additional user authentication and data encryption options. = SNMPv3 read/write and SNMPv2 read-only.

  • Page 508: Sys Syslog Enable Command

    MSC1000G User’s Guide ras> sys syslog server local3 192.168.1.43 29.5.2 sys syslog enable Command Syntax: sys syslog enable This command sets the MSC to send logs to an external syslog server. An example is shown next. ras> sys syslog enable 29.5.3 sys syslog disable Command...

  • Page 509: Sys User Commands

    MSC1000G User’s Guide 29.6 sys user Commands Use these commands to configure the MSC’s administrator account and authentication settings. 29.6.1 sys user auth Command Syntax: sys user auth <mode> where Sets which database the switch uses to authenticate a user.

  • Page 510: Sys User Set Command

    MSC1000G User’s Guide The password for the RADIUS server. <secret> The default account privilege assignmenet if the RADIUS server [high|middle|lo w|deny] does not send the service type information after user authentication is successful. = assigns the login accounts a low privilege level.

  • Page 511: Sys User Delete Command

    MSC1000G User’s Guide This command sets a local user administrator account and its level of access privileges. The following example sets an administrator account with a user name of “bob” password of “smith” and middle level access privileges. ras> sys user set bob smith middle 29.6.4 sys user delete Command...

  • Page 512: Sys User Show Command

    MSC1000G User’s Guide where The user name for the account <name> This command turns off an administrator account. The following example turns off the “bob” administrator account. ras> sys user disable bob 29.6.7 sys user show Command Syntax: sys user show This command displays authentication settings and user accounts.

  • Page 513: Table 156 Vlan Commands

    MSC1000G User’s Guide H A P T E R vlan Commands This chapter shows you how to use the commands. vlan 30.1 vlan Commands Overview commands are for static VLAN management. vlan 30.2 Commands Summary vlan The following table lists the commands.

  • Page 514: Vlan Delete Command

    MSC1000G User’s Guide 30.3.1 vlan delete Command Syntax: vlan delete <vid> This command removes a static VLAN. The following example removes static VLAN entry 27. ras> vlan delete 27 30.3.2 vlan disable Command Syntax: vlan disable <vid> This command turns off the static VLAN.

  • Page 515: Vlan Set Command

    MSC1000G User’s Guide This command sets the name for an entry in the static VLAN table. The following example names static VLAN entry 27 “sub1”. ras> vlan name 27 sub1 30.3.5 vlan set Command Syntax: vlan set <vid> <giga-port> fix|forbid|normal tag|untag where The VLAN ID [1 –...
  • Page 516 MSC1000G User’s Guide where You can specify a single VID: <1>, or a range of VIDs: <6> [<vid>]|[<start- vid> <end-vid>] <10>. This command shows information about the specified VLAN’s settings. It displays the settings of all of the VLANs if you do not specify a VLAN.

  • Page 517: Chapter 31 Firmware And Configuration File Maintenance

    MSC1000G User’s Guide H A P T E R Firmware and Configuration File Maintenance This chapter tells you how to upload a new firmware and/or configuration file for the MSC. 31.1 Firmware and Configuration File Maintenance Overview The MSC’s built-in FTP (and SFTP) servers allow you to use any FTP (or SFTP) client (for example, ftp.exe in Windows) to upgrade MSC or MSC firmware or configuration files.

  • Page 518: Table 157 File Name Conventions

    MSC1000G User’s Guide The following table is a summary. Please note that the internal filename refers to the filename on the MSC and the external filename refers to the filename not on the MSC, that is, on your computer, local network or FTP site and so the name (but not the extension) may vary. After...

  • Page 519: Edit Configuration File

    MSC1000G User’s Guide 31.3.2 Edit Configuration File Open the file via a text editor (see the following example) and edit to the desired config.dat configuration. Note: Ensure that any changes you make to the commands in the configuration file correspond to the commands documented in this User’s Guide.

  • Page 520: Firmware File Upgrade

    MSC1000G User’s Guide Quit FTP. ftp> quit Wait for the update to finish. The system restarts automatically. 31.4 Firmware File Upgrade Use the following procedure to upload firmware to the management switch card, DSL line card or DSL line cards.

  • Page 521: Configuration File Upgrade

    MSC1000G User’s Guide • Use this command to transfer the firmware file to the management switch card that you are using (the internal firmware file is named ras) ftp> put firmware.bin ras • Use this command to transfer the firmware file to a DSL line card or the management switch card that you are not currently using.
  • Page 522 MSC1000G User’s Guide Chapter 31 Firmware and Configuration File Maintenance...

  • Page 523: Table 158 Troubleshooting The Gigabit Ethernet Connection

    MSC1000G User’s Guide H A P T E R Troubleshooting This chapter covers potential problems and possible remedies. After each problem description, some steps are provided to help you to diagnose and solve the problem. 32.1 Gigabit Ethernet Link Down An uplink or subtending interface’s LEDs are not on.

  • Page 524: Table 160 Troubleshooting A Non-Constant Uplink Or Subtending Lnk Led

    MSC1000G User’s Guide 32.3 Uplink or Subtending LNK LED(s) Turn On and Off An uplink or subtending SFP slot’s LNK LED turns on and off intermittently. Table 160 Troubleshooting a Non-Constant Uplink or Subtending LNK LED STEPS CORRECTIVE ACTION Check the copper or fiber optic Ethernet cable and connections between the uplink or subtending interface and the Ethernet switch or router.

  • Page 525: Table 163 Troubleshooting Redundant Management Switch Cards

    MSC1000G User’s Guide Table 162 Troubleshooting Telnet (continued) STEPS CORRECTIVE ACTION Make sure that you have not disabled the Telnet service or changed the server port number that the MSC uses for Telnet. Ping the MSC from your computer. If you are able to ping the Integrated Ethernet Switch but are still unable to telnet, contact the distributor.

  • Page 526: Resetting The Defaults Via Cli Command

    MSC1000G User’s Guide 32.9.1 Resetting the Defaults Via CLI Command If you know the password, you can reload the factory-default configuration file via Command Line Interface (CLI) command. Use the following procedure. 1 Connect to the console port using a computer with terminal emulation software. See the chapter on hardware connections for details.

  • Page 527: Figure 160 Example Xmodem Upload

    MSC1000G User’s Guide Note: This procedure is for emergency situations only. 1 Obtain the firmware file, unzip it and save it in a folder on your computer. 2 Connect your computer to the console port and use terminal emulation software configured to the following parameters: •...
  • Page 528 MSC1000G User’s Guide Chapter 32 Troubleshooting...

  • Page 529: Table 164 Default Settings

    MSC1000G User’s Guide P P E N D I X Product Specifications This appendix gives details about the IES-5000 default settings and MSC hardware and features. IES-5000 Default Settings This table lists major default settings. Table 164 Default Settings Default Inband IP Address 192.168.1.1...

  • Page 530: Table 165 Device Specifications

    MSC1000G User’s Guide Table 164 Default Settings Up Shift Margin 15 db 15 db Down Shift Margin 9 db 9 db SHDSL Profile Default Settings Name: DEFVAL Maximum Rate 2304 Kbps Minimum Rate 192 Kbps Annex Mode annex b Wire Pair...

  • Page 531: Table 166 Features

    MSC1000G User’s Guide Table 165 Device Specifications Standards Compliance IEEE 802.1p, 802.1Q IEEE 802.3u/3z/3x/3ab SFF committee INF-8074i Specification SFP (Small Form factor Pluggable) transceiver rev.1.0 Operation Temperature 0 ~ 50 degrees C Storage Temperature -40 ~ 70 degrees C Operation Humidity...
  • Page 532 MSC1000G User’s Guide Table 166 Features (continued) Management Features Command Line Interface (CLI) DSL profile function for managing DSL line card connections Firmware upgrade through FTP or SFTP and serial console port Telnet or SSH management (up to 4 concurrent sessions) IEEE 802.1X port-based authentication...
  • Page 533 MSC1000G User’s Guide Table 166 Features (continued) Ethernet Network Two 1000M interface combo modules (SFP + copper) for subtending Interfaces 100M/1000M auto-adaptive Full duplex Half Duplex Adaptive duplex Load sharing IEEE 802.3ad static (no LACP) Load sharing IEEE 802.3ad with LACP IEEE 802.1s Multiple Spanning Tree...
  • Page 534 MSC1000G User’s Guide Table 166 Features (continued) Layer 2 Bridging LLC and VC MUX bridging (RFC2684) MAC address table: Up to 16K entries MAC addresses per port: Up to 128 IEEE 802.1d transparent bridging IEEE 802.1w rapid spanning tree protocol for network interface ports...

  • Page 535: Figure 161 Console Port Pin Layout

    MSC1000G User’s Guide Table 166 Features (continued) Per DSL Port Per port limitations: Provisioning Number of ACL Profile: 8 Number of DHCP snooping table entries: 32 Number of static DHCP snooping table entries: 3 Number of MAC filters: 10 Number of MVLAN: 4...

  • Page 536: Figure 162 Alarm Connector Pin Layout

    MSC1000G User’s Guide Table 167 Console Port Pin Assignments CONSOLE PORT RS – 232 (FEMALE) DB-9F Pin 1 = NON Pin 2 = DCE-TXD Pin 3 = DCE –RXD Pin 4 = DCE –DSR Pin 5 = GND Pin 6 = DCE –DTR Pin 7 = DCE –CTS...
  • Page 537 MSC1000G User’s Guide Table 168 ALARM Connector Pin Assignments DESCRIPTION Common pin for minor alarm output Normal close for major alarm output Normal open for major alarm output Common contact for critical alarm output Appendix A Product Specifications...
  • Page 538 MSC1000G User’s Guide Appendix A Product Specifications...

  • Page 539: Figure 163 Virtual Circuit Topology

    MSC1000G User’s Guide P P E N D I X Virtual Circuit Topology ATM is a connection-oriented technology, meaning that it sets up virtual circuits over which end systems communicate. The terminology for virtual circuits is as follows: • Virtual Channel Logical connections between ATM switches •...
  • Page 540 MSC1000G User’s Guide Appendix B Virtual Circuit Topology...
  • Page 541 MSC1000G User’s Guide Index Numerics alarm Command Parameters alarm Commands 317, 319 Alarm Connections 1000/100 Ethernet Ports Alarm Cut Off Button 1000Base-T Alarm Descriptions 100Base-Tx 2 Alarm descriptions 1-bit Constellation Alarm Input 4-wire Alarm Management 802.1X PNAC Current 8-wire History...
  • Page 542 MSC1000G User’s Guide Bandwidth Control 232, 460 acl dhcprelay82 enable acl dhcprelay82 info Bit Number acl dhcprelay82 relaymode Bitswap acl dhcprelay82 server active BPDUs acl dhcprelay82 server delete BRIDGE Extension MIB (RFC 2674) acl dhcprelay82 server set BRIDGE MIB (RFC 1573)
  • Page 543 MSC1000G User’s Guide alarm show port adsl annexl enable alarm tablelist port adsl annexm disable alarm xedit port adsl annexm enable config default port adsl dscarrier0 config save port adsl dscarrier1 config show port adsl inpmin diagnostic ldm show port adsl optionmask...
  • Page 544 MSC1000G User’s Guide profile alarmvdsl delete switch dot3ad enable profile alarmvdsl map switch dot3ad lacp priority profile alarmvdsl set switch dot3ad lacp show profile alarmvdsl show switch dot3ad lacp timeout profile atm delete switch dot3ad show profile atm map switch garptimer join...
  • Page 545 MSC1000G User’s Guide sys info chassis Edit sys info contact Reset sys info frame Restore sys info hostname Configuration File Backup sys info location Configure Tagged VLAN Example sys info show Configured Versus Actual ADSL Rates sys monitor set Configured Versus Actual SHDSL Rates...
  • Page 546 MSC1000G User’s Guide Dot3ad dot3ad Commands Far End Actual Aggregate Transmit Power Double Upstream Fast Mode Double Upstream Mode Fast Rate Down Double-tagged Frames 43, 140 Fast Rate Up Down Shift Noise Margin FCC interference statement Down-shift Noise Margin File Upload...
  • Page 547 MSC1000G User’s Guide IP Address ip Commands Help Facility IP Multicast Addresses High Privilege IP Setup Host Name IP Statistics HTTP ISDN Isolation isolation Commands ITU-T G.992.1 ICMP IEEE 802.1p Priority IEEE 802.1Q Tagged VLAN 43, 249 IEEE 802.1x Join Timer IEEE 802.1x Port-based Authentication...
  • Page 548 MSC1000G User’s Guide LNK LED Mini GBIC ports Connection speed Lockout Connector type 175, 177 Minimum Impulse Noise Protection Log Facility Minor Alarm Login mpair4 Logout MSA (MultiSource Agreement) 175, 177 MST ID Loopback MST Instance (MSTI) Loopback test MST Region...
  • Page 549 MSC1000G User’s Guide Normal Registration Port nrt-VBR port adsl Commands Port alarm setup N-wire Mode port Commands Port Copy Port ID port ppvc Commands port pvc Commands Port redundancy OAMF5 Port Setup OAMF5 Loopback port shdsl Commands Online Users Port statistics...
  • Page 550 MSC1000G User’s Guide 149, 257 RFC 1305 pvc Commands RFC 1573 PVC Setup RFC 1757 238, 452 RFC 2131 RFC 2132 RFC 2138 RFC 2139 RFC 2486 88, 312 Q-in-Q 140, 143, 388 RFC 2662 qschedule Commands RFC 2665 Quality of Service...
  • Page 551 MSC1000G User’s Guide Severely Errored Seconds 175, 177, 413 Line Detail Line Performance SFP Slot 1 MAC Table SFP Slot 2 MAC table SFP Slots 53, 54 MSTP SFTP 501, 517 MSTP CIST Shared Secret MSTP MSTI Online users SHDSL Alarm Profiles...
  • Page 552 MSC1000G User’s Guide Syslog Trellis syslog Commands Troubleshooting Syslog Server Trunking 43, 215, 232 Syslog setup Trunking System Date System Information System Location System Name System Reboot System Time UDP or TCP Port Number UnAvailable Seconds 176, 177, 413 Universal Time Coordinated...
  • Page 553 MSC1000G User’s Guide Virtual Channel Indicator Virtual Local Area Network Virtual Path Indicator ZyNOS VLAN 249, 513, 523 ZyXEL Network Operating System Automatic registration Explicit Tagging Implicit Tagging Tagged Trunking VLAN Administrative Control vlan Commands VLAN ID 73, 257 VLAN Port...

Table of Contents
