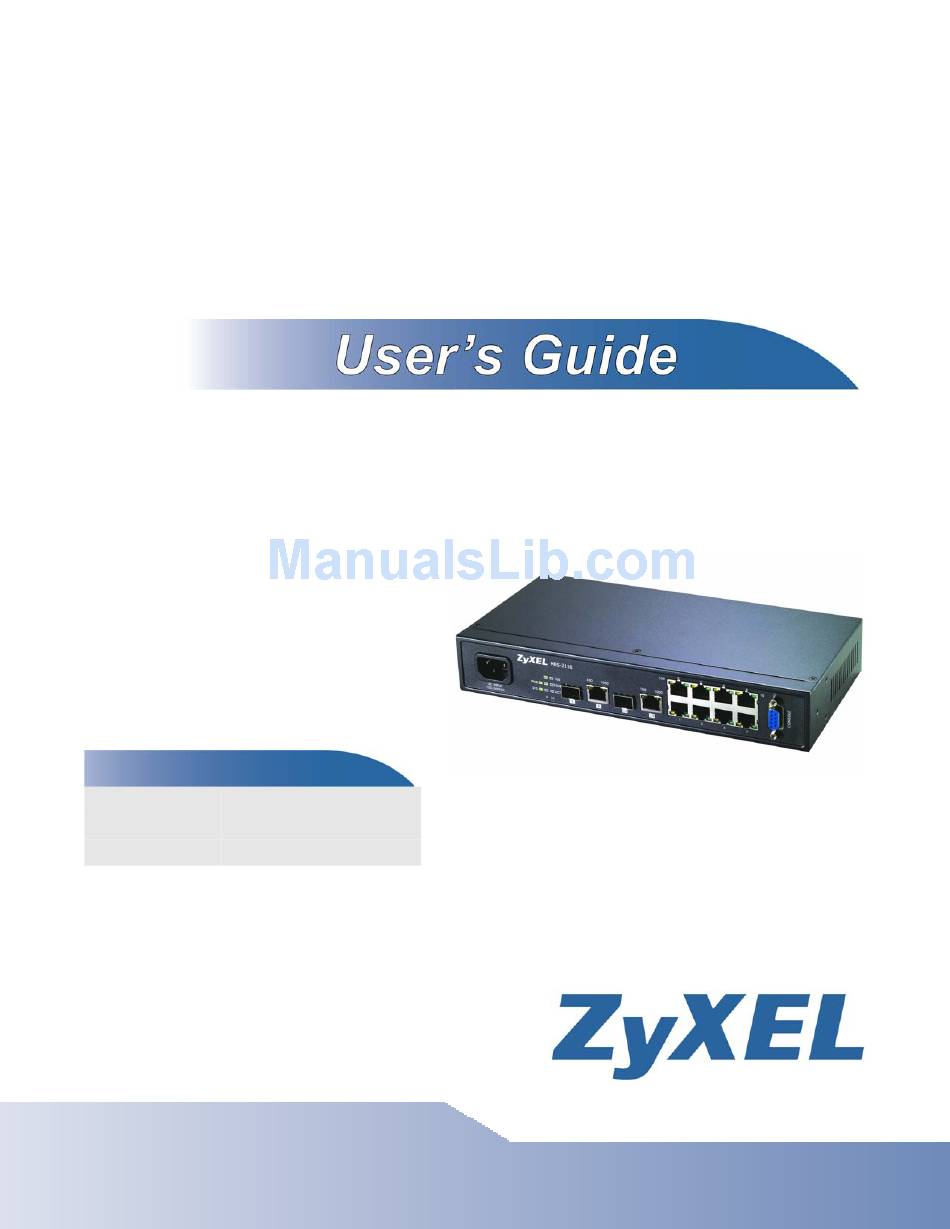

Page 1 MES-2110 Intelligent Layer 2 Switch Default Login Details IP Address http://192.168.1.1 User Name admin Password 1234 Firmware Version 1.00 www.zyxel.com Edition 4, 05/2010 www.zyxel.com Copyright © 2010 ZyXEL Communications Corporation...
Page 3: About This User's Guide
About This User's Guide Intended Audience This manual is intended for people who want to configure the MES-2110 using the web configurator. Related Documentation • Command Line Interface (CLI) Reference Guide Line commands offer an alternative to the web configurator and in some cases are necessary to configure advanced features.
Page 4 • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. MES-2110 User’s Guide...
Page 5: Document Conventions
Syntax Conventions • The MES-2110 may be referred to as the “MES-2110”, the “device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font.
Page 6 Document Conventions Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The MES-2110 icon is not an exact representation of your device. The MES-2110 Server Telephone Computer Notebook computer DSLAM Firewall Router MES-2110 User’s Guide...
Page 7: Safety Warnings
Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately. MES-2110 User’s Guide Safety Warnings Chapter 25 on page 215...
Page 8 Safety Warnings MES-2110 User’s Guide...
Page 9: Table Of Contents
IGMP ... 123 DHCP Relay Configuration ... 137 IP Source Guard ... 141 MAC ... 151 QoS ... 157 Mgmt Config and System Restart Menu ... 165 Command Line Interface ... 179 Troubleshooting ... 207 Product Specifications ... 215 MES-2110 User’s Guide...
Page 10 Contents Overview MES-2110 User’s Guide...
Page 11: Table Of Contents
2.2 Desktop Installation Procedure ... 25 2.3 Mounting the MES-2110 on a Rack ... 26 2.3.1 Rack-mounted Installation Requirements ... 26 2.3.2 Attaching the Mounting Brackets to the MES-2110 ... 27 2.3.3 Mounting the MES-2110 on a Rack ... 28 Chapter 3 Hardware Overview...
Page 12 5.3 The Main Screen ... 53 5.3.1 Set Up the Administrative Password ... 58 5.4 Saving Your Configuration ... 58 5.5 Switch Lockout ... 59 5.6 Resetting the MES-2110 ... 59 5.6.1 Reload the Configuration File ... 59 Chapter 6 System Details ... 61 6.1 Overview ...
Page 13 12.5.4 VLAN Tag Format ... 103 12.5.5 Frame Format ... 104 12.5.6 The VLAN Stacking Configuration Screen ... 105 12.5.7 The Tag-Based Port Information Screen ... 107 12.5.8 The Tag-Based Port Configuration Screen ... 108 MES-2110 User’s Guide Table of Contents ... 97...
Page 14 17.4.1 Types of MVR Ports ... 128 17.4.2 MVR Modes ... 128 17.4.3 How MVR Works ... 128 17.5 General MVR Configuration ... 129 17.6 MVR Group Configuration ... 131 17.6.1 MVR Configuration Example ... 133 ... 120 MES-2110 User’s Guide...
Page 15 22.3.1 The SNMP Communities Screen ... 167 22.3.2 The IP Trap Manager Screen ... 167 22.4 The SNTP Screen ... 168 22.5 Alarms and Logs ... 170 22.6 The User Configuration Screen ... 172 MES-2110 User’s Guide Table of Contents...
Page 16 23.10.3 Frame Tagging Examples ... 204 Chapter 24 Troubleshooting... 207 24.1 Power, Hardware Connections, and LEDs ... 207 24.2 MES-2110 Access and Login ... 208 24.3 MES-2110 Configuration and Console ...211 Chapter 25 Product Specifications ... 215 Appendix A Changing a Fuse... 219 Appendix B Common Services...
Page 17 Table of Contents Index... 229 MES-2110 User’s Guide...
Page 18 Table of Contents MES-2110 User’s Guide...
Page 19: Introduction
The MES-2110 is an ideal solution for small networks where rapid growth can be expected in the near future. The MES-2110 can be used standalone for a group of heavy traffic users. You can connect computers and servers directly to the MES- 2110’s port or connect other switches to the MES-2110.
Page 20: Bridging Example
Sales) to the corporate backbone. It can alleviate bandwidth contention and eliminate server and network bottlenecks. All users that need high bandwidth can connect to high-speed department servers via the MES-2110. You can provide a super-fast uplink connection by using a Gigabit Ethernet/mini-GBIC port on the MES-2110.
Page 21: High Performance Switching Example
1.1.3 High Performance Switching Example The MES-2110 is ideal for connecting two networks that need high bandwidth. In the following example, use trunking to connect these two networks. Switching to higher-speed LANs such as ATM (Asynchronous Transmission Mode) is not feasible for most people due to the expense of replacing all existing Ethernet cables and adapter cards, restructuring your network and complex maintenance.
Page 22: Metro Ethernet
VLAN 1. Ports can belong to other VLAN groups too. Figure 4 Shared Server Using VLAN Example 1.1.5 Metro Ethernet The MES-2110 is ideal for connecting users to an Ethernet network that spans a metropolitan area. In the following example, the MES-2110 is one of many switches that connect users in the metropolitan area to the Internet.
Page 23: Ways To Manage The Mes-2110
• Command Line Interface. Line commands offer an alternative to the web configurator and in some cases are necessary to configure advanced features. See the CLI Reference Guide. • SNMP. The MES-2110 can be monitored by an SNMP manager. See on page 166.
Page 24: Good Habits For Managing The Mes-2110
Chapter 1 Introduction 1.3 Good Habits for Managing the MES-2110 Do the following things regularly to make the MES-2110 more secure and to manage the MES-2110 more effectively. • Change the password. Use a password that’s not easy to guess and that consists of different types of characters, such as numbers and letters.
Page 25: Hardware Installation And Connection
Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance at the front and 3.4 inches (8 cm) at the back of the MES-2110. This is especially important for enclosed rack installations. 2.2 Desktop Installation Procedure Make sure the MES-2110 is clean and dry.
Page 26: Hardware Installation And Connection
2.3 Mounting the MES-2110 on a Rack The MES-2110 can be mounted on an EIA standard size, 19-inch rack or in a wiring closet with other equipment. Follow the steps below to mount your MES- 2110 on a standard EIA rack using a rack-mounting kit.
Page 27: Attaching The Mounting Brackets To The Mes-2110
• Make sure the rack will safely support the combined weight of all the equipment it contains. • Make sure the position of the MES-2110 does not make the rack unstable or top-heavy. Take all necessary precautions to anchor the rack securely before installing the unit.
Page 28: Mounting The Mes-2110 On A Rack
Chapter 2 Hardware Installation and Connection 2.3.3 Mounting the MES-2110 on a Rack Position a mounting bracket (that is already attached to the MES-2110) on one side of the rack, lining up the two screw holes on the bracket with the screw holes on the side of the rack.
Page 29: Hardware Overview
H A P T E R This chapter describes the front panel and rear panel of the MES-2110 and shows you how to make the hardware connections. 3.1 Front Panel The following figure shows the front panel of the MES-2110.
Page 30: Console Port
Use mini-GBIC transceivers in these slots for fiber-optic or copper connections to backbone Ethernet switches. Console Port The console port is for local configuration of the MES-2110. 3.1.1 Console Port For local management, you can use a computer with terminal emulation software configured to the following parameters: •...
Page 31: Default Ethernet Negotiation Settings
3.1.3 Mini-GBIC Slots These are slots for mini-GBIC (Gigabit Interface Converter) transceivers. A transceiver is a single unit that houses a transmitter and a receiver. The MES-2110 does not come with transceivers. You must use transceivers that comply with the Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA).
Page 32: Transceiver Installation
Chapter 3 Hardware Overview You can change transceivers while the MES-2110 is operating. You can use different transceivers to connect to Ethernet switches with different types of fiber- optic or even copper cable connectors. To avoid possible eye injury, do not look into an operating fiber- optic module’s connectors.
Page 33: Power Connections Overview
Figure 13 Opening the Transceiver’s Latch Example Figure 14 Transceiver Removal Example 3.2 Power Connections Overview Use the following procedures to connect the MES-2110 to a power source after you have installed it. Note: Check the power supply requirements in sure you are using an appropriate power source.
Page 34: Ac Power Connection
Note: This is only for the AC model of the MES-2110. Connect the female end of the power cord to the power socket of your MES-2110. Connect the other end of the cord to a power outlet. Make sure that no objects obstruct the airflow of the fans.
Page 35: Leds
Turn on the power supply first. Turn on the MES-2110’s power second. 3.3 LEDs After you connect the power to the MES-2110, view the LEDs to ensure proper functioning of the MES-2110 and as an aid in troubleshooting. Table 2 LED Descriptions...
Page 36 The link to a 10 Mbps or a 1000 Mbps Ethernet network is Blinking The system is transmitting/receiving to/from a 100 Mbps Ethernet network. The link to a 100 Mbps Ethernet network is up. The link to an Ethernet network is down. MES-2110 User’s Guide...
Page 37: Tutorials
H A P T E R 4.1 IGMP Snooping IGMP snooping allows a layer-2 device such as the MES-2110 to eavesdrop on IGMP-based data packets traversing the communications channel on layer-3. This allows it to determine which ports should specifically receive multicast traffic in order to prevent multicasting flooding across all of its ports.
Page 38: Radius Configuration
This tutorial shows you how to set up one RADIUS server (172.16.10.10) and a shared secret key (“hello”) for authentication. To assign a RADIUS server to the MES-2110: Open the Configuration > VLAN Menu > VLAN Type menu, set VLAN Type to Tag-Based(802.1q), then click Apply.
Page 39 Open the Configuration > 802.1x > Global Configuration screen. For the 802.1x option, select Enable. For the Guest VLAN option, select Enable and enter 99 in the associated field. Click Apply to save these changes. MES-2110 User’s Guide Chapter 4 Tutorials...
Page 40 Apply. Finally, open the Configuration > 802.1x > Port Configuration screen. From the Port Number menu select Port 1 if not already selected, set the Guest VLAN option to Enable, and click Apply. MES-2110 User’s Guide...
Page 41: Mvr Configuration
Multicast Group Mode Tagging Ports Multicast Group IP Addresses Multicast Group ID Note: Make sure your Configuration > VLAN Menu > VLAN Type is set to Tag- Based(802.1q) before proceeding. MES-2110 User’s Guide Chapter 4 Tutorials VALUE StreamVlan 1-4, 10 Dynamic 9, 10 223.3.3.1 ~ 223.3.3.10...
Page 42 In the Receiver Port column, select Ports 1-4 and Port 10. These ports are now the designated downstream recipients for all incoming multicasts. In the Tagging column, enable tagging for Port 9 and 10. Click Apply to store these changes. 10 Click the Group Configuration link. MES-2110 User’s Guide...
Page 43 4 from the list. In this example, it is VLAN ID 100. 12 Enter a Group ID of 1, a Start Address of 227.3.3.1, and a Quantity of 10. 13 Click Add, then click Save Settings in the navigation panel to store the changes permanently. MES-2110 User’s Guide Chapter 4 Tutorials...
Page 44: Vlan Id Priority
For VLAN ID, select Add from the menu and enter 2 in the associated field. Set the Priority to 1. For Pri-Overide, select Enable. In the Member column for Port 1, select Tagging. Click Apply. MES-2110 User’s Guide...
Page 45: Untrusted Arp Inspection
Generally if you want to enable ARP inspection on the device you also have to enable DHCP snooping first to build a binding table. To set up ARP inspection: Open the Configuration > IP Source Guard > DHCP > DHCP Snooping Configuration screen. MES-2110 User’s Guide Chapter 4 Tutorials...
Page 46 Set Action to Enable and ARP Inspection VLAN Mode to All-VLAN. In the Trust column, select Port 9 and Port 10. In the Untrust column, select Ports 1-8. Click Apply. Click Save Settings in the navigation panel to store the changes permanently. MES-2110 User’s Guide...
Page 47: Outgoing Traffic Bandwidth
In the Egress row, set the Rate Level to 1M~100M (1M+), the Rate Limit to 1000 k, and the Active option to Enable. Click Apply. Click Save Settings in the navigation panel to store the changes permanently. MES-2110 User’s Guide Chapter 4 Tutorials...
Page 48: Frame Tagging
VLANs within its network by adding tag 37 to distinguish customer A and tag 48 to distinguish customer B at edge device x and then stripping those tags at edge device y as the data frames leave the network. Figure 15 Frame Tagging Example MES-2110 User’s Guide...
Page 49 PVID use 37 and for Priority choose 1. Note: If the port for which you are configuring frame tagging is the same port by which you connect to the MES-2110 then your computer should use the same PVID or you should switch a non-tagged port.
Page 50 Chapter 4 Tutorials MES-2110 User’s Guide...
Page 51: The Web Configurator
• JavaScript (enabled by default). • Java permissions (enabled by default). 5.2 System Login Start your web browser. Type “http://” and the IP address of the MES-2110 (for example, the default is 192.168.1.1) in the Location or Address field. Press [ENTER]. MES-2110 User’s Guide...
Page 52 Chapter 5 The Web Configurator The login screen appears. Enter the user name (admin by default) and password (1234 by default). Figure 16 Web Configurator: Login Click OK to view the first web configurator screen. MES-2110 User’s Guide...
Page 53: The Main Screen
Figure 17 Web Configurator Main Screen A - Click the menu items to open submenu links, and then click on a submenu link to open the screen in the main window. MES-2110 User’s Guide Chapter 5 The Web Configurator...
Page 54 Chapter 5 The Web Configurator In the navigation panel, click a main link to reveal a list of submenu links. Table 4 Navigation Panel Sub-links Overview SYSTEM DETAILS CONFIGURATION SYSTEM RESTART MGMT CONFIG MENU MES-2110 User’s Guide...
Page 55 Storm Control Port Mirroring Trunk Config Aggregator Setting LACP Configuration LACP Link Status IGMP Menu IGMP Config IGMP Groups Status MES-2110 User’s Guide Chapter 5 The Web Configurator SYSTEM MGMT CONFIG RESTART MENU Serial Port Config Restart Option SNMP Config...
Page 56 System Details System This link takes you to a screen that displays general system information. Info. You can also configure general system information about the MES-2110. Board Info. This link takes you to a screen that shows hardware and firmware information.
Page 57 Denial-of- access the MES-2110 via remote management. Service Protection Port This link takes you to a screen where you can configure the MES-2110 to Abnormal detect abnormal traffic transmission and temporarily or permanently Traffic block traffic transmission through a port.
Page 58: Set Up The Administrative Password
Click the Save Settings link in the navigation panel to save your configuration to nonvolatile memory. Nonvolatile memory refers to the MES-2110’s storage that remains even if the MES-2110’s power is turned off. If you don't use Save Settings all configuration changes will only apply until you restart the MES-2110.
Page 59: Switch Lockout
Prevent all services from accessing the MES-2110. Change a service port number but forget it. Note: Be careful not to lock yourself and others out of the MES-2110. If you do lock yourself out, try using out-of-band management (via the console port) to configure the MES-2110.
Page 60 Chapter 5 The Web Configurator Disconnect and reconnect the MES-2110’s power to begin a session. When you reconnect the MES-2110’s power, you will see the initial screen. When you see “Username:”, type admin and press [Enter]. Type the administrative password and press [Enter]. Simply press [Enter] if you did not set up a password.
Page 61: System Details
2110. You can also use the screens to configure system and DHCP client settings. 6.2 The System Information Screen Click System Details > System Info. to open the following screen. Figure 20 System Details > System Info. MES-2110 User’s Guide System Details...
Page 62: The Board Information Screen
Choose a descriptive name for identification purposes. This name consists of up to 64 printable characters; spaces are allowed. Enter the name of the person in charge of this MES-2110. You can use up to 32 printable ASCII characters; spaces are allowed.
Page 63: The Dhcp Configuration Screen
This is how long ago the MES-2110 got an IP address from a DHCP server (if DHCP client is enabled). This is how long there is to go before the MES-2110 will get a new IP address from a DHCP server (if DHCP client is enabled).
Page 64 Chapter 6 System Details Once you click the Apply button, the following message displays, reminding you to save your settings in the Save Settings screen and reboot the MES-2110. Figure 23 System Details > DHCP Config > Apply MES-2110 User’s Guide...
Page 65: Configuration
The Configuration screens let you configure the MES-2110 settings. 7.2 The Port Configuration Screen Use this screen to configure MES-2110 port settings. You can assign a unique name to the ports, select its speed setting and Click Configuration > Port Configuration to open the following screen.
Page 66 When auto-negotiation is turned on, a port on the MES-2110 negotiates with the peer automatically to determine the connection speed and duplex mode. If the peer port does not support auto-negotiation or turns off this feature, the MES-2110 determines the connection speed by detecting the signal on the cable and using half duplex mode.
Page 67: The Port Status Screen
Admin This shows whether administrative access is Enabled or Disabled on the port. When administrative access is disabled on the port, users cannot manage the MES-2110 via that port. MES-2110 User’s Guide DESCRIPTION This indicates the port’s duplex mode (Half or Full).
Page 68: The Rmon Status Screen
The following table describes the labels in this screen. Table 12 Configuration > Rmon Status LABEL Slot Number Clear DESCRIPTION Use this to select the port number you are viewing. Click this to reset the statistics on this port to zero. MES-2110 User’s Guide...
Page 69 This is a count of frames for which transmission delayed due to busy traffic. The deferred frames are waiting to be transmitted from the MES-2110 buffer. This counter only works for the half-duplex mode. This field shows the number of frames (including bad frames) received that were 64 octets in length.
Page 70 This field shows the number of frames (including bad frames) received that were between 512 and 1023 octets in length. This field shows the number of frames (including bad frames) received that were between 1024 and the maximum octets in length. MES-2110 User’s Guide...
Page 71: Loop Detection
Loop detection is designed to handle loop problems on the edge of your network. This can occur when a port is connected to a MES-2110 that is in a loop state. Loop state occurs as a result of human error. It happens when two ports on a switch are connected with the same cable.
Page 72: The Loop Detection Screen
P to switch B. Since switch B is in loop state, the probe frame P returns to port N on A. The MES-2110 then shuts down port N to ensure that the rest of the network is not affected by the switch in loop state.
Page 73 MES-2110 sends probe frames from this port to check if the switch it is connected to is in loop state. If the switch that this port is connected is in loop state the MES-2110 will shut down this port.
Page 74 Chapter 8 Loop Detection MES-2110 User’s Guide...
Page 75: Jumbo Frame
Click Apply to save your changes to the ZyXEL Device’s run-time Apply memory. The ZyXEL Device loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory. MES-2110 User’s Guide Jumbo Frame...
Page 76 Chapter 9 Jumbo Frame MES-2110 User’s Guide...
Page 77: Overview
10.1 Overview This chapter describes the IEEE 802.1x authentication method. Port authentication is a way to validate access to ports on the MES-2110 to clients based on an external server (authentication server). The MES-2110 supports the following method for port authentication: •...
Page 78: Guest Vlan
Guest network feature. Note: Use the MES-2110 to assign the Guest VLAN to a port. This assignment should corresponds to the network’s Guest VLAN. The Guest network is not configurable in this MES-2110.
Page 79: Global Configuration Screen
10.2 802.1x Global Configuration Screen Use this screen to enable port authentication and a guest VLAN on the MES-2110. Click Configuration > 802.1x > Global Configuration in the navigation panel to display the screen as shown. Figure 32 Configuration > Global Configuration The following table describes the labels in this screen.
Page 80: Radius Server Configuration Screen
Apply Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 81: Port Configuration Screen
DESCRIPTION Port Select a port number to configure. Active Enable this to permit 802.1x authentication on the MES-2110. Note: You must first enable 802.1x authentication on the MES-2110 MES-2110 User’s Guide before configuring it on each port. Chapter 10 802.1x...
Page 82 Apply Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 83: Radius Server Configuration Screen
Guest VLAN This shows if a Guest VLAN is enabled on the Switch. Reauth-Max This shows the number of times the MES-2110 attempts to authenticate clients for port access. Server IP This is the IP address of the RADIUS server.
Page 84: Technical Reference
Apply Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 85: Attributes Used For Authentication
Refer to RFC 2866 and RFC 2869 for RADIUS attributes used for accounting. This section lists the attributes used by authentication and accounting functions on the MES-2110. In cases where the attribute has a specific format associated with it, the format is specified. 10.6.3 Attributes Used for Authentication The following sections list the attributes sent from the MES-2110 to the RADIUS server when performing authentication.
Page 86: Attributes Used For Accounting
Chapter 10 802.1x 10.6.4 Attributes Used for Accounting The following sections list the attributes sent from the MES-2110 to the RADIUS server when performing authentication. 10.6.4.1 Attributes Used for Accounting System Events NAS-IP-Address NAS-Identifier Acct-Status-Type Acct-Session-ID - The format of Acct-Session-Id is date+time+8-digit sequential number, for example, 2007041917210300000001.
Page 87 Table 22 RADIUS Attributes-Exec Events via 802.1x ATTRIBUTE User-Name NAS-IP-Address NAS-Port Class Called-Station-Id Calling-Station-Id NAS-Identifier NAS-Port-Type Acct-Status-Type Acct-Delay-Time Acct-Session-Id Acct-Authentic Acct-Input-Octets Acct-Output-Octets Acct-Session-Time Acct-Input-Packets Acct-Output-Packets Acct-Terminate-Cause Acct-Input-Gigawords Acct-Output- Gigawords MES-2110 User’s Guide START INTERIM-UPDATE START INTERIM-UPDATE Chapter 10 802.1x STOP STOP...
Page 88 Chapter 10 802.1x MES-2110 User’s Guide...
Page 89: Bridge
H A P T E R 11.1 Overview The MES-2110 supports Rapid Spanning Tree Protocol (RSTP) as defined in the IEEE 802.1w Rapid Spanning Tree Protocol standard. (R)STP detects and breaks network loops and provides backup links between switches, bridges or routers. It allows a switch to interact with other (R)STP - compliant switches in your network to ensure that only one path exists between any two stations on the network.
Page 90: How Stp Works
RECOMMENDED RECOMMENDED VALUE RANGE 40 to 400 10 to 60 3 to 10 1 to 5 ALLOWED RANGE 1 to 65535 1 to 65535 1 to 65535 1 to 65535 MES-2110 User’s Guide...
Page 91: Stp Port States
All BPDUs are received and processed. All information frames are received and forwarded. 11.2 The Bridge Configuration Screen Click Configuration > Bridge Menu > Bridge Config to open the following screen. Figure 36 Configuration > Bridge Menu > Bridge Config MES-2110 User’s Guide Chapter 11 Bridge...
Page 92: The Rstp System Configuration Screen
Click this to restore your last saved settings. Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 93 This is the time (in seconds) the root switch will wait before changing states (that is, listening to learning to forwarding). Note: The listening state does not exist in RSTP. This is the maximum time (in seconds) the MES-2110 can wait without receiving a configuration message before attempting to reconfigure.
Page 94 Click this to reset the data for the field(s). Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 95: The Spanning Tree Port Configuration
Table 27 Configuration > Bridge Menu > RSTP Per Port Config LABEL Port Priority (1~255) Cost (1~65535) MES-2110 User’s Guide DESCRIPTION Select a port to configure. Enter the port’s priority rating. Priority decides which port should be disabled when more than one port forms a loop in a switch.
Page 96 Click this to restore your last saved settings. Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 97: Vlan
VID of the frame. Of the 4096 possible VIDs, a VID of 0 is used to identify priority frames and value 4095 (FFF) is reserved, so the maximum possible VLAN configurations are 4,094. TPID User Priority 2 Bytes 3 Bits MES-2110 User’s Guide VLAN ID 1 Bit 12 bits VLAN...
Page 98: Forwarding Tagged And Untagged Frames
Chapter 12 VLAN 12.2.1 Forwarding Tagged and Untagged Frames Each port on the MES-2110 is capable of passing tagged or untagged frames. To forward a frame from an 802.1Q VLAN-aware switch to an 802.1Q VLAN-unaware switch, the MES-2110 first decides where to forward the frame and then strips off the VLAN tag.
Page 99: The Vlan Type Screen
(an egress port is an outgoing port, that is, a port through which a data frame leaves) for both ports. Port-based VLANs are specific only to the MES-2110 on which they were created. MES-2110 User’s Guide DESCRIPTION Use this to set the MES-2110 to Port-Based or Tag- Based(802.1q) VLAN mode.
Page 100 Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 101: The Tag-Based Vlan Screens
(SPN) customers with VPN tunnels between their head offices and branch offices respectively. Both have an identical VLAN tag for their VLAN group. The service provider can separate these two VLANs within its network by adding tag 37 to MES-2110 User’s Guide Chapter 12 VLAN...
Page 102: Vlan Stacking Port Roles
All VLANs belonging to a customer can be aggregated into a single service provider's VLAN (using the outer VLAN tag defined by SP VID). Note: Static VLAN Tx Tagging MUST be enabled on a port where you choose Tunnel Port. MES-2110 User’s Guide...
Page 103: Vlan Tag Format
TPID (Tag Protocol Identifier) is the customer IEEE 802.1Q tag. • If the VLAN stacking port role is Access, then the MES-2110 adds the SP TPID tag to all incoming frames on the service provider's edge devices (1 and 2 in the VLAN stacking example figure).
Page 104: Frame Format
The frame format for an untagged Ethernet frame, a single-tagged 802.1Q frame (customer) and a “double-tagged” 802.1Q frame (service provider) is shown next. Configure the fields as highlighted in the MES-2110 VLAN Stacking screen. Table 32 Single and Double Tagged 802.11Q Frame Format SA SPTPID Priority Table 33 802.1Q Frame...
Page 105: The Vlan Stacking Configuration Screen
It does not have to be typed in the Others text field. The port number identifies the port you are configuring. Select Access to have the MES-2110 add the SP TPID tag to all incoming frames received on this port. Select Access Port for ingress ports at the edge of the service provider's network.
Page 106 Click this to restore your last saved settings. Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 107: The Tag-Based Port Information Screen
12.5.7 The Tag-Based Port Information Screen Use this screen to configure how the MES-2110 handles through the port. Click Configuration > VLAN Menu > Tag-Based > Port Info. to open the following screen. Figure 43 Configuration > VLAN Menu > Tag-Based > Port Info.
Page 108: The Tag-Based Port Configuration Screen
Click this to restore your last saved settings. Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 109: The Management Vlan Screen
Page... Set 12.5.9 The Management VLAN Screen Use this to configure the management VLAN. A port must belong to the management VLAN if you want to access the MES-2110’s web configurator via that MES-2110 User’s Guide DESCRIPTION Select Enable to ignore the priority level assigned to the transmitted frames.
Page 110 Click this to restore your last saved settings. Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 111: Bandwidth Control
Bandwidth control means defining a maximum allowable bandwidth for incoming and/or out-going traffic flows on a port. 13.2 Bandwidth Control Setup Click Configuration > Bandwidth Control in the navigation panel to bring up the screen as shown next. Figure 46 Configuration > Bandwidth Control MES-2110 User’s Guide Bandwidth Control...
Page 112 Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 113: Broadcast Storm Control
14.2 Broadcast Storm Control Setup Broadcast storm control limits the number of broadcast, multicast and destination lookup failure (DLF) frames the MES-2110 receives per second on the ports. When the maximum number of allowable broadcast, multicast and/or DLF frames is reached per second, the subsequent frames are discarded.
Page 114 Apply Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 115: Port Mirroring
Click Configuration > Port Mirroring in the navigation panel to display the following screen. Use this screen to select a monitor port and specify the traffic flow to be copied to the monitor port. Figure 48 Configuration > Port Mirroring MES-2110 User’s Guide Port Mirroring...
Page 116 Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non- volatile memory when you are done configuring.
Page 117: Link Aggregation
MES-2110. Section 16.3 on page 118 16.2 Dynamic Link Aggregation The MES-2110 adheres to the IEEE 802.3ad standard for static and dynamic (LACP) port trunking. The MES-2110 supports the link aggregation IEEE802.3ad standard. This standard describes the Link Aggregation Control Protocol (LACP), which is a protocol that dynamically creates and manages trunk groups.
Page 118: Link Aggregation Id
Port Priority and Port Number are 0 as it is the aggregator ID for the trunk group, not the individual port. MAC ADDRESS 00-00-00-00-00-00 0000 MAC ADDRESS 00-00-00-00-00-00 0000 PORT PORT PRIORITY NUMBER 0000 PORT PORT NUMBER PRIORITY 0000 MES-2110 User’s Guide...
Page 119: Link Aggregation Setting
Click Configuration > Trunk Config > Aggregator Setting to display the screen shown next. See aggregation. Figure 51 Configuration > Trunk Config > Aggregator Setting MES-2110 User’s Guide Section 16.1 on page 117 for more information on link Chapter 16 Link Aggregation...
Page 120: Link Aggregation Control Protocol
Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 121: Lacp Link Status
Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 122 Chapter 16 Link Aggregation Table 45 Configuration > Trunk Config > LACP Link Status (continued) LABEL DESCRIPTION This is the peer MES-2110’s key value. Priority This is the port priority level. MES-2110 User’s Guide...
Page 123: Igmp
It checks IGMP frames passing through it, picks out the group registration information, and configures multicasting accordingly. IGMP snooping allows the MES-2110 to learn multicast groups without you having to manually configure them. The MES-2110 forwards multicast traffic destined for multicast groups (that it has learned from IGMP snooping or that you have manually configured) to ports that are members of that group.
Page 124: Igmp Snooping And Vlans
Chapter 17 IGMP 17.1.3 IGMP Snooping and VLANs The MES-2110 can perform IGMP snooping on up to 16 VLANs. You can configure the MES-2110 to automatically learn multicast group membership of any VLANs. The MES-2110 then performs IGMP snooping on the first 16 VLANs that send IGMP frames.
Page 125 IGMP multicast router (or server). You must enable IGMP snooping as well. Select Auto to have the MES-2110 use the port as an IGMP query port if the port received IGMP query frames recently. An auto port doesn’t forward any multicast group member information to its...
Page 126: Igmp Vlan Query Mode
DESCRIPTION Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 127: Igmp Status
DESCRIPTION Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 128: Types Of Mvr Ports
Figure 57 MVR Network Example 17.4.1 Types of MVR Ports In MVR, a source port is a port on the MES-2110 that can send and receive multicast traffic in a multicast VLAN while a receiver port can only receive multicast traffic. Once configured, the MES-2110 maintains a forwarding table that matches the multicast stream to the associated multicast group.
Page 129: General Mvr Configuration
MES-2110. This maps the subscriber VLAN to the list of forwarding destinations for the specified multicast traffic. When the subscriber changes the channel or turns off the computer, an IGMP leave message is sent to the MES-2110 to leave the multicast group.
Page 130 Chapter 17 IGMP Note: Your MES-2110 automatically creates a static VLAN (with the same VID) when you create a multicast VLAN in this screen. Figure 59 Configuration > IGMP Menu > MVR The following table describes the related labels in this screen.
Page 131: Mvr Group Configuration
Apply Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 132 Click Add to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save link on the top navigation panel to save your changes to the non- volatile memory when you are done configuring.
Page 133: Mvr Configuration Example
VID 200 to receive multicast traffic (the News and Movie channels) from the remote streaming media server, S. Computers A, B and C in VLAN are able to receive the traffic. Figure 61 MVR Configuration Example MES-2110 User’s Guide Chapter 17 IGMP...
Page 134 Chapter 17 IGMP To configure the MVR settings on the MES-2110, create a multicast group in the MVR screen and set the receiver and source ports. Figure 62 MVR Configuration Example To set the MES-2110 to forward the multicast group traffic to the subscribers, configure multicast group settings in the Group Configuration screen.
Page 135 (Group ID 1 for News and Group ID 2 for Movie) are configured for the multicast VLAN 200. Figure 63 MVR Group Configuration Example Figure 64 MVR Group Configuration Example MES-2110 User’s Guide...
Page 136 Chapter 17 IGMP MES-2110 User’s Guide...
Page 137: Dhcp Relay Configuration
DHCP Relay Configuration 18.1 Overview Configure DHCP relay on the MES-2110 if the DHCP clients and the DHCP server are not in the same broadcast domain. During the initial IP address leasing, the MES-2110 helps to relay network information (such as the IP address and subnet mask) between a DHCP client and a DHCP server.
Page 138: Dhcp Relay Configuration
Enter the IP address of a DHCP server in dotted decimal notation. Enter the VLAN ID to exclude from the DHCP relay function. Select this to have the MES-2110 add information (slot number, port number and VLAN ID) to client DHCP requests that it relays to a DHCP server.
Page 139 Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save link on the top navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 140 Chapter 18 DHCP Relay Configuration MES-2110 User’s Guide...
Page 141: Ip Source Guard
When the MES-2110 receives a DHCP or ARP frame, it looks up the appropriate MAC address, VLAN ID, IP address, and port number in the binding table. If there is a binding, the MES-2110 forwards the frame. If there is not a binding, the MES- 2110 discards the frame.
Page 142: Configuring Dhcp Snooping
DHCP frames that each port (trusted or untrusted) can receive each second. Trusted ports are connected to DHCP servers or other switches. The MES-2110 discards DHCP frames from trusted ports only if the rate at which DHCP frames arrive is too high.
Page 143: Dhcp Snooping Configuration
Configure static bindings. 19.2 DHCP Snooping Configuration Use this screen to enable DHCP snooping on the MES-2110 and specify whether ports are trusted or untrusted ports for DHCP snooping. To open this screen, click Configuration > IP Source Guard > DHCP > DHCP Snooping Configuration.
Page 144 Untrust All Port Undo DESCRIPTION Select Enable to have the MES-2110 use DHCP snooping . You still have to enable DHCP snooping on specific VLAN and specify trusted ports. Select Disable if you do not want to use this feature.
Page 145: Dhcp Binding Table
DESCRIPTION Click Apply to save your changes to the MES-2110’s run-time memory. The MES-2110 loses these changes if it is turned off or loses power, so use the Save link on the top navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 146 Specify a VLAN ID if you want the MES-2110 to forward DHCP frames to DHCP servers on a specific VLAN. Leave the field blank if you do not want the MES-2110 to forward DHCP frames to a specific VLAN. Click this to restore your last saved settings Click this to add the rule to the MES-2110.
Page 147: The Arp Inspection Screen
Configure DHCP snooping. See Note: It is recommended you enable DHCP snooping at least one day before you enable ARP inspection so that the MES-2110 has enough time to build the binding table. Enable ARP inspection on the MES-2110. See details about turning on this feature.
Page 148 MAC-Filter-Aging- Time DESCRIPTION Use this to enable or disable the ARP inspection feature. Enter the number of minutes from 1-10080 that the MES-2110 retains MAC addresses in its MAC address table. Enter 0 to retain addresses permanently. MES-2110 User’s Guide...
Page 149 This shows the number of minutes that the MES-2110 retains MAC addresses in its MAC address table. This shows whether the MES-2110 look at all VLANs or specific VLANs on which ARP inspection in enabled. This shows the specific VLAN ID.
Page 150 Chapter 19 IP Source Guard MES-2110 User’s Guide...
Page 151: Mac
• If the MES-2110 has already learned the port for this MAC address, then it forwards the frame to that port. • If the MES-2110 has not already learned the port for this MAC address, then the frame is flooded to all ports. Too much port flooding leads to network congestion.
Page 152: The Mac Table Status Screen
Chapter 20 MAC • If the MES-2110 has already learned the port for this MAC address, but the destination port is the same as the port it came in on, then it filters the frame. Figure 70 MAC Table Flowchart 20.2 The MAC Table Status Screen...
Page 153: The Lock Mac Address Learning Screen
This is the MAC address of the device from which this incoming frame came. This shows whether the MAC address is dynamic (learned by the MES-2110) or static (manually configured). This shows the priority level of the MAC address This shows the port from which the MAC address was learned.
Page 154: The Mac Filter Configuration Screen
Click Apply to save your changes to the ZyXEL Device’s run-time memory. The ZyXEL Device loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory. MES-2110 User’s Guide...
Page 155 Denied Table Apply MAC Address Delete Page Up/Down MES-2110 User’s Guide DESCRIPTION Use this to determine whether to allow or deny traffic transmitted from the source MAC address. Select the port through which traffic from the source MAC address is transmitted.
Page 156: The Mac Limit Configuration Screen
MAC address aging out time can be set in the MAC Table Status screen. Enable the MAC limit function on this port. The MES-2110 forwards frames whose MAC address(es) is in the MAC address table on this port. frames with no matching MAC address(es) are dropped.
Page 157: Qos
All High Before Low Queuing All high before low services queues based on priority only. As traffic comes into the MES-2110, traffic on the highest priority queue, Q7 is transmitted first. When that queue empties, traffic on the next highest-priority queue, Q6 is transmitted until Q6 empties, and then traffic is transmitted on Q5 and so on.
Page 158: Configuring The Base Configuration Screen
21.2.1 Configuring the Base Configuration Screen Use this screen to configure queuing settings on the MES-2110. Click Configuration > QoS Menu > Base Configuration to open the following screen.
Page 159 Use this to enable or disable IP Over Tag on the port. When you enable this feature and the MES-2110 receives a frame containing both IP DSCP and tag priority information, the MES- 2110 will only use the IP DSCP priority information.
Page 160: The 802.1P Priority Table
Click Apply to save your changes to the ZyXEL Device’s run-time memory. The ZyXEL Device loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory. MES-2110 User’s Guide...
Page 161: The Tag Priority Table
MES-2110 User’s Guide DESCRIPTION This is the IEEE 802.1p priority level. Use this to assign the tag priority level to one of the MES-2110’s queue level (Low, Normal, Preferred or High). Click this to load your last saved settings. Click Apply to save your changes to the ZyXEL Device’s run-time memory.
Page 162 Apply DESCRIPTION Enter the DSCP classification identification number (0-63). Assign a MES-2110’s priority level (Low, Normal, Preferred or High) to the DSCP value. Click this to load your last saved settings. Click Apply to save your changes to the ZyXEL Device’s run-time memory.
Page 163: The Priority Override Configuration Screen
21.6 The Priority Override Configuration Screen Use this screen to apply the QoS settings of the MES-2110 to its DHCP clients. MES-2110 ignores the priority levels assigned to the transmitted frames on the ports, source MAC addresses and destination MAC addresses.
Page 164 Click Apply to save your changes to the ZyXEL Device’s run-time memory. The ZyXEL Device loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory. MES-2110 User’s Guide...
Page 165: Mgmt Config And System Restart Menu
MES-2110. Connect the male 9-pin end of the console cable to the console port of the MES-2110. Connect the female end to a serial port (COM1, COM2 or other COM port) of your computer.
Page 166: Mgmt Config And System Restart Menu
TCP/IP-based devices. SNMP is used to exchange management information between the network management system (NMS) and a network element (NE). A manager station can manage and monitor the MES-2110 through the network via SNMP version one (SNMPv1), SNMP version 2c or SNMP version 3.
Page 167: The Snmp Communities Screen
22.3.2 The IP Trap Manager Screen An IP trap manager receives authentication failure messages or other trap messages about the MES-2110’s activities. The MES-2110 supports up to five trap MES-2110 User’s Guide Chapter 22 Mgmt Config and System Restart Menu...
Page 168: The Sntp Screen
Apply 22.4 The SNTP Screen Use this screen to configure the time settings on the MES-2110. You can configure the MES-2110 to get the time and date information from a time server using Simple Network Time Protocol (SNTP). You can also configure two servers. If the first one is down, the MES-2110 will try to connect to the second one.
Page 169 Specify how often (in hours) should the MES-2110 synchronize with the time server. For example, if you set the field to 2 hours, the MES-2110 synchronizes date/time with the time server every 2hours. Specify the date (in year, month and day format) and time (in hour, minute and second format).
Page 170: Alarms And Logs
Click Apply to save your changes to the ZyXEL Device’s run- time memory. The ZyXEL Device loses these changes if it is turned off or loses power, so use the Save Settings link in the navigation panel to save your changes to the non-volatile memory. MES-2110 User’s Guide...
Page 171 Assign a valid e-mail address to the MES-2110. The MES-2110 sends logs to the e-mail addresses specified in this field. If this field is left blank, the MES-2110 does not send logs via e-mail. Use this to enable or disable syslog logging.
Page 172: The User Configuration Screen
Enter a password associated with the user name. You can type up to 15 characters using characters found on a standard keyboard. Assign access rights for the user account. Read/Write users can manage the MES-2110 settings as an administrator. Read Only users can only view the MES-2110 settings.
Page 173: The Cable Test Screen
Chapter 22 Mgmt Config and System Restart Menu DESCRIPTION This is the port number. This shows if data is flowing through the ports on the MES-2110. If no data is passing through a port, this shows Link-Down. Otherwise, the number indicates the maximum size of packets during data transmission in the port.
Page 174: The Host Dos Protection
You can specify a group of one or more “trusted computers” from which an administrator may use a service to manage the MES-2110. When you turn on this feature, only the trusted IP addresses listed in this screen can use remote management to access the MES-2110.
Page 175: The Port Abnormal Traffic Detection Screen
22.9 The Port Abnormal Traffic Detection Screen This MES-2110 can detect excessive broadcasts or transmission load on a port and temporarily or permanently block traffic transmission on each port. Use this screen to configure the MES-2110’s threshold settings for blocking a port. You can also have the Switch unblock a port when it is no longer receiving large broadcast packets.
Page 176: Upgrading The Firmware
You can manually unblock a port in the Block/Unblock field. However the port is only unblocked when it is not receiving excessive traffic anymore. Specify for how long the MES-2110 will block the port if traffic exceeds the threshold. This shows the port number(s) that you can configure.
Page 177: Managing The Configuration File
Click Mgmt Config > Configuration File to open the following screen. Figure 91 Mgmt Config > Configuration File Follow the steps below to back up the current MES-2110 configuration to your computer in this screen. Click Backup Setting.
Page 178: Restarting The System
Restore button to load the factory default settings, or use the Reset button to restart the system without physically turning the power off. It also allows you to load the factory default settings when you reboot. Figure 92 System Restart Menu > Restart Option MES-2110 User’s Guide...
Page 179: Command Line Interface
This chapter introduces the MES-2110’s command line interface (CLI). 23.1.1 Console Port Management To manage the MES-2110 using the CLI: Connect your computer to the console port on the MES-2110 using the appropriate cable. Use terminal emulation software with the following settings:...
Page 180: Using Shortcuts And Getting Help
[CTRL]+U help 23.2 Saving Changes In the MES-2110, whenever you make changes using the command line interface they are not saved by default. To save your changes, you must use the following commands starting in Basic command mode (for details on this mode, see MES-2110>...
Page 181: Logging Out
COMMAND exit 23.4 Command Modes The MES-2110 segregates commands by command mode. Commands for a particular mode are only available once you set the device to that particular mode. The following is list of available command modes. Table 76 Basic Commands...
Page 182: Basic Commands
: Pings the specified host until the break (ESC) key is pressed. : Adjusts the timeout duration for -w timeout the ping packet in milliseconds. The default is 1,000 milliseconds. Displays the device’s network configuration. Shows the device’s system configuration. MES-2110 User’s Guide...
Page 183: Privileged Command Mode
<all|port-number> show 8021p-priority show console-baudrate show console-timeout show dhcp smart-relay show dhcp snooping MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Turns on Privileged mode commands. Turns off Privileged mode commands, returning the device to Basic mode.
Page 184 For example, . You can also chain show rmon port +1 multiple port numbers together, such as (which displays information rmon port +1+2+6 for just ports 1, 2, and 6). : Displays RMON information for all ports. MES-2110 User’s Guide show...
Page 185 Displays tag-base VLAN table. Displays the VLAN type. Saves the current configuration, including all changes made since the last save, to flash. Note: You must use this command to permanently save any changes you make while using the MES-2110 command line interface.
Page 186: Configuration Mode
<1-60> abnormal interval <1-600> abnormal permanently <yes|no> abnormal threshold <2000-20000> DESCRIPTION This mode allows to configure the MES-2110’s MVR IDs and their associated options. Section 23.8 on page 195 [ENTER] This mode allows you to configure the MES- 2110’s VLAN IDs and their associated options.
Page 187 <1-4094> dhcp snooping vlan-mode <all|fixed> dhcp snooping option MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Enables ARP inspection. Note: You must still enable ARP inspection on specific VLAN and specify trusted ports if you use this option.
Page 188 You must configure each event individually. For example: email-alarm type coldstart . This enables it for the coldstart event. enable If you want to also enable it for the warmstart event, you must configure it separately: email-alarm type warmstart enable MES-2110 User’s Guide...
Page 189 <auto|fixed> igmp vlan-query-mode <vlan-id> <auto|disable> ip <ip-address> lacp group <group> <lacp|static> lacp hash-mode <xor|lookup> MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Erases all dynamic MAC entries from the MAC table. Sets the frame size. The default is 1632.
Page 190 Deletes the DHCP snooping static binding table by MAC address. Deletes the DHCP snooping static binding table by IP address. Deletes the DHCP snooping static binding table by port. Deletes the DHCP snooping static binding table by VLAN ID. Disables DHCP smart relay. MES-2110 User’s Guide...
Page 191 <2-4094> no vlan-stacking qinq-sp-tpid <tpid> qos schedule all_high_before_low qos schedule weighted_round_robin MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Disables the DHCP smart relay option. Sets the DHCP smart relay to exclude VLANs. : Leave this field blank and press [Enter] to use the default setting.
Page 192 (dd), hour (hh), minutes (mm), and seconds (ss). Sets the timezone offset. : Increases the timezone offset by the +hh.mm specified hours (hh) and minutes (mm). : Increases the timezone offset by the -hh.mm specified hours (hh) and minutes (mm). MES-2110 User’s Guide...
Page 193: Igmp Snooping Example
23.7.1 IGMP Snooping Example This example enables IGMP snooping, then sets the query mode to “Auto” and port #10 to static. MES-2110(config)# igmp snooping MES-2110(config)# igmp query-mode auto MES-2110(config)# igmp static 10 MES-2110 User’s Guide Chapter 23 Command Line Interface...
Page 194: Mes-2110 User's Guide
This example sets up one RADIUS server (172.16.10.10) and a shared secret key (“hello”) for authentication. MES-2110# configure terminal MES-2110(config)# vlan 99 MES-2110(config-vlan)# exit MES-2110(config)# dot1x enable MES-2110(config)# dot1x radius-server server-ip 172.16.10.10 MES-2110(config)# dot1x radius-server shared-secret hello MES-2110(config)# dot1x guest-vlan 99 MES-2110(config)# exit MES-2110(config)# interface port-channel 1 MES-2110(config-interface)# dot1x guest-vlan enable...
Page 195: Mvr Mode
<port-list> no source-port <port-list> no tagged <port-list> no group <cr|group-id> MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Enters MVR (multicast VLAN relay) configuration mode for the specified MVR, creating the MVR if necessary.
Page 196: Mvr Command Example
MES-2110(config-mvr)# name StreamVlan MES-2110(config-mvr)# mode dynamic MES-2110(config-mvr)# receiver-port 1,2,3,4,10 MES-2110(config-mvr)# source-port 9 MES-2110(config-mvr)# tagged 9,10 MES-2110(config-mvr)# group 1 227.3.3.1 10 DESCRIPTION Sets the MVR mode to dynamic or compatible for the current MVR group. Sets the current MVR group name for identification purposes.
Page 197: Vlan Mode
<port-list> non-member <port-list> tagging <port-list> untagging <port-list> use-vid-priority <yes|no> vid-priority <0~7> MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Enters VLAN Configuration mode for the specified VLAN ID. If no VLAN IDs exist, then this creates the specified ID.
Page 198: Vlan Id Priority Example
MES-2110# show vlan tag-base vlan-table VLAN-ID ========================================================= MES-2110# 23.10 Interface Mode This is an ancillary mode of Configuration mode. You must be in Configuration mode for these commands to work. When in Interface-Configuration mode, the command prompt is as follows:...
Page 199 <low|medium|high> <rate> bpdu-mode <on|off|tunnel> da-pri-override <enable|disable> dhcp snooping trust egress-set <port-list> flow-control MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Enters Interface Configuration mode for the specified port(s). Enables port detection for the current port(s). Enables the current port(s).
Page 200 Disables auto-negotiation. for the current port(s). Disables port isolation for the current port(s). Disables MAC locking for the port for the current port(s). Disables port mirroring for the current port(s). Disables the broadcast packet limit for the current port(s). MES-2110 User’s Guide...
Page 201 <on|off> rstp-p2p <auto|on|off> rstp-path-cost <0-65535> rstp-priority <0-255> sa-pri-override <enable|disable> speed-duplex <10f|10h|100f|100h|1000f> sfp-speed <100|1000|1000-no-auto> MES-2110 User’s Guide Chapter 23 Command Line Interface DESCRIPTION Disables the multicast packet limit for the current port(s). Disables the DLF packet limit for the current port(s).
Page 202 : Use this for egress ports at the edge of tunnel the service provider's network. Note: In order to support VLAN stacking on a port, the port must allow frames of 1526 bytes (1522 bytes + 4 bytes for the second tag) to pass through it. MES-2110 User’s Guide...
Page 203: Untrusted Arp Inspection Example
ARP inspection on the device you also have to enable DHCP snooping first to build a binding table. MES-2110(config)# dhcp snooping enable MES-2110(config)# dhcp snooping vlan-mode all MES-2110(config)# arp inspection enable MES-2110(config)# arp inspection vlan-mode all MES-2110(config)# interface port-channel 1,2,3,4,5,6,7,8...
Page 204: Frame Tagging Examples
VID of 37 (ports are connected to customer A network). This example also shows how to set the priority for ports 1 and 2 to 3. MES-2110(config)# vlan-stacking MES-2110(config)# interface port-channel 1,2 MES-2110(config-interface)# vlan-stacking role access MES-2110(config-interface)# vlan-stacking spvid 37...
Page 205 SVLAN table. The switch checks the incoming frames received on the tunnel port (port 10) and drops the frames whose SPVID is not in the SVLAN table. MES-2110# configure terminal MES-2110(config)# interface port-channel 1 MES-2110(config-interface)# vlan-stacking role access MES-2110(config-interface)# vlan-stacking SPVID 37...
Page 206 Chapter 23 Command Line Interface MES-2110 User’s Guide...
Page 207: Troubleshooting
The MES-2110 does not turn on. None of the LEDs turn on. Make sure you are using the power adaptor or cord included with the MES-2110. Make sure the power adaptor or cord is connected to the MES-2110 and plugged in to an appropriate power source.
Page 208: Mes-2110 Access And Login
Check the hardware connections. See Inspect your cables for damage. Contact the vendor to replace any damaged cables. Disconnect and re-connect the power adaptor or cord to the MES-2110. If the problem continues, contact the vendor. 24.2 MES-2110 Access and Login I forgot the IP address for the MES-2110.
Page 209 Make sure your Internet browser does not block pop-up windows and has JavaScripts and Java enabled. Make sure your computer is in the same subnet as the MES-2110. (If you know that there are routers between your computer and the MES-2110, skip this step.) Reset the device to its factory defaults, and try to access the MES-2110 with the default IP address.
Page 210 This will allow you to correct any mistakes you may have made in the Web Configurator. I can see the Login screen, but I cannot log in to the MES-2110. Make sure you have entered the user name and password correctly. The default user name is admin, and the default password is 1234.
Page 211: Mes-2110 Configuration And Console
• Try making your changes through the MES-2110’s command line interface (Chapter 23 on page changes permanent. • Power off the MES-2110, then power it back on and make your changes afresh. • Reset the MES-2110 to its factory default settings • If the problem continues, contact the vendor.
Page 212 • To see which commands are available to you while using the command line interface, type ? and press [ENTER]. I enabled ARP inspection on my MES-2110 but it doesn’t seem to be working. It is recommended you enable DHCP snooping at least one day before you enable ARP inspection so that the MES-2110 has enough time to build the binding table.
Page 213 Chapter 24 Troubleshooting Every time I try to change the MES-2110’s IP address over Telnet, I get an error. You cannot change the device’s IP address over Telnet. MES-2110 User’s Guide...
Page 214 Chapter 24 Troubleshooting MES-2110 User’s Guide...
Page 215: Product Specifications
H A P T E R Product Specifications The following tables summarize the MES-2110’s hardware and firmware features. Table 84 Hardware Specifications SPECIFICATION Dimensions Weight Power Specification Interfaces LEDs Operating Environment Storage Environment MES-2110 User’s Guide DESCRIPTION 268 mm (W) x 128 mm (D) x 44 mm (H) 1.2 kg...
Page 216 The following scheduling services are supported: weighted round robin and all high before low queuing. This allows the MES-2110 to maintain separate queues for frames from each individual source or flow and prevent a source from monopolizing the bandwidth.
Page 217 CLI or TFTP tool to put it on the MES-2110. Note: Only upload firmware for your specific model! Make a copy of the MES-2110’s configuration and put it back on the MES-2110 later if you decide you want to revert back to an earlier configuration.
Page 218 MAC Bridges Traffic Types - Packet Priority Tagged VLAN Rapid Spanning Tree Protocol (RSTP) Packet Format Link Aggregation Flow Control UL 60950-1 CSA 60950-1 EN 60950-1 IEC 60950-1 FCC Part 15 (Class A) CE EMC (Class A) MES-2110 User’s Guide...
Page 219: Appendix A Changing A Fuse
Dispose of the burnt-out fuse properly. Installing a Fuse The MES-2110 is shipped from the factory with one spare fuse included in a box- like section of the fuse housing. Push the middle part of the box-like section to access the spare fuse.
Page 220 Appendix A Changing a Fuse MES-2110 User’s Guide...
Page 221: Appendix B Common Services
• If the Protocol is USER, this is the IP protocol number. • Description: This is a brief explanation of the applications that use this service or the situations in which this service is used. MES-2110 User’s Guide Common Services...
Page 222 The Internet Key Exchange algorithm is used for key distribution and management. TCP/UDP 6667 This is another popular Internet chat program. 1863 Microsoft Networks’ messenger service uses this protocol. MES-2110 User’s Guide...
Page 223 RTELNET RTSP TCP/UDP SFTP SMTP SNMP TCP/UDP SNMP-TRAPS TCP/UDP MES-2110 User’s Guide Appendix B Common Services PORT(S) DESCRIPTION 5190 An Internet chat program. A protocol for news groups. 2049 Network File System - NFS is a client/ server distributed file service that provides transparent file sharing for network environments.
Page 224 Trivial File Transfer Protocol is an Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol). 7000 Another videoconferencing solution. MES-2110 User’s Guide...
Page 225: Appendix C Legal Information
ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein.
Page 226 Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASS 1 PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11. PRODUIT CONFORME SELON 21 CFR 1040.10 ET 1040.11. MES-2110 User’s Guide...
Page 227: Zyxel Limited Warranty
Registration Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products. MES-2110 User’s Guide Appendix C Legal Information...
Page 228 Appendix C Legal Information MES-2110 User’s Guide...
Page 229 Bridge Protocol Data Unit, see BPDU bridging application broadcast broadcast storm control configuration bandwidth control bridge 89, 92 broadcast storm control date/time DHCP snooping MES-2110 User’s Guide Index IGMP jumbo frames link aggregation loop detection MAC filtering multicast port mirroring ports trunking...
Page 230 30, 165 date/time firmware upgrade logs reset SNMP user accounts web configurator management VLAN max age metropolitan application mini-GBIC slots multicast configuration 125, 129 IGMP snooping Multicast VLAN Registration, see MVR MES-2110 User’s Guide...
Page 231 RADIUS advantages and port authentication server Rapid Spanning Tree Protocol, see RSTP reset 59, 178 RMON status MES-2110 User’s Guide RSTP BPDU bridge priority configuration path cost 89, 93 port states shortcuts SNMP SNTP...
Page 232 VLAN application configuration forwarding frames frame formats management VLAN port-based stacking 101, 105 tag format tag-based tagged web configurator navigation panel weighted round robin scheduling MES-2110 User’s Guide...
