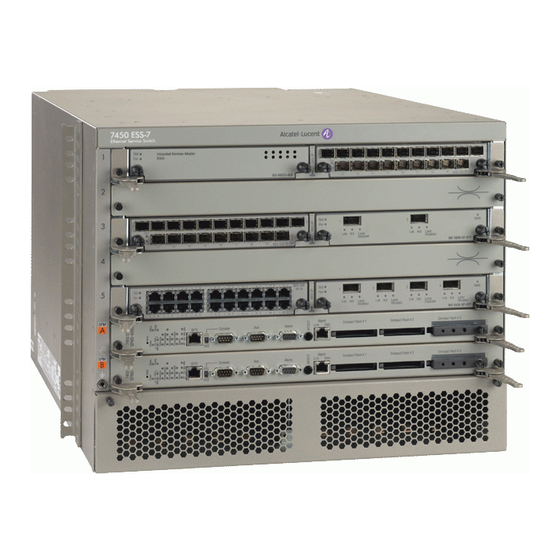

Ethernet service switch /service router /extensible routing system

Hide thumbs Also See for 7450:

Quality of service manual (912 pages)

,

Manual (816 pages)

,

Configuration manual (778 pages)

Table Of Contents

page of 576

/ 576
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, Manual

BASIC SYSTEM CONFIGURATION GUIDE RELEASE 14.0.R1

Alcatel-Lucent

7450 ETHERNET SERVICE SWITCH

7750 SERVICE ROUTER

7950 EXTENSIBLE ROUTING SYSTEM

BASIC SYSTEM CONFIGURATION GUIDE

RELEASE 14.0.R1

Alcatel-Lucent – Proprietary & Confidential

Contains proprietary/trade secret information which is the property of Alcatel-Lucent. Not to be made available

to, or copied or used by anyone who is not an employee of Alcatel-Lucent except when there is a valid non-

disclosure agreement in place which covers such information and contains appropriate non-disclosure and

limited use obligations.

Copyright 2016 © Alcatel-Lucent. All rights reserved.

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the 7450 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alcatel-Lucent 7450

Page 1 Contains proprietary/trade secret information which is the property of Alcatel-Lucent. Not to be made available to, or copied or used by anyone who is not an employee of Alcatel-Lucent except when there is a valid non- disclosure agreement in place which covers such information and contains appropriate non-disclosure and limited use obligations.
Page 2 This document may contain information regarding the use and installation of non-Alcatel-Lucent products. Please note that this information is provided as a courtesy to assist you. While Alcatel-Lucent tries to ensure that this information accurately reflects information provided by the supplier, please refer to the materials provided with any non-Alcatel-Lucent product and contact the supplier for confirmation.
Page 3: Table Of Contents
Table of Contents Getting Started............................9 About This Guide..............................9 Audience .................................9 In This Chapter ..............................10 Router System Configuration Process .......................10 CLI Usage .............................. 11 In This Chapter ..............................11 CLI Structure ..............................11 Navigating in the CLI ............................15 CLI Contexts..............................15 Basic CLI Commands............................16 CLI Environment Commands ........................18 CLI Monitor Commands ..........................19 Getting Help in the CLI ............................20...
Page 4 Table of Contents Environment Commands..........................60 Candidate Commands ..........................61 Rollback Commands ..........................61 Management Infrastructure Control Commands ..................62 Command Descriptions ..........................62 Global Commands ...........................62 CLI Environment Commands ........................79 Monitor CLI Commands ...........................83 Candidate Commands ...........................152 Rollback Commands ..........................161 Management Infrastructure Control Commands ..................166 Show Commands ...........................167 File System Management........................
Page 5 Table of Contents Console Connection ..........................205 Configuring BOF Parameters ...........................205 Service Management Tasks ..........................206 System Administration Commands ......................206 Viewing the Current Configuration ......................206 Modifying and Saving a Configuration ....................207 Deleting BOF Parameters ........................208 Saving a Configuration to a Different Filename ..................209 Rebooting ...............................209 BOF Configuration Command Reference......................211 Command Hierarchies..........................211...
Page 6 Table of Contents When the Active CPM Goes Offline ......................247 OOB Management Ethernet Port Redundancy ...................248 Persistence..............................249 Dynamic Data Persistency (DDP) Access Optimization for DHCP Leases..........250 Network Synchronization ..........................251 Central Synchronization Sub-System......................253 7950 XRS-40 Extension Chassis Central Clocks ..................255 Synchronization Status Messages (SSM) ....................255 DS1 Signals ............................256 E1 Signals ..............................256 SONET/SDH Signals ..........................256...
Page 7 Forcing a Switchover..........................307 Configuring Synchronization Options .....................308 Configuring Multi-Chassis Redundancy for LAG ..................309 Configuring Mixed Mode ..........................310 Enabling Mixed Mode on a 7450 System....................311 Configuring Power Supply Parameters .......................312 Configuring ATM System Parameters ......................314 Configuring Backup Copies .........................314 Post-Boot Configuration Extension Files .....................315 Show Command Output and Console Messages ..................316...
Page 8 Table of Contents Generic Commands ..........................336 System Information Commands ......................337 System Alarm Contact Input Commands ....................357 System Threshold Alarm Commands ....................359 Date and Time Commands ........................376 Network Time Protocol Commands .......................377 System Synchronization Configuration Commands ................398 System Administration Commands ......................407 Mixed Mode Configuration Commands ....................415 Persistence Commands .........................416 PTP Commands .............................419...
Page 9: Getting Started
• 7950 XRS 7450 ESS applicability statements refer to the 7450 ESS when it is not running in mixed mode. 7750 SR applicability statements refer to the 7750 SR-7/12, 7750 SR-12e, 7750 SR- a4/a8 and 7750 SR-e1/e2/e3 platforms unless otherwise specified.
Page 10: In This Chapter
In This Chapter In This Chapter This chapter provides process flow information to configure basic router and system parameters, perform operational functions with directory and file management, and boot option tasks. Router System Configuration Process Table 1 lists the tasks necessary to configure boot option files (BOF) and system and file management functions.
Page 11: Cli Usage
CLI Usage In This Chapter This chapter provides information about using the command-line interface (CLI). Topics in this chapter include: • CLI Structure • Navigating in the CLI • Basic CLI Commands • CLI Environment Commands • CLI Monitor Commands •...
Page 12 CLI Structure The CLI is organized so related commands with the same scope are at the same level or in the same context. Sublevels or subcontexts have related commands with a more refined scope. Figure 1 Figure 2 are examples displaying the major contexts for router configuration, and are not a definitive list.
Page 13 CLI Usage Figure 1: Root Commands ROOT application-assur ADMIN certificate compare address debug-save autonegotiate CONFIGURE disconnect console-speed display-config application-assurance dnm-domain card radius-disc duplex cflowd reboot li-local-save connection-profile redundancy li-separate cron save persist delivery-appliance set-time primary-config ENVIRONMENT alias eth-cfm primary-dns rollback create eth-ring primary-image...
Page 14 CLI Structure Figure 2: Operational Root Commands ROOT SHOW alias application-as boot-messages card ccag certificate cflowd chassis config CLEAR connection-profile application-assurance cron card debug ccag delivery-appliance cflowd egress-replication cpm-filter elmi cpm-queue eth-cfm cpu-protection eth-ring cron eth-tunnel delivery-appliance filter eth-cfm interface-group-handler DEBUG filter application-assurance...
Page 15: Navigating In The Cli
Entering Numerical Ranges CLI Contexts Use the CLI to access, configure, and manage Alcatel-Lucent’s routers. CLI commands are entered at the command line prompt. Access to specific CLI commands is controlled by the permissions set by your system administrator. Entering a CLI command makes navigation possible from one command context (or level) to another.
Page 16: Basic Cli Commands
Navigating in the CLI A:ALA-12>config>service# epipe 6 *A:ALA-12>config>service>epipe# spoke-sdp 2:6 *A:ALA-12>config>service>epipe>spoke-sdp# ingress *A:ALA-12>config>service>epipe>spoke-sdp>ingress# The CLI returns an error message when the syntax is incorrect. *A:ALA-12>config# rooter Error: Bad command. Basic CLI Commands The console control commands are the commands that are used for navigating within the CLI and displaying information about the console session.
Page 17 CLI Usage Table 2: Console Control Commands (Continued) Command Description password Changes the user CLI login password. The password can only be changed at the ROOT level. ping Verifies the reachability of a remote host. Displays the present or previous working context of the CLI session. sleep Causes the console session to pause operation (sleep) for one second or for the specified number of seconds.
Page 18: Cli Environment Commands
Navigating in the CLI Table 3 lists describes command syntax symbols. Table 3: Command Syntax Symbols Symbol Description A vertical line indicates that one of the parameters within the brackets or braces is required. tcp-ack {true | false} Brackets indicate optional parameters. redirects [number seconds] Braces indicate that one of the parameters must be selected.
Page 19: Cli Monitor Commands
Enables monitoring of ingress FP queue groups. ccag Enables CCAG port monitoring for traffic statistics. This command is supported on the 7450 ESS and 7750 SR; additional restrictions may apply. cpm-filter Monitor command output for CPM filters. Basic System Configuration Guide...
Page 20: Getting Help In The Cli
Getting Help in the CLI Table 5: CLI Monitor Command Contexts (Continued) Command Description filter Enables IP and MAC filter monitoring at a configurable interval until that count is reached. Enables Link Aggregation Group (LAG) monitoring to display statistics for individual port members and the LAG. management- Enables management access filter monitoring.
Page 21 CLI Usage The tree and tree detail system commands are useful when searching for a command in a lower-level context. The following example shows a partial list of the tree and tree detail command output on a 7750 SR router. *A:cses-E11>config# tree +---router | +---aggregate...
Page 22: The Cli Command Prompt
The CLI Command Prompt | +---autonomous-system <autonomous-system> | | no autonomous-system | +---bfd | | +---abort | | +---begin | | +---bfd-template <[32 chars max]> | | | no bfd-template <[32 chars max]> | | | +---echo-receive <milli-seconds> | | | | no echo-receive | | | +---multiplier <[3..20]>...
Page 23: Displaying Configuration Contexts
CLI Usage At the end of the prompt, there is either a pound sign (“#”) or a dollar sign (“$”). A “#” at the end of the prompt indicates the context is an existing context. A “$” at the end of the prompt indicates the context has been newly created.
Page 24: Exec Files
EXEC Files mask-reply redirects 100 10 unreachables 100 10 ttl-expired 100 10 exit no mac no ntp-broadcast no cflowd no shutdown ---------------------------------------------- *A:ALA-1>config>router>if# EXEC Files The exec command allows you to execute a text file of CLI commands as if it were typed at a console device.
Page 25: Entering Cli Commands
CLI Usage A single script can be executing at one time. A table (SNMP smRunTable in the DISMAN- SCRIPT-MIB) is used as both an input queue of scripts waiting to be executed as well as for storage of records for completed scripts. If the input queue is full then the script request is discarded.
Page 26: Editing Keystrokes
Entering CLI Commands [metric <metric>] [tag <tag>] [enable|disable] black-hole *A:ALA-12>config>router# static-route preference 1 10.1.0.0/16 metric Some SR OS CLI commands have multiple unnamed parameters. For example, the subrate csu-mode rate-step command has both a csu-mode parameter and a rate-step parameter that do not have leading keywords.
Page 27: Absolute Paths
CLI Usage Table 7: Command Editing Keystrokes (Continued) Editing Action Keystrokes Convert rest of word to lowercase <Esc><l> Delete remainder of word <Esc><d> Delete word up to cursor <Ctrl-w> Transpose current and previous character <Ctrl-t> Enter command and return to root prompt <Ctrl-z>...
Page 28: History
15 show version 16 history *A:ALA-1# !3 A:ALA-42# show version TiMOS-B-0.0.I2016 both/i386 ALCATEL ESS 7450 Copyright (c) 2000-2008 Alcatel-Luc ent. All rights reserved. All use subject to applicable license agreements. Built on Sun Oct 12 20:01:13 PDT 2008 by builder in /rel0.0/I2016/panos/main...
Page 29: Entering Numerical Ranges
CLI Usage Entering Numerical Ranges The SR OS CLI allows the use of a single numerical range as an argument in the command line. This range can be a set or a sequence of numbers, or a combination of both. A set is a range of numerical values, from a minimum to a maximum, incremented by 1.
Page 30 Entering CLI Commands This will give vprn 11 the router-id "10.20.11.1", vprn 12 the router-id "10.20.12.1", and so Specifying a range in the CLI does have limitations. These limitations are summarized in Table Table 8: CLI Range Use Limitations Limitation Description Up to 6 ranges (including references) It is possible to shut down ports 1 through 10 on XMA/MDA 1 and...
Page 31: Pipe/Match
CLI Usage Pipe/Match The SR OS supports the pipe feature to search one or more files for a given character string or pattern. When using the pipe/match command the variables and attributes must be spelled correctly. The attributes follow the command and must come before the expression/pattern. The following are examples of how to use the pipe/match command to complete different tasks: •...
Page 32 Entering CLI Commands post-lines keyword: display some lines after the matching line lines-count 1 — 2147483647 For example: A:Dut-C# show log log-id 98 | match ignore-case "sdp bind" "Status of SDP Bind 101:1002 in service 1001 (customer 1) changed to admin=up oper=u p flags="...
Page 33 CLI Usage 2002 tmnxMcPathSrcGrpBlkHoleClear 2003 tmnxMcPathAvailBwLimitReached 2004 tmnxMcPathAvailBwValWithinRange MC_REDUNDANCY: 2001 tmnxMcRedundancyPeerStateChanged WA 2002 tmnxMcRedundancyMismatchDetected WA 2003 tmnxMcRedundancyMismatchResolved WA 2004 tmnxMcPeerSyncStatusChanged Table 9 describes regular expression symbols and interpretation (similar to what is used for route policy regexp matching). Table 10 describes special characters.
Page 34: Pipe/Count
Entering CLI Commands Table 9: Regular Expression Symbols (Continued) String Description > Redirect output Table 10: Special Characters Options Similar to Description [:upper:] [A-Z] uppercase letters [:lower:] [a-z] [:alpha:] [A-Za-z] upper- and lowercase letters [A-Za-z_] word characters [:alnum:] [A-Za-z0-9] digits, upper- and lowercase letters [:digit:] [0-9] digits...
Page 35: Redirection
CLI Usage ------------------------------------------------------------------------------- VPRN Down Down 1 VPRN VPRN Down Down 1 VPRN VPRN Down Down 1 1000 VPRN Down Down 1000 ------------------------------------------------------------------------------- Matching Services : 6 ------------------------------------------------------------------------------- =============================================================================== *A:dut-c# show service service-using vprn | match Down | count Count: 4 lines *A:dut-c# Redirection The SR OS supports redirection (“>”) which allows the operator to store the output of a CLI...
Page 36: Summary Of Vi Commands
VI Editor When a configuration file is changed, a validation check is executed to see if the user is allowed to view or perform configuration changes. When a user is modifying the configuration file using the vi editor these checks do not occur. Because of this, the vi editor is only available to a user with administrator privileges.
Page 37 CLI Usage • Searching for Text or Characters • Manipulating Character/Line Formatting • Saving and Quitting • Miscellaneous Table 11: Cutting and Pasting/Deleting Text in vi Description Command " Specify a buffer to be used any of the commands using buffers. Follow the "...
Page 38 VI Editor Table 12: Inserting New Text (Continued) Description Command Enter insert mode, the characters typed in will be inserted after the current cursor position. A count inserts all the text that was inserted that many times. Enter insert mode, the characters typed in will be inserted before the current cursor position.
Page 39 CLI Usage Table 13: Moving the Cursor Within the File (Continued) vi Command Description Move the cursor to the next paragraph. Move the cursor to the column specified by the count. Move the cursor to the first non-whitespace character in the next line. Move the cursor to the first non-whitespace character in the previous line.
Page 40 VI Editor Table 14: Moving the Cursor Around the Screen vi Command Description Scroll forwards one line. A count scrolls that many lines. Scroll backwards one line. A count scrolls that many lines. Redraw the screen with the following options. z<return> puts the current line on the top of the screen;...
Page 41 CLI Usage Table 16: Searching for Text or Characters (Continued) vi Command Description (Continued) Search the current line backwards for the character specified after the 'F' command. If found, move the cursor to the position. Repeat the last search given by / or ?, except in the reverse direction. Search the current line backwards for the character specified after the T command, and move to the column after the if it's found.
Page 42: Ex Commands
VI Editor Table 19: Miscellaneous (Continued) vi Command Description (Continued) Redraw the screen removing false lines. Escape key. Cancels partially formed command. Go back to the last file edited. Execute a shell. Not supported & Repeat the previous :s command. Repeat the last command that modified the file.
Page 43: Configuration Rollback
Without options, it only substitutes the first occurrence of options the pattern. If a 'g' is specified, then all occurrences are substituted. For example, the command :1,$s/Alcatel/Alcatel-Lucent/g substitutes all occurrences of Alcatel to Alcatel-Lucent. :set [all] Sets some customizing options to vi and EX. The :set all command gives all the possible options.
Page 44: Feature Behavior
Configuration Rollback The advantage of this feature are the following: • Changes made to router configuration is performed with minimal impact on services being provided by the SR by not having to reboot the router. • No impact in areas of configuration that did not change. With the rollback feature, the operator can smoothly revert to previous configurations.
Page 45 CLI Usage comment-string: an 255 char comment associated with the checkpoint • Rollback checkpoints include all current operationally active configuration: → Changes from direct CLI commands in the configuration branch. → SNMP sets • Rollback checkpoints do not include bof configurations. The BOF file (and bof config) is not part of a rollback-save or rollback.
Page 46 Configuration Rollback The automatic sync only causes the new checkpoint file to be copied to both CFs (the other 9 checkpoints are not automatically copied from active to standby but that can be done manually with admin red rollback-sync). config>redundancy# [no] rollback-sync •...
Page 47 CLI Usage Figure 4: Configuration Rollback SNMP set SNMP set CLI config CLI config rollback save rollback save rollback rollback checkpoint checkpoint rollback save rollback save rollback rollback checkpoint checkpoint rollback revert 2 rollback revert 2 rollback save rollback save rollback rollback checkpoint...
Page 48 2. Moving through the no neighbor intermediate state requires the working and protect circuits to be torn down and then rebuilt. This impacts the 7450 ESS and 7750 SR.
Page 49 This is supported on the 7450 ESS and 7750 SR. → After multi-chassis peer shutdown or configuration changes that affect the contents of the distributed database (for example, sync tag creation or deletion), further configuration changes related to that peer may be temporarily refused.
Page 50 SNMP, nor if the operator uses the now keyword with the rollback revert command. Some examples of card and mda commands that may cause a prompt are: → configure>card>card-type → configure>card>named-pool-mode (7450 ESS and 7750 SR) → configure>card>mda → configure>card>mda>mda-type Basic System Configuration Guide...
Page 51: Rollback And Snmp
CLI Usage • Although the use of the Control-C key combination is not recommended during a rollback revert, it is supported (via CLI or SNMP). Interrupting a rollback revert may leave the router in a state that is not necessarily something between the old active config and the rollback checkpoint since the rollback processing may have been in the middle of tearing things down or rebuilding configurations.
Page 52: Operational Guidelines
Configuration Rollback The operator should define a basic rescue configuration that is known to work and give correct management access to the node. The location and filename of the rescue file are configurable. SR OS appends an “.rc” suffix to the specified rescue filename. Operational Guidelines The following points offer some operational guidance on the usage of rollback.
Page 53: Transactional Configuration
CLI Usage • It is beneficial to create a rollback checkpoint before a rollback revert is initiated (especially if there have been significant config changes since the last checkpoint was created). If the rollback is especially significant (a lot of major changes) it is also a good practice to do perform an admin save in case a full reboot is required to recover from an issue.
Page 54: Basic Operation
Transactional Configuration Transactional Configuration and Configuration Rollback support combine to provide the operational model depicted in Figure Figure 5: Router Configuration with Rollback and Transactions Make Changes to the Target Config in CLI SNMP Commands (Candidate Edit) (Config) (SAM) Candidate Commit Candidate Active Configuration...
Page 55 CLI Usage If a commit operation is successful then all of the candidate changes will take operational effect and the candidate is cleared. If there is an error in the processing of the commit, or a ‘commit confirmed’ is not confirmed and an auto-revert occurs, then the router will return to a configuration state with none of the candidate changes applied.
Page 56: Transactions And Rollback
Transactional Configuration Error messages that will help the operator to take necessary actions to correct the candidate are provided for commit failures. Standard line-by-line (immediate operational effect upon pushing the enter/return key) non- transactional CLI and SNMP commands are not blocked during the creation/editing of a candidate or the processing of a commit.
Page 57: Basic Cli Command Reference
CLI Usage Basic CLI Command Reference Command Hierarchies • Basic CLI Commands • Monitor Commands • Environment Commands • Candidate Commands • Rollback Commands • Management Infrastructure Control Commands Basic System Configuration Guide...
Page 58: Basic Cli Commands
Basic CLI Command Reference Basic CLI Commands — back — echo [text-to-echo] [extra-text-to-echo] [more-text] — enable-admin — exec [-echo] [-syntax] filename — exit [all] — help — history — info [detail] [objective] — logout — mrinfo [ip-address | dns-name] [router router-instance] —...
Page 59 CLI Usage — port port-id [port-id...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] [multiclass] — port all-ethernet-rates [interval seconds] [repeat repeat] — port atm [interval seconds] [repeat repeat] [absolute | rate] — — arbiter-stats — card slot-number fp fp-number queue-group queue-group-name instance instance-id [ingress] [access | networks] [interval seconds] [repeat repeat] [absolute | percent-rate | reference-rate] [arbiter root | name] —...
Page 60: Environment Commands
Basic CLI Command Reference — neighbor ip-address [ip-address...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] — virtual-link nbr-rtr-id area area-id [interval seconds] [repeat repeat] [absolute | rate] — virtual-neighbor nbr-rtr-id area area-id [interval seconds] [repeat repeat] [absolute | rate] —...
Page 61: Candidate Commands
CLI Usage Candidate Commands <root> — candidate — edit [exclusive] — commit [confirmed timeout] [comment comment] — commit no-checkpoint [confirmed timeout] — confirm — copy [line] — delete [line] — discard [now] — goto line — insert [line] — load file-url [overwrite | insert | append] —...
Page 62: Management Infrastructure Control Commands
Basic CLI Command Reference Management Infrastructure Control Commands config — system — management {cli} — configuration — immediate Command Descriptions Global Commands enable-admin Syntax enable-admin Context <global> Description See the description for the admin-password command. If the admin-password is configured in the config>system>security>password context, then any user can enter a special administrative mode by entering the enable-admin command.
Page 63 CLI Usage • show users — Administrator can know which users are in this mode. • Enter the enable-admin command again at the root prompt and an error message will be returned. A:ALA-1# show users =============================================================================== User Type From Login time Idle time =============================================================================== admin Console -- 10AUG2006 13:55:24 0d 19:42:22 admin Telnet 10.20.30.93 09AUG2004 08:35:23 0d 00:00:00 A...
Page 64 Basic CLI Command Reference Description This command executes the contents of a text file as if they were CLI commands entered at the console. Exec commands do not have no versions. Related Commands: boot-bad-exec: Use this command to configure a URL for a CLI script to exec following a failed configuration boot.
Page 65 CLI Usage If you navigated to the current level by entering a command string, then the exit command returns the cursor to the context in which the command was initially entered. A:ALA-1# configure router ospf A:ALA-1>config>router>ospf# exit A:ALA-1# The exit all command moves the cursor all the way back to the root level. A:ALA-1# configure A:ALA-1>config# router A:ALA-1>config>router# ospf...
Page 66 Basic CLI Command Reference Convert rest of word to uppercase....Esc-c Convert rest of word to lowercase....Esc-l Delete remainder of word.....Esc-d Delete word up to cursor.....Ctrl-w Transpose current and previous character..Ctrl-t Enter command and return to root prompt..Ctrl-z Refresh input line......Ctrl-l help global —...
Page 67 CLI Usage For example: A:ALA-1# history 68 info 69 exit 70 info 71 filter 72 exit all 73 configure 74 router 75 info 76 interface "test" 77 exit 78 reduced-prompt 79 info 80 interface "test" 81 icmp unreachables exit all 82 exit all 83 reduced-prompt 84 configure router...
Page 68 Basic CLI Command Reference For example, A:ALA-48>config>router>mpls# info ---------------------------------------------- admin-group "green" 15 admin-group "red" 25 admin-group "yellow" 20 interface "system" exit interface "to-104" admin-group "green" admin-group "red" admin-group "yellow" label-map 35 swap 36 nexthop 10.10.10.91 no shutdown exit exit path "secondary-path" hop 1 10.10.0.111 strict hop 2 10.10.0.222...
Page 69 CLI Usage no shutdown exit path "secondary-path" hop 1 10.10.0.111 strict hop 2 10.10.0.222 strict hop 3 10.10.0.123 strict no shutdown exit path "to-NYC" hop 1 10.10.10.104 strict hop 2 10.10.0.210 strict no shutdown exit path "to-104" no shutdown exit lsp "to-104"...
Page 70 Basic CLI Command Reference Parameters detail — Displays all configuration parameters including parameters at their default values. objective — Provides an output objective that controls the configuration parameters to be displayed. Values include-dynamic — includes configuration parameters from dynamic sources such as vsd or dynamic data service Python scripts logout Syntax...
Page 71 CLI Usage [hop hop] [router router-instance] [wait-time wait-time] Context <global> Description This command traces a multicast path from a source to a receiver and displays multicast packet rate and loss information. This command applies to the 7750 SR and 7950 XRS. Parameters ip-address —...
Page 72 Basic CLI Command Reference group group-ip-address — Specify the multicast address or DNS name of the group that resolves to the multicast group address that will be used. If the group is not specified, address 224.2.0.1 (the MBone audio) will be used. This will suffice if packet loss statistics for a particular multicast group are not needed.
Page 73 CLI Usage A user cannot configure a non-conformant password for themselves using the global password command. A password value that does not conform to the minimum-length or other password complexity rules can be configured using the config>system>security>user>password command (for example, by an administrator), but a warning is provided in the CLI. This allows, for example, an administrator to configure a non-conformant password for a user.
Page 74 Basic CLI Command Reference ttl time-to-live — The IP Time To Live (TTL) value to include in the ping request, expressed as a decimal integer. Values 0 to128 tos type-of-service — The type-of-service (TOS) bits in the IP header of the ping packets, expressed as a decimal integer.
Page 75 When the previous keyword is specified, the previous context displays. This is the context entered by the CLI parser upon execution of the exit command. The current context of the CLI is not affected by the pwc command. The following example is from a 7450 ESS: *A:ALA-1>config>router>ospf>area>if# pwc previous ---------------------------------------------------------...
Page 76 Basic CLI Command Reference configure router "Base" ospf area "0.0.0.0" --------------------------------------------------------- *A:ALA-1config>router>ospf>area>if# Parameters previous — Specifies to display the previous present working context. sleep Syntax sleep [seconds] Context <global> Description This command causes the console session to pause operation (sleep) for 1 second (default) or for the specified number of seconds.
Page 77 CLI Usage router router-instance — Specify the router name or service ID. Values router-name: Base, management service-id: 1 to 2147483647 Default Base telnet Syntax telnet [ip-address | dns-name] [port] [router router-instance] Context <global> Description This command opens a Telnet session to a remote host. Telnet servers in SR-series networks limit a Telnet clients to three retries to login.
Page 78 Basic CLI Command Reference [tos type-of-service] [router router-instance] Context <global> Description The TCP/IP traceroute utility determines the route to a destination address. Note that aborting a traceroute with the <Ctrl-C> command could require issuing a second <Ctrl-C> command before the prompt is returned.
Page 79: Cli Environment Commands
CLI Usage router router-instance — Specifies the router name or service ID. Values router-name: Base, management service-id: 1 to 2147483647 Default Base tree Syntax tree [detail] Context <global> Description This command displays the command hierarchy structure from the present working context. Parameters detail —...
Page 80 Basic CLI Command Reference Description This command enables the substitution of a command line (or part of a command line) by an alias. Use the alias command to create alternative or easier to remember/understand names for an entity or command string. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes.
Page 81 CLI Usage Description This command enables per-screen CLI output, meaning that the output is displayed on a screen-by- screen basis. The terminal screen length can be modified with the terminal command. The following prompt appears at the end of each screen of paginated output: Press any key to continue (Q to quit) The no form of the command displays the output all at once.
Page 82 Basic CLI Command Reference saved-ind-prompt Syntax [no] saved-ind-prompt Context environment Description This command enables saved indicator in the prompt. When changes are made to the configuration file a “*” appears in the prompt string indicating that the changes have not been saved. When an admin save command is executed the “*”...
Page 83: Monitor Cli Commands
CLI Usage width Syntax width width Context environment>terminal Description This command determines display terminal width. Default 80 — Terminal dimensions are set to 24 lines long by 80 characters wide. Parameters width — Sets the width of the display terminal. Values 1 to 512 time-display...
Page 84 Basic CLI Command Reference Parameters card slot-number — Specifies the slot number associated with the queue group, expressed as an integer. Values 1 to 20 fp fp-number — Specifies the FP number associated with the queue group, expressed as an integer.
Page 85 CLI Usage Context monitor Description Displays monitor command output of traffic statistics for Cross Connect Aggregation Groups (CCAGs) ports. Parameters ccag-id — Specifies the CCAG instance to monitor. path — Specifies the CCA path nodal context where the CCA path bandwidth, buffer and accounting parameters are maintained.
Page 86 Basic CLI Command Reference interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 to 60 repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing.
Page 87 CLI Usage Description This command displays monitor command statistics for MAC filter entries. Parameters entry entry-id — Displays information on the specified filter entry ID for the specified filter ID only. Values 1 to 65535 interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values...
Page 88 Basic CLI Command Reference Parameters ip-filter-id — Displays detailed information for the specified filter ID and its filter entries. Values 1 to 65535 entry entry-id — Displays information on the specified filter entry ID for the specified filter ID only. Values 1 to 65535 interval seconds —...
Page 89 CLI Usage Ing. Matches: 0 Egr. Matches --------------------------------------------------------------------------- At time t = 3 sec (Mode: Rate) --------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches --------------------------------------------------------------------------- At time t = 6 sec (Mode: Rate) --------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches --------------------------------------------------------------------------- At time t = 9 sec (Mode: Rate) --------------------------------------------------------------------------- Ing.
Page 90 Basic CLI Command Reference absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta.
Page 91 CLI Usage Syntax mac mac-filter-id entry entry-id [interval seconds] [repeat repeat] [absolute | rate] Context monitor>filter Description This command enables MAC filter monitoring. The statistical information for the specified MAC filter entry displays at the configured interval until the configured count is reached. The first screen displays the current statistics related to the specified MAC filter.
Page 92 Basic CLI Command Reference ------------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Absolute) ------------------------------------------------------------------------------- Ing. Matches: 0 Egr. Matches =============================================================================== A:ALA-1>monitor>filter# mac 50 entry 10 interval 3 repeat 3 rate ===============================================================================...
Page 93 CLI Usage Parameters lag-id — The number of the LAG. Default none — The LAG ID value must be specified. Values 1 to 800 interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 to 60 repeat repeat —...
Page 94 Basic CLI Command Reference Context show>router>mpls Description This command displays MPLS LSP egress statistics information. lsp-ingress-stats Syntax lsp-ingress-stats lsp-ingress-stats ip-address lsp lsp-name Context show>router>mpls Description This command displays MPLS LSP ingress statistics information. management-access-filter Syntax management-access-filter Context monitor Description This command enables the context to monitor management-access filters. These filters are configured in the config>system>security>mgmt-access-filter context.
Page 95 CLI Usage ipv6 Syntax ipv6 entry-id [interval seconds] [repeat repeat] [absolute | rate] Context monitor>management-access-filter Description This command monitors statistics for the MAF IPv6 filter entry and applies to the 7750 SR and 7950 XRS. Parameters entry entry-id — Specifies an existing IP MAF entry ID. Values 1 to 9999 interval seconds —...
Page 96 Basic CLI Command Reference rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. port Syntax port port-id [port-id...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] [multiclass] Context monitor Description This command enables port traffic monitoring.
Page 97 CLI Usage interval seconds — Configures the interval for each display in seconds. Default 10 seconds Values 3 — 60 repeat repeat — Configures how many times the command is repeated. Default Values 1 — 999 absolute — When absolute is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics.
Page 98 Basic CLI Command Reference ------------------------------------------------------------------------------- At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Octets Packets Errors ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Rate) ------------------------------------------------------------------------------- Octets Packets Errors Bits Utilization (% of port capacity) 0.00 0.00 ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Rate) ------------------------------------------------------------------------------- Octets Packets...
Page 99 CLI Usage Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Parameters interval seconds — Configures the interval for each display in seconds. Default 10 seconds Values...
Page 100 Basic CLI Command Reference 5/2/1 4254070784 692394 43.64 4253952000 692375 43.64 ------------------------------------------------------------------------------- At time t = 12 sec (Mode: Rate) ------------------------------------------------------------------------------- 5/1/1 9746288640 1586K 99.99 9746216960 1586K 99.99 5/2/1 9746280448 1586K 99.99 9746167808 1586K 99.99 =============================================================================== A:ALA-12>monitor# Syntax atm [interval seconds] [repeat repeat] [absolute | rate] Context monitor>port Description...
Page 101 CLI Usage Parameters port-id — Specifies up to 5 port IDs. Values port-id slot/mda/port [.channel] eth-sat-id esat-id/slot/port esat keyword 1 to 20 pxc-id pxc-id.sub-port keyword 1 to 64 sub-port a, b aps-id aps-group-id[.channel] keyword group-id 1 to 64 bundle ID bundle-type-slot/mda.bundle-num bundle keyword...
Page 102 Basic CLI Command Reference oam — Identifies the port by the OAM test suite ID. Syntax Context monitor Description This command enables the context to configure criteria to monitor QoS scheduler statistics for specific customers and SAPs. arbiter-stats Syntax arbiter-stats Context monitor>qos Description...
Page 103 CLI Usage interval — seconds — Configures the interval for each display in seconds. Default 11 seconds Values 11 to 60 repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing.
Page 104 Basic CLI Command Reference card Syntax card slot-number fp fp-number queue-group queue-group-name instance instance-id [ingress] [access | networks] [interval seconds] [repeat repeat] [absolute | percent-rate | reference-rate] [arbiter root | name] Context monitor>qos>arbiter-stats Description This command monitors arbiter statistics in an ingress FP queue group. Parameters card slot-number —...
Page 105 CLI Usage arbiter name — Specifies the name of the policer control policy arbiter. Values An existing arbiter-name in the form of a string up to 32 characters long composed of printable, 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes.
Page 106 Basic CLI Command Reference port Syntax port port-id egress network queue-group queue-group-name instance instance-id [interval seconds] [repeat repeat] [absolute | rate] [arbiter root | name] Context monitor>qos>arbiter-stats Description This command monitors arbiter statistics for a customer site. Parameters port port-id — Specifies the port ID. Values slot/mda/port esat-id/slot/port...
Page 107 CLI Usage Context monitor>qos>arbiter-stats Description This command monitors arbiter statistics for a SAP. Parameters sap-id — Specify the physical port identifier portion of the SAP definition. arbiter name — Specify the name of the policer control policy arbiter. This parameter is mandatory if the SAP resides on a LAG in adapt-qoslink or port-fair mode.
Page 108 Basic CLI Command Reference ingress — Displays scheduler-name statistics applied on the ingress SAP. egress — Displays scheduler-name statistics applied on the egress SAP. interval seconds — Configures the interval for each display in seconds. Default 11 seconds Values 11 to 60 repeat repeat —...
Page 109 CLI Usage egress — Displays the customer’s multi-service-site egress scheduler policy. interval seconds — Configures the interval for each display in seconds. Default 11 seconds Values 11 to 60 repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999...
Page 110 Basic CLI Command Reference interval seconds — Configures the interval for each display in seconds. Default 11 seconds Values 11 to 60 repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing.
Page 111 CLI Usage rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. port Syntax port port-id queue-group queue-group-name [ingress | egress] [interval seconds] [repeat repeat] [absolute | rate] [access | network] [instance instance-id] Context monitor>qos>scheduler-stats Description...
Page 112 Basic CLI Command Reference Description This command monitors scheduler statistics in a VPORT. Parameters port port-id — Specifies the port ID. Values slot/mda/port esat-id/slot/port pxc-id.sub-port vport name — Displays statistics for the named VPORT. interval seconds — Configures the interval for each display in seconds. Default 11 seconds Values...
Page 113 CLI Usage repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate —...
Page 114 Basic CLI Command Reference Parameters router-instance — Specify the router name or service ID. Values router-name: Base, management service-id: 1 to 2147483647 Default Base neighbor Syntax neighbor ip-address [ip-address...(up to 5 max)] [interval seconds] [repeat repeat] [absolute | rate] Context monitor>router>bgp Description This command displays statistical BGP neighbor information at the configured interval until the...
Page 115 CLI Usage A:ALA-12>monitor>router>bgp# neighbor 180.0.0.10 interval 3 repeat 3 absolute =============================================================================== Monitor statistics for BGP Neighbor 180.0.0.10 =============================================================================== At time t = 0 sec ------------------------------------------------------------------------------- Recd. Prefixes Sent Prefixes Recd. Paths Suppressed Paths : 0 Num of Flaps i/p Messages : 916 o/p Messages : 916...
Page 116 Basic CLI Command Reference Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Parameters interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values...
Page 117 CLI Usage PDU Type Received Processed Dropped Sent Retransmitted ------------------------------------------------------------------------------- CSNP PSNP Unknown ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- ISIS Instance SPF Runs Purge Initiated LSP Regens. : 11 CSPF Statistics Requests Request Drops Paths Found Paths Not Found: 0 ------------------------------------------------------------------------------- PDU Type...
Page 118 Basic CLI Command Reference ------------------------------------------------------------------------------- PDU Type Received Processed Dropped Sent Retransmitted ------------------------------------------------------------------------------- CSNP PSNP Unknown ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Rate) ------------------------------------------------------------------------------- ISIS Instance SPF Runs Purge Initiated LSP Regens. CSPF Statistics Requests Request Drops Paths Found Paths Not Found: 0 ------------------------------------------------------------------------------- PDU Type...
Page 119 CLI Usage interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 to 60 repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing.
Page 120 Basic CLI Command Reference ------------------------------------------------------------------------------- FECs Hello 5288 5290 Keepalive 8226 8226 Init Label Mapping Label Request Label Release Label Withdraw Label Abort Notification Address Address Withdraw ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Absolute) ------------------------------------------------------------------------------- FECs Hello 5288 5290 Keepalive 8226...
Page 121 CLI Usage Label Mapping Label Request Label Release Label Withdraw Label Abort Notification Address Address Withdraw ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Rate) ------------------------------------------------------------------------------- FECs Hello Keepalive Init Label Mapping Label Request Label Release Label Withdraw Label Abort Notification Address Address Withdraw...
Page 122 Basic CLI Command Reference Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Parameters interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values...
Page 123 CLI Usage ------------------------------------------------------------------------------- Addr FECs Sent Addr FECs Recv Serv FECs Sent Serv FECs Recv ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Rate) ------------------------------------------------------------------------------- Addr FECs Sent Addr FECs Recv Serv FECs Sent Serv FECs Recv ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Rate) ------------------------------------------------------------------------------- Addr FECs Sent Addr FECs Recv...
Page 124 Basic CLI Command Reference absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta.
Page 125 CLI Usage Received : Pkts - 0 Octets - 0 =============================================================================== A:ALA-12>monitor>router>mpls# lsp-egress-statistics Syntax lsp-egress-stats lsp-name [interval seconds] [repeat repeat] [absolute | rate] Context monitor>router>mpls Description This command displays egress statistics for LSP interfaces at the configured interval until the configured count is reached.
Page 126 Basic CLI Command Reference InProf Octets : 560918 OutProf Octets: 0 FC L1 InProf Pkts : 551 OutProf Pkts InProf Octets : 560918 OutProf Octets: 0 FC H2 InProf Pkts OutProf Pkts : 551 InProf Octets : 0 OutProf Octets: 560918 FC EF InProf Pkts OutProf Pkts...
Page 127 CLI Usage InProf Octets : 0 OutProf Octets: 619962 FC AF InProf Pkts : 609 OutProf Pkts InProf Octets : 619962 OutProf Octets: 0 FC L1 InProf Pkts : 609 OutProf Pkts InProf Octets : 619962 OutProf Octets: 0 FC H2 InProf Pkts OutProf Pkts : 609...
Page 128 Basic CLI Command Reference [absolute | rate] Context monitor>router>mpls Description This command displays ingress statistics for LSP interfaces at the configured interval until the configured count is reached. Parameters repeat repeat — Specifies how many times the command is repeated. Values Values 1 to 999...
Page 129 CLI Usage FC H1 InProf Pkts : 539 OutProf Pkts InProf Octets : 548702 OutProf Octets: 0 FC NC InProf Pkts OutProf Pkts : 539 InProf Octets : 0 OutProf Octets: 548702 ------------------------------------------------------------------------------- At time t = 10 sec (Mode: Absolute) ------------------------------------------------------------------------------- LSP Name : sample...
Page 130 Basic CLI Command Reference InProf Pkts OutProf Pkts : 597 InProf Octets : 0 OutProf Octets: 607746 FC EF InProf Pkts : 597 OutProf Pkts InProf Octets : 607746 OutProf Octets: 0 FC H1 InProf Pkts : 597 OutProf Pkts InProf Octets : 607746 OutProf Octets: 0 FC NC...
Page 131 CLI Usage Parameters ospf-instance — Specifies the OSPF instance. Values 1 to 31 ospf3 Syntax ospf3 Context monitor>router Description This command enables the context to configure monitor commands for the OSPF3 instance and applies to the 7750 SR or 7950 XRS. interface Syntax interface interface [interface...(up to 5 max)] [interval seconds] [repeat repeat] [absolute |...
Page 132 Basic CLI Command Reference rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta. Output Sample Output A:ALA-12>monitor>router>ospf# interface to-104 interval 3 repeat 3 absolute =============================================================================== Monitor statistics for OSPF Interface "to-104" =============================================================================== At time t = 0 sec (Base Statistics) -------------------------------------------------------------------------------...
Page 133 CLI Usage Bad Lengths Bad Hello Int. : 0 Bad Dead Int. Bad Options Bad Versions ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Absolute) ------------------------------------------------------------------------------- Tot Rx Packets : 8380 Tot Tx Packets : 8529 Rx Hellos : 8226 Tx Hellos : 8369 Rx DBDs...
Page 134 Basic CLI Command Reference Bad Dead Int. Bad Options Bad Versions ------------------------------------------------------------------------------- At time t = 6 sec (Mode: Rate) ------------------------------------------------------------------------------- Tot Rx Packets : 0 Tot Tx Packets : 0 Rx Hellos Tx Hellos Rx DBDs Tx DBDs Rx LSRs Tx LSRs Rx LSUs Tx LSUs...
Page 135 CLI Usage Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Parameters neighbor ip-address — The IP address to display information for entries received from the specified OPSF neighbor.
Page 136 Basic CLI Command Reference Bad Packets LSA not in LSDB Option Mismatches: 0 Nbr Duplicates ======================================================================= A:ALA-12>monitor>router# A:ALA-12>monitor>router# ospf neighbor 10.0.0.104 interval 3 repeat 3 absolute =============================================================================== Monitor statistics for OSPF Neighbor 10.0.0.104 =============================================================================== ------------------------------------------------------------------------------- At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Bad Nbr States LSA Inst fails...
Page 137 CLI Usage Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Parameters neighbor ip-address — The IP address to display information for entries received from the specified OSPF neighbor.
Page 138 Basic CLI Command Reference interval seconds — Configures the interval for each display in seconds. Default 5 seconds Values 3 to 60 repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing.
Page 139 CLI Usage absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta.
Page 140 Basic CLI Command Reference Monitor commands are similar to show commands but only statistical information displays. Monitor commands display the selected statistics according to the configured number of times at the interval specified. Parameters neighbor ip-address — The IP address to display information for entries received from the specified RIP neighbor.
Page 141 CLI Usage repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. rate —...
Page 142 Basic CLI Command Reference This command displays statistics for a specific SAP, identified by the port-id and encapsulation value, at the configured interval until the configured count is reached. The first screen displays the current statistics related to the SAP. The subsequent statistical information listed for each interval is displayed as a delta to the previous display.
Page 143 CLI Usage keyword group-id 1 to 128 ccag-id ccag-id.path-id[cc-type]:cc-id ccag keyword 1 to 8 path-id a | b cc-type .sap-net | .net-sap cc-id 1 to 4094 eth-tunnel eth-tunnel-id[:eth-tun-sap-id] 1 to 1024 eth-tun-sap-id 0 to 4094 lag-id lag-id keyword 1 to 800 pw-id pw-id keyword...
Page 144 Basic CLI Command Reference The command syntax must be configured as follows: bundle-id: bundle-type-slot-id/mda-slot.bundle-num bundle-id value range: 1 to 128 For example: *A:ALA-12>config# port bundle-ppp-5/1.1 *A:ALA-12>config>port# multilink-bundle bgprp-id — Specifies the bundle protection group ID to be associated with this IP interface. The bpgrp keyword must be entered at the beginning of the parameter.
Page 145 CLI Usage Table 21: qtag values by port and encapsulation type (Continued) Port Type Encap-Type Allowed Values Comments SONET/ IPCP — The SAP is identified by the channel. No BCP is deployed and all traffic is SONET/ BCP-Null The SAP is identified with a single service on the channel.
Page 146 Basic CLI Command Reference Sap Statistics ------------------------------------------------------------------------------- Last Cleared Time : N/A Packets Octets Forwarding Engine Stats Dropped Off. HiPrio Off. LowPrio Off. Uncolor Queueing Stats(Ingress QoS Policy 1) Dro. HiPrio Dro. LowPrio For. InProf For. OutProf Queueing Stats(Egress QoS Policy 1) Dro.
Page 147 CLI Usage repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the absolute rate-per-second value for each statistic is displayed. rate — When the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta.
Page 148 Basic CLI Command Reference instance Syntax instance interface interface-name vr-id virtual-router-id [interval seconds] [repeat repeat] [absolute | rate] Context monitor>router>vrrp Description Monitor statistics for a VRRP instance. Parameters interface-name — The name of the existing IP interface on which VRRP is configured. vr-id virtual-router-id —...
Page 149 CLI Usage repeat repeat — Configures how many times the command is repeated. Default Values 1 to 999 absolute — When the absolute keyword is specified, the raw statistics are displayed, without processing. No calculations are performed on the delta or rate statistics. Default mode delta rate —...
Page 150 Basic CLI Command Reference Off. Uncolor Dro. HiPrio Dro. LowPrio For. InProf For. OutProf Ingress Queue 2 (Unicast) (Priority) Off. HiPrio Off. LowPrio : 94531 30704535 Off. Uncolor Dro. HiPrio Dro. LowPrio : 7332 2510859 For. InProf For. OutProf : 87067 28152288 Ingress Queue 3 (Unicast) (Priority) Off.
Page 151 CLI Usage At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- SLA Profile Instance statistics ------------------------------------------------------------------------------- Packets Octets Off. HiPrio Off. LowPrio : 109099 35427060 Off. Uncolor Queueing Stats (Ingress QoS Policy 1000) Dro. HiPrio Dro. LowPrio : 8449 2894798 For.
Page 152: Candidate Commands
Basic CLI Command Reference =============================================================================== A:Dut-A# A:Dut-A# monitor service subscriber alcatel_100 sap 1/2/1:101 sla-profile sla_default egress-queue-id 1 =============================================================================== Monitor statistics for Subscriber alcatel_100 ------------------------------------------------------------------------------- At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Packets Octets Egress Queue 1 Dro. InProf : 880 127660 Dro.
Page 153 CLI Usage Parameters exclusive — Allows a user to exclusively create a candidate configuration by blocking other users (and other sessions of the same user) from entering edit-cfg mode. Exclusive edit-cfg mode can only be entered if the candidate configuration is empty and no user is in edit-cfg mode. Once a user is in exclusive edit-cfg mode no other users/sessions are allowed in edit-cfg mode.
Page 154 Basic CLI Command Reference timeout — The auto-revert timeout period in minutes. Values 1 to 168 no-checkpoint — Used to avoid the automatic creation of a rollback checkpoint for a successful commit. comment comment — Adds a comment up to 255 characters in length to the automatic rollback checkpoint.
Page 155 CLI Usage delete Syntax delete [line] Context candidate Description This command deletes the selected CLI node (which includes all sub-branches). The deleted lines are also copied into a temporary buffer that can be used for a subsequent insert. Parameters line — Indicates which line to delete. Values line, offset, first, edit-point last line...
Page 156 Basic CLI Command Reference offset Relative line number to current edit point. Prefixed with '+' or '-' first Keyword - first line edit-point Keyword - current edit point last Keyword - last line that is not 'exit' insert Syntax insert [line] Context candidate Description...
Page 157 CLI Usage Description This command loads a previously saved candidate configuration into the current candidate. The edit point will be set to the end of the loaded configuration lines. The candidate configuration cannot be modified while a load is in progress. Default If the candidate is empty then a load without any of the optional parameters (such as overwrite, etc) will simply load the file-url into the candidate.
Page 158 Basic CLI Command Reference Description This command displays the specified line (a single line only) and allows it to be changed. Parameters line — Indicated which line to replace starting at the point indicated by the following options. Values line, offset, first, edit-point last line Absolute line number.
Page 159 CLI Usage Context candidate Description This command displays the candidate configuration along with line numbers that can be used for editing the candidate configuration. Parameters line — Displays the candidate configuration starting at the point indicated by the following options (the display is not limited to the current CLI context/branch). Values line, offset, first, edit-point last line...
Page 160 Basic CLI Command Reference Table 22: Candidate output fields (Continued) Label Description (Continued) Num editors/viewers The number of CLI sessions currently in edit-cfg mode. Candidate cfg Indicates if a user has exclusively locked the candidate using the exclusive locked candidate edit exclusive command. Last commit state •...
Page 161: Rollback Commands
CLI Usage Last commit state : revert-failed Last commit time : 10/23/2012 17:21:47 Checkpoint created with last commit : yes Scheduled revert time : N/A Last commit revert time : 10/23/2012 17:22:47 =============================================================================== Users in edit-cfg mode =============================================================================== Username Type (from) =============================================================================== admin Console...
Page 162 Basic CLI Command Reference Parameters source1, source2 — Specifies comparison information. Values active-cfg — The currently operational configuration that is active in the node. latest-rb — The most recent rollback checkpoint (the checkpoint file at the configured rollback-location with “*.rb” as the suffix). rescue—...
Page 163 CLI Usage Context admin>rollback Description This command initiates a configuration rollback revert operation that will return the configuration state of the node to a previously saved checkpoint. The rollback revert minimizes impacts to running services. There are no impacts in areas of configuration that did not change since the checkpoint. Configuration parameters that changed (or items on which changed configuration have dependencies) are first removed (revert to default) and the previous values are then restored (can be briefly service impacting in changed areas).
Page 164 Basic CLI Command Reference Context admin>rollback Description This command displays the checkpoint. Default none Parameters latest-rb — Specifies the most recently created rollback checkpoint (corresponds to the file-url.rb rollback checkpoint file). checkpoint-id — Indicates rollback checkpoint file to be viewed. Checkpoint-id of 1 corresponds to the file-url.rb.1 rollback checkpoint file.
Page 165 CLI Usage Default None. A valid rollback-location must be configured before a rollback save is executed. Parameters file-url — Specifies the URL. Values local-url | remote-url local-url [cflash-id/][file-path] 200 chars max, including flash-id directory length 99 chars max each remote-url [{ftp://}login:pswd@ remote-locn/][file-path] 255 chars max directory length 99 chars max each remote-locn...
Page 166: Management Infrastructure Control Commands
Basic CLI Command Reference ipv4-address a.b.c.d ipv6-address x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses cflash-id cf1:|cf1-A:|cf1-B:|cf2:|cf2-A:|cf2-B:| cf3:|cf3-A:|cf3-B: rescue filename suffixed with .rc during rescue file creation local-max-checkpoints Syntax local-max-checkpoints local-max-checkpoints Context config>system>rollback Description...
Page 167: Show Commands
CLI Usage Description This command enables the context to configure management interface parameters. Default No default Parameters cli — Allows configuration of parameters related to basic CLI commands for datastore infrastructure operation and behavior. configuration Syntax configuration Context config>system>management Description This command enables the context to configure parameters related to configuration data.
Page 168 Basic CLI Command Reference Output The following table describes alias output fields. Table 23: Show Alias Output Fields Label Description Alias-Name Displays the name of the alias. Alias-command-name The command and parameter syntax that define the alias. Number of aliases The total number of aliases configured on the router.
Page 169: File System Management
File System Management In This Chapter This chapter provides information about file system management. Topics in this chapter include: • The File System → Compact Flash Devices → URLs → Wildcards • File Management Tasks → Modifying File Attributes → Creating Directories →...
Page 170: Compact Flash Devices
The file system is based on a DOS file system (with an optional Reliance file system). In the 7750 SR and 7450 ESS, each control processor can have up to three compact flash devices numbered one through three. In the 7950 XRS, each CCM has an SSD and up to two compact flash devices.
Page 171: Wildcards
File System Management Table 24: URL Types and Syntax (Continued) URL Type Syntax Notes ftp-url ftp://[username[:password]@]host/path An absolute ftp path from the root of the remote file system. username is the ftp user name password is the ftp user password host is the remote host path is the path to the directory or file ftp://[username[:password]@]host/./path...
Page 172 The File System Example: A:ALA-1>file cf3:\ # copy test*.cfg siliconvalleycf1:\testfile.cfg 1 file(s) copied. A:ALA-1>file cf3:\ # cd siliconvalley A:ALA-1>file cf3:\siliconvalley\ # dir Volume in drive cf1 on slot A has no label. Directory of cf3:\siliconvalley\ 05/10/2006 11:32p <DIR> .05/10/2006 11:14p <DIR>...
Page 173: File Management Tasks
File System Management Table 25: File Command Local and Remote File System Support (Continued) Command local-url ftp-url tftp-url move repair source only type version shutdown File Management Tasks The following sections are basic system tasks that can be performed. Note that when a file system operation is performed with the copy, delete, move, rd, or scp commands that can potentially delete or overwrite a file system entry, a prompt appears to confirm the action.
Page 174: Creating Directories
File Management Tasks Use the CLI syntax displayed below to modify file attributes: CLI Syntax: file> attrib [+r | -r] file-url The following displays an example of the command syntax: Example: # file file cf3:\ # attrib file cf3:\ # attrib +r BOF.SAV file cf3:\ # attrib The following displays the file configuration: A:ALA-1>file cf3:\ # attrib...
Page 175: Copying Files
File System Management Copying Files Use the copy command to upload or download an image file, configuration file, or other file types to or from a flash card or a TFTP server. The scp command copies files between hosts on a network. It uses SSH for data transfer, and uses the same authentication and provides the same security as SSH.
Page 176: Deleting Files And Removing Directories
File Management Tasks Example: A:ALA-1>file cf1:\test1\test2\test3\ # move test.cfg cf1:\test1 cf1:\test1\test2\test3\test.cfg A:ALA-1>file cf1:\test1\test2\test3\ # cd .. A:ALA-1>file cf1:\test1\test2\ # cd .. A:ALA-1>file cf1:\test1\ # dir Directory of cf1:\test1\ 05/04/2006 07:58a <DIR> 05/04/2006 07:06a <DIR> 05/04/2006 07:06a <DIR> test2 05/04/2006 07:58a 25278 test.cfg 1 File(s) 25278 bytes.
Page 177: Displaying Directory And File Information
File System Management CLI Syntax: file rd file-url rf Displaying Directory and File Information Use the dir command to display a list of files on a file system. The type command displays the contents of a file. The version command displays the version of a *.tim or iom.tim file. (iom.tim file is used for the XCM on the 7950 XRS).
Page 178: Repairing The File System
File Management Tasks interface faste 2/3 shutdown exit interface faste 2/4 A:ALA-1>file cf1:\ # version boot.tim TiMOS-L-1.0.B3-8 A:ALA-1>file cf1:\ # Repairing the File System Use the repair command to check a compact flash device for errors and repair any errors found.
Page 179: File Command Reference
File System Management File Command Reference Command Hierarchy File Commands file — attrib [+r | -r] file-url — attrib — [file-url] — copy source-file-url dest-file-url [force] — delete file-url [force] — [file-url] [sort-order {d | n | s}] [reverse] — format [cflash-id] [reliable] —...
Page 180 File Command Reference Use the no shutdown [active] [standby] command to enable one or both CPM. Use the no shutdown [cflash-id] command to enable a compact flash (cf1:, cf2:, or cf3:) on the CPM/ CFM/CCM. The no shutdown command can be issued for a specific slot when no compact flash is present.
Page 181: File Commands
File System Management Parameters cflash-id — Specifies the compact flash slot ID to be shut down or enabled. If cflash-id is specified, the drive is shut down or enabled. If no cflash-id is specified, the drive referred to by the current working directory is assumed. If a slot number is not specified, then the active CPM/CFM is assumed.
Page 182 File Command Reference +r — Sets the read-only attribute on the specified file. -r — Clears/resets the read-only attribute on the specified file. Syntax cd [file-url] Context file Description This command displays or changes the current working directory in the local file system. Parameters file-url —...
Page 183 File System Management To FTP a file named 121201.cfg in directory mydir stored on cf1 in slot A to a network FTP server with IP address 131.12.31.79 in a directory called backup with a destination file name of 121201.cfg, the FTP syntax is: copy cf1-A/mydir/121201.cfg 131.12.31.79/backup/121201.cfg Parameters source-file-url —...
Page 184 File Command Reference Use the file-url with the optional wildcard “*” to reduce the number of files to list. Default Lists all files in the present working directory sort-order {d | n | s} — Specifies the sort order. Values d —...
Page 185 File System Management format Syntax format cflash [cflash-id] [reliable] Context root>file Description This command formats the compact flash. The compact flash must be shut down before starting the format. Parameters cflash-id — The compact flash type. Values cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: reliable —...
Page 186 File Command Reference local-url [cflash-id/][file-path] remote-url [ftp://login:pswd@remote-locn/][file-path] cf1:,cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: new-file-url — The new destination to place the old-file-url. Values local-url | remote-url 255 chars max local-url [cflash-id/][file-path] remote-url [ftp://login:pswd@remote-locn/][file-path] cf1:,cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: force — Forces an immediate move of the specified file(s). file move force executes the command without displaying a user prompt message. Syntax rd file-url rf rd file-url [force]...
Page 187 File System Management local-url [cflash-id/][file-path] 200 chars max, including cflash-id directory length 99 chars max each remote-url [ftp://login:pswd@remote-locn/][file-path] 247 chars max directory length 99 chars max each remote-locn [hostname | ipv4-address | [ipv6-address]] ipv4-address a.b.c.d ipv6-address x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses cflash-id...
Page 188 File Command Reference “Are you sure (y/n)?” The destination must specify a user and a host. Parameters local-file-url — The local source file or directory. Values [cflash-id/][file-path]: Up to 256 characters. destination-file-url — The destination file. Values destination-file-* : user@hostname:file-path - [255 chars max] user 32 chars max hostname...
Page 189 File System Management Description Displays the contents of a text file. Parameters file-url — The file contents to display. Values local-url | remote-url local-url [cflash-id/][file-path] 200 chars max, including cflash-id directory length 99 chars max each remote-url [{ftp://|tftp://}login:pswd@remote-locn/ [file-path] 255 chars max directory length 99 chars max each remote-locn [hostname | ipv4-address | ipv6-address]...
Page 190 File Command Reference A:Redundancy>file cf3:\ # version ftp://test:1234@xxx.xxx.xxx.xx/usr/global/images/ 6.1/R4/cpm.tim TiMOS-C-6.1.R4 for 7750 Thu Oct 30 14:21:09 PDT 2008 by builder in /rel6.1/b1/R4/panos/main A:Redundancy>file cf3:\ # version check ftp://test:1234@xxx.xxx.xxx.xx/usr/global/ images/6.1/R4/cpm.tim TiMOS-C-6.1.R4 for 7750 Thu Oct 30 14:21:09 PDT 2008 by builder in /rel6.1/b1/R4/panos/main Validation successful A:Redundancy>file cf3:\ # Syntax...
Page 191: Boot Options
Boot Options In This Chapter This chapter provides information about configuring boot option parameters. Topics in this chapter include: • System Initialization → Configuration and Image Loading Persistence Lawful Intercept FIPS-140-2 Mode • Initial System Startup Process Flow • Configuration Notes System Initialization The primary copy of SR OS software is located on a compact flash card.
Page 192 System Initialization Starting a router begins with hardware initialization (a reset or power cycle). By default, the system searches Compact Flash Slot #3 (cf3) for the boot.ldr file (also known as the bootstrap file). The boot.ldr file is the image that reads and executes the system initialization commands configured in the boot option file (BOF).
Page 193 Boot Options Figure 7 displays the compact flash directory structure and file names for the redundant chassis models. Figure 7: Files on the Compact Flash Root bof.cfg boot.idr config.cfg TiMOS-m.n.Yz both.tim cpm.tim iom.tim support.tim hmac-sha1.txt 25610 Files on compact flash are: •...
Page 194 System Initialization Figure 8: Files on the Compact Flash (1-slot and 1-slot non-redundant) Root bof.cfg boot.idr config.cfg TiMOS-m.n.Yz both.tim both.tim support.tim hmac-sha1.txt 25609 Files on the compact flash (1-slot models) are: • bof.cfg — Boot option file • boot.ldr — Bootstrap image •...
Page 195: Configuration And Image Loading
Boot Options Configuration and Image Loading When the system executes the boot.ldr file, the initialization parameters from the BOF are processed. Three locations can be configured for the system to search for the files that contains the runtime image. The locations can be local or remote. The first location searched is the primary image location.
Page 196 System Initialization Figure 9: System Initialization - Part 2 (user in SNMP shutdown control) Issue trap OPERATIONAL Issue log entry Issue console msg WAIT GET FIRST/ STARTUP CONFIG REQUIRED? NEXT RUN FAILED TIME IMAGE PERSIST CHECK FOR PROCESSED PRIMARY SECONDARY IMAGES? TERTIARY PROCESS...
Page 197: Persistence
Boot Options Persistence Optionally, the BOF persist parameter can specify whether the system should preserve system indexes when a save command is executed. During a subsequent boot, the index file is read along with the configuration file. As a result, a number of system indexes are preserved between reboots, including the interface index, LSP IDs, path IDs, etc.
Page 198 System Initialization • Cryptographic module conditional tests are executed when required during normal operation of associated when using FIPS-140-2 approved algorithms. • When configuring user-defined encryption or authentication keys, CLI will prompt for the key to be re-entered. If the re-entered key does not match the original, the CLI command will be canceled.
Page 199: Initial System Startup Process Flow
Boot Options → SHA-256 → SHA-384 → SHA-512 Any other combination is not supported in FIPS mode. Using other FIPS signature algorithms in certificates affecting IPsec can cause tunnels to fail. Restrictions to cryptographic algorithms are listed in the System Configuration guide. Initial System Startup Process Flow Figure 10 displays the process start your system.
Page 200: Configuration Notes
Configuration Notes Figure 10: System Startup Flow START INSERT FLASH CARD INTO COMPACT FLASH SLOT #3 POWER CYCLE ROUTER BOOT.LDR FILES FOUND BOF FILES FOUND ESTABLISH ROUTER CONNECTION (CONSOLE PORT) ASSIGN IP ADDRESS TO THE CPM PRIMARY IMAGE CONFIGURE/MODIFY BOF FILE LOCATIONS PRIMARY CONFIG SECONDARY IMAGE SECONDARY CONFIG...
Page 201: Configuring Boot Options File With Cli
Rebooting BOF Configuration Overview Alcatel-Lucent routers do not contain a boot EEPROM. The boot loader code is loaded from the boot.ldr file. The BOF file performs the following tasks: Step 1. Sets up the CPM/CCM Ethernet port (speed, duplex, auto).
Page 202: Common Configuration Tasks
Common Configuration Tasks The most basic BOF configuration should have the following: • Primary address • Primary image location • Primary configuration location Following is a sample of a basic BOF configuration. A:SR-45# show bof =============================================================================== BOF (Memory) =============================================================================== primary-image cf3:/4.0.R20 primary-config cf3:/ospf_default.cfg address 138.120.189.53/24 active static-route...
Page 203 Boot Options The following example displays an example of the output when the boot sequence is interrupted..Hit a key within 3 seconds to change boot params... You must supply some required Boot Options. At any prompt, you can type: "restart"...
Page 204: Accessing The Cli
Common Configuration Tasks Enter Active IP Address: Using: 192.168.xx.xxx/20 The existing Standby IP address is 192.168.xx.xxx/20. Press ENTER to keep it. Enter Standby IP Address (Type 0 if none desired): Using: 192.168.xx.xxx/20 Would you like to add a static route? (yes/no) y Static Routes ------------- You specified network locations which require...
Page 205: Console Connection
Boot Options Console Connection To establish a console connection, you will need the following: • An ASCII terminal or a PC running terminal emulation software set to the parameters shown in the table below. • A standard serial cable with a male DB9. Table 27: Console Configuration Parameter Values Parameter Value...
Page 206: Service Management Tasks
Service Management Tasks address 10.10.xx.xx/20 active wait primary-image cf3:\both.tim primary-config cf3:\test123.cfg primary-dns 192.168.xx.xx persist dns-domain test.alcatel.com ================================================================== A:ALA-1>bof# Service Management Tasks This section discusses the following service management tasks: • System Administration Commands → Viewing the Current Configuration → Modifying and Saving a Configuration →...
Page 207: Modifying And Saving A Configuration
Boot Options A:7750-3>admin# display-config # TiMOS B-1.0.Ixxx - Copyright (c) 2000-2007 Alcatel, Inc. # Built on Tues Jan 21 21:39:07 2007 by builder in /rel1.0/xx/panos/main # Generated WED Jan 31 06:15:29 2007 UTC exit all configure #-------------------------------------------------- echo "System Configuration" #-------------------------------------------------- system name "7750-3"...
Page 208: Deleting Bof Parameters
Service Management Tasks • Specify the file URL location to save the running configuration. If a destination is not specified, the files are saved to the location where the files were found for that boot sequence. The same configuration can be saved with different file names to the same location or to different locations.
Page 209: Saving A Configuration To A Different Filename
Boot Options Example: A:ALA-1# bof A:ALA-1>bof# save cf3: A:ALA-1>bof# CLI Syntax: bof# no address ip-address/mask [active | standby] no autonegotiate no console-speed no dns-domain no li-local-save no li-separate no primary-config no primary-dns no primary-image no secondary-config no secondary-dns no secondary-image no static-route ip-address/mask next-hop ip-address no tertiary-config no tertiary-dns...
Page 210 Service Management Tasks Use the following CLI syntax to reboot: CLI Syntax: admin# reboot [active | standby | upgrade] [hold] [now] Example: A:ALA-1>admin# reboot A:DutA>admin# reboot Are you sure you want to reboot (y/n)? y Resetting...OK Alcatel 7xxx Boot ROM. Copyright 2000-2007 Alcatel- Lucent.
Page 211: Bof Configuration Command Reference
Boot Options BOF Configuration Command Reference Command Hierarchies Configuration Commands — [no] address ip-prefix/ip-prefix-length [active | standby] — [no] autonegotiate — console-speed baud-rate — no console-speed — dns-domain dns-name — no dns-domain — duplex {full | half} — fips-140-2 — no fips-140-2 —...
Page 212: Command Descriptions
BOF Configuration Command Reference Command Descriptions File Management Commands Syntax Context <root> Description This command creates or edits the boot option file (BOF) for the specified local storage device. A BOF file specifies where the system searches for runtime images, configuration files, and other operational parameters during system initialization.
Page 213: Bof Processing Control
Boot Options If a location is not specified, the BOF is saved to the default compact flash drive (cf3:) on the active CPM (typically the CPM in slot A, but the CPM in slot B could also be acting as the active CPM). The slot name is not case-sensitive.
Page 214: Console Port Configuration
BOF Configuration Command Reference Parameters seconds — The time to pause at the start of the boot process, in seconds. Values 1 to10 Console Port Configuration console-speed Syntax console-speed baud-rate no console-speed Context Description This command configures the console port baud rate. When this command is issued while editing the BOF file used for the most recent boot, both the BOF file and the active configuration are changed immediately.
Page 215 Boot Options If persist is enabled and the admin save url command is executed with an FTP path used as the url parameter, two FTP sessions simultaneously open to the FTP server. The FTP server must be configured to allow multiple sessions from the same login, otherwise, the configuration and index files will not be saved correctly.
Page 216 BOF Configuration Command Reference primary-image Syntax primary-image file-url no primary image Context Description This command specifies the primary directory location for runtime image file loading. The system attempts to load all runtime image files configured in the primary-image first. If this fails, the system attempts to load the runtime images from the location configured in the secondary-image.
Page 217 Boot Options file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id cf1:, cf1-A:, cf1-B:, cf2:, cf2-A:, cf2-B:, cf3:, cf3-A:, cf3-B: secondary-image Syntax secondary-image file-url no secondary-image Context Description This command specifies the secondary directory location for runtime image file loading. The system attempts to load all runtime image files configured in the primary-image first.
Page 218 BOF Configuration Command Reference The no form of the command removes the tertiary-config configuration. Default none Parameters file-url — The tertiary configuration file location, expressed as a file URL. Values file-url [local-url | remote-url] (up to 180 characters) local-url [cflash-id/][file-path] remote-url [{ftp://|tftp://} login:pswd@remote-locn/][file-path] cflash-id...
Page 219: Management Ethernet Configuration
Boot Options Management Ethernet Configuration address Syntax [no] address ip-prefix/ip-prefix-length [active | standby] Context Description This command assigns an IP address to the management Ethernet port on the active CPM in the running configuration and the Boot Option File (BOF) or the standby CPM for systems using redundant CPMs.
Page 220 BOF Configuration Command Reference When autonegotiation is enabled, the link attempts to automatically negotiate the link speed and duplex parameters. If autonegotiation is enabled, then the configured duplex and speed parameters are ignored. The no form of the command disables the autonegotiate feature on this port. Parameters limited —...
Page 221 Boot Options li-separate Syntax [no] li-separate Context Description This command enables separate access to lawful intercept (LI) information. speed Syntax speed speed Context Description This command configures the speed for the CPM management Ethernet port when autonegotiation is disabled in the running configuration and the Boot Option File (BOF). If the port is configured to autonegotiate this parameter is ignored.
Page 222: Dns Configuration Commands
BOF Configuration Command Reference ip-prefix/ip-prefix-length ipv4-prefix a.b.c.d (host bits must be 0) ipv4-prefix-le 0 to32 ipv6-prefix x:x:x:x:x:x:x:x (eight 16-bit pieces) x:x:x:x:x:x:d.d.d.d x: [0..FFFF]H d: [0..255]D ipv6-prefix-le 0 to128 ip-address ipv4-address a.b.c.d ipv6-address x:x:x:x:x:x:x:x (eight 16-bit pieces) x:x:x:x:x:x:d.d.d.d x: [0..FFFF]H d: [0..255]D mask —...
Page 223 Boot Options no primary-dns Context Description This command configures the primary DNS server used for DNS name resolution. DNS name resolution can be used when executing ping, traceroute, and service-ping, and also when defining file URLs. DNS name resolution is not supported when DNS names are embedded in configuration files. The no form of the command removes the primary DNS server from the configuration.
Page 224 BOF Configuration Command Reference x: [0..FFFF]H d: [0..255]D interface 32 chars max, for link local addresses tertiary-dns Syntax [no] tertiary-dns ip-address Context Description This command configures the tertiary DNS server for DNS name resolution. The tertiary DNS server is used only if the primary DNS server and the secondary DNS server do not respond. DNS name resolution can be used when executing ping, traceroute, and service-ping, and also when defining file URLs.
Page 225: Bof Show Command Reference
Boot Options BOF Show Command Reference Command Hierarchies show — [cflash-id | booted] — boot-messages Basic System Configuration Guide...
Page 226: Command Descriptions
BOF Show Command Reference Command Descriptions BOF Show Commands The command outputs in the following sections are examples only; actual displays may differ depending on supported functionality and user configuration. Syntax bof [cflash-id | booted] Context show Description This command displays the Boot Option File (BOF) executed on last system boot or on the specified device.
Page 227 Boot Options Table 28: Show BOF Output Fields (Continued) Label Description tertiary-image The tertiary location of the directory that contains the runtime images of both CPM and XCM/IOM. tertiary-config The tertiary location of the file that contains the configuration. address The IP address and mask associated with the CPM Ethernet port or the secondary CPM port.
Page 228 BOF Show Command Reference Table 28: Show BOF Output Fields (Continued) Label Description uplink-mode Displays the uplink mode of the device. no-service-ports Displays the ports on which service traffic is not processed. use-expansion-card- Displays the expansion card type. type Sample Output A:ALA-1# show bof cf3: ===================================================================== BOF on cf3:...
Page 229 Boot Options boot-messages Syntax boot-messages Context show Description This command displays boot messages generated during the last system boot. Output Show Boot Messages Fields The following output shows boot message output fields. Sample Output for the 7750 SR ALA-## show boot-messages Boot log started on CPU#0 Build: X-1.2.B1-7 on Thurs Jan 13 14:49:23 201 by builder CPUCTL FPGA version: 2A...
Page 230 BOF Show Command Reference primary-image ftp://vxworks:vxw0rks@192.168.15.1/./rel/0.0/I129 primary-config cf3:/config.cfg address 192.168.13.48/20 active primary-dns 192.168.1.254 dns-domain eng.timetra.com autonegotiate duplex full speed wait persist Hit a key within 1 second to change boot parms... Primary image location: ftp://vxworks:vxw0rks@192.168.15.1/./rel/0.0/I129 Initializing management port tme0 using IP address 192.168.13.48. Loading image ftp://vxworks:vxw0rks@192.168.15.1/./rel/0.0/I129/both.tim Version B-0.0.I129, Thurs Jan 13 21:24:57 2011 by builder in /rel0.0/I129/panos/...
Page 231: System Management
System Management In This Chapter This chapter provides information about configuring basic system management parameters. Topics in this chapter include: • System Management Parameters → System Information System Name System Contact System Location System Coordinates Naming Objects Naming Objects Common Language Location Identifier DNS Security Extensions →...
Page 232: System Management Parameters
System Management Parameters Synchronous Ethernet Boot-Env Option Config Option Active and Standby Designations When the Active CPM Goes Offline Persistence • Network Synchronization → Central Synchronization Sub-System → 7950 XRS-40 Extension Chassis Central Clocks → Synchronization Status Messages (SSM) → Synchronous Ethernet →...
Page 233: System Information
System Management On SR OS routers, it is possible to query the DNS server for IPv6 addresses. By default the DNS names are queried for A-records only (address-preference is IPv4-only). If the address- preference is set to IPv6 first, the DNS server will be queried for AAAA-records first, and if there is no successful reply, then A-records.
Page 234: System Coordinates
System Management Parameters System Coordinates The system coordinates is the Alcatel-Lucent Chassis MIB tmnxChassisCoordinates object. This text string indicates the Global Positioning System (GPS) coordinates of the location of the chassis. Two-dimensional GPS positioning offers latitude and longitude information as a four dimensional vector: <direction, hours, minutes, seconds>...
Page 235: Dns Security Extensions
System Management DNS Security Extensions DNS Security (DNSSEC) Extensions are now implemented in the SR OS, allowing operators to configure DNS behavior of the router to evaluate whether the Authenticated Data bit was set in the response received from the recursive name server and to trust the response, or ignore System Time SR-series routers are equipped with a real-time system clock for time keeping purposes.
Page 236 System Management Parameters Table 29: System-defined Time Zones (Continued) Acronym Time Zone Name UTC Offset British Summer Time UTC +1 Irish Summer Time UTC +1* Western Europe Time WEST Western Europe Summer Time UTC +1 Central Europe Time UTC +1 CEST Central Europe Summer Time UTC +2...
Page 237: Network Time Protocol (Ntp)
System Management Table 29: System-defined Time Zones (Continued) Acronym Time Zone Name UTC Offset Pacific Time Either as PST or PDT, depending on place and time of year Hawaiian Standard Time UTC -10 AKST Alaska Standard Time UTC -9 AKDT Alaska Standard Daylight Saving UTC -8 Time...
Page 238 System Management Parameters The following NTP elements are supported: • Server mode — In this mode, the node advertises the ability to act as a clock source for other network elements. In this mode, the node will, by default, transmit NTP packets in NTP version 4 mode.
Page 239: Sntp Time Synchronization
System Management SNTP Time Synchronization For synchronizing the system clock with outside time sources, the SR OS includes a Simple Network Time Protocol (SNTP) client. As defined in RFC 2030, SNTP Version 4 is an adaptation of the Network Time Protocol (NTP). SNTP typically provides time accuracy within 100 milliseconds of the time source.
Page 240: Ha Features
High Availability High availability is an important feature in service provider routing systems. High availability is gaining momentum due to the unprecedented growth of IP services and applications in service provider networks driven by the demand from the enterprise and residential communities.
Page 241: Redundancy
System Management Redundancy The redundancy features enable the duplication of data elements and software functionality to maintain service continuation in case of outages or component failure. Refer to the Integrated Services Adapter Guide for information about redundancy for the Integrated Service Adapter (ISA). Software Redundancy Software outages are challenging even when baseline hardware redundancy is in place.
Page 242 However, hot standby affects conventional router performance as more frequent synchronization increases consumption of system resources. Alcatel-Lucent’s newer generation service routers address this issue because they already have extra processing built into the system. Component Redundancy...
Page 243: Nonstop Forwarding
System Management However, in a centralized architecture, packet processing and forwarding is performed in a central shared route processor and the individual line cards are relatively simple. The cards rely solely on the route processor for routing and forwarding intelligence and, should the centralized route processor fail, there is greater impact to the system overall, as all routing and packet forwarding will stop.
Page 244: Nonstop Routing (Nsr)
High Availability Nonstop forwarding is used to notify peer routers to continue forwarding and receiving packets, even if the route processor (control plane) is not working or is in a switch-over state. Nonstop forwarding requires clean control plane and data plane separation and usually the forwarding information is distributed to the line cards.
Page 245: Synchronization
System Management • A fault condition that causes the active CPM to crash or reboot. • The active CPM is declared down (not responding). • Online removal of the active CPM. A manual switchover can occur under the following conditions: •...
Page 246: Synchronization And Redundancy
Synchronization and Redundancy Synchronization and Redundancy SR-series routers supporting redundancy use a 1:1 redundancy scheme. Redundancy methods facilitate system synchronization between the active and standby Control Processor Modules (CPMs) so they maintain identical operational parameters to prevent inconsistencies in the event of a CPM failure.
Page 247: Active And Standby Designations
System Management Active and Standby Designations Typically, the first Switch Fabric (SF)/CPM card installed in a redundant SR-series router chassis assumes the role as active, regardless of being inserted in Slot A or B. The next CPM installed in the same chassis then assumes the role as the standby CPM. If two CPM are inserted simultaneously (or almost simultaneously) and are booting at the same time, then preference is given to the CPM installed in Slot A.
Page 248: Oob Management Ethernet Port Redundancy
Synchronization and Redundancy Active CPM in Slot A has stopped Slot B is now active CPM Attempting to exec configuration file: 'cf3:/config.cfg' ... Executed 49,588 lines in 8.0 seconds from file cf3:\config.cfg OOB Management Ethernet Port Redundancy The SR OS platform provides a resilient out-of-band (OOB) management Ethernet redundancy mode for system management.
Page 249: Persistence
System Management Figure 12: Management Ethernet: Redundancy Mode (FID 120 placeholder) Active Standby Management Ethernet: IP Address of Active Management Ethernet: Down IP Address of Standby Management Network 25168 Persistence The persistence feature on the 7750 SR allows information learned through DHCP snooping across reboots to be kept.
Page 250: Dynamic Data Persistency (Ddp) Access Optimization For Dhcp Leases
Synchronization and Redundancy Dynamic Data Persistency (DDP) Access Optimization for DHCP Leases A high rate of DHCP renewals can create a load on the compact flash file system when subscriber management and/or DHCP server persistence is enabled. To optimize the access to the Dynamic Data Persistency (DDP) files on the compact flash, a lease-time threshold can be specified that controls the eligibility of a DHCP lease for persistency updates when no other data other than the lease expiry time is to be updated.
Page 251: Network Synchronization
System Management To check if a DHCP server lease is flagged to skip persistency updates, use the tools dump persistence dhcp-server record record-key CLI command. When flagged to skip persistency updates, the persistency record output will include “lease mode : LT” (LT = Lease Time) and a “lease time : …”...
Page 252 Network Synchronization Figure 13: Conventional Network Timing Architecture (North American Nomenclature) Primary Reference Clock Stratum 1 Gateway Class 1 or 2 CO Stratum 2 Class 2 or 3 ST 2 ST 2 Central Office Stratum 3 Class 4 or 5 ST 3 ST 3 ST 3...
Page 253: Central Synchronization Sub-System
Telcordia (GR-1244-CORE) and ITU-T G.781. The system can select from up to three (7950 XRS) or four (7450 ESS and 7750 SR) timing inputs to train the local oscillator. The priority order of these references must be specified.
Page 254 10GE ports in WAN PHY mode • IEEE 1588v2 slave port (PTP) (7450 ESS and 7750 SR only) The BITS ports accept T1 or E1 signal formats. Some hardware also supports the 2048 kHz signal format. The format must be common between all BITSin and BITSout ports.
Page 255: 7950 Xrs-40 Extension Chassis Central Clocks
System Management Table 30: Revertive, non-Revertive Timing Reference Switching Operation Status of Status of Active Reference Active Reference Reference A Reference B Non-revertive Case Revertive Case Failed Failed Failed Failed holdover holdover Failed Failed Failed holdover holdover Failed Failed Failed holdover holdover A or B...
Page 256: Ds1 Signals
Network Synchronization SSM allows equipment to autonomously provision and reconfigure (by reference switching) their synchronization references, while helping to avoid the creation of timing loops. These messages are particularly useful to allow synchronization reconfigurations when timing is distributed in both directions around a ring. The following sections provide details about the SSM message functionality for different signal types.
Page 257: Ds3/E3
DS3/E3 signals are not required to be synchronous. However, it is acceptable for their clocking to be generated from a synchronization source. The 7750 SR and the 7450 ESS permit E3/DS3 physical ports to be specified as a central clock input reference.
Page 258: Clock Source Quality Level Definitions
Network Synchronization If the port is a fixed copper Ethernet port and in 1000BASE-T mode of operation, there is a dependency on the 802.3 link timing for the Synchronous Ethernet functionality (refer to ITU-T G.8262). The 802.3 link Master-Slave timing states must align with the desired direction of Synchronous Ethernet timing flow.
Page 259 System Management Table 31: Synchronization Message Coding and Source Priorities — SSM Received SSM value received on port SDH interface SONET Interface E1 interface T1 interface (ESF) Internal Relative SyncE interface SyncE interface in Quality Level in SDH mode SONET mode 0010 (prc) 0001 (prs) 0010 (prc)
Page 260 Network Synchronization Table 32: Synchronization Message Coding and Source Priorities — SSM Transmitted SSM values to be transmitted by interface of type Internal Relative SDH interface SONET Interface E1 interface T1 interface (ESF) Quality Level SyncE interface SyncE interface in in SDH mode SONET mode 1 - Best quality...
Page 261: Ieee 1588V2 Ptp
System Management IEEE 1588v2 PTP Precision Time Protocol (PTP) is a timing-over-packet protocol defined in the IEEE 1588v2 standard 1588 PTP 2008. Support for PTP is dependent on both platform and software release; check the release notes for applicability. PTP may be deployed as an alternative timing-over-packet option to ACR. PTP provides the capability to synchronize network elements to a Stratum-1 clock or primary reference clock (PRC) traceable frequency source over a network that may or may not be PTP-aware.
Page 262 Network Synchronization Figure 15: Peer Clocks Ordinary Clock Master Boundary Clock 10.3.1.1 10.3.1.1 Configured Peers 7750 S Boundary Clock 10.0.1.1 Peer 10.3.1.1 Peer 10.0.0.1 Discovered Peers Ordinary Clock Ordinary Clock Slave Slave 10.1.1.1 10.2.1.1 OSSG736 For multicast Ethernet operation, the router shall listen for and transmit PTP messages using the configured multicast MAC address.
Page 263 System Management Figure 16: Ethernet Multicast Ports 7750 SR Boundary Clock Ordinary Clock Port 1/1/1 Port 1/3/1 Boundary Clock Master Port 1/2/1 End to End Transparent Clock Ethernet Multicast LAN Ordinary Clock Boundary Clock Slave al_0527 The ordinary clock master, ordinary clock slave, and boundary clock allow for PTP operation over both unicast IPv4 and multicast Ethernet at the same time.
Page 264 Network Synchronization • clock class • clock accuracy • PTP variance (offsetScaledLogVariance) • priority2 • clock identity • steps removed from the grandmaster The ordinary clock master, ordinary clock slave, and boundary clock set their local parameters as follows: Table 33: Local Clock Parameters When Profile is set to ieee1588-2008 Parameter Value clockIdentity...
Page 265 System Management Table 34: Local Clock Parameters When Profile is set to: itu-telecom-freq Parameter Value clockClass 80-110 — value corresponding to the QL out of the central clock as per Table 1/G.8265.1 255 — the clock is configured as ordinary clock slave The g8265dot1-2010 profile is for use in an environment with only ordinary clock masters and slaves for frequency distribution.
Page 266 Network Synchronization There is a limit on the number of external PTP clocks to which the ordinary clock slave or boundary clock will request unicast service (# configured peers) and also a limit to the number of external PTP clocks to which the ordinary clock master or boundary clock will grant unicast service (# discovered peers).
Page 267 System Management Figure 17: Messaging Sequence Between the PTP Slave Clock and PTP Master Clock Packet Packet Slave Master Signaling (Announce-request) Signaling (Announce-grant) Announce Signaling (Sync-request) Signaling (Sync-grant) Unicast Renewal Announce Interval Sync Duration Interval Sync Announce Sync Duration Signaling (Announce-request) Interval Signaling (Announce-grant) Announce...
Page 268: Ptp Clock Synchronization
Network Synchronization PTP Clock Synchronization The IEEE 1588v2 standard allows for synchronization of the frequency and time from a master clock to one or more slave clocks over a packet stream. This packet-based synchronization can be over unicast UDP/IPv4 or multicast Ethernet. As part of the basic synchronization timing computation, a number of event messages are defined for synchronization messaging between the PTP slave port and PTP master port.
Page 269: Performance Considerations
When using IEEE 1588v2 for distribution of time, the 7750 SR and 7450 ESS use the four timestamps exchanged using the IEEE 1588v2 messages to determine the offset between the router time base and the external master clock time base.
Page 270: Ptp Capabilities
Network Synchronization In addition, performance is also improved by the removal of any PDV caused by internal queuing within the boundary clock or slave clock. This is accomplished with hardware that is capable of detecting and time stamping the IEEE 1588v2 packets at the Ethernet interface. This capability is referred to as port-based time stamping.
Page 271: Ptp Ordinary Slave Clock For Frequency
System Management Table 36: Message Rates Ranges and Defaults (Continued) Message Type Rates Requested by the 7X50 Rates Granted by the 7X50 (Duration) 1000 State and statistics data for each PTP peer are available to assist in the detection of failures or unusual situations.
Page 272: Ptp Ordinary Master Clock For Frequency
Network Synchronization Figure 21: Ordinary Slave Clock Operation CPM A 1588v2 Internal Grand Central Master (Node) Clock Timing Reference Packet 1588 Network 1588v2 Clock Grand Master OSSG738 PTP Ordinary Master Clock For Frequency The router supports the PTP ordinary clock in master mode. Normally, a IEEE 1588v2 grand master is used to support many slaves and boundary clocks in the network.
Page 273: Ptp Boundary Clock For Frequency And Time
System Management All packets are routed to their destination via the best route as determined in the route table; Figure 23. It does not matter which ports are used to ingress and egress these packets (unless port based time stamping is enabled for higher performance). Figure 23: Ordinary Master Clock Operation PTP Slave CPM A...
Page 274: Ptp Clock Redundancy
Network Synchronization Figure 24: Boundary Clock Boundary Boundary Clock Clock 1588v2 Grand Master PTP Slave 1588v2 Grand Packet Master Network PTP Slave Boundary Clock PTP Slave OSSG741 In addition, the use of port based timestamping in every network element between the grandmaster and the end slave application is highly recommended for delivering time to meet one microsecond accuracies required of mobile applications.
Page 275: Ptp Time For System Time And Oam Time
In addition to Base routing and IES services, PTP messaging is supported within VPRN services on the 7750 SR and 7950 XRS platforms. The 7450 ESS supports PTP in the Base routing instance. PTP messaging is not supported through the management router instance.
Page 276: Link Layer Discovery Protocol (Lldp)
Link Layer Discovery Protocol (LLDP) Link Layer Discovery Protocol (LLDP) The IEEE 802.1ab Link Layer Discovery Protocol (LLDP) is a unidirectional protocol that uses the MAC layer to transmit specific information related to the capabilities and status of the local device. Separately from the transmit direction, the LLDP agent can also receive the same kind of information for a remote device which is stored in the related MIBs.
Page 277 System Management A TTL value of zero can be used, for example, to signal that the sending port has initiated a port shutdown procedure. The end of a LLDPDU TLV marks the end of the LLDPDU. The IEEE 802.1ab standard defines a protocol that: •...
Page 278: Ip Hashing As An Lsr
IP Hashing as an LSR Figure 26: Customer Use Example For LLDP MPLS/Native ETH SG/R Core SG/R QinQ DSLAMs Ethernet Links - FE/GE/10GE OSSG263 The example displayed in Figure 26 depicts a MPLS network that uses Ethernet interfaces in the core or as an access/hand off interfaces to connect to different kind of Ethernet enabled devices such as service gateway/routers, QinQ switches, DSLAMs or customer equipment.
Page 279: Ethernet Satellites
System Management A couple of configurable options are supported. The first option is referred to as the Label-IP Hash option and is designated in the CLI as lbl-ip. When enabled, the hash algorithm parses down the label stack and once it hits the bottom of the stack, it checks the next nibble. If the nibble value is four or six then it will assume it is an IPv4 or IPv6 packet.
Page 280: Software Repositories For Satellites
Ethernet Satellites 2. Create an Ethernet satellite association that binds an Ethernet chassis to a set of uplinks and a software repository. 3. Configure the satellite ports to specify port configuration and service association. Software Repositories for Satellites At least one software repository must be configured to support a satellite connected to the local host by using the config>system>software-repository CLI tree as follows.
Page 281: Satellite Client Port Association
Saving Configurations • Specifying Post-Boot Configuration Files • Network Timing • Power Supplies Configuring the Chassis Mode Depending on the 7450 ESS and 7750 SR chassis type and IOM type, the following modes can be configured: Basic System Configuration Guide...
Page 282 Comes online if provisioned as iom-20g or iom-20g-b. iom2-20g Comes online if provisioned as iom-20g, iom-20g-b or iom2-20g. iom-10g Comes online if provisioned as iom-10g (7450 ESS only). iom3-xp Comes online if provisioned as iom3-xp. To support a particular chassis-mode, all provisioned IOMs must meet the corresponding IOM level.
Page 283 System Management IOM cards that are not compatible with more recent 7450 ESS chassis modes will stay or be put into an operationally down state. • Chassis mode A corresponds to iom-20g, chassis mode backwards compatible for iom-20g-b, iom2-20g, iom3-xp •...
Page 284: Saving Configurations
Administrative Tasks Base MAC address : 14:30:ff:00:00:00 Admin chassis mode Oper chassis mode Hardware Data Part number : Sim Part# CLEI code : Sim CLEI Serial number : sim48 Manufacture date : 01012003 Manufacturing string : Sim MfgString sim48 Manufacturing deviations : Sim MfgDeviation sim48 Time of last boot : 2007/09/24 08:15:17...
Page 285: Network Timing
System Management Network Timing In Time Domain Multiplexed (TDM)-based networks (for example, SONET or SDH circuit- switched networks), the concept of network timing is used to prevent over-run or under-run issues where circuits are groomed (rebundled) and switched. Hardware exists in each node that takes a common clock derived from an internal oscillator, a specific receive interface, or special BITS interface and provides it to each synchronous interface in the system.
Page 286: Boot-Env Option
CPM BOF file to the same compact flash on the standby CPM. Both image files (CPM and IOM) on the 7450 ESS must be located in the same directory. Failure to locate and synchronize both images causes an error to be generated.
Page 287: Manual Synchronization
System Management Manual Synchronization The admin redundancy synchronize command performs manual CPM synchronizations. The boot-env parameter synchronizes the BOF, image, and configuration files in redundant systems. The config parameter synchronizes only the configuration files in redundant systems. Forcing a Switchover The force-switchover now command forces an immediate switchover to the standby CPM card.
Page 288: Configuration Notes
Configuration Notes Figure 27: System Configuration and Implementation Flow START CONFIGURE SYSTEM INFORMATION CONFIGURE HIGH AVAILABILITY PARAMETERS (RECOMMENDED) CONFIGURE TIME PARAMETERS CONFIGURE SYNCHRONIZATION PARAMETERS (RECOMMENDED) MODIFYING NETWORK TIMING PARAMETERS (OPTIONAL) Configuration Notes This section describes system configuration caveats. General The system must be properly initialized and the boot loader and BOF files successfully executed in order to access the CLI.
Page 289: Configuring System Management With Cli
System Management Configuring System Management with CLI This section provides information about configuring system management features with CLI. Topics in this chapter include: • Basic System Configuration • Common Configuration Tasks • System Information → System Information Parameters Name Contact Location CLLI Code Coordinates...
Page 290: System Management
System Management • Configuring System Monitoring Thresholds • Configuring LLDP System Management Saving Configurations Whenever configuration changes are made, the modified configuration must be saved so the changes will not be lost when the system is rebooted. The system uses the configuration and image files, as well as other operational parameters necessary for system initialization, according to the locations specified in the boot option file (BOF) parameters.
Page 291: Basic System Configuration
System Management Basic System Configuration This section provides information to configure system parameters and provides configuration examples of common configuration tasks. The minimal system parameters that should be configured are: • System Information Parameters • System Time Elements The following example displays a basic system configuration: A:ALA-12>config>system# info #------------------------------------------ echo "System Configuration "...
Page 292: System Information
Common Configuration Tasks → CLLI Code → Coordinates • System Time Elements → Zone → Summer Time Conditions → → SNTP → CRON Schedule • Synchronization and Redundancy → Automatic Synchronization → Manual Synchronization • System Timing → Configuring Timing References System Information This section covers the basic system information parameters to configure the physical location of the router, contact information, location information such as the place the router...
Page 293: System Information Parameters
System Management System Information Parameters Name Use the system command to configure a name for the device. The name is used in the prompt string. Only one system name can be configured, if multiple system names are configured the last one encountered overwrites the previous entry. Use the following CLI syntax to configure the system name: CLI Syntax: config>system...
Page 294: Coordinates
Common Configuration Tasks CLI Syntax: config>system location location Example: config>system# location “Bldg.1-floor 2-Room 201” CLLI Code The Common Language Location Code (CLLI code) is an 11-character standardized geographic identifier that is used to uniquely identify the geographic location of an SR-series router.
Page 295: System Time Elements
System Management A:ALA-12>config>system# System Time Elements The system clock maintains time according to Coordinated Universal Time (UTC). Configure information time zone and summer time (daylight savings time) parameters to correctly display time according to the local time zone. Time elements include: •...
Page 296 Common Configuration Tasks Table 39: System-defined Time Zones Acronym Time Zone Name UTC Offset Europe Greenwich Mean Time Western Europe Time WEST Western Europe Summer Time UTC +1 hour Central Europe Time UTC +1 hour CEST Central Europe Summer Time UTC +2 hours Eastern Europe Time UTC +2 hours...
Page 297 System Management Table 39: System-defined Time Zones (Continued) Acronym Time Zone Name UTC Offset AWST Western Standard Time (e.g., Perth) UTC +8 hours ACST Central Standard Time (e.g., Darwin) UTC +9.5 hours AEST Eastern Standard/Summer Time (e.g., UTC +10 hours Canberra) New Zealand Standard Time UTC +12 hours...
Page 298 Common Configuration Tasks start second sunday april 02:00 end first sunday october 02:00 offset 0 ---------------------------------------------- A:ALA-48>config>system>time>dst-zone# offset 0 Network Time Protocol (NTP) is defined in RFC 1305, Network Time Protocol (Version 3) Specification, Implementation and Analysis and RFC 5905, Network Time Protocol Version 4: Protocol and Algorithms Specification.
Page 299 System Management Example: config>system>time>ntp# config>system>time>ntp# authentication-check config>system>time>ntp# no shutdown Authentication-key The authentication-key command configures an authentication key-id, key type, and key used to authenticate NTP PDUs sent to and received from other network elements participating in the NTP protocol. For authentication to work, the authentication key-id, authentication type and authentication key value must match.
Page 300 Common Configuration Tasks config>system>time>ntp# broadcast interface int11 version 4 ttl 127 config>system>time>ntp# no shutdown The following example in the system>time context shows NTP enabled with the broadcast command configured. A:sim1>config>system>time# info detail ---------------------------------------------- no shutdown authentication-check ntp-server broadcast interface int11 version 4 ttl 127 exit A:sim1>config>system>time# Broadcastclient...
Page 301 When configuring NTP the node can be configured to transmit or receive multicast packets on the CPM MGMT port (CPM applies to the 7450 ESS and 7750 SR). Broadcast & Multicast messages can easily be spoofed, therefore, authentication is strongly recommended.
Page 302 Common Configuration Tasks multicastclient no shutdown ---------------------------------------------- A:ALA-12>config>system>time## NTP-Server The ntp-server command configures the node to assume the role of an NTP server. Unless the server command is used this node will function as an NTP client only and will not distribute the time to downstream network elements.
Page 303 System Management The following example shows NTP enabled with the peer command configured. A:sim1>config>system>time>ntp# info ---------------------------------------------- no shutdown peer 192.168.1.1 key-id 1 ---------------------------------------------- A:sim1>config>system>time>ntp# Server The server command is used when the node should operate in client mode with the NTP server specified in the address field.
Page 304 Common Configuration Tasks time sntp broadcast-client server-address ip-address [version version- number] [normal|preferred] [interval seconds] no shutdown Broadcast-client The broadcast-client command enables listening at the global device level to SNTP broadcast messages on interfaces with broadcast client enabled. CLI Syntax: config>system>time>sntp broadcast-client Example: config>system>time>sntp#...
Page 305 System Management config>system>time# server-address 10.10.0.94 version 1 preferred interval 100 The following example shows SNTP enabled with the server-address command configured. A:ALA-12>config>system>time# info ---------------------------------------------- sntp server-address 10.10.0.94 version 1 preferred interval 100 no shutdown exit dst-zone PT start-date 2006/04/04 12:00 end-date 2006/10/25 12:00 zone GMT ---------------------------------------------- A:ALA-12>config>system>time#...
Page 306: Ancp Enhancements
• Configuring Synchronization Options • Configuring Multi-Chassis Redundancy for LAG Configuring Persistence The following example displays subscriber management system persistence command usage for the 7450 ESS and 7750 SR: Example: config>system# persistence config>system>persistence# subscriber-mgmt config>system>persistence>sub-mgmt# description "cf3:SubMgmt-Test" config>system>persistence>sub-mgmt# location cf3: config>system>persistence>sub-mgmt# exit...
Page 307: Configuring Synchronization
System Management Configuring Synchronization The switchover-exec command specifies the location and name of the CLI script file executed following a redundancy switchover from the previously active CPM card. CLI Syntax: admin>redundancy synchronize {boot-env|config} config>system switchover-exec file-url Configuring Manual Synchronization Note that automatic synchronization can be configured in the config>system> synchronization context.
Page 308: Configuring Synchronization Options
Common Configuration Tasks If the active and standby are not synchronized for some reason, users can manually synchronize the standby CPM by rebooting the standby by issuing the admin reboot standby command on the active or the standby CPM. Configuring Synchronization Options Network operators can specify the type of synchronization operation to perform between the primary and secondary CPMs after a change has been made to the configuration files or the boot environment information contained in the boot options file (BOF).
Page 309: Configuring Multi-Chassis Redundancy For Lag
System Management =================================================== Synchronize Mode : Configuration Synchronize Status : No synchronization Last Config Sync Time : 2006/06/27 09:17:15 Last Boot Env Sync Time : 2006/06/24 07:16:37 =================================================== A:ALA-12>config>system# Configuring Multi-Chassis Redundancy for LAG When configuring associated LAG ID parameters, the LAG must be in access mode and LACP must be enabled.
Page 310: Configuring Mixed Mode
A:ALA-48>config>redundancy# Configuring Mixed Mode The 7450 mixed mode feature allows a 7450 ESS-7 or ESS-12 chassis to utilize 7750 IOM3- XPs, MDAs, and IMMs to enable 7750 SR capabilities on the associated slots. This allows features such as multicast routing, VPRN and IPv6 support as well as others to be enabled on existing 7450 systems.
Page 311: Enabling Mixed Mode On A 7450 System
To configure mixed mode support, 7750 SR IOM3-XPs, 7750 MDAs, or 7750 SR IMMs must be installed in a 7450 ESS-7 or ESS-12 router that is running OS 8.0 or later. All network interfaces must be migrated to ports on the 7750 SR cards.
Page 312: Configuring Power Supply Parameters
Common Configuration Tasks Table 40: Mixed-Mode Support Feature 7450 ESS Standard Mode 7450 ESS Mixed Mode (Limited to 7750 SR IOM3/ IMM) Full IES Support Limited IES support Full VPRN Support BGP for routing (all address families) IPv6 routing: IPv6 routing (Unicast and Multicast)
Page 313 The following is a default example for the 7450 ESS: ----------------------------------------------------------------- A:ALA-12>config>system# info ----------------------------------------------------------------- name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201" clli-code "abcdefg1234" coordinates "N 45 58 23, W 34 56 12"...
Page 314: Configuring Atm System Parameters
Common Configuration Tasks Configuring ATM System Parameters The ATM context configures system-wide ATM parameters for the 7750 SR. CLI Syntax: config>system# atm-location-id location-id loopback-period period retry-down retries retry-up retries Example: config>system# atm config>system>atm# atm-location-id 03:00:00:00:00:00:00:00:00:00: 00:00:00:00:00:00 config>system>atm# oam config>system>atm>oam# loopback-period 30 config>system>atm>oam# retry-down 5 config>system>atm>oam# retry-up 3 config>system>atm>oam# exit...
Page 315: Post-Boot Configuration Extension Files
System Management For example, assume the config-backup count is set to 5 and the configuration file is called xyz.cfg. When a save command is executed, the file xyz.cfg is saved with a .1 extension. Each subsequent config-backup command increments the numeric extension until the maximum count is reached.
Page 316: Show Command Output And Console Messages
Common Configuration Tasks CLI Syntax: config>system boot-bad-exec file-url boot-good-exec file-url Example: config>system# boot-bad-exec ftp:// test:test@192.168.xx.xxx/./ fail.cfg config>system# boot-good-exec ftp:// test:test@192.168.xx.xxx/./ ok.cfg The following example displays the command output: A:ALA-12>config>system# info #------------------------------------------ echo "System Configuration" #------------------------------------------ name "ALA-12" contact "Fred Information Technology" location "Bldg.1-floor 2-Room 201"...
Page 317 System Management System Location : Bldg.1-floor 2-Room 201 System Coordinates : N 45 58 23, W 34 56 12 System Up Time : 1 days, 04:59:33.56 (hr:min:sec) SNMP Port : 161 SNMP Engine ID : 0000197f000000000467ff00 SNMP Max Message Size : 1500 SNMP Admin State : Disabled...
Page 318: System Timing
MAJOR: CLI #1009 An error occurred while processing a CLI command - File ftp://test:test@192.168.xx.xxx/./fail.cfg, Line 5: Command "abc log" failed. TiMOS-B-x.0.Rx both/hops ALCATEL Copyright (c) 2000-2009 Alcatel-Lucent. All rights reserved. All use subject to applicable license agreements. Built on Thu Nov 207 19:19:11 PST 2008 by builder in /rel5x.0/b1/Rx/panos/main...
Page 319: Configuring Timing References
System Management The following error message displays when the you try to modify sync-if-timing parameters without entering the keyword begin. A:ALA-12>config>system>sync-if-timing>ref1# source-port 2/1/1 MINOR: CLI The sync-if-timing must be in edit mode by calling begin before any changes can be made. MINOR: CLI Unable to set source port for ref1 to 2/1/1 A:ALA-12>config>system>sync-if-timing>ref1# Configuring Timing References...
Page 320: Other Editing Commands
System Timing revert If the current reference goes offline or becomes unstable the revert command allows the clock to revert to a higher-priority reference. When revertive switching enabled a valid timing reference of the highest priority is used. If a reference with a higher priority becomes valid, a reference switch over to that reference is initiated.
Page 321: Configuring System Monitoring Thresholds
System Management When the command is executed, the CPM clock on the active CPM immediately switches its input reference to that specified by the command. If the specified input is not available (shutdown), or in a disqualified state, the CPM clock shall use the next qualified input reference based on the selection rules.
Page 322 Configuring System Monitoring Thresholds Creating an event entry in the RMON-MIB log table does not create a corresponding entry in the event logs. However, when the event is set to trap the generation of a rising alarm or falling alarm notification creates an entry in the event logs and that is distributed to whatever log destinations are configured: console, session, memory, file, syslog, or SNMP trap destination.
Page 323: System Alarm Contact Inputs
System Management memory-use-alarm rising-threshold 50000000 falling-threshold 45999999 interval 500 ---------------------------------------------- A:ALA-49>config>system>thresholds# System Alarm Contact Inputs Alarm contact inputs are physical input pins on the Alarms Interface Port of the CPM that allow the operator to monitor and report changes in external environmental conditions. In a remote or outdoor deployment, alarm inputs typically allow an operator to detect conditions such as whether a door is open or closed, an air conditioner fault has occurred, and so on.
Page 324 Configuring LLDP A:testSr1>config>system>lldp# info detail ---------------------------------------------- no tx-interval no tx-hold-multiplier no reinit-delay no notification-interval no tx-credit-max no message-fast-tx no message-fast-tx-init no shutdown ---------------------------------------------- A:testSr1>config>system>lldp# The following example shows an LLDP port configuration: *A:ALA-48>config>port>ethernet>lldp# info ---------------------------------------------- dest-mac nearest-bridge admin-status tx-rx tx-tlvs port-desc sys-cap tx-mgmt-address system exit ----------------------------------------------...
Page 325: System Command Reference
System Management System Command Reference Command Hierarchies Configuration Commands • System Information Commands • System Alarm Contact Input Commands • System Threshold Alarm Commands • Mixed Mode Configuration Commands • Persistence Commands • PTP Commands • System Time Commands • Cron Commands •...
Page 326: System Information Commands
System Command Reference System Information Commands config — system — — atm-location-id — — loopback-period period — retry-down retries — retry-up retries — boot-bad-exec file-url — no boot-bad-exec — boot-bad-execfile-url — no boot-bad-exec — chassis-mode {chassis-mode} [force] — clli-code clli-code —...
Page 327: System Alarm Contact Input Commands
System Management — [no] sat-type sat-type — [no] software-repository repository-name — [no] shutdown — [no] sync-e — software-repository repository-name [create] — no software-repository repository-name — description description-string — no description — primary-location file-url — no primary-location — secondary-location file-url — no secondary-location —...
Page 328: Mixed Mode Configuration Commands
[event-type] [description description-string] [owner owner-string] — no event rmon-event-id Mixed Mode Configuration Commands Note: The commands listed in this section apply only to the 7450 ESS. config — card — capability {sr | ess} [now] config — system —...
Page 329: Ptp Commands
— location cflash-id — no location PTP Commands Note: The commands in this section apply to the 7450 ESS and 7750 SR, except the 7750 SR- 1e, 7750 SR-2e, and 7750 SR-3e. config — system — — anno-rx-timeout count —...
Page 330: System Time Commands
System Command Reference — no log-sync-interval — local-priority local-priority — [no] shutdown — peer-limit limit — no peer-limit — port port-id [create] — no port port-id — address {01:1b:19:00:00:00|01:80:c2:00:00:0e} — no address — local-priority local-priority — log-delay-interval log-interval — log-sync-interval log-interval —...
Page 331: Cron Commands
System Management — [no] shutdown — [no] dst-zone [std-zone-name | non-std-zone-name] — {end-week} {end-day} {end-month} [hours-minutes] — offset offset — start {start-week} {start-day} {start-month} [hours-minutes] — zone std-zone-name | non-std-zone-name [hh [:mm]] — no zone Cron Commands config — system —...
Page 332: System Administration (Admin) Commands
System Command Reference — no location — [no] shutdown System Administration (Admin) Commands root — admin — application-assurance — upgrade — clear-policy-lock — debug-save [file-url] — disconnect {address ip-address | username user-name | console | telnet | ftp | ssh} —...
Page 333: High Availability (Redundancy) Commands
System Management — — ql-override {prs | stu | st2 | tnc | st3e | st3 | eec1 | sec | prc | ssu-a | ssu-b | eec2} — no ql-override — [no] shutdown — ref1 — bits-interface-type {ds1 [{esf | sf}] | e1 [{pcm30crc | pcm31crc}]} —...
Page 334 System Command Reference — description description-string — no description — [no] mc-endpoint — [no] bfd-enable — boot-timer interval — no boot-timer — hold-on-neighbor-failure multiplier — no hold-on-neighbor-failure — keep-alive-interval interval — no keep-alive-interval — [no] passive-mode — [no] shutdown — system-priority value —...
Page 335: Lldp System Commands
System Management — boot-timer seconds — no boot-timer — site-activation-timer seconds — no site-activation-timer — site-min-down-timer min-down-time — no site-min-down-timer — [no] cert-sync — [no] rollback-sync — synchronize {boot-env | config} LLDP System Commands configure — system — lldp — message-fast-tx time —...
Page 336: System Command Reference
System Command Reference System Command Reference Generic Commands shutdown Syntax [no] shutdown Context config>system>cron>sched config>system>time>ntp config>system>time>sntp config>system>script-control>script-policy config>system>script-control>script config>system>sync-if-timing>ref1 config>system>sync-if-timing>ref2 config>system>sync-if-timing>ptp config>system>sync-if-timing>bits>input config>system>sync-if-timing>bits>output config>system>persistence>app-assure config>system>persistence>dhcp-server config>system>persistence>nat-port-forward config>system>persistence>python-policy-cache config>system>persistence>subscriber-mgmt config>redundancy>multi-chassis>peer config>redundancy>multi-chassis>peer>mc-lag config>redundancy>multi-chassis>peer>sync config>redundancy>mc>peer>mcr>node>cv config>system>lldp config>redundancy>multi-chassis>peer>mc-ep Description This command administratively disables the entity. When disabled, an entity does not change, reset, or remove any configuration settings or statistics.
Page 337: System Information Commands
System Management Context config>system>cron>sched config>system>script-control>script config>system>persistence>ancp config>system>persistence>app-assure config>system>persistence>dhcp-server config>system>persistence>nat-fwd config>system>persistence>sub-mgmt config>system>persistence>dhcp-server config>redundancy>multi-chassis>peer Description This command creates a text description stored in the configuration file for a configuration context. The description command associates a text string with a configuration context to help identify the content in the configuration file.
Page 338 System Command Reference Parameters location-id — Specify the 16 octets that identifies the system loopback location ID as required by the ATM OAM Loopback capability. This textual convention is defined in ITU-T standard I.610. Invalid values include a location ID where the first octet is: 00, FF, 6A Acceptable location-ids include values where the first octet is: 01, 03 Other values are not accepted.
Page 339 System Management Parameters retries — Specify the number of failed loopback attempts before an ATM VC goes down. Values 0 to 10 (A zero value means that the endpoint will transition to AIS-LOC state immediately if the periodic loopback attempt fails.) Default retry-up...
Page 340 System Command Reference Ipv6-address only applies to the 7750 SR and 7950 XRS. Values file url local-url | remote-url 255 chars max local-url [cflash-id/][file-path] remote-url [{ftp://} login:pswd@remote-locn/][file-path] remote-locn [hostname | ipv4-address | [ipv6- address]] ipv4-address a.b.c.d ipv6-address x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses...
Page 341 Context config>system Description This command configures the chassis scaling and feature set and only applies to the 7450 ESS and 7750 SR. Note that, if you are in chassis-mode d and configure an IOM type as iom2-20g and then downgrade to chassis-mode a or b (must specify force keyword), a warning appears about the IOM downgrade.
Page 342 System Command Reference If the chassis mode is not explicitly provisioned in the configuration file, the chassis will come up in chassis mode a by default. The behavior for the IOMs is described in the following table: Table 41: Chassis Mode Behavior Behavior iom-20g-b Comes online if provisioned as iom-20g or iom-20g-b.
Page 343 System Management no config-backup Context config>system Description This command configures the maximum number of backup versions maintained for configuration files and BOF. For example, assume the config-backup count is set to 5 and the configuration file is called xyz.cfg. When a save command is executed, the file xyz.cfg is saved with a .1 extension. Each subsequent config-backup command increments the numeric extension until the maximum count is reached.
Page 344 System Command Reference coordinates Syntax coordinates coordinates no coordinates Context config>system Description This command creates a text string that identifies the system coordinates for the device location. For example, the command coordinates “37.390 -122.0550" is read as latitude 37.390 north and longitude 122.0550 west.
Page 345 System Management ad-validation Syntax [no] ad-validation fall-through | drop Context config>system>dns>dnssec Description This command enables validation of the presence of the AD-bit in responses from the DNS servers, and reports a warning to the SECURITY log if DNSSEC validation was not possible. This command requires either the fall-through or drop parameters be configured.
Page 346 System Command Reference Description This command configures system-wide Layer 4 load balancing. The configuration at the system level can enable or disable load balancing based on Layer 4 fields. If enabled, the Layer 4 source and destination port fields will be included in hashing calculation for TCP/UDP packets. The hashing algorithm addresses finer spraying granularity where many hosts are connected to the network.
Page 347 System Management eth-encap-ip — The hash algorithm parses down the label stack (up to 3 labels supported) and once it hits the bottom, the stack assumes Ethernet II non-tagged header follows. At the expected Ethertype offset location, the algorithm checks whether the value present is IPv4/v6 (0x0800 or 0x86DD).
Page 348 System Command Reference Description This command enables the use of the system IP address in the ECMP hash algorithm to add a per system variable. This can help guard against cases where multiple routers, in series, will end up hashing traffic to the same ECMP/LAG path. This command is set at a system wide basis, however if certain IOMs do not support the new load- balancing algorithm, they will continue to use the default algorithm.
Page 349 System Management location Syntax location location no location Context config>system Description This command creates a text string that identifies the system location for the device. Only one location can be configured. If multiple locations are configured, the last one entered overwrites the previous entry.
Page 350 System Command Reference switchover-exec Syntax switchover-exec file-url no switchover-exec Context config>system Description This command specifies the location and name of the CLI script file executed following a redundancy switchover from the previously active CPM card. A switchover can happen because of a fatal failure or by manual action.
Page 351 System Management create — The keyword required to create the binding between a host port ID and the satellite uplink. satellite Syntax satellite Context config>system Description This command is used to enter the satellite configuration context. Within the satellite context, the administrator can specify the configuration details for a satellite chassis that is hosted by the associated local system.
Page 352 System Command Reference create — The keyword required to create a new Ethernet satellite context. mac-address Syntax mac-address mac-address no mac-address Context config>system>satellite>eth-sat Description This command configures the MAC address for the associated Ethernet satellite chassis. This MAC address is used to validate the identity of an Ethernet satellite that attempts to associate with the local host.
Page 353 System Management If the associated Ethernet satellite is active, the satellite will not be reset but all satellite client ports will be shut down. If the Ethernet satellite is not active but attempts to associate with the host, the Ethernet satellite chassis will be brought up according to the satellite configuration but all client ports will be shut down.
Page 354 System Command Reference software-repository Syntax software-repository repository-name [create] no software-repository repository-name Context config>system Description This command creates or deletes an instance of a software repository. The instance is identified by a repository name. A software repository is used to obtain files to upgrade software on certain subsystems of the router (for example, Ethernet satellites).
Page 355 System Management Description This command configures the primary location for the files in the software repository. See the software-repository command description for more information. The no form of the command removes the primary location. Parameters file-url — Specifies the primary location to be used to access the files in the software repository. Values file url local-url | remote-url...
Page 356 System Command Reference remote-url [{ftp://} login:pswd@remote-locn/][file-path] 243 characters maximum directory length 99 characters maximum each remote-locn [hostname | ipv4-address | [ipv6- address]] ipv4-address a.b.c.d ipv6-address x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 characters max, for link local addresses cflash-id cf1:, cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B:...
Page 357: System Alarm Contact Input Commands
System Management cflash-id cf1:, cf1-A:,cf1-B:,cf2:,cf2-A:,cf2-B:,cf3:,cf3-A:,cf3-B: System Alarm Contact Input Commands alarm-contact-in-power Syntax alarm-contact-in-power {on | off} Context config>system Description This command allows the user to enable a supply of +24V output power on the +24VDC pin of the Alarm Interface Port of the CPM. When enabled, the power supplied through the +24VDC output pin can be used as a source voltage for the alarm contact input pins.
Page 358 System Command Reference Description This command allows the user to configure a text message for use along with SNMP trap and log event messages that are sent when the system clears an alarm. The system generates the default message "Alarm Input Cleared" if no message is configured. The clear-alarm-msg string is included in the log event when the pin changes to the normal state.
Page 359: System Threshold Alarm Commands
System Management Context config>system>alarm-contact-input Description This command stops tracking the state changes associated with the alarm contact input. The system does not generate or clear the alarms for the alarm contact input, but if an alarm is generated, the system clears the alarm when the shutdown command is executed.
Page 360 System Command Reference Parameters rmon-alarm-id — The rmon-alarm-id is a numerical identifier for the alarm being configured. The number of alarms that can be created is limited to 1200. Default None Values 1 to 65535 variable-oid oid-string — The oid-string is the SNMP object identifier of the particular variable to be sampled.
Page 361 System Management If a rising-event rmon-event-id is configured, the CLI requires a rising-threshold to also be configured. Default Values 0 to 65535 rising-threshold threshold — Specifies a threshold for the sampled statistic. When the current sampled value is greater than or equal to this threshold, and the value at the last sampling interval was less than this threshold, a single threshold crossing event will be generated.
Page 362 System Command Reference start-alarm either rising-event 5 rising-threshold 10000 falling-event 5 falling-threshold 9000 owner "TiMOS CLI" cflash-cap-alarm Syntax cflash-cap-alarm cflash-id rising-threshold threshold [falling-threshold threshold] interval seconds [rmon-event-type] [startup-alarm alarm-type] no cflash-cap-alarm cflash-id Context config>system>thresholds Description This command enables capacity monitoring of the compact flash specified in this command. The severity level is alarm.
Page 363 System Management rmon-event-type — Specifies the type of notification action to be taken when this event occurs. Values log — An entry is made in the RMON-MIB log table for each event occurrence. This does not create a TiMOS logger entry. The RMON-MIB log table entries can be viewed using the show>system>thresholds CLI command.
Page 364 System Command Reference rising-threshold threshold — Specifies a threshold for the sampled statistic. When the current sampled value is greater than or equal to this threshold, and the value at the last sampling interval was less than this threshold, a single threshold crossing event will be generated. A single threshold crossing event will also be generated if the first sample taken is greater than or equal to this threshold and the associated startup-alarm is equal to rising or either.
Page 365 System Management alarm-type — Specifies the alarm that may be sent when this alarm is first created. If the first sample is greater than or equal to the rising threshold value and startup-alarm is equal to rising or either, a single rising threshold crossing event is generated. If the first sample is less than or equal to the falling threshold value and startup-alarm is equal to falling or either, a single falling threshold crossing event is generated.
Page 366 System Command Reference falling-threshold threshold — Specifies a threshold for the sampled statistic. When the current sampled value is less than or equal to this threshold, and the value at the last sampling interval was greater than this threshold, a single threshold crossing event will be generated. A single threshold crossing event will also be generated if the first sample taken is less than or equal to this threshold and the associated startup-alarm is equal to falling or either.
Page 367 System Management cflash-cap-warn-pct Syntax cflash-cap-warn-pct cflash-id rising-threshold threshold [falling-threshold threshold] interval seconds [rmon-event-type rmon-event-type] [startup-alarm alarm-type] no cflash-cap-warn-pct cflash-id Context config>system>thresholds Description This command enables capacity monitoring of the compact flash specified in this command. The usage is monitored as a percentage of the capacity of the compact flash. The severity level is warning.
Page 368 System Command Reference rmon-event-type rmon-event-type — Specifies the type of notification action to be taken when this event occurs. Values log — An entry is made in the RMON-MIB log table for each event occurrence. This does not create a TiMOS logger entry. The RMON-MIB log table entries can be viewed using the show>system>thresholds CLI command.
Page 369 System Management Parameters rising-threshold threshold — Specifies a threshold for the sampled statistic. When the current sampled value is greater than or equal to this threshold, and the value at the last sampling interval was less than this threshold, a single threshold crossing event will be generated. A single threshold crossing event will also be generated if the first sample taken is greater than or equal to this threshold and the associated startup-alarm is equal to rising or either.
Page 370 System Command Reference startup-alarm alarm-type — Specifies the alarm that may be sent when this alarm is first created. If the first sample is greater than or equal to the rising threshold value and startup-alarm is equal to rising or either, then a single rising threshold crossing event is generated. If the first sample is less than or equal to the falling threshold value and startup-alarm is equal to falling or either, a single falling threshold crossing event is generated.
Page 371 System Management interval seconds — Specifies the polling period over which the data is sampled and compared with the rising and falling thresholds. Values 1 to 2147483647 rmon-event-type — Specifies the type of notification action to be taken when this event occurs. Values log —...
Page 372 System Command Reference Creating an event entry in the RMON-MIB log table does not create a corresponding entry in the TiMOS event logs. However, when the event-type is set to trap, the generation of a Rising Alarm or Falling Alarm notification creates an entry in the TiMOS event logs and that is distributed to whatever TiMOS log destinations are configured: CONSOLE, session, memory, file, syslog, or SNMP trap destination.
Page 373 System Management memory-use-alarm Syntax memory-use-alarm rising-threshold threshold [falling-threshold threshold] interval seconds [rmon-event-type] [startup-alarm alarm-type] no memory-use-alarm Context config>system>thresholds Description The memory thresholds are based on monitoring the TIMETRA-SYSTEM-MIB sgiMemoryUsed object. This object contains the amount of memory currently used by the system. The severity level is Alarm.
Page 374 System Command Reference rmon-event-type — Specifies the type of notification action to be taken when this event occurs. Values log — In the case of log, an entry is made in the RMON-MIB log table for each event occurrence. This does not create an OS logger entry.
Page 375 System Management Parameters rising-threshold threshold — The rising-threshold specifies a threshold for the sampled statistic. When the current sampled value is greater than or equal to this threshold, and the value at the last sampling interval was less than this threshold, a single threshold crossing event will be generated.
Page 376: Date And Time Commands
System Command Reference startup-alarm alarm-type — Specifies the alarm that may be sent when this alarm is first created. If the first sample is greater than or equal to the rising threshold value and startup-alarm is equal to rising or either, then a single rising threshold crossing event is generated. If the first sample is less than or equal to the falling threshold value and startup-alarm is equal to falling or either, a single falling threshold crossing event is generated.
Page 377: Network Time Protocol Commands
System Management Description This command sets the local system time. The time entered should be accurate for the time zone configured for the system. The system will convert the local time to UTC before saving to the system clock which is always set to UTC. This command does not take into account any daylight saving offset if defined.
Page 378 System Command Reference authentication-check Syntax [no] authentication-check Context config>system>time>ntp Description This command provides the option to skip the rejection of NTP PDUs that do not match the authentication key-id, type or key requirements. The default behavior when authentication is configured is to reject all NTP protocol PDUs that have a mismatch in either the authentication key- id, type or key.
Page 379 System Management The key can be any combination of ASCII characters up to 32 characters in length for message-digest (md5) or 8 characters in length for des (length limits are unencrypted lengths). If spaces are used in the string, enclose the entire string in quotation marks (“.”). hash —...
Page 380 System Command Reference key-id key-id — Identifies the configured authentication key and authentication type used by this node to receive and transmit NTP packets to and from an NTP server and peers. If an NTP packet is received by this node both authentication key and authentication type must be valid otherwise the packet will be rejected and an event/trap generated.
Page 381 System Management multicast Syntax multicast [version version] [key-id key-id] no multicast Context config>system>time>ntp Description This command configures NTP the node to transmit multicast packets on the CPM/CCM MGMT port. Broadcast and multicast messages can easily be spoofed; authentication is strongly recommended. The no form of this command removes the multicast address from the configuration.
Page 382 System Command Reference Context config>system>time>ntp Description This command configures the node to assume the role of an NTP server. Unless the server command is used, this node will function as an NTP client only and will not distribute the time to downstream network elements.
Page 383 NTP even if PTP goes into time holdover. PTP applies only to the 7450 ESS and 7750 SR. Use of the internal PTP time source for NTP will promote the internal NTP server to stratum 1 level.
Page 384: Sntp Commands
— Configures the internal PTP process as a time server into the NTP process. The prefer parameter is mandatory with this server option (applies only to the 7450 ESS and 7750 SR). key-id key-id — Enters the key-id that identifies the configured authentication key and authentication type used by this node to transmit NTP packets to an NTP server.
Page 385 System Management Default no sntp broadcast-client Syntax [no] broadcast-client Context config>system>time>sntp Description This command enables listening to SNTP/NTP broadcast messages on interfaces with broadcast client enabled at global device level. When this global parameter is configured then the ntp-broadcast parameter must be configured on selected interfaces on which NTP broadcasts are transmitted.
Page 386 System Command Reference CRON Commands cron Syntax cron Context config Description This command creates the context to create scripts, script parameters and schedules which support the Service Assurance Agent (SAA) functions. CRON features are saved to the configuration file on both primary and backup control modules. If a control module switchover occurs, CRON events are restored when the new configuration is loaded.
Page 387 System Management Parameters number — The number of times the schedule is run. Values 1 to 65535 Default 65535 day-of-month Syntax day-of-month {day-number [..day-number] all} no day-of-month Context config>system>cron>sched Description This command specifies which days of the month that the schedule will occur. Multiple days of the month can be specified.
Page 388 System Command Reference Parameters date — Specifies the date to schedule a command. Values YYYY:MM:DD in year:month:day number format day-name — Specifies the day of the week to schedule a command. Values sunday | monday | tuesday | wednesday | thursday | friday | saturday time —...
Page 389 System Management no minute Context config>system>cron>sched Description This command specifies the minute to schedule a command. Multiple minutes of the hour can be specified. When multiple minutes are configured, each of them will cause the schedule to occur. If a minute is configured, but no hour or day is configured, the event will not execute.
Page 390 System Command Reference Parameters schedule-type — Specify the type of schedule for the system to interpret the commands contained within the schedule node. Values periodic — Specifies a schedule which runs at a given interval. interval must be specified for this feature to run successfully. calendar —...
Page 391 System Management Script Control Commands script-control Syntax script-control Context config>system Description This command enables the context to configure command script parameters. script-policy Syntax script-policy policy-name [owner policy-owner] Context config>system>script-control config>system>cron>schedule Description This command is used to configure the CLI script policy. Parameters policy-name —...
Page 392 System Command Reference Description This command is used to configure the maximum amount of time that a script may run. Parameters seconds — Specifies the maximum amount of time that a script may run, in seconds. Values 0 to 21474836 Default 3600 forever —...
Page 393 System Management remote url — [{ftp:// | tftp://}login:password@remote-location/ ][file-path] 255 characters max directory length 99 characters max each remote-location — [hostname | ipv4-address | ipv6-address] ipv4-address — a.b.c.d ipv6-address — x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x — [0..FFFF]H d — [0..255]D interface — 32 characters max, for link local addresses cflash-id —...
Page 394 System Command Reference local-url — [cflash-id/] [file-path] 200 chars max, including cflash-id directory length 99 characters max each remote url — [{ftp:// | tftp://}login:password@remote-location/ ][file-path] 255 characters max directory length 99 characters max each remote-location — [hostname | ipv4-address | ipv6-address] ipv4-address —...
Page 395 System Management Parameters std-zone-name — The standard time zone name. The standard name must be a system-defined zone in Table 29. For zone names in the table that have an implicit summer time setting, for example MDT for Mountain Daylight Saving Time, the remaining start-date, end-date and offset parameters need to be provided unless it is necessary to override the system defaults for the time zone.
Page 396 System Command Reference offset Syntax offset offset Context config>system>time>dst-zone Description This command specifies the number of minutes that will be added to the time when summer time takes effect. The same number of minutes will be subtracted from the time when the summer time ends. Parameters offset —...
Page 397 System Management zone Syntax zone [std-zone-name | non-std-zone-name] [hh [:mm]] no zone Context config>system>time Description This command sets the time zone and/or time zone offset for the device. The SR-series router OS supports system-defined and user-defined time zones. The system-defined time zones are listed in Table For user-defined time zones, the zone and the UTC offset must be specified.
Page 398: System Synchronization Configuration Commands
System Command Reference System Synchronization Configuration Commands sync-if-timing Syntax sync-if-timing Context config>system> Description This command creates or edits the context to create or modify timing reference parameters. Default Disabled abort Syntax abort Context config>system>sync-if-timing Description This command is required to discard changes that have been made to the synchronous interface timing configuration during a session.
Page 399 System Management The bits command subtree is only available on the 7450 ESS-7, 7450 ESS-12, 7750 SR-7, 7750 SR- 12, 7750 SR-12e, 7750 SR-c4, 7950 XRS-20, 7950 XRS-40, 7950 XRS-16c, 7750 SR-a4, 7750 SR- a8, 7750 SR-1e, 7750 SR-2e, and 7750 SR-3e.
Page 400 2048khz-g703 — Specifies the 2048 kHz synchronization interface (T12) of ITU-T G.703. This parameter is only available on the 7450 ESS-7, 7450 ESS-12, 7750 SR-7, and 7750 SR-12 when there is a CPM5 or later installed. It is also available on the 7750 SR-12e, 7750 SR-a4, 7750 SR-a8, 7750 SR-1e, 7750 SR-2e, and 7750 SR-3e.
Page 401 System Management output Syntax output Context config>system>sync-if-timing>bits Description This command provides a context to configure and enable or disable the external BITS timing reference output to the central clock of the router. On redundant systems, there are two possible BITS- out interfaces, one for each CPM or CCM.
Page 402 System Command Reference Description This command configures the values used to identity the source of the BITS (Building Integrated Timing Supply) output. This is either the signal recovered directly from ref1, ref2 or ptp, or it is the output of the node’s central clock. The directly recovered signal would be used when the BITS output signal is feeding into an external stand alone timing distribution device (BITS/SASE).
Page 403 This command enables the context to configure parameters for system timing via IEEE 1588-2008, Precision Time Protocol. This command only applies to the 7450 ESS-7, 7450 ESS-12, and all 7750 SRs except for the 7750 SR-1e, 7750 SR-2e, and 7750 SR-3e.
Page 404 The synchronous equipment timing subsystem can lock to different timing reference inputs, those specified in the ref1, ref2, bits and ptp (ptp applies only to the 7450 ESS and 7750 SR) command configuration. This command organizes the priority order of the timing references.
Page 405 The restrictions on the location for the source-port or source-bits for ref1 and ref2 are listed in Table Table 42: Ref1 and Ref2 Timing References Platform Ref1 Slots Ref2 Slots Notes 7450 ESS-6/6v 1 to 2 3 to 4 — 7450 ESS-7 1 to 2 3 to 5 —...
Page 406 System Command Reference Description This command enables the context to configure parameters for the second timing reference. There are restrictions on the source-port and source-bits locations for ref2 based on the platform. The restrictions on the location for the source-port or source-bits for ref1 and ref2 are listed in Table revert Syntax...
Page 407: System Administration Commands
Syntax application-assurance Context admin Description This command enables the context to perform application-assurance operations and only applies to the 7450 ESS and 7750 SR. upgrade Syntax upgrade Context admin>app-assure Description This command loads a new protocol list from the isa-aa.tim file into the CPM and only applies to the 7450 ESS and 7750 SR.
Page 408 System Command Reference clear-policy-lock Syntax clear-policy-lock Context admin Description This command allows an authorized administrator to clear an exclusive policy lock. This will reset the lock flag and end the policy editing session in progress, aborting any policy edits. debug-save Syntax debug-save [file-url] Context...
Page 409 System Management interface - 32 chars max, for link local addresses 255 cflash-id cf1:|cf1-A:|cf1-B:|cf2:|cf2-A:|cf2-B:|cf3:|cf3-A:|cf3-B: disconnect Syntax disconnect [address ip-address | username user-name | console | telnet | ftp | ssh | netconf] Context admin Description This command disconnects a user from a session. Disconnect without any parameters will disconnect the session in which the command was executed.
Page 410 System Command Reference ssh — Disconnects the SSH session. netconf — Disconnects the NETCONF session. display-config Syntax display-config [detail | index] Context admin Description This command displays the system’s running configuration. By default, only non-default settings are displayed. Specifying the detail option displays all default and non-default configuration parameters. Parameters detail —...
Page 411 (without the 'hold' keyword) to return it to service. This parameter applies only to the SF/CPM3 and SF/CPM4 on the 7450 ESS and 7750 SR platforms. Note that on platforms such as the 7750 SR-12e and 7950 XRS, and on the 7450/7750 SFM5/CPM5, the SFMs are modeled as separate entities and can be administratively disabled by using the configure sfm x shutdown command.
Page 412 Syntax [no] enable-tech Context admin Description This command enables the shell and kernel commands. Note: This command should only be used with authorized direction from the Alcatel-Lucent Technical Assistance Center (TAC). radius-discovery Syntax radius-discovery Context admin Basic System Configuration Guide...
Page 413 • HHMM: Hours and Minutes in UTC time (24hr format, always 4 chars, with leading zeros on hours and minutes) Note: This command should only be used with authorized direction from the Alcatel-Lucent Technical Assistance Center (TAC). Parameters file-url — The file URL location to save the binary file.
Page 414 System Command Reference remote-locn [hostname | ipv4-address | "["ipv6-address"]" ] ipv4-address a.b.c.d ipv6-address x:x:x:x:x:x:x:x[-interface] x:x:x:x:x:x:d.d.d.d[-interface] x - [0..FFFF]H d - [0..255]D interface - 32 chars max, for link local addresses cflash-id cf1:|cf1-A:|cf1-B:|cf2:|cf2-A:|cf2-B:|cf3:|cf3-A:|cf3-B: ts-location Syntax ts-location file-url no ts-location Context config>system>security Description The ts-location command is used (along with an automatic system generated file name) when no file- url parameter is provided for the admin tech-support command.
Page 415: Mixed Mode Configuration Commands
Changing the capability of a slot or card will result in the associated slot being reset. The card-type must first be configured before the capability command can be issued. Default capability ess on a 7450 ESS chassis Basic System Configuration Guide...
Page 416: Persistence Commands
This command enables chassis support for features with a mixture of IOMs and IMMs. The no form of the command disables mixed mode support. Persistence Commands Note: The commands described in this section apply only to the 7450 ESS and 7750 SR. persistence Syntax...
Page 417 System Management application-assurance Syntax application-assurance Context config>system>persistence Description This command configures application assurance persistence parameters. dhcp-server Syntax dhcp-server Context config>system>persistence Description This command configures DHCP server persistence parameters. nat-port-forwarding Syntax nat-port-forwarding Context config>system>persistence Description This command configures NAT port forwarding persistence parameters. options Syntax options...
Page 418 System Command Reference The dhcp-leasetime-threshold command controls persistency updates for DHCPv4 and DHCPv6 leases for a DHCP relay or proxy and DHCPv4 leases for DHCP snooping (enabled with subscriber- mgmt) and a DHCP server (enabled with dhcp-server). The no form of the command disables the DHCP lease time threshold. Default no dhcp-leasetime-threshold Parameters...
Page 419: Ptp Commands
Default no location PTP Commands Note: The commands described in this section apply only to the 7450 ESS and 7750 SR. Syntax Context config>system...
Page 420 System Command Reference anno-rx-timeout Syntax anno-rx-timeout count no anno-rx-timeout Context config>system>ptp Description This command configures the announceReceiptTimeout value for all peer associations. This defines the number of Announce message intervals that must expire with no received Announce messages before declaring an ANNOUNCE_RECIPT_TIMEOUT event. The announce-rx-timeout cannot be changed unless PTP is shut down.
Page 421 System Management Context config>system>ptp Description This command configures the PTP domain. The no form of the command reverts to the default configuration. The default value is dependent upon the configured profile, as detailed below. Note some profiles may require a domain number in a restricted range. It is up to the operator to ensure the value aligns with what is expected within the profile.
Page 422 System Command Reference 1 (1 packet every 2 seconds) for g8265dot1-2010 or -3 (8 packets per second) for g8275dot1-2014 Parameters log-interval — The announce packet interval, in log form. Values -3 - 4 network-type Syntax network-type {sdh | sonet} Context config>system>ptp Description This command configures the codeset to be used for the encoding of QL values into PTP clockClass...
Page 423 System Management priority2 Syntax priority2 priority no priority2 Context config>system>ptp Description This command configures the priority2 value of the local clock. This parameter is only used when the profile is set to ieee1588-2008 or g8275dot1-2014. The parameter is ignored when any other profile is selected.
Page 424 System Command Reference If the parameter is set to a value other than the default for the original profile, then its value will remain unchanged Default g8265dot1-2010 Parameters g8265dot1-2010 — Conform to the ITU-T G.8265.1 specification. ieee1588-2008 — Conform to the 2008 version of the IEEE1588 standard. g8275dot1-2014 —...
Page 425 System Management If the clock-type is ordinary slave or boundary, and PTP is no shutdown, the last peer cannot be deleted. This prevents the user from having PTP enabled without any peer configured and enabled. Peers are created within the routing instance associated with the context of this command. All configured PTP peers must use the same routing instance.
Page 426 System Command Reference address Syntax address {01:1b:19:00:00:00|01:80:c2:00:00:0e} no address Context config>port>ethernet>ptp>port Description This command allows for the specification of the mac-address to be used for the destination MAC address of the transmitted ptp messages. IEEE Std 1588-2008 Annex F defines two reserved addresses for 1588 messages. These are: •...
Page 427 System Management log-sync-interval Syntax log-sync-interval log-interval no log-sync-interval Context configure>system>ptp>port Description This command configures the message interval used for transmission of multicast Sync messages. For multicast messages used on PTP Ethernet ports, this configures the message interval used for Sync messages transmitted by the local node when the port is in Master state.
Page 428 System Command Reference local-priority Syntax local-priority local-priority Context configure>system>ptp configure>system>ptp>peer configure>system>ptp>port Description This command configures the local priority used to choose between PTP masters in the best master clock algorithm (BMCA). This setting is relevant when the profile is set to either g8265dot1-2010 or g8275dot1-2014.
Page 429: Redundancy Commands
System Management Context configure>system>ptp>peer Description This command disables or enables a specific PTP peer. Shutting down a peer sends cancel unicast negotiation messages on any established unicast sessions. When shutdown, all received packets from the peer are ignored. If the clock-type is ordinary slave or boundary, and PTP is no shutdown, the last enabled peer cannot be shutdown.
Page 430 This command automatically synchronizes the certificate/CRL/key when importing or generating (for the key). Also if a new CF card is inserted into slot3 into the backup CPM, the system will sync the whole system-pki directory from the active CPM. This command applies only to the 7450 ESS and 7750 SR.
Page 431 System Management Description If the management Ethernet port on the active CPM goes down, this command allows the active CPM to be configured to use the management Ethernet port of the standby CPM. The revert option allows the administrator to control when to revert back to the management Ethernet port of the primary CPM once it comes up again.
Page 432 System Command Reference rollback-sync Syntax [no] rollback-sync Context config>redundancy Description The operator can enable automatic synchronization of rollback checkpoint files between the active CPM and inactive CPM. When this automatic synchronization is enabled, a rollback save will cause the new checkpoint file to be saved on both the active and standby CPMs. The suffixes of the old checkpoint files on both active and standby CPMs are incremented.
Page 433 System Management no site-min-down-timer Context config>redundancy>bgp-multi-homing Description This command configures the BGP multi-homing site minimum down time. When set to a non-zero value, if the site goes operationally down it will remain operationally down for at least the length of time configured for the site-min-down-timer, regardless of whether other state changes would have caused it to go operationally up.
Page 434 System Command Reference The active CPM ensures that the active configuration is maintained on the standby CPM. However, to ensure smooth operation under all circumstances, runtime images and system initialization configurations must also be automatically synchronized between the active and standby CPM. If synchronization fails, alarms and log messages that indicate the type of error that caused the failure of the synchronization operation are generated.
Page 435 System Management config — Synchronize only the primary, secondary, and tertiary configuration files. Default config Peer Commands peer Syntax [no] peer ip-address Context config>redundancy>multi-chassis Description This command configures a multi-chassis redundancy peer. Parameters ip-address — Specifies a peer IP address. Multicast address are not allowed. authentication-key Syntax authentication-key [authentication-key | hash-key] [hash | hash2]...
Page 436 System Command Reference igmp Syntax [no] igmp Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether IGMP protocol information should be synchronized with the multi- chassis peer. Default no igmp igmp-snooping Syntax [no] igmp-snooping Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether IGMP snooping information should be synchronized with the multi- chassis peer.
Page 437 System Management Description This command specifies a peer name. Parameters name — The string may be up to 32 characters long. Any printable, seven-bit ASCII characters can be used within the string. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes.
Page 438 Syntax [no] srrp Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether subscriber routed redundancy protocol (SRRP) information should be synchronized with the multi-chassis peer. This command applies to the 7450 ESS and 7750 SR. Default no srrp sync Syntax [no] sync...
Page 439 Syntax [no] sub-mgmt Context config>redundancy>multi-chassis>peer>sync Description This command specifies whether subscriber management information should be synchronized with the multi-chassis peer. This command applies to the 7450 ESS and 7750 SR. Default no sub-mgmt sub-host-trk Syntax [no] sub-host-trk Context config>redundancy>multi-chassis>peer>sync...
Page 440 All nodes participating in this protection model must run SR OS R12.0 or higher. This command applies only to the 7450 ESS and 7750 SR. Default...
Page 441 System Management boot-timer Syntax boot-timer interval no boot-timer Context config>redundancy>multi-chassis>peer>mc-ep Description This command configures the boot timer interval. This command applies only when the node reboots. It specifies the time the MC-EP protocol keeps trying to establish a connection before assuming a failure of the remote peer.
Page 442 System Command Reference The no form of this command sets the interval to default value Default 5 (0.5s) Parameters interval — The time interval expressed in deciseconds Values 5 to 500 (tenths of a second) passive-mode Syntax [no] passive-mode Context config>redundancy>multi-chassis>peer>mc-ep Description This command configures the passive mode behavior for the MC-EP protocol.
Page 443 System Management Description This command enables the context to configure multi-chassis LAG operations and related parameters. The no form of this command administratively disables multi-chassis LAG. MC-LAG can only be issued only when mc-lag is shutdown. hold-on-neighbor-failure Syntax hold-on-neighbor-failure multiplier no hold-on-neighbor-failure Context config>redundancy>multi-chassis>peer>mc-lag...
Page 444 System Command Reference priority system-priority source-bmac-lsb use-lacp-key lag lag-id lacp-key admin-key system-id system-id [remote-lag remote-lag-id] system- priority system-priority source-bmac-lsb MAC-Lsb lag lag-id lacp-key admin-key system-id system-id [remote-lag remote-lag-id] system- priority system-priority lag lag-id [remote-lag remote-lag-id] no lag lag-id Context config>redundancy>multi-chassis>peer>mc-lag Description This command defines a LAG which is forming a redundant-pair for MC-LAG with a LAG configured on the given peer.
Page 445 System Management Multi-Chassis Ring Commands mc-ring Syntax mc-ring Context config>redundancy>mc>peer config>redundancy>multi-chassis>peer>sync Description This command enables the context to configure the multi-chassis ring parameters. ring Syntax ring sync-tag no ring sync-tag Context config>redundancy>mc>peer>mcr Description This command configures a multi-chassis ring. Parameters sync-tag —...
Page 446 System Command Reference interface Syntax interface ip-int-name no interface Context config>redundancy>mc>peer>mcr>ring>in-band-control-path Description This command specifies the name of the IP interface used for the inband control connection. If the name is not configured, the ring cannot become operational. service-id Syntax service-id service-id no service-id Context...
Page 447 System Management path-excl Syntax [no] path-excl Context config>redundancy>mc>peer>mcr>ring Description This command specifies the set of upper-VLAN IDs associated with the SAPs that are to be excluded from control by the multi-chassis ring. Default If not specified, the default is an empty set. ring-node Syntax ring-node ring-node-name [create]...
Page 448 System Command Reference interval Syntax interval interval no interval Context config>redundancy>mc>peer>mcr>ring>ring-node>connectivity-verify Description This command specifies the polling interval of the ring-node connectivity verification of this ring node. Default Parameters interval — Specifies the polling interval, in minutes. Values 1 to 6000 service-id Syntax service-id service-id...
Page 449: Lldp System Commands
System Management src-mac Syntax src-mac ieee-address no src-mac Context config>redundancy>mc>peer>mcr>node>cv Description This command specifies the source MAC address used for the Ring-Node Connectivity Verification of this ring node. A value of all zeros (000000000000 H (0:0:0:0:0:0)) specifies that the MAC address of the system management processor (CPM) is used.
Page 450 System Command Reference message-fast-tx Syntax message-fast-tx time no message-fast-tx Context config>system>lldp Description This command configures the duration of the fast transmission period. Parameters time — Specifies the fast transmission period in seconds. Values 1 to 3600 Default message-fast-tx-init Syntax message-fast-tx-init count no message-fast-tx-init Context config>system>lldp...
Page 451 System Management Context config>system>lldp Description This command configures the time before re-initializing LLDP on a port. Parameters time — Specifies the time, in seconds, before re-initializing LLDP on a port. Values 1 to 10 Default tx-credit-max Syntax tx-credit-max count no tx-credit-max Context config>system>lldp Description...
Page 452: Lldp Ethernet Port Commands
System Command Reference Parameters interval — Specifies the LLDP transmit interval time. Values 1 to 100 Default LLDP Ethernet Port Commands lldp Syntax lldp Context config>port>ethernet Description This command enables the context to configure Link Layer Discovery Protocol (LLDP) parameters on the specified port.
Page 453 System Management disabled — Specifies that the LLDP agent will not transmit or receive LLDP frames on this port. If there is remote systems information which is received on this port and stored in other tables, before the port's admin status becomes disabled, then the information will naturally age out. notification Syntax [no] notification...
Page 454 System Command Reference sys-cap — Indicates that the LLDP agent should transmit system capabilities TLVs. Basic System Configuration Guide...
Page 455: Show, Clear, Debug, And Tools Command Reference
System Management Show, Clear, Debug, and Tools Command Reference Command Hierarchies • Show Commands • Clear Commands • Debug Commands • Tools Commands Basic System Configuration Guide...
Page 456: Show Commands
Show, Clear, Debug, and Tools Command Reference Show Commands show — redundancy — mgmt-ethernet — multi-chassis — [detail] — mc-endpoint statistics — mc-endpoint peer [ip-address] statistics — mc-endpoint endpoint [mcep-id] statistics — mc-endpoint peer [ip-address] — mc-lag [lag lag-id] — peer [peer ip-address [lag lag-id]] mc-lag —...
Page 457: Clear Commands
System Management — time — uptime Clear Commands clear — application-assurance — group isa-aa-group-id statistics — group isa-aa-group-id status — redundancy — multi-chassis — mc-endpoint endpoint [mcep-id] statistics — mc-endpoint statistics — mc-endpoint peer [ip-address] statistics — mc-lag [peer ip-address [lag lag-id]] —...
Page 458: Debug Commands
Show, Clear, Debug, and Tools Command Reference Debug Commands debug — sync-if-timing — force-reference {ref1 | ref2 | bits | bits1 | bits2 | bitsa | bitsb | ptp} — no force-reference — [no] system — http-connections [host-ip-address/mask] — no http-connections —...
Page 459: Command Descriptions
System Management Command Descriptions Show Commands The command outputs in the following sections are examples only; actual displays may differ depending on supported functionality and user configuration. alarm-contact-input Syntax alarm-contact-input {alarm-contact-input-id | all} [detail] Context show>system Description This command displays the alarm contact input information. Parameters alarm-contact-input-id —...
Page 460 Show, Clear, Debug, and Tools Command Reference Sample Output A:bkvm3# show system alarm-contact-input 1 =============================================================================== Alarm Contact Input =============================================================================== Alarm Contact Input Power : on Alarm Input Pin Number Alarm Input Pin Current State : Disabled Alarm Output Pin Used : major Alarm Raised : No...
Page 461 System Management card Syntax card Context show>system Description This command enables the context to display card information. memory-pools Syntax memory-pools Context show>system>card Description This command displays the memory pools for the card. connections Syntax connections [address ip-address] [port port-number] [detail] Context show>system Description...
Page 462 Show, Clear, Debug, and Tools Command Reference Table 44: System Connections Field Descriptions Label Description Proto Displays the socket protocol, either TCP or UDP. RecvQ Displays the number of input packets received by the protocol. TxmtQ Displays the number of output packets sent by the application. Local Address Displays the local address of the socket.
Page 463 System Management 0 ::.47806 LISTEN 1024 ::.0 0 127.1.0.11.21 LISTEN 1024 0.0.0.0.0 4095 0 127.1.0.11.21059 LISTEN 1024 0.0.0.0.0 4095 0 135.121.129.98.22 LISTEN 1024 0.0.0.0.0 4095 0 135.121.129.98.23 ESTABLISH 1024 138.120.140.149.59042 4095 1149 135.121.129.98.23 ESTABLISH 1024 138.120.140.244.58579 4095 0 135.121.129.98.830 LISTEN 1024 0.0.0.0.0 4095...
Page 464 Show, Clear, Debug, and Tools Command Reference window update packet control packets : 32 packets received : 658893 acks : 338738 for (7435123 bytes) duplicate acks : 23 ack for unsent data packets received in-sequence : 334705 (5568368 bytes) completely duplicate packet : 2 (36 bytes) packet with some dup.
Page 465 System Management Table 45: System CPU Field Descriptions Label Description CPU Utilization The total amount of CPU time. Name The process or protocol name. CPU Time (uSec) The CPU time each process or protocol has used in the specified time. CPU Usage The sum of CPU usage of all the processes and protocols.
Page 466 Show, Clear, Debug, and Tools Command Reference Stats 0.00% 0.00% Subscriber Mgmt 2,129 0.10% 0.04% System 8,802 0.43% 0.17% Traffic Eng 0.00% 0.00% VRRP 0.03% 0.02% WEB Redirect ~0.00% ~0.00% ------------------------------------------------------------------------------- Total 2,014,761 100.00% Idle 1,945,113 96.54% Usage 69,648 3.45% Busiest Core Utilization 69,648 3.45%...
Page 467 System Management owner action-owner — Specifies the owner name. Default TiMOS CLI run-history run-state — Specifies the state of the test to be run. Values executing, initializing, terminated Output The following table describes the show cron action output fields. Table 46: Cron Action Field Descriptions Label Description Action...
Page 468 Show, Clear, Debug, and Tools Command Reference Start time : 2006/11/06 20:30:09 End time : 2006/11/06 20:35:24 Elapsed time : 0d 00:05:15 Lifetime : 0d 00:00:00 State : terminated Run exit code : noError Result time : 2006/11/06 20:35:24 Keep history : 0d 00:49:57 Error time : never...
Page 469 System Management Script Run #22 ------------------------------------------------------------------------------- Start time : never End time : never Elapsed time : 0d 00:00:00 Lifetime : 0d 01:00:00 State : initializing Run exit code : noError Result time : never Keep history : 0d 01:00:00 Error time : never Results file...
Page 470 Show, Clear, Debug, and Tools Command Reference Table 47: Cron Schedule Field Descriptions (Continued) Label Description (Continued) Script Displays the name of the script. Script owner Displays the name of the script. Script owner Displays the name of the of script owner. Script source location Displays the location of scheduled script.
Page 471 System Management Action owner : TiMOS CLI Script : test Script Owner : TiMOS CLI Script source location : ftp://*****:******@192.168.15.1/home/testlab_bgp /cron/test1.cfg Script results location : ftp://*****:******@192.168.15.1/home/testlab_bgp /cron/res Schedule type : periodic Interval : 0d 00:01:00 (60 seconds) Next scheduled run : 0d 00:00:42 Weekday : tuesday...
Page 472 Show, Clear, Debug, and Tools Command Reference Table 48: System Information Field Descriptions (Continued) Label Description (Continued) SNMP Max Message The maximum SNMP packet size generated by this node. Size SNMP Admin State Enabled — SNMP is administratively enabled and running. Disabled —...
Page 473 System Management Table 48: System Information Field Descriptions (Continued) Label Description (Continued) Last Boot Index The header of the persistence index file read when this card was last Header rebooted. Last Saved Config The location and filename of the last saved configuration file. Time Last Saved The date and time of the last time configuration file was saved.
Page 474 The following is an example of the 7750 SR: A:Dut-F# show system information =============================================================================== System Information =============================================================================== System Name : Dut-F System Type : 7750 SR-7 7450 ESS-7 System Version : B-6.0.B1-6 System Contact System Location System Coordinates System Active Slot System Up Time : 0 days, 03:42:01.29 (hr:min:sec)
Page 475: Lldp Neighbor
System Management ICMP Vendor Enhancement: Disabled ATM Location ID : 01:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00 ATM OAM Retry Up ATM OAM Retry Down ATM OAM Loopback Period: 10 =============================================================================== A:Dut-F# lldp Syntax lldp neighbor Context show>system Description This command displays neighbor information for all configured ports without having to specify each individual port ID.
Page 476 Show, Clear, Debug, and Tools Command Reference load-balancing-alg Syntax load-balancing-alg [detail] Context show>system Description This command displays system load balancing settings. Parameters detail — Displays port settings. Output Sample Output *A:ALA-49>show>system# load-balancing-alg =============================================================================== System-wide Load Balancing Algorithms =============================================================================== - Load Balance : exclude-L4 LSR - Load Balance : lbl-only...
Page 477 System Management Table 49: System Memory-Pools Field Descriptions (Continued) Label Description Available Memory The amount of available memory. Sample Output A:ALA-1# show system memory-pools =============================================================================== Memory Pools =============================================================================== Name Max Allowed Current Size Max So Far In Use ------------------------------------------------------------------------------- System No limit 24,117,248 24,117,248...
Page 478 Show, Clear, Debug, and Tools Command Reference Table 50: Show NTP Field Description Label Description Enabled yes — NTP is enabled. no — NTP is disabled. Admin Status yes — Administrative state is enabled. no — Administrative state is disabled. NTP Server Displays NTP server state of this node.
Page 479 System Management Table 50: Show NTP Field Description (Continued) Label Description (Continued) Remote The IP address of the remote NTP server or peer with which this local host is exchanging NTP packets. Reference ID When stratum is between 0 and 15 this field shows the IP address of the remote NTP server or peer with which the remote is exchanging NTP packets.
Page 480 Show, Clear, Debug, and Tools Command Reference Table 50: Show NTP Field Description (Continued) Label Description (Continued) Auth yes — Authentication is enabled. no — Authentication is disabled. Poll Polling interval in seconds. Yes — The NTP peer or server has been reached at least once in the last 8 polls.
Page 481 System Management NTP Clients =============================================================================== vRouter Time Last Request Rx Address ------------------------------------------------------------------------------- =============================================================================== *A:Dut-A# show system ntp detail =============================================================================== NTP Status =============================================================================== Configured : Yes Stratum Admin Status : up Oper Status : up Server Enabled : No Server Authenticate : No Clock Source : 1111:2222:3333:4444:5555:10:100:2...
Page 482 Show, Clear, Debug, and Tools Command Reference =============================================================================== NTP Clients =============================================================================== vRouter Time Last Request Rx Address ------------------------------------------------------------------------------- =============================================================================== *A:Dut-A# rollback Syntax rollback Context show>system Description This command displays rollback configuration and state. Output Sample Output A:dut-a_a># show system rollback =============================================================================== Rollback Information ===============================================================================...
Page 483 Description These commands display Precision Time Protocol (PTP) configuration and state information and apply to the 7450 ESS and 7750 SR. This information can be displayed for the entire node or on a per router instance basis. Parameters standby — Displays information for PTP on the standby control module.
Page 484 Show, Clear, Debug, and Tools Command Reference Table 51: System PTP Field Descriptions (Continued) Label Description Expired When a unicast session between the SR/ESS and the peer has expired without being renewed. Sample Output B:NS082761964# show system ptp =============================================================================== IEEE 1588/PTP Clock Information =============================================================================== ------------------------------------------------------------------------------- Local Clock...
Page 485 System Management Announce Interval : 1 pkt/2 s Announce Rx Timeout : 3 intervals Clock Id : 001af0fffeb2fead Clock Class : 255 (slave-only) Clock Accuracy : 0xfe (unknown) Clock Variance : ffff (not computed) Clock Priority1 : 128 Clock Priority2 : 128 PTP Port State : listening...
Page 486 Show, Clear, Debug, and Tools Command Reference Other TLVs Other Event Packets timestamped at port 215523 215371 Event Packets timestamped in software Discards Bad domain value Alternate Master Flag Set Other ============================================================================== =============================================================================== IEEE 1588/PTP Clock Recovery State Statistics =============================================================================== State Seconds -------------------------------------------------------------------------------...
Page 487 System Management 1.2.1.20 rx+tx master 1.3.1.19 slave 1.1.1.21 master ------------------------------------------------------------------------------- No. of PTP Peers: 4 =============================================================================== *A:bksim1618# show system ptp peers router Base =============================================================================== IEEE 1588/PTP Peer Information =============================================================================== Router IP Address Anno Flow Admin State PTP Port State Parent Clock ------------------------------------------------------------------------------- Base 1.4.1.21...
Page 488 Show, Clear, Debug, and Tools Command Reference Clock Id : ac5dfffffe000000 Remote PTP Port GM Clock Id : ac5dfffffe000000 GM Clock Class : 13 GM Clock Accuracy : unknown GM Clock Variance : ffff (not computed) GM Clock Priority1: 0 GM Clock Priority2 : 128 Steps Removed Parent Clock...
Page 489 System Management Admin State : up G.8275.1 Priority : 128 Local PTP Port PTP Port State : passive Clock Id : ac5dfffffe000000 Remote PTP Port GM Clock Id : ac5cfffffe000000 GM Clock Class : 13 GM Clock Accuracy : 0xfe (unknown) GM Clock Variance : ffff (not computed) GM Clock Priority1: 128...
Page 490 Show, Clear, Debug, and Tools Command Reference A:bksim1618# show system ptp port 1/1/1 detail =============================================================================== IEEE 1588/PTP Ethernet Port Information =============================================================================== Port : 1/1/2 PTP Admin State : up PTP Oper State : up Local MAC Addr : 02:43:BA:01:00:03 Multicast MAC Addr : 01:1b:19:00:00:00 G.8275.1 notSlave : false G.8275.1 Priority...
Page 491 System Management =============================================================================== MAC Address Clock Id Port Num Rx Packet Rate ------------------------------------------------------------------------------- 01:02:03:04:05:06 ac65fffffe000001 65535 01:02:03:04:05:07 ac65fffffe000002 01:02:03:04:05:08 ac65fffffe000003 01:02:03:04:05:09 ac65fffffe000004 =============================================================================== =============================================================================== IEEE 1588/PTP Ethernet Port Packet Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- PTP Packets Announce Sync Follow Up Delay Request Delay Response Signaling...
Page 492 Show, Clear, Debug, and Tools Command Reference 1.2.1.20 DelayRsp 64 pkt/s Granted 04/21/2013 19:13:30 1.3.1.19 Announce 1 pkt/2 s Granted 04/21/2013 19:13:16 1.3.1.19 Sync 64 pkt/s Granted 04/21/2013 19:13:21 1.3.1.19 DelayReq 64 pkt/s Granted 04/21/2013 19:13:21 1.3.1.19 DelayRsp 64 pkt/s Granted 04/21/2013 19:13:21 1.1.1.21...
Page 493 System Management Table 52: System SNTP Field Descriptions (Continued) Label Description Version The SNTP version number, expressed as an integer. Preference Normal — When more than one time server is configured, one server can be configured to have preference over another. Preferred —...
Page 494 Show, Clear, Debug, and Tools Command Reference Table 53: System Thresholds Field Descriptions (Continued) Label Description (Continued) Sample Interval Displays the polling interval, in seconds, over which the data is sampled and compared with the rising and falling thresholds. SampleType Displays the method of sampling the selected variable and calculating the value to be compared against the thresholds.
Page 495 System Management Falling Event Id : 0 Threshold Sample Interval SampleType : absolute Startup Alarm : either Owner : TiMOS CLI Variable: tmnxCpmFlashPercentageUsed.1.10.2 Alarm Id Last Value : 0 Rising Event Id Threshold : 40 Falling Event Id : 6 Threshold : 50 Sample Interval...
Page 496 Show, Clear, Debug, and Tools Command Reference Description : TiMOS CLI - cflash capacity alarm falling event using percentages : value=0, <=50 : alarm-index 4, event-index 6 alarm-variable OID tmnxCpmFlashPercentageUsed.1.10.2 Event Id Time Sent : 07/23/2015 18:15:46 ================================================================= time Syntax time Context show>system...
Page 497 System Management Date & Time =============================================================================== Current Date & Time : 2006/05/05 23:03:13 DST Active : yes Current Zone : PDT Offset from UTC : -7:00 ------------------------------------------------------------------------------- Non-DST Zone : PST Offset from UTC : -8:00 Zone type : standard ------------------------------------------------------------------------------- DST Zone : PDT...
Page 498 Show, Clear, Debug, and Tools Command Reference Description This command enables the context to show redundancy information. mgmt-ethernet Syntax mgmt-ethernet Context show>redundancy Description This command shows the management Ethernet port redundancy status. The show router “management” interface command also shows the CPM Ethernet port used by the management interface.
Page 499 System Management Interface-Name Opr(v4/v6) Mode Port/SapId IP-Address PfxState --------------------------------------------------------------------------- management Up/Up Network B/1 -> A/1 138.120.186.219/24 3000::8a78:badb/96 PREFERRED fe80::221:5ff:fece:df49/64 PREFERRED --------------------------------------------------------------------------- Interfaces : 1 =========================================================================== *B:Dut-A# show router "management" interface detail =============================================================================== Interface Table (Router: management) =============================================================================== ------------------------------------------------------------------------------- Interface ------------------------------------------------------------------------------- If Name : management Admin State...
Page 500 Show, Clear, Debug, and Tools Command Reference Syntax all [detail] Context show>redundancy>multi-chassis Description This command displays brief multi-chassis redundancy information. Parameters detail — Shows detailed multi-chassis redundancy information. Output The following table describes Redundancy Multi-Chassis All fields: Table 56: Redundancy multi-chassis all Field Descriptions Label Description Peer IP Address...
Page 501 System Management : up : up Thres. Exceeded Cnt : 9 Port Threshold Thres. Last Cleared : 05/20/2006 00:12:35 Threshold Action : down Dynamic Cost : false Encap Type : null Configured Address : 1c:71:ff:00:01:41 Lag-IfIndex : 1342177281 Hardware Address : 1c:71:ff:00:01:41 Adapt Qos : distribute...
Page 502 Show, Clear, Debug, and Tools Command Reference peer ip-address — Specifies the IP address of multi-chassis end-point peer. endpoint mcep-id — Specifies the multi-chassis endpoint. Values 1 to 4294967295 Output Sample Output *A:Dut-B# show redundancy multi-chassis mc-endpoint statistics =============================================================================== Multi-Chassis Endpoint Global Statistics =============================================================================== Packets Rx : 533...
Page 503 System Management Packets Tx Peer Config : 30 Packets Tx Failed Packets Dropped No Peer =============================================================================== *A:Dut-B# *A:Dut-B# show redundancy multi-chassis mc-endpoint endpoint 1 statistics =============================================================================== Multi-Chassis Endpoint Statistics =============================================================================== =============================================================================== MC-Endpoint Id 1 =============================================================================== Packets Rx Config Packets Rx State Packets Tx Config Packets Tx State Packets Tx Failed...
Page 504 Show, Clear, Debug, and Tools Command Reference Table 57: Redundancy Multi-chassis MC-Lag Peer Field Descriptions Label Description Last Changed Displays date and time of the last mc-lag peer. Admin State Displays the administrative state of the mc-lag peer. Oper State Displays the operation state of the mc-lag peer.
Page 505 System Management statistics Syntax statistics mc-lag [peer ip-address [lag lag-id]] Context show>redundancy>multi-chassis>mc-lag Description This command displays multi-chassis statistics. Parameters mc-lag — Displays multi-chassis LAG statistics. peer ip-address — Shows the specified address of the multi-chassis peer. lag lag-id — Shows information for the specified LAG identifier. Values 1 to 800 Output...
Page 506 Show, Clear, Debug, and Tools Command Reference Table 58: Redundancy Multi-chassis MC-Lag Peer Statistics Field Descriptions Label Description (Continued) Packets Dropped MD5 Indicates the number of packets that were dropped because the packet failed MD5 authentication. Packets Tx Indicates the number of packets transmitted from this system to the peer. Packets Tx Keepalive Indicates the number of keepalive packets transmitted from this system to the peer.
Page 507 System Management Packets Dropped Packets Too Short : 0 Packets Dropped Tlv Invalid Size Packets Dropped Tlv Invalid LagId : 0 Packets Dropped Out of Seq Packets Dropped Unknown Tlv Packets Dropped MD5 Packets Tx : 235 Packets Tx Keepalive : 216 Packets Tx Peer Config Packets Tx Failed...
Page 508 Show, Clear, Debug, and Tools Command Reference Table 59: Mc-ring peer ip-address Ring Field Descriptions (Continued) Label Description Oper State noPeer — The peer has no corresponding ring configured. connected — The in-band control connection with the peer is operational. broken —...
Page 509 System Management Oper State : connected Dest IP : 10.10.0.2 : 10.10.0.1 ------------------------------------------------------------------------------ VLAN Map B Path Provisioned ------------------------------------------------------------------------------ range 13-13 range 17-17 ------------------------------------------------------------------------------ VLAN Map Excluded Path Provisioned ------------------------------------------------------------------------------ range 18-18 ------------------------------------------------------------------------------ VLAN Map B Path Operational ------------------------------------------------------------------------------ range 13-13 range 17-17 ------------------------------------------------------------------------------ VLAN Map Excluded Path Operational...
Page 510 Show, Clear, Debug, and Tools Command Reference Oper State Rem : notTested In Use : True Admin Change : 01/07/2008 21:40:07 Oper Change : 01/07/2008 21:40:25 Failure Reason : None ------------------------------------------------------------------------------ Ring Node Connectivity Verification ------------------------------------------------------------------------------ Admin State : inService Service ID : 11 VLAN Tag...
Page 511 System Management Table 60: Redundancy Multi-Chassis Ring Peer Statistics Field Descriptions Label Description (Continued) Ring Exists Request Displays the number of valid 'ring exists' requests were received from the peer. Ring Exists Response Displays the number of valid ring exists' responses were received from the peer.
Page 512 Show, Clear, Debug, and Tools Command Reference Table 61: Mc-ring ring-node Command Field Descriptions (Continued) Label Description In Use Displays “True” if the ring node is referenced on an e-pipe or as an inter- dest-id on a static host or dynamic lease. Table 62: Mc-ring global-statistics Command Field Descriptions Label Description...
Page 513 System Management Table 62: Mc-ring global-statistics Command Field Descriptions (Continued) Label Description Missed BFD Events Displays the number of missed BFD events on this system. *A:ALA-48>show>redundancy>multi-chassis# mc-ring global-statistics ============================================================================== Global MC Ring statistics ============================================================================== Rx Too Short Rx Wrong Authentication Rx Invalid TLV Rx Incomplete Rx Unknown Type...
Page 514 Show, Clear, Debug, and Tools Command Reference Table 63: Redundancy Multi-chassis Sync Field Descriptions (Continued) Label Description Authentication If configured, displays the authentication key used between this node and the multi-chassis peer. Source IP Address Displays the source address used to communicate with the multi-chassis peer.
Page 515 System Management Rem Lcl Deleted Entries : 0 Rem Alarm Entries =============================================================================== A:subscr_mgt_2# peer Syntax peer ip-address Context show>redundancy>multi-chassis>sync Description This command enables the context to display peer-related redundancy information. Parameters ip-address — Shows peer information about the specified IP address. Output The following table describes show redundancy multi-chassis sync output fields: Table 64: Redundancy Multi-chassis Sync Peer Field Descriptions...
Page 516 Show, Clear, Debug, and Tools Command Reference Sample Output *A:subscr_mgt_2# show redundancy multi-chassis sync peer 10.10.10.20 =============================================================================== Multi-chassis Peer Table =============================================================================== Peer ------------------------------------------------------------------------------- Peer IP Address : 10.10.10.20 Description : Mc-Lag peer 10.10.10.20 Authentication : Disabled Source IP Address : 0.0.0.0 Admin State : Enabled -------------------------------------------------------------------------------...
Page 517 System Management Alarm Entries ------------------------------------------------------------------------------- Rem Num Entries Rem Lcl Deleted Entries : 0 Rem Alarm Entries =============================================================================== *A:subscr_mgt_2# detail Syntax detail Context show>redundancy>multi-chassis>peer Description This command displays detailed peer information. Output The following table describes show redundancy multi-chassis sync detail output fields: Table 65: Redundancy Multi-chassis Sync Peer Detail Field Descriptions Label Description...
Page 518 Show, Clear, Debug, and Tools Command Reference Sample Output *A:subscr_mgt_2# show redundancy multi-chassis sync peer 10.10.10.20 detail =============================================================================== Multi-chassis Peer Table =============================================================================== Peer ------------------------------------------------------------------------------- Peer IP Address : 10.10.10.20 Description : Mc-Lag peer 10.10.10.20 Authentication : Disabled Source IP Address : 0.0.0.0 Admin State : Enabled...
Page 519 System Management Alarm Entries ------------------------------------------------------------------------------- Rem Num Entries Rem Lcl Deleted Entries : 0 Rem Alarm Entries =============================================================================== Ports synced on peer 10.10.10.20 =============================================================================== Port/Encap ------------------------------------------------------------------------------- lag-1 test123 =============================================================================== *A:subscr_mgt_2# synchronization Syntax synchronization Context show>redundancy Description This command displays redundancy synchronization times. Output Sample Output A:ALA-48>show>redundancy# synchronization...
Page 520 Show, Clear, Debug, and Tools Command Reference script Syntax script [script-name] [owner script-owner] Context show>system>script-control Description This command displays script parameters. Parameters script-name — Displays information for the specified script. owner script-owner — Displays information for the specified script owner. Output The following table describes the show script output fields.
Page 521 System Management script-policy Syntax script-policy script-policy-name [owner owner-name] script-policy run-history [run-state] Context show>system>script-control Description This command displays script policy information. Parameters script-policy-name — Displays policy information for the specified script. owner owner-name — Displays information for the specified script owner. Default TiMOS CLI run-state —...
Page 522 Show, Clear, Debug, and Tools Command Reference Table 67: Script Policy Output (Continued) Label Description (Continued) Max time tun history Displays the maximum amount of time to keep the results from a script saved run. Last change Displays the system time a change was made to the configuration. Sample Output *A:Redundancy# show system script-control script-policy run-history terminated ===============================================================================...
Page 523 System Management =============================================================================== *A:Redundancy# *A:Redundancy# show system script-control script-policy run-history initializing =============================================================================== Script-policy Run History =============================================================================== Script policy "test" Owner "TiMOS CLI" ------------------------------------------------------------------------------- Script Run #21 ------------------------------------------------------------------------------- Start time : never End time : never Elapsed time : 0d 00:00:00 Lifetime : 0d 01:00:00 State : initializing Run exit code : noError Result time : never Keep history : 0d 01:00:00 Error time : never...
Page 524 Show, Clear, Debug, and Tools Command Reference Table 68: Uptime Output Label Description System Up Time Displays the length of time the system has been up in days, hr:min:sec format. Sample Output A:ALA-1# show uptime System Up Time : 11 days, 18:32:02.22 (hr:min:sec) A:ALA-1# switch-fabric Syntax...
Page 525 Indicates the present status of the synchronous timing equipment subsystem (SETS). Not Present — Only shown on systems without central clocks (7450 ESS- Master Freerun — The clock is in free-run because it hasn’t had a qualified input reference to lock to Master Holdover —...
Page 526 Reference Selected Indicates which reference has been selected: • ref1, ref2 - (for all chassis) • BITS A, BITS B: → 7450 ESS-7/12 → 7750 SR-7/12 → 7750 SR-12e → 7750 SR-1e/2e/3e → 7750 SR-a4/8 → 7950 XRS-16/20 → 7950 XRS-40 •...
Page 527 • Mate CPM (ref1), Mate CPM (ref2) - show>system>sync-if- timing>standby when standby locked to active which is locked to ref1 or ref2: → 7750 SR-7/12 → 7450 ESS-7/12 → 7750 SR-12e → 7750 SR-1e/2e/3e → 7750 SR-a4/8 → 7950 XRS-16/20/40 •...
Page 528 Show, Clear, Debug, and Tools Command Reference Table 70: System Timing Output (Continued) Label Description (Continued) Not Qualified Due To Indicates the reason why the reference has not been qualified: • disabled • • OOPIR • Selected for Use Indicates whether the method is presently selected. Not Selected Due To Indicates the reason why the method is not selected: •...
Page 529 System Management • sync-if-timing “A” when the SETS reference on the active CPM-A locks to BITS A, or • sync-if-timing “B” when the SETS reference on the active CPM-B locks to BITS A Note: The following output applies only to the 7750 SR-1e/2e/3e and 7950 XRS-16/20/40 platforms. *A:Dut-B# show system sync-if-timing or show system sync-if-timing "A"...
Page 530 Show, Clear, Debug, and Tools Command Reference Framing : PCM31 CRC Line Coding : HDB3 SSM Bit Output Admin Status : up Output Source : line reference Output Reference Selected : ref1 Tx Quality Level : prc =============================================================================== The following system example shows: •...
Page 531 System Management Quality Level Override : none Qualified For Use : Yes Selected For Use : No Not Selected Due To on standby Interface Type : E1 Framing : PCM31 CRC Line Coding : HDB3 SSM Bit Output Admin Status : up Output Source : line reference...
Page 532 Show, Clear, Debug, and Tools Command Reference Not Selected Due To on standby Source Port : 1/1/5 Reference Input 2 Admin Status : up Rx Quality Level : prc Quality Level Override : none Qualified For Use : Yes Selected For Use : No Not Selected Due To on standby...
Page 533 System Management =============================================================================== System Status CPM B : Master Locked Reference Input Mode : Non-revertive Quality Level Selection : Disabled Reference Selected : Mate CPM (BITS B) System Quality Level : prc Current Frequency Offset (ppm) : +0 Reference Order : bits ref1 ref2 Reference Mate CPM Qualified For Use...
Page 534 Show, Clear, Debug, and Tools Command Reference Output Admin Status : up Output Source : line reference Output Reference Selected : ref1 Tx Quality Level : prc =============================================================================== synchronization Syntax synchronization Context show>redundancy>synchronization Description This command displays redundancy synchronization times. Output The following table describes redundancy synchronization output fields.
Page 535: Debug Commands
System Management Synchronization Information =============================================================================== Standby Status : disabled Last Standby Failure : N/A Standby Up Time : N/A Failover Time : N/A Failover Reason : N/A Boot/Config Sync Mode : None Boot/Config Sync Status : No synchronization Last Config File Sync Time : Never Last Boot Env Sync Time : Never...
Page 536 — The clock will use the bitsa timing reference. bitsb — The clock will use the bitsb timing reference. ptp — The clock will use the PTP slave as the timing reference (applies to the 7450 ESS and 7750 SR).
Page 537: Tools Commands
System Management Syntax [no] router router-name interface ip-int-name Context debug>system Description This command enables and configures debugging for NTP. The no form of the command disables debugging for NTP. Parameters router-name — Base, management Default Base ip-int-name — Maximum 32 characters; must begin with a letter. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes.
Page 538 Show, Clear, Debug, and Tools Command Reference mc-endpoint Syntax mc-endpoint peer ip-address Context tools>dump>redundancy>multi-chassis Description This command dumps multi-chassis endpoint information. Parameters peer ip-address — Specifies the peer’s IP address. Output Sample Output *A:Dut-B# tools dump redundancy multi-chassis mc-endpoint peer 3.1.1.3 MC Endpoint Peer Info peer addr : 3.1.1.3...
Page 539 System Management retransmit intvl last tx time : 1437130 last rx time : 1437156 own bfd : Enable peer bfd : Enable bfd vrtr if bfd handle bfd state bfd code *A:Dut-B# mc-ring Syntax mc-ring mc-ring peer ip-address [ring sync-tag] Context tools>dump>redundancy>multi-chassis Description...
Page 540 [instance instance-id] [peer ip-address] Context tools>dump>redundancy>multi-chassis Description This command dumps SRRP database information and applies to the 7450 ESS. Parameters peer ip-address — Specifies the peer’s IP address. instance instance-id — Dumps information for the specified Subscriber Router Redundancy Protocol instance configured on this system.
Page 541 System Management Context tools>dump Description This command enables the context to display system resource information, such as policers, including data for total, available, and free numbers for each resource. card Syntax card [slot-num] card [slot-num] all Context tools>dump>resource-usage Description This command displays resource information for cards. Parameters slot-num —...
Page 542 Show, Clear, Debug, and Tools Command Reference Parameters all — Keyword to display all system resource usage information, as well as resource usage information for all cards, FPs, and MDAs in the system. system-resources Syntax system-resources slot-number Context tools>dump Description The system-resources command has been deprecated and replaced by the tools>dump>resource- usage command.
Page 543 Description This command initiates the upgrade process to enable mixed-mode in a 7450 ESS-7 or ESS-12. Executing this command will (as one action), enable the system state of mixed-mode and enable SR capabilities on the IOMs or IMMs located in the slots specified in the slot list. This will result in rebooting of the IOMs and IMMs located in the specified slots.
Page 544 Show, Clear, Debug, and Tools Command Reference set-fabric-speed Syntax set-fabric-speed speed Context tools>perform Description This command sets fabric speed for the 7750 SR. With the introduction of SFM5-12e and the mini- SFM5-12e, a new tools command (set-fabric-speed) was added to set the fabric operating speed. (tools command does not apply to SFM4-12e) fabric-speed-a).
Page 545 System Management The test is already in-progress in another session Other notes (which are also relayed to the operator when the test is attempted): • All provisioned XCMs will be reset at the start of the test and will be held in the booting state until the test has completed.
Page 546 Show, Clear, Debug, and Tools Command Reference none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none...
Page 547 System Management none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none none =============================================================================== Correct any mis-cabling and replace any suspected faulty equipment. Press Q to quit the test or any other key to run the test again.
Page 548: Clear Commands
Context clear>app-assure Description This command clears application assurance group data and applies to the 7450 ESS and 7750 SR. Parameters isa-aa-group-id — Specifies the ISA-AA group index. Values status — Specifies that application assurance system statistics are cleared.
Page 549 System Management mc-endpoint Syntax mc-endpoint endpoint [mcep-id] statistics mc-endpoint statistics mc-endpoint peer [ip-address] statistics Context clear>redundancy>multi-chassis Description This command clears multi-chassis endpoint statistics. Parameters endpoint mcep-id — Clears information for the specified multi-chassis endpoint ID. Values 1 to 4294967295 peer ip-address — Clears information for the specified peer IP address. statistics —...
Page 550 Show, Clear, Debug, and Tools Command Reference ring sync-tag — Clears debounce history for the specified sync tag. ring-nodes Syntax ring-nodes peer ip-address ring sync-tag Context clear>redundancy>multi-chassis>mcr Description This command clears multi-chassis ring unreferenced ring nodes. Parameters ip-address — Clears ring statistics for the specified IP address. ring sync-tag —...
Page 551 Context clear>system Description This command clears PTP statistics for the 7450 ESS and 7750 SR. Parameters inactive-peers — Removes PTP peers which are not currently exchanging PTP packets with the router. peer ip-address statistics — Clears statistics for the specified peer.
Page 552 Values The following are values for the 7450 ESS: All supported applications igmp-snooping igmp-snooping mc-ring multi-chassis ring mld-snooping multicast listener discovery-snooping sub-host-trk subscriber host tracking...
Page 553 Description This command allows an operator to clear system information. Syntax Context clear>system Description This command enables the context to clear Precision Timing Protocol (PTP) information on the 7450 ESS and 7750 SR. inactive-peers Syntax inactive-peers Context clear>system>ptp Description This command clears inactive peer information on the 7450 ESS and 7750 SR.
Page 554 Show, Clear, Debug, and Tools Command Reference statistics Syntax statistics Context clear>system>ptp Description This command clears all PTP statistics on the 7450 ESS and 7750 SR. script-control Syntax script-control Context clear>system Description This command enables the context to clear script information.
Page 555 System Management xmpp Syntax xmpp xmpp-server-name Context clear>system>statistics Description This command clears XMPP server statistics. sync-if-timing Syntax system sync-if-timing {ref1 | ref2 | bits} Context clear>system Description This command allows an operator to individually clear (re-enable) a previously failed reference. As long as the reference is one of the valid options, this command is always executed.
Page 556 Show, Clear, Debug, and Tools Command Reference Basic System Configuration Guide...
Page 557: Standards And Protocol Support
Standards and Protocol Support Note: The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein. ANCP/L2CP draft-ietf-ancp-protocol-02, Protocol for Access Node Control Mechanism in Broadband Networks RFC 5851, Framework and Requirements for an Access Node Control Mechanism in Broadband Multi-Service Networks AF-ILMI-0065.000, Integrated Local Management Interface (ILMI) Version 4.0...
Page 558 Standards and Protocol Support draft-ietf-idr-bgp-gr-notification-01, Notification Message support for BGP Graceful Restart draft-ietf-idr-error-handling-03, Revised Error Handling for BGP UPDATE Messages RFC 1772, Application of the Border Gateway Protocol in the Internet RFC 1997, BGP Communities Attribute RFC 2385, Protection of BGP Sessions via the TCP MD5 Signature Option RFC 2439, BGP Route Flap Damping RFC 2545, Use of BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing RFC 2858, Multiprotocol Extensions for BGP-4...
Page 559 Standards and Protocol Support RFC 5287, Control Protocol Extensions for the Setup of Time-Division Multiplexing (TDM) Pseudowires in MPLS Networks Ethernet IEEE 802.1AB, Station and Media Access Control Connectivity Discovery IEEE 802.1ad, Provider Bridges IEEE 802.1ag, Connectivity Fault Management IEEE 802.1ah, Provider Backbone Bridges IEEE 802.1ak, Multiple Registration Protocol IEEE 802.1aq, Shortest Path Bridging IEEE 802.1ax, Link Aggregation...
Page 560 Standards and Protocol Support draft-snr-bess-evpn-proxy-arp-nd-00, Proxy-ARP/ND function in EVPN networks RFC 7432, BGP MPLS-Based Ethernet VPN RFC 7623, Provider Backbone Bridging Combined with Ethernet VPN (PBB-EVPN) Frame Relay ANSI T1.617 Annex D, DSS1 - Signalling Specification For Frame Relay Bearer Service FRF.1.2, PVC User-to-Network Interface (UNI) Implementation Agreement FRF.12, Frame Relay Fragmentation Implementation Agreement FRF.16.1, Multilink Frame Relay UNI/NNI Implementation Agreement...
Page 561 Standards and Protocol Support RFC 2349, TFTP Timeout Interval and Transfer Size Options RFC 2428, FTP Extensions for IPv6 and NATs RFC 2865, Remote Authentication Dial In User Service (RADIUS) RFC 2866, RADIUS Accounting RFC 2867, RADIUS Accounting Modifications for Tunnel Protocol Support RFC 2868, RADIUS Attributes for Tunnel Protocol Support RFC 3046, DHCP Relay Agent Information Option (Option 82) RFC 3315, Dynamic Host Configuration Protocol for IPv6 (DHCPv6)
Page 562 Standards and Protocol Support RFC 3590, Source Address Selection for the Multicast Listener Discovery (MLD) Protocol RFC 3618, Multicast Source Discovery Protocol (MSDP) RFC 3810, Multicast Listener Discovery Version 2 (MLDv2) for IPv6 RFC 3956, Embedding the Rendezvous Point (RP) Address in an IPv6 Multicast Address RFC 4541, Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches RFC 4601, Protocol Independent Multicast - Sparse Mode (PIM-SM): Protocol Specification...
Page 563 Standards and Protocol Support RFC 2401, Security Architecture for Internet Protocol RFC 3021, Using 31-Bit Prefixes on IPv4 Point-to-Point Links IP — Version 6 RFC 2460, Internet Protocol, Version 6 (IPv6) Specification RFC 2464, Transmission of IPv6 Packets over Ethernet Networks RFC 2529, Transmission of IPv6 over IPv4 Domains without Explicit Tunnels RFC 3587, IPv6 Global Unicast Address Format RFC 3633, IPv6 Prefix Options for Dynamic Host Configuration Protocol (DHCP) version 6...
Page 564 Standards and Protocol Support RFC 3706, A Traffic-Based Method of Detecting Dead Internet Key Exchange (IKE) Peers RFC 3947, Negotiation of NAT-Traversal in the IKE RFC 3948, UDP Encapsulation of IPsec ESP Packets RFC 4210, Internet X.509 Public Key Infrastructure Certificate Management Protocol (CMP) RFC 4211, Internet X.509 Public Key Infrastructure Certificate Request Message Format (CRMF)
Page 565 Standards and Protocol Support RFC 5308, Routing IPv6 with IS-IS RFC 5309, Point-to-Point Operation over LAN in Link State Routing Protocols RFC 5310, IS-IS Generic Cryptographic Authentication RFC 6213, IS-IS BFD-Enabled TLV RFC 6232, Purge Originator Identification TLV for IS-IS RFC 6233, IS-IS Registry Extension for Purges RFC 6329, IS-IS Extensions Supporting IEEE 802.1aq Shortest Path Bridging Management...
Page 566 Standards and Protocol Support RFC 2494, Definitions of Managed Objects for the DS0 and DS0 Bundle Interface Type RFC 2514, Definitions of Textual Conventions and OBJECT-IDENTITIES for ATM Management RFC 2515, Definitions of Managed Objects for ATM Management RFC 2571, An Architecture for Describing SNMP Management Frameworks RFC 2572, Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) RFC 2573, SNMP Applications...
Page 567 Standards and Protocol Support RFC 3877, Alarm Management Information Base (MIB) RFC 3895, Definitions of Managed Objects for the DS1, E1, DS2, and E2 Interface Types RFC 3896, Definitions of Managed Objects for the DS3/E3 Interface Type RFC 4001, Textual Conventions for Internet Network Addresses RFC 4022, Management Information Base for the Transmission Control Protocol (TCP) RFC 4113, Management Information Base for the User Datagram Protocol (UDP) RFC 4220, Traffic Engineering Link Management Information Base...
Page 568 Standards and Protocol Support RFC 5332, MPLS Multicast Encapsulations RFC 6790, The Use of Entropy Labels in MPLS Forwarding MPLS — GMPLS draft-ietf-ccamp-rsvp-te-srlg-collect-04, RSVP-TE Extensions for Collecting SRLG Information RFC 3471, Generalized Multi-Protocol Label Switching (GMPLS) Signaling Functional Description RFC 3473, Generalized Multi-Protocol Label Switching (GMPLS) Signaling Resource ReserVation Protocol-Traffic Engineering (RSVP-TE) Extensions RFC 4204, Link Management Protocol (LMP) RFC 4208, Generalized Multiprotocol Label Switching (GMPLS) User-Network Interface...
Page 569 Standards and Protocol Support MPLS — MPLS-TP RFC 5586, MPLS Generic Associated Channel RFC 5921, A Framework for MPLS in Transport Networks RFC 5960, MPLS Transport Profile Data Plane Architecture RFC 6370, MPLS Transport Profile (MPLS-TP) Identifiers RFC 6378, MPLS Transport Profile (MPLS-TP) Linear Protection RFC 6426, MPLS On-Demand Connectivity and Route Tracing RFC 6427, MPLS Fault Management Operations, Administration, and Maintenance (OAM) RFC 6428, Proactive Connectivity Verification, Continuity Check and Remote Defect...
Page 570 Standards and Protocol Support RFC 4875, Extensions to Resource Reservation Protocol - Traffic Engineering (RSVP-TE) for Point-to-Multipoint TE Label Switched Paths (LSPs) RFC 4950, ICMP Extensions for Multiprotocol Label Switching RFC 5151, Inter-Domain MPLS and GMPLS Traffic Engineering -- Resource Reservation Protocol-Traffic Engineering (RSVP-TE) Extensions RFC 5712, MPLS Traffic Engineering Soft Preemption RFC 5817, Graceful Shutdown in MPLS and Generalized MPLS Traffic Engineering...
Page 571 Standards and Protocol Support RFC 4576, Using a Link State Advertisement (LSA) Options Bit to Prevent Looping in BGP/ MPLS IP Virtual Private Networks (VPNs) RFC 4577, OSPF as the Provider/Customer Edge Protocol for BGP/MPLS IP Virtual Private Networks (VPNs) RFC 4970, Extensions to OSPF for Advertising Optional Router Capabilities RFC 5185, OSPF Multi-Area Adjacency RFC 5187, OSPFv3 Graceful Restart (Helper Mode)
Page 572 Standards and Protocol Support RFC 2153, PPP Vendor Extensions RFC 2516, A Method for Transmitting PPP Over Ethernet (PPPoE) RFC 2615, PPP over SONET/SDH RFC 2661, Layer Two Tunneling Protocol "L2TP" RFC 2686, The Multi-Class Extension to Multi-Link PPP RFC 2878, PPP Bridging Control Protocol (BCP) RFC 4951, Fail Over Extensions for Layer 2 Tunneling Protocol (L2TP) "failover"...
Page 573: Quality Of Service
Standards and Protocol Support RFC 6575, Address Resolution Protocol (ARP) Mediation for IP Interworking of Layer 2 VPNs RFC 6718, Pseudowire Redundancy RFC 6829, Label Switched Path (LSP) Ping for Pseudowire Forwarding Equivalence Classes (FECs) Advertised over IPv6 RFC 6870, Pseudowire Preferential Forwarding Status bit RFC 7023, MPLS and Ethernet Operations, Administration, and Maintenance (OAM) Interworking RFC 7267, Dynamic Placement of Multi-Segment Pseudowires...
Page 574 Standards and Protocol Support ITU-T G.813, Timing characteristics of SDH equipment slave clocks (SEC), issued 03/2003 ITU-T G.8261, Timing and synchronization aspects in packet networks, issued 04/2008 ITU-T G.8262, Timing characteristics of synchronous Ethernet equipment slave clock (EEC), issued 08/2007 ITU-T G.8264, Distribution of timing information through packet networks, issued 10/2008 ITU-T G.8265.1, Precision time protocol telecom profile for frequency synchronization, issued 10/2010...
Page 575 Customer Documentation and Product Support Customer Documentation http://documentation.alcatel-lucent.com Technical Support http://support.alcatel-lucent.com Documentation Feedback documentation.feedback@alcatel-lucent.com...
Page 576 © 2016 Alcatel-Lucent. All rights reserved. 3HE 10785 AAAA TQZZA 01...

This manual is also suitable for:

7750 7950
