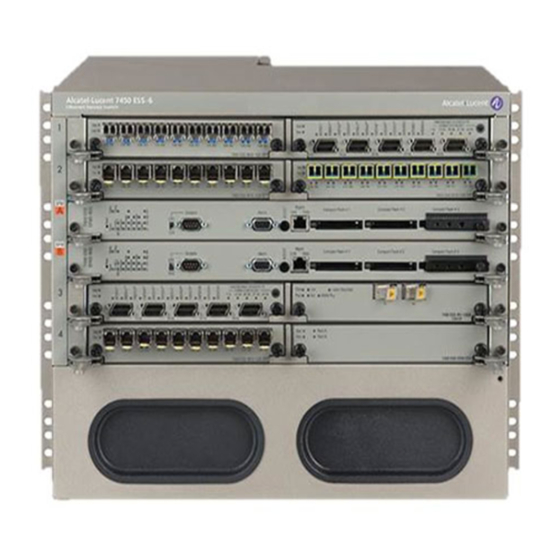

Alcatel-Lucent 7450 System Management Manual

Ethernet service switch
Hide thumbs Also See for 7450:
1
2
Table Of Contents
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, Manual
SYSTEM MANAGEMENT GUIDE
Alcatel-Lucent 7450
ETHERNET SERVICE SWITCH | RELEASE 13.0.R1
SYSTEM MANAGEMENT GUIDE
Alcatel-Lucent – Proprietary & Confidential
Contains proprietary/trade secret information which is the property of Alcatel-Lucent. Not to be made available
to, or copied or used by anyone who is not an employee of Alcatel-Lucent except when there is a valid non-
disclosure agreement in place which covers such information and contains appropriate non-disclosure and
limited use obligations.
Copyright 2015 © Alcatel-Lucent. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7450 and is the answer not in the manual?

Questions and answers

Related Manuals for Alcatel-Lucent 7450

Summary of Contents for Alcatel-Lucent 7450

  • Page 1 Contains proprietary/trade secret information which is the property of Alcatel-Lucent. Not to be made available to, or copied or used by anyone who is not an employee of Alcatel-Lucent except when there is a valid non- disclosure agreement in place which covers such information and contains appropriate non-disclosure and limited use obligations.
  • Page 2 This document may contain information regarding the use and installation of non-Alcatel-Lucent products. Please note that this information is provided as a courtesy to assist you. While Alcatel-Lucent tries to ensure that this information accurately reflects information provided by the supplier, please refer to the materials provided with any non-Alcatel-Lucent product and contact the supplier for confirmation.

  • Page 3: Table Of Contents

    Alcatel-Lucent 7450 ESS Router Configuration Process ........
  • Page 4 Tools Commands ............. . 113 Page 4 7450 ESS System Mangement Guide...
  • Page 5 NETCONF Command Reference ............369 7450 ESS System Mangement Guide...
  • Page 6 No Shutdown Port .............435 Page 6 7450 ESS System Mangement Guide...
  • Page 7 ........... . .545 7450 ESS System Mangement Guide...
  • Page 8 Table of Contents Page 8 7450 ESS System Mangement Guide...
  • Page 9 Table 36: Show System Security View Output Fields ......... .330 7450 ESS System Mangement Guide...
  • Page 10 Table 53: Show Log Syslog Output Fields...........542 Page 10 7450 ESS System Mangement Guide...
  • Page 11 Figure 11: EHS Object Relationships ............395 7450 ESS System Mangement Guide...
  • Page 12 List of Figures Page 12 7450 ESS System Mangement Guide...

  • Page 13: Preface

    Command Line Interface (CLI) syntax and command usage. Audience This guide is intended for network administrators who are responsible for configuring the 7450 ESS routers. It is assumed that the network administrators have an understanding of networking principles and configurations.

  • Page 14: List Of Technical Publications

    List of Technical Publications The 7450 ESS documentation set is composed of the following guides: • 7450 ESS Basic System Configuration Guide This guide describes basic system configurations and operations. • 7450 ESS System Management Guide This guide describes system security and access configurations as well as event logging and accounting logs.
  • Page 15 This guide describes Triple Play services and support provided by the 7450 ESS and presents examples to configure and implement various protocols and services. • 7450 ESS Quality of Service Guide This guide describes how to configure Quality of Service (QoS) policy management.

  • Page 16: Technical Support

    Technical Support If you purchased a service agreement for your 7450 ESS router and related products from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased an Alcatel-Lucent service agreement, follow this link to contact an Alcatel-Lucent support representative and to access product manuals and documentation updates: http://support.alcatel-lucent.com...

  • Page 17: Getting Started

    This chapter provides process flow information to configure system security and access functions as well as event and accounting logs. Alcatel-Lucent 7450 ESS Router Configuration Process Table 1 lists the tasks necessary to configure system security and access functions and logging features.
  • Page 18 IPv6 address expressions and with libraries that have standard IPv6 parsing as per RFC 5952 rules. See the section on IPv6 Addresses in the Router Configuration Guide for more information. Page 18 7450 ESS System Mangement Guide...

  • Page 19: Security

    CPM Filters and Traffic Management on page 55 → Secure Shell (SSH) on page 52 → Encryption on page 59 → 802.1x Network Access Control on page 59 • Configuration Notes on page 64 7450 ESS System Mangement Guide Page 19...

  • Page 20: Authentication, Authorization, And Accounting

    ALA-1 and ALA-2. The user name and password from ALA-3 could not be authenticated, thus access was denied. RADIUS Server Authentication Access Request ALA-1 Network Access Accepted Access Request Access Request Access Accepted ALA-2 ALA-3 OSSG008 Figure 1: RADIUS Requests and Responses Page 20 7450 ESS System Mangement Guide...

  • Page 21: Authentication

    Any combination of these authentication methods can be configured to control network access from a router: • Local Authentication on page 22 • RADIUS Authentication on page 22 • TACACS+ Authentication on page 27 7450 ESS System Mangement Guide Page 21...

  • Page 22: Local Authentication

    In all these applications, up to 5 RADIUS servers pools (per RADIUS policy, if used) can be configured. The RADIUS server selection algorithm can work in 2 modes, either Direct mode or Round-robin mode. Page 22 7450 ESS System Mangement Guide...
  • Page 23 RADIUS server (for example, if the server was previously down but no requests had been sent to the server, thus, it is not certain yet whether the server is actually reachable). 7450 ESS System Mangement Guide Page 23...
  • Page 24 Enabling interactive authentication under CLI does not mean that the system uses RADIUS challenge/response mode by default. The configured password authentication-order parameter is used. If the authentication-order parameter is local RADIUS, the system will first attempt to Page 24 7450 ESS System Mangement Guide...
  • Page 25 If the RADIUS rejects a challenge response, it counts as a failed login attempt and a new prompt is displayed. The number of failed attempts is limited by the value set for "configure 7450 ESS System Mangement Guide Page 25...
  • Page 26 23). As long as the Session-Timeout (attribute in the RADIUS user file) is specified, it is used for the polling interval. Otherwise, the configured polling interval will be used (60 seconds by default). Page 26 7450 ESS System Mangement Guide...

  • Page 27: Tacacs+ Authentication

    TACACS+ uses Transmission Control Protocol (TCP) and RADIUS uses the User Datagram Protocol (UDP). TACACS+ is popular as TCP is thought to be a more reliable protocol. RADIUS combines authentication and authorization. TACACS+ separates these operations. 7450 ESS System Mangement Guide Page 27...

  • Page 28: Authorization

    Once a user has been authenticated using RADIUS (or another method), the router can be configured to perform authorization. The RADIUS server can be used to: • Download the user profile to the router • Send the profile name that the node should apply to the router. Page 28 7450 ESS System Mangement Guide...

  • Page 29: Tacacs+ Authorization

    All users who authenticate via TACACS+ can use a single common default profile that is configured on the SR OS Router, or • Each command attempted by a user is sent to the TACACS+ server for authorization 7450 ESS System Mangement Guide Page 29...
  • Page 30 - “show” - “show router” - “show port 1/1/1” - “configure port 1/1/1 description “my port” This results in the following AVPairs: cmd=show cmd=show cmd-arg=router cmd=show cmd-arg=port cmd-arg=1/1/1 cmd=configure cmd-arg=port cmd-arg=1/1/1 cmd-arg=description cmd-arg=my port Page 30 7450 ESS System Mangement Guide...
  • Page 31 - *A:dut-c>config>service# vprn 555 customer 1 create - *A:dut-c>config>service>vprn$ shutdown This results in the following AVPairs: cmd =configure cmd-arg=service cmd=configure cmd-arg=service cmd-arg=vprn cmd-arg="555" cmd-arg=customer cmd-arg=1 cmd-arg=create cmd=configure cmd-arg=service cmd-arg=vprn cmd-arg="555" cmd-arg=customer cmd-arg=1 cmd-arg=create cmd-arg=shutdown 7450 ESS System Mangement Guide Page 31...

  • Page 32: Accounting

    TACACS+ accounting is required for the particular event. Page 32 7450 ESS System Mangement Guide...
  • Page 33 The TACACS+ accounting server acknowledges the start packet and records information about the event. When the event ends, the device sends a stop packet. The stop packet is acknowledged by the TACACS+ accounting server. 7450 ESS System Mangement Guide Page 33...

  • Page 34: Security Controls

    30 seconds. Health check is enabled by default. When a service response is restored from at least one server, the alarm condition is cleared. Alarms are raised and cleared on Alcatel-Lucent’s Fault Manager or other third party fault management servers.

  • Page 35: Access Request Flow

    No Response No Response TACACS+ TACACS+ TACACS+ TACACS+ TACACS+ Accept Server 1 Server 2 Server 3 Server 4 Server 5 Access Access Denied Denied Deny Local Deny Access OSRG009 Figure 2: Security Flow 7450 ESS System Mangement Guide Page 35...

  • Page 36: Cpu Protection

    (per source) when the ip-src-monitoring keyword is used. • out-profile-rate – Applies to all control traffic destined to the CPM (all sources) received on the interface (only where the policy is applied). This is a per-interface Page 36 7450 ESS System Mangement Guide...

  • Page 37: Figure 3: Profile Marking

    The objective of CPU protection is to limit the amount of traffic that the CPU will process at an early stage, therefore, the good and bad 7450 ESS System Mangement Guide Page 37...
  • Page 38 If PIM or PIM snooping is configured on an interface/SAP, then multicast PIM messages are filter based on PIM being enabled on that particular interface. All unicast PIM messages are sent to the CPU to be processed. Page 38 7450 ESS System Mangement Guide...
  • Page 39 The CPU protection features are supported on the following platforms: • 7750 SR-7/SR-12 • 7450 ESS-6/ESS-7/ESS-12 • 7950 XRS The CPU protection features are not supported on the following platforms: • 7750 SR-1 • 7450 ESS-1 • 7710 SR-c4/c12 • 7750 SR-c4/c12 7450 ESS System Mangement Guide Page 39...

  • Page 40: Cpu Protection Extensions Eth-Cfm

    This means the rate is on a per SAP/Binding basis. Only a single policy may be applied to a SAP/Binding. The “eth-cfm-monitoring” option must be configured in order for the eth-cfm entries to be applied when the policy is applied to the SAP/Binding. If this option Page 40 7450 ESS System Mangement Guide...
  • Page 41 1 eth-cfm-monitoring aggregate eth-cfm no shutdown IOM1s are restricted to Down MEPs and ingress MIP for this feature. This feature is not supported on UP MEPs and egress MIPs for this IOM type. 7450 ESS System Mangement Guide Page 41...

  • Page 42: Eth-Cfm Ingress Squelching

    The operator is able to configure Down MEPs and ingress MIPs that conflict with the squelched levels. This also means that any existing MEP or MIP processing ingress CFM packets on a SAP on Binding where a squelching policy is configured will be interrupted as Page 42 7450 ESS System Mangement Guide...

  • Page 43: Table 5: Cpu Protection And Squelching

    =============================================================================== ETH-CFM Squelching =============================================================================== PortId SvcId Squelch Level ------------------------------------------------------------------------------- 6/1/1:100.* 0 1 2 3 4 5 6 7 7450 ESS System Mangement Guide Page 43...
  • Page 44 ================================================================================ ETH-CFM Squelching ================================================================================ SdpId SvcId Type Far End Squelch Level ------------------------------------------------------------------------------- 12345:4000000000 2147483650 Spok 1.1.1.1 0 1 2 3 4 =============================================================================== Extreme caution must be used when deploying this feature. Page 44 7450 ESS System Mangement Guide...

  • Page 45: Distributed Cpu Protection (Dcp)

    7450 ESS System Mangement Guide Page 45...

  • Page 46: Figure 5: Per Sap Per Protocol Static Rate Limiting With Dcp

    ICMP OSPF port 1/1/1 User Data interface as 123 port 3/2/8 d-cpu-prot-policyB ISIS interface bb456 User Data al_0180 Figure 6: Per Network Interface per Protocol Static Rate Limiting with DCP Page 46 7450 ESS System Mangement Guide...

  • Page 47: Applicability Of Distributed Cpu Protection

    SAP. In this case the DCP policy that an operator creates for use on VPLS SAPs, for VPLSs that have a l3-interface bound to them (r-vpls), may have protocols like OSPF, ARP, configured in the policy. 7450 ESS System Mangement Guide Page 47...

  • Page 48: Log Events, Statistics, Status And Snmp Support

    Statistics and status related to DCP are available both via: • • SNMP — See various tables and objects with “Dcp” or “DCpuProt” in their name in the TIMETRA-CHASSIS-MIB¸ TIMETRA-SECURITY-MIB, TIMETRA-SAP-MIB and TIMETRA-VRTR-MIB Page 48 7450 ESS System Mangement Guide...

  • Page 49: Dcp Policer Resource Management

    7450 ESS System Mangement Guide Page 49...

  • Page 50: Operational Guidelines And Tips

    → avoid creating protocol X so that it is treated as part of the all-unspecified bucket (but account for the packets from X in the all-unspecified rate and local-mon rate), → create protocol X and configure it to bypass. Page 50 7450 ESS System Mangement Guide...

  • Page 51: Vendor-Specific Attributes (Vsas)

    VSA. The attribute-specific field is dependent on the vendor's definition of that attribute. The Alcatel-Lucent-defined attributes are encapsulated in a RADIUS vendor-specific attribute with the vendor ID field set to 6527, the vendor ID number.

  • Page 52: Other Security Features

    SCP clients treat backslash characters as equivalent to slash characters. In particular, UNIX systems will often times interpret the backslash character as an “escape” character which does not get transmitted to the SCP server. For example, a destination Page 52 7450 ESS System Mangement Guide...

  • Page 53: Ssh Pki Authentication

    Before SSH can be used with PKI, someone must generate a public/private key pair. This is typically supported by the SSH client software. For example, PuTTY supports a utility called PuTTYgen that will generate key pairs. 7450 ESS System Mangement Guide Page 53...

  • Page 54: Per Peer Cpm Queuing

    CPMQ, using the “per-peer-queuing” command, ensures that service levels would not (or only partially be) impacted in case of an attack from a spoofed LDP or BGP peer IP address. Per Peer CPM Queueing is supported on the 7450 ESS-6/7/12 platforms. It is not supported on the 7450 ESS-1.

  • Page 55: Cpm Filters And Traffic Management

    CPM queueing is supported on the following platforms: 7950 XRS, 7750 SR-7/SR-12, and 7750 SR-c12 (not 7750 SR-1).CPM filters and CPM queueing are supported on 7450 ESS-6/ESS-7/ESS-12 (not ESS-1). CPM filters and queues control all traffic going in to the CPM from IOMs/XMAs, including all routing protocols.

  • Page 56: Ttl Security For Ldp

    (in hardware) the incoming TTL value against the configured TTL value. If the incoming TTL value is less than the configured TTL value, the packets are discarded and a log is generated. Page 56 7450 ESS System Mangement Guide...

  • Page 57: Exponential Login Backoff

    Exponential backoff applies to any user and by any login method such as console, SSH and Telnet. Refer to Configuring Login Controls on page 96. The commands are described in Login, Telnet, SSH and FTP Commands on page 122. 7450 ESS System Mangement Guide Page 57...

  • Page 58: User Lockout

    A lock-out for a specific user can be administratively cleared using the admin user x clear- lockout. Page 58 7450 ESS System Mangement Guide...

  • Page 59: Encryption

    3DES is a more secure version of the DES protocol. 802.1x Network Access Control The Alcatel-Lucent OS supports network access control of client devices (PCs, STBs, etc.) on an Ethernet network using the IEEE. 802.1x standard. 802.1x is known as Extensible Authentication Protocol (EAP) over a LAN network or EAPOL.

  • Page 60: Packet Formats

    The default value is 0. • K-Bit: 1 bit This bit is reserved for future enhancement. Its value MUST be equal to zero. • Alg ID: 6 bits The Alg ID field identifies the MAC algorithm. Page 60 7450 ESS System Mangement Guide...
  • Page 61 Authentication Data Field can be derived from the Alg ID. • The Authentication for TCP-based Routing and Management Protocols draft provides and overview of the TCP Enhanced Authentication Option. The details of this feature are described in draft-bonica-tcp-auth-04.txt. 7450 ESS System Mangement Guide Page 61...

  • Page 62: Keychain

    Shared secret to use with key[i]. config>system>security>keychain>direction>uni>receive>entry with shared secret parameter config>system>security>keychain>direction>uni>send>entry with shared secret parameter config>system>security>keychain>direction>bi>entry with shared secret parameter Page 62 7450 ESS System Mangement Guide...

  • Page 63: Table 7: Security Algorithm Support Per Protocol

    CLI command to set them. Table 7: Security Algorithm Support Per Protocol Protocol Clear Text HMAC- HMAC- HMAC- HMAC- AES-128- SHA-1-96 SHA-1 SHA-256 CMAC-96 OSPF IS-IS RSVP 7450 ESS System Mangement Guide Page 63...

  • Page 64: Configuration Notes

    If a RADIUS or a TACACS+ server is not configured, then password, profiles, and user access information must be configured on each router in the domain. • If a RADIUS authorization is enabled, then VSAs must be configured on the RADIUS server. Page 64 7450 ESS System Mangement Guide...

  • Page 65: Configuring Security With Cli

    Enabling TACACS+ Authentication on page 92 − Configuring TACACS+ Authorization on page 93 − Configuring TACACS+ Accounting on page 94 → Configuring 802.1x RADIUS Policies on page 90 → Configuring Login Controls on page 96 7450 ESS System Mangement Guide Page 65...

  • Page 66: Setting Up Security Attributes

    TACACS+ authentication To implement only TACACS+ authentication, perform the following tasks on each participating router: → Configuring Profiles on page 80 → Configuring Users on page 81 → Enabling TACACS+ Authentication on page 92 Page 66 7450 ESS System Mangement Guide...

  • Page 67: Configuring Authorization

    Configuring RADIUS Authentication on page 87 → Configuring Profiles on page 80 • TACACS+ authorization (only) For TACACS+ authorization (without authentication), configure these tasks on each participating router: → Configuring TACACS+ Authorization on page 93 7450 ESS System Mangement Guide Page 67...
  • Page 68 Configuring Authorization • TACACS+ authorization For TACACS+ authorization (with authentication), configure these tasks on each participating router: → Enabling TACACS+ Authentication on page 92 → Configuring TACACS+ Authorization on page 93 Page 68 7450 ESS System Mangement Guide...

  • Page 69: Configuring Accounting

    Local accounting is not implemented. For information about configuring accounting policies, refer to Configuring Logging with CLI on page 419. • Configuring RADIUS Accounting on page 89 • Configuring TACACS+ Accounting on page 94 7450 ESS System Mangement Guide Page 69...

  • Page 70: Security Configurations

    Management access filters and CPM filters • Profiles • User access parameters • Password management parameters • Enable RADIUS and/or TACACS+ → One to five RADIUS and/or TACACS+ servers → RADIUS and/or TACACS+ parameters Page 70 7450 ESS System Mangement Guide...

  • Page 71: Configuration Tasks

    TACACS+ server. Accounting can be performed on a RADIUS or TACACS+ server. Table 8: Security Configuration Requirements Authentication Authorization Accounting Local Local None RADIUS Local and RADIUS RADIUS TACACS+ Local TACACS+ 7450 ESS System Mangement Guide Page 71...

  • Page 72: Security Configuration Procedures

    Use the following CLI commands to configure a management access filter. This example only accepts packets matching the criteria specified in entries 1 and 2. Non-matching packets are denied. CLI Syntax: config>system security management-access-filter [no] ip-filter default-action {permit|deny|deny-host-unreachable} renum old-entry-number new-entry-number [no] shutdown Page 72 7450 ESS System Mangement Guide...
  • Page 73 10 description "Accept SSH from mgmnt subnet" src-ip 192.168.5.0/26 protocol tcp dst-port 22 65535 action permit exit exit ipv6-filter default-action permit entry 10 src-ip 3FFE::1:1/128 next-header rsvp action deny exit 7450 ESS System Mangement Guide Page 73...
  • Page 74 Configuring Management Access Filters exit mac-filter default-action permit entry 12 match frame-type ethernet_II svc-id 1 src-mac 00:01:01:01:01:01 ff:ff:ff:ff:ff:ff exit action permit exit exit ---------------------------------------------- *A:Dut-C>config>system>security>mgmt-access-filter# Page 74 7450 ESS System Mangement Guide...

  • Page 75: Configuring Ip Cpm Filters Policy

    192.100.2.0/24 exit exit exit mac-filter shutdown entry 40 create action accept log 101 match frame-type ethernet_II svc-id 12 dst-mac 00:03:03:03:01:01 ff:ff:ff:ff:ff:ff etype 0x8902 cfm-opcode gt 100 exit exit exit *A:Dut-C>config>sys>security>cpm-filter# 7450 ESS System Mangement Guide Page 75...

  • Page 76: Configuring Mac Cpm Filters

    ---------------------------------------------- entry 10 create description "MAC-CPM-Filter 10.10.10.100 #007" match exit log 101 action drop exit entry 20 create description "MAC-CPM-Filter 10.10.10.100 #008" match exit log 101 action drop exit no shutdown ---------------------------------------------- *A:ALA-49>config>sys>sec>cpm>mac-filter# Page 76 7450 ESS System Mangement Guide...

  • Page 77: Configuring Cpm Queues

    5 mbs 5 rate 5 cir 5 exit queue 103 create cbs 5 mbs 5 rate 5 cir 5 exit queue 104 create cbs 5 mbs 5 rate 5 cir 5 ---------------------------------------------- A:ALA-987>config>sys>security>cpm-queue# 7450 ESS System Mangement Guide Page 77...

  • Page 78: Ipsec Certificates Parameters

    "Root CA" cert-file "R1-0cert.der" crl-file "R1-0crl.der" no shutdown exit ---------------------------------------------- *A:SR-7/Dut-A>config>system>security>pki# The following displays an example of an ike-policy with cert-auth output: :SR-7/Dut-A>config>ipsec>ike-policy# info ---------------------------------------------- ike-version 2 auth-method cert-auth own-auth-method psk ---------------------------------------------- Page 78 7450 ESS System Mangement Guide...
  • Page 79 "Sanity-1" create security-policy 1 local-gateway-address 30.1.1.13 peer 50.1.1.15 delivery-service 300 dynamic-keying ike-policy 1 pre-shared-key "Sanity-1" transform 1 cert trust-anchor "R1-0" cert "M2cert.der" key "M2key.der" exit exit no shutdown exit exit exit 7450 ESS System Mangement Guide Page 79...

  • Page 80: Configuring Profiles

    The following example displays a user profile output: A:ALA-1>config>system>security# info ---------------------------------------------- profile "ghost" default-action permit-all entry 1 match "configure" action permit exit entry 2 match "show" exit entry 3 match "exit" exit exit ---------------------------------------------- A:ALA-1>config>system>security# Page 80 7450 ESS System Mangement Guide...

  • Page 81: Configuring Users

    The following displays a user configuration example: A:ALA-1>config>system>security# info ---------------------------------------------- user "49ers" password "$2y$10$pFoehOg/tCbBMPDJ/kqpu.8af0AoVGY2xsR7WFqyn5fVTnwRzGmOK" access console ftp snmp restricted-to-home console member "default" member "ghost" exit exit -------------------------------------------- A:ALA-1>config>system>security# 7450 ESS System Mangement Guide Page 81...

  • Page 82: Configuring Keychains

    1 key "ZcvSElJzJx/wBZ9biCtOVQJ9YZQvVU.S" hash2 alg orithm aes-128-cmac-96 begin-time 2006/12/18 22:55:20 exit exit exit exit keychain "basasd" direction receive entry 1 key "Ee7xdKlYO2DOm7v3IJv/84LIu96R2fZh" hash2 algorithm aes-128-cmac-96 tolerance forever exit exit exit exit exit ---------------------------------------------- A:ALA-1>config>system>security# Page 82 7450 ESS System Mangement Guide...

  • Page 83: Copying And Overwriting Users And Profiles

    "testgroup" exit exit user "testuserA" password "" access snmp console new-password-at-login exit snmp authentication hash md5 e14672e71d3e96e7a1e19472527ee969 privacy none group "testgroup" exit exit ---------------------------------------------- A:ALA-12>config>system>security# info 7450 ESS System Mangement Guide Page 83...
  • Page 84 "testgroup" exit ---------------------------------------------- A:ALA-12>config>system>security>user# exit A:ALA-12>config>system>security# user testuserA A:ALA-12>config>system>security>user# info ---------------------------------------------- password "" access snmp console new-password-at-login exit snmp authentication hash md5 e14672e71d3e96e7a1e19472527ee969 privacy none group "testgroup" exit ---------------------------------------------- A:ALA-12>config>system>security>user# Page 84 7450 ESS System Mangement Guide...

  • Page 85: Profile

    50 no description match "password" action permit exit entry 60 no description match "show config" action deny exit entry 70 no description match "show" action permit exit entry 80 no description match "enable-admin" 7450 ESS System Mangement Guide Page 85...
  • Page 86 "show config" action deny exit entry 70 no description match "show" action permit exit entry 80 no description match "enable-admin" action permit exit exit profile "administrative" default-action permit-all exit ---------------------------------------------- A:ALA-12>config>system>security# Page 86 7450 ESS System Mangement Guide...

  • Page 87: Radius Configurations

    Also, the system IP address must be configured in order for the RADIUS client to work. See Configuring a System Interface of the 7450 ESS Router Configuration Guide. The other commands are optional. The server command adds a RADIUS server and configures the RADIUS server’s IP address, index, and key values.

  • Page 88: Configuring Radius Authorization

    5 timeout 5 server 1 address 10.10.10.103 secret "test1" server 2 address 10.10.0.1 secret "test2" server 3 address 10.10.0.2 secret "test3" server 4 address 10.10.0.3 secret "test4" exit ---------------------------------------------- A:ALA-1>config>system>security# Page 88 7450 ESS System Mangement Guide...

  • Page 89: Configuring Radius Accounting

    5 timeout 5 server 1 address 10.10.10.103 secret "test1" server 2 address 10.10.0.1 secret "test2" server 3 address 10.10.0.2 secret "test3" server 4 address 10.10.0.3 secret "test4" exit ---------------------------------------------- A:ALA-1>config>system>security# 7450 ESS System Mangement Guide Page 89...

  • Page 90: Configuring 802.1X Radius Policies

    Configuring 802.1x RADIUS Policies Use the following CLI commands to configure generic authentication parameters for clients using 802.1x EAPOL. Additional parameters are configured per Ethernet port. Refer to the 7450 ESS Interface Configuration Guide. To configure generic parameters for 802.1x authentication, enter the following CLI syntax.

  • Page 91: Configuring Cpu Protection Policies

    Security Configuring CPU Protection Policies The CPU protection features are supported on the 7450 ESS-6/7/12 platforms. These features are not available on the 7450 ESS-1. For more information about CPU protection, see “CPU Protection” and “Monitoring Attacks on the 7750 SR” sections in SR OS Security Best Practices.

  • Page 92: Tacacs+ Configurations

    5 server 1 address 10.10.0.5 secret "test1" server 2 address 10.10.0.6 secret "test2" server 3 address 10.10.0.7 secret "test3" server 4 address 10.10.0.8 secret "test4" server 5 address 10.10.0.9 secret "test5" ---------------------------------------------- A:ALA-1>config>system>security>tacplus# Page 92 7450 ESS System Mangement Guide...

  • Page 93: Configuring Tacacs+ Authorization

    5 server 1 address 10.10.0.5 secret "test1" server 2 address 10.10.0.6 secret "test2" server 3 address 10.10.0.7 secret "test3" server 4 address 10.10.0.8 secret "test4" server 5 address 10.10.0.9 secret "test5" ---------------------------------------------- A:ALA-1>config>system>security>tacplus# 7450 ESS System Mangement Guide Page 93...

  • Page 94: Configuring Tacacs+ Accounting

    5 server 1 address 10.10.0.5 secret "test1" server 2 address 10.10.0.6 secret "test2" server 3 address 10.10.0.7 secret "test3" server 4 address 10.10.0.8 secret "test4" server 5 address 10.10.0.9 secret "test5" ---------------------------------------------- A:ALA-1>config>system>security>tacplus# Page 94 7450 ESS System Mangement Guide...

  • Page 95: Enabling Ssh

    SSH is disabled or enabled. CLI Syntax: config>system>security preserve-key no server-shutdown version ssh-version The following displays a SSH server configuration as both SSH and SSH2 using a host-key: A:sim1>config>system>security>ssh# info ---------------------------------------------- preserve-key version 1-2 ---------------------------------------------- A:sim1>config>system>security>ssh# 7450 ESS System Mangement Guide Page 95...

  • Page 96: Configuring Login Controls

    7 outbound-max-sessions 2 exit idle-timeout 1440 pre-login-message "Property of Service Routing Inc. Unauthorized access prohib- ited." motd text "Notice to all users: Software upgrade scheduled 3/2 1:00 AM" exit no exponential-backoff ---------------------------------------------- A:ALA-1>config>system# Page 96 7450 ESS System Mangement Guide...

  • Page 97: Security Command Reference

    TTL Security Commands on page 110 • Login Control Commands on page 111 • Show Commands on page 112 • Clear Commands on page 113 • Debug Commands on page 113 • Tools Commands on page 113 7450 ESS System Mangement Guide Page 97...

  • Page 98: Security Commands

    — no message-fast-tx-init — notification-interval time — no notification-interval — reinit-delay time — no reinit-delay — tx-credit-max count — no tx-credit-max — tx-hold-multiplier multiplier — no tx-hold-multiplier — tx-interval interval — no tx-interval Page 98 7450 ESS System Mangement Guide...
  • Page 99 — no etype — snap-oui {zero | non-zero} — snap-pid snap-pid — no snap-pid — src-mac ieee-address [ieee-address-mask] — no src-mac — ssap ssap-value [ssap-mask] — no ssap — svc-id service-id — no svc-id 7450 ESS System Mangement Guide Page 99...
  • Page 100 — no icmp-type — ip-option [ip-option-value] [ip-option-mask] — no ip-option — multiple-option {true | false} — no multiple-option — option-present {true | false} — no option-present — port port-number — port -list port-list-name Page 100 7450 ESS System Mangement Guide...
  • Page 101 — etype 0x0600..0xfff — no etype — src-mac ieee-address [ieee-address-mask] — no src-mac — ssap ssap-value [ssap-mask] — no ssap — svc-id service-id — no svc-id — renum old-entry-number new-entry-number — [no] shutdown 7450 ESS System Mangement Guide Page 101...
  • Page 102 Command Hierarchies CPM Queue Commands config — system — security — [no] cpm-queue — [no] queue queue-id — — no — — no — rate rate [cir cir] — no rate Page 102 7450 ESS System Mangement Guide...
  • Page 103 CPU protection policies. Examples of entities that can have CPU protection policies applied to them include: configure>router>interface>cpu-protection policy-id configure>service>epipe>sap>cpu-protection policy-id [mac-monitoring]|[eth-cfm-monitoring [aggregate][car]] configure>service>epipe>spoke-sdp>cpu-protection policy-id [mac-monitoring]|[eth-cfm-monitoring [aggregate][car]] configure>service>ies>interface>cpu-protection policy-id configure>service>ies>interfac>sap>cpu-protection policy-id [mac-monitoring]|[eth-cfm-monitoring [aggregate][car]] configure>service>template>vpls-sap-template>cpu-protection policy-id [mac-monitoring]|[eth-cfm- monitoring [aggregate][car]] configure>service>vpls>sap>cpu-protection policy-id [mac-monitoring]|[eth-cfm-monitoring [aggregate][car]] 7450 ESS System Mangement Guide Page 103...
  • Page 104 — no static-policer policer-name — description description-string — no description — detection-time seconds — no detection-time — exceed-action {discard [hold-down seconds] | low-prior- ity [hold-down seconds] | none} — log-events [verbose] — no log-events Page 104 7450 ESS System Mangement Guide...
  • Page 105 — health-check [interval interval] — no health-check — history size — no history — minimum-age [days days] [hrs hours] [min minutes] [sec seconds] — no minimum-age — minimum-change distance — no minimum-change 7450 ESS System Mangement Guide Page 105...
  • Page 106 — security — [no] profile user-profile-name —Profile Commands — default-action {deny-all | permit-all | none} — [no] entry entry-id — action {deny | permit} — description description-string — no description — security command-string Page 106 7450 ESS System Mangement Guide...
  • Page 107 Security — no security — renum old-entry-number new-entry-number 7450 ESS System Mangement Guide Page 107...

  • Page 108: Radius Commands

    — [no] authorization [use-priv-lvl] — [no] interactive-authentication — [no] priv-lvl-map — priv-lvl priv-lvl user-profile-name — no priv-lvl priv-lvl — server server-index address ip-address secret key [hash | hash2] [port port] — no server server-index Page 108 7450 ESS System Mangement Guide...

  • Page 109: User Commands

    [directory][directory/directory..] — no home-directory — profile user-profile-name — no profile — [no] restricted-to-home Dot1x Commands config — system — security — dot1x —Dot1x Commands — radius-plcy name — retry count — no retry 7450 ESS System Mangement Guide Page 109...
  • Page 110 — option {basic | isis-enhanced} — [no] shutdown — tcp-option-number — receive option-number — send option-number TTL Security Commands config — router — ldp — peer-parameters — peer — ttl-security min-ttl-value config Page 110 7450 ESS System Mangement Guide...

  • Page 111: Login Control Commands

    [name] — no pre-login-message — — disable-graceful-shutdown — inbound-max-sessions — outbound-max-sessions — ttl-security — telnet — enable-graceful-shutdown — inbound-max-sessions value — no inbound-max-sessions — outbound-max-sessions value — no outbound-max-sessions — ttl-security 7450 ESS System Mangement Guide Page 111...

  • Page 112: Show Commands

    [view-name] [detail] — certificate — ca-profile — ca-profile name [association] — ocsp-cache [entry-id] — statistics show — card — fp — dist-cpu-protection show — service — id — sap — dist-cpu-protection [detail] Page 112 7450 ESS System Mangement Guide...

  • Page 113: Login Control

    {sap|interface} card slot-number [fp fp-number] — violators local-monitor {sap|interface} card slot-number [fp fp-number] — perform — security — dist-cpu-protection — release-hold-down interface interface-name [protocol protocol] [static- policer name] — release-hold-down sap sap-id [protocol protocol] [static-policer name] 7450 ESS System Mangement Guide Page 113...
  • Page 114 Command Hierarchies Page 114 7450 ESS System Mangement Guide...
  • Page 115 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. shutdown Syntax [no] shutdown Context config>system>security>mgmt-access-filter>ip-filter config>sys>sec>cpm>ip-filter config>system>security>keychain>direction>bi>entry config>system>security>keychain>direction>uni>receive>entry 7450 ESS System Mangement Guide Page 115...
  • Page 116 However, because it is the same password and the hash key is limited to the password/key, even the casual observer will notice that it is the same key. Page 116 7450 ESS System Mangement Guide...
  • Page 117 SR/ESS or IP address specified in this command. If the IP address is removed, then the port-based 1588 hardware timestamping assist function will only be applied to PTP packets matching the IPv4 address of the router interface. application 7450 ESS System Mangement Guide Page 117...
  • Page 118 Telnet servers in networks limit a Telnet clients to three retries to login. The Telnet server disconnects the Telnet client session after three retries. The no form of the command disables Telnet servers running on the system. Page 118 7450 ESS System Mangement Guide...
  • Page 119 This command configures the number of LLDPDUs to send during the fast transmission period. Parameters count — Specifies the number of LLDPDUs to send during the fast transmission period. Values 1 — 8 Default 7450 ESS System Mangement Guide Page 119...
  • Page 120 1 — 10 Default tx-credit-max Syntax tx-credit-max count no tx-credit-max Context config>system>lldp Description This command configures the maximum consecutive LLDPDUs transmitted. Parameters count — Specifies the maximum consecutive LLDPDUs transmitted. Values 1 — 100 Default Page 120 7450 ESS System Mangement Guide...
  • Page 121 2 — 10 Default tx-interval Syntax tx-interval interval no tx-interval Context config>system>lldp Description This command configures the LLDP transmit interval time. Parameters interval — Specifies the LLDP transmit interval time. Values 1 — 100 Default 7450 ESS System Mangement Guide Page 121...
  • Page 122 — The idle timeout in minutes. Allowed values are 1 to 1440. 0 implies the sessions never timeout. Values 1 — 1440 disable — When the disable option is specified, a session will never timeout. To re-enable idle timeout, enter the command without the disable option. Page 122 7450 ESS System Mangement Guide...
  • Page 123 This command enables or disables the display of a login banner. The login banner contains the SR OS copyright and build date information for a console login attempt. The no form of the command causes only the configured pre-login-message and a generic login prompt to display. 7450 ESS System Mangement Guide Page 123...
  • Page 124 The local serial port cannot be disabled. The no form of the command reverts to the default value. Default Parameters value — The maximum number of concurrent outbound Telnet sessions, expressed as an integer. Values 0 — 15 Page 124 7450 ESS System Mangement Guide...
  • Page 125 This command enables configuration the list of allowed ciphers by the SSH client. Parameters version — Specifies the SSH version. Values 1 — Specifies that the SSH server will only accept connections from clients that support SSH protocol version 1 7450 ESS System Mangement Guide Page 125...
  • Page 126 Server ciphers: 3des-cbc, blowfish-cbc, cast128-cbc, arcfour, aes128-cbc, aes192- cbc, aes256-cbc, rijndael-cbc, aes128-ctr, aes192-ctr, aes256-ctr The following default ciphers are used for SSHv2: Cipher index value Cipher name aes256-ctr aes192-ctr aes128-ctr aes128-cbc 3des-cbc blowfish-cbc Page 126 7450 ESS System Mangement Guide...
  • Page 127 This command enables configuration the list of allowed ciphers by the SSH server. Parameters version — Specifies the SSH version. Values 1 — Specifies that the SSH server will only accept connections from clients that support SSH protocol version 1 7450 ESS System Mangement Guide Page 127...
  • Page 128 SSH protocol version 1, or SSH protocol version 2 or both. telnet Syntax telnet Context config>system>login-control Description This command creates the context to configure the Telnet login control parameters. enable-graceful-shutdown Syntax [no] enable-graceful-shutdown Page 128 7450 ESS System Mangement Guide...
  • Page 129 Security Context config>system>login-control>telnet Description This command enables graceful shutdown of telnet sessions. The no form of the command disables graceful shutdown of telnet sessions. 7450 ESS System Mangement Guide Page 129...
  • Page 130 This command creates the action associated with the management access filter match criteria entry. The action keyword is required. If no action is defined, the filter is ignored. If multiple action state- ments are configured, the last one overwrites previous configured actions. Page 130 7450 ESS System Mangement Guide...
  • Page 131 This command configures a source TCP or UDP port number or port range for a management access filter match criterion. The no form of the command removes the source port match criterion. Default No dst-port match criterion. 7450 ESS System Mangement Guide Page 131...
  • Page 132 This allows users to insert a new entry in an existing policy without having to renumber the existing entries. Values 1 — 9999 Syntax [no] log Page 132 7450 ESS System Mangement Guide...
  • Page 133 The no form of this command deletes the specified port match criterion. Default no port Parameters port-number — A source or destination port to be used as a match criterion specified as a decimal integer. Values 1 -65535 7450 ESS System Mangement Guide Page 133...
  • Page 134 The exits on the first match found and executes the actions in accordance with the accompanying action command. This may require some entries to be re-numbered differently from most to least explicit. Parameters old-entry-number — Enter the entry number of the existing entry. Values 1 — 9999 Page 134 7450 ESS System Mangement Guide...
  • Page 135 (less than lt, greater than gt, or equal to eq) operator. If no range with a start and an end or operator (lt, gt, eq) followed by an opcode with the value between 0 and 255 is defined then the command is invalid. 7450 ESS System Mangement Guide Page 135...

  • Page 136: Table 9: Opcode Values

    Defined by ITU-T Y.1731 32 - 63 Defined by IEEE 802.1. 64 - 255 Default no cfm-opcode Parameters opcode — Specifies the opcode checking to be performed. start — specifies the start number. Page 136 7450 ESS System Mangement Guide...
  • Page 137 — The 8-bit dsap match criteria value in hexadecimal. Values 0x00 — 0xFF (hex) mask — This is optional and may be used when specifying a range of dsap values to use as the match criteria. 7450 ESS System Mangement Guide Page 137...
  • Page 138 — The MAC address to be used as a match criterion. Values HH:HH:HH:HH:HH:HH or HH-HH-HH-HH-HH-HH where H is a hexadecimal digit mask — A 48-bit mask to match a range of MAC address values. Page 138 7450 ESS System Mangement Guide...
  • Page 139 — Specifies to match packets with the three-byte OUI field in the SNAP-ID not set to zero. snap-pid Syntax snap-pid snap-pid no snap-pid Context config>system>security>mgmt-access-filter>mac-filter>entry>match Description This command configures an IEEE 802.3 LLC SNAP Ethernet Frame PID value to be used as a MAC 7450 ESS System Mangement Guide Page 139...
  • Page 140 To configure so that all packets with a source MAC OUI value of 00-03-FA are subject to a match condition then the entry should be specified as: 003FA000000 0xFFFFFF000000 Default 0xFFFFFFFFFFFF (exact match) Values 0x00000000000000 — 0xFFFFFFFFFFFF Page 140 7450 ESS System Mangement Guide...
  • Page 141 {port-id | cpm | lag port-id} no src-port Context config>system>security>mgmt-access-filter>ip-filter>entry config>system>security>mgmt-access-filter>ipv6-filter>entry Description CPMCCM This command restricts ingress management traffic to either the Ethernet port or any other logical port (for example LAG)on the device. 7450 ESS System Mangement Guide Page 141...
  • Page 142 — Specifies the subnet mask length expressed as a decimal integer. Values 1 — 32 (mask length), 0.0.0.0 — 255.255.255.255 (dotted decimal) Page 142 7450 ESS System Mangement Guide...

  • Page 143: Password Commands

    — Specifies the key is entered in an encrypted form. If the hash parameter is not used, the key is assumed to be in a non-encrypted, clear text form. For security, all keys are stored in encrypted 7450 ESS System Mangement Guide Page 143...
  • Page 144 Telnet 10.20.30.93 09AUG2006 08:35:23 0d 00:00:00 A ------------------------------------------------------------------------------- Number of users : 2 'A' indicates user is in admin mode =============================================================================== A:ALA-1# A:ALA-1# enable-admin MINOR: CLI Already in admin mode. A:ALA-1# aging Syntax aging days no aging Context config>system>security>password Page 144 7450 ESS System Mangement Guide...
  • Page 145 When the user exceeds the attempted count times in the specified time, then that user is locked out from any further login attempts for the configured time period. Default Values 0 — 1440 Values infinite; user is locked out and must wait until manually unlocked before any further attempts. 7450 ESS System Mangement Guide Page 145...
  • Page 146 If the local keyword is the first authentication and: Page 146 7450 ESS System Mangement Guide...
  • Page 147 The no form of the command resets to default. Default no credits Parameters credits — The number of credits that can be used for each characters class. Values 0-10 minimum-classes Syntax minimum-classes minimum no minimum-classes 7450 ESS System Mangement Guide Page 147...
  • Page 148 The number of times a characters can be repeated consecutively. The no form of the command resets to default. Default no repeated-characters Parameters count — The minimum count of consecutively repeated characters. Values Page 148 7450 ESS System Mangement Guide...
  • Page 149 — Specifies the key is entered in a more complex encrypted form. If the hash2 parameter is not used, the less encrypted hash form is assumed. enable-admin-control Syntax enable-admin-control Context config>system>security>password Description Enable the user to become a system administrator. tacplus-map-to-priv-lvl Syntax tacplus-map-to-priv-lvl [admin-priv-lvl] 7450 ESS System Mangement Guide Page 149...
  • Page 150 Context config>system>security>password Description Configure how many previous passwords a new password is matched against. Default no history Parameters size — Specifies how many previous passwords a new password is matched against. Values 1—20 Page 150 7450 ESS System Mangement Guide...
  • Page 151 — Specifies how many characters must be different in the new password from the old password. Values 2—20 password Syntax password Context config>system>security Description This command creates the context to configure password management parameters. 7450 ESS System Mangement Guide Page 151...
  • Page 152 — Keyword used to create a new ca-profile. The create keyword requirement can be enabled/ disabled in the environment>create context. cert-file Syntax cert-file filename no cert-file Context config>system>security>pki>ca-profile Description Specifies the filename of a file in cf3:\system-pki\cert as the CA’s certificate of the ca-profile. Notes: Page 152 7450 ESS System Mangement Guide...
  • Page 153 This command enables the system to accept both protected and unprotected CMPv2 PKI confirma- tion messages. Without this command, system will only accept protected PKI confirmation message. The no form of the command causes the system to only accept protected PKI confirmation message. 7450 ESS System Mangement Guide Page 153...
  • Page 154 — Specifies a printable ASCII string, up to 64 characters in length. Syntax cmp-url url-string [service-id service-id] no cmp-url Context config>system>security>pki>ca-profile>cmp2 Description This command specifies HTTP URL of the CMPv2 server. The URL must be unique across all con- figured ca-profiles. Page 154 7450 ESS System Mangement Guide...
  • Page 155 This command specifies a imported certificate that is used to verify the CMP response message if they are protected by signature. If this command is not configured, then CA’s certificate will be used. Default none Parameters filename — Specifies the filename of the imported certificate. 7450 ESS System Mangement Guide Page 155...
  • Page 156 The no form of the command removes the filename from the configuration. Default none Parameters filename — Specifies the name of CRL file stored in cf3:\system-pki\crl. ocsp Syntax ocsp Context config>system>security>pki>ca-profile Description This command enables the context to configure OCSP parameters. Page 156 7450 ESS System Mangement Guide...
  • Page 157 VPRN service at the time of CLI configuration. Otherwise the configuration will fail. Parameters service-id — Specifies an existing service ID to be used in the match criteria. Values service-id: 1 — 2147483647 base-router: 0 7450 ESS System Mangement Guide Page 157...
  • Page 158 • If the system time changes so that the new time causes the certificates to no longer be in the warning window, then BeforeExp is cleared. If the new time causes an expired certificate to come non-expired, then AfterExp is cleared. Default no certificate-expiration-warning Page 158 7450 ESS System Mangement Guide...
  • Page 159 — Specifies the amount of time before a CRL expires when system issues BeforeExp. Values 0 — 8760 repeat-hour — Specifies that the system will repeat BeforeExp every repeat-hour. Values 0 — 8760 maximum-cert-chain-depth Syntax maximum-cert-chain-depth level 7450 ESS System Mangement Guide Page 159...
  • Page 160 This command clears the current OCSP response cache. If optional issuer and serial-number are not specified, then all current cached results are cleared. Parameters entry-id — Specifies the local cache entry identifier of the certificate to clear. Values 1 — 2000 Page 160 7450 ESS System Mangement Guide...
  • Page 161 Values pkcs10, pkcs12, pkcs7-der, pkcs7-pem, pem, der password — Specifies the password to decrypt the input file in case that it is a encrypted PKCS#12 file, up to 99 characters in length. export 7450 ESS System Mangement Guide Page 161...
  • Page 162 — Specifies the name of the keyfile in cf3:\system-pki\key that is used to generate a certificate request. Values url-string <local-url> - [99 chars max] local-url <cflash-id>/<file-path> cflash-id cf1:|cf2:|cf3: subject-dn — Specifies the distinguish name that is used as the subject in a certificate request, including: Page 162 7450 ESS System Mangement Guide...
  • Page 163 → PKCS #12 → PKCS #7 PEM encoded → PKCS #7 DER encoded → PEM → DER • Key → PKCS #12 → PEM → DER • CRL → PKCS #7 PEM encoded 7450 ESS System Mangement Guide Page 163...
  • Page 164 Tunnels currently up are not affected. → If the key does not match the certificate: → If cert and key configuration is used instead of cert-profile then the tunnel will be brought down. Page 164 7450 ESS System Mangement Guide...
  • Page 165 — Specifies to reload a certificate file and its key file at the same time. file-name — Specifies the file name of imported certificate or key. key-filename — In case of cert-key-pair, filename is the imported filename of certificate, key- filename is the imported key file. 7450 ESS System Mangement Guide Page 165...
  • Page 166 This command copies a profile or user from a source profile to a destination profile. Parameters source-profile — The profile to copy. The profile must exist. dest-profile — The copied profile is copied to the destination profile. Page 166 7450 ESS System Mangement Guide...
  • Page 167 — The description character string. Allowed values are any string up to 80 characters long composed of printable, 7-bit ASCII characters. If the string contains special characters (#, $, spaces, etc.), the entire string must be enclosed within double quotes. 7450 ESS System Mangement Guide Page 167...
  • Page 168 — The user profile name entered as a character string. The string is case sensitive and limited to 32 ASCII 7-bit printable characters with no spaces. renum Syntax renum old-entry-number new-entry-number Context config>system>security>profile user-profile-name Page 168 7450 ESS System Mangement Guide...
  • Page 169 Parameters old-entry-number — Enter the entry number of an existing entry. Values 1 — 9999 new-entry-number — Enter the new entry number. Values 1 — 9999 7450 ESS System Mangement Guide Page 169...
  • Page 170 SNMP engine-ID and a password). The password is not directly entered in this command (only the localized key). Default authentication none - No authentication is configured and privacy cannot be configured. Parameters none — Do not use authentication. If none is specified, then privacy cannot be configured. Page 170 7450 ESS System Mangement Guide...
  • Page 171 — Enter the group name (between 1 and 32 alphanumeric characters) that is associated with this user. A user can be associated with one group-name per security model. cannot-change-password Syntax [no] cannot-change-password 7450 ESS System Mangement Guide Page 171...
  • Page 172 Syntax home-directory url-prefix [directory] [directory/directory…] no home-directory Context config>system>security>user config>system>security>user-template Description This command configures the local home directory for the user for both console (file commands and '>' redirection) and FTP access. Page 172 7450 ESS System Mangement Guide...
  • Page 173 — Enter either a local or remote URL, up to 200 characters in length, that identifies the exec file that will be executed after the user successfully logs in. member Syntax member user-profile-name [user-profile-name…] no member user-profile-name 7450 ESS System Mangement Guide Page 173...
  • Page 174 "$2y$10$pFoehOg/tCbBMPDJ/kqpu.8af0AoVGY2xsR7WFqyn5fVTnwRzGmOK" For example: config>system>security# user testuser1 config>system>security>user$ password "$2y$10$pFoehOg/tCbBMPDJ/ kqpu.8af0AoVGY2xsR7WFqyn5fVTnwRzGmOK" config>system>security>user# exit config>system>security# info ------------------------------------- user "testuser1" password "$2y$10$pFoehOg/tCbBMPDJ/kqpu.8af0AoVGY2xsR7WFqyn5fVTnwRzGmOK" exit Page 174 7450 ESS System Mangement Guide...
  • Page 175 If a home-directory is not configured or the home directory is not available, then the user has no file access. The no form of the command allows the user access to navigate to directories above their home direc- tory. Default no restricted-to-home rsa-key Syntax rsa-key public-key-value key-id rsa-key key-id 7450 ESS System Mangement Guide Page 175...
  • Page 176 This command creates a local user and a context to edit the user configuration. If a new user-name is entered, the user is created. When an existing user-name is specified, the user parameters can be edited. Page 176 7450 ESS System Mangement Guide...
  • Page 177 The no form of the command deletes the user and all configuration data. Users cannot delete them- selves. Default none Parameters user-name — The name of the user up to 32 characters. 7450 ESS System Mangement Guide Page 177...

  • Page 178: Radius Client Commands

    Description This command specifies a UDP port number on which to contact the RADIUS server for accounting requests. Parameters port — Specifies the UDP port number. Values 1 — 65535 Default 1813 Page 178 7450 ESS System Mangement Guide...
  • Page 179 Description This command creates the context to configure RADIUS authentication on the router. Implement redundancy by configuring multiple server addresses for each router. The no form of the command removes the RADIUS configuration. 7450 ESS System Mangement Guide Page 179...
  • Page 180 — Specifies the privilege level used when sending a TACACS+ ENABLE request. Values 0 — 15 user-profile-name — Specifies the user profile for this mapping. server Syntax server index address ip-address secret key [hash | hash2] no server index Page 180 7450 ESS System Mangement Guide...
  • Page 181 — Specifies the key is entered in a more complex encrypted form. If the hash2 parameter is not used, the less encrypted hash form is assumed. 7450 ESS System Mangement Guide Page 181...
  • Page 182 VSAs are returned with the auth-accept from the RADIUS server. When enabled, the RADIUS user template is actively applied if no VSAs are returned with the auth-accept from the RADIUS server. The no form of the command disables the command. Page 182 7450 ESS System Mangement Guide...
  • Page 183 — Specifies the key is entered in a more complex encrypted form. If the hash2 parameter is not used, the less encrypted hash form is assumed. port port — Specifies the port ID. Values 0 — 65535 7450 ESS System Mangement Guide Page 183...
  • Page 184 — Specifies that a TACACS+ start packet is sent whenever the user executes a command. record-type stop-only — Specifies that a stop packet is sent whenever the command execution is complete. authorization Syntax [no] authorization [use-priv-lvl] Page 184 7450 ESS System Mangement Guide...
  • Page 185 • TACACS+ server ignores the password and replies with TAC_PLUS_AUTHEN_STA- TUS_GETPASS. • SR OS sends a continue packet with the password in the user_msg field. • TACACS+ server replies with PASS or FAIL. 7450 ESS System Mangement Guide Page 185...
  • Page 186 The no form of the command administratively enables the protocol which is the default state. Default no shutdown use-default-template Syntax [no] use-default-template Context config>system>security>tacplus Description This command specifies whether or not the user template defined by this entry is to be actively applied to the TACACS+ user. Page 186 7450 ESS System Mangement Guide...
  • Page 187 This command configures the number of times the router attempts to contact the RADIUS server for authentication if there are problems communicating with the server. The no form of the command reverts to the default value. Default Parameters count — The retry count. Values 1 — 10 7450 ESS System Mangement Guide Page 187...
  • Page 188 — The UDP port number on which to contact the RADIUS server for accounting requests. auth-port auth-port — specifies a UDP port number to be used as a match criteria. Values 1 — 65535 type server-type — Specifies the server type. Values authorization, accounting, combined Page 188 7450 ESS System Mangement Guide...
  • Page 189 The no form of the command reverts to the default value. Default 3 seconds Parameters seconds — The number of seconds the router waits for a response from a RADIUS server, expressed as a decimal integer. Values 1 — 90 7450 ESS System Mangement Guide Page 189...
  • Page 190 This command specifies the data type that indicates the TCP stream direction to apply the keychain. Default none Syntax Context config>system>security>keychain>direction Description This command configures keys for both send and receive stream directions. Default none Syntax Context config>system>security>keychain>direction Page 190 7450 ESS System Mangement Guide...
  • Page 191 The no form of the command deletes the entry. 7450 ESS System Mangement Guide Page 191...
  • Page 192 — Specifies the key is entered in a more complex encrypted form. begin-time Syntax begin-time [date] [hours-minutes] [UTC] [now] [forever] Context config>system>security>keychain>direction>bi>entry config>system>security>keychain>direction>uni>receive>entry config>system>security>keychain>direction>uni>send>entry Page 192 7450 ESS System Mangement Guide...
  • Page 193 This command configures the amount of time that an eligible receive key should overlap with the active send key or to never expire. Parameters seconds — Specifies the duration that an eligible receive key overlaps with the active send key. 7450 ESS System Mangement Guide Page 193...
  • Page 194 This command configures the TCP option number accepted in TCP packets received. Default Parameters option-number — Specifies an enumerated integer that indicates the TCP option number to be used in the TCP header. Values 253, 254, 253&254 Page 194 7450 ESS System Mangement Guide...
  • Page 195 This command configures the TCP option number accepted in TCP packets sent. Default Parameters option-number — Specifies an enumerated integer that indicates the TCP option number to be used in the TCP header. Values 253, 254 7450 ESS System Mangement Guide Page 195...
  • Page 196 Context config>system>security>cli-script>authorization Description This command enables the context to configure authorization for the VSD server. The no form of the command removes all authorizations for the VSD server. event-handler Syntax event-handler Context config>system>security>cli-script>authorization Page 196 7450 ESS System Mangement Guide...
  • Page 197 Parameters user-name — The name of a user in the local node database. TACACS+ or RADIUS users can not be used. The user configuration should reference a valid local profile for authorization. 7450 ESS System Mangement Guide Page 197...
  • Page 198 — Specifies that packets matching the filter entry are dropped. ip-filter Syntax [no] ip-filter Context config>system>security>cpm-filter Description This command enables the context to configure CPM IP filter parameters. Default shutdown Description mac-filter Syntax [no] mac-filter Page 198 7450 ESS System Mangement Guide...
  • Page 199 If more than one match criteria (within one match statement) are configured then all criteria must be satisfied (AND function) before the action associated with the match is executed. 7450 ESS System Mangement Guide Page 199...

  • Page 200: Table 10: Ip Protocol Names

    Reservation Protocol General Routing Encapsulation ipv6-icmp ICMP for IPv6 ipv6-no-nxt No Next Header for IPv6 ipv6-opts Destination Options for IPv6 iso-ip ISO Internet Protocol eigrp EIGRP ospf-igp OSPFIGP ether-ip Ethernet-within-IP Encapsulation encap Encapsulation Header Page 200 7450 ESS System Mangement Guide...
  • Page 201 This command configures a destination IP address range to be used as an IP filter match criterion. To match on the destination IP address, specify the address and its associated mask, for example, 10.1.0.0/16. The conventional notation of 10.1.0.0 255.255.0.0 may also be used. 7450 ESS System Mangement Guide Page 201...
  • Page 202 — Specifies the port list name to be used as a match criteria for the destination port. mask — Specifies the 16 bit mask to be applied when matching the destination port. Values [0x0000..0xFFFF] | [0..65535] | [0b0000000000000000..0b1111111111111111] fragment Syntax fragment {true | false} no fragment Page 202 7450 ESS System Mangement Guide...
  • Page 203 The no form of the command removes the criterion from the match entry. Default no icmp-code - no match criterion for the ICMP code. Parameters icmp-code — Specifies the ICMP code values that must be present to match. Values 0 — 255 7450 ESS System Mangement Guide Page 203...
  • Page 204 Thus to match on IP packets that contain the Router Alert option (option number =20), enter the option type of 148 (10010100). Values 0 — 255 ip-option-mask — Specifies a range of option numbers to use as the match criteria. Page 204 7450 ESS System Mangement Guide...
  • Page 205 IP header as an IP filter match criterion. The no form of the command removes the checking of the option field in the IP header as a match cri- terion. 7450 ESS System Mangement Guide Page 205...
  • Page 206 — A string of up to 32 characters of printable ASCII characters. If special charac- ters are used, the string must be enclosed within double quotes. Description src-port Syntax src-port src-port-number [mask] Page 206 7450 ESS System Mangement Guide...
  • Page 207 IP or IPv6 packet as an IP filter match criterion. Note that an entry containing Layer 4 match criteria will not match non-initial (2nd, 3rd, etc) fragments of a fragmented packet since only the first fragment contains the Layer 4 information. 7450 ESS System Mangement Guide Page 207...
  • Page 208 — Enter the new entry-number to be assigned to the old entry. Values 1 — 2048 shutdown Syntax shutdown Context config>sys>sec>cpm>ip-filter config>sys>sec>cpm>ipv6-filter config>sys>sec>cpm>mac-filter Description This command enables IP(v4) or MAC CPM filter. The no form of this command disable the filter. Default shutdown Page 208 7450 ESS System Mangement Guide...
  • Page 209 — Specifies the commited burst size in kbytes. Syntax mbs mbs no mbs Context config>system>security>cpm-queue>queue Description This command specifies the maximum queue depth to which a queue can grow. Parameters mbs — Specifies the maximum burst size in kbytes. 7450 ESS System Mangement Guide Page 209...
  • Page 210 This command specifies the maximum bandwidth that will be made available to the queue in kilobits per second (kbps). Parameters rate — Specifies the administrative Peak Information Rate (PIR) for the queue. cir cir — Specifies the amount of bandwidth committed to the queue. Page 210 7450 ESS System Mangement Guide...
  • Page 211 The no form of the command disables TTL security. Default no ttl-security Parameters min-ttl-value — Specifies the minimum TTL value for an incoming LDP packet. Values 1 — 255 ttl-security Syntax ttl-security min-ttl-value 7450 ESS System Mangement Guide Page 211...
  • Page 212 TTL protection to operate. The no form of the command disables TTL security. Parameters min-ttl-value — Specify the minimum TTL value for an incoming BGP packet. Values 1 — 255 Page 212 7450 ESS System Mangement Guide...
  • Page 213 (note this is different than the other protocols) Syntax [no] gtp Context config>sys>security>cpu-protection> ip>included-protocols Description Include extracted IPV4 GTP packets for ip-src-monitoring. IPv4 GTP packets will be subject to the per-source-rate of cpu protection policies. Default no gtp 7450 ESS System Mangement Guide Page 213...
  • Page 214 — Specifies a packet arrival rate limit, in packets per second, for link level protocols. Values 1 — 65535, max (no limit) Default 15000 policy Syntax policy cpu-protection-policy-id [create] no policy cpu-protection-policy-id Context config>sys>security>cpu-protection Page 214 7450 ESS System Mangement Guide...
  • Page 215 This command enables the generation of an event when a rate is exceed. The event includes information about the offending source. Only one event is generated per monitor period. The no form of the command disables the notifications. Default no alarm eth-cfm Syntax eth-cfm no eth-cfm Context config>sys>security>cpu-protection>policy 7450 ESS System Mangement Guide Page 215...
  • Page 216 The no form of the command sets out-profile-rate parameter back to the default value. Default 3000 for cpu-protection-policy-id 1-253 6000 for cpu-protection-policy-id 254 (default access interface policy) 3000 for cpu-protection-policy-id 255 (default network interface policy) Page 216 7450 ESS System Mangement Guide...
  • Page 217 The ip-src-monitoring is useful in subscriber management architectures that have routers between the subscriber and the BNG (router). In layer-3 aggregation scenarios, all packets from all subscribers 7450 ESS System Mangement Guide Page 217...
  • Page 218 (for example, MPLS or GRE) on a network interface. With protocol- protection enabled and tunneled pim blocked, PIM in an mVPN on the egress DR will not switch traffic from the (*,G) to the (S,G) tree. Page 218 7450 ESS System Mangement Guide...
  • Page 219 The no form of the command reverts to the default values. Default cpu-protection 254 (for access interfaces) cpu-protection 255 (for network interfaces) The configuration of no cpu-protection returns the msap-policy to the default policies as shown above. 7450 ESS System Mangement Guide Page 219...
  • Page 220 MAC address and as such the mac-monitor- ing functionality can not differentiate traffic from different subscribers. eth-cfm-monitoring — Enables the Ethernet Connectivity Fault Management cpu-protection extensions on the associated SAP/SDP/template. Page 220 7450 ESS System Mangement Guide...
  • Page 221 — Enables the Ethernet Connectivity Fault Management cpu-protection extensions on the associated SAP/SDP/template. aggregate — applies the rate limit to the sum of the per-peer packet rates. car — (Committed Access Rate) Ignores Eth-CFM packets when enforcing overall-rate. 7450 ESS System Mangement Guide Page 221...
  • Page 222 The actual (opera- tional) parameters can be seen in CLI, for example, “show service id 33 sap 1/1/3:33 dist-cpu-protec- tion detail”. Page 222 7450 ESS System Mangement Guide...
  • Page 223 (that is, the countdown timer starts again at the configured value). During the hold-down (and the detection-time), the policer is considered as in an “exceed” state. Default Parameters seconds — Specifies in seconds. Values 1..128000 7450 ESS System Mangement Guide Page 223...
  • Page 224 - the policer state to be updated as normal - all packets to be marked (if the action is “low-priority”) or dropped (action = discard) regardless of the results of the policing decisions/actions/state. Page 224 7450 ESS System Mangement Guide...
  • Page 225 Parameters verbose — (optional) Sends the same events as just “log-events” plus Hold Down Start and Hold Down End events. The optional “verbose” includes some events that are more likely used during debug/tuning/investigations. 7450 ESS System Mangement Guide Page 225...
  • Page 226 Control packets that are both forwarded (which means they could be subject to normal QoS policy policing) and also copied for extraction are not subject to distributed cpu protection (including in the all-unspecified bucket). This includes traffic snooping (for example, PIM in VPLS) as well as con- Page 226 7450 ESS System Mangement Guide...
  • Page 227 Default none Parameters names — Signifies protocol name. Values arp|dhcp|http-redirect|icmp|igmp|mld|ndis|pppoe-pppoa|all-unspecified|mpls- ttl|bfd-cpm|bgp|eth-cfm|isis|ldp|ospf|pim|rsvp. enforcement Syntax enforcement {static policer-name | dynamic {mon-policer-name | local-mon-bypass}} Context config>system>security>dist-cpu-protection>policy>protocols 7450 ESS System Mangement Guide Page 227...
  • Page 228 Syntax [no] log-events [verbose] Context config>system>security>dist-cpu-protection>policy>protocols>dynamic-parameters Description This command controls the creation of log events related to dynamic enforcement policer status & activity Default log-events - send the Exceed (Excd) and Conform events Page 228 7450 ESS System Mangement Guide...
  • Page 229 Mul- tiple protocols can use the same static-policer. Parameters policy-name — Specifies the name of the policy. Values [32 chars max] 7450 ESS System Mangement Guide Page 229...
  • Page 230 Distributed CPU Protection Commands Page 230 7450 ESS System Mangement Guide...

  • Page 231: Table 11: Show System Security Access Group Output Fields

    ------------------------------------------------------------------------------- snmp-ro snmpv1 none no-security no-security snmp-ro snmpv2c none no-security no-security snmp-rw snmpv1 none no-security no-security no-security snmp-rw snmpv2c none no-security no-security no-security snmp-rwa snmpv1 none snmp-rwa snmpv2c none 7450 ESS System Mangement Guide Page 231...

  • Page 232: Table 12: Show System Security Authentication Output Fields

    The number of times the user has successfully logged in. Accepted logins The number of unsuccessful login attempts. Rejected logins The number of packets sent. Sent packets The number of packets rejected. Rejected packets Page 232 7450 ESS System Mangement Guide...
  • Page 233 10.10.10.103 10.10.0.1 10.10.0.2 10.10.0.3 local =============================================================================== Authorization Statistics (TACACS+) =============================================================================== server address connection errors sent packets rejected packets ------------------------------------------------------------------------------- =============================================================================== Accounting Statistics =============================================================================== server address connection errors sent packets rejected packets ------------------------------------------------------------------------------- 10.10.10.103 7450 ESS System Mangement Guide Page 233...
  • Page 234 =============================================================================== server address conn sent rejected errors pkts pkts ------------------------------------------------------------------------------- ============================================================================== communities Syntax communities Context show>system>security Description This command displays SNMP communities. Output Communities Output — The following table describes community output fields. Page 234 7450 ESS System Mangement Guide...

  • Page 235: Table 13: Show Communities Output Fields

    ----------------------------------------------------------------------------- cli-readonly cli-readonly cli-readwrite cli-readwrite public no-security v1 v2c snmp-ro ----------------------------------------------------------------------------- No. of Communities: 3 ============================================================================= A:ALA-48# cpm-filter Syntax cpm-filter Context show>system>security Description This command displays CPM filters. 7450 ESS System Mangement Guide Page 235...

  • Page 236: Table 14: Show Cpm Ip Filter Output Fields

    Displays the ACK flag in the TCP header TCP-ack When the criteria matches, displays drop or forward packet. Match action In case match action is forward, indicates destination of the matched Next Hop packet. Page 236 7450 ESS System Mangement Guide...
  • Page 237 ICMP Type : Undefined ICMP Code : Undefined Fragment : True Option-present : Off IP-Option : 130/255 Multiple Option : True TCP-syn : Off TCP-ack : True Match action : Drop =============================================================================== A:ALA-35# 7450 ESS System Mangement Guide Page 237...

  • Page 238: Table 15: Show Cpm Ipv6 Filter Output Fields

    Displays the maximum queue depth to which a queue can grow. Sample Output A:ALA-35# show system security cpm-queue 1001 =============================================================================== CPM Queue Entry =============================================================================== Queue Id : 1001 ------------------------------------------------------------------------------- Queue Parameters : ------------------------------------------------------------------------------- : 10000000 : 1000000 : 4096 : 8192 =============================================================================== A:ALA-35# Page 238 7450 ESS System Mangement Guide...
  • Page 239 61234 90:90:90:90:90:90 03/21/2009 23:33:09 03/21/2009 23:35:59 4000000023 61234 91:91:91:91:91:91 03/21/2009 23:33:19 03/21/2009 23:36:19 4000000024 61234 92:92:92:92:92:92 03/21/2009 23:33:29 03/21/2009 23:36:39 4000000025 Aggregated 03/21/2009 23:33:39 03/21/2009 23:36:59 4000000026 94:94:94:94:94:94 03/21/2009 23:33:49 03/21/2009 23:37:19 4000000027 7450 ESS System Mangement Guide Page 239...
  • Page 240 00:00:00:00:00:01 03/22/2009 00:41:59 03/22/2009 01:53:39 3000000043 00:00:00:00:00:02 03/22/2009 00:43:39 03/22/2009 01:56:59 3000000044 00:00:00:00:00:03 03/22/2009 00:45:19 03/22/2009 02:00:19 3000000045 00:00:00:00:00:04 03/22/2009 00:46:59 03/22/2009 02:03:39 3000000046 00:00:00:00:00:05 03/22/2009 00:48:39 03/22/2009 02:06:59 3000000047 ------------------------------------------------------------------------------- 5 source(s) found =============================================================================== Page 240 7450 ESS System Mangement Guide...
  • Page 241 Associations for CPU Protection policy 100 =============================================================================== Description : (Not Specified) SAP associations ------------------------------------------------------------------------------- Service Id Type : VPLS SAP 1/1/1 mac-monitoring SAP 1/1/2 eth-cfm-monitoring aggr car SAP 1/1/3 eth-cfm-monitoring SAP 1/1/4 ------------------------------------------------------------------------------- 7450 ESS System Mangement Guide Page 241...
  • Page 242 Associations for CPU Protection policy 255 =============================================================================== Description : Default (Modifiable) CPU-Protection Policy assigned to Network Interfaces SAP associations ------------------------------------------------------------------------------- None SDP associations ------------------------------------------------------------------------------- Service Id Type : VPLS SDP 1:2 SDP 1:4 eth-cfm-monitoring Page 242 7450 ESS System Mangement Guide...
  • Page 243 SDP 1:3 eth-cfm-monitoring aggr SDP 1:5 mac-monitoring SDP 17407:4123456789 eth-cfm-monitoring car ------------------------------------------------------------------------------- Number of SDP's : 4 Interface associations ------------------------------------------------------------------------------- None Managed SAP associations ------------------------------------------------------------------------------- None Video-Interface associations ------------------------------------------------------------------------------- None =============================================================================== A:bksim130# 7450 ESS System Mangement Guide Page 243...
  • Page 244 ------------------------------------------------------------------------------- 5 SDP('s) found =============================================================================== =============================================================================== Video clients where the protection policy per-source rate limit is violated =============================================================================== Client IP Address Video-Interface Service-Id Plcy Limit First-Time Last-Time Violation-Periods ------------------------------------------------------------------------------- No clients found =============================================================================== Page 244 7450 ESS System Mangement Guide...

  • Page 245: Table 16: Show Distributed Cpu Protection Output Fields

    Time Indicates how many times the system attempted to allocate dynamic Dynamic-Policers enforcement policers but could not get enough the fill the request. Allocation Fail Count *A:nodeA# show card 1 fp 1 dist-cpu-protection 7450 ESS System Mangement Guide Page 245...

  • Page 246: Table 17: Show Distributed Cpu Protection Policer Output Fields

    IOM3-XP) and some cards can contain multiple FPs (for example, an IOM2 has two FPs and an XCM can house two FPs via its two XMAs). The state of the policer with the following potential values: Policer-State Page 246 7450 ESS System Mangement Guide...
  • Page 247 This counter has the same behavior as the exceed counter in the DCP the log events – they are baselined (reset) when the policer transitions to conformant. 7450 ESS System Mangement Guide Page 247...
  • Page 248 Hold-Down Remain. : none Operational (adapted) rate parameters: Oper. Kbps : 2343 kbps Oper. MBS : 240 kilobytes Oper. Depth : 0 bytes … (snip) *A:nodaA# show service id 33 sap 1/1/3:34 dist-cpu-protection detail Page 248 7450 ESS System Mangement Guide...
  • Page 249 : none Dyn-Policer Alloc. : False Operational (adapted) rate parameters: unknown ------------------------------------------------------------------------------- dist-cpu-protection Syntax dist-cpu-protection [detail] Context show>router>interface Description This command displays Distributed CPU Protection parameters and status at the router Interface level. 7450 ESS System Mangement Guide Page 249...

  • Page 250: Table 18: Show Distributed Cpu Protection Policer Output Fields

    (e.g. if the associated forwarding plane is operational, or for an interface if there is a physical port configured for the interface, or if the dynamic policers are allocated), otherwise values of 0 kbps, etc are displayed. Page 250 7450 ESS System Mangement Guide...
  • Page 251 Indicates that a dynamic policer has been instantiated. Dyn-Policer Alloc. Sample Output *A:Dut-A# show router interface "test" dist-cpu-protection detail =============================================================================== Interface "test" (Router: Base) =============================================================================== Distributed CPU Protection Policy : dcpuPol ------------------------------------------------------------------------------- Statistics/Policer-State Information 7450 ESS System Mangement Guide Page 251...
  • Page 252 Detec. Time Remain : 29 seconds Hold-Down Remain. : none Dyn-Policer Alloc. : True Operational (adapted) Rate Parameters: Oper. Kbps : 25 kbps Oper. MBS : 256 bytes Oper. Depth : 284 bytes ------------------------------------------------------------------------------- =============================================================================== Page 252 7450 ESS System Mangement Guide...
  • Page 253 — Displays violators associated with the port. interface — Displays violators associated with the interface. sap — Displays violators associated with the SAP. video — Displays violators associated with the video entity. 7450 ESS System Mangement Guide Page 253...
  • Page 254 ------------------------------------------------------------------------------- No SDP's found =============================================================================== =============================================================================== Video clients where the protection policy per-source rate limit is violated =============================================================================== Client IP Address Video-Interface Service-Id Plcy Limit First-Time Last-Time Violation-Periods ------------------------------------------------------------------------------- No clients found =============================================================================== Page 254 7450 ESS System Mangement Guide...
  • Page 255 : permit Admin Status : enabled (no shutdown) ------------------------------------------------------------------------------- Entry Action : deny FrameType : ethernet_II Svc-Id : Undefined Src Mac : Undefined Dest Mac : Undefined Dot1p : Undefined Ethertype : Disabled 7450 ESS System Mangement Guide Page 255...
  • Page 256 : 2007/02/15 18:27:57 Begin Time (UTC) : 2007/02/15 17:27:57 End Time : 2007/02/15 18:28:13 End Time (UTC) : 2007/02/15 17:28:13 =============================================================================== Direction : send-receive Algorithm : aes-128-cmac-96 Admin State : Up Valid : Yes Page 256 7450 ESS System Mangement Guide...

  • Page 257: Table 19: Show Management Access Filter Output Fields

    The entry ID in a policy or filter table. Entry A text string describing the filter. Description The source IP address used for management access filter match crite- Src IP ria. 7450 ESS System Mangement Guide Page 257...

  • Page 258: Table 20: Show Password Options Output Fields

    Password Options Output — The following table describes password options output fields. Table 20: Show Password Options Output Fields Label Description Displays the number of days a user password is valid before the user Password aging in must change their password. days Page 258 7450 ESS System Mangement Guide...
  • Page 259 Displays whether the user name is allowed as part of the password. Allow passwords containing user- name Displays whether palindromes are allowed as part of the password. Palindrome allowed 7450 ESS System Mangement Guide Page 259...

  • Page 260: Table 21: Show Per-Peer-Queuing Output Fields

    Displays the status (enabled or disabled) of CPM hardware queuing Per Peer Queuing per peer. Displays the total number of hardware queues. Total Num of Queues Displays the total number of hardware queues in use. Num of Queues In Page 260 7450 ESS System Mangement Guide...

  • Page 261: Table 22: Show User Profile Output Fields

    Permit all — Commands matching the entry command match Action criteria are permitted. Deny — Commands not matching the entry command match criteria are not permitted. The total number of profiles listed. No. of profiles 7450 ESS System Mangement Guide Page 261...

  • Page 262: Table 23: Show Source Address Output Fields

    Up — The source address is operationally up. Oper status Down — The source address is operationally down. Sample Output A:SR-7# show system security source-address =============================================================================== Source-Address applications =============================================================================== Application IP address/Interface Name Oper status Page 262 7450 ESS System Mangement Guide...
  • Page 263 The name of the user. Username The SSH version number. Version The type of SSH application (CLI, SCP, SFTP or NETCONF) Server Name The total number of SSH sessions. Number of SSH ses- sions 7450 ESS System Mangement Guide Page 263...
  • Page 264 DSA Host Key Fingerprint : 88:41:1c:7e:97:64:df:a0:e4:54:c2:cc:3d:dd:c7:70 RSA Host Key Fingerprint : 63:b8:c4:8a:17:b7:1c:95:35:91:c9:08:75:cc:31:a3 ------------------------------------------------------------------------------- Connection Username Version ServerName Status ------------------------------------------------------------------------------- 138.120.214.254 admin netconf connected 138.120.140.148 admin connected ------------------------------------------------------------------------------- Number of SSH sessions : 2 =============================================================================== Page 264 7450 ESS System Mangement Guide...
  • Page 265 Y — Password authentication is based on the local password database. Local conf N — Password authentication is not based on the local password database. Specifies the local home directory for the user for both console and Home directory FTP access. 7450 ESS System Mangement Guide Page 265...
  • Page 266 =============================================================================== user id need user permissions password attempted failed local new pwd console ftp snmp expires logins logins conf ------------------------------------------------------------------------------- admin never =============================================================================== =============================================================================== User Configuration Detail =============================================================================== user id : admin ------------------------------------------------------------------------------- Page 266 7450 ESS System Mangement Guide...
  • Page 267 =============================================================================== *A:Node234# show system security user lockout =============================================================================== Currently Failed Login Attempts =============================================================================== User ID Remaining Login attempts Remaining Lockout Time (min:sec) ------------------------------------------------------------------------------- jason123 N/A 9:56 ------------------------------------------------------------------------------- Number of users : 1 =============================================================================== 7450 ESS System Mangement Guide Page 267...

  • Page 268: Table 24: Pass/Fail Login Attempts

    *A:Dut-C# show system security user detail =============================================================================== Users =============================================================================== User ID User Permissions Password Login Failed Local console ftp li snmp Expires Attempts Logins Conf ------------------------------------------------------------------------------- admin never ------------------------------------------------------------------------------- Number of users : 1 Page 268 7450 ESS System Mangement Guide...

  • Page 269: Table 25: Show View Output Fields

    The bit mask that defines a family of view subtrees. mask Indicates whether each view is included or excluded permission Displays the total number of views. No. of Views Sample Output A:ALA-48# show system security view 7450 ESS System Mangement Guide Page 269...
  • Page 270 Syntax ca-profile ca-profile name [association] Context show>certificate Description This command shows certificate-authority profile information. Parameters name — Specifies the name of the Certificate Authority (CA) profile. association — Displays associated CA profiles. Page 270 7450 ESS System Mangement Guide...
  • Page 271 Cache entry expire time Parameters entry-id — Specifies the local cache entry identifier of the certificate that was validated by the OCSP responder. statistics Syntax statistics Context show>certificate Description This command shows certificate related statistics. 7450 ESS System Mangement Guide Page 271...

  • Page 272: Table 26: Show Users Output Fields

    A:ALA-7# show users =============================================================================== User Type From Login time Idle time =============================================================================== testuser Console 21FEB2007 04:58:55 0d 00:00:00 ------------------------------------------------------------------------------- Number of users : 1 'A' indicates user is in admin mode =============================================================================== A:ALA-7# Page 272 7450 ESS System Mangement Guide...
  • Page 273 Values 1 — 2048 ipv6-filter Syntax ipv6-filter [entry entry-id] Context clear>cpm-filter Description This command clears IPv6 filter statistics. Parameters entry entry-id — Specifies a particular CPM IP filter entry. Values 1 — 2048 7450 ESS System Mangement Guide Page 273...
  • Page 274 Login Control mac-filter Syntax mac-filter [entry entry-id] Context clear>cpm-filter Description This command clears MAC filter statistics. Parameters entry entry-id — Specifies a particular CPM MAC filter entry. Values 1 — 2048 Page 274 7450 ESS System Mangement Guide...
  • Page 275 Syntax violators [port][interface][sap] Context clear>cpu-protection Description This command clears the rate limit violator record. Parameters port — Clears entries for ports. interface — Clears entries for interfaces. sap — Clears entries for SAPs. 7450 ESS System Mangement Guide Page 275...
  • Page 276 33 — 2000 radius-proxy-server Syntax radius-proxy-server server-name statistics Context clear>router Description This command clears RADIUS proxy server data. Parameters server-name — Specifies the proxy server name. statistics — Clears statistics for the specified server. Page 276 7450 ESS System Mangement Guide...
  • Page 277 This command enables debug output of OCSP protocol for the CA profile. The no form of the command disables the debug output. ca-profile Syntax [no] ca-profile profile-name Context debug>ocsp Description This command enables debug output of a specific CA profile. 7450 ESS System Mangement Guide Page 277...
  • Page 278 — - Indicates to display the violators associated with router interfaces. enforcement — Shows exceed and hold-down for Static and Dynamic Policers. local-monitor — Shows state of dynamic policer allocation for Local Monitoring Policers. Page 278 7450 ESS System Mangement Guide...

  • Page 279: Table 27: Output Parameters

    Distributed Cpu Protection Current Interface Enforcer Policer Violators =============================================================================== Interface Policer/Protocol Hld Rem ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- Violators on Slot-4 Fp-1 ------------------------------------------------------------------------------- test staticArpPolicer [S] none test icmp [D] none test ospf [D] none ------------------------------------------------------------------------------- [S]-Static [D]-Dynamic [M]-Monitor ------------------------------------------------------------------------------- =============================================================================== 7450 ESS System Mangement Guide Page 279...
  • Page 280 Syntax clear password-history {user name | all} Context admin>user Description This command is used to clear old passwords used by a specific user, or for all users. Parameters name — Specifies username. Page 280 7450 ESS System Mangement Guide...

  • Page 281: In This Chapter

    Per-VPRN Logs and SNMP Access on page 287 → Per-SNMP Community Source IP Address Validation on page 287 • Which SNMP Version to Use? on page 288 • Configuration Notes on page 290 7450 ESS System Mangement Guide Page 281...

  • Page 282: Snmp Overview

    The main branches are defined by the Internet Engineering Task Force (IETF). When requested, the Internet Assigned Numbers Authority (IANA) assigns a unique branch for use by a private organization or company. The branch assigned to Alcatel-Lucent (TiMetra) is 1.3.6.1.4.1.6527.

  • Page 283: Snmp Versions

    View Access Control MIB (VACM) defines the user access control features. The SNMP-COMMUNITY-MIB is used to associate SNMPv1/SNMPv2c community strings with SNMPv3 VACM access control. SNMPv3 uses a username match for authentication. 7450 ESS System Mangement Guide Page 283...

  • Page 284: Management Information Access Control

    A community string is a text string that acts like a password to permit access to the agent on the router. Alcatel-Lucent’s implementation of SNMP has defined three levels of community-named access: •...

  • Page 285: Access Groups

    • “vprn-view” view—used to limit access to objects associated with a specific VPRN (for example, the Per-VPRN Logs and SNMP Access feature) The Alcatel-Lucent SNMP agent associates SNMPv1 and SNMPv2c community strings with a SNMPv3 view. Access Groups Access groups associate a user group and a security model to the views the group can access.
  • Page 286 CLI management purposes and are not exposed to external SNMP access. Additional access parameters must be explicitly configured if the preconfigured access groups and views for SNMPv1 and SNMPv2c do not meet your security requirements. Page 286 7450 ESS System Mangement Guide...

  • Page 287: Users

    SNMP community. SNMPv1 and SNMPv2c requests that fail the source IP address and community validation checks are discarded and are logged as SNMP event 2003 authenticationFailure (suppressed by default under “event-control”). 7450 ESS System Mangement Guide Page 287...

  • Page 288: Which Snmp Version To Use

    SNMP authentication allows the router to validate the managing node that issued the SNMP message and determine if the message was tampered with. Figure 7 depicts the configuration requirements to implement SNMPv1/SNMPv2c, and SNMPv3. Page 288 7450 ESS System Mangement Guide...

  • Page 289: Figure 7: Snmpv1 And Snmpv2C Configuration And Implementation Flow

    R, RW, RWA Access (SNMPv1 & SNMPv2cONLY) Configure Views Configure Views Configure Access Groups Configure Access Groups Configure USM Community Configure SNMP Users Exit al_0203 Figure 7: SNMPv1 and SNMPv2c Configuration and Implementation Flow 7450 ESS System Mangement Guide Page 289...

  • Page 290: Configuration Notes

    If not, the previously configured SNMP communities and logger trap-target notify communities will not be valid for the new engine ID. Page 290 7450 ESS System Mangement Guide...

  • Page 291: Configuring Snmp With Cli

    This section provides information about configuring SNMP with CLI. Topics in this chapter include: • SNMP Configuration Overview on page 292 • Basic SNMP Security Configuration on page 293 • Configuring SNMP Components on page 294 7450 ESS System Mangement Guide Page 291...

  • Page 292: Configuring Snmpv3

    Configuring SNMPv3 on page 292 Configuring SNMPv1 and SNMPv2c Alcatel-Lucent routers are based on SNMPv3. To use the routers with SNMPv1 and/or SNMPv2c, SNMP community strings must be configured. Three pre-defined access methods are available when SNMPv1 or SNMPv2c access is required. Each access method (r, rw, or rwa) is associated with an SNMPv3 access group that determines the access privileges and the scope of managed objects available.

  • Page 293: Basic Snmp Security Configuration

    20 time 5 lockout 10 7450 ESS System Mangement Guide Page 293...

  • Page 294: Configuring Snmp Components

    [version SNMP version] usm-community community-string group group-name view view-name subtree oid-value mask mask-value [type {included|excluded}] access group group-name security-model security-model secu- rity-level security-level [context context-name [pre- fix-match]] [read view-name-1] [write view-name-2] [notify view-name-3] Page 294 7450 ESS System Mangement Guide...

  • Page 295: Configuring A Community String

    [type {included|excluded}] The following displays a view configuration example: *A:cses-A13>config>system>security>snmp# info ---------------------------------------------- view "testview" subtree "1" mask ff exit view "testview" subtree "1.3.6.1.2" mask ff type excluded exit 7450 ESS System Mangement Guide Page 295...

  • Page 296: Configuring Access Options

    *A:cses-A13>config>system>security>snmp# Use the following CLI syntax to configure user group and authentication parameters: CLI Syntax: config>system>security# user user-name access [ftp] [snmp] [console] snmp authentication [none]|[[hash]{md5 key|sha key } privacy {none|des-key|aes-128-cfb-key key}] group group-name Page 296 7450 ESS System Mangement Guide...

  • Page 297: Configuring Usm Community Options

    "testview" write "testview" notify "testview" community "uTdc9j48PBRkxn5DcSjchk" hash2 rwa version both community "Lla.RtAyRW2" hash2 r version v2c community "r0a159kIOfg" hash2 r version both ---------------------------------------------- A:ALA-1>config>system>security>snmp# The group grouptest was configured in the config>system>security>snmp>access CLI context. 7450 ESS System Mangement Guide Page 297...

  • Page 298: Configuring Other Snmp Parameters

    CLI Syntax: config>system>snmp engineID engine-id general-port port packet-size bytes no shutdown The following example displays the system SNMP default values: A:ALA-104>config>system>snmp# info detail ---------------------------------------------- shutdown engineID "0000xxxx000000000xxxxx00" packet-size 1500 general-port 161 ---------------------------------------------- A:ALA-104>config>system>snmp# Page 298 7450 ESS System Mangement Guide...

  • Page 299: Snmp Command Reference

    — [no] src-access-list list-name — src-host host-name address ip-address — no src-host host-name — view view-name subtree oid-value — no view view-name [subtree oid-value] — mask mask-value [type {included | excluded}] — no mask 7450 ESS System Mangement Guide Page 299...
  • Page 300 — access-group [group-name] — authentication [statistics] — password-options [entry-id] — password-options — per-peer-queuing — profile [profile-name] — snmp — community [community-string] — src-access-list [list-name] — — user [user-id] [detail] — view [view-name] [detail] Page 300 7450 ESS System Mangement Guide...
  • Page 301 This command configures the port number used by this node to receive SNMP request messages and to send replies. Note that SNMP notifications generated by the agent are sent from the port specified in the config>log>snmp-trap-group>trap-target CLI command. 7450 ESS System Mangement Guide Page 301...
  • Page 302 In higher latency networks, synchronizing router MIBs from network management via streaming takes less time than synchronizing via classic SNMP UDP requests. Streaming operates on TCP port 1491 and runs over IPv4 or IPv6. Page 302 7450 ESS System Mangement Guide...
  • Page 303 SNMP persistent index file fails while the bof persist on command is enabled. The no form of the command administratively enables SNMP which is the default state. Default no shutdown 7450 ESS System Mangement Guide Page 303...

  • Page 304: Access Group

    When this option is configured, both the group and the user must be configured for authentication. The user must also be configured for privacy. context context-name — Specifies a set of SNMP objects that are associated with the context-name. Page 304 7450 ESS System Mangement Guide...
  • Page 305 1 — 64 time minutes1 — The period of time, in minutes, that a specified number of unsuccessful attempts can be made before the host is locked out. Default Values 0 — 60 7450 ESS System Mangement Guide Page 305...
  • Page 306 • vpls-mgmt — Assigns a unique SNMP community string to the management virtual router. version {v1 | v2c | both} — Configures the scope of the community string to be for SNMPv1, SNMPv2c, or both SNMPv1 and SNMPv2c access. Default both Page 306 7450 ESS System Mangement Guide...
  • Page 307 {included | excluded} — Specifies whether to include or exclude MIB subtree objects. included - All MIB subtree objects that are identified with a 1 in the mask are available in the view. (Default: included). 7450 ESS System Mangement Guide Page 307...
  • Page 308 Default none Parameters list-name — Configures the name or key of the src-access-list. The list-name parameter must begin with a letter (a-z or A-Z). Page 308 7450 ESS System Mangement Guide...
  • Page 309 The access granted with a community string is restricted to the scope of the configured group. Alcatel-Lucent’s SR OS implementation of SNMP uses SNMPv3. In order to implement SNMPv1 and SNMPv2c configurations, several access groups are predefined. In order to implement SNMP with security features (Version 3), security models, security levels, and USM communities must be explicitly configured.
  • Page 310 It is possible to have a view with different subtrees with their own masks and include and exclude statements. This allows for customizing visibility and write capabilities to specific user requirements. Page 310 7450 ESS System Mangement Guide...

  • Page 311: Table 28: Counters Output Fields

    Displays the number of MIB objects set by SNMP as the result of variables set receiving valid SNMP set request PDUs. Sample Output A:ALA-1# show snmp counters ============================================================================== SNMP counters: ============================================================================== in packets : 7450 ESS System Mangement Guide Page 311...

  • Page 312: Table 29: Counters Output Fields

    Displays the number of response packets sent. out responses Sample Output *A:Dut-B# show snmp streaming counters ============================================================================== STREAMING counters: ============================================================================== in getTables : 772 in getManys : 26 ------------------------------------------------------------------------------ out responses : 848 ============================================================================== Page 312 7450 ESS System Mangement Guide...

  • Page 313: Table 30: Show System Information Output Fields

    Disabled — Persistent indexes at the last system reboot was disabled. The state when the synchronization of configuration files SNMP Sync State between the primary and secondary s finish. Displays the administrative state of the Telnet, SSH, and FTP Telnet/SSH/FTP Admin sessions. 7450 ESS System Mangement Guide Page 313...
  • Page 314 Time Last Modified The maximum number of backup revisions maintained for a Max Cfg/BOF Backup Rev configuration file. This value also applies to the number of revi- sions maintained for the BOF file. Page 314 7450 ESS System Mangement Guide...
  • Page 315 Next Hop — The next hop IP address used to reach the des- tination. Metric — Displays the priority of this static route versus other static routes. None — No static routes are configured. 7450 ESS System Mangement Guide Page 315...
  • Page 316 /rel0.0/I1042/panos/main # Generated THU FEB 11 16:58:20 2007 UTC Last Boot Index Version: N/A Last Boot Index Header : # TiMOS-B-0.0.I1042 both/i386 Alcatel-Lucent SR 7450 Copyright (c) 2000-2007 Alcatel-Lucent. # All rights reserved. All use subject to applicable license agreements.

  • Page 317: Table 31: Show System Security Access-Group Output Fields

    ------------------------------------------------------------------------------- No. of Access Groups: 8 =============================================================================== A:ALA-1# A:ALA-1# show system security access-group detail 7450 ESS System Mangement Guide Page 317...
  • Page 318 The number of attempts to retry contacting the server. retry count The administrative status of the RADIUS protocol operation. radius admin sta- The administrative status of the TACACS+ protocol operation. tacplus admin sta- Page 318 7450 ESS System Mangement Guide...
  • Page 319 Displays the maximum number of unsuccessful login attempts allowed Number of invalid for a user. attempts permit- ted per login Displays the time in minutes that user is to be locked out. Time in minutes per login attempt 7450 ESS System Mangement Guide Page 319...
  • Page 320 Minimum password length =============================================================================== A:ALA-48>show>system>security# per-peer-queuing Syntax per-peer-queuing Context show>system>security Description This command displays displays the number of queues in use by the Qchip, which in turn is used by PPQ, CPM filter, SAP, etc. Page 320 7450 ESS System Mangement Guide...
  • Page 321 Displays the number of CPM hardware queues that are in use. Num of Queues In Sample Output A:ALA-48>show>system>security# per-peer-queuing ================================================= CPM Hardware Queuing ================================================= Per Peer Queuing : Enabled Total Num of Queues : 8192 Num of Queues In Use ================================================= A:ALA-48>show>system>security# 7450 ESS System Mangement Guide Page 321...
  • Page 322 — The action to be taken when an entry matches the command. 10 - 80 — Each entry represents the configuration for a system Entry user. A text string describing the entry. Description Page 322 7450 ESS System Mangement Guide...
  • Page 323 Match Command: Action : unknown =============================================================================== User Profile : default Def. Action : none ------------------------------------------------------------------------------- Entry : 10 Description Match Command: exec Action : permit ------------------------------------------------------------------------------- Entry : 20 Description Match Command: exit 7450 ESS System Mangement Guide Page 323...
  • Page 324 IP address list and validation failure counters. Output Community Ouput — The following table describes the community output fields. Page 324 7450 ESS System Mangement Guide...

  • Page 325: Table 32: Show Community Output Fields

    ------------------------------------------------------------------------------ No. of Communities: 6 ============================================================================== A:ALA-1# A:ALA-1# show system security snmp community "my-public2" ============================================================================== 7450 ESS System Mangement Guide Page 325...

  • Page 326: Table 33: Show Source Access List Output Fields

    The total number of source access lists displayed. Total Access Lists A:ALA-1# show system security snmp src-access-list ============================================================================= Source Access Lists ============================================================================= List Name HostName Host Address ----------------------------------------------------------------------------- 100.100.100.1 100.100.100.2 100.100.101.1 100.100.101.2 ----------------------------------------------------------------------------- Total Access Lists: 2 ============================================================================= A:ALA-1# Page 326 7450 ESS System Mangement Guide...

  • Page 327: Table 34: Show Ssh Output Fields

    The name of the user. Username The total number of SSH sessions. Number of SSH sessions Sample output # show system security ssh A:ALA-7 SSH is enabled 7450 ESS System Mangement Guide Page 327...
  • Page 328 Key fingerprint: 34:00:f4:97:05:71:aa:b1:63:99:dc:17:11:73:43:83 ======================================================= Connection Encryption Username ======================================================= 192.168.5.218 3des admin ------------------------------------------------------- Number of SSH sessions : 1 ======================================================= ALA-7# A:ALA-49>config>system>security# show system security ssh SSH is disabled A:ALA-49>config>system>security# Page 328 7450 ESS System Mangement Guide...

  • Page 329: Table 35: Show User Output Fields

    A:ALA-1# show system security user =============================================================================== Users =============================================================================== user id need user permissions password attempted failed local new pwd console ftp snmp expires logins logins conf ------------------------------------------------------------------------------- admin never testuser never ------------------------------------------------------------------------------- Number of users : 2 7450 ESS System Mangement Guide Page 329...

  • Page 330: Table 36: Show System Security View Output Fields

    A:ALA-1# show system security view =============================================================================== Views =============================================================================== view name oid tree mask permission ------------------------------------------------------------------------------- included no-security included no-security 1.3.6.1.6.3 excluded no-security 1.3.6.1.6.3.10.2.1 included no-security 1.3.6.1.6.3.11.2.1 included no-security 1.3.6.1.6.3.15.1.1 included ------------------------------------------------------------------------------- No. of Views: 6 =============================================================================== A:ALA-1# Page 330 7450 ESS System Mangement Guide...
  • Page 331 ------------------------------------------------------------------------------- no-security included no-security 1.3.6.1.6.3 excluded no-security 1.3.6.1.6.3.10.2.1 included no-security 1.3.6.1.6.3.11.2.1 included no-security 1.3.6.1.6.3.15.1.1 included ------------------------------------------------------------------------------- No. of Views: 5 =============================================================================== ======================================= no-security used in ======================================= group name --------------------------------------- snmp-ro snmp-rw ======================================= A:ALA-1# 7450 ESS System Mangement Guide Page 331...
  • Page 332 Page 332 7450 ESS System Mangement Guide...

  • Page 333: In This Chapter

    Establishing a NETCONF Session on page 351 → XML Content Layer on page 352 → XML Content Layer Examples on page 359 → CLI Content Layer on page 362 → CLI Content Layer Examples on page 363 7450 ESS System Mangement Guide Page 333...

  • Page 334: Figure 8: Netconf Rpc Request

    NETCONF server in a request/response type of interaction. The SR OS NETCONF interface supports both configuration support and retrieval of operational information. NETCONF can be conceptually partitioned into four layers as described in RFC 6241. Page 334 7450 ESS System Mangement Guide...

  • Page 335: Figure 9: Netconf Layers (Rfc 6241)

    "admin rollback" commands are supported using a CLI content layer <cli-action> RPC. “bof”, “debug”, “tools”, and other general CLI operational commands (e.g. “telnet” or “ping”) are not supported via NETCONF. The SR OS NETCONF server advertises base capability 1.1 (in addition to 1.0). 7450 ESS System Mangement Guide Page 335...

  • Page 336: Yang Data Models

    YANG Data Models The SR OS NETCONF XML content layer configuration schema is described in a set of Alcatel-Lucent proprietary YANG modules. The configuration modules are advertised in the SR OS NETCONF server hello. The configuration YANG data model closely aligns to the SR OS CLI configuration tree structure and commands.

  • Page 337: Netconf Operations

    <close-session> • <kill-session> The <lock> and <unlock> base protocol operations are not supported. The <error-option> is not supported. SR OS implements the stop-on-error behavior by default. The continue-on-error and rollback-on-error are not supported. 7450 ESS System Mangement Guide Page 337...
  • Page 338 <rpc-reply message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <data xmlns="urn:alcatel-lucent.com:sros:ns:yang:cli-content-layer-r13"> <oper-data-format-cli-block> <item> <cli-show>router interface "system"</cli-show> <response> =============================================================================== Interface Table (Router: Base) =============================================================================== Interface-Name Opr(v4/v6) Mode Port/SapId IP-Address PfxState ------------------------------------------------------------------------------- system Up/Down Network system 144.23.63.5/32 ------------------------------------------------------------------------------- Interfaces : 1 =============================================================================== </response> Page 338 7450 ESS System Mangement Guide...
  • Page 339 <source>=<startup> and <target>=<url> (as long as both are not remote urls) • <source>=<running> and <target>=<url> ∅ Equivalent of "admin save <file-url>" ∅ An index file is also saved if "persist on" is configured in the bof 7450 ESS System Mangement Guide Page 339...

  • Page 340: Datastores And Urls

    SR OS supports the <running> datastore, the <startup> datastore, and <url> tags (Note: <url> is not a datastore in itself). The <candidate> datastore is not supported. All configuration changes (<edit-config>) done to the <running> datastore via NETCONF take immediate operational effect. Page 340 7450 ESS System Mangement Guide...

  • Page 341: General Netconf Behavior

    Pressing Ctrl-C in a NETCONF request will immediately terminate the session. In the rpc tag, the only allowable namespace or prefix declaration is for the standard NETCONF “urn:ietf:params:xml:ns:netconf:base:1.0” namespace. If any other namespace is 7450 ESS System Mangement Guide Page 341...
  • Page 342 <router-name>Base</router-name> <interface> <interface-name>system</interface-name> <address> <ip-address-mask>144.23.63.5/32</ip-address-mask> </address> <shutdown>false</shutdown> </interface> </router> </configure> </data> </rpc-reply> ]]>]]> Example 2 — A non-standard NETCONF namespace defined in the rpc tag: <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" xmlns:alu="urn:alcatel-lucent.com:sros:ns:yang:conf-r13"> <get-config> Page 342 7450 ESS System Mangement Guide...
  • Page 343 <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" xmlns:alu="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> <source> <running/> </source> <filter> <configure> <router> <interface xmlns:alu="urn:alcatel-lucent.com:sros:ns:yang:conf-r13"> <interface-name>"system"</interface-name> </interface> </router> </configure> </filter> </get-config> </rpc> ]]>]]> Reply (non-standard namespace used in tag is ignored): 7450 ESS System Mangement Guide Page 343...
  • Page 344 </router> </configure> </filter> </get-config> </rpc> ]]>]]> Reply (non-standard namespace/prefix used in tag is ignored): <?xml version="1.0" encoding="UTF-8"?> <rpc-reply message-id="101" xmlns:alu="urn:ietf:params:xml:ns:netconf:base:1.0" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <data> <configure xmlns="urn:alcatel-lucent.com:sros:ns:yang:conf-r13"> <router> <router-name>Base</router-name> <interface> <interface-name>system</interface-name> <address> <ip-address-mask>144.23.63.5/32</ip-address-mask> </address> <shutdown>false</shutdown> </interface> Page 344 7450 ESS System Mangement Guide...
  • Page 345 <capability>urn:ietf:params:netconf:capability:with-defaults:1.0?basic-mode=trim</ capability> Pseudo-transactional capabilities are supported. A user can save a rollback checkpoint (for example, prior to doing an <edit-config> or a series of <edit-config>) and perform a rollback revert if needed later. 7450 ESS System Mangement Guide Page 345...
  • Page 346 "system" no shutdown exit exit exit exit ---------------------------------------------- Finished in 0.720 s </response> </item> <item> <admin>rollback compare</admin> <response> 0.160 s 0.070 s ---------------------------------------------- configure router mpls shutdown interface "system" no shutdown Page 346 7450 ESS System Mangement Guide...
  • Page 347 <admin>rollback compare active-cfg to 1</admin> <admin>rollback compare flee-fly</admin> </cli-action> </rpc> ]]>]]> Reply: <?xml version="1.0" encoding="UTF-8"?> <rpc-reply message-id="103" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <rpc-error> <error-type>application</error-type> <error-tag>operation-failed</error-tag> <error-severity>error</error-severity> <error-info> <err-element>admin</err-element> </error-info> <error-message> command failed - '/admin rollback compare flee-fly' </error-message> </rpc-error> 7450 ESS System Mangement Guide Page 347...
  • Page 348 "system" no shutdown exit exit exit exit ---------------------------------------------- Finished in 0.460 s </response> </item> <item> <admin>rollback compare 1 to flee-fly</admin> <response> </response> <rpc-error> <error-type>application</error-type> <error-tag>operation-failed</error-tag> <error-severity>error</error-severity> <error-info> <err-element>admin</err-element> Page 348 7450 ESS System Mangement Guide...
  • Page 349 0.170 s 1.350 s ---------------------------------------------- configure router mpls shutdown interface "system" no shutdown exit exit rsvp shutdown interface "system" no shutdown exit exit exit exit ---------------------------------------------- Finished in 1.640 s </response> </item> <item> 7450 ESS System Mangement Guide Page 349...
  • Page 350 Config system security snmp view no-security-view … Config system security snmp access group xyz (a set of access groups) Config system security ssh client-cipher-list protocol-version 1 cipher 200-210 Config system security ssh client-cipher-list protocol-version 2 cipher 190-235 Page 350 7450 ESS System Mangement Guide...

  • Page 351: Establishing A Netconf Session

    NETCONF server. The SSH session must be invoked using an SSH subsystem (as recommended in RFC 6242): ssh -s my_username@192.168.0.92 -p 830 netconf The following example shows an exchange of hello messages which include advertisement of capabilities. From the SR OS server: <?xml version="1.0" encoding="UTF-8"?> 7450 ESS System Mangement Guide Page 351...

  • Page 352: Xml Content Layer

    XML format at the NETCONF content layer, configuration changes and configuration information retrieved are expressed as XML tags. The XML formatted configuration information must be correctly ordered and has the same dependencies and behavior as the equivalent CLI commands. Page 352 7450 ESS System Mangement Guide...

  • Page 353: Edit-Config> With Xml Content Layer

    The delete operation is not aware of the default value of the object/leaf being deleted. • A delete or remove for a leaf, where the request also specifies a value for the leaf, will result in an error. 7450 ESS System Mangement Guide Page 353...

  • Page 354: Get-Config> With Xml Content Layer

    CLI to be deleted before removing vpls 11, then the deletion request above will fail. All configured children must be specified in the delete request. <get-config> with XML Content Layer Page 354 7450 ESS System Mangement Guide...
  • Page 355 Example 1 — The following request will return an error: <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> <source> <running/> </source> <filter> <configure> <router> <interface> <interface-name>abc</interface-name> <delayed-enable>30</delayed-enable> </interface> </router> </configure> </filter> </get-config> </rpc> ]]>]]> Reply: <?xml version="1.0" encoding="UTF-8"?> <rpc-reply message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <rpc-error> 7450 ESS System Mangement Guide Page 355...
  • Page 356 </filter> </get-config> </rpc> ]]>]]> Example 3 — A valid <get-config> request (selection node that is a container): <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> <source> <running/> </source> <filter> <configure> <router/> </configure> </filter> </get-config> Page 356 7450 ESS System Mangement Guide...
  • Page 357 - 'configure router interface' </error-message> </rpc-error> </rpc-reply> ]]>]]> Example 5 — An invalid <get-config> request (empty leaf node - invalid selection node): <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> <source> <running/> </source> <filter> <configure> <system> <security> 7450 ESS System Mangement Guide Page 357...
  • Page 358 Example 6 — An invalid <get-config> request (key repeated in the same instance of the list node): <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> <source> <running/> </source> <filter> <configure> <router> <interface> <interface-name>abc</interface-name> <interface-name>def</interface-name> </interface> </router> </configure> </filter> </get-config> </rpc> ]]>]]> Reply: <?xml version="1.0" encoding="UTF-8"?> <rpc-reply message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <rpc-error> Page 358 7450 ESS System Mangement Guide...

  • Page 359: Xml Content Layer Examples

    <hello> messages. Below is an example of a <get-config> request and response to check on whether netconf is shut down or not on the router: <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> 7450 ESS System Mangement Guide Page 359...
  • Page 360 Below is an example of a <edit-config> request and response to create a basic VPRN service: <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <edit-config> <target> <running/> </target> <config> <configure> <service> <vprn operation="create"> <service-id>200</service-id> <customer>1</customer> </vprn> </service> </configure> </config> </edit-config> </rpc> ]]>]]> Reply: <?xml version="1.0" encoding="UTF-8"?> <rpc-reply message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> Page 360 7450 ESS System Mangement Guide...
  • Page 361 <error-severity>error</error-severity> <error-info> <err-element>edit-config</err-element> </error-info> <error-message> command failed - 'configure service vprn "201" customer 1 interface "test" sap "2/1/1"' MINOR: CLI SAP-id has an invalid port number or encapsulation value. </error-message> </rpc-error> </rpc-reply> ]]>]]> 7450 ESS System Mangement Guide Page 361...

  • Page 362: Cli Content Layer

    Post-processing commands are ignored: "| match" (pipe match), "| count" (pipe count) and ">" (redirect to file) and CLI ranges are not supported for any command; for example, show card [1..5]. For more information, see "CLI Content Layer Examples". Page 362 7450 ESS System Mangement Guide...

  • Page 363: Cli Content Layer Examples

    Below is an example of a <get-config> request and response to retrieve configuration information: <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get-config> <source> <running/> </source> <filter> <config-format-cli-block> <cli-info>router</cli-info> <cli-info-detail>system login-control</cli-info-detail> </config-format-cli-block> </filter> </get-config> </rpc> ]]>]]> 7450 ESS System Mangement Guide Page 363...

  • Page 364: Default Settings

    </config-format-cli-block> </data> </rpc-reply> ]]>]]> Below is an example of a <get-config> request and response to retrieve full configuration information. Note that <cli-info-detail/> can be used to get the full configuration including default settings. Page 364 7450 ESS System Mangement Guide...
  • Page 365 <item> <cli-info></cli-info> <response> # TiMOS-C-0.0.I4301 cpm/x86_64 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent. # All rights reserved. All use subject to applicable license agreements. # Built on Sun Jan 4 19:11:11 PST 2015 by builder in /rel0.0/I4301/panos/main # Generated WED JAN 07 01:07:43 2015 UTC...
  • Page 366 </data> </rpc-reply> ]]>]]> Below is an example of a <get> request and the response to it: <?xml version="1.0" encoding="UTF-8"?> <rpc message-id="101" xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"> <get> <filter> <oper-data-format-cli-block> <cli-show>system security ssh</cli-show> </oper-data-format-cli-block> </filter> </get> </rpc> ]]>]]> Page 366 7450 ESS System Mangement Guide...
  • Page 367 RSA Host Key Fingerprint : 49:7c:21:97:42:35:83:61:06:95:cd:a8:78:4c:1e:76 ------------------------------------------------------------------------------- Connection Username Version Cipher ServerName Status ------------------------------------------------------------------------------- 135.121.143.254 admin aes128-cbc netconf connected ------------------------------------------------------------------------------- Number of SSH sessions : 1 =============================================================================== </response> </item> </oper-data-format-cli-block> </data> </rpc-reply> ]]>]]> 7450 ESS System Mangement Guide Page 367...
  • Page 368 CLI Content Layer Examples Page 368 7450 ESS System Mangement Guide...

  • Page 369: Netconf Command Reference

    — security — user user-id — access [ftp] [snmp] [console] [li][netconf] config — system — security — profile profile-id — netconf — base-op-authorization —[no] kill-session Show Commands show — system — netconf — counters 7450 ESS System Mangement Guide Page 369...
  • Page 370 Command Hierarchies Page 370 7450 ESS System Mangement Guide...
  • Page 371 NETCONF sessions. Use the “admin disconnect” command to disconnect all NETCONF sessions before shutting down the NETCONF service. base-op-authorization Syntax base-op-authorization Context config>system>security>profile>netconf Description This command authorizes a user associated with the profile to send a <kill-session> NETCONF operation. 7450 ESS System Mangement Guide Page 371...
  • Page 372 NETCONF System Commands Page 372 7450 ESS System Mangement Guide...
  • Page 373 The IP address of the connected router(s) (remote client). Connection The name of the user. Username The NETCONF session ID. Session ID Connected or not connected. Status Total NETCONF sessions Number of sessions 7450 ESS System Mangement Guide Page 373...
  • Page 374 SSH Options Output — The following table describes NETCONF counter output fields . Label Description RX Messages Types and numbers of receive messages Total RX Total of all receive messages TX Messages Types and numbers of send messages Total TX Total of all send messages Page 374 7450 ESS System Mangement Guide...
  • Page 375 *A:bksim3107# show system netconf counters ============================================================================== NETCONF counters: ============================================================================== Rx Messages ------------------------------------------------------------------------------ in gets in get-configs in edit-configs in close-sessions in kill-sessions ------------------------------------------------------------------------------ Rx Total ============================================================================== Tx Messages ------------------------------------------------------------------------------ out rpc-errors ------------------------------------------------------------------------------ Tx Total ============================================================================== 7450 ESS System Mangement Guide Page 375...
  • Page 376 NETCONF System Commands Page 376 7450 ESS System Mangement Guide...

  • Page 377: Event And Accounting Logs

    Event Handling System on page 394 • Accounting Logs on page 396 → Accounting Records on page 396 → Accounting Files on page 412 → Design Considerations on page 412 • Configuration Notes on page 418 7450 ESS System Mangement Guide Page 377...

  • Page 378: Table 37: Event Severity Levels

    Events that are suppressed by event control will not generate any event log entries. Event control maintains a count of the number of events generated (logged) and dropped (suppressed) for each application event. The severity of an application event can be configured in event control. Page 378 7450 ESS System Mangement Guide...
  • Page 379 The only supported destination for an accounting log is a compact flash system device (cf1or cf2). Accounting data is stored within a standard directory structure on the device in compressed XML format. 7450 ESS System Mangement Guide Page 379...

  • Page 380: Memory Logs

    When a memory log is created, the specific number of entries it can hold can be specified, otherwise it will assume a default size. An event log can send entries to a memory log destination. Page 380 7450 ESS System Mangement Guide...

  • Page 381: Log Files

    24-hour clock (for example, 04 for 4 a.m.) mm is the two digit minute (for example, 30 for 30 minutes past the hour) ss is the two digit second (for example, 14 for 14 seconds) 7450 ESS System Mangement Guide Page 381...
  • Page 382 The \act-collect directory is where active accounting logs are written. When an accounting log is rolled over, the active file is closed and archived in the \act directory before a new active accounting log file created in \act-collect. Page 382 7450 ESS System Mangement Guide...

  • Page 383: Snmp Trap Group

    The UDP port used to send the syslog message. • The Syslog Facility Code (0 - 23) (default 23 - local 7). • The Syslog Severity Threshold (0 - 7) - events exceeding the configured level will be sent. 7450 ESS System Mangement Guide Page 383...

  • Page 384: Table 38: Router To Syslog Severity Level Mappings

    System is unusable alert Action must be taken immediately critical Critical conditions error Error conditions warning Warning conditions notice Normal but significant condition 1 cleared info Informational messages 2 indeterminate debug Debug-level messages Page 384 7450 ESS System Mangement Guide...

  • Page 385: Figure 10: Event Logging Block Diagram

    Main Log Manager Filter Policy Log Destination Security Console Logs Session Memory File Change Trap Group Syslog Debug = Different Events = Event with Severity Marked CLI0001B Figure 10: Event Logging Block Diagram 7450 ESS System Mangement Guide Page 385...

  • Page 386: Event Sources

    *A:ALA-48# show log applications ================================== Log Event Application Names ================================== Application Name ---------------------------------- CCAG CFLOWD CHASSIS MPLS MSDP USER VRRP VRTR ================================== *A:ALA-48# Page 386 7450 ESS System Mangement Guide...

  • Page 387: Event Control

    2001 cardFailure 2002 cardInserted 2003 cardRemoved CPMHWFILTER: DHCP: 2001 sdpTlsDHCPSuspiciousPcktRcvd 2002 sapTlsDHCPLseStEntriesExceeded 2003 sapTlsDHCPLeaseStateOverride DEBUG: 2001 traceEvent DOT1X: FILTER: 2001 filterPBRPacketsDropped IGMP_SNOOPING: 2001 clearRTMError 2002 ipEtherBroadcast 2003 ipDuplicateAddress ISIS: 2001 vRtrIsisDatabaseOverload 2002 vRtrIsisManualAddressDrops 7450 ESS System Mangement Guide Page 387...
  • Page 388 2001 DynamicCostOn 2002 DynamicCostOff 2003 LagPortAddFailed LDP: 2001 vRtrLdpStateChange 2002 vRtrLdpInstanceStateChange 2003 vRtrLdpIfStateChange LOGGER: 2001 STARTED 2002 traceErrorEvent 2005 tmnxLogSpaceContention MIRROR: 2001 sourceEnabled 2002 sourceDisabled 2003 destinationEnabled MPLS: 2001 mplsXCUp 2002 mplsXCDown 2003 mplsTunnelUp Page 388 7450 ESS System Mangement Guide...

  • Page 389: Log Manager And Event Logs

    • An optional event filter policy An event filter policy defines whether to forward or drop an event or trap-based on match criteria. 7450 ESS System Mangement Guide Page 389...

  • Page 390: Table 39: Valid Filter Policy Operators

    The log manager uses event filter policies to allow fine control over which events are forwarded or dropped based on various criteria. Like other policies with the 7450 ESS, filter policies have a default action. The default actions are either: •...

  • Page 391: Table 40: Log Entry Field Descriptions

    The UTC date stamp for the log entry. YYYY/MM/DD YYYY — Year MM — Month DD — Date The UTC time stamp for the event. HH:MM:SS.SS HH — Hours (24 hour format) MM — Minutes SS.SS — Seconds 7450 ESS System Mangement Guide Page 391...
  • Page 392 The application’s event ID number for the event. <event_id> The router name representing the VRF-ID that generated the event. <router> The subject/affected object for the event. <subject> A text description of the event. <description> Page 392 7450 ESS System Mangement Guide...

  • Page 393: Simple Logger Event Throttling

    Throttle rate applies commonly to all event types. It is not configurable for a specific event-type. A timer task checks for events dropped by throttling when the throttle interval expires. If any events have been dropped, a TIMETRA-SYSTEM-MIB::tmnxTrapDropped notification is sent. 7450 ESS System Mangement Guide Page 393...

  • Page 394: Default System Log

    Any command available in CLI (with some limited exceptions such as 'candidate' commands) can be executed in a script as the result of an EHS handler being triggered. The following figure illustrates the relationships between the different configurable objects used by EHS (and CRON). Page 394 7450 ESS System Mangement Guide...

  • Page 395: Figure 11: Ehs Object Relationships

    EHS will trigger on log events that are dropped by user configured log filters that are assigned to individual logs (config>log>filter). The EHS event trigger logic occurs before the distribution of log event streams into individual logs. 7450 ESS System Mangement Guide Page 395...

  • Page 396: Table 41: Accounting Record Name And Collection Periods

    & cmSeo complete-network-ingr-egr cpNipo & cpNepo Network port complete-service-ingress-egress cpSipo & cpSepo combined-sdp-ingress-egress cmSdpipo and SDP and SDP binding cmSdpepo complete-sdp-ingress-egress cmSdpipo, SDP and SDP binding cmSdpepo, cpSdpipo and cpSdpepo custom-record-aa-sub aaSubCustom AA subscriber Page 396 7450 ESS System Mangement Guide...

  • Page 397: Table 42: Accounting Record Name Details

    Each accounting record name is composed of one or more sub-records which is in turn composed of multiple fields. Refer to the Application Assurance Statistics Fields Generated per Record table in the 7450 ESS- Series OS Integrated Services Adapter Guide for fields names for Application Assurance records.
  • Page 398 SapId QueueId InProfilePktsForwarded InProfilePktsDropped OutOfProfilePktsForwarded OutOfProfilePktsDropped Network-ingress-octets (nio) port PortId QueueId InProfileOctetsForwarded InProfileOctetsDropped OutOfProfileOctetsForwarded OutOfProfileOctetsDropped Network-egress-octets (neo) port PortId QueueId InProfileOctetsForwarded InProfileOctetsDropped OutOfProfileOctetsForwarded OutOfProfileOctetsDropped Network-ingress-packets (nip) port PortId QueueId InProfilePktsForwarded InProfilePktsDropped OutOfProfilePktsForwarded OutOfProfilePktsDropped Page 398 7450 ESS System Mangement Guide...
  • Page 399 OutOfProfilePktsForwarded OutOfProfilePktsDropped Compact-service-ingress-octets (ctSio) ctSio SvcId SapId QueueId OfferedHiPrioOctets DroppedHiPrioOctets LowOctetsOffered LowOctetsDropped UncoloredOctetsOffered Combined-service-ingress (cmSipo) cmSipo SvcId SapId QueueId HighPktsOffered HighPktsDropped LowPktsOffered LowPktsDropped UncoloredPacketsOffered OfferedHiPrioOctets DroppedHiPrioOctets LowOctetsOffered LowOctetsDropped UncoloredOctetsOffered InProfilePktsForwarded OutOfProfilePktsForwarded InProfileOctetsForwarded OutOfProfileOctetsForwarded 7450 ESS System Mangement Guide Page 399...
  • Page 400 OutOfProfileOctetsForwarded OutOfProfileOctetsDropped cmNeo port PortId QueueId InProfileOctetsForwarded InProfileOctetsDropped OutOfProfileOctetsForwarded OutOfProfileOctetsDropped Combined-service-ingr-egr-octets cmSio SvcId (cmSio & CmSeo) SapId QueueId OfferedHiPrioOctets DroppedHiPrioOctets LowOctetsOffered LowOctetsDropped UncoloredOctetsOffered InProfileOctetsForwarded OutOfProfileOctetsForwarded cmSeo SvcId SapId QueueId InProfileOctetsForwarded InProfileOctetsDropped OutOfProfileOctetsForwarded OutOfProfileOctetsDropped Page 400 7450 ESS System Mangement Guide...
  • Page 401 Record Name Sub-Record Field Field Description Complete-network-ingr-egr cpNipo port PortId (cpNipo & cpNepo) QueueId InProfilePktsForwarded InProfilePktsDropped OutOfProfilePktsForwarded OutOfProfilePktsDropped InProfileOctetsForwarded InProfileOctetsDropped OutOfProfileOctetsForwarded OutOfProfileOctetsDropped cpNepo port PortId QueueId InProfilePktsForwarded InProfilePktsDropped OutOfProfilePktsForwarded OutOfProfilePktsDropped InProfileOctetsForwarded InProfileOctetsDropped OutOfProfileOctetsForwarded OutOfProfileOctetsDropped 7450 ESS System Mangement Guide Page 401...
  • Page 402 LowOctetsOffered LowOctetsDropped UncoloredOctetsOffered InProfilePktsForwarded OutOfProfilePktsForwarded InProfileOctetsForwarded OutOfProfileOctetsForwarded cpSepo SvcId SapId QueueId InProfilePktsForwarded InProfilePktsDropped OutOfProfilePktsForwarded OutOfProfilePktsDropped InProfileOctetsForwarded InProfileOctetsDropped OutOfProfileOctetsForwarded OutOfProfileOctetsDropped Complete-sdp-ingress-egress (cpSdpipo cpSdpipo SdpID & cpSdpepo) TotalPacketsForwarded TotalPacketsDropped TotalOctetsForwarded TotalOctetsDropped cpSdpepo SdpID TotalPacketsDropped TotalOctetsDropped Page 402 7450 ESS System Mangement Guide...
