Getting Started
1-8
MSO2000B, DPO2000B, MSO2000 and DPO2000 Series Oscilloscopes Programmer Manual

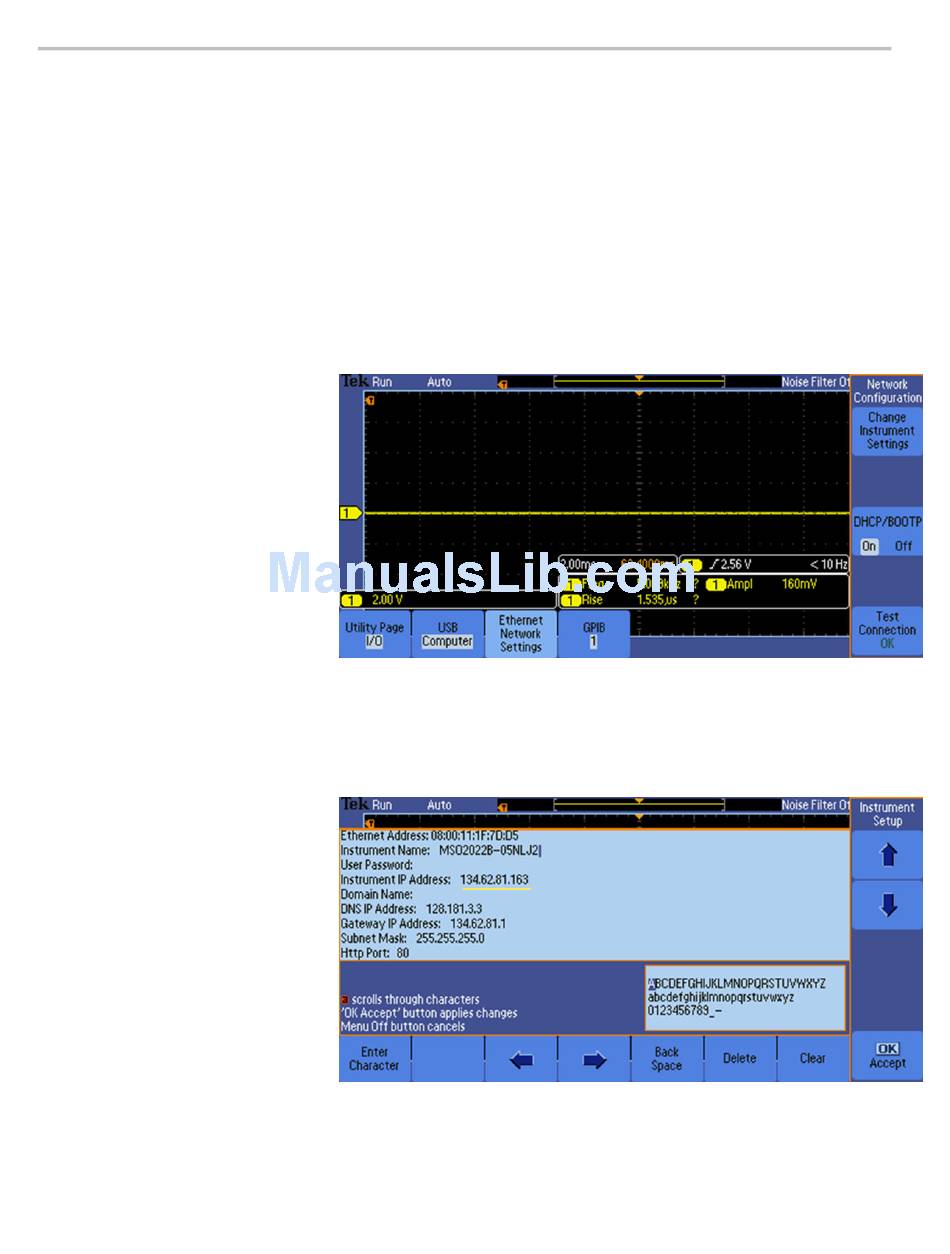

To set up e*Scope communications between your oscilloscope and a networked
computer:
1. With the DPO2CONN Connectivity Module installed, connect an Ethernet
cable from the back of the oscilloscope to the same network as your computer.
2. Power up your oscilloscope and test the network connection:
a. Push the Utility button, and then push Utility Page on the bottom menu.
b. Turn multipurpose knob a to select I/O, and then push Ethernet Network
Settings on the bottom menu.
c. Push Test Connection on the side menu. The button should say OK.
3. Next, find your oscilloscope's IP address:
a. Push Change Instrument Settings on the side menu to display the
network parameters configured on your oscilloscope.
b. Note down the Instrument IP address.
