Getting Started

Setting Up Remote Communications Hardware

Connecting via Ethernet

1-2
MSO2000B, DPO2000B, MSO2000 and DPO2000 Series Oscilloscopes Programmer Manual
DPO2022B – 200 MHz, 2 channel
You can remotely communicate between your oscilloscope and PC via Ethernet,
USB, or GPIB cables.
NOTE.

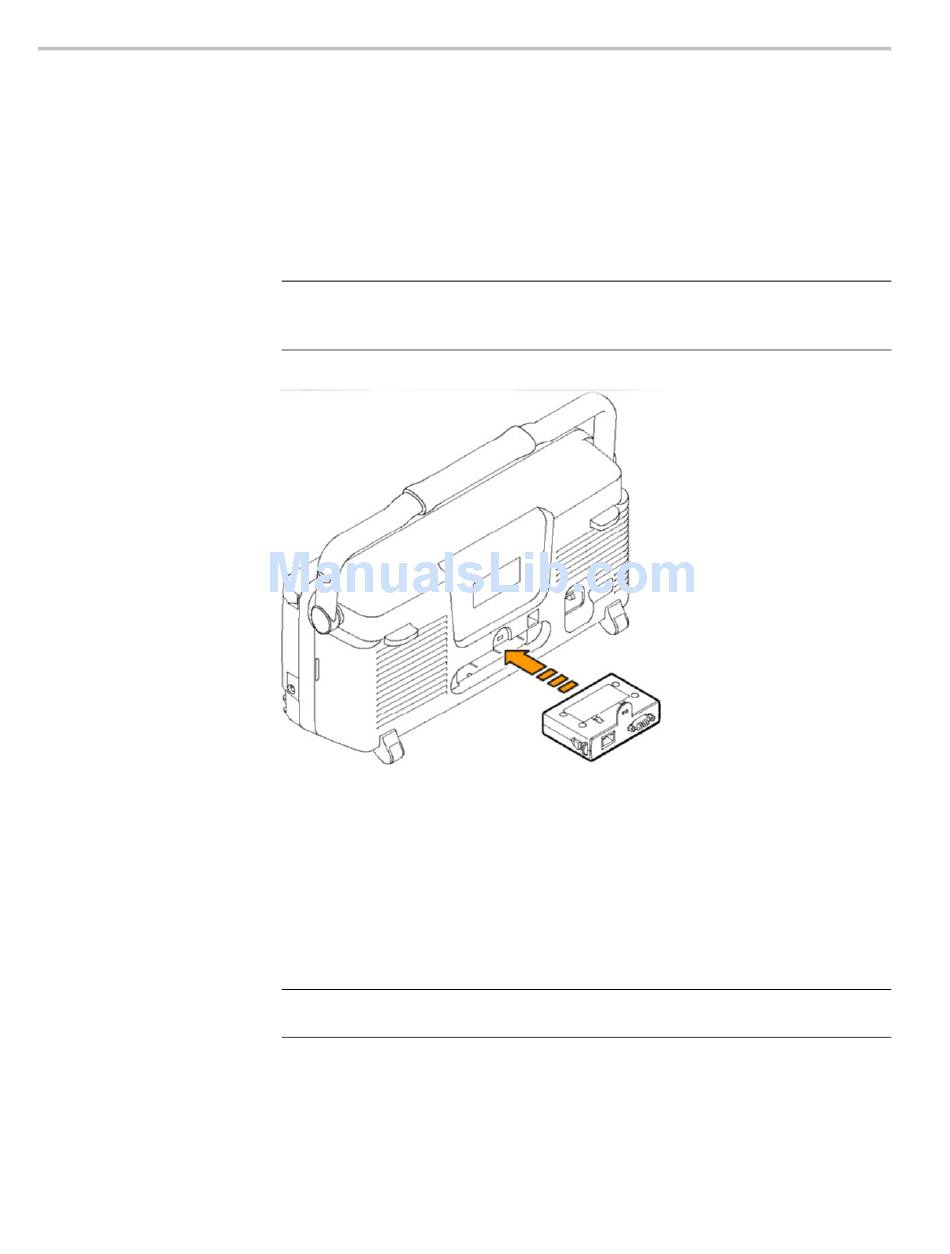

In order to communicate via an Ethernet cable, you need to install an
optional DPO2CONN Connectivity Module into the back of the instrument. This
module includes both Ethernet and VGA video monitor ports.
If your PC is connected to a local area network, you can use an Ethernet cable to
connect your oscilloscope to the same network, and then use software to remotely
control the oscilloscope via the PC. First, you'll need to acquire an optional
DPO2CONN Connectivity Module, which provides Ethernet and video out ports
for your oscilloscope (search on www.tektronix.com). Then, simply plug one end
of the Ethernet cable into the Ethernet port (RJ-45 connector), and the other end
into your network connection.
NOTE.
You can connect an MSO/DPO2000B oscilloscope only to a 10/100
Base-T local area network.
