Getting Started

Connecting via GPIB

1-4 MSO2000B, DPO2000B, MSO2000 and DPO2000 Series Oscilloscopes Programmer Manual
Table 1-2: USB Device Parameters
Parameter
Manufacturer ID
Product ID
Serial number
Manufacturer description
Interface description
The oscilloscope has a USB 2.0 high-speed device port to control the oscilloscope
through USBTMC or GPIB with a TEK-USB-488 Adapter. The USBTMC
protocol allows USB devices to communicate using IEEE488 style messages.
This lets you run your GPIB software applications on USB hardware.

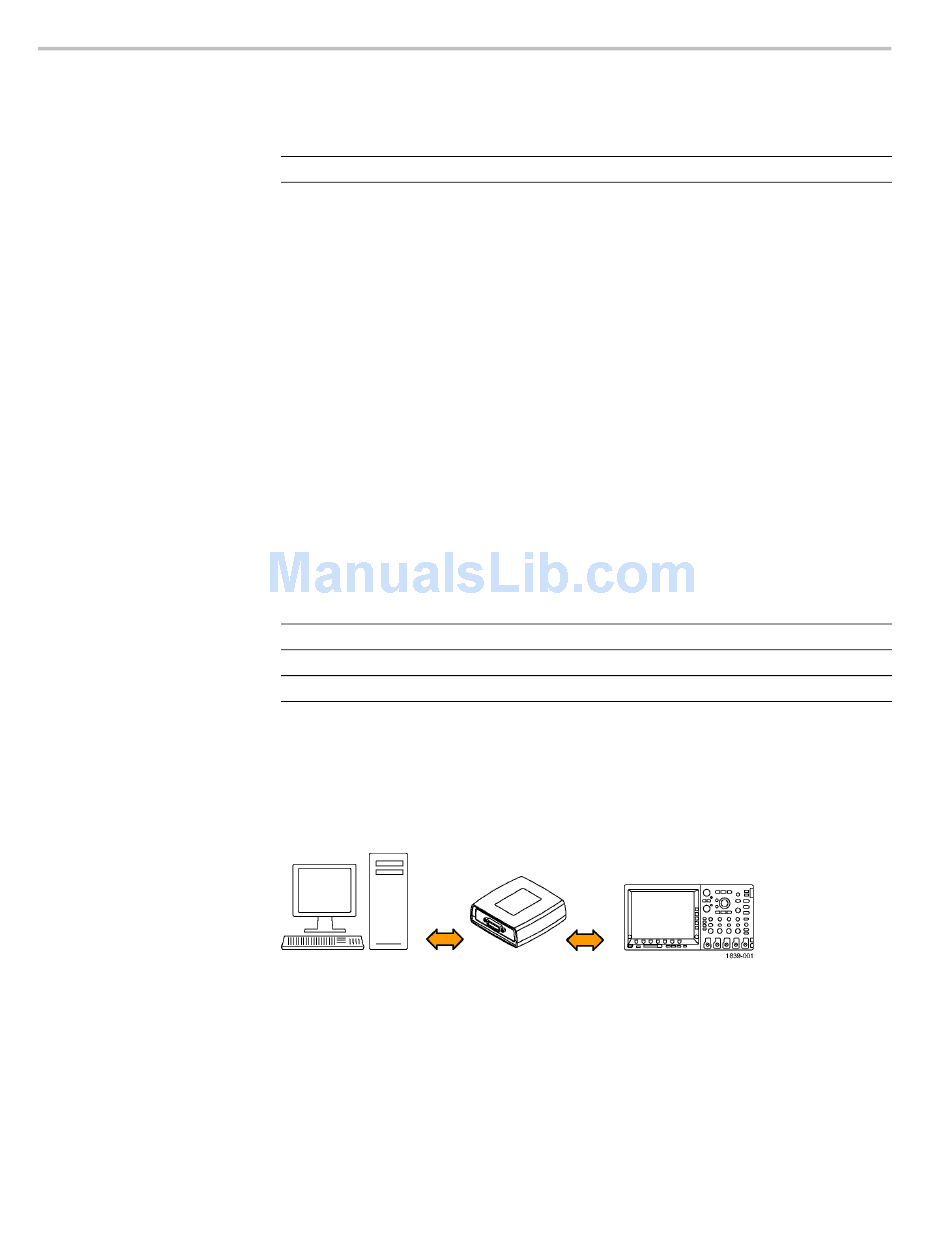

To use GPIB, start by connecting an appropriate USB cable to the USB 2.0
high-speed device port on the rear panel of your oscilloscope. Connect the other
end to the TEK-USB-488 Adapter host port. Then connect a GPIB cable from the
TEK-USB-488 Adapter to your PC.
Supply power to the Adapter in either of these two ways:
Value
0x0699 (decimal 1689)
0x399 DPO2002B (decimal 921)
0x39A MSO2002B (decimal 922)
0x39B DPO2004B (decimal 923)
0x39C MSO2004B (decimal 924)
0x39D DPO2012B (decimal 925)
0x39E MSO2012B (decimal 926)
0x39F DPO2014B (decimal 927)
0x3A0 MSO2014B (decimal 928)
0x3A1 DPO2022B (decimal 929)
0x3A2 MSO2022B (decimal 930)
0x3A3 DPO2024B (decimal 931)
0x3A4 MSO2024B (decimal 932)
0x0372 DPO2012
0x0373 DPO2014
0x0374 DPO2024
0x0376 MSO2012
0x0377 MSO2014
0x0378 MSO2024
Serial number
"Tektronix"
"USBTMC-USB488"
