Main Drive

Phaser 6180 Color Laser Printer Service Manual
The Main Drive provides drive energy to the following components:
■
Main Motor
The Main Motor provides drive energy for the Black Drum, Transfer Unit,
and Fuser.
■
Sub Motor
The Sub Motor provides drive energy for the Black Developer, Cyan,
Magenta, and Yellow Drums.
■ Developer Motor
The Developer Motor provides drive energy for the Cyan, Magenta, and
Yellow Developers.
■
Exit Clutch
The Exit Clutch transmits drive energy from the Main Motor to the Exit
Roll in the Fuser. When Duplex mode is in use, the Exit Clutch stops. The
Exit Roll is driven by the Duplex Motor.
■
Drive Assembly
The Drive Assembly provides drive energy for Tray 1 (MPT), Tray 2, and
Registration. The Tray 2 Motor is part of the Drive Assembly.
Note
Refer to "Mechanical Components" on page 2-56 for detailed diagrams.
Theory of Operation

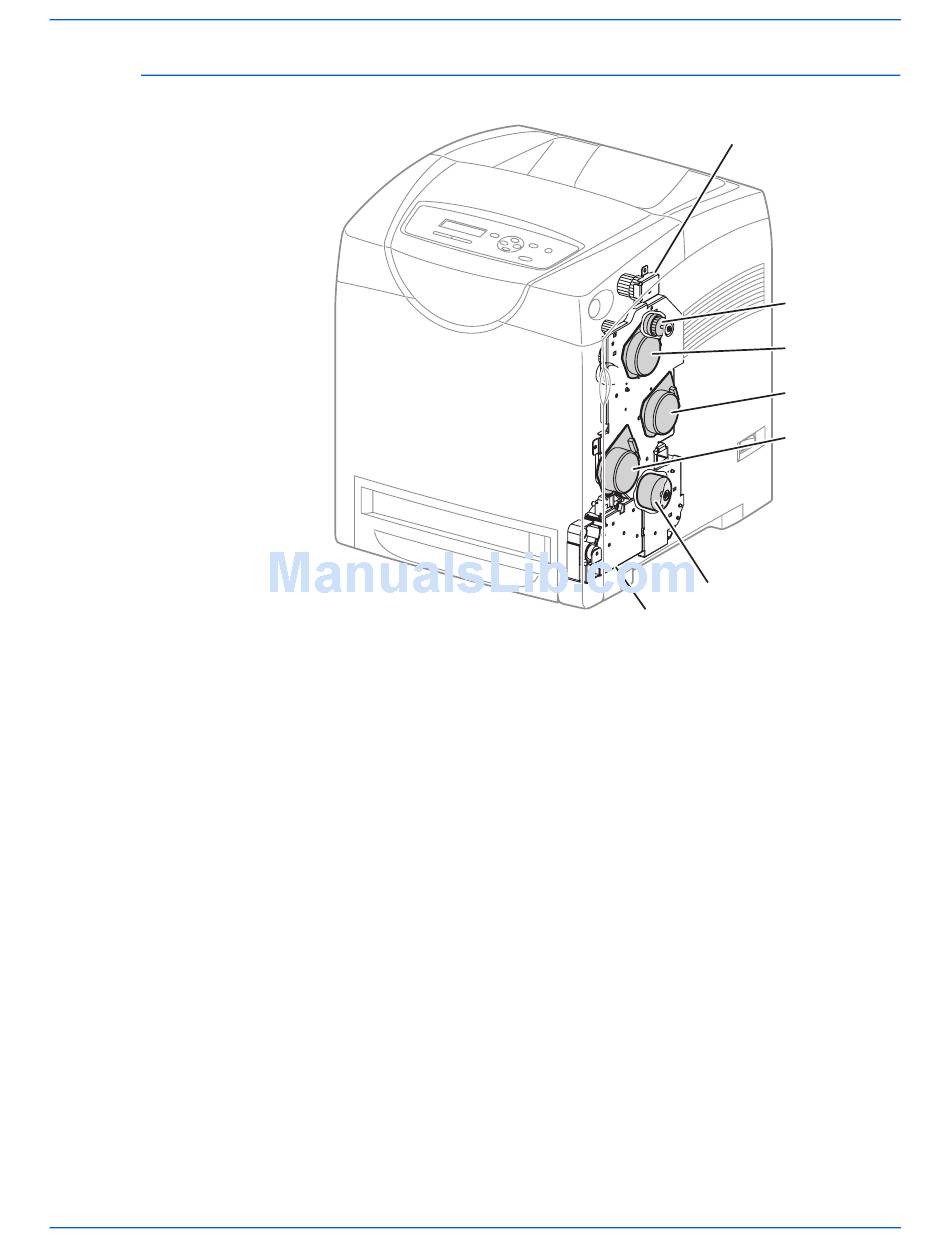

Main Drive
Exit Clutch
Main Motor
Sub Motor
Developer
Motor
Tray 2 Motor
Drive Assembly
s6180-281
2-35
