Left Tray Guide (PL7.1.19)
Phaser 6180 Color Laser Printer Service Manual
1.
Remove Tray 2.
2.
Remove the Rear Cover (page 8-11).
3.
Remove the Left Side Cover (page 8-13).
4.
Remove the Tray 2 Cover (page 8-17).
5.

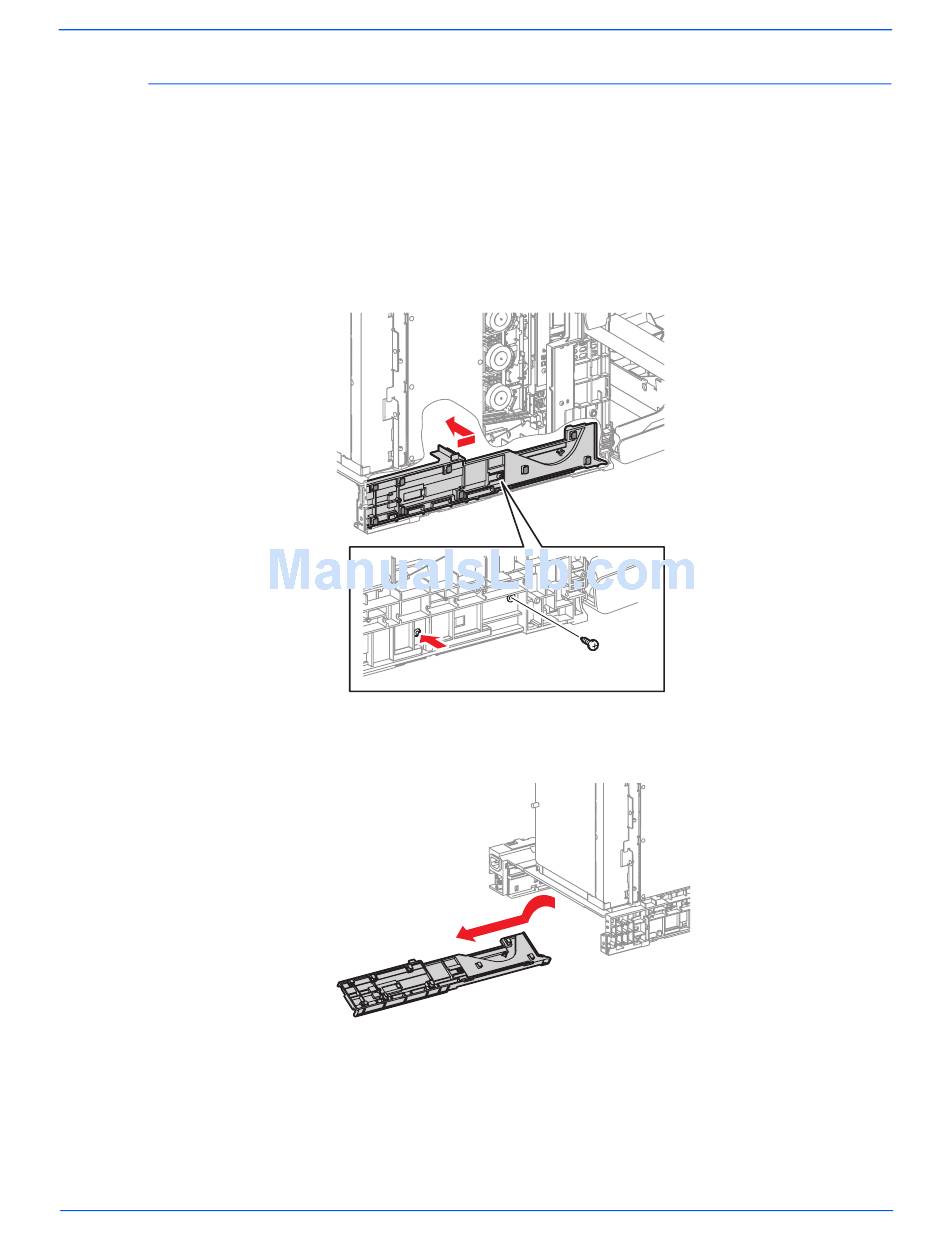

Remove 1 screw (8 mm, flanged) securing the Left Tray Guide (PL7.1.19)
to the printer.
6.
Shift the Left Tray Guide toward the front side while pushing the notch of
the Left Tray Guide and release 9 hooks from the printer.
7.
Push the Left Tray Guide down toward the inside and remove it from the
printer.
Service Parts Disassembly
s6180-209
s6180-210
71
