Tray 1 (MPT) Roll (PL3.1.8)
Phaser 6180 Color Laser Printer Service Manual
1.
Remove the Rear Cover (page 8-11).
2.
Remove the Right Side Cover (page 8-12).
3.
Remove the MPT Feed Spring (PL3.1.4).
4.

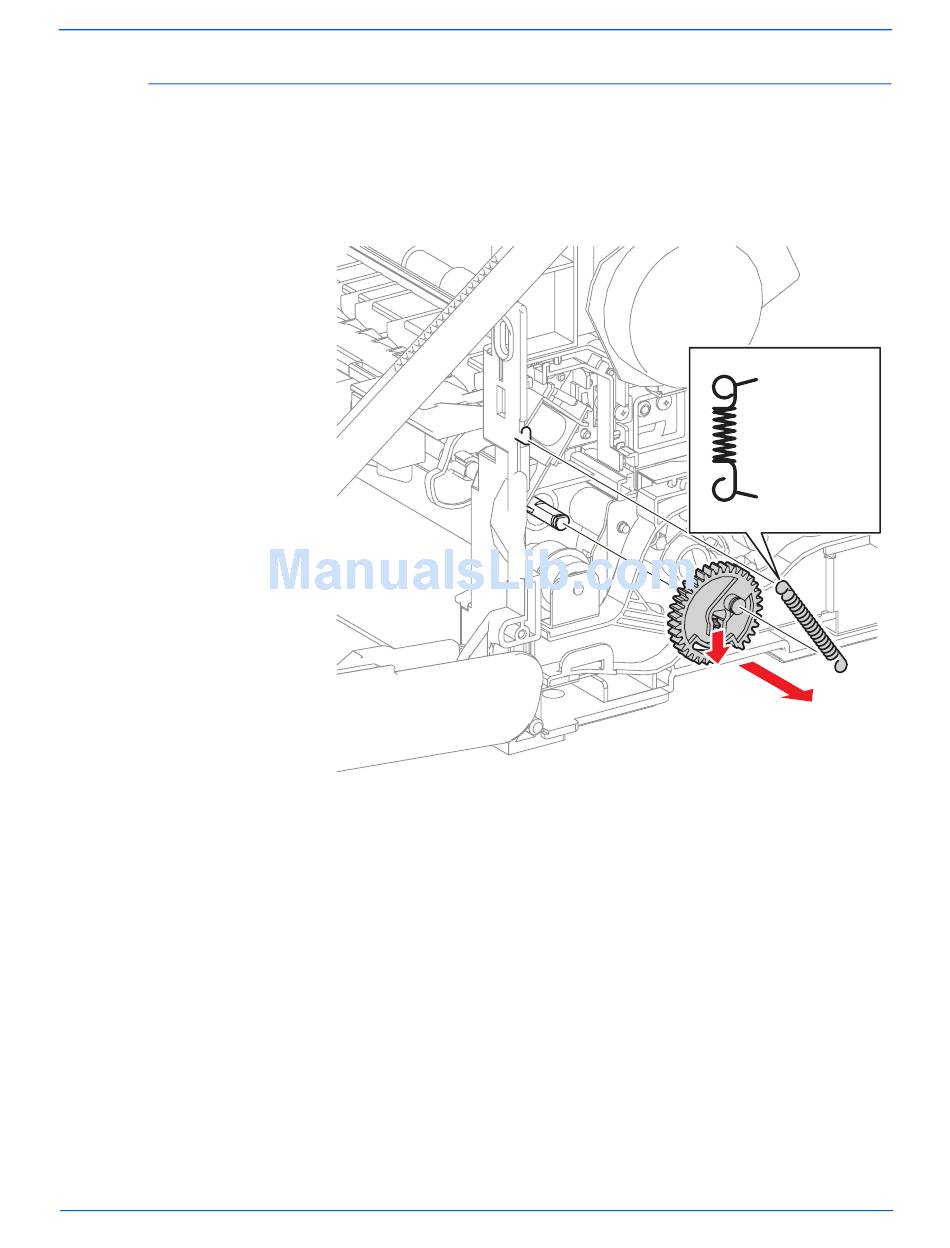

Release the hook of the MPT Gear (PL3.1.5) and remove the Gear from
the MPT Shaft (PL3.1.12).
Service Parts Disassembly
Printer Side
MPT Gear Side
s6180-022
37
