Theory of Operation

Phaser 6180 Printer Operational Overview

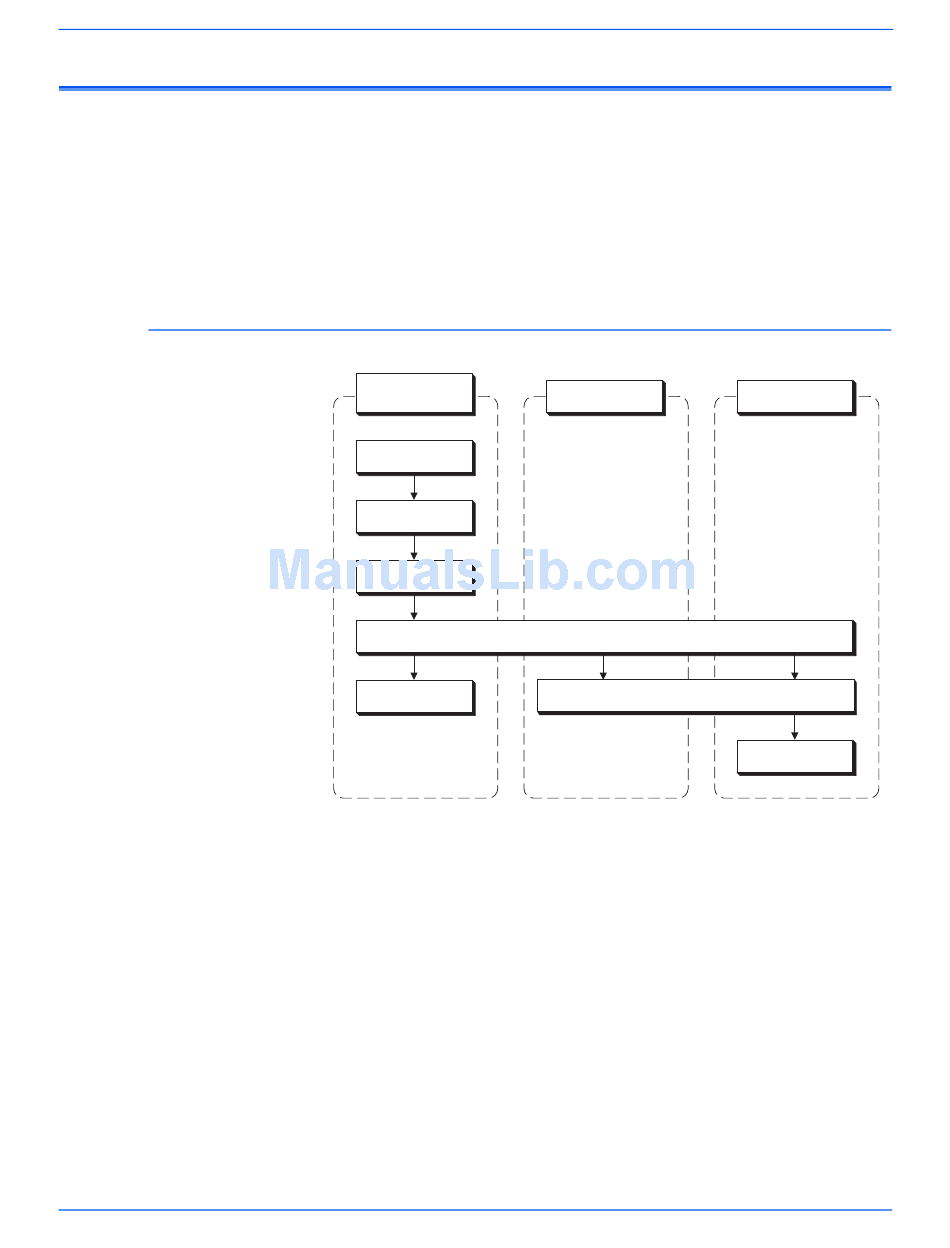

Print Process Block Diagram

2-2
The Phaser 6180 Color Laser Printer is a full-color laser printer that uses
Raster Output Scanner (ROS) lasers with an electrophotographic four-color
CMYK process. The tandem system consists of four color print cartridges (C,
M, Y, and K) which creates the toner image.
The following block diagram provides the sequence of events for the
xerographic process (dashed lines) and the paper flow (solid lines) into and
out of the Phaser 6180 Printer.
Print Cartridge
(C, M, Y, K)
(1) Charge
(2) Exposure
(3) Development
(5) Cleaning
Transfer Unit
(4) Transfer (Drum to Paper)
(6) Neutralization
Phaser 6180 Color Laser Printer Service Manual
Paper
(7) Fusing
s6180-133
