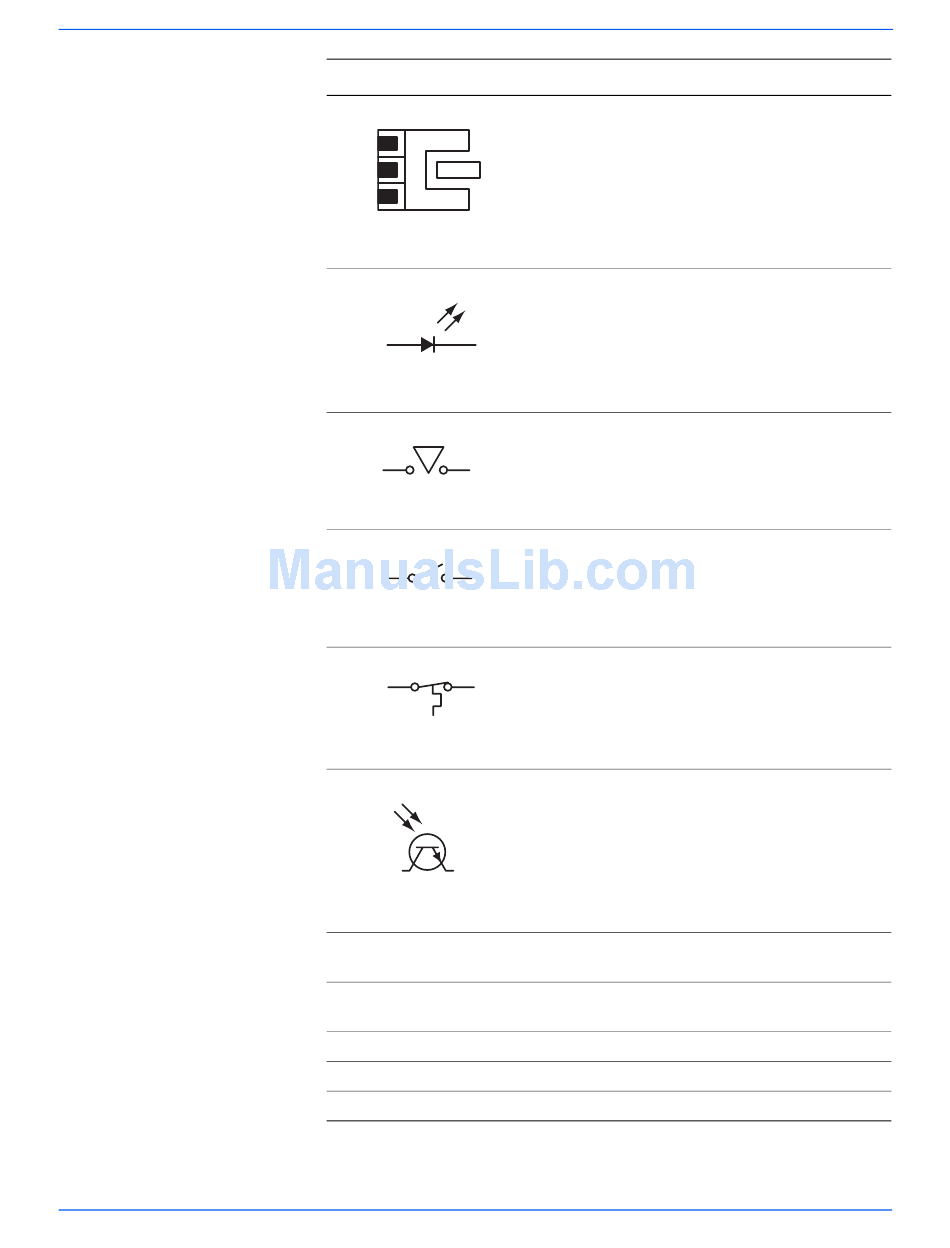

Plug/Jack and Wiring Diagrams
10-18
Description
Symbol
Denotes a Photo Sensor.
s6180-466
Denotes an LED.
s6180-480
Denotes a Safety Interlock Switch.
s6180-481
Denotes an On-Off Switch (single-pole, single-
throw switch).
s6180-482
Denotes an On-Off Switch (Temperature -
normally close).
s6180-484
Denotes an NPN Photo-transistor.
s6180-483
I/L +24 VDC
Denotes DC voltage when the Interlock Switch in
MCU Board turns On.
+5 VDC
Denotes DC voltage.
+3.3 VDC
SG
Denotes signal ground.
AG
Denotes analog ground.
RTN
Denotes return.
Phaser 6180 Color Laser Printer Service Manual
