Phaser 6180 Color Laser Printer Service Manual
10.

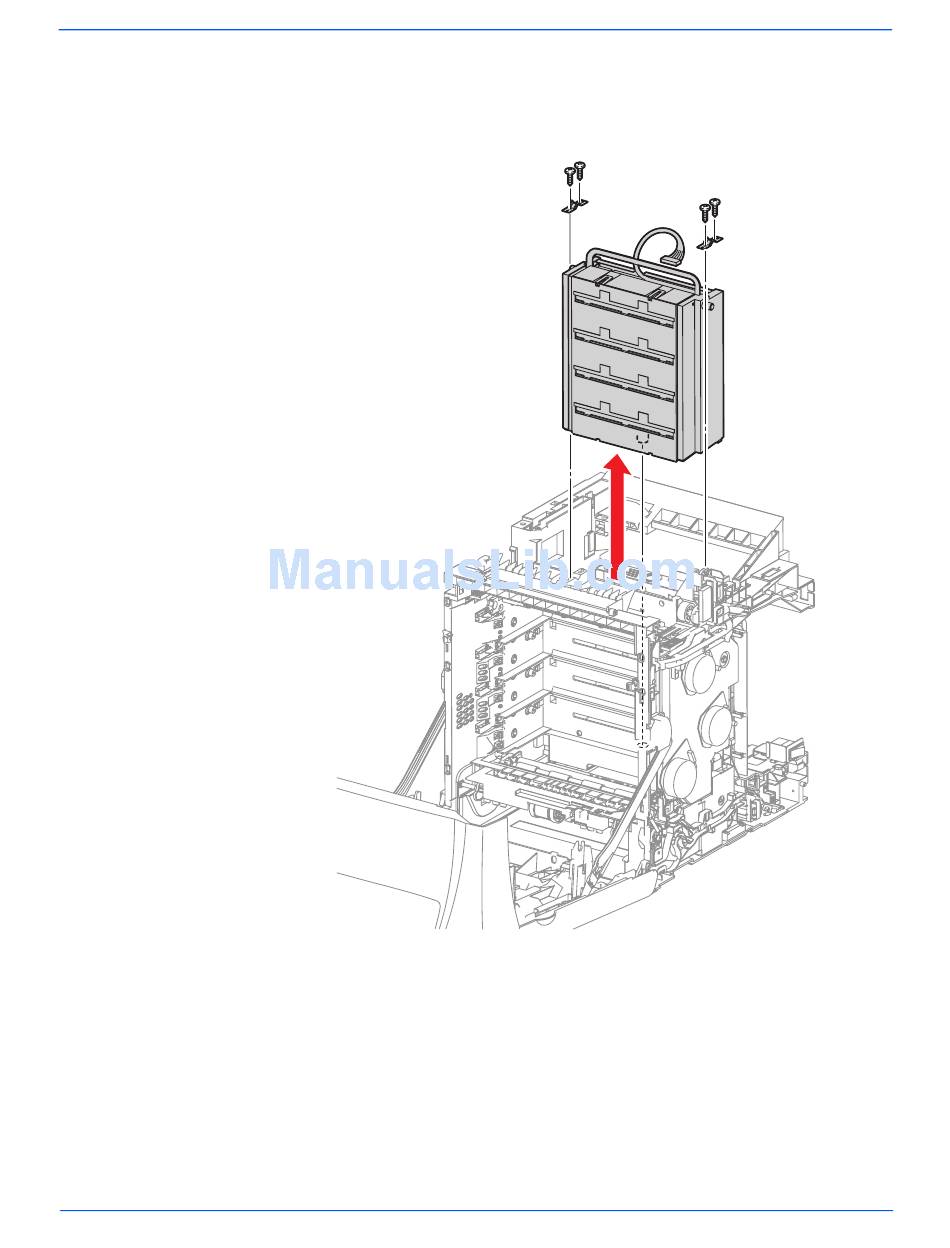

Remove 4 screws (10 mm) securing the Laser Unit Springs (PL5.1.1) on
the left and right sides.
11.
Remove the Laser Unit Springs.
12.
Slowly lift up the Laser Unit and remove it from the printer.
Service Parts Disassembly
s6180-054
51
