Phaser 6180 Color Laser Printer Service Manual
Regi Sensor
1.
Enter the Service Diagnostic menu (page 4-5).
2.
Remove Tray 2.
3.
Perform the Regi Sensor test:
Sensor.
4.

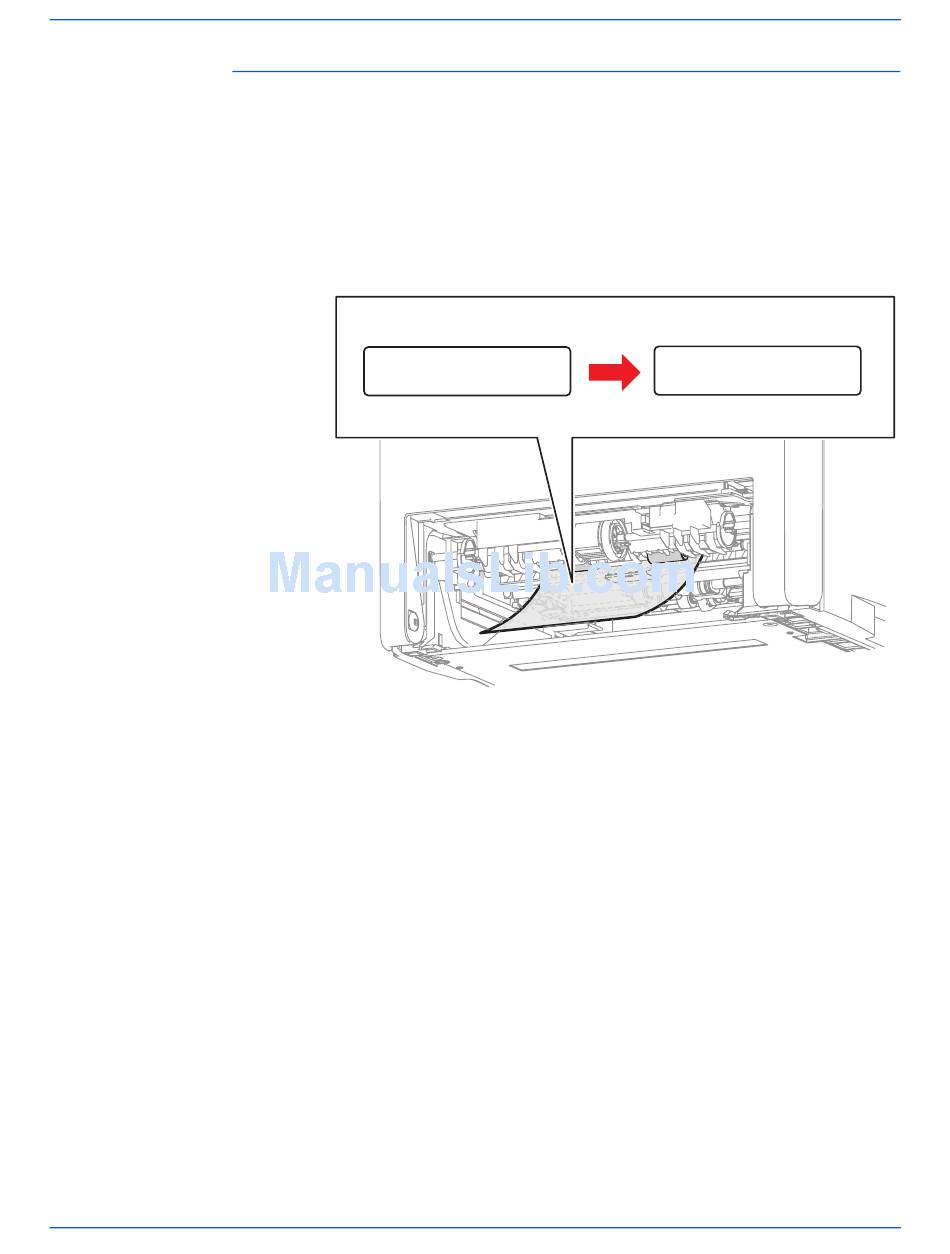

Insert one sheet of paper in between the Registration Chute and the Turn
Clutch until the paper stops.
5.
Slowly pull out the sheet of paper while checking the information on the
Control Panel display. The Low and High values change from 0 up 99.
Control Panel
6.
Press the Cancel button to stop the Regi Sensor test.
Engine Diag
Normal
Regi Sensor
L-0
General Troubleshooting
>
Sensor Test
>
Regi
Regi Sensor
H-0
s6180-343
4-29
